◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#7759) — 52 parça

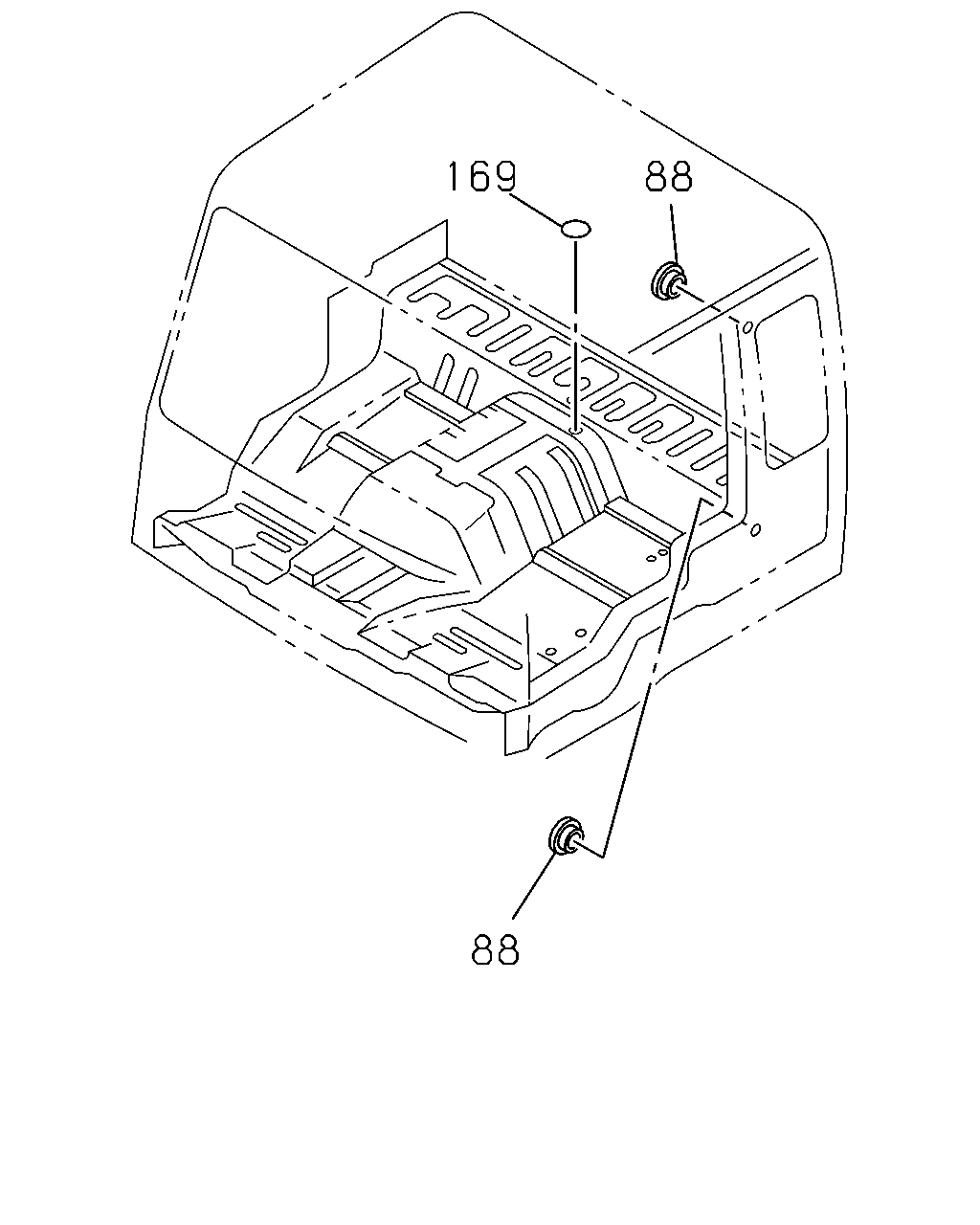

çizim 42739
169 88 88
BalonParca AdiParca NoAdetTipApplied Date A B
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 9902-0003 ●
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3), DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) OD=31.6 		8-94198-177-0 02 1 0004- ●
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3), DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) OD=25 BLACK 		1-76798-019-0 05 1 9902- ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0004- ●

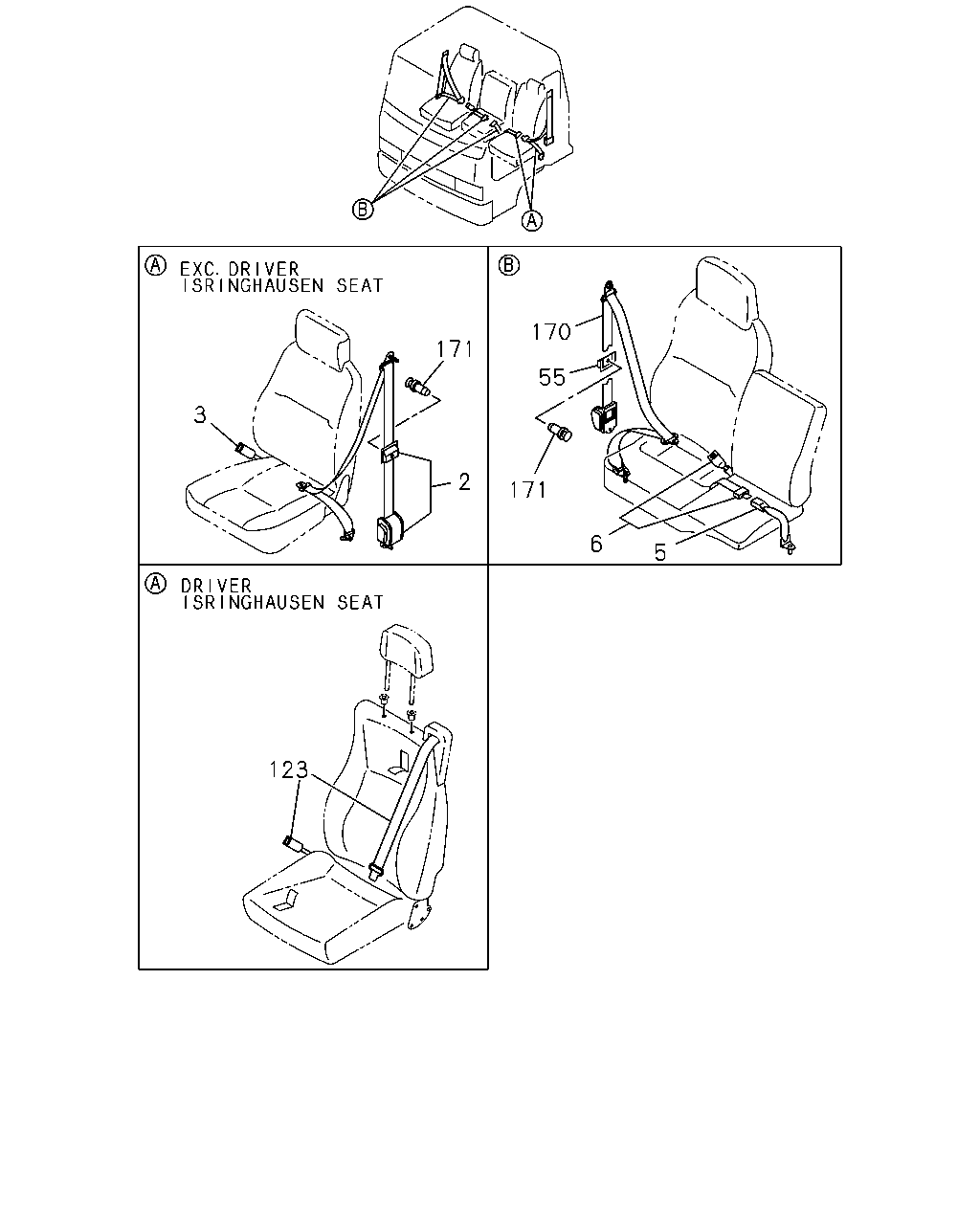

çizim 44484
170 171 55 3 2 171 6 5 123
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-559-0 01 1 9905- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-514-5 01 1 9902-0003 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-514-5 01 1 0004- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-509-5 01 1 0004- ●
3 BELT; SEAT,BUCKLE SIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-831-1 01 1 9905- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-779-0 01 1 9902-9906 ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-779-0 01 1 9907-0003 ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-779-0 01 1 0004- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-779-0 01 1 0004- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) SAUDI ARABIA EQUIPMENT(WH1) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-735-2 01 1 9907- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75618-739-0 01 1 9902-0003 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75618-739-0 01 1 0004- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CENTER SEAT DELETE(SP9) 		1-75618-739-0 01 1 0004- ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-511-4 01 1 9902- ●
6 BELT; CENTER SEAT,TONGUE SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75617-562-1 01 1 9902- ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CENTER SEAT DELETE(SP9) 		1-75618-737-4 01 1 0004- ●
55 GUIDE; SEAT BELT
ISRINGHAUSEN SEAT(SJA) 		1-75617-513-0 02 1 9902- ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3), ISRINGHAUSEN SEAT(SJA),DRIVER SEAT BELT W/PRE TENSIONREDUCER(TFN) 		1-75617-513-0 02 1 9902- ●
123 BELT ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75617-569-0 01 1 9902- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-509-5 01 1 9902- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75617-561-1 01 1 9902- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-738-6 01 1 0004- ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9902-0003 ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0004- ● ●

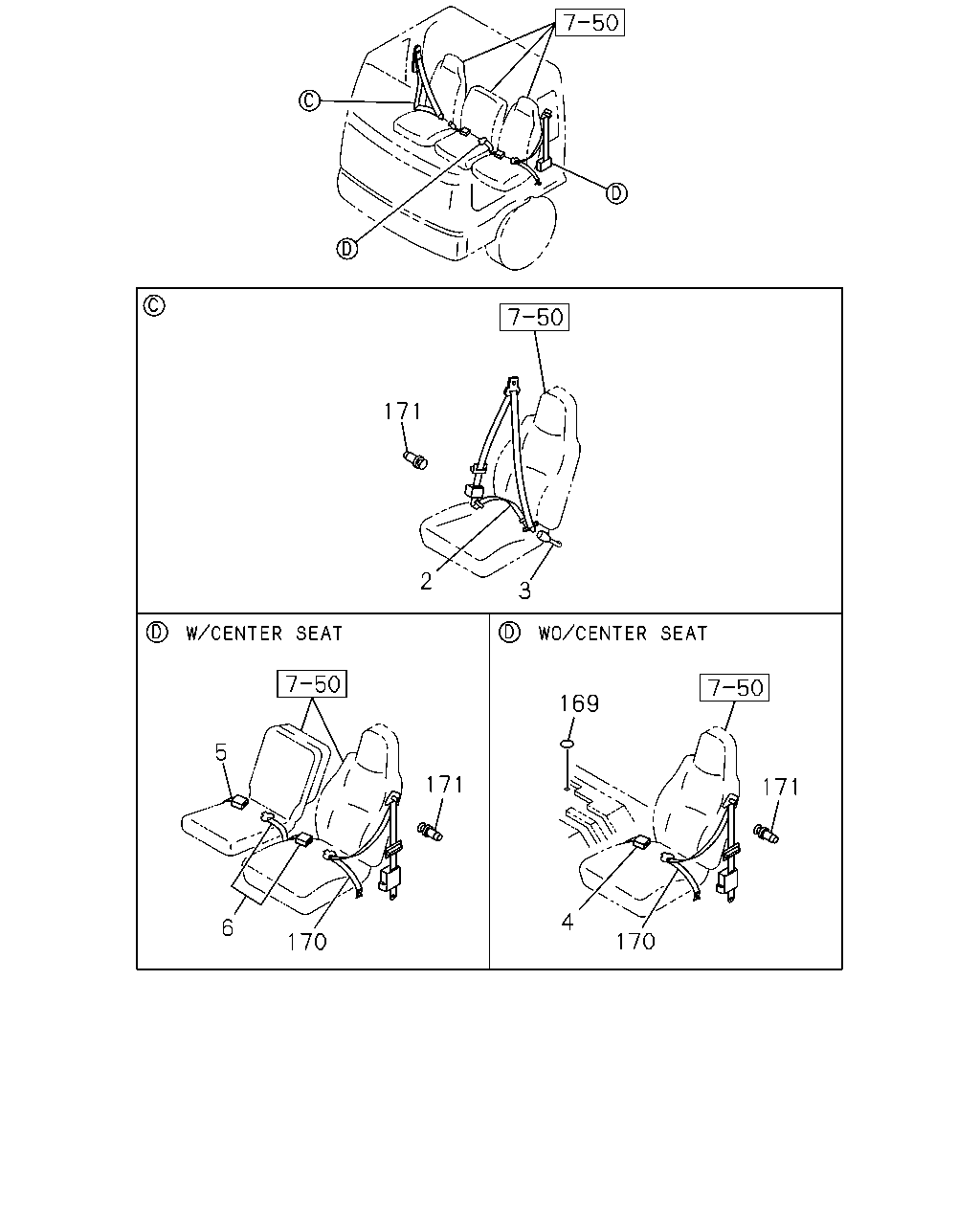

çizim 44889
171 2 3 169 5 171 171 4 6 170 170
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-559-0 01 1 9905- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-514-5 01 1 9902-0003 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-514-5 01 1 0004- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-509-5 01 1 0004- ●
3 BELT; SEAT,BUCKLE SIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-831-1 01 1 9905- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-779-0 01 1 9902-9906 ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-779-0 01 1 9907-0003 ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-779-0 01 1 0004- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-779-0 01 1 0004- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) SAUDI ARABIA EQUIPMENT(WH1) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-735-2 01 1 9907- ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CENTER SEAT DELETE(SP9) 		1-75618-752-1 01 1 0004- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75618-739-0 01 1 9902-0003 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75618-739-0 01 1 0004- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CENTER SEAT DELETE(SP9) 		1-75618-739-0 01 1 0004- ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-511-4 01 1 9902- ●
6 BELT; CENTER SEAT,TONGUE SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75617-562-1 01 1 9902- ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CENTER SEAT DELETE(SP9) 		1-75618-737-4 01 1 0004- ●
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3), DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) OD=25 BLACK 		1-76798-019-0 05 1 9902- ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0004- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-509-5 01 1 9902- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75617-561-1 01 1 9902- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-738-6 01 1 0004- ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9902-0003 ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0004- ● ●
