6-20 — SIDE PANEL AND STEP (#77589) — 180 parça

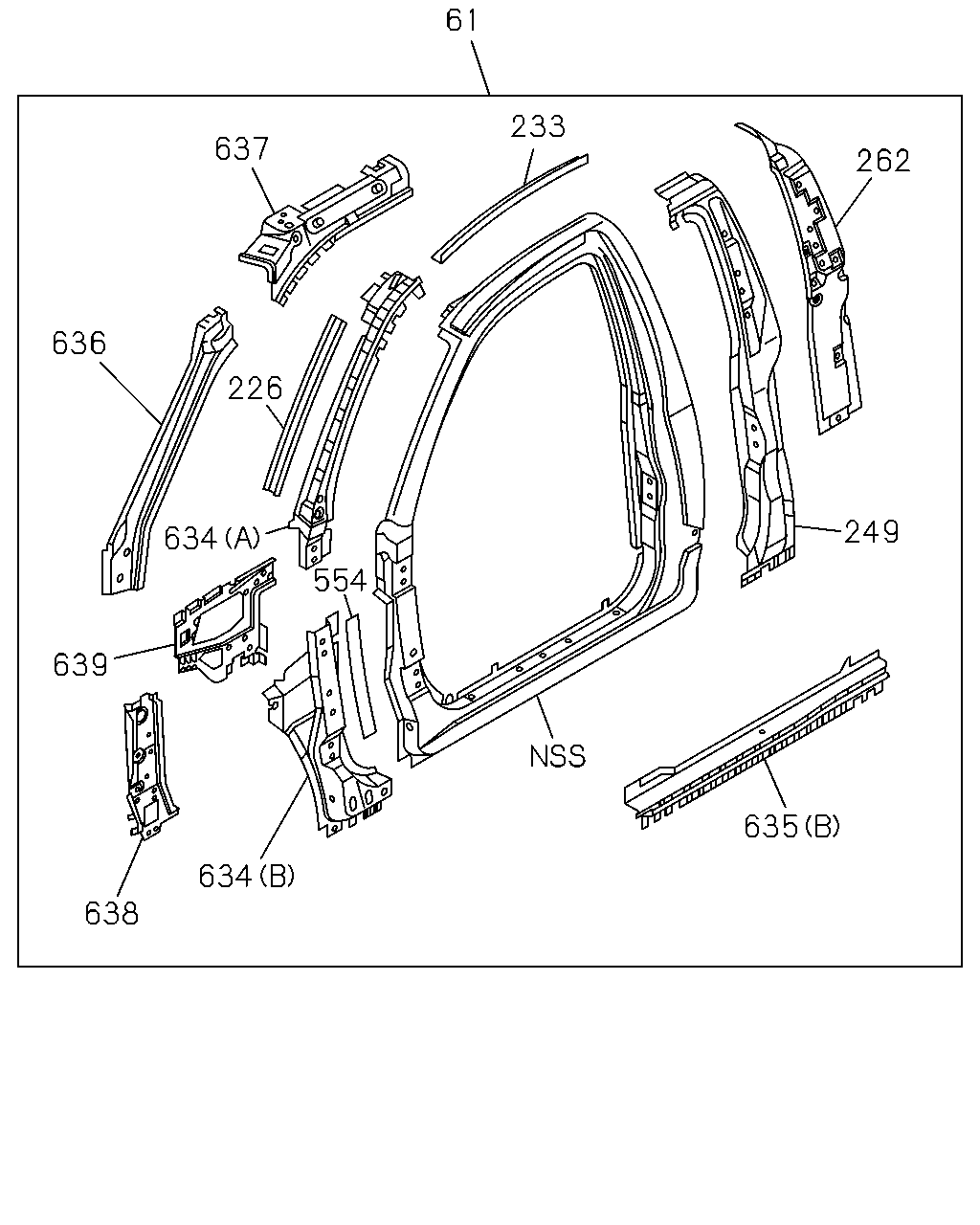

çizim 160541
61 233 637 262 636 226 249 634 554 639 635 634 638
BalonParca AdiParca NoAdetTipApplied Date A B C D
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97250-174-0 01 1 0306- ● ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97250-175-0 01 1 0306- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97251-800-0 01 1 0306- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97251-801-0 01 1 0306- ● ●
61 16.570 PANEL; SIDE OUTER 8-97332-711-1 01 1 0306- ● ●
61 16.570 PANEL; SIDE OUTER 8-97332-712-1 01 1 0306-0709 ● ●
61 16.570 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> 		8-98052-877-0 01 1 0710- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> 		8-97332-712-1 01 1 0710- ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-97235-066-2 01 1 0306- ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-97235-067-2 01 1 0306- ● ● ● ●
233 16.585 RAIL; RR ROOF 8-97235-068-1 01 1 0306- ● ●
233 16.585 RAIL; RR ROOF 8-97235-069-1 01 1 0306- ● ●
233 16.585 RAIL; RR ROOF 8-93291-057-3 01 1 0306- ● ●
233 16.585 RAIL; RR ROOF 8-93367-929-3 01 1 0306- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-97235-848-3 01 1 0306- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-97235-849-3 01 1 0306- ● ●
262 16.575 PANEL; PILLAR 8-97235-308-6 01 1 0306- ● ●
262 16.575 PANEL; PILLAR 8-97235-309-6 01 1 0306- ● ●
554 16.570 SEAL; INNER BODY
EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 04 1 0710-0712 ● ●
554 16.570 SEAL; INNER BODY
SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 0710-1003 ● ●
554 16.570 SEAL; INNER BODY
PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 0710-1003 ● ●
554 16.570 SEAL; INNER BODY
SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. ROOF RADIO ANTENNA<U71>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 0710-1003 ● ●
554 16.570 SEAL; INNER BODY
PLANT - ISUZU,THAILAND<8KX> EXC. ROOF RADIO ANTENNA<U71> 		8-94199-115-0 01 1 0710-1003 ● ●
554 16.570 SEAL; INNER BODY
GRADE LT(RBD) ROOF RADIO ANTENNA<U71> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 0710-1003 ● ●
554 16.570 SEAL; INNER BODY
GRADE LT(RBD) ROOF RADIO ANTENNA<U71> PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 0710-1003 ● ●
554 16.570 SEAL; INNER BODY
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1004-1007 ● ●
554 16.570 SEAL; INNER BODY
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1004-1007 ● ●
554 16.570 SEAL; INNER BODY
SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1008- ● ●
554 16.570 SEAL; INNER BODY
PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1008- ● ●
554 16.570 SEAL; INNER BODY
SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. ROOF RADIO ANTENNA<U71>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1008- ● ●
554 16.570 SEAL; INNER BODY
PLANT - ISUZU,THAILAND<8KX> EXC. ROOF RADIO ANTENNA<U71> 		8-94199-115-0 01 1 1008- ● ●
554 16.570 SEAL; INNER BODY
GRADE LT(RBD) ROOF RADIO ANTENNA<U71> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1008- ● ●
554 16.570 SEAL; INNER BODY
GRADE LT(RBD) ROOF RADIO ANTENNA<U71> PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1008- ● ●
554 16.570 SEAL; INNER BODY 8-94199-115-0 02 1 0306-0709 ● ● ● ●
554 16.570 SEAL; INNER BODY
SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 0710-0712 ● ●
554 16.570 SEAL; INNER BODY
PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 0710-0712 ● ●
554 16.570 SEAL; INNER BODY
EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 0710-0712 ● ●
554 16.570 SEAL; INNER BODY
EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 0710-0712 ● ●
554 16.570 SEAL; INNER BODY 8-94199-115-0 02 1 0801-1003 ● ●
554 16.570 SEAL; INNER BODY
EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 0801-1003 ● ●
554 16.570 SEAL; INNER BODY 8-94199-115-0 02 1 1004-1007 ● ●
554 16.570 SEAL; INNER BODY
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 1004-1007 ● ●
554 16.570 SEAL; INNER BODY 8-94199-115-0 02 1 1008- ● ●
554 16.570 SEAL; INNER BODY
EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 1008- ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) 		8-97234-978-1 01 1 0306- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) 		8-97234-979-1 01 1 0306- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) 		8-97236-793-1 01 1 0306- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) 		8-97236-794-1 01 1 0306- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-97235-310-0 01 1 0306- ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-97235-311-0 01 1 0306- ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-97235-045-1 01 1 0306- ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-97235-054-1 01 1 0306- ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-97324-189-1 01 1 0306- ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-97324-190-1 01 1 0306- ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-97235-070-4 01 1 0306- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-97235-072-4 01 1 0306- ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER 8-97235-078-3 01 1 0306- ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER 8-97235-079-3 01 1 0306- ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-97249-307-1 01 1 0306- ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-97249-308-1 01 1 0306- ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-97235-057-2 01 1 0306- ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-97235-058-2 01 1 0306- ● ● ● ●

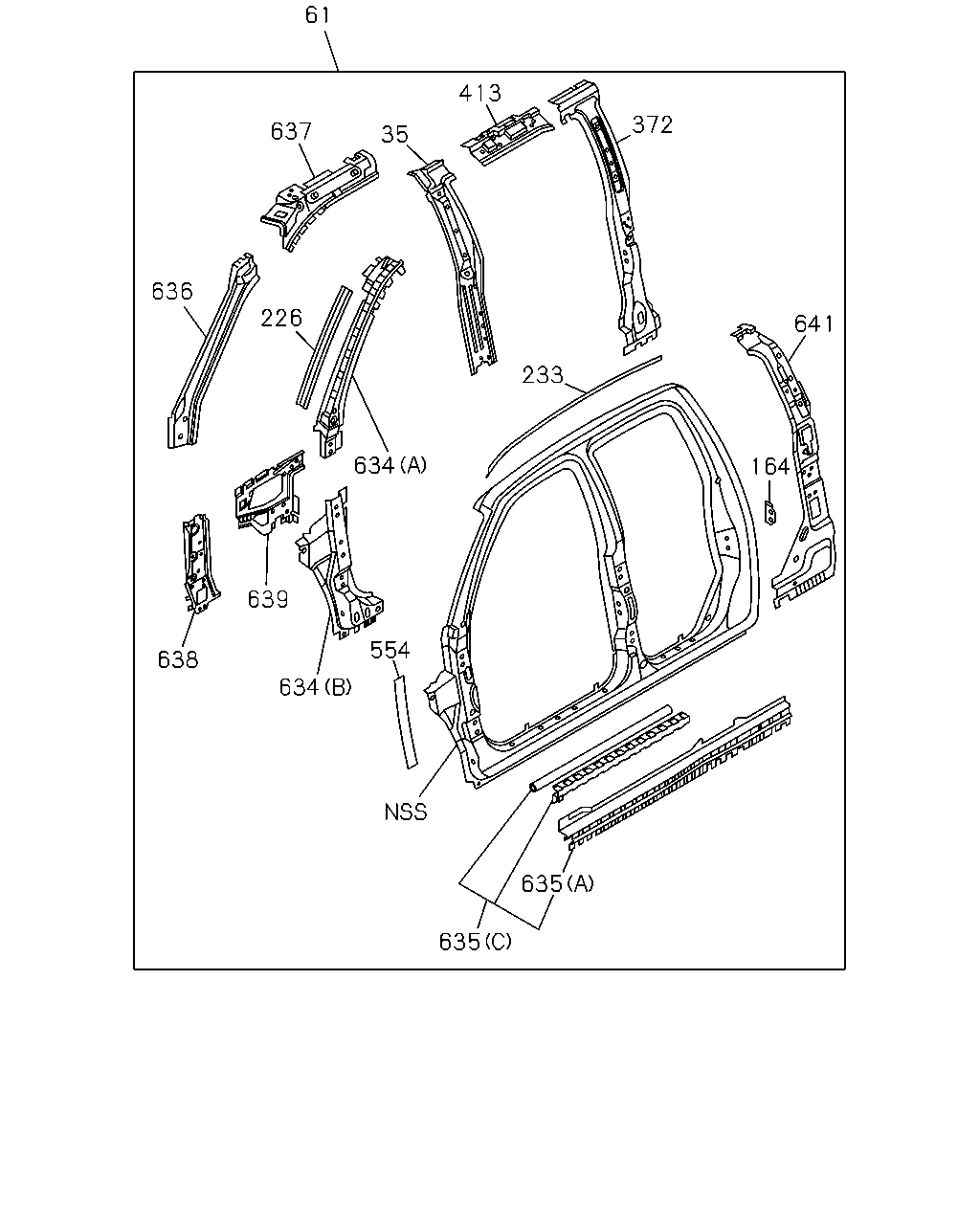

çizim 160545
61 413 372 637 35 636 226 641 233 634 164 639 554 638 634 635 635
BalonParca AdiParca NoAdetTipApplied Date A B C D
35 16.570 PANEL; CENTER PILLAR,INNER 8-93291-049-3 01 1 0306- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-93291-050-3 01 1 0306- ● ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97250-174-0 01 1 0306- ● ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97250-175-0 01 1 0306- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97251-800-0 01 1 0306- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97251-801-0 01 1 0306- ● ●
61 16.570 PANEL; SIDE OUTER 8-97332-711-1 01 1 0306- ● ●
61 16.570 PANEL; SIDE OUTER 8-97332-712-1 01 1 0306-0709 ● ●
61 16.570 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> 		8-98052-877-0 01 1 0710- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> 		8-97332-712-1 01 1 0710- ● ●
164 16.570 PLATE; SIDE PNL OUTER 8-93297-532-1 02 1 0306-0709 ● ●
164 16.570 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 0710- ● ●
164 16.570 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 0710- ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-97235-066-2 01 1 0306- ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-97235-067-2 01 1 0306- ● ● ● ●
233 16.585 RAIL; RR ROOF 8-97235-068-1 01 1 0306- ● ●
233 16.585 RAIL; RR ROOF 8-97235-069-1 01 1 0306- ● ●
233 16.585 RAIL; RR ROOF 8-93291-057-3 01 1 0306- ● ●
233 16.585 RAIL; RR ROOF 8-93367-929-3 01 1 0306- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR 8-93333-501-5 01 1 0306- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR 8-93333-502-5 01 1 0306- ● ●
413 16.570 PANEL; RR SIDE 8-93297-655-2 01 1 0306- ● ●
413 16.570 PANEL; RR SIDE 8-93297-656-2 01 1 0306- ● ●
554 16.570 SEAL; INNER BODY
EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 04 1 0710-0712 ● ●
554 16.570 SEAL; INNER BODY
SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 0710-1003 ● ●
554 16.570 SEAL; INNER BODY
PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 0710-1003 ● ●
554 16.570 SEAL; INNER BODY
SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. ROOF RADIO ANTENNA<U71>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 0710-1003 ● ●
554 16.570 SEAL; INNER BODY
PLANT - ISUZU,THAILAND<8KX> EXC. ROOF RADIO ANTENNA<U71> 		8-94199-115-0 01 1 0710-1003 ● ●
554 16.570 SEAL; INNER BODY
GRADE LT(RBD) ROOF RADIO ANTENNA<U71> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 0710-1003 ● ●
554 16.570 SEAL; INNER BODY
GRADE LT(RBD) ROOF RADIO ANTENNA<U71> PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 0710-1003 ● ●
554 16.570 SEAL; INNER BODY
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1004-1007 ● ●
554 16.570 SEAL; INNER BODY
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1004-1007 ● ●
554 16.570 SEAL; INNER BODY
SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1008- ● ●
554 16.570 SEAL; INNER BODY
PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1008- ● ●
554 16.570 SEAL; INNER BODY
SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. ROOF RADIO ANTENNA<U71>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1008- ● ●
554 16.570 SEAL; INNER BODY
PLANT - ISUZU,THAILAND<8KX> EXC. ROOF RADIO ANTENNA<U71> 		8-94199-115-0 01 1 1008- ● ●
554 16.570 SEAL; INNER BODY
GRADE LT(RBD) ROOF RADIO ANTENNA<U71> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1008- ● ●
554 16.570 SEAL; INNER BODY
GRADE LT(RBD) ROOF RADIO ANTENNA<U71> PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 01 1 1008- ● ●
554 16.570 SEAL; INNER BODY 8-94199-115-0 02 1 0306-0709 ● ● ● ●
554 16.570 SEAL; INNER BODY
SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 0710-0712 ● ●
554 16.570 SEAL; INNER BODY
PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 0710-0712 ● ●
554 16.570 SEAL; INNER BODY
EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 0710-0712 ● ●
554 16.570 SEAL; INNER BODY
EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 0710-0712 ● ●
554 16.570 SEAL; INNER BODY 8-94199-115-0 02 1 0801-1003 ● ●
554 16.570 SEAL; INNER BODY
EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 0801-1003 ● ●
554 16.570 SEAL; INNER BODY 8-94199-115-0 02 1 1004-1007 ● ●
554 16.570 SEAL; INNER BODY
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 1004-1007 ● ●
554 16.570 SEAL; INNER BODY 8-94199-115-0 02 1 1008- ● ●
554 16.570 SEAL; INNER BODY
EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> 		8-94199-115-0 02 1 1008- ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) 		8-97234-978-1 01 1 0306- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) 		8-97234-979-1 01 1 0306- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) 		8-97236-793-1 01 1 0306- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) 		8-97236-794-1 01 1 0306- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-97235-310-0 01 1 0306- ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-97235-311-0 01 1 0306- ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-97235-045-1 01 1 0306- ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-97235-054-1 01 1 0306- ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-97324-189-1 01 1 0306- ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-97324-190-1 01 1 0306- ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-97235-070-4 01 1 0306- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-97235-072-4 01 1 0306- ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER 8-97235-078-3 01 1 0306- ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER 8-97235-079-3 01 1 0306- ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-97249-307-1 01 1 0306- ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-97249-308-1 01 1 0306- ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-97235-057-2 01 1 0306- ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-97235-058-2 01 1 0306- ● ● ● ●
641 16.570 PANEL; BACK BODY PILLER 8-97357-963-1 01 1 0306- ● ●
641 16.570 PANEL; BACK BODY PILLER 8-97357-964-1 01 1 0306- ● ●

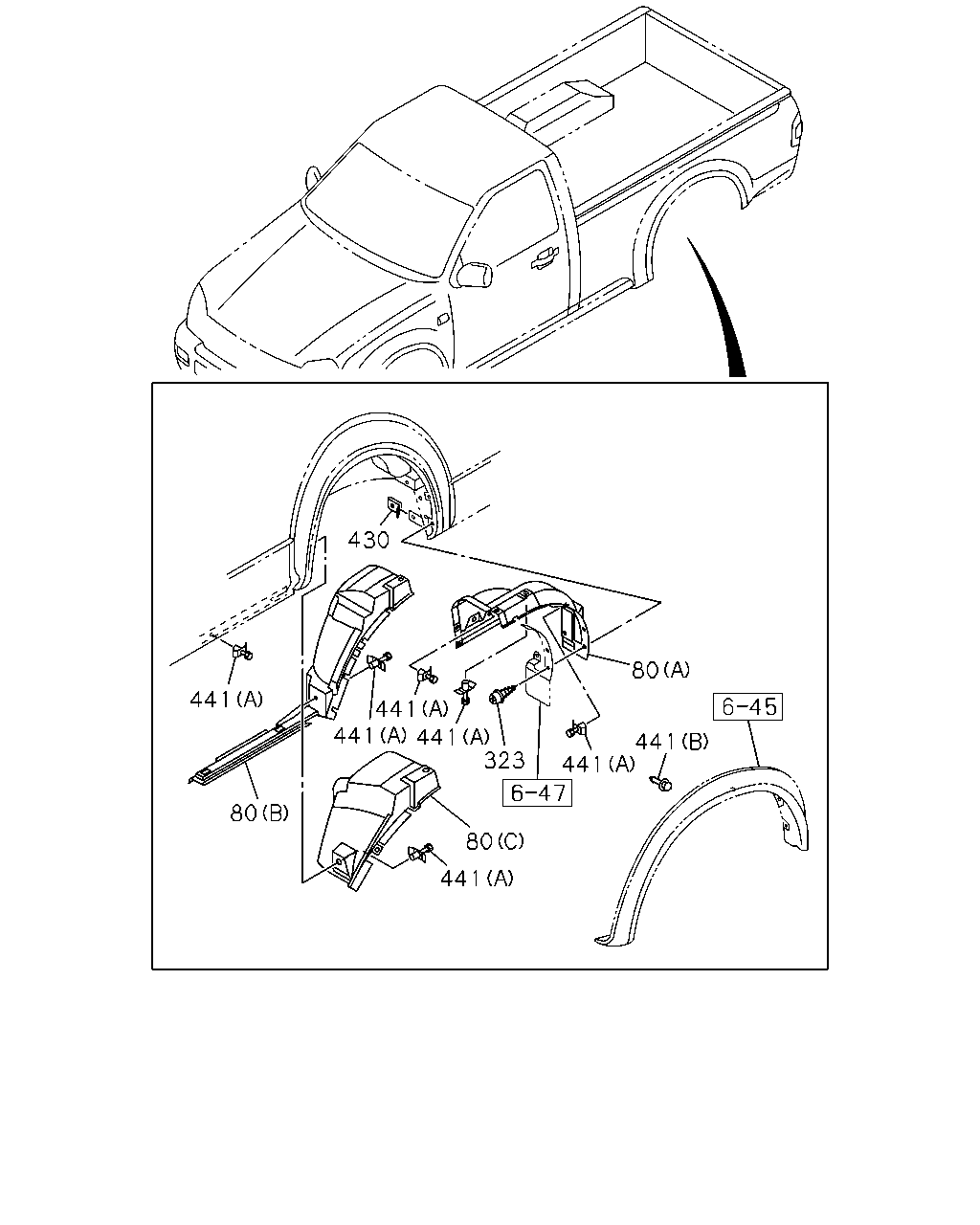

çizim 160567
430 80 441 441 323 441 441 80 80 441 441 441
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97234-863-1 01 1 0306- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(A) 		8-97234-863-1 01 1 0306- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97234-864-1 01 1 0306- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(A) 		8-97234-864-1 01 1 0306- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 17.455 (B) 		8-97234-866-3 01 1 0306-0609 ●
80 08.153 PANEL; WHEEL HOUSE,INNER
17.455 (B) 		8-97234-866-3 01 1 0306-0609 ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98057-537-0 01 1 0610- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(B) 		8-98057-537-0 01 1 0610- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 17.455 (B) 		8-97234-867-2 01 1 0306-0609 ●
80 08.153 PANEL; WHEEL HOUSE,INNER
17.455 (B) 		8-97234-867-2 01 1 0306-0609 ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98057-538-0 01 1 0610- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(B) 		8-98057-538-0 01 1 0610- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 17.455 (C) 		8-97234-874-1 01 1 0306- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
17.455 (C) 		8-97234-874-1 01 1 0306- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 17.455 (C) 		8-97234-875-1 01 1 0306- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
17.455 (C) 		8-97234-875-1 01 1 0306- ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 0403-0612 ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 06 1 0701-1003 ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1004- ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 0306-0402 ● ●
323 08.155 SCREW; SET
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 0306-0402 ● ●
323 08.155 SCREW; SET
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 0403-0612 ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> EXC. OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 0403-0612 ● ●
323 08.155 SCREW; SET
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 0403-0612 ● ●
323 08.155 SCREW; SET
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 07.833 M6X20 TAPPING 		8-98052-950-0 08 1 0701-1003 ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> EXC. OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 08 1 0701-1003 ● ●
323 08.155 SCREW; SET
07.833 M6X20 TAPPING 		8-98052-950-0 08 1 0701-1003 ● ●
323 08.155 SCREW; SET
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 08 1 1004- ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> EXC. OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 08 1 1004- ● ●
323 08.155 SCREW; SET
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 08 1 1004- ● ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 08.155 		8-97125-519-0 06 1 0403- ● ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) 08.155 		8-97125-519-0 08 1 0306-0402 ● ●
430 16.570 NUT; PANEL
08.155 		8-97125-519-0 08 1 0306-0402 ● ●
430 16.570 NUT; PANEL
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 08.155 		8-97125-519-0 08 1 0403- ● ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> EXC. OVER FENDER<B74> 08.155 		8-97125-519-0 08 1 0403- ● ●
430 16.570 NUT; PANEL
08.155 		8-97125-519-0 08 1 0403- ● ●
441 07.829 CLIP
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 08.154 (A) 		8-94221-150-0 08 1 0403- ● ●
441 07.829 CLIP
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> 08.154 (A) 		8-94221-150-0 14 1 0403- ● ●
441 07.829 CLIP
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97359-942-0 06 1 0406- ●
441 07.829 CLIP
(B) 		8-97359-942-0 06 1 0406- ●
441 07.829 CLIP
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97117-942-0 05 1 0306-0401 ●
441 07.829 CLIP
(B) 		8-97117-942-0 05 1 0306-0401 ●
441 07.829 CLIP
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97359-942-0 05 1 0402-0609 ●
441 07.829 CLIP
(B) 		8-97359-942-0 05 1 0402-0609 ●
441 07.829 CLIP
REAR BODY DBL WALL CTR PULL(E63) 08.154 (A) 		8-94221-150-0 06 1 0306-0402 ● ●
441 07.829 CLIP
08.154 (A) 		8-94221-150-0 06 1 0306-0402 ● ●
441 07.829 CLIP
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 08.154 (A) 		8-94221-150-0 06 1 0403- ● ●
441 07.829 CLIP
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> EXC. OVER FENDER<B74> 08.154 (A) 		8-94221-150-0 06 1 0403- ● ●
441 07.829 CLIP
08.154 (A) 		8-94221-150-0 06 1 0403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
