6-05 — FRONT PANEL (#77585) — 77 parça

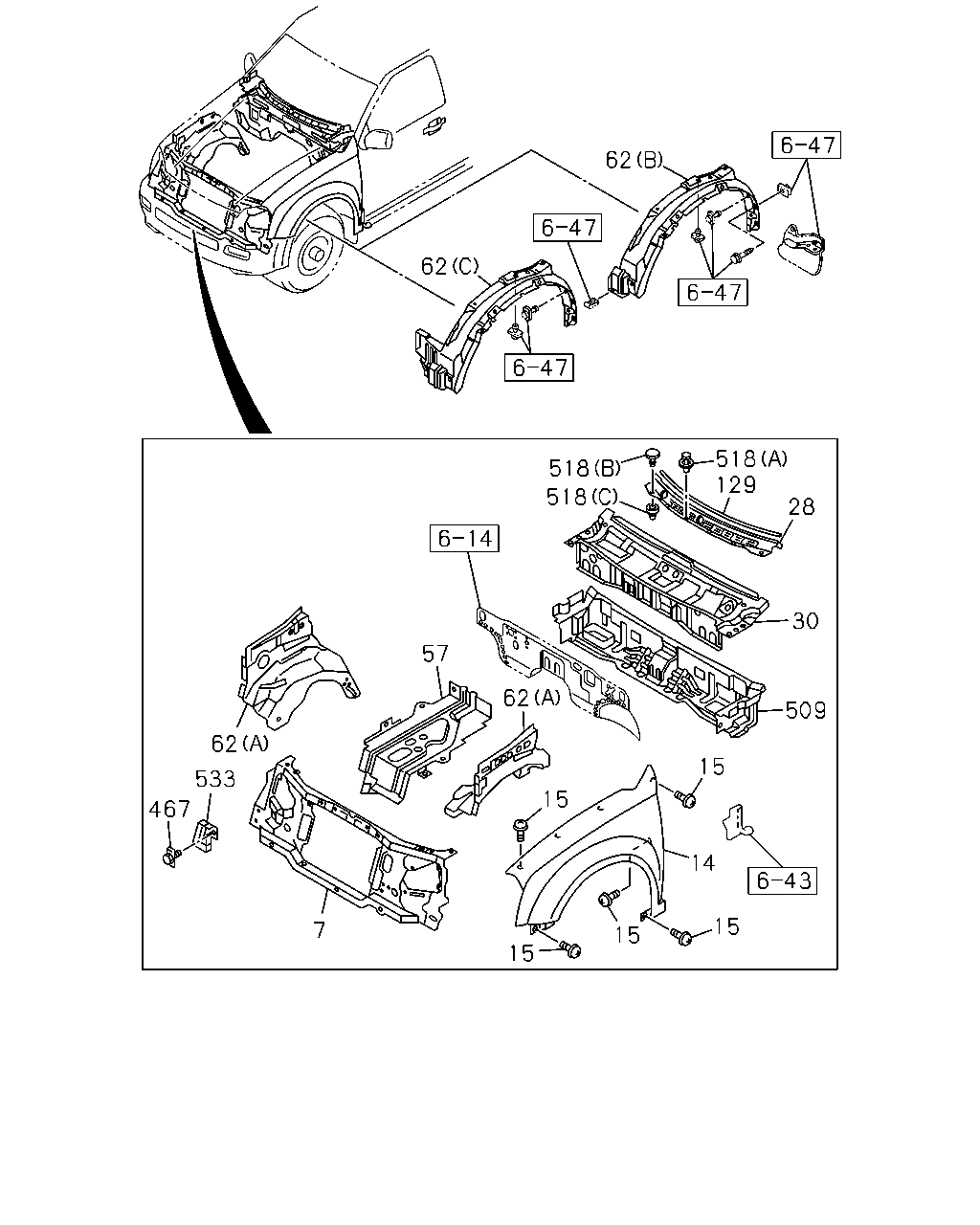

çizim 160549
62 62 518 129 518 518 28 30 57 62 509 62 15 533 15 467 14 15 7 15 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 01.271 PANEL; DEFLECTOR 8-97366-938-0 01 1 0306-0402 ● ● ● ●
7 01.271 PANEL; DEFLECTOR 8-97364-302-1 01 1 0403-0609 ● ● ● ●
7 01.271 PANEL; DEFLECTOR 8-97387-380-0 01 1 0610- ● ● ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74> 		8-97234-752-7 01 1 0306-0508 ● ● ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74> 		8-97234-753-7 01 1 0306-0508 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> 		8-97234-754-6 01 1 0306-0508 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> 		8-97234-755-6 01 1 0306-0508 ● ● ● ●
14 08.130 FENDER; FRT
DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> 		8-97374-638-1 01 1 0509-0609 ● ● ● ●
14 08.130 FENDER; FRT
DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> 		8-97374-639-1 01 1 0509-0609 ● ● ● ●
14 08.130 FENDER; FRT
DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> OVER FENDER<B74> 		8-97367-005-0 01 1 0509-0609 ● ● ● ●
14 08.130 FENDER; FRT
DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> OVER FENDER<B74> 		8-97367-006-0 01 1 0509-0609 ● ● ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL <8JH> 		8-97234-752-7 01 1 0509-0609 ● ● ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL <8JH> 		8-97234-753-6 01 1 0509-0609 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLD ING CHROME TURN SIGNAL<8JH> 		8-97234-754-6 01 1 0509-0609 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLD ING CHROME TURN SIGNAL<8JH> 		8-97234-755-6 01 1 0509-0609 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLD ING CHROME TURN SIGNAL<8JH> 		8-97387-359-0 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLD ING CHROME TURN SIGNAL<8JH> 		8-97387-360-0 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> 		8-97387-365-0 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> 		8-97387-366-0 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> 		8-97387-374-1 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> 		8-97387-375-1 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL <8JH> 		8-97387-369-1 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL <8JH> 		8-97387-370-1 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLD ING CHROME TURN SIGNAL<8JH> 		8-97387-367-0 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLD ING CHROME TURN SIGNAL<8JH> 		8-97387-368-0 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING C HROME TURN SIGNAL<8JH> 		8-97387-363-0 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING C HROME TURN SIGNAL<8JH> 		8-97387-364-0 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL <8JH> 		8-97387-361-0 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL <8JH> 		8-97387-362-0 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING C HROME TURN SIGNAL<8JH> 		8-97387-371-0 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING C HROME TURN SIGNAL<8JH> 		8-97387-373-0 01 1 0610-0709 ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 		8-97387-359-0 01 1 0710- ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 		8-97387-360-0 01 1 0710- ● ●
14 08.130 FENDER; FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. OVER FENDER<B74> 		8-97387-365-0 01 1 0710- ● ●
14 08.130 FENDER; FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. OVER FENDER<B74> 		8-97387-366-0 01 1 0710- ● ●
14 08.130 FENDER; FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. OVER FENDER<B74> 		8-97387-374-1 01 1 0710- ● ●
14 08.130 FENDER; FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. OVER FENDER<B74> 		8-97387-375-1 01 1 0710- ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-97387-369-1 01 1 0710- ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-97387-370-1 01 1 0710- ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 		8-97387-367-1 01 1 0710- ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 		8-97387-368-1 01 1 0710- ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-97387-363-0 01 1 0710- ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-97387-364-0 01 1 0710- ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-97387-361-0 01 1 0710- ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-97387-362-0 01 1 0710- ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-97387-371-1 01 1 0710- ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-97387-373-1 01 1 0710- ● ●
15 08.143 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-97172-961-1 16 1 0306-0612 ● ● ● ●
15 08.143 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-98056-294-0 16 1 0701-0804 ● ● ● ●
15 08.143 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-98111-470-0 16 1 0805-1009 ● ● ● ●
15 08.143 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-98167-615-0 16 1 1010- ● ● ● ●
28 16.125 COVER; DASH COWL 8-97363-071-0 01 1 0306-0503 ● ● ● ●
28 16.125 COVER; DASH COWL 8-98009-238-0 01 1 0504- ● ● ● ●
30 16.125 PANEL; COWL UPR 8-97253-845-5 01 1 0306-0611 ● ● ● ●
30 16.125 PANEL; COWL UPR 8-98061-602-0 01 1 0612- ● ● ● ●
57 02.333 TRAY; BATTERY 8-97326-537-1 01 1 0306- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
EXC. OVER FENDER<B74> (C) 		8-98007-130-3 01 1 0610- ● ●
62 08.153 PANEL; WHEEL HOUSE
OVER FENDER<B74> (B) 		8-97353-569-0 01 1 0306-0609 ● ●
62 08.153 PANEL; WHEEL HOUSE
(B) 		8-97353-569-0 01 1 0306-0609 ● ●
62 08.153 PANEL; WHEEL HOUSE
OVER FENDER<B74> (C) 		8-98007-134-3 01 1 0610- ● ●
62 08.153 PANEL; WHEEL HOUSE
(C) 		8-98007-134-3 01 1 0610- ● ●
62 08.153 PANEL; WHEEL HOUSE
(A) 		8-97234-964-4 01 1 0306- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(B) 		8-97235-443-1 01 1 0306-0609 ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
OVER FENDER<B74> (C) 		8-98007-132-3 01 1 0610- ● ●
62 08.153 PANEL; WHEEL HOUSE
(C) 		8-98007-132-3 01 1 0610- ● ●
62 08.153 PANEL; WHEEL HOUSE
(A) 		8-97363-273-0 01 1 0306- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
EXC. OVER FENDER<B74> (B) 		8-97313-150-2 01 1 0306-0609 ● ●
62 08.153 PANEL; WHEEL HOUSE
EXC. OVER FENDER<B74> (C) 		8-98007-133-3 01 1 0610- ● ●
129 16.125 FINISHER; COWL COVER 8-97333-282-2 01 1 0306- ● ● ● ●
467 08.309 RIVET; PLASTIC,DRIP MOLDING
08.154 		8-94221-150-0 01 1 0306- ● ● ● ●
509 16.550 PANEL; DASH 8-97253-847-0 01 1 0306-0611 ● ● ● ●
509 16.550 PANEL; DASH 8-98061-606-0 01 1 0612- ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
(B) 		8-97329-760-0 01 1 0306- ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
(C) 		8-97329-761-0 01 1 0306- ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
03.015 (A) 		8-97013-997-0 05 1 0306-0503 ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
03.015 (A) 		8-97013-997-0 03 1 0504- ● ● ● ●
533 08.143 SEAL; FRT PANEL 8-97316-861-0 01 1 0306- ● ● ● ●
