Sayfa 6-03 - Isuzu EPC

6-03 — RADIATOR GRILLE (#77584) — 305 parça

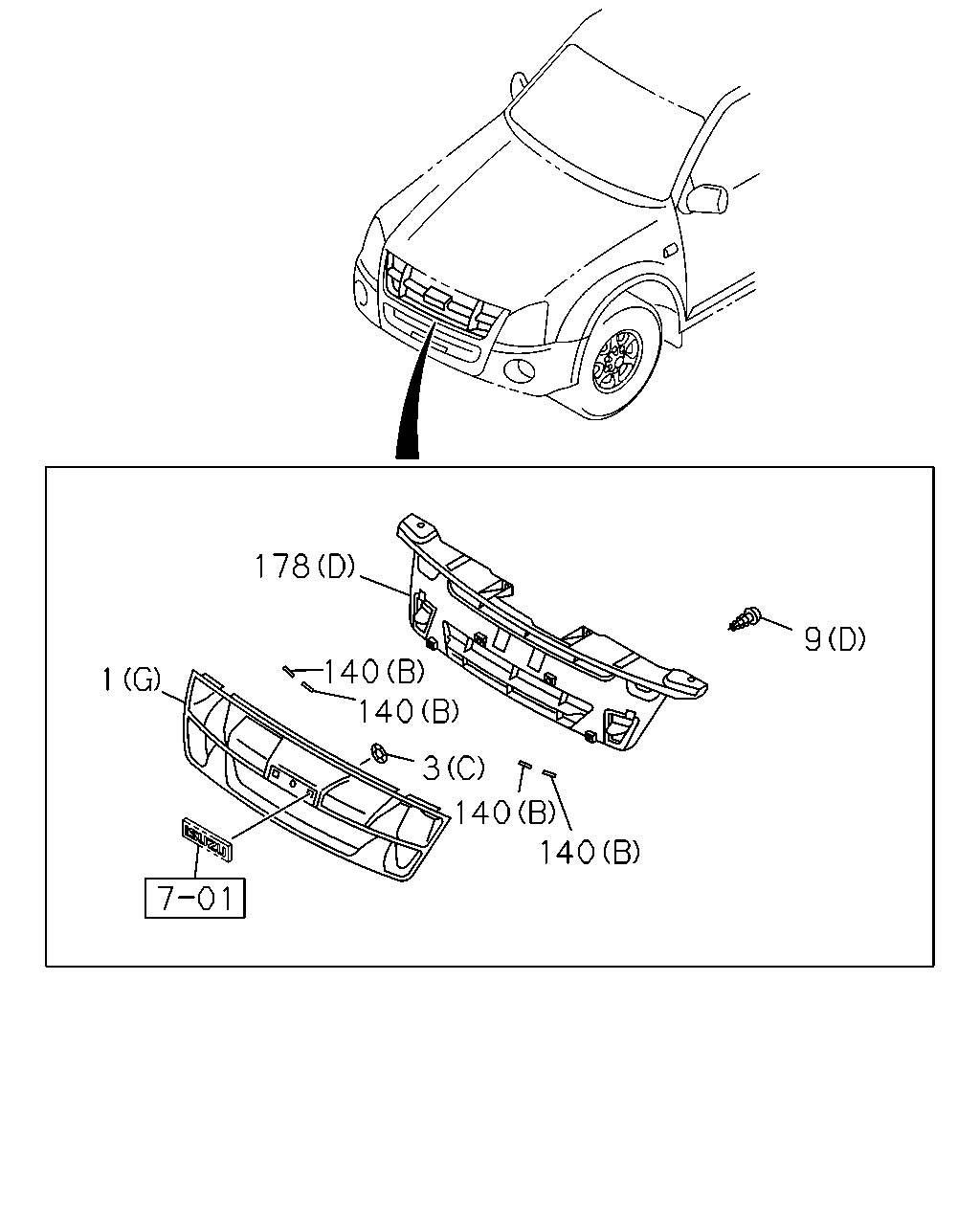

178 9 140 140 1 3 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-97367-361-2	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (E) PLATED	8-98012-482-1	01	1	0610-0610	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (E) PLATED	8-98012-482-1	01	1	0611-0912	●	●	●	●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (E) PLATED	8-98012-482-1	01	1	1001-1003	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (G) PLATED	8-98159-148-0	01	1	1004-1007	●	●	●	●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (G) PLATED	8-98159-148-0	01	1	1008-	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (E)	8-98012-479-1	01	1	0610-0610	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> (E)	8-98012-479-1	01	1	0611-1007	●	●	●	●
1	01.266 GRILLE; RAD GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (E)	8-98012-479-1	01	1	1008-	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0405-0508	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (C) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0506-0609	●	●	●	●
1	01.266 GRILLE; RAD GMC BRAND<RWT> BASE VEHICLE GRILLE<VWX> (F)	8-98012-517-2	01	1	0610-0610	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) PLATED	8-97331-613-0	01	1	0306-0404	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) PLATED	8-97331-613-0	01	1	0405-0508	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) PLATED	8-97331-613-0	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD RADIATOR GRILLE IRON GRAY MET<7LA> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0306-0404	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0405-0508	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609	●	●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> RADIATOR GRILLE IRON GRAY MET<7LA> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609			●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0509-0609	●	●	●	●
3	01.269 CLIP; GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (C)	8-97182-223-0	02	1	0701-0912	●	●	●	●
3	01.269 CLIP; GRILLE (C)	8-97182-223-0	02	1	1001-	●	●	●	●
3	01.269 CLIP; GRILLE BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHTRAD GRILLE<V22> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97317-633-0	01	1	0509-0609	●	●
3	01.269 CLIP; GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97317-633-0	01	1	0509-0609			●	●
3	01.269 CLIP; GRILLE BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> (A)	8-97350-903-0	04	1	0306-0404	●	●	●	●
3	01.269 CLIP; GRILLE CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (A)	8-97350-903-0	04	1	0405-0505	●	●	●	●
3	01.269 CLIP; GRILLE (A)	8-97350-903-0	04	1	0506-0609	●	●	●	●
9	01.269 SCREW; RAD GRILLE BRIGHT RAD GRILLE<V22> (D)	8-98070-852-0	13	1	1004-1007	●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (D)	8-98070-852-0	13	1	1008-	●	●	●	●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (D)	8-98070-852-0	17	1	0701-0912	●	●	●	●
9	01.269 SCREW; RAD GRILLE (D)	8-98070-852-0	17	1	1001-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1004-1007	●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1008-	●	●	●	●
9	01.269 SCREW; RAD GRILLE BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHTRAD GRILLE<V22> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97370-062-0	09	1	0509-0609	●	●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609			●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98018-511-0	02	1	0610-0610	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98049-358-0	02	1	0611-	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	01	1	0306-0609	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	03	1	0610-0703	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0704-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98167-352-0	03	1	1004-	●	●	●	●
140	01.266 SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98130-916-0	04	1	1004-1007	●	●	●	●
140	01.266 SEAL; RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (B)	8-98130-916-0	04	1	1008-	●	●	●	●
140	01.266 SEAL; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A)	8-98070-854-0	01	1	0701-0912	●	●	●	●
140	01.266 SEAL; RAD GRILLE (A)	8-98070-854-0	01	1	1001-1003	●	●	●	●
140	01.266 SEAL; RAD GRILLE BASE VEHICLE GRILLE<VWX> (A)	8-98070-854-0	01	1	1004-1007	●	●	●	●
140	01.266 SEAL; RAD GRILLE GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (A)	8-98070-854-0	01	1	1008-	●	●	●	●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22> (D)	8-98109-370-1	01	1	1004-1007	●	●	●	●
178	01.269 GRILLE; INNER,RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (D)	8-98109-370-1	01	1	1008-	●	●	●	●
178	01.269 GRILLE; INNER,RAD BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHTRAD GRILLE<V22> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97367-363-3	01	1	0509-0609	●	●
178	01.269 GRILLE; INNER,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97367-363-3	01	1	0509-0609			●	●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C)	8-98012-483-2	01	1	0610-0610	●	●	●	●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (C)	8-98012-483-2	01	1	0611-0912	●	●	●	●
178	01.269 GRILLE; INNER,RAD (C)	8-98012-483-2	01	1	1001-1003	●	●	●	●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX> (C)	8-98012-483-2	01	1	1004-1007	●	●	●	●
178	01.269 GRILLE; INNER,RAD GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (C)	8-98012-483-2	01	1	1008-	●	●	●	●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> (A)	8-97331-458-0	01	1	0306-0404	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (A)	8-97331-458-0	01	1	0405-0508	●	●	●	●
178	01.269 GRILLE; INNER,RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A)	8-97331-458-0	01	1	0509-0609	●	●	●	●

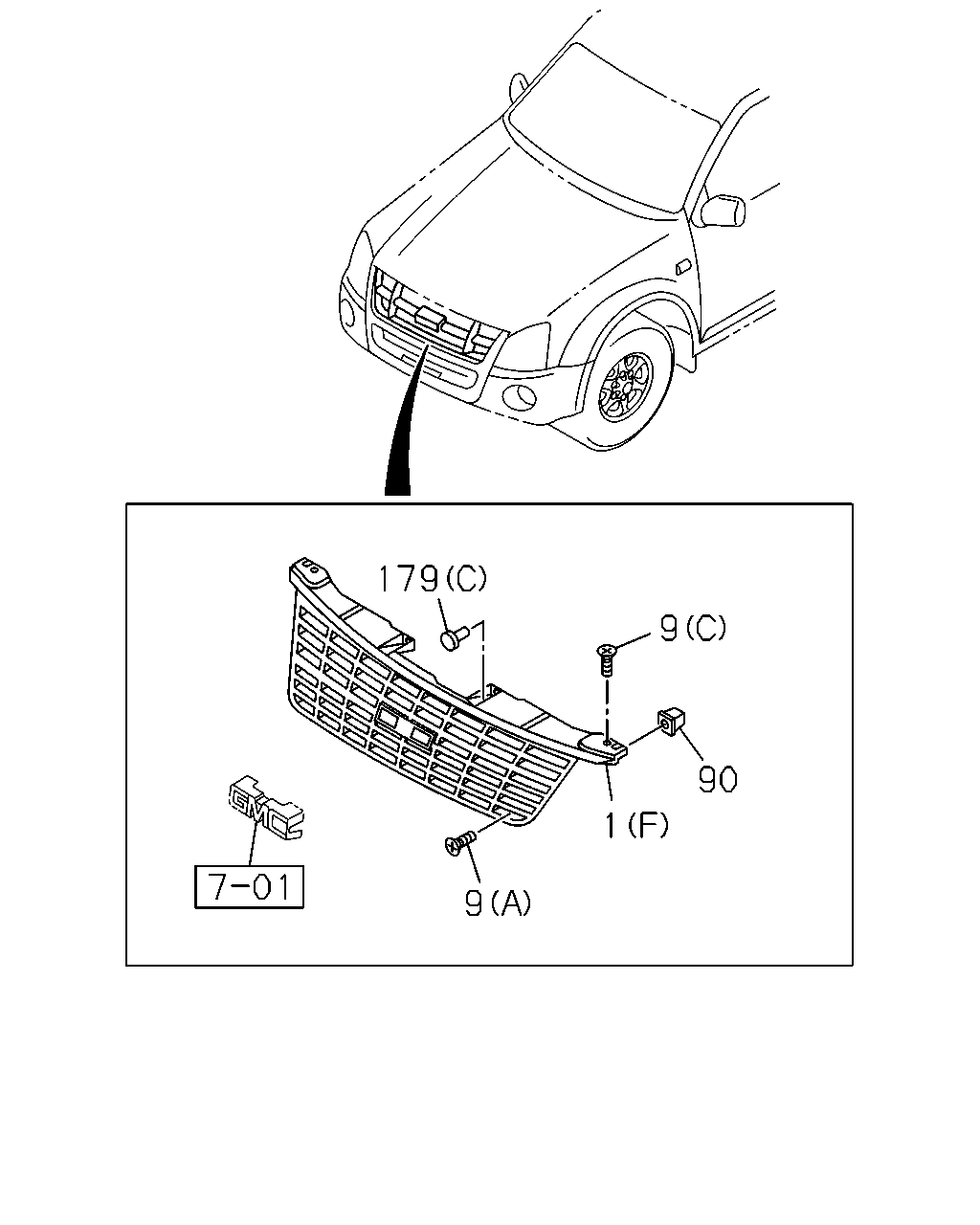

179 9 90 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-97367-361-2	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (E) PLATED	8-98012-482-1	01	1	0610-0610	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (E) PLATED	8-98012-482-1	01	1	0611-0912	●	●	●	●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (E) PLATED	8-98012-482-1	01	1	1001-1003	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (G) PLATED	8-98159-148-0	01	1	1004-1007	●	●	●	●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (G) PLATED	8-98159-148-0	01	1	1008-	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (E)	8-98012-479-1	01	1	0610-0610	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> (E)	8-98012-479-1	01	1	0611-1007	●	●	●	●
1	01.266 GRILLE; RAD GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (E)	8-98012-479-1	01	1	1008-	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0405-0508	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (C) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0506-0609	●	●	●	●
1	01.266 GRILLE; RAD GMC BRAND<RWT> BASE VEHICLE GRILLE<VWX> (F)	8-98012-517-2	01	1	0610-0610	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) PLATED	8-97331-613-0	01	1	0306-0404	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) PLATED	8-97331-613-0	01	1	0405-0508	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) PLATED	8-97331-613-0	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD RADIATOR GRILLE IRON GRAY MET<7LA> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0306-0404	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0405-0508	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609	●	●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> RADIATOR GRILLE IRON GRAY MET<7LA> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609			●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0509-0609	●	●	●	●
9	01.269 SCREW; RAD GRILLE BRIGHT RAD GRILLE<V22> (D)	8-98070-852-0	13	1	1004-1007	●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (D)	8-98070-852-0	13	1	1008-	●	●	●	●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (D)	8-98070-852-0	17	1	0701-0912	●	●	●	●
9	01.269 SCREW; RAD GRILLE (D)	8-98070-852-0	17	1	1001-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1004-1007	●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1008-	●	●	●	●
9	01.269 SCREW; RAD GRILLE BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHTRAD GRILLE<V22> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97370-062-0	09	1	0509-0609	●	●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609			●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98018-511-0	02	1	0610-0610	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98049-358-0	02	1	0611-	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	01	1	0306-0609	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	03	1	0610-0703	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0704-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98167-352-0	03	1	1004-	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	01	1	0306-0609	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	03	1	0610-	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (A)	8-97367-166-0	02	1	0405-0508	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A)	8-97367-166-0	02	1	0509-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD 07.832 (C)	8-97301-188-0	02	1	0610-0709	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD 07.832 (C)	8-97301-188-0	02	1	0710-	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> (B)	8-97350-904-0	02	1	0306-0404	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD ISUZU BRAND<7WL> (B)	8-97350-904-0	02	1	0405-0505	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD GMC BRAND<RWT>,ISUZU BRAND<7WL> (B)	8-97350-904-0	02	1	0506-0508	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (B)	8-97350-904-0	02	1	0509-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B)	8-97350-904-0	02	1	0509-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-97350-904-0	02	1	0509-0609	●	●
179	01.269 RETAINER; GRILLE,RAD BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97350-904-0	02	1	0509-0609	●	●
179	01.269 RETAINER; GRILLE,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97350-904-0	02	1	0509-0609			●	●

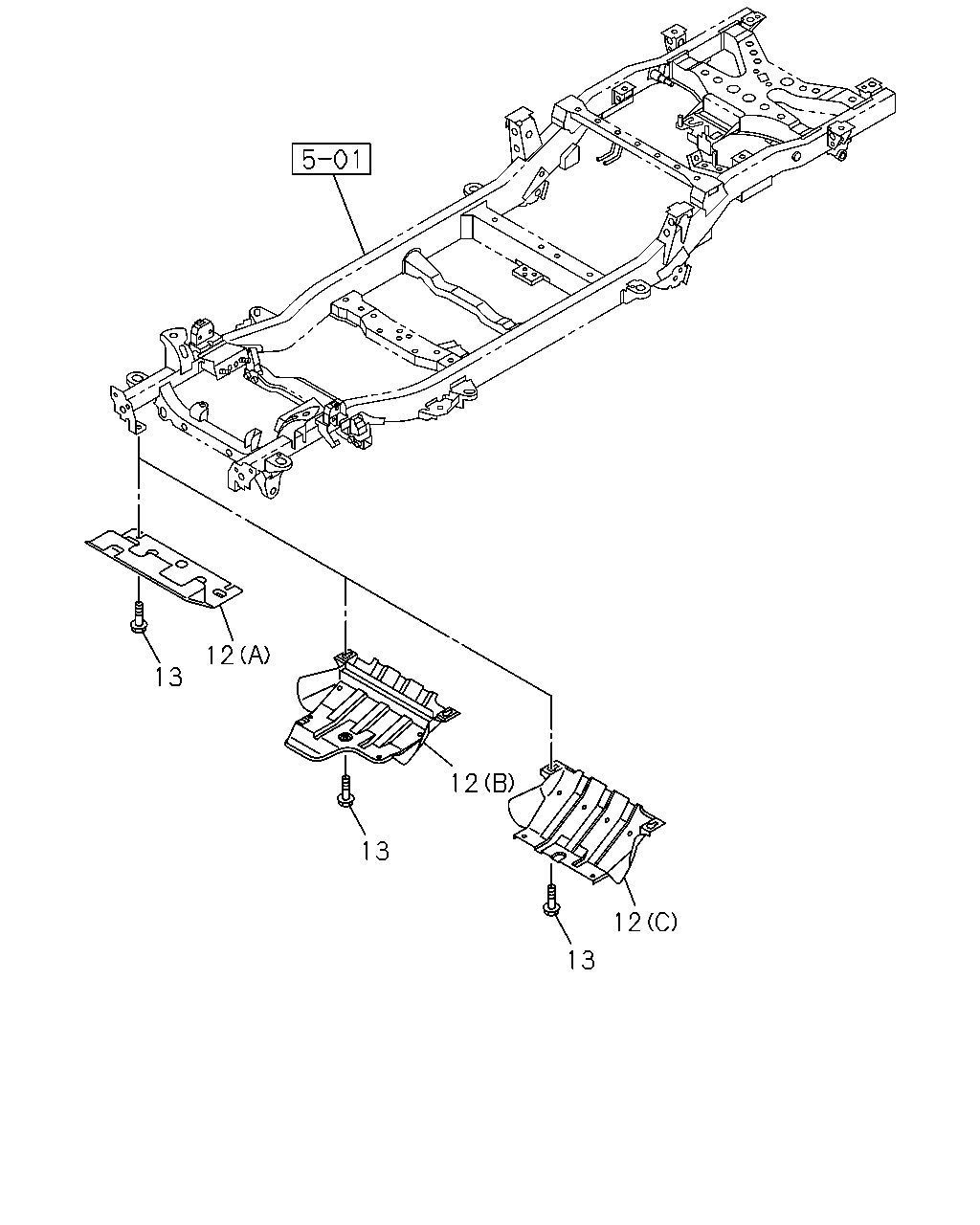

12 13 12 13 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	01.274 PLATE; SKID,RAD 4JJ1-TCS ENG(LFB) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-848-1	01	1	0610-	●	●
12	01.274 PLATE; SKID,RAD SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-919-0	01	1	0306-0609	●	●
12	01.274 PLATE; SKID,RAD C24SE ENG(LG1),4JA1-T ENG(LP0) SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-919-0	01	1	0610-	●	●
12	01.274 PLATE; SKID,RAD SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97943-353-0	01	1	0306-0402	●	●
12	01.274 PLATE; SKID,RAD (B)	8-97943-353-0	01	1	0306-0402			●	●
12	01.274 PLATE; SKID,RAD SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97943-919-0	01	1	0403-0609	●	●
12	01.274 PLATE; SKID,RAD (B)	8-97943-919-0	01	1	0403-0609			●	●
12	01.274 PLATE; SKID,RAD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97943-919-0	01	1	0610-	●	●
12	01.274 PLATE; SKID,RAD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (B)	8-97943-919-0	01	1	0610-			●	●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97943-077-0	04	1	0306-0609	●	●
13	01.267 BOLT; RAD SKID PLATE M10X28 W/LK&PL WASHER	8-97943-077-0	04	1	0306-0609			●	●
13	01.267 BOLT; RAD SKID PLATE 4JJ1-TCS ENG(LFB) EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0610-	●	●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0610-	●	●
13	01.267 BOLT; RAD SKID PLATE M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0610-			●	●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97943-077-0	02	1	0306-0609	●	●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0610-	●	●

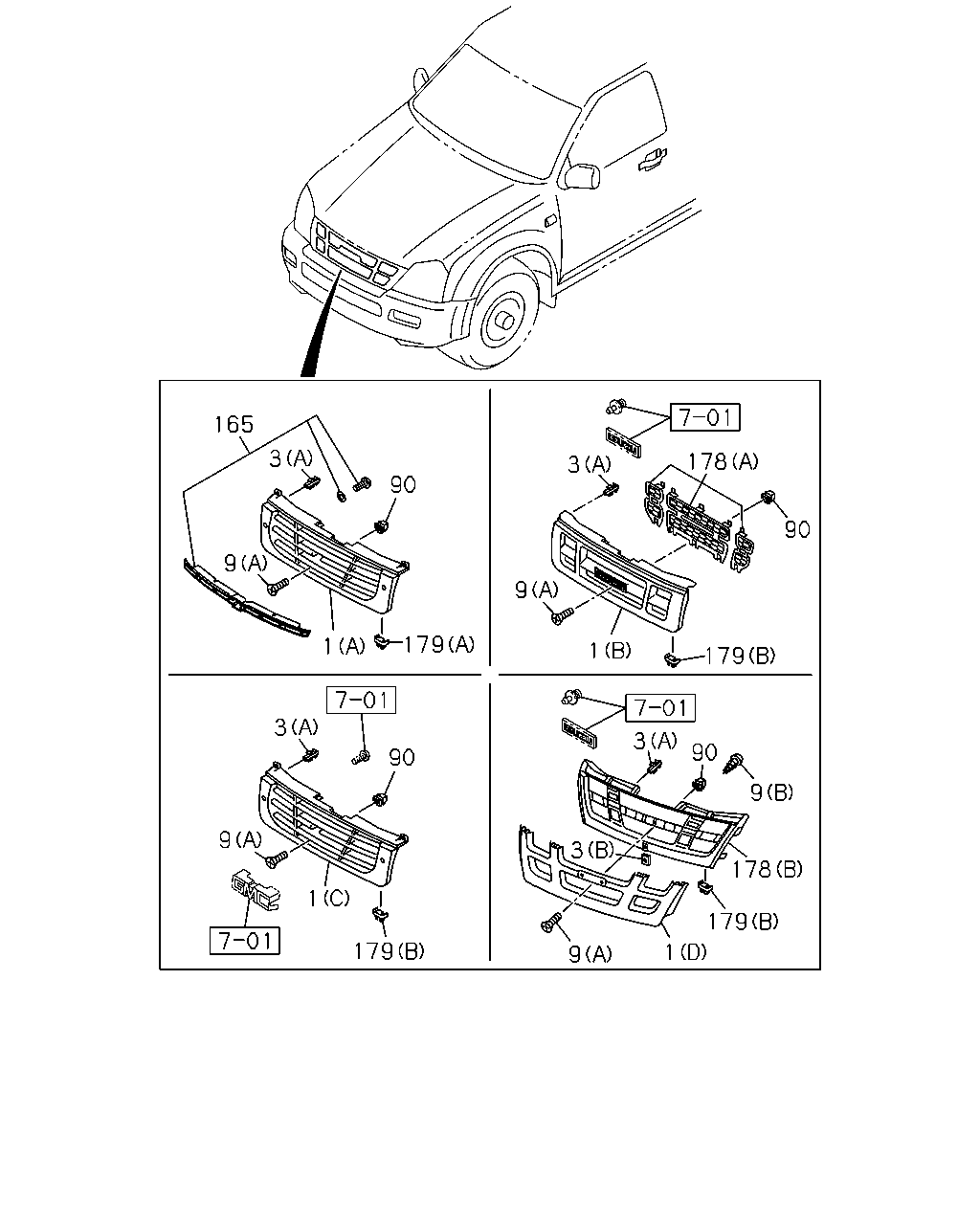

165 3 178 3 90 90 9 9 179 1 1 179 3 3 90 90 9 9 3 178 1 179 179 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-97367-361-2	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (E) PLATED	8-98012-482-1	01	1	0610-0610	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (E) PLATED	8-98012-482-1	01	1	0611-0912	●	●	●	●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (E) PLATED	8-98012-482-1	01	1	1001-1003	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (G) PLATED	8-98159-148-0	01	1	1004-1007	●	●	●	●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (G) PLATED	8-98159-148-0	01	1	1008-	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (E)	8-98012-479-1	01	1	0610-0610	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> (E)	8-98012-479-1	01	1	0611-1007	●	●	●	●
1	01.266 GRILLE; RAD GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (E)	8-98012-479-1	01	1	1008-	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0405-0508	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (C) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0506-0609	●	●	●	●
1	01.266 GRILLE; RAD GMC BRAND<RWT> BASE VEHICLE GRILLE<VWX> (F)	8-98012-517-2	01	1	0610-0610	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) PLATED	8-97331-613-0	01	1	0306-0404	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) PLATED	8-97331-613-0	01	1	0405-0508	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) PLATED	8-97331-613-0	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD RADIATOR GRILLE IRON GRAY MET<7LA> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0306-0404	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0405-0508	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609	●	●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> RADIATOR GRILLE IRON GRAY MET<7LA> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609			●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0509-0609	●	●	●	●
3	01.269 CLIP; GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (C)	8-97182-223-0	02	1	0701-0912	●	●	●	●
3	01.269 CLIP; GRILLE (C)	8-97182-223-0	02	1	1001-	●	●	●	●
3	01.269 CLIP; GRILLE BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHTRAD GRILLE<V22> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97317-633-0	01	1	0509-0609	●	●
3	01.269 CLIP; GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97317-633-0	01	1	0509-0609			●	●
3	01.269 CLIP; GRILLE BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> (A)	8-97350-903-0	04	1	0306-0404	●	●	●	●
3	01.269 CLIP; GRILLE CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (A)	8-97350-903-0	04	1	0405-0505	●	●	●	●
3	01.269 CLIP; GRILLE (A)	8-97350-903-0	04	1	0506-0609	●	●	●	●
9	01.269 SCREW; RAD GRILLE BRIGHT RAD GRILLE<V22> (D)	8-98070-852-0	13	1	1004-1007	●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (D)	8-98070-852-0	13	1	1008-	●	●	●	●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (D)	8-98070-852-0	17	1	0701-0912	●	●	●	●
9	01.269 SCREW; RAD GRILLE (D)	8-98070-852-0	17	1	1001-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1004-1007	●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1008-	●	●	●	●
9	01.269 SCREW; RAD GRILLE BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHTRAD GRILLE<V22> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97370-062-0	09	1	0509-0609	●	●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609			●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98018-511-0	02	1	0610-0610	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98049-358-0	02	1	0611-	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	01	1	0306-0609	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	03	1	0610-0703	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0704-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98167-352-0	03	1	1004-	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	01	1	0306-0609	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	03	1	0610-	●	●	●	●
165	01.269 PLATE; RAD GRILLE CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA>	8-97333-542-2	01	1	0405-0508	●	●	●	●
165	01.269 PLATE; RAD GRILLE CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7>	8-97333-542-2	01	1	0509-0609	●	●	●	●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22> (D)	8-98109-370-1	01	1	1004-1007	●	●	●	●
178	01.269 GRILLE; INNER,RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (D)	8-98109-370-1	01	1	1008-	●	●	●	●
178	01.269 GRILLE; INNER,RAD BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHTRAD GRILLE<V22> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97367-363-3	01	1	0509-0609	●	●
178	01.269 GRILLE; INNER,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97367-363-3	01	1	0509-0609			●	●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C)	8-98012-483-2	01	1	0610-0610	●	●	●	●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (C)	8-98012-483-2	01	1	0611-0912	●	●	●	●
178	01.269 GRILLE; INNER,RAD (C)	8-98012-483-2	01	1	1001-1003	●	●	●	●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX> (C)	8-98012-483-2	01	1	1004-1007	●	●	●	●
178	01.269 GRILLE; INNER,RAD GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (C)	8-98012-483-2	01	1	1008-	●	●	●	●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> (A)	8-97331-458-0	01	1	0306-0404	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (A)	8-97331-458-0	01	1	0405-0508	●	●	●	●
178	01.269 GRILLE; INNER,RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A)	8-97331-458-0	01	1	0509-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (A)	8-97367-166-0	02	1	0405-0508	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A)	8-97367-166-0	02	1	0509-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD 07.832 (C)	8-97301-188-0	02	1	0610-0709	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD 07.832 (C)	8-97301-188-0	02	1	0710-	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> (B)	8-97350-904-0	02	1	0306-0404	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD ISUZU BRAND<7WL> (B)	8-97350-904-0	02	1	0405-0505	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD GMC BRAND<RWT>,ISUZU BRAND<7WL> (B)	8-97350-904-0	02	1	0506-0508	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (B)	8-97350-904-0	02	1	0509-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B)	8-97350-904-0	02	1	0509-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-97350-904-0	02	1	0509-0609	●	●
179	01.269 RETAINER; GRILLE,RAD BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97350-904-0	02	1	0509-0609	●	●
179	01.269 RETAINER; GRILLE,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97350-904-0	02	1	0509-0609			●	●

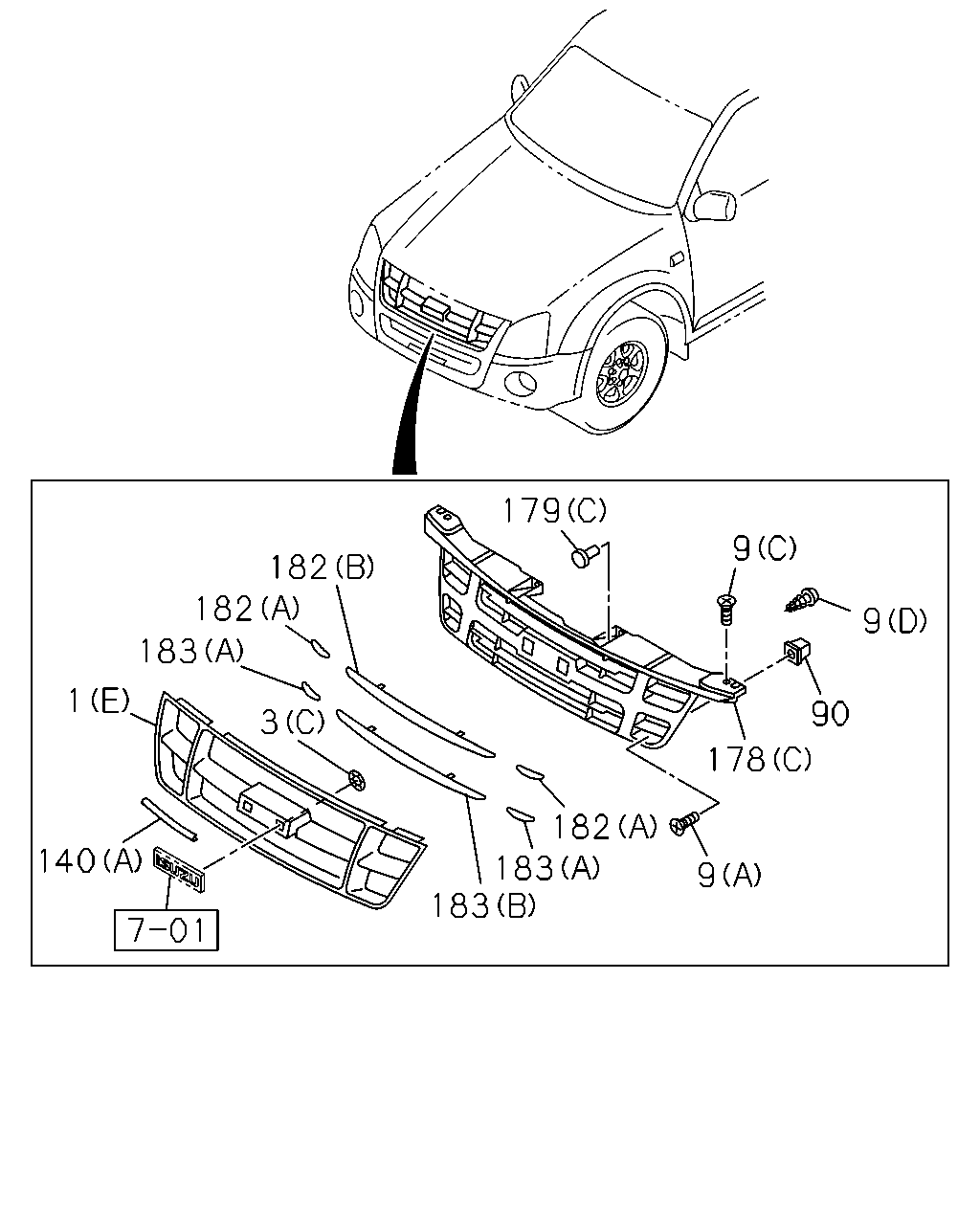

179 9 182 182 9 183 1 90 3 178 182 183 183 140 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-97367-361-2	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (E) PLATED	8-98012-482-1	01	1	0610-0610	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (E) PLATED	8-98012-482-1	01	1	0611-0912	●	●	●	●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (E) PLATED	8-98012-482-1	01	1	1001-1003	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (G) PLATED	8-98159-148-0	01	1	1004-1007	●	●	●	●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (G) PLATED	8-98159-148-0	01	1	1008-	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (E)	8-98012-479-1	01	1	0610-0610	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> (E)	8-98012-479-1	01	1	0611-1007	●	●	●	●
1	01.266 GRILLE; RAD GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (E)	8-98012-479-1	01	1	1008-	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0405-0508	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (C) PLEASE PAINT TO MATCH BODY COLOR	8-97331-848-1	01	1	0506-0609	●	●	●	●
1	01.266 GRILLE; RAD GMC BRAND<RWT> BASE VEHICLE GRILLE<VWX> (F)	8-98012-517-2	01	1	0610-0610	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) PLATED	8-97331-613-0	01	1	0306-0404	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B) PLATED	8-97331-613-0	01	1	0405-0508	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) PLATED	8-97331-613-0	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD RADIATOR GRILLE IRON GRAY MET<7LA> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0306-0404	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0405-0508	●	●	●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609	●	●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> RADIATOR GRILLE IRON GRAY MET<7LA> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609			●	●
1	01.266 GRILLE; RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0509-0609	●	●	●	●
3	01.269 CLIP; GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (C)	8-97182-223-0	02	1	0701-0912	●	●	●	●
3	01.269 CLIP; GRILLE (C)	8-97182-223-0	02	1	1001-	●	●	●	●
3	01.269 CLIP; GRILLE BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHTRAD GRILLE<V22> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97317-633-0	01	1	0509-0609	●	●
3	01.269 CLIP; GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97317-633-0	01	1	0509-0609			●	●
3	01.269 CLIP; GRILLE BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> (A)	8-97350-903-0	04	1	0306-0404	●	●	●	●
3	01.269 CLIP; GRILLE CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (A)	8-97350-903-0	04	1	0405-0505	●	●	●	●
3	01.269 CLIP; GRILLE (A)	8-97350-903-0	04	1	0506-0609	●	●	●	●
9	01.269 SCREW; RAD GRILLE BRIGHT RAD GRILLE<V22> (D)	8-98070-852-0	13	1	1004-1007	●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (D)	8-98070-852-0	13	1	1008-	●	●	●	●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (D)	8-98070-852-0	17	1	0701-0912	●	●	●	●
9	01.269 SCREW; RAD GRILLE (D)	8-98070-852-0	17	1	1001-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1004-1007	●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1008-	●	●	●	●
9	01.269 SCREW; RAD GRILLE BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHTRAD GRILLE<V22> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97370-062-0	09	1	0509-0609	●	●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609			●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98018-511-0	02	1	0610-0610	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98049-358-0	02	1	0611-	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	01	1	0306-0609	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	03	1	0610-0703	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0704-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98167-352-0	03	1	1004-	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	01	1	0306-0609	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	03	1	0610-	●	●	●	●
140	01.266 SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98130-916-0	04	1	1004-1007	●	●	●	●
140	01.266 SEAL; RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (B)	8-98130-916-0	04	1	1008-	●	●	●	●
140	01.266 SEAL; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A)	8-98070-854-0	01	1	0701-0912	●	●	●	●
140	01.266 SEAL; RAD GRILLE (A)	8-98070-854-0	01	1	1001-1003	●	●	●	●
140	01.266 SEAL; RAD GRILLE BASE VEHICLE GRILLE<VWX> (A)	8-98070-854-0	01	1	1004-1007	●	●	●	●
140	01.266 SEAL; RAD GRILLE GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (A)	8-98070-854-0	01	1	1008-	●	●	●	●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22> (D)	8-98109-370-1	01	1	1004-1007	●	●	●	●
178	01.269 GRILLE; INNER,RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (D)	8-98109-370-1	01	1	1008-	●	●	●	●
178	01.269 GRILLE; INNER,RAD BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHTRAD GRILLE<V22> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97367-363-3	01	1	0509-0609	●	●
178	01.269 GRILLE; INNER,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97367-363-3	01	1	0509-0609			●	●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C)	8-98012-483-2	01	1	0610-0610	●	●	●	●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (C)	8-98012-483-2	01	1	0611-0912	●	●	●	●
178	01.269 GRILLE; INNER,RAD (C)	8-98012-483-2	01	1	1001-1003	●	●	●	●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX> (C)	8-98012-483-2	01	1	1004-1007	●	●	●	●
178	01.269 GRILLE; INNER,RAD GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (C)	8-98012-483-2	01	1	1008-	●	●	●	●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> (A)	8-97331-458-0	01	1	0306-0404	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (A)	8-97331-458-0	01	1	0405-0508	●	●	●	●
178	01.269 GRILLE; INNER,RAD BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A)	8-97331-458-0	01	1	0509-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (A)	8-97367-166-0	02	1	0405-0508	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A)	8-97367-166-0	02	1	0509-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD 07.832 (C)	8-97301-188-0	02	1	0610-0709	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD 07.832 (C)	8-97301-188-0	02	1	0710-	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> (B)	8-97350-904-0	02	1	0306-0404	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD ISUZU BRAND<7WL> (B)	8-97350-904-0	02	1	0405-0505	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD GMC BRAND<RWT>,ISUZU BRAND<7WL> (B)	8-97350-904-0	02	1	0506-0508	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA> (B)	8-97350-904-0	02	1	0509-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (B)	8-97350-904-0	02	1	0509-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-97350-904-0	02	1	0509-0609	●	●
179	01.269 RETAINER; GRILLE,RAD BODY COLOR KEYED RAD GRILLE<TL1> FACE LIFT MODEL<TX7> ISUZU BRAND<7WL> EXC. KD-PREPARATORY PACK VAR4<7TV> (B)	8-97350-904-0	02	1	0509-0609	●	●
179	01.269 RETAINER; GRILLE,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97350-904-0	02	1	0509-0609			●	●
182	01.266 MOLDING; RAD GRILLE,UPR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (B)	8-98012-484-0	01	1	0610-0610	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BASE VEHICLE GRILLE<VWX> (B)	8-98012-484-0	01	1	0611-1007	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (B)	8-98012-484-0	01	1	1008-	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-485-0	01	1	0610-0610	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BASE VEHICLE GRILLE<VWX> (A)	8-98012-485-0	01	1	0611-1007	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (A)	8-98012-485-0	01	1	1008-	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-486-0	01	1	0610-0610	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BASE VEHICLE GRILLE<VWX> (A)	8-98012-486-0	01	1	0611-1007	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (A)	8-98012-486-0	01	1	1008-	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-491-0	01	1	0610-0610	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> (B)	8-98012-491-0	01	1	0611-0912	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (B)	8-98012-491-0	01	1	1001-1003	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-492-0	01	1	0610-0610	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> (A)	8-98012-492-0	01	1	0611-0912	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (A)	8-98012-492-0	01	1	1001-1003	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-493-0	01	1	0610-0610	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> (A)	8-98012-493-0	01	1	0611-0912	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (A)	8-98012-493-0	01	1	1001-1003	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (B)	8-98012-487-0	01	1	0610-0610	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BASE VEHICLE GRILLE<VWX> (B)	8-98012-487-0	01	1	0611-1007	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (B)	8-98012-487-0	01	1	1008-	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-488-0	01	1	0610-0610	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BASE VEHICLE GRILLE<VWX> (A)	8-98012-488-0	01	1	0611-1007	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (A)	8-98012-488-0	01	1	1008-	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-489-0	01	1	0610-0610	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BASE VEHICLE GRILLE<VWX> (A)	8-98012-489-0	01	1	0611-1007	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR GRADE DX(RBA) BASE VEHICLE GRILLE<VWX> (A)	8-98012-489-0	01	1	1008-	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-494-0	01	1	0610-0610	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> (B)	8-98012-494-0	01	1	0611-0912	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (B)	8-98012-494-0	01	1	1001-1003	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-495-0	01	1	0610-0610	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> (A)	8-98012-495-0	01	1	0611-0912	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (A)	8-98012-495-0	01	1	1001-1003	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-496-0	01	1	0610-0610	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> (A)	8-98012-496-0	01	1	0611-0912	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR GRADE LT(RBD) BRIGHT RAD GRILLE<V22> (A)	8-98012-496-0	01	1	1001-1003	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
