5-20 — BATTERY CARRIER (#77580) — 10 parça

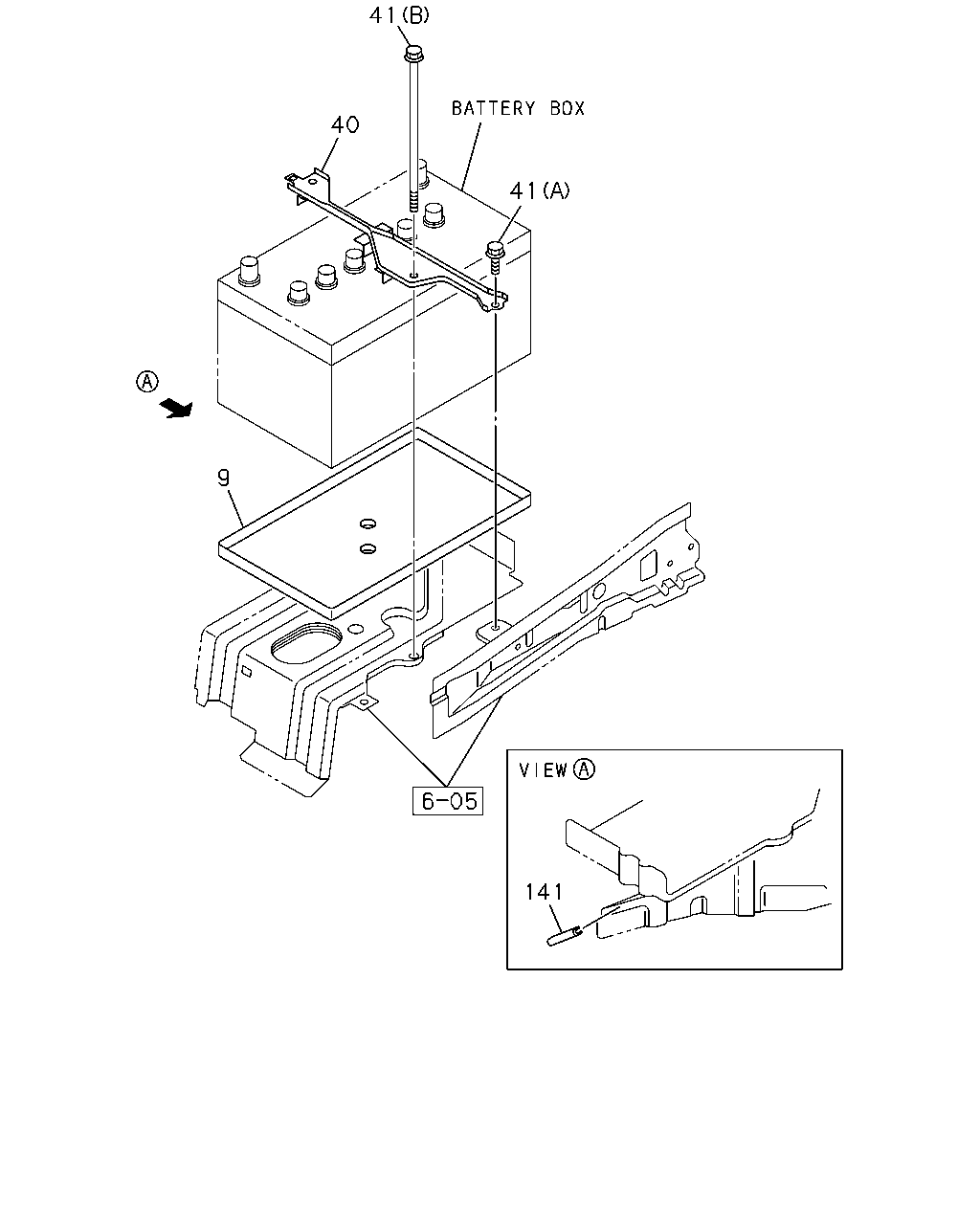

çizim 160544
41 40 41 9 141
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 0306- ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 46B24L(TQ6) 		8-97328-059-0 01 1 0306- ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 95D31L(TQ8) 		8-97318-865-1 01 1 0306- ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-97357-407-0 01 1 0306- ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 46B24L(TQ6) 		8-97352-945-0 01 1 0306- ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0306- ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE 		8-97308-979-0 02 1 0306-0411 ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE 		8-97378-041-0 02 1 0412- ● ● ● ●
141 02.334 INSULATOR; BAT TRAY
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40> 02.530 L=30 		8-94235-856-0 01 1 0306-0609 ● ● ● ●
141 02.334 INSULATOR; BAT TRAY
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) POWER STEERING<N40> 02.530 L=30 		8-94235-856-0 01 1 0610- ● ● ● ●
