7-50 — FRONT SEAT (#7758) — 923 parça

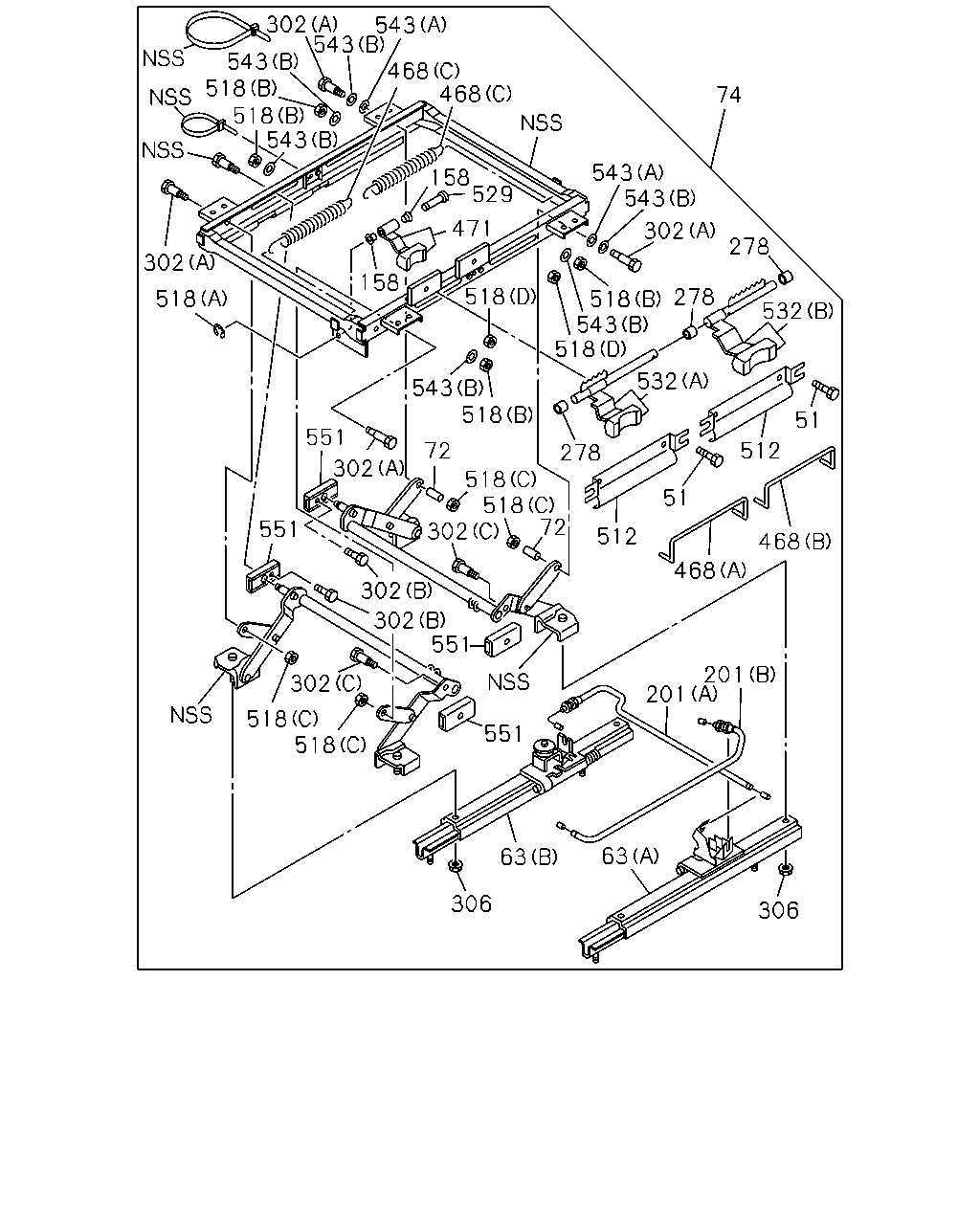

çizim 6130
302 543 543 468 468 543 518 518 543 74 158 529 543 543 471 302 278 302 158 518 278 518 518 543 518 532 543 518 532 51 278 551 72 512 302 518 518 72 302 51 551 512 468 468 302 302 551 201 201 302 518 518 551 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9902-0003 ●
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0004- ●
51 SCREW; COVER 1-75518-325-0 04 1 0004- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-324-0 04 1 0004- ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-0 01 1 0001-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004- ●
63 ADJUSTER; SEAT SLIDE
ISRINGHAUSEN SEAT(SJA) (C) 		1-75517-953-0 01 1 9902- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-226-0 01 1 9902-9910 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-295-0 01 1 9902-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-324-0 01 1 0001-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0004- ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 0004- ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 0004- ●
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-269-0 02 1 9902-0003 ●
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-269-0 02 1 0004- ●
72 SPACER; SEAT ADJ 1-75518-269-0 02 1 0004- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9902-9912 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-317-1 01 1 0004- ●
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-209-0 02 1 9902-0003 ●
158 BUSHING; LINK ARM
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0004- ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0004- ●
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) L=605 		1-75518-289-0 01 1 9902-0003 ●
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0004- ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0004- ●
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) L=667 		1-75518-288-0 01 1 9902-0003 ●
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0004- ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0004- ●
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-244-0 03 1 9902-0003 ●
278 COLLAR; FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0004- ●
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-270-0 04 1 9902-0003 ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-0 04 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-266-0 02 1 9902-0003 ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 04 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 02 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-0 02 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-271-1 02 1 9902-0003 ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 02 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-271-1 02 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 04 1 0004- ●
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9902-9912 ●
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 06 1 0001-0003 ●
306 NUT; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0004- ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 06 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 9902-0003 ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004- ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 9902-0003 ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004- ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 9902-0003 ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004- ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 02 1 0004- ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9902-0003 ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0004- ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 04 1 0004- ●
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0004-0004 ●
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 9902- ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0004- ●
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 0004-0004 ●
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 9902- ●
512 COVER; LEVER 1-75518-243-1 02 1 0004- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-264-0 04 1 9902-0003 ●
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0004- ●
518 NUT; TILT ADJ
(B) 		1-75518-264-0 04 1 0004- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-263-0 01 1 9902-0003 ●
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0004- ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0004- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9902-0003 ●
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0004- ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 0004- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (C) M8 FLANGE 		8-94152-886-0 04 1 9902-0003 ●
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0004- ●
518 NUT; TILT ADJ
(C) M8 FLANGE 		8-94152-886-0 04 1 0004- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 08 1 0004- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 08 1 0004- ●
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-262-0 01 1 9902-0003 ●
529 PIN; LINK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0004- ●
529 PIN; LINK 1-75518-262-0 01 1 0004- ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-222-1 01 1 9902-0003 ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 9902- ●
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 0004- ●
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 0004- ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0004-0004 ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 9902- ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (A) ID=6.4 		9-09160-506-0 04 1 9902-0003 ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=6.4 		9-09160-506-0 04 1 0004- ●
543 WASHER; HEIGHT ADJUSTER
(A) ID=6.4 		9-09160-506-0 04 1 0004- ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (B) ID=10.5 		9-09164-510-0 02 1 9902-0003 ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10.5 		9-09164-510-0 02 1 0004- ●
543 WASHER; HEIGHT ADJUSTER
(B) ID=10.5 		9-09164-510-0 02 1 0004- ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10.5 		9-09164-510-0 08 1 0004- ●
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-265-0 04 1 9902-0003 ●
551 SLIDER; HEIGHT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0004- ●
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 0004- ●

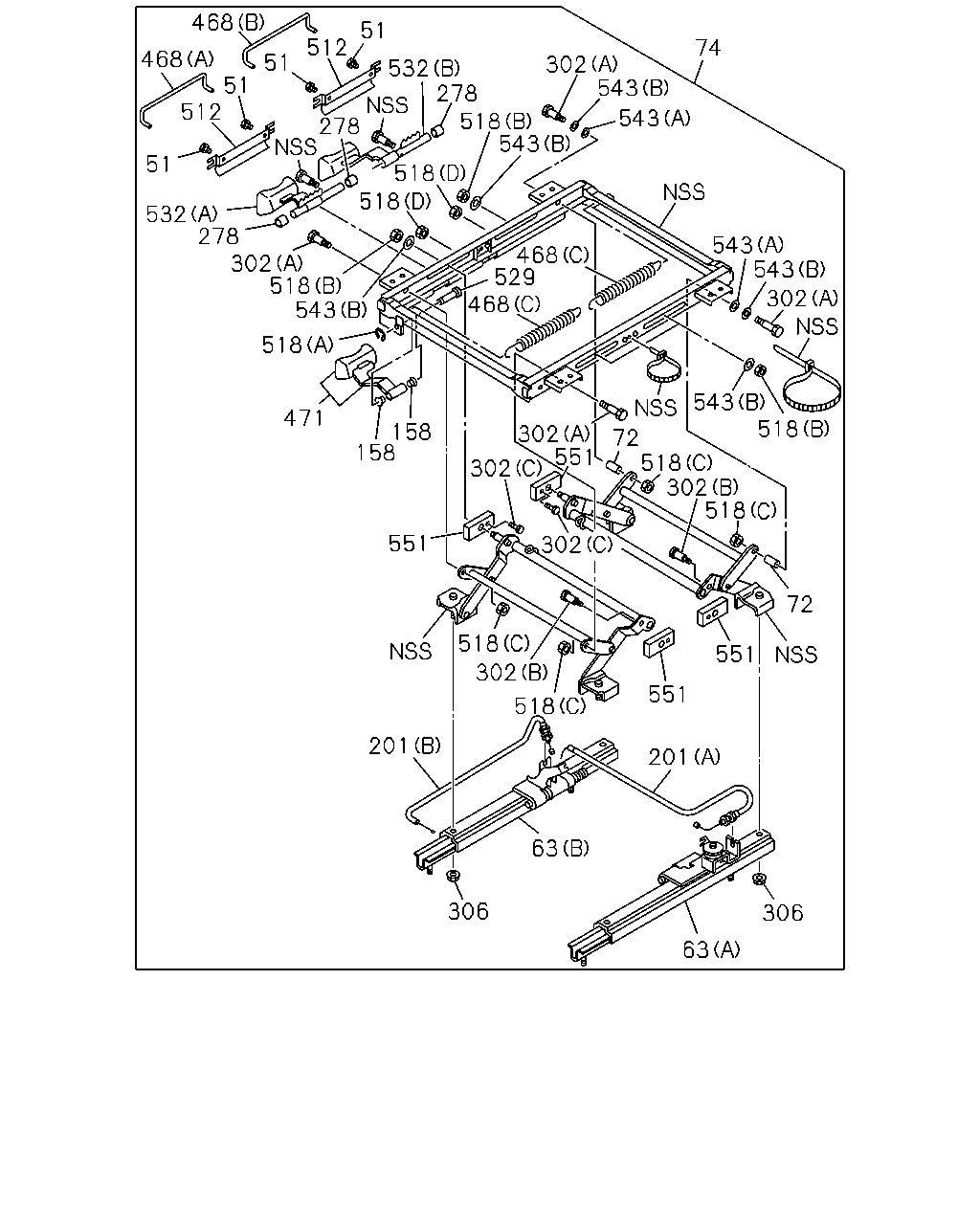

çizim 6462
468 51 512 74 468 51 302 543 532 278 518 543 51 512 278 543 51 518 518 532 278 302 518 543 543 543 468 529 468 302 518 543 518 302 72 551 518 302 471 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 518
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9902-0003 ●
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0004- ●
51 SCREW; COVER 1-75518-325-0 04 1 0004- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-324-0 04 1 0004- ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-0 01 1 0001-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004- ●
63 ADJUSTER; SEAT SLIDE
ISRINGHAUSEN SEAT(SJA) (C) 		1-75517-953-0 01 1 9902- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-226-0 01 1 9902-9910 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-295-0 01 1 9902-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-324-0 01 1 0001-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0004- ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 0004- ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 0004- ●
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-269-0 02 1 9902-0003 ●
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-269-0 02 1 0004- ●
72 SPACER; SEAT ADJ 1-75518-269-0 02 1 0004- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9902-9912 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-317-1 01 1 0004- ●
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-209-0 02 1 9902-0003 ●
158 BUSHING; LINK ARM
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0004- ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0004- ●
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) L=605 		1-75518-289-0 01 1 9902-0003 ●
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0004- ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0004- ●
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) L=667 		1-75518-288-0 01 1 9902-0003 ●
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0004- ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0004- ●
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-244-0 03 1 9902-0003 ●
278 COLLAR; FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0004- ●
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-270-0 04 1 9902-0003 ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-0 04 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-266-0 02 1 9902-0003 ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 04 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 02 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-0 02 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-271-1 02 1 9902-0003 ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 02 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-271-1 02 1 0004- ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 04 1 0004- ●
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9902-9912 ●
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 06 1 0001-0003 ●
306 NUT; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0004- ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 06 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 9902-0003 ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004- ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 9902-0003 ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004- ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 9902-0003 ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004- ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 02 1 0004- ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9902-0003 ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0004- ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 04 1 0004- ●
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0004-0004 ●
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 9902- ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0004- ●
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 0004-0004 ●
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 9902- ●
512 COVER; LEVER 1-75518-243-1 02 1 0004- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-264-0 04 1 9902-0003 ●
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0004- ●
518 NUT; TILT ADJ
(B) 		1-75518-264-0 04 1 0004- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-263-0 01 1 9902-0003 ●
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0004- ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0004- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9902-0003 ●
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0004- ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 0004- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (C) M8 FLANGE 		8-94152-886-0 04 1 9902-0003 ●
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0004- ●
518 NUT; TILT ADJ
(C) M8 FLANGE 		8-94152-886-0 04 1 0004- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 08 1 0004- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 08 1 0004- ●
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-262-0 01 1 9902-0003 ●
529 PIN; LINK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0004- ●
529 PIN; LINK 1-75518-262-0 01 1 0004- ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-222-1 01 1 9902-0003 ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 9902- ●
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 0004- ●
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 0004- ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0004-0004 ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 9902- ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (A) ID=6.4 		9-09160-506-0 04 1 9902-0003 ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=6.4 		9-09160-506-0 04 1 0004- ●
543 WASHER; HEIGHT ADJUSTER
(A) ID=6.4 		9-09160-506-0 04 1 0004- ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (B) ID=10.5 		9-09164-510-0 02 1 9902-0003 ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10.5 		9-09164-510-0 02 1 0004- ●
543 WASHER; HEIGHT ADJUSTER
(B) ID=10.5 		9-09164-510-0 02 1 0004- ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10.5 		9-09164-510-0 08 1 0004- ●
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-265-0 04 1 9902-0003 ●
551 SLIDER; HEIGHT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0004- ●
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 0004- ●

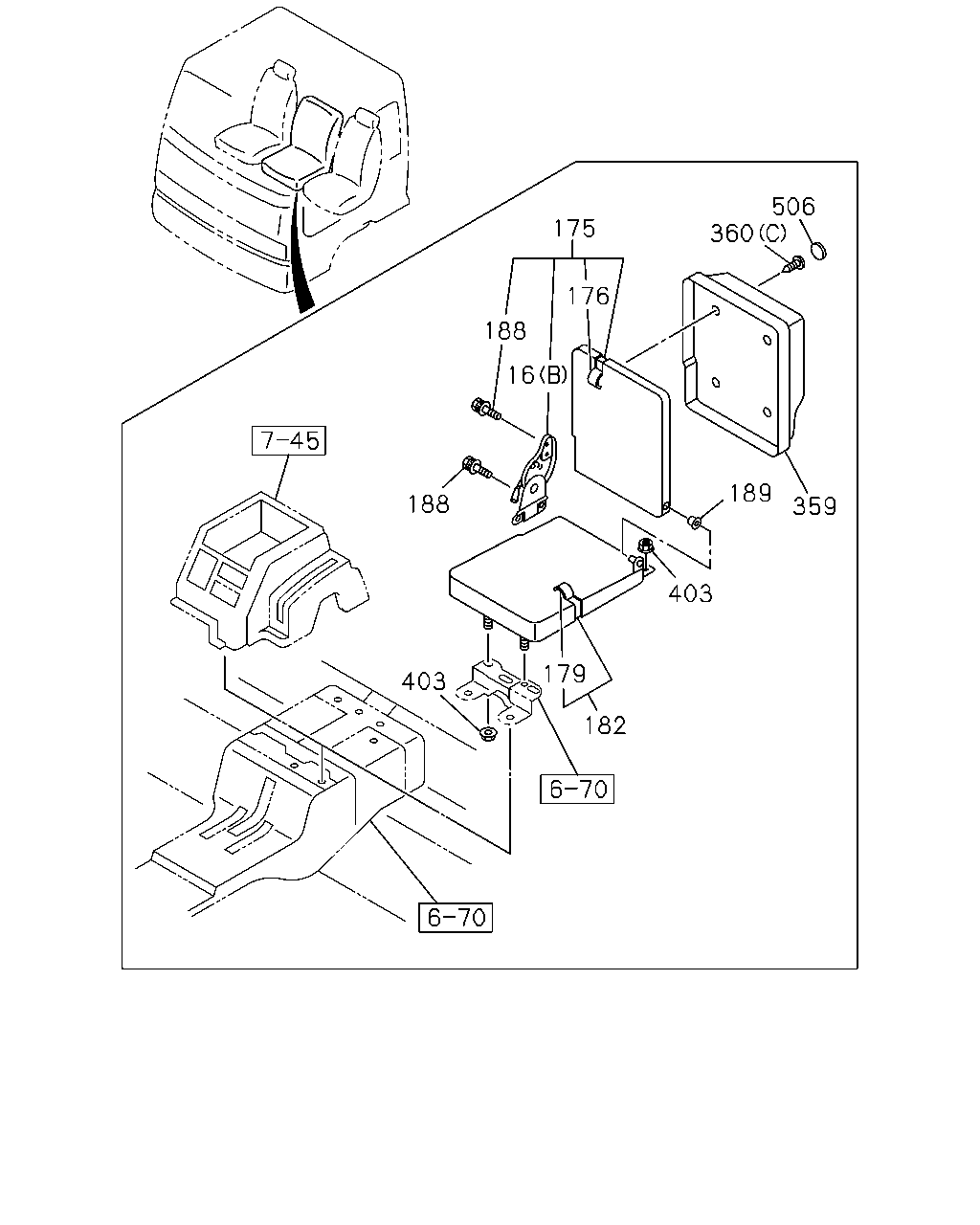

çizim 7985
506 360 175 176 188 16 189 188 359 403 179 403 182
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
ISRINGHAUSEN SEAT(SJA) (A) 		1-75417-601-0 01 1 9902- ●
16 ADJUSTER ASM; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-062-0 01 1 9902-0003 ●
16 ADJUSTER ASM; RECLINING
(B) 		1-75418-062-0 01 1 0004- ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) (B) 		1-75418-062-0 01 1 0004- ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75027-598-1 01 1 9902-0003 ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-255-0 01 1 0004-0004 ●
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-255-0 01 1 0004- ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-75207-255-0 01 1 0004- ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75027-864-0 01 1 9902-0003 ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75207-257-0 01 1 0004- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75116-884-0 01 1 9902-0003 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-075-0 01 1 0004-0004 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-075-0 01 1 0004- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. CENTER SEAT DELETE(SP9) 		1-75127-075-0 01 1 0004- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75117-941-0 01 1 9902-0003 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75127-077-0 01 1 0004- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) 		1-75117-931-0 01 1 9902-0003 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-068-0 01 1 0004- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75117-932-0 01 1 9902-0003 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75127-069-0 01 1 0004- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. CENTER SEAT DELETE(SP9) 		1-75127-070-0 01 1 0004- ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75027-830-0 01 1 9902-0003 ●
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-247-1 01 1 0004- ●
182 CUSHION ASM; CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75027-858-0 01 1 9902-0003 ●
182 CUSHION ASM; CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75207-248-1 01 1 0004- ●
182 CUSHION ASM; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-75207-249-1 01 1 0004- ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 9902-0003 ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 0004- ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0004- ●
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 9902-0003 ●
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 0004- ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0004- ●

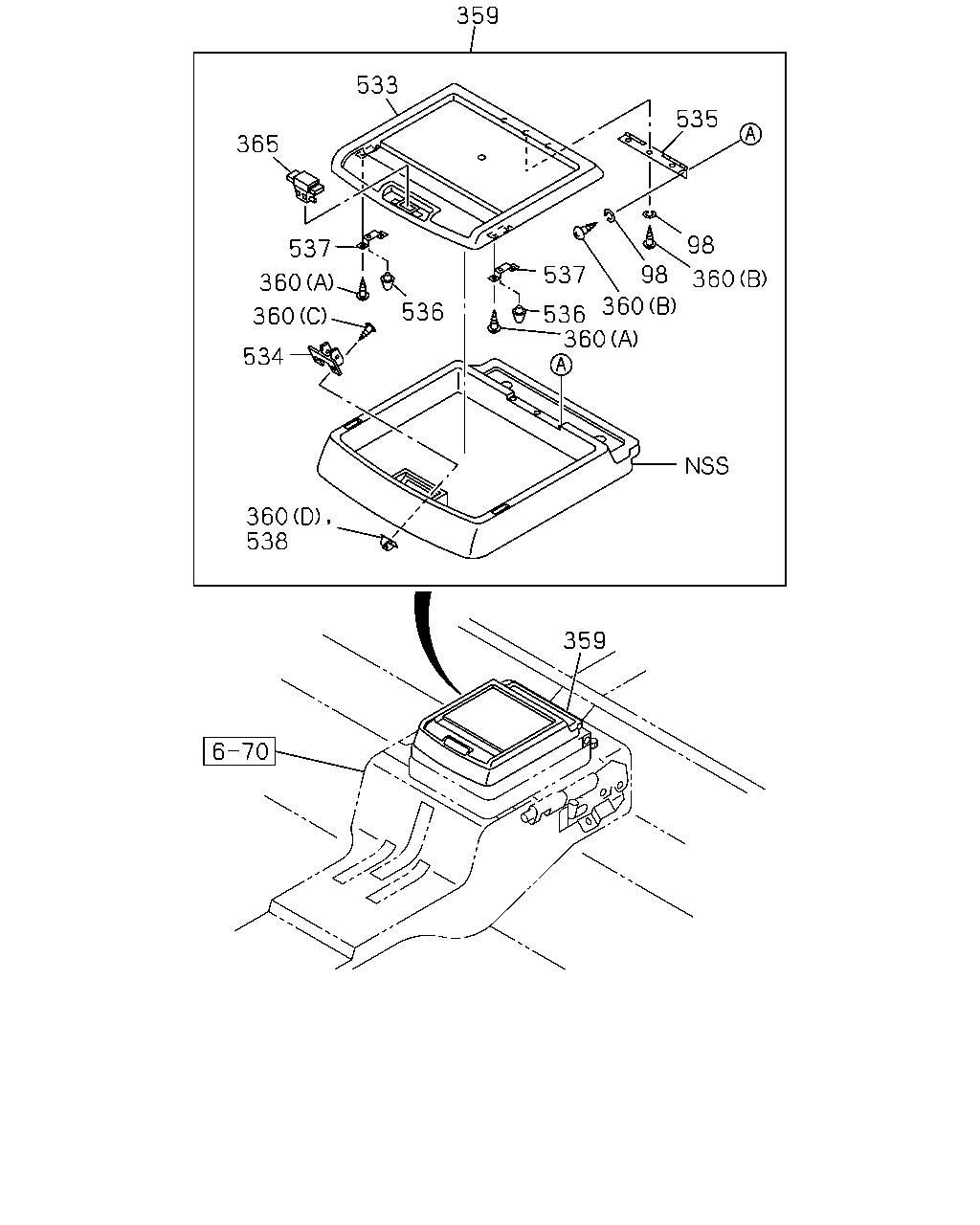

359 BOX; PARCEL 1-72538-157-2 01 1 9902-0003 ●
359 BOX; PARCEL 1-72538-157-4 01 1 0004- ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-157-4 01 1 0004- ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9902-0003 ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0004- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0004- ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9902-0003 ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0004- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0004- ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9902-0003 ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0004- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0004- ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 9902-0003 ●
360 SCREW; PARCEL
EXC. ISRINGHAUSEN SEAT(SJA) (D) 		1-09983-165-0 02 1 0004- ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-518-0 04 1 9902-0003 ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-518-0 04 1 0004- ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		8-94279-518-0 04 1 0004- ●
506 CAP; PARCEL BOX 1-09983-164-0 04 1 9902-0003 ●
506 CAP; PARCEL BOX 1-09983-164-2 04 1 0004- ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-164-2 04 1 0004- ●

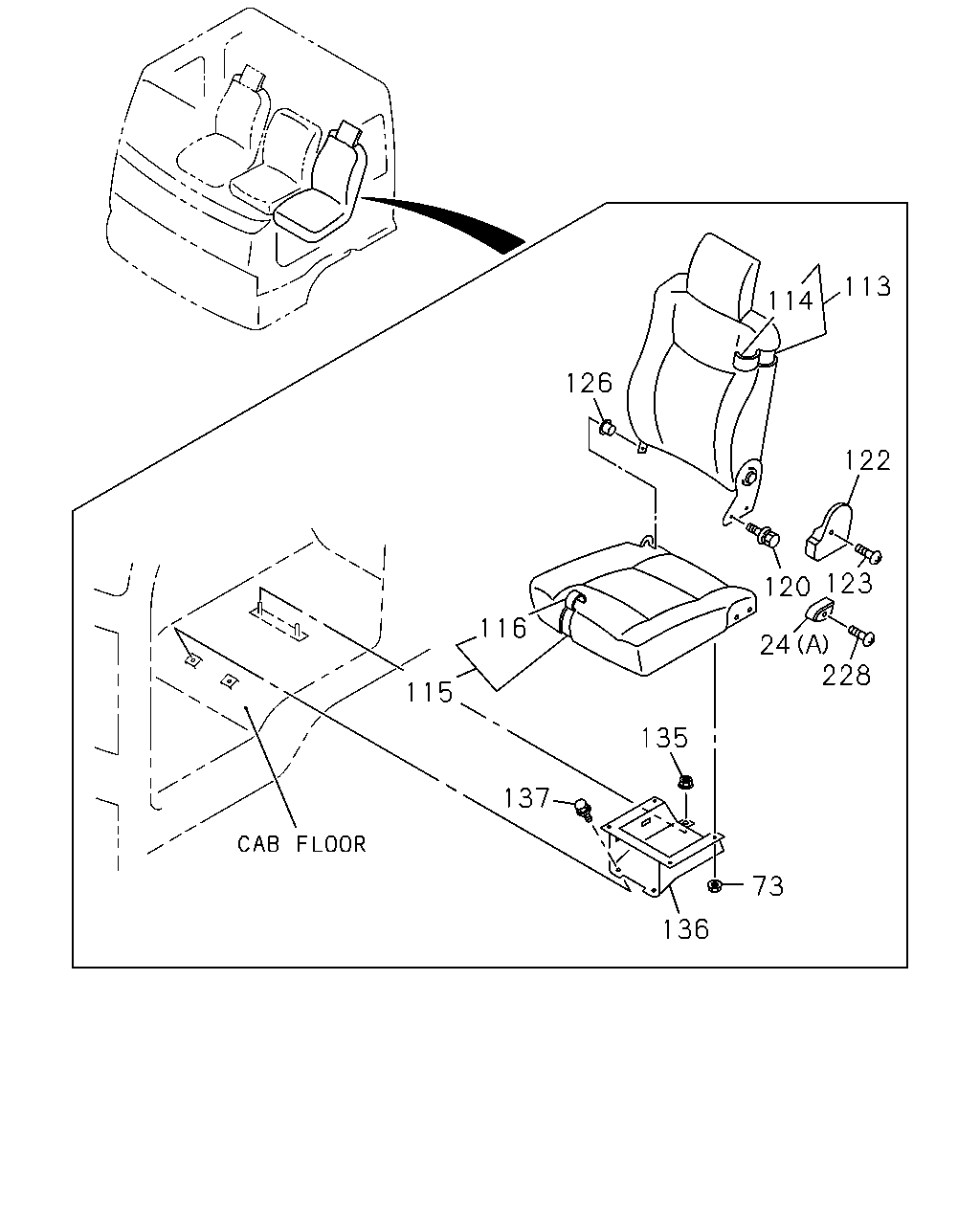

çizim 44485
113 114 126 122 123 120 116 24 228 115 135 137 73 136
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 9902- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 9902-0003 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9902-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0004- ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-832-0 01 1 9902-0003 ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-226-0 01 1 0004- ●
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-590-2 01 1 9902-0003 ●
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-721-0 01 1 0004- ●
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 9905- ●
113 BACK ASM; SEAT 1-75207-227-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-939-0 01 1 9902-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-056-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-277-2 01 1 9902-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-600-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 9905- ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75127-058-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-829-0 01 1 9902-0003 ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-210-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-531-2 01 1 9902-0003 ●
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-771-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 9905- ●
115 CUSHION ASM; PASSENGER SEAT 1-75207-211-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-929-0 01 1 9902-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-026-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-225-1 01 1 9902-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-575-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 9905- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75127-027-0 01 1 0004- ●
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9902-0003 ●
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0004-0004 ●
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0004- ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0004- ●
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 9905- ●
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 9902-0003 ●
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 0004- ●
122 COVER; ADJ,RECLINING 1-75418-050-0 01 1 0004- ●
123 SCREW; COVER,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9902-0003 ●
123 SCREW; COVER,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004- ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004- ●
126 BUSHING; HINGE,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9902-0003 ●
126 BUSHING; HINGE,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 0004- ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0004- ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9902-0003 ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0004- ● ●
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-486-0 01 1 9905- ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-4 01 1 9902-0003 ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-7 01 1 0004- ●
136 STAND; PASSENGER SEAT 1-75558-550-7 01 1 0004- ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9902-0003 ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0004- ● ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9902-0003 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9902-0003 ●
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0004- ●

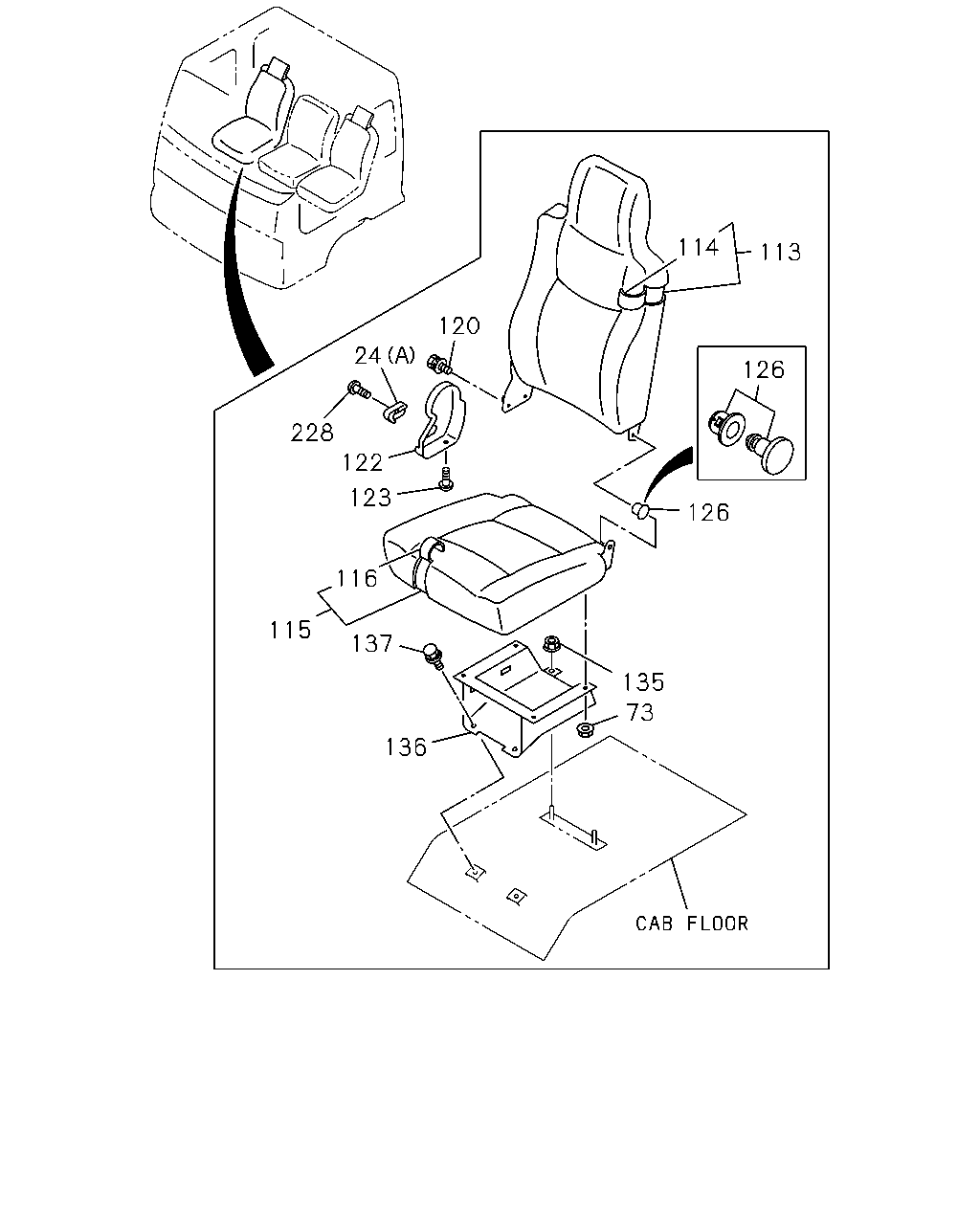

çizim 44785
114 113 120 24 126 228 122 123 126 116 115 137 135 73 136
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 9902- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 9902-0003 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9902-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0004- ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-832-0 01 1 9902-0003 ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-226-0 01 1 0004- ●
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-590-2 01 1 9902-0003 ●
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-721-0 01 1 0004- ●
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 9905- ●
113 BACK ASM; SEAT 1-75207-227-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-939-0 01 1 9902-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-056-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-277-2 01 1 9902-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-600-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 9905- ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75127-058-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-829-0 01 1 9902-0003 ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-210-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-531-2 01 1 9902-0003 ●
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-771-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 9905- ●
115 CUSHION ASM; PASSENGER SEAT 1-75207-211-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-929-0 01 1 9902-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-026-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-225-1 01 1 9902-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-575-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 9905- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75127-027-0 01 1 0004- ●
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9902-0003 ●
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0004-0004 ●
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0004- ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0004- ●
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 9905- ●
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 9902-0003 ●
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 0004- ●
122 COVER; ADJ,RECLINING 1-75418-050-0 01 1 0004- ●
123 SCREW; COVER,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9902-0003 ●
123 SCREW; COVER,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004- ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004- ●
126 BUSHING; HINGE,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9902-0003 ●
126 BUSHING; HINGE,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 0004- ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0004- ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9902-0003 ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0004- ● ●
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-486-0 01 1 9905- ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-4 01 1 9902-0003 ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-7 01 1 0004- ●
136 STAND; PASSENGER SEAT 1-75558-550-7 01 1 0004- ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9902-0003 ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0004- ● ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9902-0003 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9902-0003 ●
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0004- ●

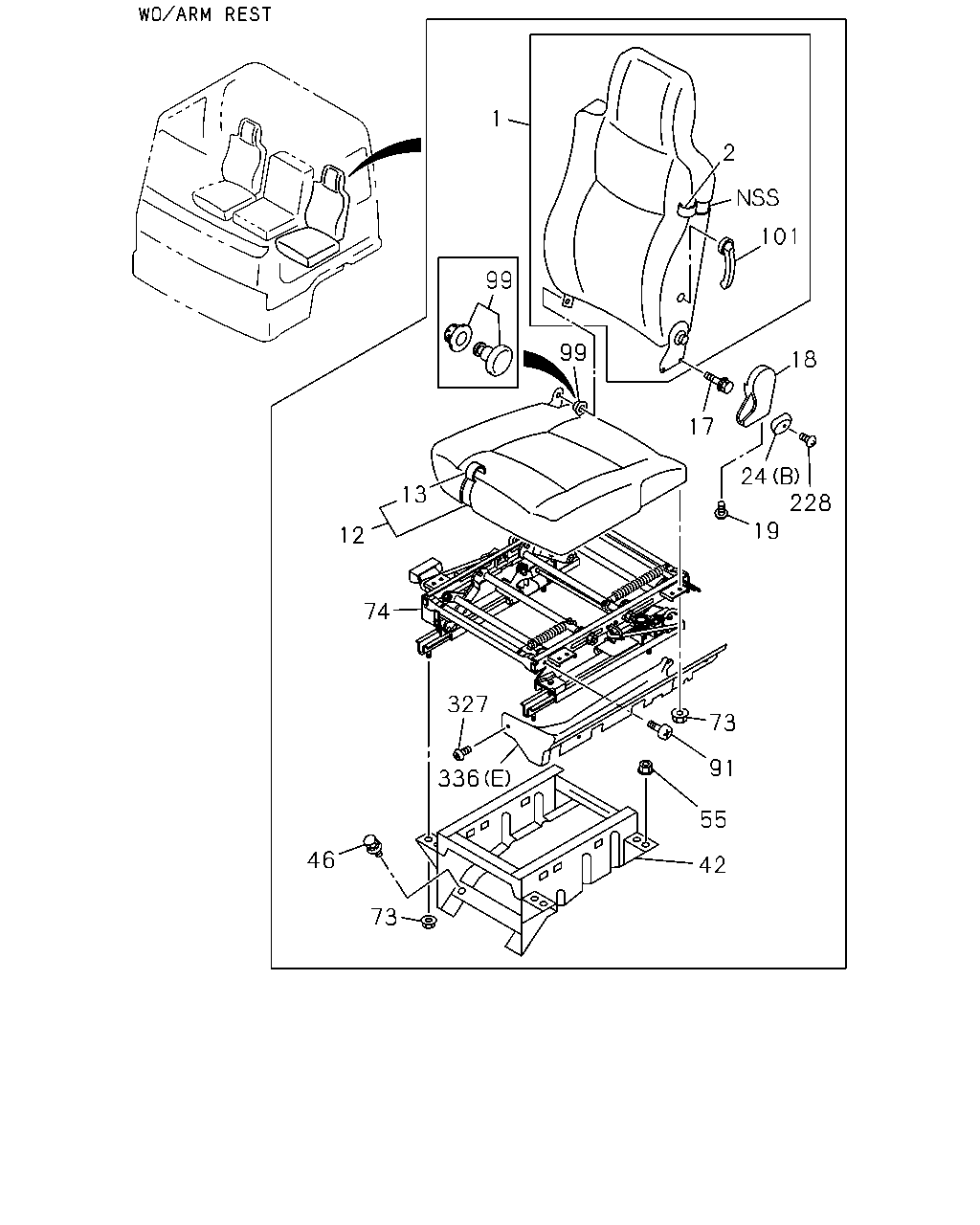

çizim 44861
1 2 101 99 99 18 17 24 228 13 19 12 74 327 73 91 336 55 46 42 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-940-0 01 1 9902- ●
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9902-9910 ●
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0004- ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9902-9910 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004- ●
1 BACK ASM; SEAT 1-75207-267-0 01 1 0004- ●
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9902- ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9902-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0004- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9902-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004- ●
2 COVER; TRIM,FRT SEAT,BACK 1-75127-038-0 01 1 0004- ●
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9902- ●
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9902-9910 ●
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0004- ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9902-9910 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004- ●
12 CUSHION; SEAT,FRT 1-75207-150-1 01 1 0004- ●
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9902- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9902-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0004- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9902-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004- ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75127-098-0 01 1 0004- ●
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9902-0003 ●
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004- ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0004- ●
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 9902- ●
18 COVER; RECLINING 1-75418-050-0 01 1 0004- ●
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9902-0003 ●
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004- ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 9902- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 9902-0003 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 0004- ●
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-491-4 01 1 9902-0003 ●
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0004- ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9902-0003 ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0004- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9902-0003 ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0004- ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9902-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0004- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9902-9912 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-317-1 01 1 0004- ●
91 SCREW; SEAT ADJ COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9902- ●
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9902-0003 ●
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0004- ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0004- ●
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 9902-0003 ●
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0004- ●
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 0004- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9902-0003 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9902-0003 ●
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0004- ●
327 CLIP; COVER 1-09987-249-0 02 1 0004- ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0004- ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9902-0003 ●
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-207-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-209-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-211-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9902- ●
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 01 1 9902- ●
336 COVER; DRIVER SEAT
(E) 		1-75518-066-3 01 1 0004- ●
çizim 44862
359 533 535 365 98 537 98 537 360 360 360 536 536 360 360 534 360 538 359
BalonParca AdiParca NoAdetTipApplied Date A B
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9902-0003 ●
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0004- ●
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0004- ●
359 BOX; PARCEL 1-72538-157-2 01 1 9902-0003 ●
359 BOX; PARCEL 1-72538-157-4 01 1 0004- ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-157-4 01 1 0004- ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9902-0003 ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0004- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0004- ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9902-0003 ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0004- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0004- ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9902-0003 ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0004- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0004- ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 9902-0003 ●
360 SCREW; PARCEL
EXC. ISRINGHAUSEN SEAT(SJA) (D) 		1-09983-165-0 02 1 0004- ●
365 LOCK ASM; SEAT 1-72538-180-0 01 1 9902-0003 ●
365 LOCK ASM; SEAT 1-72538-180-0 01 1 0004- ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 0004- ●
533 LID; PARCEL BOX 1-72538-194-2 01 1 9902-0003 ●
533 LID; PARCEL BOX 1-72538-194-2 01 1 0004- ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-194-2 01 1 0004- ●
534 STRIKER; PARCEL BOX 1-72538-181-0 01 1 9902-0003 ●
534 STRIKER; PARCEL BOX 1-72538-181-0 01 1 0004- ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-181-0 01 1 0004- ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 9902-0003 ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 0004- ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0004- ●
536 RUBBER; CUSHION 5-09983-002-1 02 1 9902-0003 ●
536 RUBBER; CUSHION 5-09983-002-1 02 1 0004- ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0004- ●
537 BRACKET; RUBBER 1-72548-057-1 02 1 9902-0003 ●
537 BRACKET; RUBBER 1-72548-057-1 02 1 0004- ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0004- ●
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0004- ●

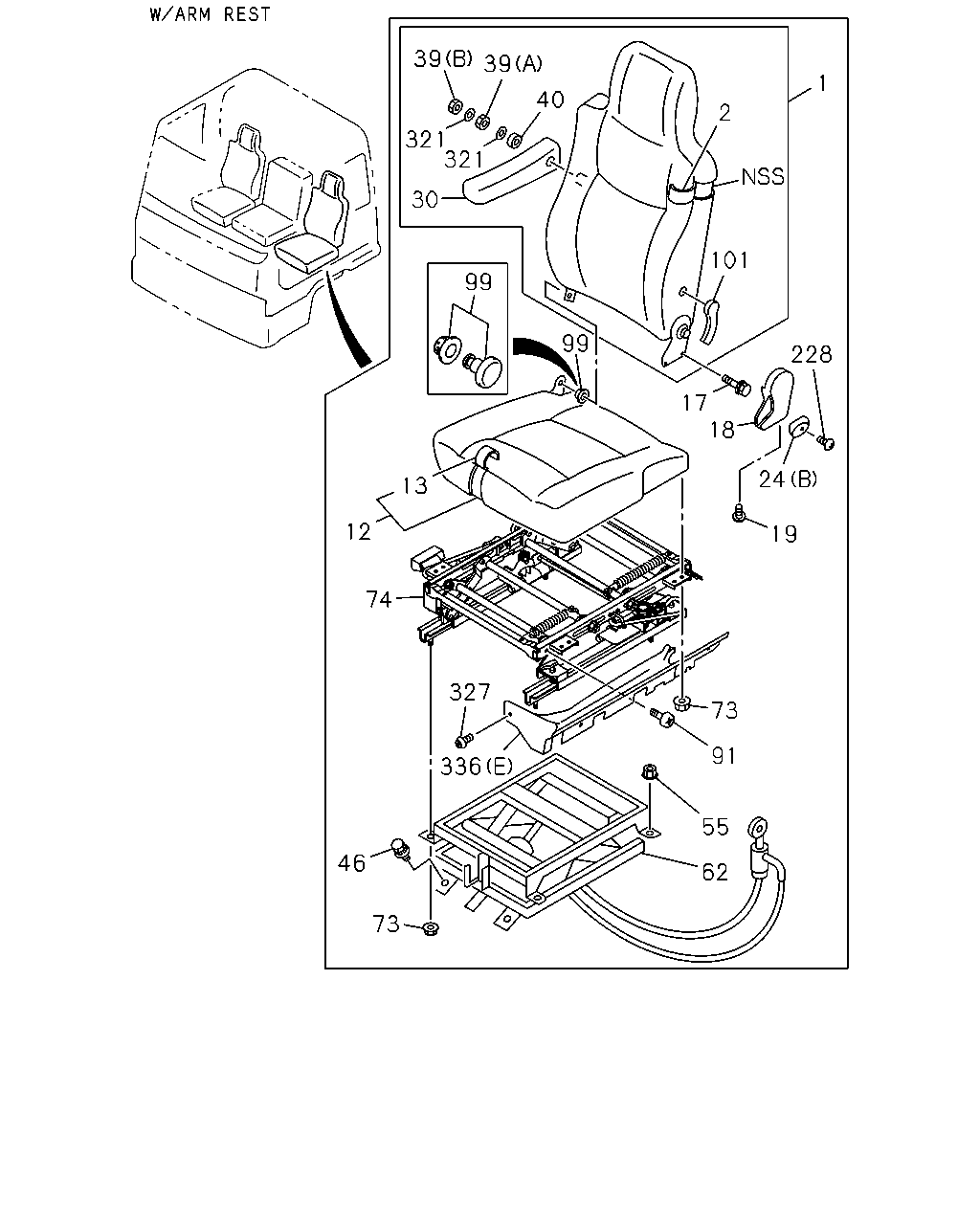

çizim 44994
1 101 24 228 2 321 39 40 18 321 17 19 30 39 13 99 12 336 74 327 73 62 55 46 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-940-0 01 1 9902- ●
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9902-9910 ●
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0004- ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9902-9910 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004- ●
1 BACK ASM; SEAT 1-75207-267-0 01 1 0004- ●
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9902- ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9902-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0004- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9902-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004- ●
2 COVER; TRIM,FRT SEAT,BACK 1-75127-038-0 01 1 0004- ●
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9902- ●
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9902-9910 ●
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0004- ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9902-9910 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004- ●
12 CUSHION; SEAT,FRT 1-75207-150-1 01 1 0004- ●
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9902- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9902-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0004- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9902-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004- ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75127-098-0 01 1 0004- ●
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9902-0003 ●
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004- ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0004- ●
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 9902- ●
18 COVER; RECLINING 1-75418-050-0 01 1 0004- ●
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9902-0003 ●
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004- ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 9902- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 9902-0003 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 0004- ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9902-9910 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9911-0003 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9911-0003 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0004- ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0004- ●
30 REST ASM; ARM,FRT SEAT 1-75127-010-0 01 1 0004- ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		8-94279-521-0 01 1 9902-9910 ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		8-94279-521-0 01 1 9911-0003 ●
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		8-94279-521-0 01 1 9911-0003 ●
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 04 1 0004- ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0004- ●
39 NUT; ARM REST
(A) M10 		9-09110-410-0 01 1 0004- ●
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 02 1 0004- ●
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0004- ●
40 SPACER; ARM REST 8-94285-921-0 02 1 0004- ●
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9902-9910 ●
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9911-0003 ●
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9911-0003 ●
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 04 1 0004- ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9902-0003 ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0004- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9902-0003 ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0004- ● ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-4 01 1 9902- ●
62 DAMPER ASM; SEAT SUSP 1-75537-262-4 01 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9902-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0004- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9902-9912 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-317-1 01 1 0004- ●
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9902-0003 ●
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0004- ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0004- ●
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 9902-0003 ●
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0004- ●
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 0004- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9902-0003 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9902-0003 ●
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0004- ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0004- ●
321 WASHER; PL,ARM REST
ID=8.4 OD=22 		9-09164-708-0 01 1 0004- ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9902-9910 ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9911-0003 ●
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9911-0003 ●
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 02 1 0004- ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0004- ●
321 WASHER; PL,ARM REST
ID=10.5 OD=22 		9-09160-610-0 01 1 0004- ●
327 CLIP; COVER 1-09987-249-0 02 1 0004- ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0004- ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9902-0003 ●
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-207-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-209-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-211-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9902- ●
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 01 1 9902- ●
336 COVER; DRIVER SEAT
(E) 		1-75518-066-3 01 1 0004- ●
çizim 45114
117 113 114 115 119 116 122 137 135 65 136
BalonParca AdiParca NoAdetTipApplied Date A B
65 SCREW; ADJ TO SEAT
ISRINGHAUSEN SEAT(SJA) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905- ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-832-0 01 1 9902-0003 ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-226-0 01 1 0004- ●
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-590-2 01 1 9902-0003 ●
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-721-0 01 1 0004- ●
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 9905- ●
113 BACK ASM; SEAT 1-75207-227-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-939-0 01 1 9902-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-056-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-277-2 01 1 9902-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-600-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 9905- ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75127-058-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-829-0 01 1 9902-0003 ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-210-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-531-2 01 1 9902-0003 ●
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-771-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 9905- ●
115 CUSHION ASM; PASSENGER SEAT 1-75207-211-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-929-0 01 1 9902-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-026-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-225-1 01 1 9902-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-575-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 9905- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75127-027-0 01 1 0004- ●
117 REST; HD
ISRINGHAUSEN SEAT(SJA) 		1-75658-052-0 01 1 9905- ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75418-064-0 01 1 9905- ●
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 9905- ●
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 9902-0003 ●
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 0004- ●
122 COVER; ADJ,RECLINING 1-75418-050-0 01 1 0004- ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9902-0003 ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0004- ● ●
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-486-0 01 1 9905- ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-4 01 1 9902-0003 ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-7 01 1 0004- ●
136 STAND; PASSENGER SEAT 1-75558-550-7 01 1 0004- ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9902-0003 ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0004- ● ●
çizim 45185
27 1 2 12 13 16 336 336 587 336 63 55 325 336 590 46 81 76 582 582 582 582 581
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-940-0 01 1 9902- ●
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9902-9910 ●
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0004- ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9902-9910 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004- ●
1 BACK ASM; SEAT 1-75207-267-0 01 1 0004- ●
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9902- ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9902-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0004- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9902-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004- ●
2 COVER; TRIM,FRT SEAT,BACK 1-75127-038-0 01 1 0004- ●
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9902- ●
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9902-9910 ●
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0004- ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9902-9910 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004- ●
12 CUSHION; SEAT,FRT 1-75207-150-1 01 1 0004- ●
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9902- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9902-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0004- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9902-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004- ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75127-098-0 01 1 0004- ●
16 ADJUSTER ASM; RECLINING
ISRINGHAUSEN SEAT(SJA) (A) 		1-75417-601-0 01 1 9902- ●
16 ADJUSTER ASM; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-062-0 01 1 9902-0003 ●
16 ADJUSTER ASM; RECLINING
(B) 		1-75418-062-0 01 1 0004- ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) (B) 		1-75418-062-0 01 1 0004- ●
27 REST; HD,FRT SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75657-029-0 01 1 9902- ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9902-0003 ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0004- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9902-0003 ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0004- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-324-0 04 1 0004- ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-0 01 1 0001-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004- ●
63 ADJUSTER; SEAT SLIDE
ISRINGHAUSEN SEAT(SJA) (C) 		1-75517-953-0 01 1 9902- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-226-0 01 1 9902-9910 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-295-0 01 1 9902-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-324-0 01 1 0001-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0004- ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 0004- ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 0004- ●
76 DAMPER; AIR SUSP
ISRINGHAUSEN SEAT(SJA) (A) 		1-75537-276-0 01 1 9902- ●
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75537-230-2 01 1 9902-0003 ●
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75537-230-2 01 1 0004- ●
76 DAMPER; AIR SUSP
(B) 		1-75537-230-2 01 1 0004- ●
81 SPRING; AIR
ISRINGHAUSEN SEAT(SJA) (A) 		1-75537-275-0 01 1 9902- ●
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75538-151-1 01 1 9902-0003 ●
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75538-151-1 01 1 0004- ●
81 SPRING; AIR
(B) 		1-75538-151-1 01 1 0004- ●
325 COVER; SUSPENSION DEVICE
ISRINGHAUSEN SEAT(SJA) 		1-75537-274-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-207-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-209-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-211-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9902- ●
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 01 1 9902- ●
336 COVER; DRIVER SEAT
(E) 		1-75518-066-3 01 1 0004- ●
581 PIPE; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-73907-606-2 01 1 9902- ●
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-09980-619-1 02 1 9902- ●
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9902-9903 ●
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9904- ●
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9904- ●
587 VALVE; LUMBAR SUPPORT
ISRINGHAUSEN SEAT(SJA) 		1-75197-006-0 01 1 9902- ●
590 KNOB KIT; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75417-599-0 01 1 9902- ●
çizim 45260
39 39 1 40 2 321 321 30 101 99 99 228 17 18 24 13 12 19 74 327 73 91 336 55 46 62 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-940-0 01 1 9902- ●
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9902-9910 ●
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0004- ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9902-9910 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004- ●
1 BACK ASM; SEAT 1-75207-267-0 01 1 0004- ●
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9902- ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9902-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0004- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9902-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004- ●
2 COVER; TRIM,FRT SEAT,BACK 1-75127-038-0 01 1 0004- ●
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9902- ●
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9902-9910 ●
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0004- ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9902-9910 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004- ●
12 CUSHION; SEAT,FRT 1-75207-150-1 01 1 0004- ●
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9902- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9902-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0004- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9902-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004- ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75127-098-0 01 1 0004- ●
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9902-0003 ●
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004- ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0004- ●
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 9902- ●
18 COVER; RECLINING 1-75418-050-0 01 1 0004- ●
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9902-0003 ●
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004- ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 9902- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 9902-0003 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 0004- ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 0004- ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9902-9910 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9911-0003 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9911-0003 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0004- ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0004- ●
30 REST ASM; ARM,FRT SEAT 1-75127-010-0 01 1 0004- ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		8-94279-521-0 01 1 9902-9910 ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		8-94279-521-0 01 1 9911-0003 ●
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		8-94279-521-0 01 1 9911-0003 ●
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 04 1 0004- ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0004- ●
39 NUT; ARM REST
(A) M10 		9-09110-410-0 01 1 0004- ●
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 02 1 0004- ●
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0004- ●
40 SPACER; ARM REST 8-94285-921-0 02 1 0004- ●
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9902-9910 ●
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9911-0003 ●
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9911-0003 ●
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 04 1 0004- ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9902-0003 ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0004- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9902-0003 ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0004- ● ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-4 01 1 9902- ●
62 DAMPER ASM; SEAT SUSP 1-75537-262-4 01 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0004- ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9902-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0004- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9902-9912 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-317-1 01 1 0004- ●
91 SCREW; SEAT ADJ COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9902- ●
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9902-0003 ●
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0004- ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0004- ●
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 9902-0003 ●
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0004- ●
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 0004- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9902-0003 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9902-0003 ●
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0004- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0004- ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0004- ●
321 WASHER; PL,ARM REST
ID=8.4 OD=22 		9-09164-708-0 01 1 0004- ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9902-9910 ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9911-0003 ●
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9911-0003 ●
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 02 1 0004- ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0004- ●
321 WASHER; PL,ARM REST
ID=10.5 OD=22 		9-09160-610-0 01 1 0004- ●
327 CLIP; COVER 1-09987-249-0 02 1 0004- ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0004- ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9902-0003 ●
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-207-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-209-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-211-0 01 1 9902- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9902- ●
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 01 1 9902- ●
336 COVER; DRIVER SEAT
(E) 		1-75518-066-3 01 1 0004- ●
çizim 46050
62 80 78 88 79 66 81 66 79 77 86 79 86 79 78 339 76 322 78 78 85 467 468 85 87 513 85 470
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-4 01 1 9902- ●
62 DAMPER ASM; SEAT SUSP 1-75537-262-4 01 1 0004- ●
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 9902-0003 ●
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 0004- ●
66 RUBBER; LWR STOPPER 1-75538-145-0 02 1 0004- ●
76 DAMPER; AIR SUSP
ISRINGHAUSEN SEAT(SJA) (A) 		1-75537-276-0 01 1 9902- ●
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75537-230-2 01 1 9902-0003 ●
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75537-230-2 01 1 0004- ●
76 DAMPER; AIR SUSP
(B) 		1-75537-230-2 01 1 0004- ●
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 9902-0003 ●
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 0004- ●
77 PIN; DAMPER 1-75538-138-2 01 1 0004- ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 9902-0003 ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 0004- ●
78 RING; SNAP
(A) ID=8 		9-09185-408-0 01 1 0004- ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10 		9-09185-410-0 02 1 9902-0003 ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10 		9-09185-410-0 02 1 0004- ●
78 RING; SNAP
(B) ID=10 		9-09185-410-0 02 1 0004- ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 		9-09185-415-0 01 1 9902-0003 ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 		9-09185-415-0 01 1 0004- ●
78 RING; SNAP
(C) ID=15 		9-09185-415-0 01 1 0004- ●
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 9902-0003 ●
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 0004- ●
79 ROLLER ASM; AIR SUSP 1-75538-159-0 04 1 0004- ●
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-123-0 01 1 9902-0003 ●
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-123-0 01 1 0004- ●
80 RUBBER; STOPPER 1-09987-123-0 01 1 0004- ●
81 SPRING; AIR
ISRINGHAUSEN SEAT(SJA) (A) 		1-75537-275-0 01 1 9902- ●
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75538-151-1 01 1 9902-0003 ●
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75538-151-1 01 1 0004- ●
81 SPRING; AIR
(B) 		1-75538-151-1 01 1 0004- ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9902- ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9902-0003 ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004-0004 ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004- ●
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004- ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-0 01 1 9902-0003 ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-0 01 1 0004- ●
85 BOLT; AIR SUSP
(C) 		1-09980-577-0 01 1 0004- ●
85 BOLT; AIR SUSP
(A) 		1-75538-208-0 02 1 0004- ●
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9902-0003 ●
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0004- ●
86 BUSHING; GUIDE
OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0004- ●
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 9902-0003 ●
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 0004- ●
87 WASHER; AIR SUSP
ID=8.2 		9-09150-508-0 01 1 0004- ●
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-273-1 01 1 9902-0003 ●
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-273-1 01 1 0004- ●
88 NUT; AIR SUSP 1-75537-273-1 01 1 0004- ●
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-187-2 01 1 9902- ●
322 VALVE; AIR SPRING 1-75538-186-2 01 1 0004- ●
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-1 01 1 9902-0003 ●
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-1 01 1 0004- ●
339 UNION; DRIVER SEAT 1-75538-131-1 01 1 0004- ●
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 9902-0003 ●
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 0004- ●
467 LEVER; LOCK 1-75538-134-0 01 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 9902-0003 ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004- ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 9902-0003 ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004- ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 9902-0003 ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004- ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 02 1 0004- ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9902-0003 ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0004- ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0004- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 04 1 0004- ●
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 9902-0003 ●
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 0004- ●
470 CLIP; HOSE 1-75538-137-0 01 1 0004- ●
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 9902-0003 ●
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 0004- ●
513 SPACER; LEVER 1-75538-133-0 01 1 0004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
