4-65B — REAR LEAF SPRING (#77576) — 45 parça

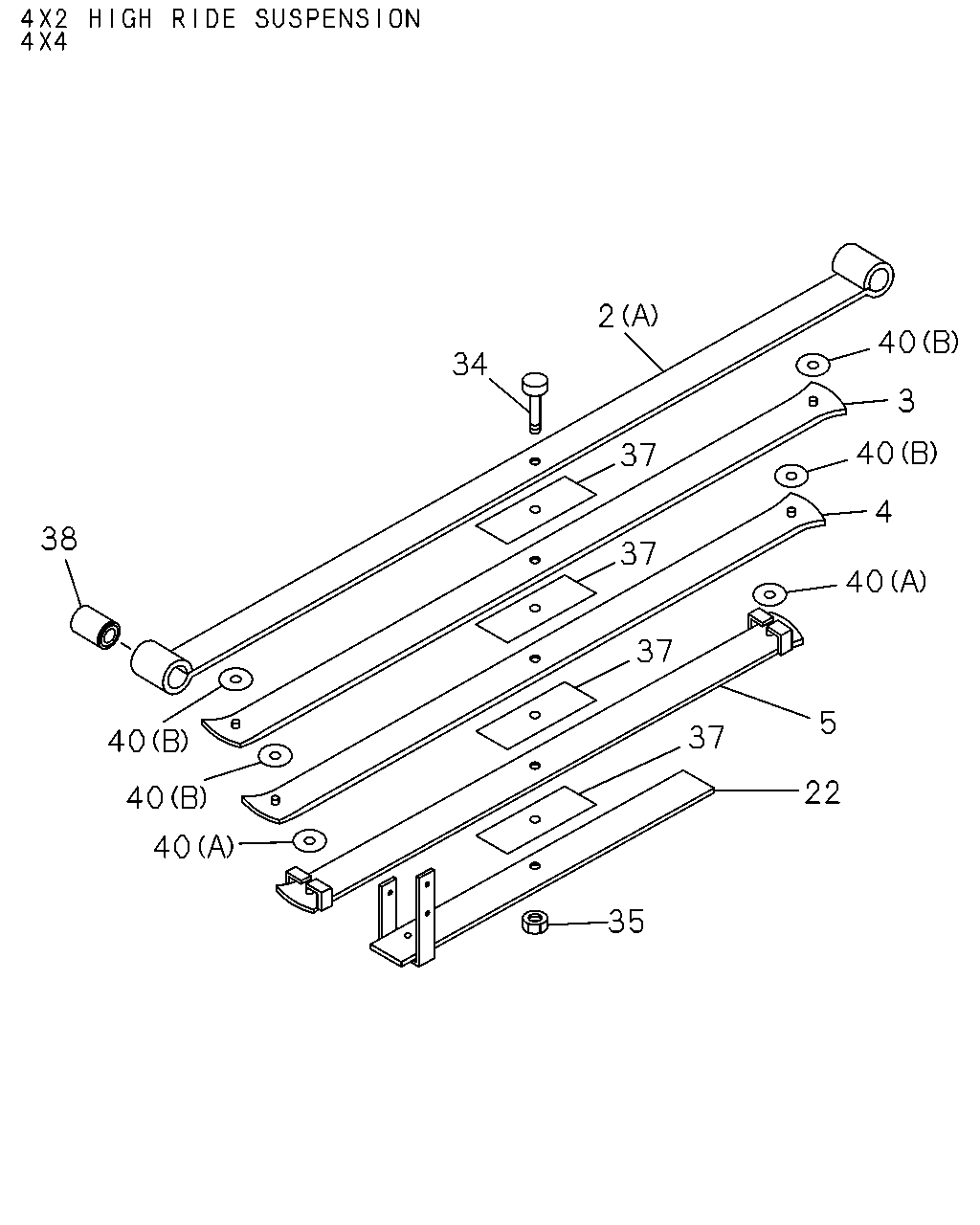

2 40 34 3 40 37 4 38 37 40 37 5 37 40 22 40 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-97359-755-1, 97359755	8-97246-603-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97385-876-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97359-755-1, 97359755	8-97246-607-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97385-877-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97359-755-1, 97359755	8-97246-612-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97385-878-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97359-755-1, 97359755	8-97304-269-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97385-879-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-97368-641-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97359-755-1, 97359755	8-97368-645-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97385-880-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: B = 8-97359-755-1, 97359755, C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97304-262-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97359-753-1, 97359753, C = 8-97385-891-0, 97385891, D = 8-97946-809-0, 97946809, E = 8-97946-816-0, 97946816	8-97945-821-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 00.002, M8 ASM PART: B = 8-97359-755-1, 97359755	9-09110-508-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, C = 8-97385-891-0, 97385891, D = 8-97946-809-0, 97946809, E = 8-97946-816-0, 97946816	8-94468-305-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, C = 8-97385-891-0, 97385891, D = 8-97946-809-0, 97946809, E = 8-97946-816-0, 97946816	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-97359-755-1, 97359755, C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, C = 8-97385-891-0, 97385891, D = 8-97946-809-0, 97946809, E = 8-97946-816-0, 97946816	8-97360-246-0	02	1	-

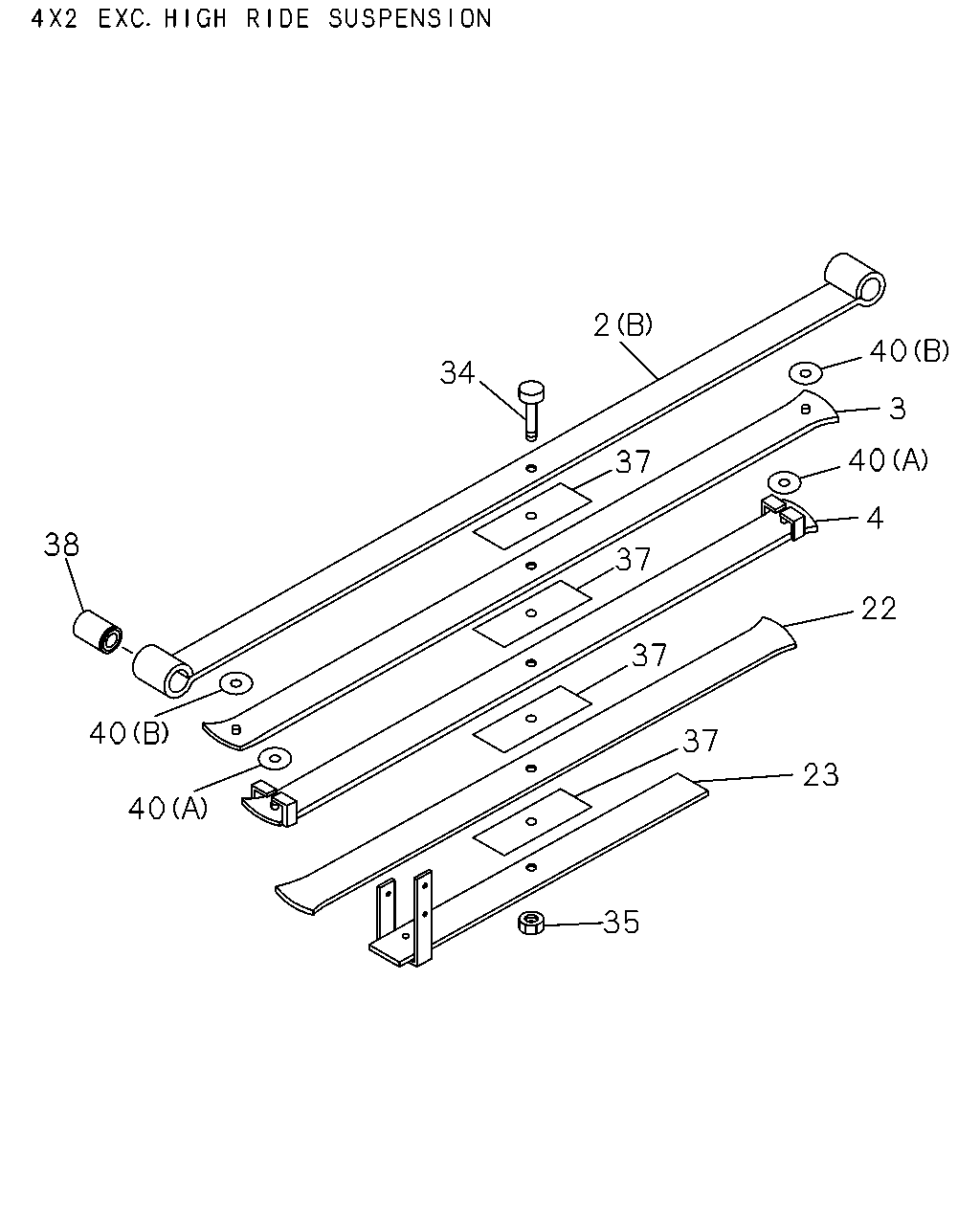

2 40 34 3 40 37 4 38 37 22 37 40 37 23 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-97359-755-1, 97359755	8-97246-603-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97385-876-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97359-755-1, 97359755	8-97246-607-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97385-877-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97359-755-1, 97359755	8-97246-612-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97385-878-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-97368-641-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97359-755-1, 97359755	8-97368-645-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97385-880-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-97368-642-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: B = 8-97359-755-1, 97359755, C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97304-262-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97359-753-1, 97359753, C = 8-97385-891-0, 97385891, D = 8-97946-809-0, 97946809, E = 8-97946-816-0, 97946816	8-97945-821-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 00.002, M8 ASM PART: B = 8-97359-755-1, 97359755	9-09110-508-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, C = 8-97385-891-0, 97385891, D = 8-97946-809-0, 97946809, E = 8-97946-816-0, 97946816	8-94468-305-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, C = 8-97385-891-0, 97385891, D = 8-97946-809-0, 97946809, E = 8-97946-816-0, 97946816	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97359-753-1, 97359753, D = 8-97946-809-0, 97946809	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-97359-755-1, 97359755, C = 8-97385-891-0, 97385891, E = 8-97946-816-0, 97946816	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97359-753-1, 97359753, B = 8-97359-755-1, 97359755, C = 8-97385-891-0, 97385891, D = 8-97946-809-0, 97946809, E = 8-97946-816-0, 97946816	8-97360-246-0	02	1	-
