4-40 — STEERING UNIT (#77570) — 73 parça

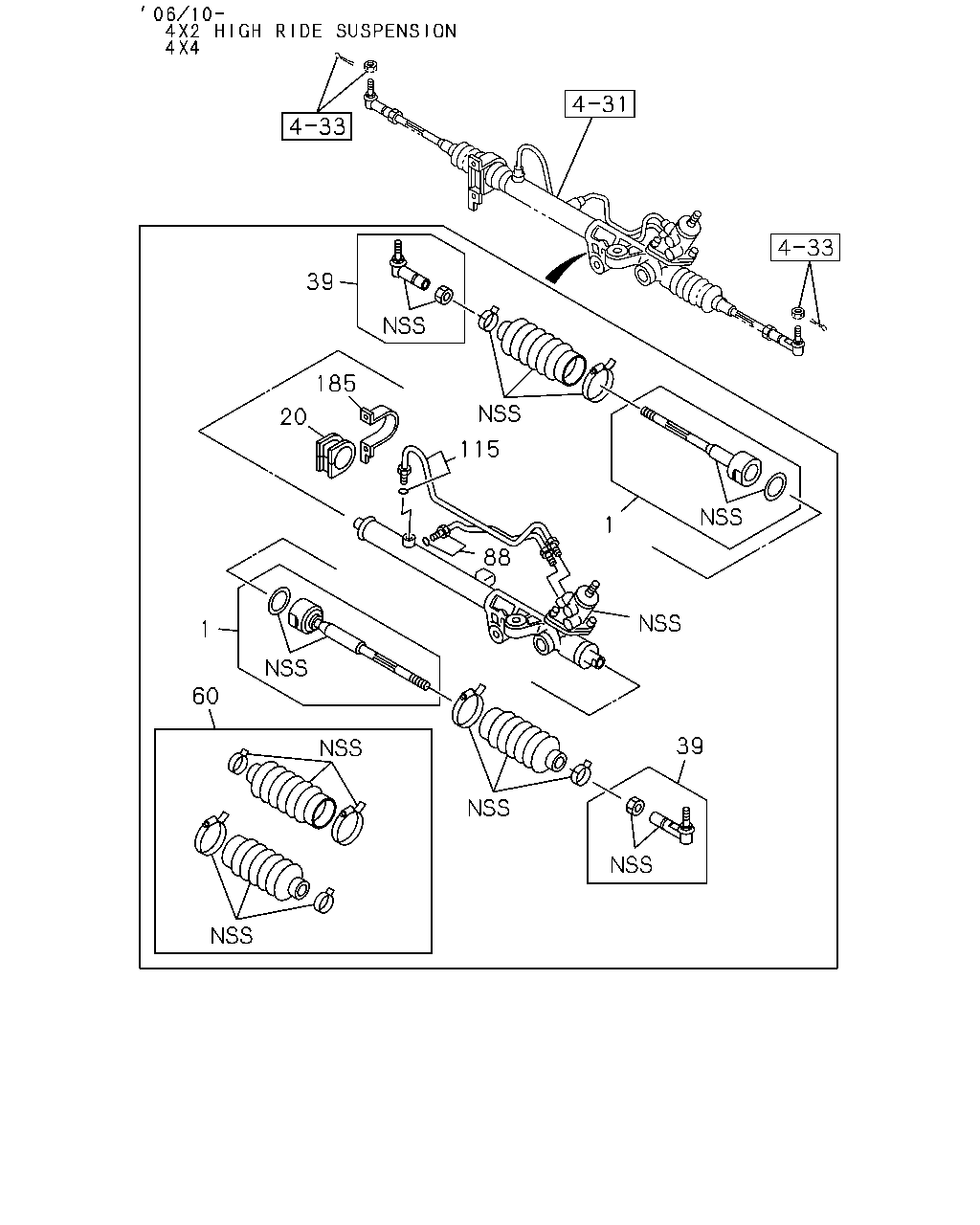

39 185 20 115 1 88 1 60 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518	8-97304-851-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-97943-519-1, 97943519	8-97304-853-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-98055-744-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-98056-550-0	01	1	-
20	06.509 RUBBER; MTG ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-97945-426-0	01	1	-
39	06.233 ROD END ASM; OUTER ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518, C = 8-97943-519-1, 97943519	8-97304-855-0	02	1	-
39	06.233 ROD END ASM; OUTER ASM PART: D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-98055-746-0	02	1	-
39	06.233 ROD END ASM; OUTER ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-98056-551-0	01	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518	8-97304-852-0	02	1	-0509
60	06.242 BOOT KIT; STRG HSG ASM PART: C = 8-97943-519-1, 97943519	8-97304-854-0	02	1	-0509
60	06.242 BOOT KIT; STRG HSG ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518	8-97944-514-0	02	1	0510-
60	06.242 BOOT KIT; STRG HSG ASM PART: C = 8-97943-519-1, 97943519	8-97944-515-0	02	1	0510-
60	06.242 BOOT KIT; STRG HSG ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-97945-423-0	02	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-98055-745-0	02	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: C = 8-97943-519-1, 97943519	8-97319-102-0	01	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: B = 8-97943-518-1, 97943518	8-97319-106-0	01	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-97945-430-0	01	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: D = 8-97944-517-0, 97944517	8-98050-994-0	01	1	-
115	06.671 PIPE; HSG TO VLV 05.529 ASM PART: C = 8-97943-519-1, 97943519	8-97319-103-0	01	1	-
115	06.671 PIPE; HSG TO VLV ASM PART: B = 8-97943-518-1, 97943518	8-97319-107-0	01	1	-
115	06.671 PIPE; HSG TO VLV ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-97945-429-0	01	1	-
115	06.671 PIPE; HSG TO VLV ASM PART: D = 8-97944-517-0, 97944517	8-98050-998-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518, C = 8-97943-519-1, 97943519	8-97304-891-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-97945-425-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-98051-007-0	01	1	-

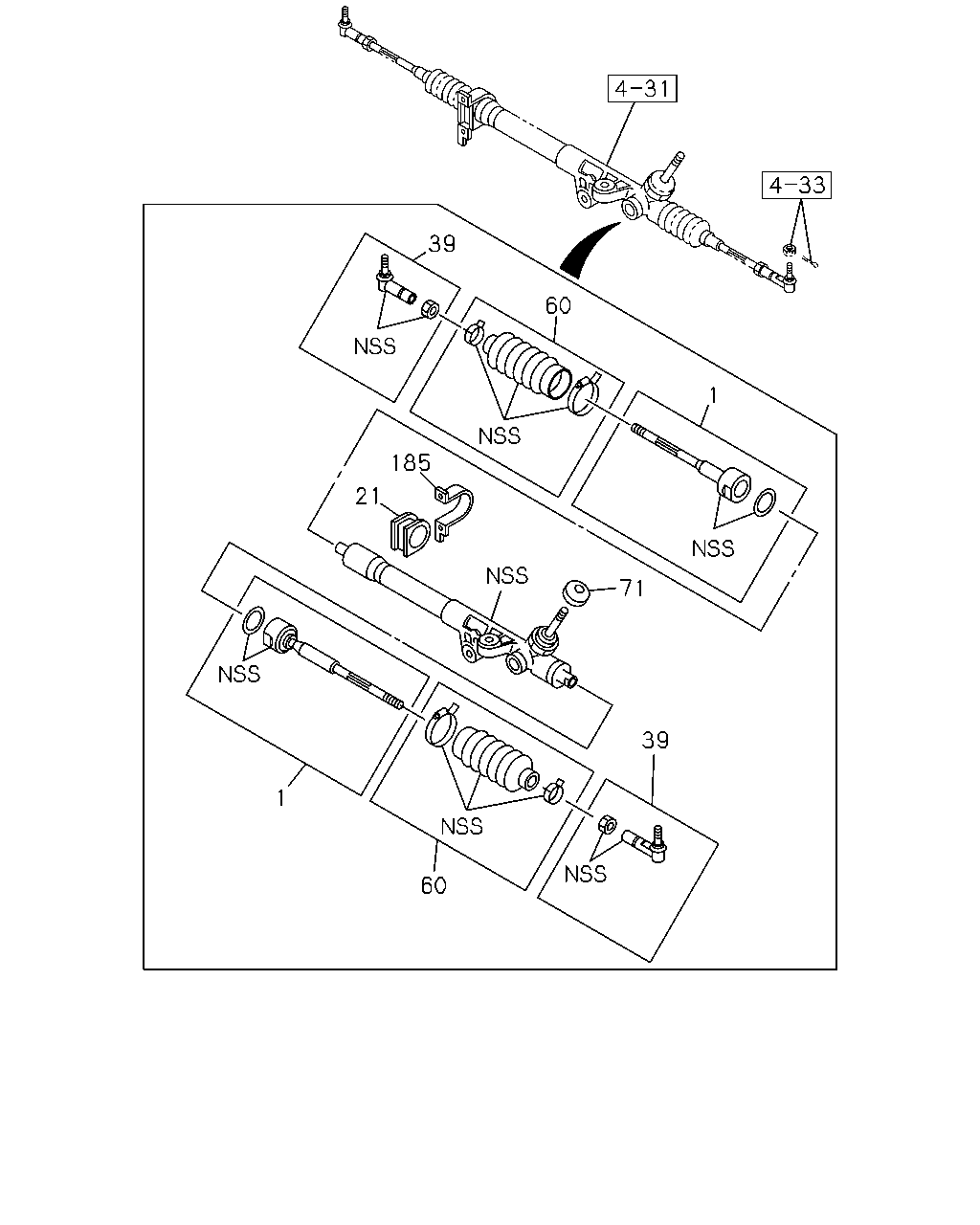

39 60 1 185 21 71 39 1 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518	8-97304-851-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-97943-519-1, 97943519	8-97304-853-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-98055-744-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-98056-550-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: B = 8-97943-518-1, 97943518, D = 8-97944-517-0, 97944517	8-97304-908-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: C = 8-97943-519-1, 97943519	8-97304-923-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: A = 8-97316-225-1, 97316225, F = 8-97944-521-0, 97944521	8-97304-936-0	01	1	-
39	06.233 ROD END ASM; OUTER ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518, C = 8-97943-519-1, 97943519	8-97304-855-0	02	1	-
39	06.233 ROD END ASM; OUTER ASM PART: D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-98055-746-0	02	1	-
39	06.233 ROD END ASM; OUTER ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-98056-551-0	01	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518	8-97304-852-0	02	1	-0509
60	06.242 BOOT KIT; STRG HSG ASM PART: C = 8-97943-519-1, 97943519	8-97304-854-0	02	1	-0509
60	06.242 BOOT KIT; STRG HSG ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518	8-97944-514-0	02	1	0510-
60	06.242 BOOT KIT; STRG HSG ASM PART: C = 8-97943-519-1, 97943519	8-97944-515-0	02	1	0510-
60	06.242 BOOT KIT; STRG HSG ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-97945-423-0	02	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-98055-745-0	02	1	-
71	06.242 COVER; DUST,STRG UNIT ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518, C = 8-97943-519-1, 97943519, D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-97304-904-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518, C = 8-97943-519-1, 97943519	8-97304-891-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-97945-425-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-98051-007-0	01	1	-

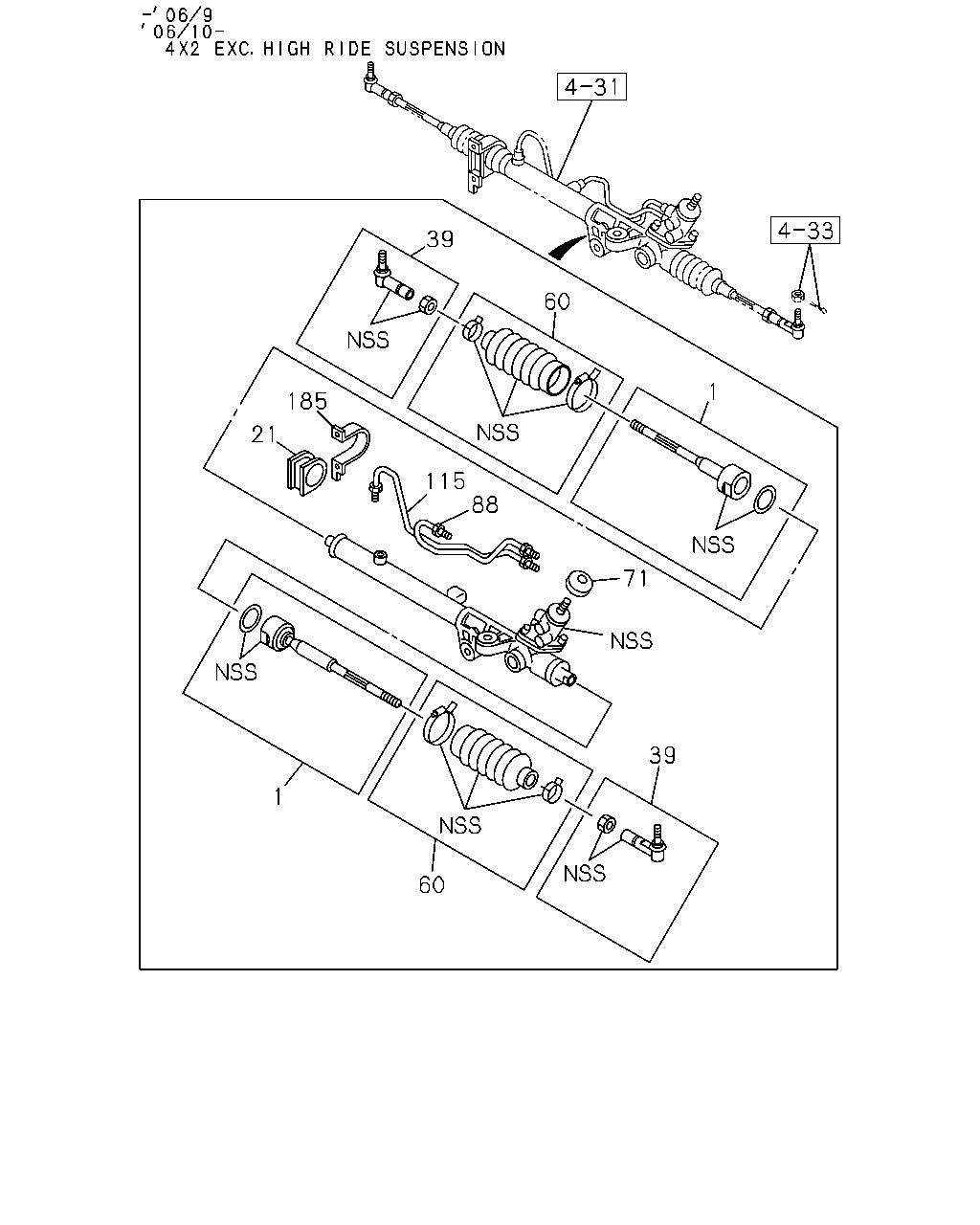

39 60 1 185 21 115 88 71 39 1 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518	8-97304-851-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-97943-519-1, 97943519	8-97304-853-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-98055-744-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-98056-550-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: B = 8-97943-518-1, 97943518, D = 8-97944-517-0, 97944517	8-97304-908-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: C = 8-97943-519-1, 97943519	8-97304-923-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: A = 8-97316-225-1, 97316225, F = 8-97944-521-0, 97944521	8-97304-936-0	01	1	-
39	06.233 ROD END ASM; OUTER ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518, C = 8-97943-519-1, 97943519	8-97304-855-0	02	1	-
39	06.233 ROD END ASM; OUTER ASM PART: D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-98055-746-0	02	1	-
39	06.233 ROD END ASM; OUTER ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-98056-551-0	01	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518	8-97304-852-0	02	1	-0509
60	06.242 BOOT KIT; STRG HSG ASM PART: C = 8-97943-519-1, 97943519	8-97304-854-0	02	1	-0509
60	06.242 BOOT KIT; STRG HSG ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518	8-97944-514-0	02	1	0510-
60	06.242 BOOT KIT; STRG HSG ASM PART: C = 8-97943-519-1, 97943519	8-97944-515-0	02	1	0510-
60	06.242 BOOT KIT; STRG HSG ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-97945-423-0	02	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-98055-745-0	02	1	-
71	06.242 COVER; DUST,STRG UNIT ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518, C = 8-97943-519-1, 97943519, D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-97304-904-0	01	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: C = 8-97943-519-1, 97943519	8-97319-102-0	01	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: B = 8-97943-518-1, 97943518	8-97319-106-0	01	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-97945-430-0	01	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: D = 8-97944-517-0, 97944517	8-98050-994-0	01	1	-
115	06.671 PIPE; HSG TO VLV 05.529 ASM PART: C = 8-97943-519-1, 97943519	8-97319-103-0	01	1	-
115	06.671 PIPE; HSG TO VLV ASM PART: B = 8-97943-518-1, 97943518	8-97319-107-0	01	1	-
115	06.671 PIPE; HSG TO VLV ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-97945-429-0	01	1	-
115	06.671 PIPE; HSG TO VLV ASM PART: D = 8-97944-517-0, 97944517	8-98050-998-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: A = 8-97316-225-1, 97316225, B = 8-97943-518-1, 97943518, C = 8-97943-519-1, 97943519	8-97304-891-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: E = 8-97944-519-1, 97944519, G = 8-98101-780-0, 98101780	8-97945-425-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: D = 8-97944-517-0, 97944517, F = 8-97944-521-0, 97944521	8-98051-007-0	01	1	-
