◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#7757) — 93 parça

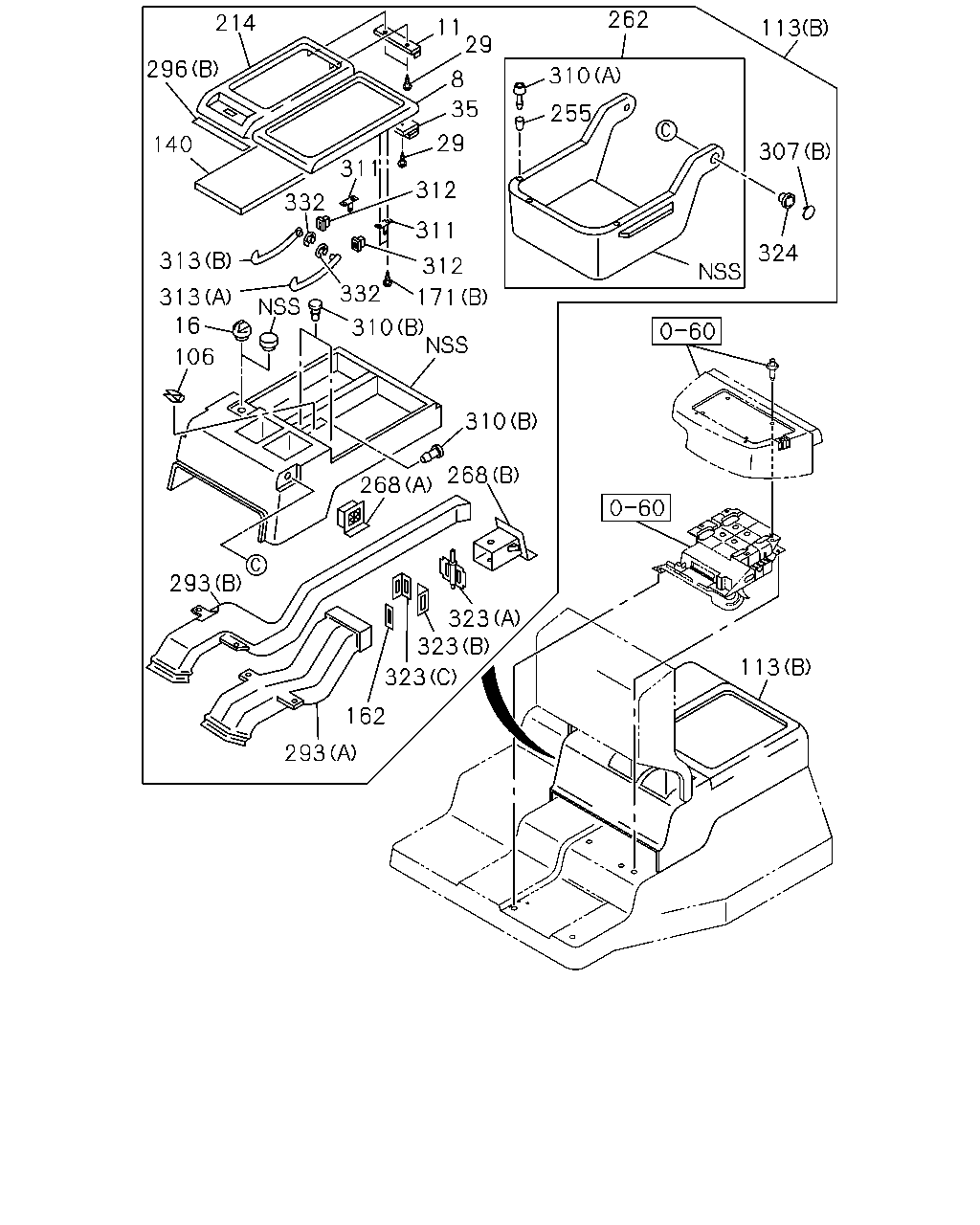

çizim 6338
262 214 11 29 113 296 310 8 35 255 29 140 307 311 312 332 311 324 313 312 332 171 313 16 310 106 310 268 268 293 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-078-3 01 1 0004- ●
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 0004- ●
16 KNOB ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-111-3 01 1 0004- ●
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 0004- ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 0004- ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 0004- ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-072-5 01 1 0004- ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72537-154-0 01 1 0004- ●
140 SHEET
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-093-1 01 1 0004- ●
162 CUSHION; PARCEL BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0004- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0004- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0004- ●
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-076-4 01 1 0004- ●
255 SPRING; TABLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-152-0 03 1 0004- ●
262 TABLE ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-088-6 01 1 0004- ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-109-0 01 1 0004- ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-110-1 01 1 0004- ●
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0004- ●
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0004- ●
296 SEAL
(A) OD=25 BLACK 		1-76798-019-0 02 1 9902-0003 ●
296 SEAL
(A) OD=25 BLACK 		1-76798-019-0 02 1 0004- ● ●
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-094-1 01 1 0004- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-166-0 04 1 0004- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-120-1 02 1 0004- ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-187-0 02 1 0004- ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-153-0 03 1 0004- ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 0004- ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 0004- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 0004- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 0004- ●
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0004- ●
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 0004- ●
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0004- ●
324 BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-116-0 02 1 0004- ●
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 0004- ●

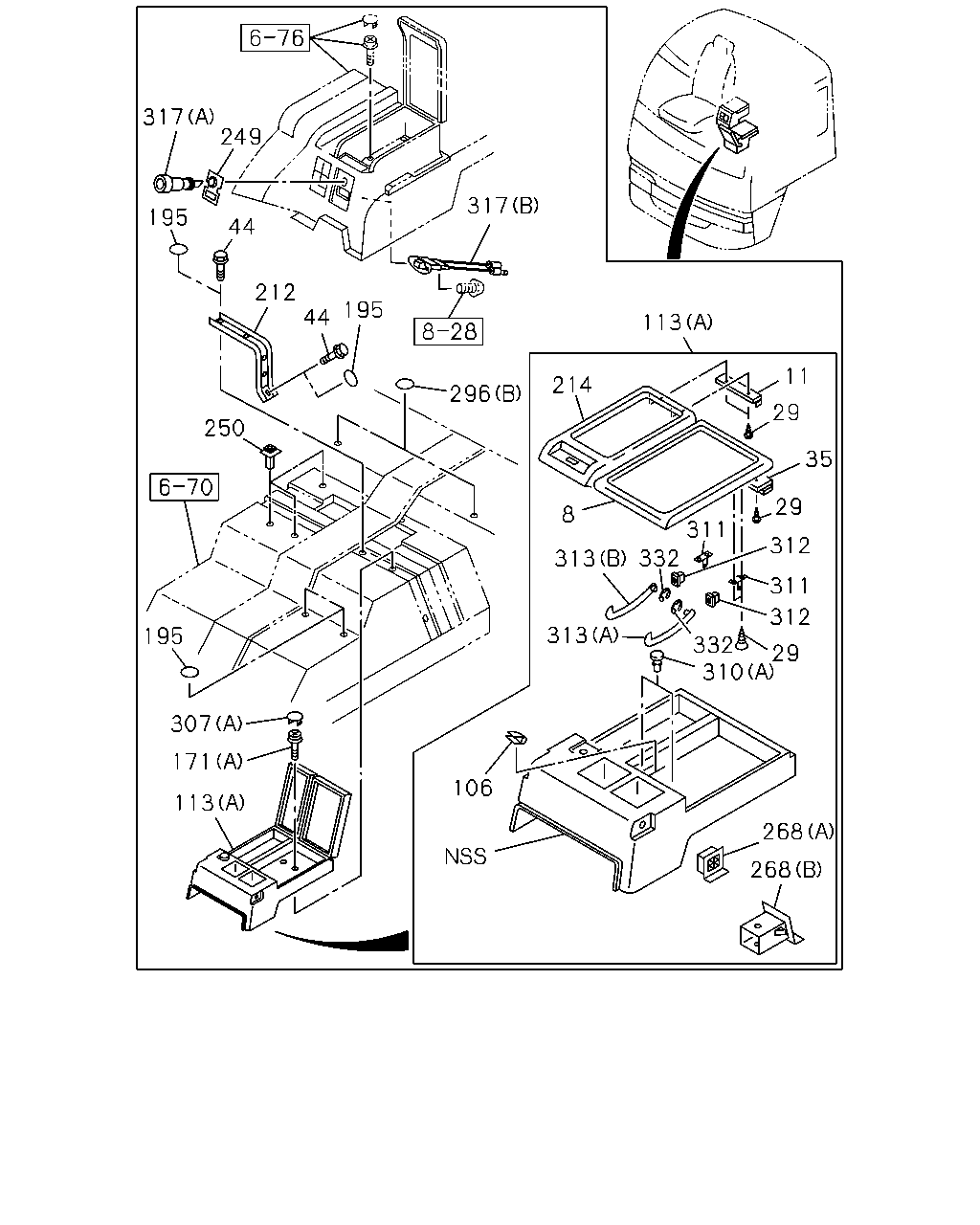

çizim 7584
317 249 317 195 44 212 44 195 113 11 214 296 29 250 35 311 29 8 312 332 313 311 312 313 195 332 310 29 307 171 106 113 268 268
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-078-3 01 1 0004- ●
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 0004- ●
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 0004- ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 0004- ●
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0004- ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 0004- ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-072-5 01 1 0004- ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72537-154-0 01 1 0004- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0004- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0004- ●
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 0004- ●
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0004- ●
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-076-4 01 1 0004- ●
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 9902-0003 ●
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 0004- ● ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 9902-0003 ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0004- ● ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-109-0 01 1 0004- ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-110-1 01 1 0004- ●
296 SEAL
(A) OD=25 BLACK 		1-76798-019-0 02 1 9902-0003 ●
296 SEAL
(A) OD=25 BLACK 		1-76798-019-0 02 1 0004- ● ●
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-094-1 01 1 0004- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-166-0 04 1 0004- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-120-1 02 1 0004- ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-187-0 02 1 0004- ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-153-0 03 1 0004- ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 0004- ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 0004- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 0004- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 0004- ●
317 CONSENT
(B) 		1-82523-020-2 01 1 9902-0003 ●
317 CONSENT
(B) 		1-82523-020-2 01 1 0004- ● ●
317 CONSENT
ELEC OUTLET 12V<TAW> (A) 		8-94382-451-1 01 1 9902-0003 ●
317 CONSENT
ELEC OUTLET 12V<TAW> (A) 		8-94382-451-1 01 1 0004- ● ●
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 0004- ●

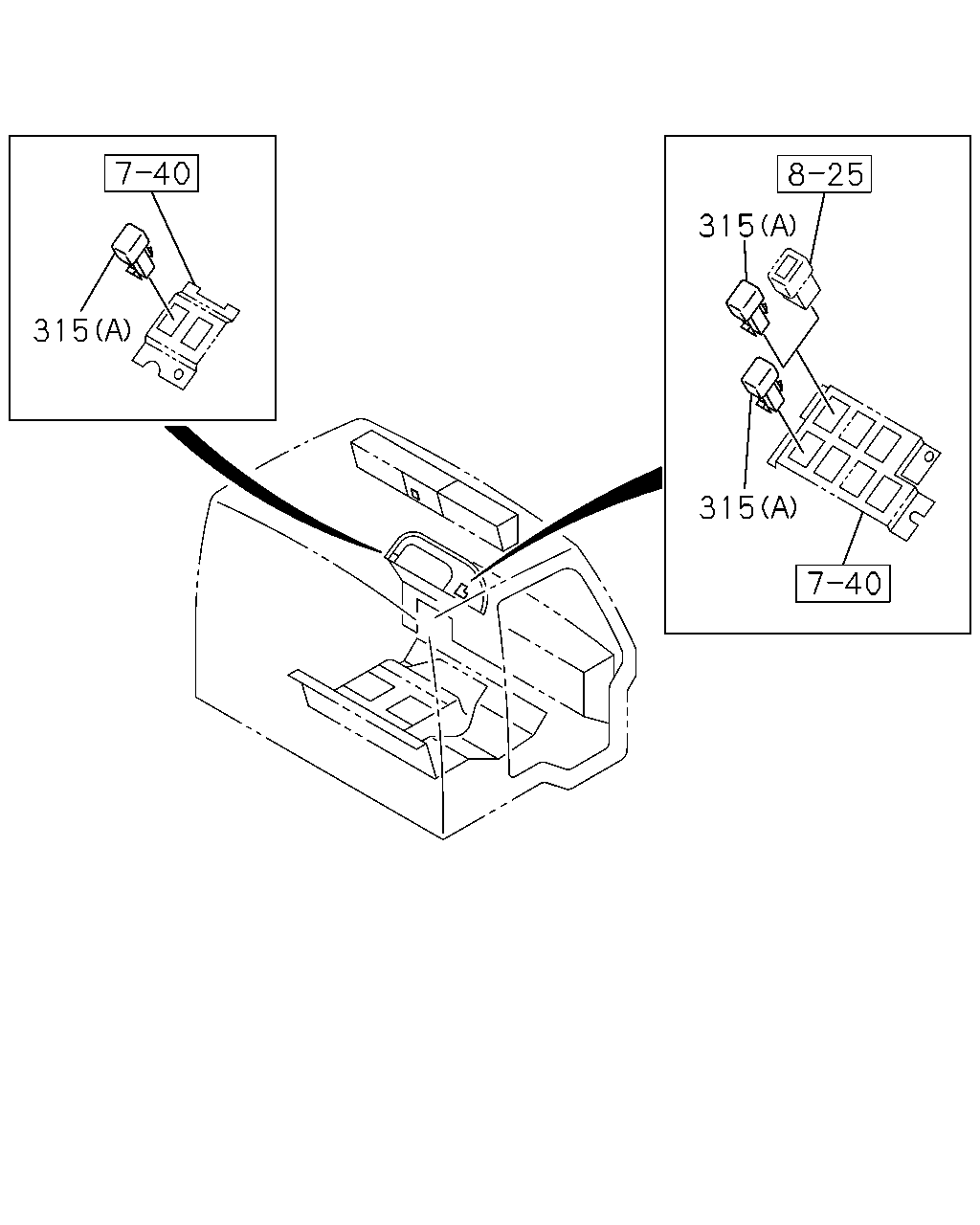

çizim 44340
315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(A) 		1-82359-069-2 14 1 9902- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9902-0003 ●
315 COVER; HOLE,SW
EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, MARKER LAMP THREE AMBER<WD9> (A) 		1-82359-069-2 01 1 9902-0003 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0004- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 18 1 0004- ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0004- ●

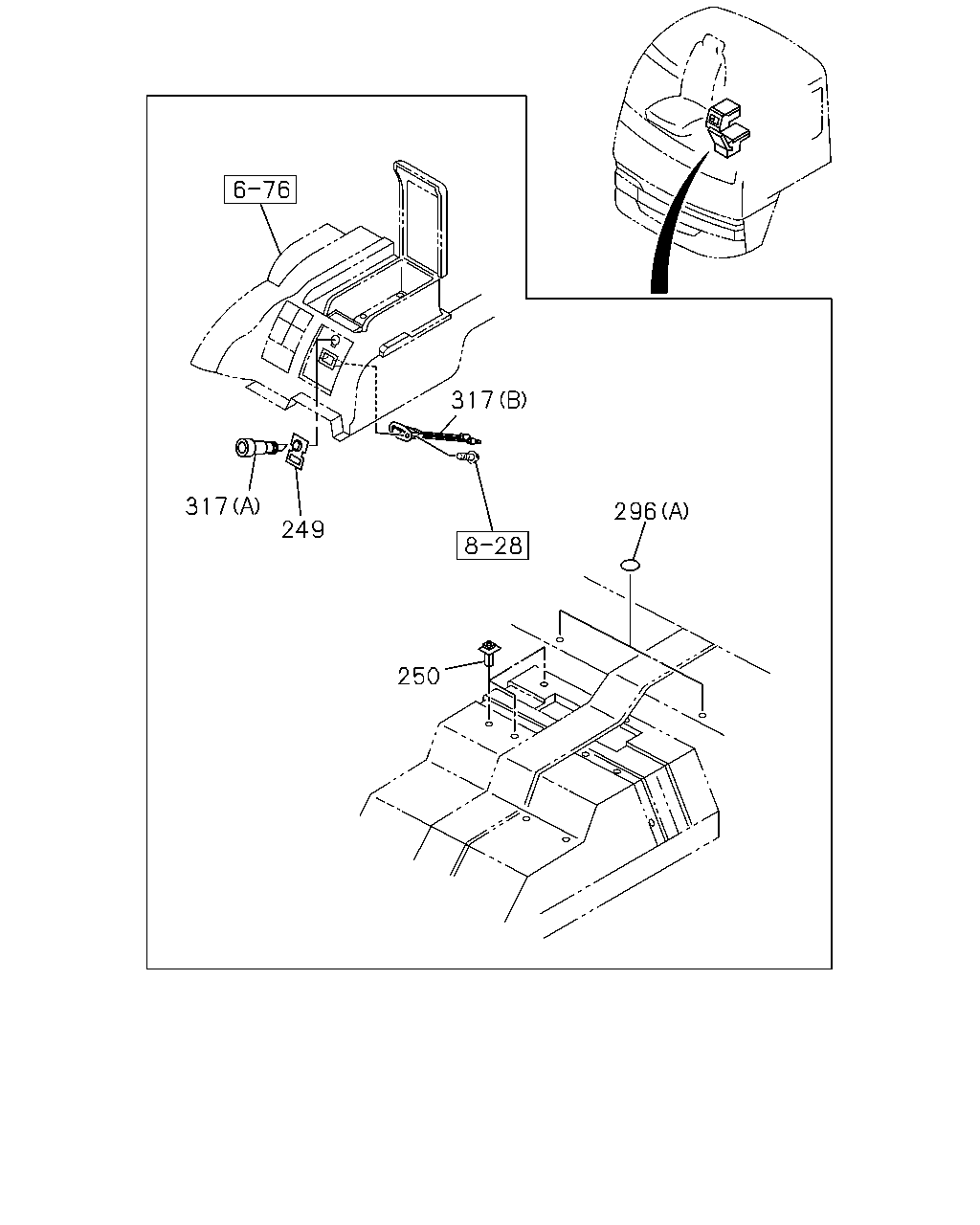

çizim 44483
317 317 296 249 250
BalonParca AdiParca NoAdetTipApplied Date A B
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 9902-0003 ●
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 0004- ● ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 9902-0003 ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0004- ● ●
296 SEAL
(A) OD=25 BLACK 		1-76798-019-0 02 1 9902-0003 ●
296 SEAL
(A) OD=25 BLACK 		1-76798-019-0 02 1 0004- ● ●
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-094-1 01 1 0004- ●
317 CONSENT
(B) 		1-82523-020-2 01 1 9902-0003 ●
317 CONSENT
(B) 		1-82523-020-2 01 1 0004- ● ●
317 CONSENT
ELEC OUTLET 12V<TAW> (A) 		8-94382-451-1 01 1 9902-0003 ●
317 CONSENT
ELEC OUTLET 12V<TAW> (A) 		8-94382-451-1 01 1 0004- ● ●

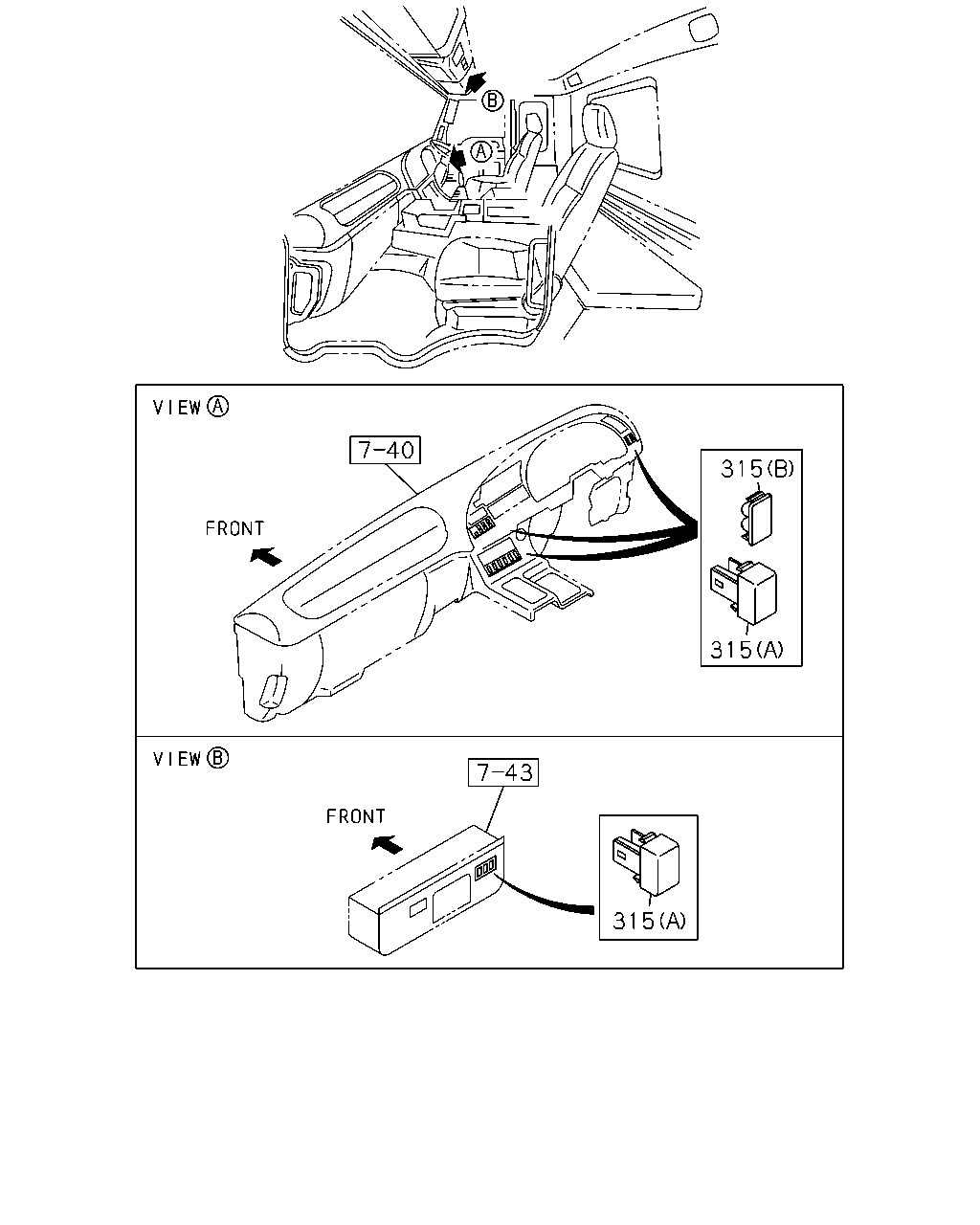

çizim 45026
315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(A) 		1-82359-069-2 14 1 9902- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9902-0003 ●
315 COVER; HOLE,SW
EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, MARKER LAMP THREE AMBER<WD9> (A) 		1-82359-069-2 01 1 9902-0003 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0004- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 18 1 0004- ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0004- ●
