Sayfa 4-36 - Isuzu EPC

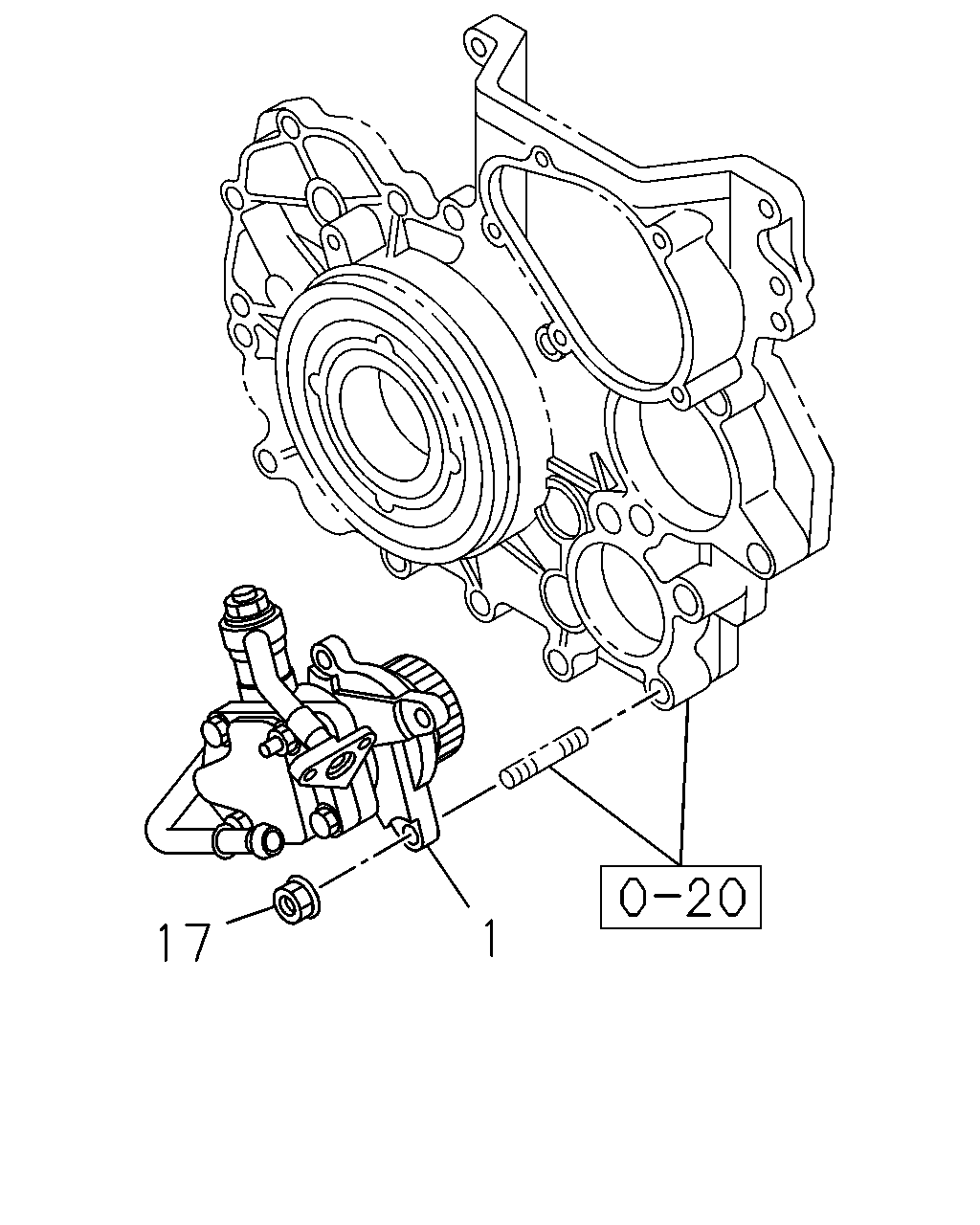

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#77569) — 181 parça

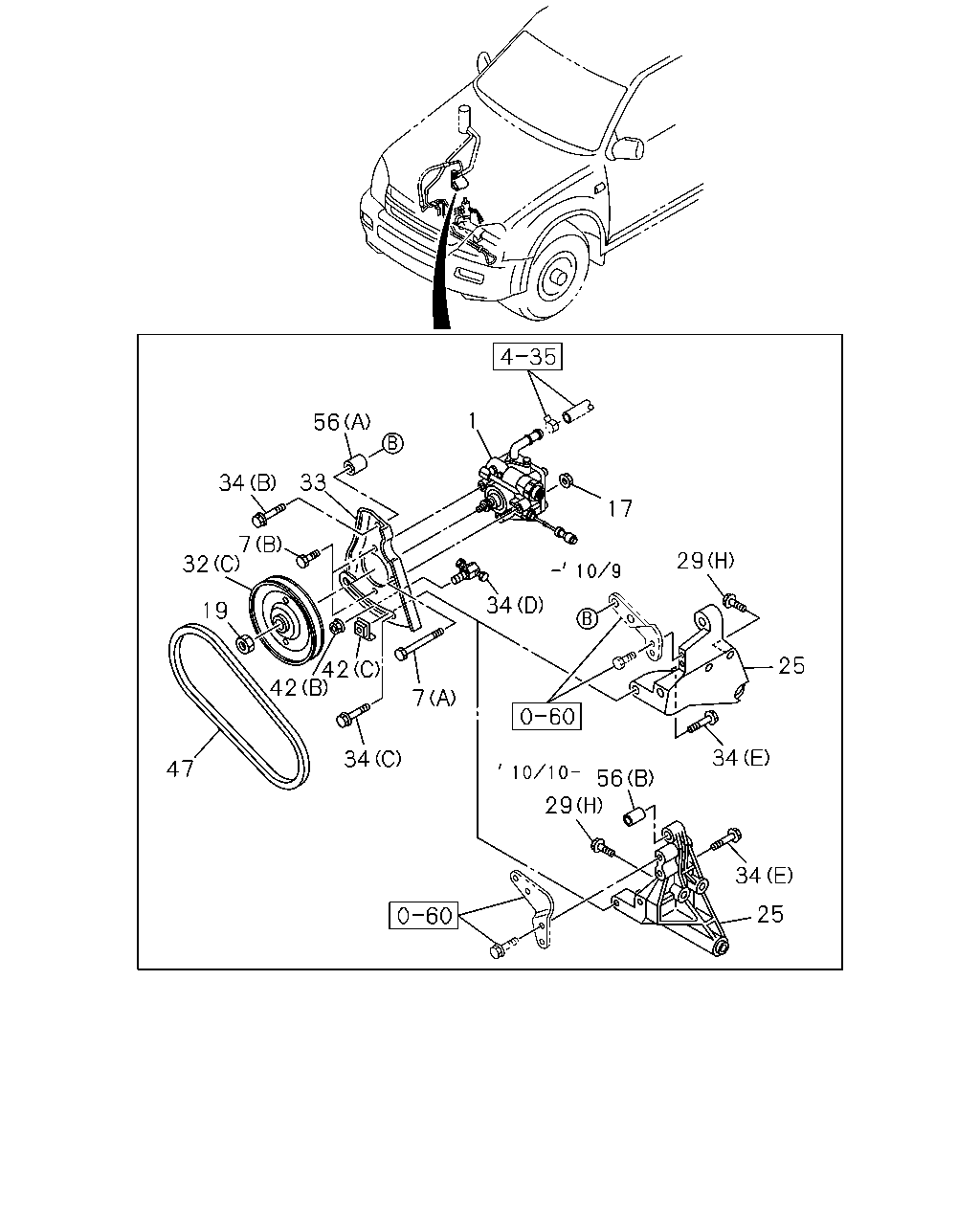

1 56 33 34 17 7 32 29 34 19 25 42 42 7 34 34 47 56 29 34 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) POWER STEERING<N40>	8-97944-829-0	01	1	0610-0610	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) POWER STEERING<N40>	8-98063-153-0	01	1	0611-0705	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) POWER STEERING<N40>	8-97946-607-0	01	1	0706-0707	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) POWER STEERING<N40>	8-97946-698-0	01	1	0708-	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97214-995-1	01	1	0306-0311	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97942-188-0	01	1	0312-0609	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97944-828-0	01	1	0610-0705	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97946-606-0	01	1	0706-0711	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97946-697-0	01	1	0712-	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97214-994-1	01	1	0306-0609	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97944-826-0	01	1	0610-0705	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97946-602-0	01	1	0706-0711	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97946-694-0	01	1	0712-	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S C24SE ENG(LG1) POWER STEERING<N40> 02.277 (A) M10X90 FLANGE	0-28051-090-0	01	1	0306-	●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S C24SE ENG(LG1) POWER STEERING<N40> 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0306-	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 4JJ1-TCS ENG(LFB) POWER STEERING<N40> 01.540 M8 FLANGE	0-91180-208-0	03	1	0610-	●	●	●	●
17	06.606 NUT; POWER STRG PUMP C24SE ENG(LG1) POWER STEERING<N40> 04.085 M10 FLANGE	0-91180-210-0	01	1	0306-	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 01.540 M8 FLANGE	0-91180-208-0	01	1	0306-0609	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 4JA1-T ENG(LP0) POWER STEERING<N40> 01.540 M8 FLANGE	0-91180-208-0	01	1	0610-	●	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0306-0306	●	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP C24SE ENG(LG1) POWER STEERING<N40> M12 FLANGE	8-97245-668-0	01	1	0306-	●	●	●	●
25	06.606 BRACKET; P/S PUMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP)	8-92063-351-0	01	1	0306-1009	●	●	●	●
25	06.606 BRACKET; P/S PUMP C24SE ENG(LG1)	8-92066-605-0	01	1	1010-	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97941-415-0	01	1	0306-0609	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97941-415-0	01	1	0610-	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) (H)	8-11081-925-0	02	1	0306-	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> (F) M8X30 W/LK WASHER	0-50540-830-0	01	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40> (F) M8X30 W/LK WASHER	0-50540-830-0	01	1	0610-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) (F) M8X30 W/LK WASHER	0-50540-830-0	01	1	0610-			●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> (G) M10X35 W/LK WASHER	0-50541-035-0	01	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40> (G) M10X35 W/LK WASHER	0-50541-035-0	01	1	0610-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) (G) M10X35 W/LK WASHER	0-50541-035-0	01	1	0610-			●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0610-	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> (B) M10X25 FLANGE	0-28051-025-0	02	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40> (B) M10X25 FLANGE	0-28051-025-0	02	1	0610-	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> (D) M8X60 W/LK WASHER	0-50540-860-0	01	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40> (D) M8X60 W/LK WASHER	0-50540-860-0	01	1	0610-	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 04.104 (C) M10X60 W/LK WASHER	0-50041-060-0	01	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40> 00.685 (C) M10X60 FLANGE	0-28051-060-0	01	1	0610-	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> (E) M10X28 W/LK WASHER	8-97943-080-0	03	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40> (E) M10X28 W/LK WASHER	8-97943-080-0	03	1	0610-0906	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40> (E) M10X28 W/LK WASHER	8-98136-233-0	03	1	0907-	●	●	●	●
32	06.665 PULLEY; IDLER,P/S C24SE ENG(LG1) POWER STEERING<N40> (C)	8-97214-996-0	01	1	0306-	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> (B)	8-97112-740-0	01	1	0306-0609	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40> (B)	8-97112-740-1	01	1	0610-	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) (B)	8-97112-740-1	01	1	0610-			●	●
32	06.665 PULLEY; IDLER,P/S 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> (A)	8-97942-187-0	01	1	0306-0609	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1-T ENG(LP0) POWER STEERING<N40> (A)	8-97942-187-0	01	1	0610-	●	●	●	●
33	06.655 PLATE; ADJ,P/S C24SE ENG(LG1) POWER STEERING<N40>	8-92066-087-1	01	1	0306-	●	●	●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> (B) M10X45 FLANGE	0-28151-045-0	01	1	0306-	●	●	●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> (C) M10X22 FLANGE	8-11083-820-0	01	1	0306-	●	●	●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> 06.672 (D)	8-92064-382-2	01	1	0306-	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> (A) M10X70	0-20801-070-0	01	1	0306-0609	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4JA1-T ENG(LP0) POWER STEERING<N40> (A) M10X70	0-20801-070-0	01	1	0610-	●	●	●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> 00.683 (E) M10X55 FLANGE	8-94399-863-1	01	1	0306-0809	●	●	●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> 00.683 (E) M10X55 FLANGE	8-97365-449-0	01	1	0810-	●	●	●	●
42	06.672 NUT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> (B) M10 FLANGE	0-91280-210-0	01	1	0306-	●	●	●	●
42	06.672 NUT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> (C) M10	8-92064-322-0	01	1	0306-	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 01.540 (A) M8 FLANGE	0-91180-208-0	01	1	0306-0609	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JA1-T ENG(LP0) POWER STEERING<N40> 01.540 (A) M8 FLANGE	0-91180-208-0	01	1	0610-	●	●	●	●
47	01.066 BELT; P/S PUMP C24SE ENG(LG1) POWER STEERING<N40> L=960.5	8-92063-695-0	01	1	0306-	●	●	●	●
47	01.066 BELT; P/S PUMP 4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> L=1451 MITSUBOSHI	1-13671-301-0	01	1	0306-0609	●	●	●	●
47	01.066 BELT; P/S PUMP 4JA1-T ENG(LP0) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> L=1399	5-13671-111-0	01	1	0306-0609	●	●	●	●
47	01.066 BELT; P/S PUMP 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40> L=1399	5-13671-111-0	01	1	0610-	●	●
47	01.066 BELT; P/S PUMP 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) L=1399	5-13671-111-0	01	1	0610-			●	●
56	06.672 PIECE; DIST,BRKT C24SE ENG(LG1) (B)	8-92066-548-0	01	1	1010-	●	●	●	●
56	06.672 PIECE; DIST,BRKT C24SE ENG(LG1) POWER STEERING<N40> (A)	8-92066-088-0	01	1	0306-0705	●	●	●	●
56	06.672 PIECE; DIST,BRKT C24SE ENG(LG1) POWER STEERING<N40> (A)	8-98070-969-0	01	1	0706-	●	●	●	●

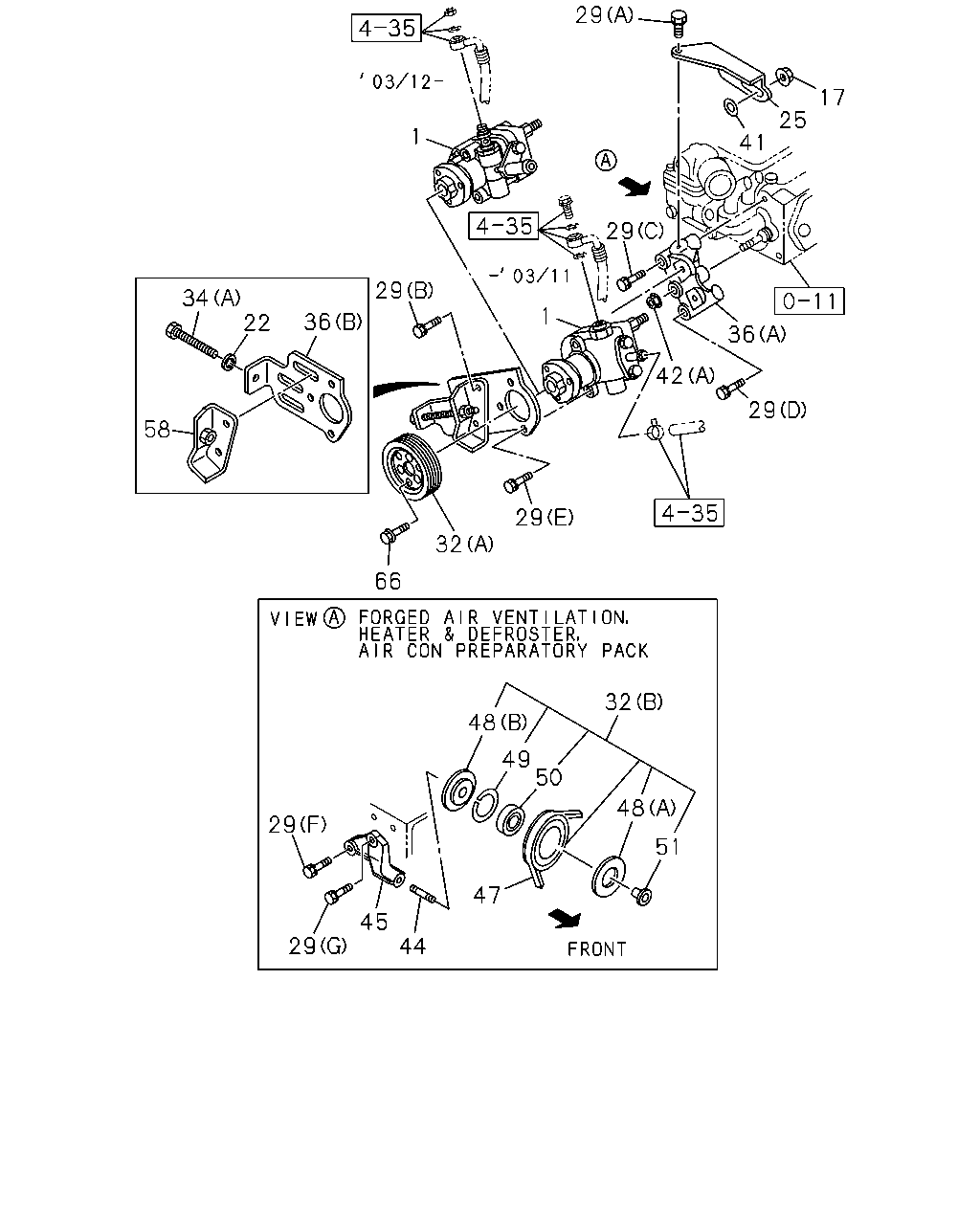

29 17 25 1 41 29 29 34 22 1 36 36 42 29 58 29 32 66 32 48 49 50 48 29 51 47 45 29 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) POWER STEERING<N40>	8-97944-829-0	01	1	0610-0610	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) POWER STEERING<N40>	8-98063-153-0	01	1	0611-0705	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) POWER STEERING<N40>	8-97946-607-0	01	1	0706-0707	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) POWER STEERING<N40>	8-97946-698-0	01	1	0708-	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97214-995-1	01	1	0306-0311	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97942-188-0	01	1	0312-0609	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97944-828-0	01	1	0610-0705	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97946-606-0	01	1	0706-0711	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97946-697-0	01	1	0712-	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97214-994-1	01	1	0306-0609	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97944-826-0	01	1	0610-0705	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97946-602-0	01	1	0706-0711	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97946-694-0	01	1	0712-	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 4JJ1-TCS ENG(LFB) POWER STEERING<N40> 01.540 M8 FLANGE	0-91180-208-0	03	1	0610-	●	●	●	●
17	06.606 NUT; POWER STRG PUMP C24SE ENG(LG1) POWER STEERING<N40> 04.085 M10 FLANGE	0-91180-210-0	01	1	0306-	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 01.540 M8 FLANGE	0-91180-208-0	01	1	0306-0609	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 4JA1-T ENG(LP0) POWER STEERING<N40> 01.540 M8 FLANGE	0-91180-208-0	01	1	0610-	●	●	●	●
22	06.606 WASHER; LK,OIL PUMP,P/S 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 00.002 ID=10.2	9-09150-510-0	01	1	0306-0604	●	●	●	●
22	06.606 WASHER; LK,OIL PUMP,P/S 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> ID=10.2	0-91510-510-0	01	1	0605-0609	●	●	●	●
22	06.606 WASHER; LK,OIL PUMP,P/S 4JA1-T ENG(LP0) POWER STEERING<N40> ID=10.2	0-91510-510-0	01	1	0610-	●	●	●	●
25	06.606 BRACKET; P/S PUMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP)	8-92063-351-0	01	1	0306-1009	●	●	●	●
25	06.606 BRACKET; P/S PUMP C24SE ENG(LG1)	8-92066-605-0	01	1	1010-	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97941-415-0	01	1	0306-0609	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97941-415-0	01	1	0610-	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) (H)	8-11081-925-0	02	1	0306-	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> (F) M8X30 W/LK WASHER	0-50540-830-0	01	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40> (F) M8X30 W/LK WASHER	0-50540-830-0	01	1	0610-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) (F) M8X30 W/LK WASHER	0-50540-830-0	01	1	0610-			●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> (G) M10X35 W/LK WASHER	0-50541-035-0	01	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40> (G) M10X35 W/LK WASHER	0-50541-035-0	01	1	0610-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) (G) M10X35 W/LK WASHER	0-50541-035-0	01	1	0610-			●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0610-	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> (B) M10X25 FLANGE	0-28051-025-0	02	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40> (B) M10X25 FLANGE	0-28051-025-0	02	1	0610-	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> (D) M8X60 W/LK WASHER	0-50540-860-0	01	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40> (D) M8X60 W/LK WASHER	0-50540-860-0	01	1	0610-	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 04.104 (C) M10X60 W/LK WASHER	0-50041-060-0	01	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40> 00.685 (C) M10X60 FLANGE	0-28051-060-0	01	1	0610-	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> (E) M10X28 W/LK WASHER	8-97943-080-0	03	1	0306-0609	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40> (E) M10X28 W/LK WASHER	8-97943-080-0	03	1	0610-0906	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40> (E) M10X28 W/LK WASHER	8-98136-233-0	03	1	0907-	●	●	●	●
32	06.665 PULLEY; IDLER,P/S C24SE ENG(LG1) POWER STEERING<N40> (C)	8-97214-996-0	01	1	0306-	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> (B)	8-97112-740-0	01	1	0306-0609	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40> (B)	8-97112-740-1	01	1	0610-	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) (B)	8-97112-740-1	01	1	0610-			●	●
32	06.665 PULLEY; IDLER,P/S 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> (A)	8-97942-187-0	01	1	0306-0609	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JA1-T ENG(LP0) POWER STEERING<N40> (A)	8-97942-187-0	01	1	0610-	●	●	●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> (B) M10X45 FLANGE	0-28151-045-0	01	1	0306-	●	●	●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> (C) M10X22 FLANGE	8-11083-820-0	01	1	0306-	●	●	●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> 06.672 (D)	8-92064-382-2	01	1	0306-	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> (A) M10X70	0-20801-070-0	01	1	0306-0609	●	●	●	●
34	09.181 BOLT; ADJ PLATE 4JA1-T ENG(LP0) POWER STEERING<N40> (A) M10X70	0-20801-070-0	01	1	0610-	●	●	●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> 00.683 (E) M10X55 FLANGE	8-94399-863-1	01	1	0306-0809	●	●	●	●
34	09.181 BOLT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> 00.683 (E) M10X55 FLANGE	8-97365-449-0	01	1	0810-	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> (A)	8-97941-414-0	01	1	0306-0609	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JA1-T ENG(LP0) POWER STEERING<N40> (A)	8-97941-414-0	01	1	0610-	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> (B)	8-97942-483-0	01	1	0306-0609	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JA1-T ENG(LP0) POWER STEERING<N40> (B)	8-97942-483-0	01	1	0610-	●	●	●	●
41	06.168 WASHER; PL,BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 03.275 ID=8.5 OD=22 T=4	9-09851-649-0	01	1	0306-0609	●	●	●	●
41	06.168 WASHER; PL,BRKT 4JA1-T ENG(LP0) POWER STEERING<N40> 03.275 ID=8.5 OD=22 T=4	9-09851-649-0	01	1	0610-	●	●	●	●
42	06.672 NUT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> (B) M10 FLANGE	0-91280-210-0	01	1	0306-	●	●	●	●
42	06.672 NUT; ADJ PLATE C24SE ENG(LG1) POWER STEERING<N40> (C) M10	8-92064-322-0	01	1	0306-	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 01.540 (A) M8 FLANGE	0-91180-208-0	01	1	0306-0609	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JA1-T ENG(LP0) POWER STEERING<N40> 01.540 (A) M8 FLANGE	0-91180-208-0	01	1	0610-	●	●	●	●
44	06.665 STUD; IDLER PULLEY 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> 03.275 M10X25 L=40	9-04411-025-0	01	1	0306-0609	●	●	●	●
44	06.665 STUD; IDLER PULLEY 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40> 03.275 M10X25 L=40	9-04411-025-0	01	1	0610-	●	●
44	06.665 STUD; IDLER PULLEY 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) 03.275 M10X25 L=40	9-04411-025-0	01	1	0610-			●	●
45	06.655 BRACKET; IDLE PULLEY,P/S 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40>	8-94449-652-0	01	1	0306-0609	●	●	●	●
45	06.655 BRACKET; IDLE PULLEY,P/S 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40>	8-94449-652-0	01	1	0610-	●	●
45	06.655 BRACKET; IDLE PULLEY,P/S 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42)	8-94449-652-0	01	1	0610-			●	●
47	01.066 BELT; P/S PUMP C24SE ENG(LG1) POWER STEERING<N40> L=960.5	8-92063-695-0	01	1	0306-	●	●	●	●
47	01.066 BELT; P/S PUMP 4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> L=1451 MITSUBOSHI	1-13671-301-0	01	1	0306-0609	●	●	●	●
47	01.066 BELT; P/S PUMP 4JA1-T ENG(LP0) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> L=1399	5-13671-111-0	01	1	0306-0609	●	●	●	●
47	01.066 BELT; P/S PUMP 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40> L=1399	5-13671-111-0	01	1	0610-	●	●
47	01.066 BELT; P/S PUMP 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) L=1399	5-13671-111-0	01	1	0610-			●	●
48	06.665 COVER; IDLER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> (B)	8-97092-819-0	01	1	0306-0609	●	●	●	●
48	06.665 COVER; IDLER 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40> (B)	8-97092-819-0	01	1	0610-	●	●
48	06.665 COVER; IDLER 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) (B)	8-97092-819-0	01	1	0610-			●	●
48	06.665 COVER; IDLER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40> 09.181 (A)	9-13669-603-0	01	1	0306-0609	●	●	●	●
48	06.665 COVER; IDLER 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40> 09.181 (A)	9-13669-603-0	01	1	0610-	●	●
48	06.665 COVER; IDLER 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) 09.181 (A)	9-13669-603-0	01	1	0610-			●	●
49	06.665 RING; SNAP,IDLER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40>	8-94175-036-0	01	1	0306-0609	●	●	●	●
49	06.665 RING; SNAP,IDLER 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40>	8-94175-036-0	01	1	0610-	●	●
49	06.665 RING; SNAP,IDLER 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42)	8-94175-036-0	01	1	0610-			●	●
50	06.665 BEARING; IDLER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40>	8-94251-052-0	01	1	0306-0609	●	●	●	●
50	06.665 BEARING; IDLER 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40>	8-94251-052-0	01	1	0610-	●	●
50	06.665 BEARING; IDLER 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42)	8-94251-052-0	01	1	0610-			●	●
51	06.665 NUT; IDLER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) POWER STEERING<N40>	8-97092-813-0	01	1	0306-0609	●	●	●	●
51	06.665 NUT; IDLER 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) POWER STEERING<N40>	8-97092-813-0	01	1	0610-	●	●
51	06.665 NUT; IDLER 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42)	8-97092-813-0	01	1	0610-			●	●
58	06.655 SLIDER; BELT ADJ,P/S OIL PUMP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97941-329-0	01	1	0306-0609	●	●	●	●
58	06.655 SLIDER; BELT ADJ,P/S OIL PUMP 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97941-329-0	01	1	0610-	●	●	●	●
66	06.672 BOLT; PULLEY 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0306-0609	●	●	●	●
66	06.672 BOLT; PULLEY 4JA1-T ENG(LP0) POWER STEERING<N40> 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0610-	●	●	●	●

1 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) POWER STEERING<N40>	8-97944-829-0	01	1	0610-0610	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) POWER STEERING<N40>	8-98063-153-0	01	1	0611-0705	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) POWER STEERING<N40>	8-97946-607-0	01	1	0706-0707	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) POWER STEERING<N40>	8-97946-698-0	01	1	0708-	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97214-995-1	01	1	0306-0311	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97942-188-0	01	1	0312-0609	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97944-828-0	01	1	0610-0705	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97946-606-0	01	1	0706-0711	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97946-697-0	01	1	0712-	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97214-994-1	01	1	0306-0609	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97944-826-0	01	1	0610-0705	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97946-602-0	01	1	0706-0711	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40>	8-97946-694-0	01	1	0712-	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 4JJ1-TCS ENG(LFB) POWER STEERING<N40> 01.540 M8 FLANGE	0-91180-208-0	03	1	0610-	●	●	●	●
17	06.606 NUT; POWER STRG PUMP C24SE ENG(LG1) POWER STEERING<N40> 04.085 M10 FLANGE	0-91180-210-0	01	1	0306-	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) POWER STEERING<N40> 01.540 M8 FLANGE	0-91180-208-0	01	1	0306-0609	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 4JA1-T ENG(LP0) POWER STEERING<N40> 01.540 M8 FLANGE	0-91180-208-0	01	1	0610-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
