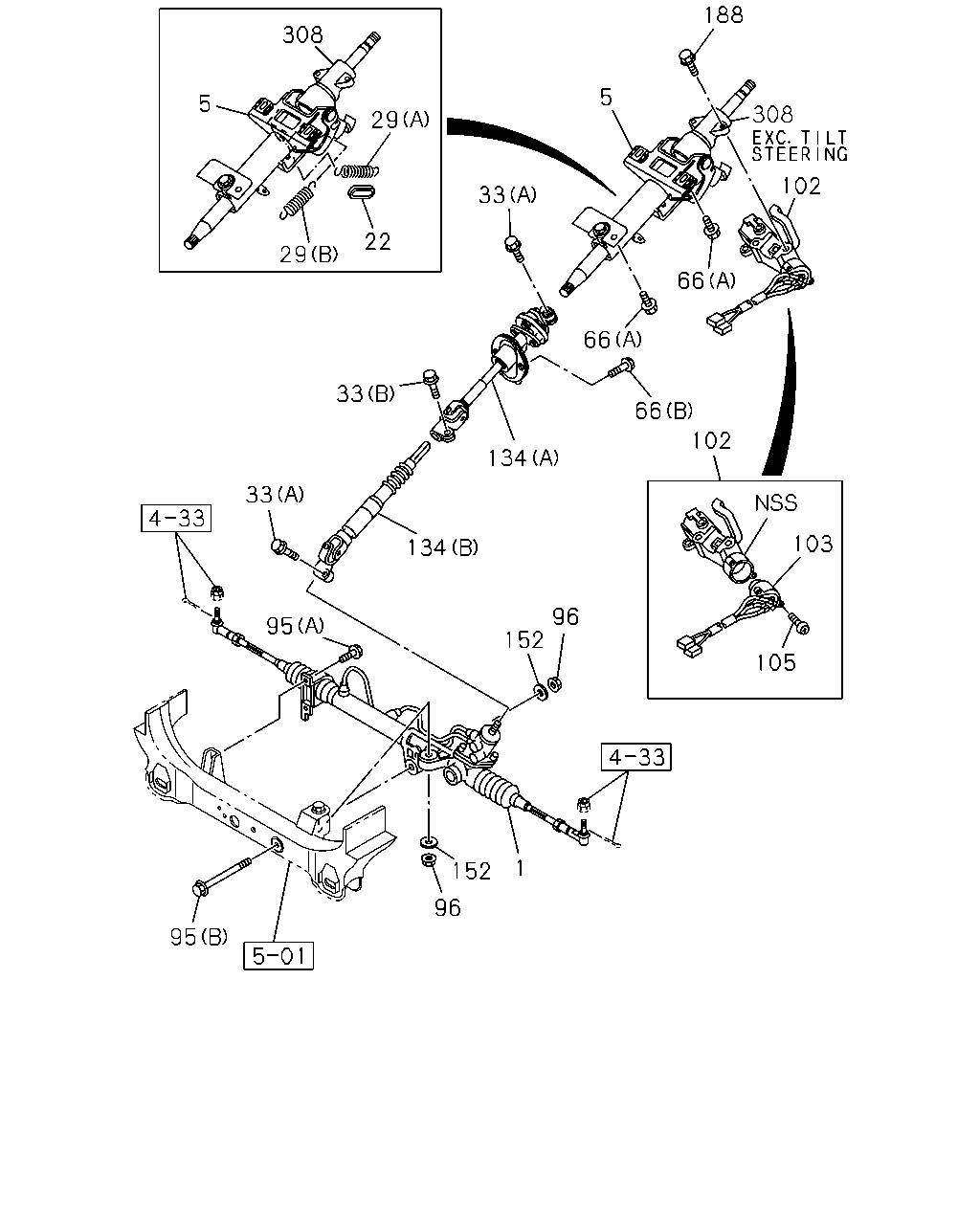

4-31 — STEERING COLUMN AND SHAFT (#77566) — 122 parça

188 308 5 5 308 29 102 33 22 29 66 66 33 66 102 134 33 103 134 96 152 95 105 1 152 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97943-519-1	01	1	0306-0609	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97943-519-1	01	1	0306-0609			●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-519-1	01	1	0610-0709	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97944-519-1	01	1	0610-0709			●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-98101-780-0	01	1	0710-	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98101-780-0	01	1	0710-			●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97943-518-1	01	1	0306-0609	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-517-0	01	1	0610-	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC)	8-97316-225-1	01	1	0306-0609	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC)	8-97944-521-0	01	1	0610-	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97349-946-0	01	1	0306-0609	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97945-772-0	01	1	0610-	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97349-947-0	01	1	0306-0609	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97945-770-0	01	1	0610-	●	●	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	0306-	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	0306-	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	0306-	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	02	1	0306-	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B)	8-97322-411-0	01	1	0306-0609	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B)	8-97944-830-0	01	1	0610-1009	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B)	8-98140-802-0	01	1	1010-	●	●	●	●
66	06.514 BOLT; STRG COLUMN 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0306-	●	●	●	●
66	06.514 BOLT; STRG COLUMN (B)	8-97249-319-1	02	1	0306-	●	●	●	●
95	06.509 BOLT; STRG UNIT (A) M12X30 FLANGE	0-28661-230-0	02	1	0306-	●	●	●	●
95	06.509 BOLT; STRG UNIT (B) M16X195 W/PL WASHER	8-97245-661-0	01	1	0306-	●	●	●	●
96	06.509 NUT; STRG UNIT M16	0-91110-516-0	02	1	0306-	●	●	●	●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO(RMK)	8-97945-767-0	01	1	0610-	●	●		●
102	06.500 LOCK ASM; STRG	8-97349-940-0	01	1	0306-0609	●	●	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP)	8-97349-940-0	01	1	0610-	●	●	●	●
103	02.188 SWITCH; IGNITION	8-97350-071-0	01	1	0306-	●	●	●	●
105	06.500 SCREW; IGN SW	8-97349-945-0	02	1	0306-	●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (B)	8-97316-341-1	01	1	0306-	●	●
134	06.524 SHAFT; STRG,2ND (B)	8-97316-341-1	01	1	0306-			●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97256-547-0	01	1	0306-	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97943-549-0	01	1	0306-0306	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97943-688-0	01	1	0306-0502	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97944-432-0	01	1	0503-0609	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97944-591-0	01	1	0610-0804	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98108-808-0	01	1	0805-	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-97943-550-0	01	1	0306-0306	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97943-550-0	01	1	0306-0306			●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-97943-689-0	01	1	0306-0502	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97943-689-0	01	1	0306-0502			●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-97944-433-0	01	1	0503-0609	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-433-0	01	1	0503-0609			●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-97944-593-0	01	1	0610-0804	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-593-0	01	1	0610-0804			●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-98108-810-0	01	1	0805-	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-98108-810-0	01	1	0805-			●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-97943-552-0	01	1	0306-0306	●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-97943-691-0	01	1	0306-0502	●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-97944-435-0	01	1	0503-0609	●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-97944-595-0	01	1	0610-0804	●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-98108-812-0	01	1	0805-	●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97249-436-0	02	1	0306-0609	●	●	●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97944-809-0	02	1	0610-	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING TILT STEERING<N33>	8-98133-262-0	02	1	0812-	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING	8-97349-941-0	02	1	0306-0609	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0610-0811	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0812-	●	●	●	●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33>	8-98047-095-0	01	1	0307-	●	●	●	●

188 308 5 5 308 29 102 33 22 29 66 66 33 66 102 134 33 103 134 96 152 95 105 1 152 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97943-519-1	01	1	0306-0609	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97943-519-1	01	1	0306-0609			●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-519-1	01	1	0610-0709	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97944-519-1	01	1	0610-0709			●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-98101-780-0	01	1	0710-	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98101-780-0	01	1	0710-			●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97943-518-1	01	1	0306-0609	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-517-0	01	1	0610-	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC)	8-97316-225-1	01	1	0306-0609	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC)	8-97944-521-0	01	1	0610-	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97349-946-0	01	1	0306-0609	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97945-772-0	01	1	0610-	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97349-947-0	01	1	0306-0609	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97945-770-0	01	1	0610-	●	●	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	0306-	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	0306-	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	0306-	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	02	1	0306-	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B)	8-97322-411-0	01	1	0306-0609	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B)	8-97944-830-0	01	1	0610-1009	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B)	8-98140-802-0	01	1	1010-	●	●	●	●
66	06.514 BOLT; STRG COLUMN 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0306-	●	●	●	●
66	06.514 BOLT; STRG COLUMN (B)	8-97249-319-1	02	1	0306-	●	●	●	●
95	06.509 BOLT; STRG UNIT (A) M12X30 FLANGE	0-28661-230-0	02	1	0306-	●	●	●	●
95	06.509 BOLT; STRG UNIT (B) M16X195 W/PL WASHER	8-97245-661-0	01	1	0306-	●	●	●	●
96	06.509 NUT; STRG UNIT M16	0-91110-516-0	02	1	0306-	●	●	●	●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO(RMK)	8-97945-767-0	01	1	0610-	●	●		●
102	06.500 LOCK ASM; STRG	8-97349-940-0	01	1	0306-0609	●	●	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP)	8-97349-940-0	01	1	0610-	●	●	●	●
103	02.188 SWITCH; IGNITION	8-97350-071-0	01	1	0306-	●	●	●	●
105	06.500 SCREW; IGN SW	8-97349-945-0	02	1	0306-	●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (B)	8-97316-341-1	01	1	0306-	●	●
134	06.524 SHAFT; STRG,2ND (B)	8-97316-341-1	01	1	0306-			●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97256-547-0	01	1	0306-	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97943-549-0	01	1	0306-0306	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97943-688-0	01	1	0306-0502	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97944-432-0	01	1	0503-0609	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97944-591-0	01	1	0610-0804	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98108-808-0	01	1	0805-	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-97943-550-0	01	1	0306-0306	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97943-550-0	01	1	0306-0306			●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-97943-689-0	01	1	0306-0502	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97943-689-0	01	1	0306-0502			●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-97944-433-0	01	1	0503-0609	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-433-0	01	1	0503-0609			●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-97944-593-0	01	1	0610-0804	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-593-0	01	1	0610-0804			●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-98108-810-0	01	1	0805-	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-98108-810-0	01	1	0805-			●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-97943-552-0	01	1	0306-0306	●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-97943-691-0	01	1	0306-0502	●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-97944-435-0	01	1	0503-0609	●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-97944-595-0	01	1	0610-0804	●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION(7YC) (A)	8-98108-812-0	01	1	0805-	●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97249-436-0	02	1	0306-0609	●	●	●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97944-809-0	02	1	0610-	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING TILT STEERING<N33>	8-98133-262-0	02	1	0812-	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING	8-97349-941-0	02	1	0306-0609	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0610-0811	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0812-	●	●	●	●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33>	8-98047-095-0	01	1	0307-	●	●	●	●
