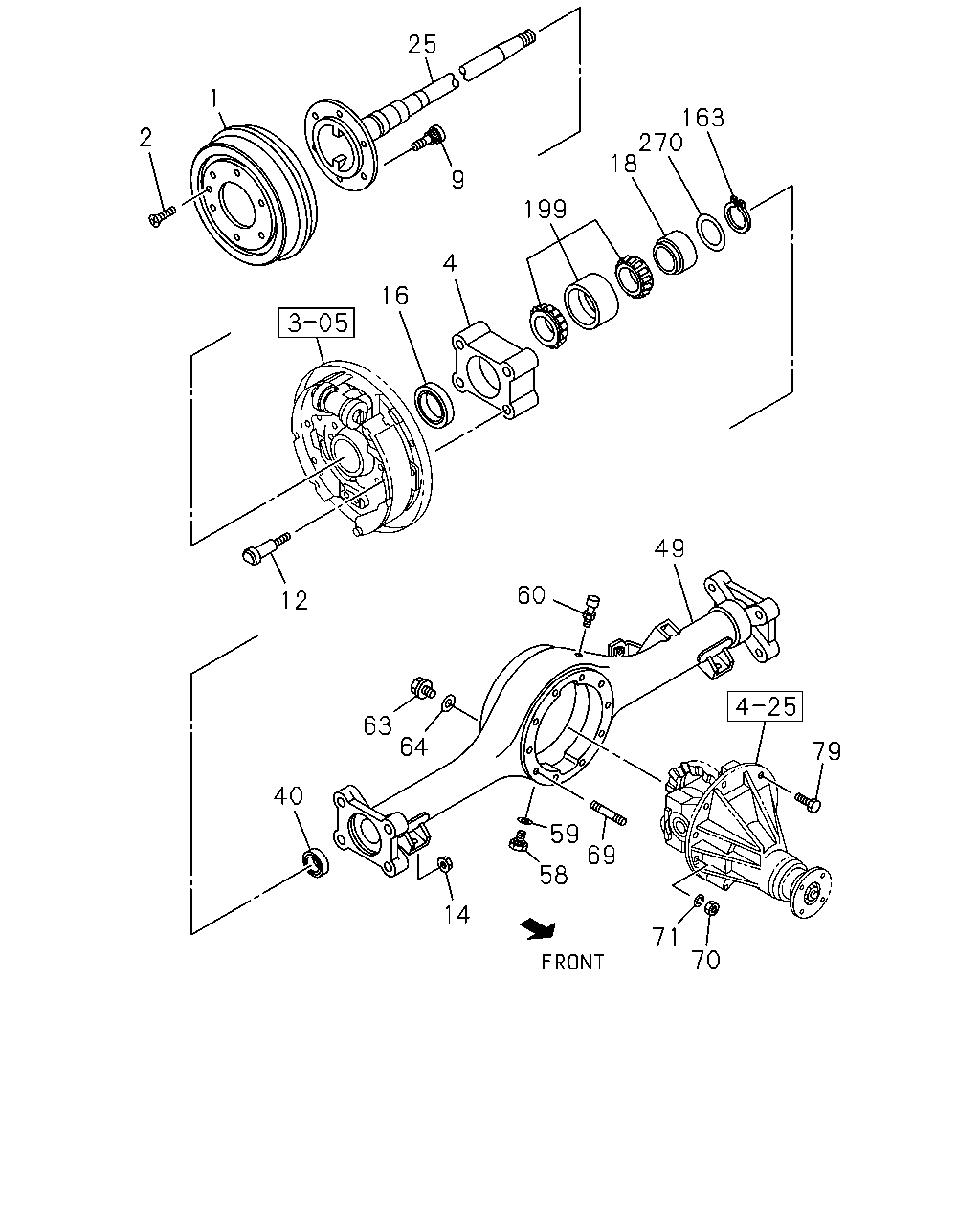

1 |
05.809 DRUM; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97360-505-0 |
02 |
1 |
0306- |
● |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
HIGH RIDE SUSPENSION(7YC)
|
8-97360-506-0 |
02 |
1 |
0306-0510 |
● |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97360-506-0 |
02 |
1 |
0306-0510 |
|
|
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
HIGH RIDE SUSPENSION(7YC)
|
8-98030-385-0 |
02 |
1 |
0511- |
● |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-98030-385-0 |
02 |
1 |
0511- |
|
|
● |
● |
| |
2 |
05.812 BOLT; BRK DRUM
M6X16 CK-HEAD
|
9-03090-616-0 |
02 |
1 |
0306-0609 |
● |
● |
● |
● |
| |
2 |
05.812 BOLT; BRK DRUM
M6X16 CK-HEAD
|
0-36410-616-0 |
02 |
1 |
0610- |
● |
● |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>
|
8-97216-781-4 |
02 |
1 |
0611-0702 |
● |
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5)
BRK WHL LK CONT LSPV<JR9>
EXC. LIMITED SLIP DIFF<G80>
|
8-97216-781-4 |
02 |
1 |
0611-0702 |
|
|
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97216-780-4 |
02 |
1 |
0306-0609 |
● |
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97562-779-0 |
02 |
1 |
0610- |
● |
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
HIGH RIDE SUSPENSION(7YC)
|
8-97216-781-4 |
02 |
1 |
0306-0609 |
● |
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
|
8-97216-781-4 |
02 |
1 |
0306-0609 |
|
|
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
HIGH RIDE SUSPENSION(7YC)
|
8-97562-780-0 |
02 |
1 |
0610-0610 |
● |
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
|
8-97562-780-0 |
02 |
1 |
0610-0610 |
|
|
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
|
8-97562-780-0 |
02 |
1 |
0610-0702 |
● |
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-97562-780-0 |
02 |
1 |
0610-0702 |
● |
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-97562-780-0 |
02 |
1 |
0610-0702 |
● |
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
43/10(GY2)
|
8-97562-780-0 |
02 |
1 |
0610-0702 |
|
|
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
|
8-97562-780-0 |
02 |
1 |
0610-0702 |
|
|
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-97562-780-0 |
02 |
1 |
0610-0702 |
|
|
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
HIGH RIDE SUSPENSION(7YC)
|
8-97562-780-0 |
02 |
1 |
0703- |
● |
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
|
8-97562-780-0 |
02 |
1 |
0703- |
|
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD
|
8-97213-870-0 |
12 |
1 |
0306-0609 |
● |
● |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD
|
8-97944-831-0 |
12 |
1 |
0610- |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
HIGH RIDE SUSPENSION(7YC)
|
8-98038-350-0 |
08 |
1 |
0610- |
● |
● |
|
|
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
|
8-98038-350-0 |
08 |
1 |
0610- |
|
|
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
LOWER
|
8-97216-806-0 |
04 |
1 |
0306-0308 |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
UPPER
|
8-97216-807-0 |
04 |
1 |
0306-0308 |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
|
8-97354-886-1 |
08 |
1 |
0309-0609 |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97354-886-1 |
08 |
1 |
0610- |
● |
● |
|
|
| |
14 |
05.816 NUT; BRG HOLDER TO CASE
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
0306- |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 41/10(GT5)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>
05.816
|
8-97562-780-0 |
02 |
1 |
0611-0702 |
● |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 41/10(GT5)
BRK WHL LK CONT LSPV<JR9>
EXC. LIMITED SLIP DIFF<G80>
05.816
|
8-97562-780-0 |
02 |
1 |
0611-0702 |
|
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
|
8-97216-792-0 |
02 |
1 |
0306-0609 |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
|
8-97216-792-0 |
02 |
1 |
0610-0702 |
● |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-97216-792-0 |
02 |
1 |
0610-0702 |
● |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-97216-792-0 |
02 |
1 |
0610-0702 |
● |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97216-792-0 |
02 |
1 |
0610-0702 |
● |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
43/10(GY2)
|
8-97216-792-0 |
02 |
1 |
0610-0702 |
|
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
|
8-97216-792-0 |
02 |
1 |
0610-0702 |
|
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 41/10(GT5)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-97216-792-0 |
02 |
1 |
0610-0702 |
|
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
|
8-97216-792-0 |
02 |
1 |
0703- |
● |
● |
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97239-868-0 |
02 |
1 |
0306-1208 |
● |
● |
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97239-868-0 |
02 |
1 |
1209- |
● |
● |
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/10(GY2)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97239-868-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
18 |
05.822 RETAINER; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97216-753-0 |
02 |
1 |
0306-0504 |
● |
● |
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98009-341-0 |
02 |
1 |
0505-1208 |
● |
● |
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98009-341-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
18 |
05.822 RETAINER; RR AXLE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/10(GY2)
4 WHEEL ANTI LOCK BRAKE<JE5>
HIGH RIDE SUSPENSION(7YC)
|
8-98009-341-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
18 |
05.822 RETAINER; RR AXLE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98009-341-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
18 |
05.822 RETAINER; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98009-341-0 |
02 |
1 |
1209- |
|
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97239-864-1 |
02 |
1 |
0509-0709 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97239-864-1 |
02 |
1 |
0710-1208 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97239-864-1 |
02 |
1 |
1209- |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97216-793-1 |
02 |
1 |
0306-0504 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
0505-0508 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/11(GW1),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
0710-0912 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
0710-0912 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
0710-0912 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
1001-1208 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
1001-1208 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
1001-1208 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97944-443-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
HIGH RIDE SUSPENSION(7YC)
|
8-97216-796-1 |
02 |
1 |
0306-0504 |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-97216-796-1 |
02 |
1 |
0306-0504 |
|
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
HIGH RIDE SUSPENSION(7YC)
|
8-97944-442-0 |
02 |
1 |
0505- |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-97944-442-0 |
02 |
1 |
0505- |
|
|
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
|
8-97323-297-0 |
02 |
1 |
0306- |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/11(GT4)
HIGH RIDE SUSPENSION(7YC)
|
8-98036-681-0 |
01 |
1 |
0610-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
|
8-98036-681-0 |
01 |
1 |
0610-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
|
8-98036-681-0 |
01 |
1 |
0610-0709 |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/11(GT4),FINAL GEAR
RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98036-681-1 |
01 |
1 |
0710- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98036-681-1 |
01 |
1 |
0710- |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-680-0 |
01 |
1 |
0610- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-680-0 |
01 |
1 |
0610- |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-98036-682-0 |
01 |
1 |
0610-0610 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-98036-682-0 |
01 |
1 |
0610-0610 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-98036-682-0 |
01 |
1 |
0610-0610 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
|
8-98036-682-0 |
01 |
1 |
0610-0610 |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
|
8-98036-682-0 |
01 |
1 |
0610-0610 |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-98036-682-0 |
01 |
1 |
0611-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-98036-682-0 |
01 |
1 |
0611-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
|
8-98036-682-0 |
01 |
1 |
0611-0709 |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4),FINAL GEAR
RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98036-682-0 |
01 |
1 |
0710- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98036-682-0 |
01 |
1 |
0710- |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI
ON(7YC)
|
8-98036-672-0 |
01 |
1 |
0610-0703 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI
ON(7YC)
|
8-98036-672-0 |
01 |
1 |
0704- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98036-673-0 |
01 |
1 |
0610-0703 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 41/11(GT4)
BRK WHL LK CONT LSPV<JR9>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH
RIDE SUSPENSION(7YC)
|
8-98036-673-0 |
01 |
1 |
0704- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/11(GT4)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97373-234-1 |
01 |
1 |
0610-0703 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG(LFB)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/11(GT4)
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH
RIDE SUSPENSION(7YC)
|
8-97373-234-2 |
01 |
1 |
0704- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
BRK WHL LK CONT LSPV<JR9>
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97239-857-4 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
BRK WHL LK CONT LSPV<JR9>
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-98036-668-0 |
01 |
1 |
0610-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
BRK WHL LK CONT LSPV<JR9>
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,HIGH RIDE
SUSPENSION(7YC)
|
8-98036-668-0 |
01 |
1 |
0710-1208 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
BRK WHL LK CONT LSPV<JR9>
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,HIGH RIDE
SUSPENSION(7YC)
|
8-98036-668-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-97943-324-1 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-98036-667-0 |
01 |
1 |
0610-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-98036-667-0 |
01 |
1 |
0710-1208 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-98036-667-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MSG 5 SPEED(M75)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97239-856-5 |
01 |
1 |
0509-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>,HIGH RIDE
SUSPENSION(7YC)
|
8-97239-856-6 |
01 |
1 |
0710-1208 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>,HIGH RIDE
SUSPENSION(7YC)
|
8-97239-856-6 |
01 |
1 |
1209- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-97239-861-4 |
01 |
1 |
0306-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
BRK WHL LK CONT LSPV<JR9>
|
8-97239-861-4 |
01 |
1 |
0306-0609 |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(GT3)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-98036-679-0 |
01 |
1 |
0610-0703 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
|
8-98036-679-0 |
01 |
1 |
0610-0703 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3)
BRK WHL LK CONT LSPV<JR9>
|
8-98036-679-0 |
01 |
1 |
0610-0703 |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>
|
8-98036-679-0 |
01 |
1 |
0704-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>
|
8-98036-679-0 |
01 |
1 |
0704-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(GY2)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98036-679-0 |
01 |
1 |
0704-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED5G(RSP)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98036-679-0 |
01 |
1 |
0704-0912 |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),A/T 4
SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98036-679-0 |
01 |
1 |
0704-0912 |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>
|
8-98036-679-0 |
01 |
1 |
1001- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>
|
8-98036-679-0 |
01 |
1 |
1001- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98036-679-0 |
01 |
1 |
1001- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED5G(RSP)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98036-679-0 |
01 |
1 |
1001- |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),A/T 4
SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98036-679-0 |
01 |
1 |
1001- |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
HIGH RIDE SUSPENSION(7YC)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-97943-326-1 |
01 |
1 |
0306-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-97943-326-1 |
01 |
1 |
0306-0609 |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(GT3)
HIGH RIDE SUSPENSION(7YC)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
0610-0703 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
0610-0703 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
0610-0703 |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
0704-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
0704-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(GY2)
LIMITED SLIP DIFF<G80>
HIGH RIDE SUSPENSION(7YC)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
0704-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED5G(RSP)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
0704-0912 |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),A/T 4
SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
0704-0912 |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
1001-1005 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
1001-1005 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
LIMITED SLIP DIFF<G80>
HIGH RIDE SUSPENSION(7YC)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
1001-1005 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED5G(RSP)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
1001-1005 |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),A/T 4
SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
1001-1005 |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
1006- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
1006- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
LIMITED SLIP DIFF<G80>
HIGH RIDE SUSPENSION(7YC)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
1006- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3)
HIGH RIDE SUSPENSION(7YC)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
1006- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED5G(RSP)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
1006- |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),A/T 4
SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>
|
8-98036-677-0 |
01 |
1 |
1006- |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97216-747-5 |
01 |
1 |
0306-0508 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5G(RSP)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97216-747-5 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97216-747-5 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/11(GW1)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97216-747-5 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97216-747-5 |
01 |
1 |
0610-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>,HIGH RIDE
SUSPENSION(7YC)
|
8-97216-747-5 |
01 |
1 |
0610-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH
RIDE SUSPENSION(7YC)
|
8-97216-747-6 |
01 |
1 |
0710-1110 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>,HIGH RIDE
SUSPENSION(7YC)
|
8-97216-747-6 |
01 |
1 |
0710-1110 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>,HIGH RIDE
SUSPENSION(7YC)
|
8-97216-747-6 |
01 |
1 |
1111-1208 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>,HIGH RIDE
SUSPENSION(7YC)
|
8-97216-747-6 |
01 |
1 |
1111-1208 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
LIMITED SLIP DIFF<G80>
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH
RIDE SUSPENSION(7YC)
|
8-97216-747-6 |
01 |
1 |
1111-1208 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH
RIDE SUSPENSION(7YC)
|
8-97216-747-6 |
01 |
1 |
1209- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED
5G(RSP)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
LIMITED SLIP DIFF<G80>
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH
RIDE SUSPENSION(7YC)
|
8-97216-747-6 |
01 |
1 |
1209- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5G(RSP)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>,HIGH RIDE
SUSPENSION(7YC)
|
8-97216-747-6 |
01 |
1 |
1209- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
HIGH RIDE SUSPENSION(7YC)
|
8-97216-748-5 |
01 |
1 |
0306-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97216-748-5 |
01 |
1 |
0306-0609 |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/9(GT3)
HIGH RIDE SUSPENSION(7YC)
|
8-98036-678-0 |
01 |
1 |
0610-0703 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
|
8-98036-678-0 |
01 |
1 |
0610-0703 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3)
|
8-98036-678-0 |
01 |
1 |
0610-0703 |
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
0704-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
0704-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(GY2)
LIMITED SLIP DIFF<G80>
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
0704-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED5G(RSP)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
0704-0912 |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),A/T 4
SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
0704-0912 |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
1001-1005 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
1001-1005 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
LIMITED SLIP DIFF<G80>
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
1001-1005 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED5G(RSP)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
1001-1005 |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),A/T 4
SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
1001-1005 |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
1006- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/10(GY2)
HIGH RIDE SUSPENSION(7YC)
EXC. LIMITED SLIP DIFF<G80>,BRK WHL LK
CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
1006- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
LIMITED SLIP DIFF<G80>
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
1006- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3)
HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
1006- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED5G(RSP)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
1006- |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),A/T 4
SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP)
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. BRK WHL LK CONT LSPV<JR9>
|
8-98036-678-1 |
01 |
1 |
1006- |
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97239-858-4 |
01 |
1 |
0306-0508 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
BRK WHL LK CONT LSPV<JR9>
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-97239-858-4 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97239-858-4 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/11(GW1),FINAL GEAR RATIO
43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97239-858-4 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
|
8-98036-670-0 |
01 |
1 |
0610-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(GY2)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98036-670-0 |
01 |
1 |
0610-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,HIGH RIDE
SUSPENSION(7YC)
|
8-98036-670-0 |
01 |
1 |
0710-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(GY2)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH
RIDE SUSPENSION(7YC)
|
8-98036-670-0 |
01 |
1 |
0710-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,HIGH RIDE
SUSPENSION(7YC)
|
8-98036-670-0 |
01 |
1 |
1001-1208 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH
RIDE SUSPENSION(7YC)
|
8-98036-670-0 |
01 |
1 |
1001-1208 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED
5G(RSP)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
LIMITED SLIP DIFF<G80>
BRK WHL LK CONT LSPV<JR9>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH
RIDE SUSPENSION(7YC)
|
8-98036-670-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,HIGH RIDE
SUSPENSION(7YC)
|
8-98036-670-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
43/10(GY2)
BRK WHL LK CONT LSPV<JR9>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH
RIDE SUSPENSION(7YC)
|
8-98036-670-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/10(GT5),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI
ON(7YC)
|
8-97943-325-1 |
01 |
1 |
0306-0508 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-97943-325-1 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI
ON(7YC)
|
8-97943-325-1 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/11(GW1),FINAL GEAR RATIO
43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI
ON(7YC)
|
8-97943-325-1 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-98036-669-0 |
01 |
1 |
0610-0701 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI
ON(7YC)
|
8-98036-669-0 |
01 |
1 |
0610-0701 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI
ON(7YC)
|
8-98036-669-0 |
01 |
1 |
0610-0701 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-98036-669-0 |
01 |
1 |
0702-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-98036-669-0 |
01 |
1 |
0702-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(GY2)
LIMITED SLIP DIFF<G80>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI
ON(7YC)
|
8-98036-669-0 |
01 |
1 |
0702-0709 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-98036-669-0 |
01 |
1 |
0710-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-98036-669-0 |
01 |
1 |
0710-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(GY2)
LIMITED SLIP DIFF<G80>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI
ON(7YC)
|
8-98036-669-0 |
01 |
1 |
0710-0912 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-98036-669-0 |
01 |
1 |
1001-1208 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-98036-669-0 |
01 |
1 |
1001-1208 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1),4JA1-T ENG(LP0)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
LIMITED SLIP DIFF<G80>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI
ON(7YC)
|
8-98036-669-0 |
01 |
1 |
1001-1208 |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED
5G(RSP)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
LIMITED SLIP DIFF<G80>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI
ON(7YC)
|
8-98036-669-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,4 WHEEL
ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT
LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)
|
8-98036-669-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
C24SE ENG(LG1)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI
ON(7YC)
|
8-98036-669-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97307-060-0 |
01 |
1 |
0306- |
● |
● |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0306- |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
0306-0411 |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-97383-656-0 |
01 |
1 |
0412-0606 |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
0607- |
● |
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
|
8-97307-059-1 |
01 |
1 |
0306- |
● |
● |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0306- |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M8X25 L=36
|
8-97364-104-0 |
02 |
1 |
0509-0709 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M8X25 L=36
|
8-97364-104-0 |
02 |
1 |
0710-1208 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M8X25 L=36
|
8-97364-104-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
0306-0508 |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/11(GW1),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
HIGH RIDE SUSPENSION(7YC)
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
05.398
M10X31 L=43
|
9-09630-011-1 |
02 |
1 |
0509-0609 |
|
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
HIGH RIDE SUSPENSION(7YC)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
0610-0709 |
|
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
0710-0912 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
0710-0912 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
0710-0912 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
0710-0912 |
|
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1001-1007 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1001-1007 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1001-1007 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1001-1007 |
|
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1008-1110 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1008-1110 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1008-1110 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1008-1110 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1008-1110 |
|
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1111-1208 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1111-1208 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1111-1208 |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1111-1208 |
|
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
EXC. HIGH RIDE SUSPENSION(7YC)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1209- |
|
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M8
|
5-09400-020-0 |
02 |
1 |
0509-0709 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M8
|
5-09400-020-0 |
02 |
1 |
0710-1208 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M8
|
5-09400-020-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0306-0508 |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/11(GW1),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
HIGH RIDE SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0509-0609 |
|
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
HIGH RIDE SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0610-0709 |
|
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0710-0912 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0710-0912 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0710-0912 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0710-0912 |
|
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1001-1007 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1001-1007 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1001-1007 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1001-1007 |
|
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1008-1110 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1008-1110 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1008-1110 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1008-1110 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1008-1110 |
|
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1111-1208 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1111-1208 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1111-1208 |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1111-1208 |
|
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
EXC. HIGH RIDE SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1209- |
|
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
04.046
ID=8.2
|
9-09150-808-0 |
02 |
1 |
0509-0604 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
02.559
ID=8.2
|
0-91510-808-0 |
02 |
1 |
0605-0709 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
02.559
ID=8.2
|
0-91510-808-0 |
02 |
1 |
0710-1208 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
02.559
ID=8.2
|
0-91510-808-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
0306-0508 |
● |
● |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
0509-0604 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/11(GW1),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
0509-0604 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
0509-0604 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
HIGH RIDE SUSPENSION(7YC)
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
0509-0604 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
0509-0604 |
|
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
00.002
ID=10.2
|
0-91510-610-0 |
02 |
1 |
0605-0609 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/11(GW1),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
00.002
ID=10.2
|
0-91510-610-0 |
02 |
1 |
0605-0609 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
00.002
ID=10.2
|
0-91510-610-0 |
02 |
1 |
0605-0609 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
HIGH RIDE SUSPENSION(7YC)
00.002
ID=10.2
|
0-91510-610-0 |
02 |
1 |
0605-0609 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
00.002
ID=10.2
|
0-91510-610-0 |
02 |
1 |
0605-0609 |
|
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
HIGH RIDE SUSPENSION(7YC)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
0610-0709 |
|
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
0710-0912 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
0710-0912 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
0710-0912 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
0710-0912 |
|
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1001-1007 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1001-1007 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1001-1007 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1001-1007 |
|
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1008-1110 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1008-1110 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1008-1110 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1008-1110 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1008-1110 |
|
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1111-1208 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1111-1208 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1111-1208 |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1111-1208 |
|
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
EXC. HIGH RIDE SUSPENSION(7YC)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1209- |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
06.156
M8X25 W/LK WASHER
|
8-97093-664-1 |
04 |
1 |
0509-0609 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
06.156
M8X25 W/LK WASHER
|
8-98022-410-0 |
04 |
1 |
0610-0709 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
06.156
M8X25 W/LK WASHER
|
8-98022-410-0 |
04 |
1 |
0710-1208 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
06.156
M8X25 W/LK WASHER
|
8-98022-410-0 |
04 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
06.156
M8X30 W/LK WASHER
|
8-97093-665-1 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
06.156
M8X30 W/LK WASHER
|
8-98022-411-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
06.156
M8X30 W/LK WASHER
|
8-98022-411-0 |
02 |
1 |
0710-1208 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
06.156
M8X30 W/LK WASHER
|
8-98022-411-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
06.156
M8X90 W/LK WASHER
|
8-97093-666-1 |
02 |
1 |
0509-0609 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
06.156
M8X90 W/LK WASHER
|
8-98022-412-0 |
02 |
1 |
0610-0709 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
06.156
M8X90 W/LK WASHER
|
8-98022-412-0 |
02 |
1 |
0710-1208 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
06.156
M8X90 W/LK WASHER
|
8-98022-412-0 |
02 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0306-0508 |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0509-0609 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/11(GW1),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0509-0609 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0509-0609 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
HIGH RIDE SUSPENSION(7YC)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0509-0609 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0509-0609 |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0610-0709 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0610-0709 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0610-0709 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
HIGH RIDE SUSPENSION(7YC)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0610-0709 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0610-0709 |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0710-0912 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0710-0912 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0710-0912 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
0710-0912 |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1001-1007 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1001-1007 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1001-1007 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1001-1007 |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1008-1110 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1008-1110 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1008-1110 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1008-1110 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1008-1110 |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1111-1208 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1111-1208 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1111-1208 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1111-1208 |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
EXC. HIGH RIDE SUSPENSION(7YC)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1209- |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0306-0508 |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 43/11(GW1),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
HIGH RIDE SUSPENSION(7YC)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0509-0609 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0610-0709 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0610-0709 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0610-0709 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
HIGH RIDE SUSPENSION(7YC)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0610-0709 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0610-0709 |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/11(GT4),FINAL GEAR RATIO
43/10(GY2)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0710-0912 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0710-0912 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0710-0912 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
0710-0912 |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1001-1007 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1001-1007 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1001-1007 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1001-1007 |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1008-1110 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1008-1110 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1008-1110 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 43/10(GY2)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1008-1110 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1008-1110 |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1111-1208 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1111-1208 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1111-1208 |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1111-1208 |
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3),FINAL GEAR RATIO
41/11(GT4),FINAL GEAR RATIO 43/10(GY2)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
C24SE ENG(LG1)
FINAL GEAR RATIO 41/10(GT5)
EXC. HIGH RIDE SUSPENSION(7YC)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
FINAL GEAR RATIO 41/10(GT5)
LIMITED SLIP DIFF<G80>
EXC. HIGH RIDE SUSPENSION(7YC)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5G(RSP)
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE
SUSPENSION(7YC)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5)
HIGH RIDE SUSPENSION(7YC)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1209- |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1209- |
|
|
● |
● |
| |
163 |
05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75
|
9-09180-042-0 |
AR |
1 |
0306- |
● |
● |
● |
● |
| |
163 |
05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00
|
9-09952-253-0 |
AR |
1 |
0306- |
● |
● |
● |
● |
| |
199 |
05.855 BEARING; RR AXLE
|
8-97216-797-2 |
02 |
1 |
0306- |
● |
● |
● |
● |
| |
270 |
05.855 SHIM; RETAINER
05.537
T=0.24
|
9-41519-109-0 |
AR |
1 |
0306- |
● |
● |
● |
● |
