◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-15 - FRONT FINAL DRIVE ▶
4-15 — FRONT FINAL DRIVE (#77561) — 60 parça

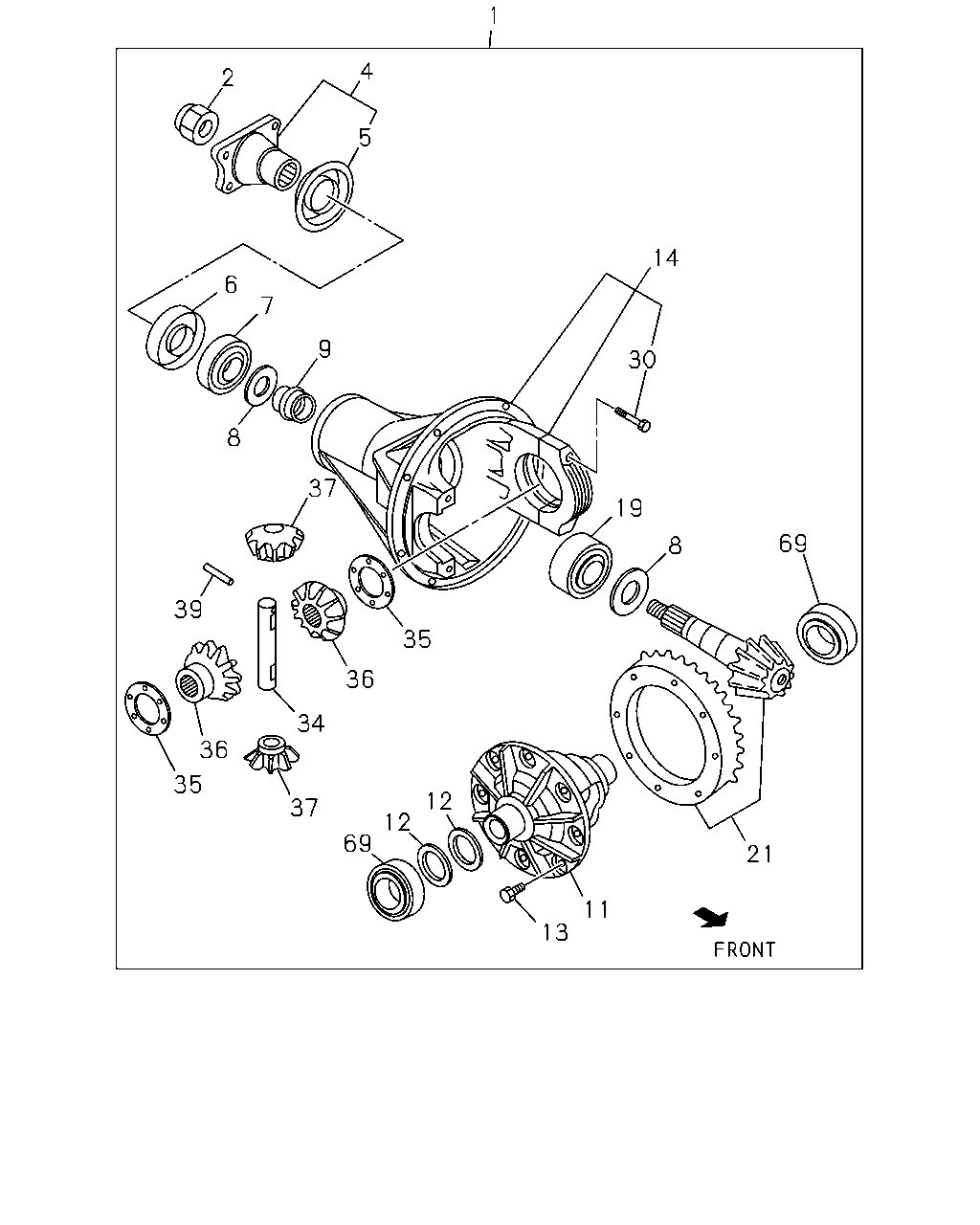

çizim 160492
1 4 2 5 14 6 7 9 30 8 37 19 69 8 39 35 36 34 36 35 12 37 12 69 21 11 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/9(GT2) 43/9 		8-97358-824-0 01 1 0610-0904 ● ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/9(GT2) 43/9 		8-98073-913-0 01 1 0905- ● ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-97358-821-0 01 1 0306-0809 ● ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-98073-911-0 01 1 0810- ● ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(GY2) 43/10 		8-97358-822-0 01 1 0306-0904 ● ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/10(GY2) 43/10 		8-98124-554-0 01 1 0905- ● ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/9(GT3) 41/9 		8-97358-823-0 01 1 0306-0904 ● ●
1 05.505 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/9(GT3) 41/9 		8-98073-912-0 01 1 0905- ● ●
2 05.595 NUT; FINAL DRIVE PINION
M18 LOCK NUT 		8-94376-262-0 01 1 0306- ● ●
4 05.545 COUPLING; FINAL DRIVE PINION 8-94318-527-6 01 1 0306- ● ●
5 05.545 COVER; DUST,PINION,FINAL DRIVE 8-94318-409-1 01 1 0306- ● ●
6 05.469 SEAL; OIL,FINAL PINION 8-94318-520-2 01 1 0306- ● ●
7 05.447 BEARING; PINION,OUTER
05.484 NSK 		8-94472-099-0 01 1 0306- ● ●
7 05.447 BEARING; PINION,OUTER
05.484 JTEKT 		8-94472-100-1 01 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.18 		9-41519-153-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.20 		9-41519-154-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.22 		9-41519-155-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.24 		9-41519-156-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.26 		9-41519-157-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.28 		9-41519-158-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.30 		9-41519-159-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.32 		9-41519-160-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.34 		9-41519-161-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.36 		9-41519-162-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.38 		9-41519-163-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.40 		9-41519-164-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.42 		9-41519-165-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.44 		9-41519-166-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.46 		9-41519-167-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.48 		9-41519-168-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.50 		9-41519-169-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.52 		9-41519-170-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.54 		9-41519-171-1 AR 1 0306- ● ●
8 05.460 SHIM; PINION,FINAL DRIVE
T=2.56 		9-41519-172-1 AR 1 0306- ● ●
9 05.453 COLLAR; DIST,PINION 8-94472-118-0 01 1 0306- ● ●
11 05.453 CAGE; FINAL PINION 8-97038-515-1 01 1 0306- ● ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.10 		8-97130-386-0 AR 1 0306- ● ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.50 		8-97130-387-0 AR 1 0306- ● ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.24 		9-41519-109-0 AR 1 0306- ● ●
12 05.537 SHIM; FINAL PINION CAGE
T=0.15 		9-41519-111-0 AR 1 0306- ● ●
13 05.531 BOLT; FINAL PINION CAGE
M10X17 		8-97038-065-0 10 1 0306- ● ●
14 05.505 CARRIER ASM; FINAL DRIVE,FRT AXL 8-97358-819-0 01 1 0306- ● ●
19 05.484 BEARING; PINION,INNER
NSK 		9-00093-621-1 01 1 0306- ● ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/9(GT2) 43/9 		8-97039-255-1 01 1 0610-0904 ● ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/9(GT2) 43/9 		8-98013-590-1 01 1 0905- ● ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-97044-728-0 01 1 0306-0809 ● ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-98013-580-1 01 1 0810- ● ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/10(GY2) 43/10 		8-97039-251-1 01 1 0306-0904 ● ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/10(GY2) 43/10 		8-97218-303-1 01 1 0905- ● ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/9(GT3) 41/9 		8-94376-223-1 01 1 0306-0904 ● ●
21 05.529 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/9(GT3) 41/9 		8-98013-587-1 01 1 0905- ● ●
30 05.506 BOLT; DIFF CAGE SETTING
05.387 M12X62 		8-94376-322-0 04 1 0306- ● ●
34 05.520 PIN; CROSS,DIFF PINION
05.517 		9-41521-044-1 01 1 0306- ● ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.00 		5-41562-005-1 02 1 0306- ● ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.05 		5-41562-006-1 02 1 0306- ● ●
35 05.543 WASHER; THRUST,SIDE GEAR
T=1.10 		5-41562-007-1 02 1 0306- ● ●
36 05.528 GEAR; SIDE,DIFF
Z=17 		8-97079-519-2 02 1 0306- ● ●
37 05.527 GEAR; PINION DIFF
Z=10 		8-97079-518-0 02 1 0306- ● ●
39 05.518 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 0306- ● ●
69 05.453 BEARING; DIFF SIDE
05.536 NSK 		9-00093-074-1 02 1 0306- ● ●
