4-12 — FRONT DRIVE SHAFT (#77560) — 265 parça

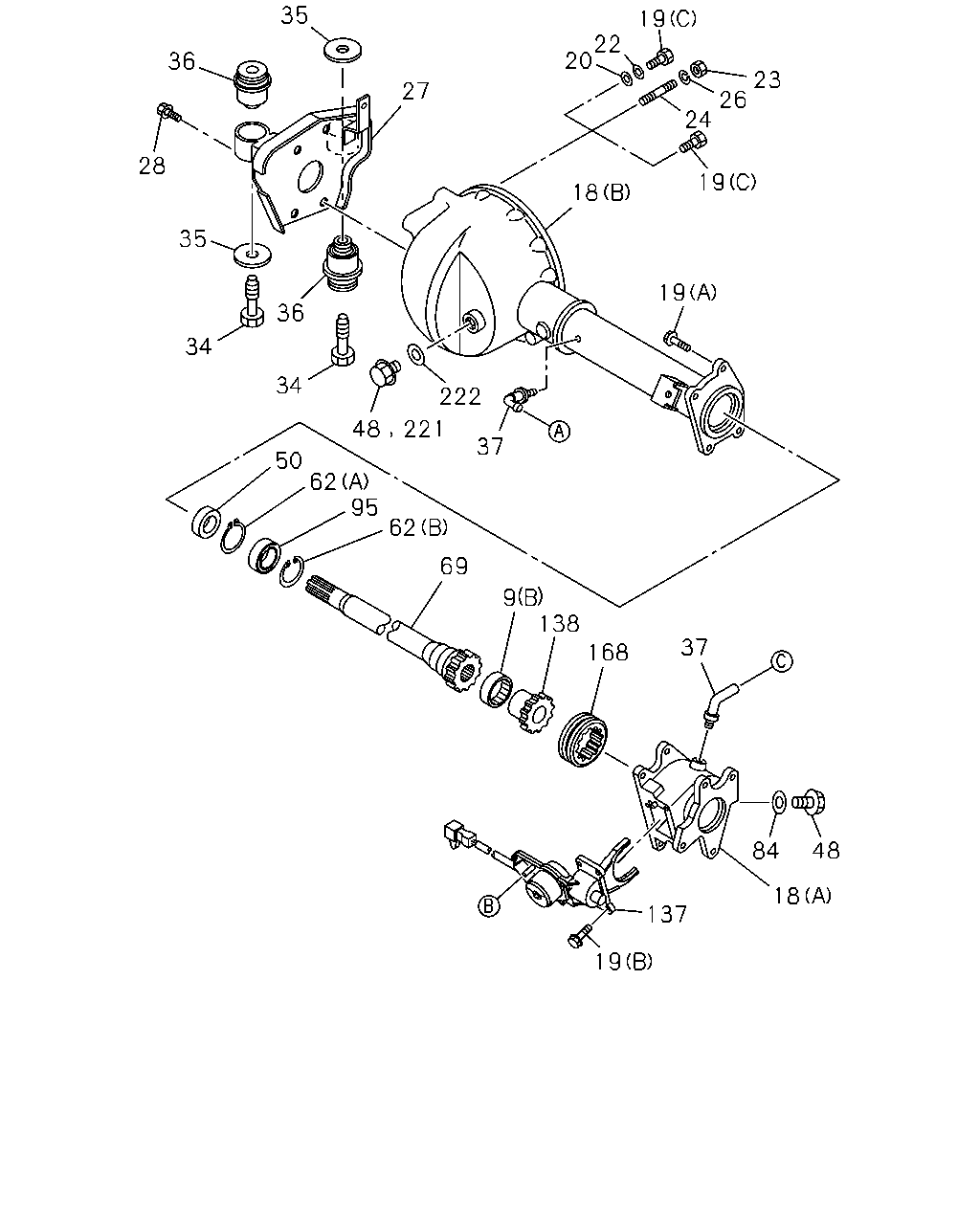

35 19 22 20 36 23 26 24 27 28 19 18 35 19 36 34 34 222 37 50 62 95 62 69 9 138 37 168 84 48 18 137 19 48 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	06.056 BEARING; AXLE SHAFT,INNER SHIFT ON THE FLY<NR4> (B)	8-97101-878-0	01	1	0306-	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	0306-	●	●
18	06.008 CASE; FRT AXLE SHIFT ON THE FLY<NR4> (A)	8-97081-658-3	01	1	0306-	●	●
18	06.008 CASE; FRT AXLE SHIFT ON THE FLY<NR4> (B)	8-97239-627-0	01	1	0306-	●	●
18	06.008 CASE; FRT AXLE EXC. SHIFT ON THE FLY<NR4> (B)	8-97018-230-0	01	1	0306-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	0306-0609	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 06.056 (A) M12X20 FLANGE	0-28051-220-0	04	1	0610-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0306-0601	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0602-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 02.183 (B) M8X35 FLANGE	0-28680-835-0	03	1	0306-0601	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	0602-	●	●
19	06.156 BOLT; FRT AXLE (C) M8X25 W/LK WASHER	8-97093-664-1	06	1	0306-0608	●	●
19	06.156 BOLT; FRT AXLE (C) M8X25 W/LK WASHER	8-98022-410-0	06	1	0609-	●	●
19	06.156 BOLT; FRT AXLE (C) M8X30 W/LK WASHER	8-97093-665-1	02	1	0306-0608	●	●
19	06.156 BOLT; FRT AXLE (C) M8X30 W/LK WASHER	8-98022-411-0	02	1	0609-	●	●
19	06.156 BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	0306-0608	●	●
19	06.156 BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-98022-412-0	02	1	0609-	●	●
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0306-	●	●
22	06.056 WASHER; PL,AXLE CASE 00.206 ID=8.4	9-09164-508-0	01	1	0306-0606	●	●
22	06.056 WASHER; PL,AXLE CASE ID=8.4 OD=16	0-91614-508-0	01	1	0607-	●	●
23	06.056 NUT; FRT AXLE 00.002 M8	9-09110-508-0	02	1	0306-0512	●	●
23	06.056 NUT; FRT AXLE 02.334 M8	0-91110-508-0	02	1	0601-	●	●
24	06.056 STUD; CASE,FRT AXLE 03.901 M8X25 L=37	9-04110-825-0	02	1	0306-0605	●	●
24	06.056 STUD; CASE,FRT AXLE 03.275 M8X25 L=37	0-41010-825-0	02	1	0606-	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 00.002 ID=8.2	9-09150-608-0	02	1	0306-0604	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 04.634 ID=8.2	0-91510-608-0	02	1	0605-0608	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 02.559 ID=8.2	0-91510-808-0	02	1	0609-	●	●
27	06.056 BRACKET; AXLE CASE 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/9(GT3) EXC. SHIFT ON THE FLY<NR4>	8-97364-325-0	01	1	0403-0507	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 41/9(GT3) SHIFT ON THE FLY<NR4>	8-97364-325-0	01	1	0403-0507	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2)	8-97364-325-0	01	1	0403-0507	●	●
27	06.056 BRACKET; AXLE CASE 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/9(GT3) EXC. SHIFT ON THE FLY<NR4>	8-98005-641-0	01	1	0508-0508	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 41/9(GT3) SHIFT ON THE FLY<NR4>	8-98005-641-0	01	1	0508-0508	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2)	8-98005-641-0	01	1	0508-0508	●	●
27	06.056 BRACKET; AXLE CASE 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/9(GT3) EXC. SHIFT ON THE FLY<NR4>	8-98005-641-0	01	1	0509-0609	●	●
27	06.056 BRACKET; AXLE CASE 4JH1-TC ENG(RDM) FINAL GEAR RATIO 43/10(GY2) SHIFT ON THE FLY<NR4>	8-98005-641-0	01	1	0509-0609	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 43/10(GY2) EXC. SHIFT ON THE FLY<NR4>	8-98005-641-0	01	1	0509-0609	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 41/9(GT3) SHIFT ON THE FLY<NR4>	8-98005-641-0	01	1	0509-0609	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 41/10(GT5)	8-98005-641-0	01	1	0509-0609	●	●
27	06.056 BRACKET; AXLE CASE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98005-641-0	01	1	0610-	●	●
27	06.056 BRACKET; AXLE CASE	8-97364-324-0	01	1	0306-0507	●	●
27	06.056 BRACKET; AXLE CASE	8-98005-640-0	01	1	0508-	●	●
27	06.056 BRACKET; AXLE CASE	8-97364-326-0	01	1	0306-0402	●	●
27	06.056 BRACKET; AXLE CASE C24SE ENG(LG1) FINAL GEAR RATIO 41/9(GT3) EXC. SHIFT ON THE FLY<NR4>	8-97364-326-0	01	1	0403-0507	●	●
27	06.056 BRACKET; AXLE CASE C24SE ENG(LG1) FINAL GEAR RATIO 41/9(GT3) EXC. SHIFT ON THE FLY<NR4>	8-98005-642-0	01	1	0508-0609	●	●
27	06.056 BRACKET; AXLE CASE C24SE ENG(LG1)	8-98032-523-0	01	1	0610-	●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	0306-0609	●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X20 FLANGE	0-28051-220-0	08	1	0610-	●	●
34	06.008 BOLT; FRT AXLE MTG M14X85 FLANGE	8-97259-306-0	04	1	0306-	●	●
35	06.008 WASHER; FRT AXLE MTG ID=14.2 OD=50	8-94419-772-0	04	1	0306-0609	●	●
35	06.008 WASHER; FRT AXLE MTG ID=14.2 OD=50	8-98008-020-0	04	1	0610-	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97364-319-0	02	1	0306-	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97364-323-0	02	1	0306-	●	●
37	06.008 BREATHER; FRT AXLE CASE SHIFT ON THE FLY<NR4>	8-94226-943-0	02	1	0306-	●	●
37	06.008 BREATHER; FRT AXLE CASE EXC. SHIFT ON THE FLY<NR4>	8-94226-943-0	01	1	0306-	●	●
48	05.400 PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY<NR4> 04.103 M20X10.5	9-09662-005-0	01	1	0306-0604	●	●
48	05.400 PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY<NR4> M20X10.5	8-98009-333-0	01	1	0605-	●	●
50	06.061 SEAL; OIL,SHAFT,FRT AXLE SHIFT ON THE FLY<NR4>	8-97084-507-0	01	1	0306-	●	●
62	06.061 RING; SNAP,AXLE SHAFT SHIFT ON THE FLY<NR4> 08.934 (A) ID=37.0	9-09180-040-0	01	1	0306-	●	●
62	06.061 RING; SNAP,AXLE SHAFT SHIFT ON THE FLY<NR4> 01.105 (B) ID=57.9	9-09180-162-0	01	1	0306-	●	●
69	06.055 SHAFT; AXLE,FRT INNER SHIFT ON THE FLY<NR4>	8-97188-174-1	01	1	0306-	●	●
84	06.326 GASKET; PLUG,OIL FILLER SHIFT ON THE FLY<NR4> 05.400 ID=20 OD=30	8-94462-734-0	01	1	0306-	●	●
95	06.008 BEARING; AXLE SHAFT,FRT SHIFT ON THE FLY<NR4>	8-97103-392-0	01	1	0306-	●	●
137	06.008 ACTUATOR; AXLE SHIFT ON THE FLY<NR4>	8-97367-959-0	01	1	0306-	●	●
138	06.008 GEAR; CLUTCH SHIFT ON THE FLY<NR4> Z=17	8-97134-857-1	01	1	0306-	●	●
168	06.056 SLEEVE; FRT AXLE SHIFT ON THE FLY<NR4> 06.008	8-97130-567-1	01	1	0306-	●	●
221	06.008 PLUG; FILLER 04.103 M20X10.5	9-09662-005-0	01	1	0306-0604	●	●
221	06.008 PLUG; FILLER 05.400 M20X10.5	8-98009-333-0	01	1	0605-	●	●
222	04.515 GASKET; FILLER PLUG 05.400 ID=20 OD=30	8-94462-734-0	01	1	0306-	●	●

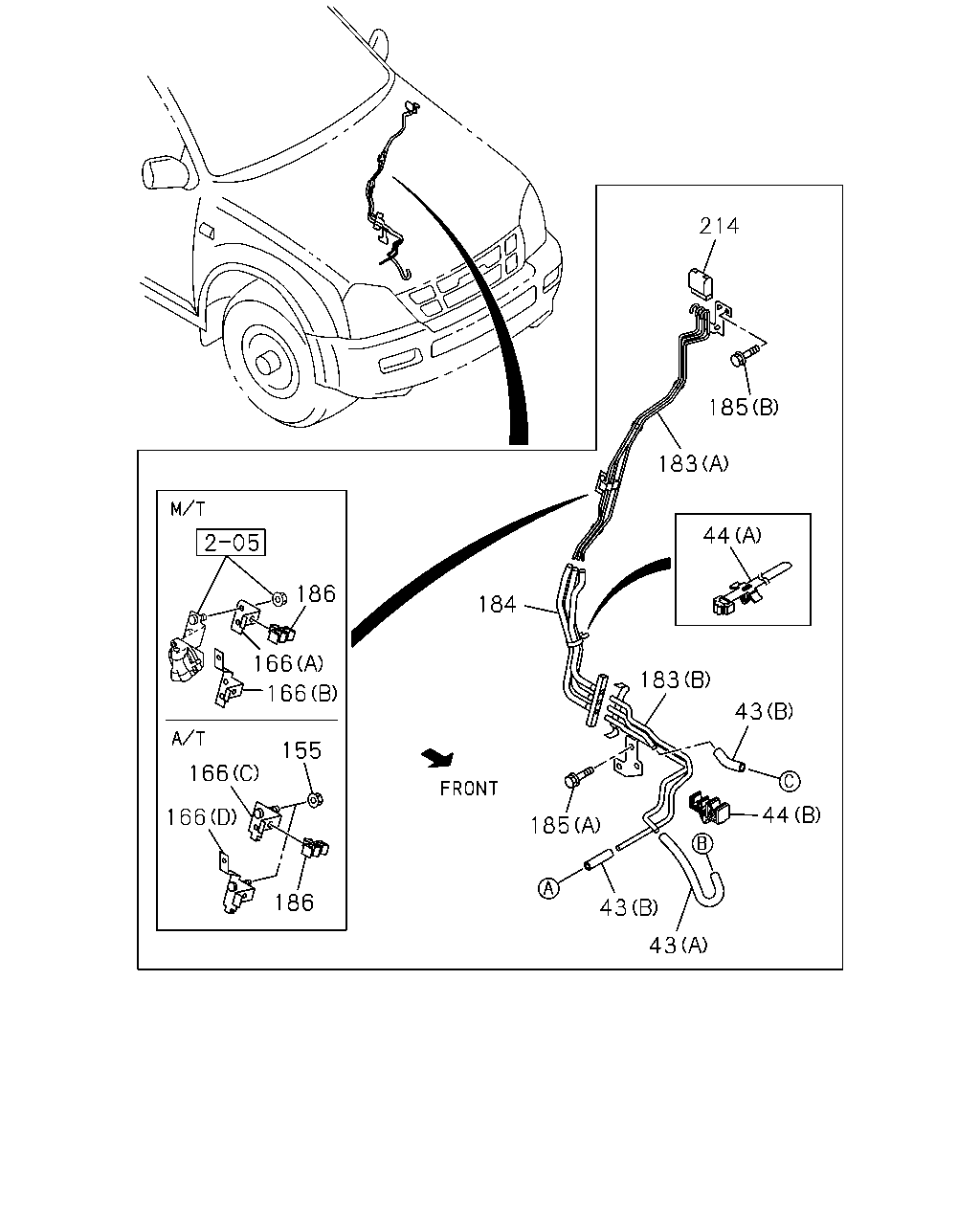

214 185 183 44 186 184 166 183 166 43 155 166 44 166 185 186 43 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	06.008 HOSE; RUBBER,AIR BREATHER SHIFT ON THE FLY<NR4> 08.962 (A) L=200 SERVICED BY L=3000	0-04740-300-0	01	1	0306-	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER SHIFT ON THE FLY<NR4> 08.962 (B) L=50 SERVICED BY L=3000	0-04750-300-0	02	1	0306-	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.483 (E) ID=28	8-94362-106-0	01	1	0610-	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	01	1	0610-	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) 03.162 (D) L=170	5-09707-054-0	01	1	0306-0609	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	02	1	0610-	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	0306-	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<NR4> 02.559 (A) L=170.3	1-09987-182-0	01	1	0306-0508	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	0509-	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> 02.343 (C) ID=13 H=24 L=20	9-09527-012-0	01	1	0306-0607	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0608-0609	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0610-	●	●
155	06.008 NUT; BRKT A/T 4 SPEED-JATCO(RMK) 01.062 M6 FLANGE	0-91180-106-0	01	1	0306-		●
166	06.008 BRACKET; CLIP 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (D)	8-98043-612-0	01	1	0610-		●
166	06.008 BRACKET; CLIP 4JA1-T ENG(LP0) A/T 4 SPEED-JATCO(RMK) (C)	8-98008-008-0	01	1	0610-		●
166	06.008 BRACKET; CLIP M/T MUA 5 SPEED 5G(RSP) (A)	8-97236-435-0	01	1	0306-0609	●	●
166	06.008 BRACKET; CLIP 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) (A)	8-98020-074-0	01	1	0610-	●	●
166	06.008 BRACKET; CLIP A/T 4 SPEED-JATCO(RMK) (C)	8-97259-780-0	01	1	0306-0609		●
166	06.008 BRACKET; CLIP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) (B)	8-98043-613-0	01	1	0610-	●	●
183	06.008 PIPE; BREATHER SHIFT ON THE FLY<NR4> (B)	8-97250-343-1	01	1	0306-0609	●	●
183	06.008 PIPE; BREATHER SHIFT ON THE FLY<NR4> (A)	8-98007-998-0	01	1	0610-	●	●
183	06.008 PIPE; BREATHER SHIFT ON THE FLY<NR4> (A)	8-97333-080-0	01	1	0306-0609	●	●
183	06.008 PIPE; BREATHER SHIFT ON THE FLY<NR4> (B)	8-98007-999-0	01	1	0610-	●	●
183	06.008 PIPE; BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> (C)	8-97236-855-0	01	1	0306-0609	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. SHIFT ON THE FLY<NR4> (C)	8-98008-000-0	01	1	0610-	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) SHIFT ON THE FLY<NR4>	8-98044-232-0	01	1	0610-	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4>	8-97358-814-1	01	1	0306-0609	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4>	8-98032-708-0	01	1	0610-	●	●
184	06.008 HOSE; BREATHER SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	0306-	●	●
184	06.008 HOSE; BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0306-0609	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0610-	●	●
185	06.008 BOLT; PIPE,BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0306-0609	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0610-	●	●
185	06.008 BOLT; PIPE,BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0306-0508	●	●
185	06.008 BOLT; PIPE,BREATHER SHIFT ON THE FLY<NR4> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0306-0508	●	●
185	06.008 BOLT; PIPE,BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0509-0609	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0610-	●	●
186	06.008 CLIP; HOSE,BREATHER SHIFT ON THE FLY<NR4> ID=4.76X2	8-97249-905-0	01	1	0306-	●	●
186	06.008 CLIP; HOSE,BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> 02.559 ID=6.8	8-97134-154-0	01	1	0306-0609	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. SHIFT ON THE FLY<NR4> 02.559 ID=6.8	8-97134-154-0	01	1	0610-	●	●
214	06.008 COVER; BREATHER SHIFT ON THE FLY<NR4>	8-97261-746-0	01	1	0306-	●	●

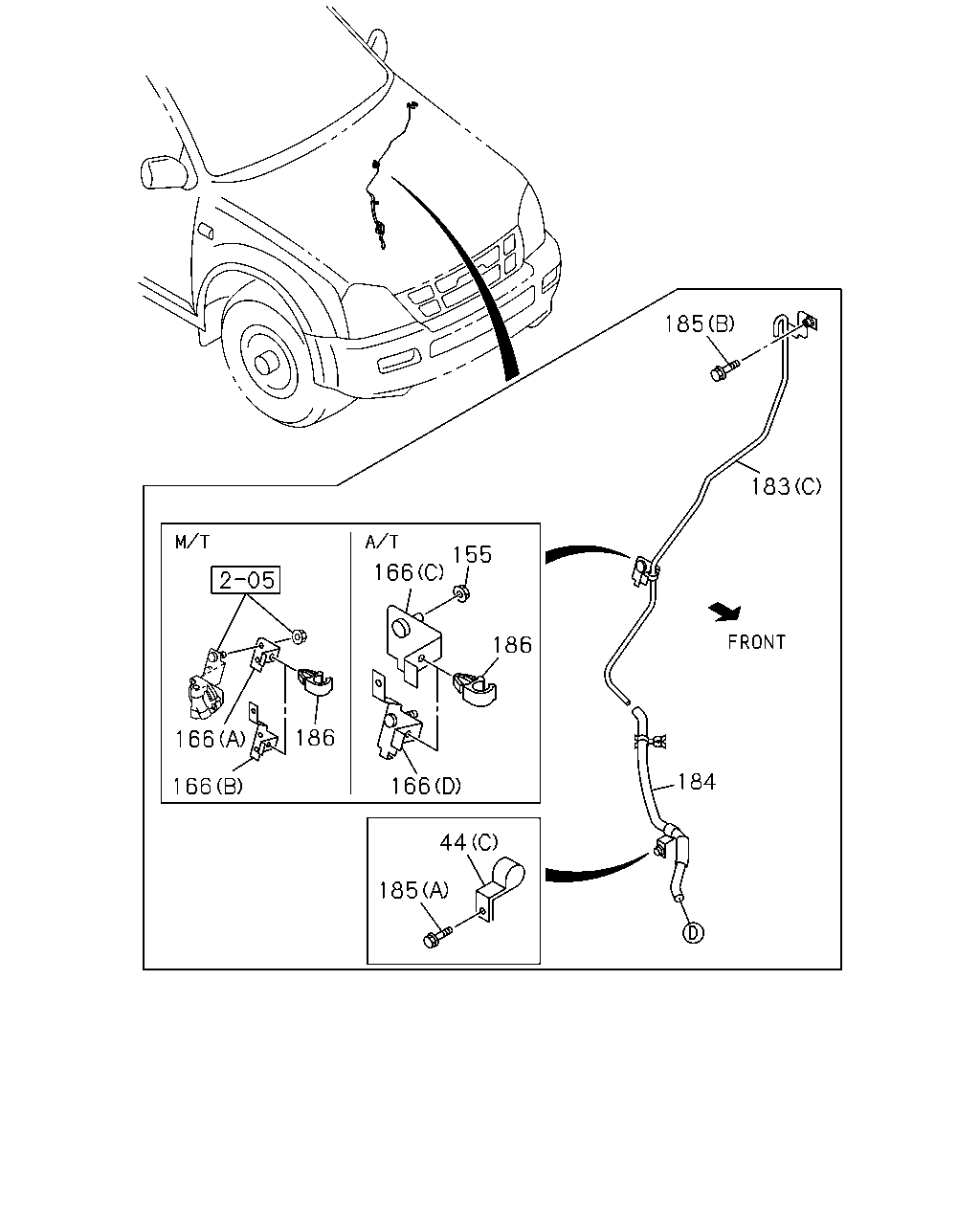

184 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.483 (E) ID=28	8-94362-106-0	01	1	0610-	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	01	1	0610-	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) 03.162 (D) L=170	5-09707-054-0	01	1	0306-0609	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	02	1	0610-	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	0306-	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<NR4> 02.559 (A) L=170.3	1-09987-182-0	01	1	0306-0508	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	0509-	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> 02.343 (C) ID=13 H=24 L=20	9-09527-012-0	01	1	0306-0607	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0608-0609	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0610-	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) SHIFT ON THE FLY<NR4>	8-98044-232-0	01	1	0610-	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4>	8-97358-814-1	01	1	0306-0609	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4>	8-98032-708-0	01	1	0610-	●	●
184	06.008 HOSE; BREATHER SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	0306-	●	●
184	06.008 HOSE; BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0306-0609	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0610-	●	●

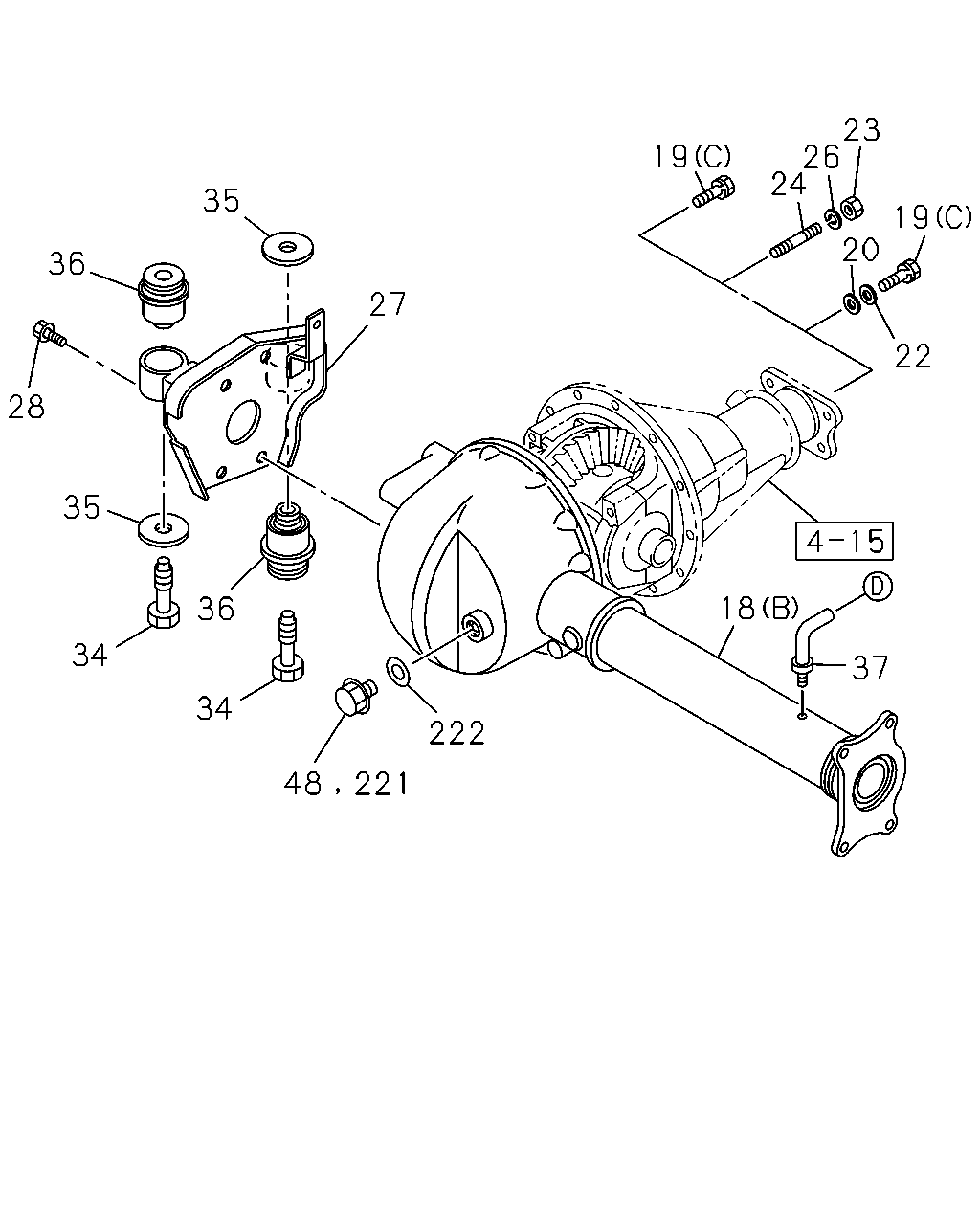

23 26 24 19 35 19 20 36 27 22 28 35 18 36 34 37 34 222 48 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	06.008 CASE; FRT AXLE SHIFT ON THE FLY<NR4> (A)	8-97081-658-3	01	1	0306-	●	●
18	06.008 CASE; FRT AXLE SHIFT ON THE FLY<NR4> (B)	8-97239-627-0	01	1	0306-	●	●
18	06.008 CASE; FRT AXLE EXC. SHIFT ON THE FLY<NR4> (B)	8-97018-230-0	01	1	0306-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	0306-0609	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 06.056 (A) M12X20 FLANGE	0-28051-220-0	04	1	0610-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0306-0601	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0602-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 02.183 (B) M8X35 FLANGE	0-28680-835-0	03	1	0306-0601	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	0602-	●	●
19	06.156 BOLT; FRT AXLE (C) M8X25 W/LK WASHER	8-97093-664-1	06	1	0306-0608	●	●
19	06.156 BOLT; FRT AXLE (C) M8X25 W/LK WASHER	8-98022-410-0	06	1	0609-	●	●
19	06.156 BOLT; FRT AXLE (C) M8X30 W/LK WASHER	8-97093-665-1	02	1	0306-0608	●	●
19	06.156 BOLT; FRT AXLE (C) M8X30 W/LK WASHER	8-98022-411-0	02	1	0609-	●	●
19	06.156 BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	0306-0608	●	●
19	06.156 BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-98022-412-0	02	1	0609-	●	●
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0306-	●	●
22	06.056 WASHER; PL,AXLE CASE 00.206 ID=8.4	9-09164-508-0	01	1	0306-0606	●	●
22	06.056 WASHER; PL,AXLE CASE ID=8.4 OD=16	0-91614-508-0	01	1	0607-	●	●
23	06.056 NUT; FRT AXLE 00.002 M8	9-09110-508-0	02	1	0306-0512	●	●
23	06.056 NUT; FRT AXLE 02.334 M8	0-91110-508-0	02	1	0601-	●	●
24	06.056 STUD; CASE,FRT AXLE 03.901 M8X25 L=37	9-04110-825-0	02	1	0306-0605	●	●
24	06.056 STUD; CASE,FRT AXLE 03.275 M8X25 L=37	0-41010-825-0	02	1	0606-	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 00.002 ID=8.2	9-09150-608-0	02	1	0306-0604	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 04.634 ID=8.2	0-91510-608-0	02	1	0605-0608	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 02.559 ID=8.2	0-91510-808-0	02	1	0609-	●	●
27	06.056 BRACKET; AXLE CASE 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/9(GT3) EXC. SHIFT ON THE FLY<NR4>	8-97364-325-0	01	1	0403-0507	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 41/9(GT3) SHIFT ON THE FLY<NR4>	8-97364-325-0	01	1	0403-0507	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2)	8-97364-325-0	01	1	0403-0507	●	●
27	06.056 BRACKET; AXLE CASE 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/9(GT3) EXC. SHIFT ON THE FLY<NR4>	8-98005-641-0	01	1	0508-0508	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 41/9(GT3) SHIFT ON THE FLY<NR4>	8-98005-641-0	01	1	0508-0508	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2)	8-98005-641-0	01	1	0508-0508	●	●
27	06.056 BRACKET; AXLE CASE 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/9(GT3) EXC. SHIFT ON THE FLY<NR4>	8-98005-641-0	01	1	0509-0609	●	●
27	06.056 BRACKET; AXLE CASE 4JH1-TC ENG(RDM) FINAL GEAR RATIO 43/10(GY2) SHIFT ON THE FLY<NR4>	8-98005-641-0	01	1	0509-0609	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 43/10(GY2) EXC. SHIFT ON THE FLY<NR4>	8-98005-641-0	01	1	0509-0609	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 41/9(GT3) SHIFT ON THE FLY<NR4>	8-98005-641-0	01	1	0509-0609	●	●
27	06.056 BRACKET; AXLE CASE FINAL GEAR RATIO 41/10(GT5)	8-98005-641-0	01	1	0509-0609	●	●
27	06.056 BRACKET; AXLE CASE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98005-641-0	01	1	0610-	●	●
27	06.056 BRACKET; AXLE CASE	8-97364-324-0	01	1	0306-0507	●	●
27	06.056 BRACKET; AXLE CASE	8-98005-640-0	01	1	0508-	●	●
27	06.056 BRACKET; AXLE CASE	8-97364-326-0	01	1	0306-0402	●	●
27	06.056 BRACKET; AXLE CASE C24SE ENG(LG1) FINAL GEAR RATIO 41/9(GT3) EXC. SHIFT ON THE FLY<NR4>	8-97364-326-0	01	1	0403-0507	●	●
27	06.056 BRACKET; AXLE CASE C24SE ENG(LG1) FINAL GEAR RATIO 41/9(GT3) EXC. SHIFT ON THE FLY<NR4>	8-98005-642-0	01	1	0508-0609	●	●
27	06.056 BRACKET; AXLE CASE C24SE ENG(LG1)	8-98032-523-0	01	1	0610-	●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	0306-0609	●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X20 FLANGE	0-28051-220-0	08	1	0610-	●	●
34	06.008 BOLT; FRT AXLE MTG M14X85 FLANGE	8-97259-306-0	04	1	0306-	●	●
35	06.008 WASHER; FRT AXLE MTG ID=14.2 OD=50	8-94419-772-0	04	1	0306-0609	●	●
35	06.008 WASHER; FRT AXLE MTG ID=14.2 OD=50	8-98008-020-0	04	1	0610-	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97364-319-0	02	1	0306-	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97364-323-0	02	1	0306-	●	●
37	06.008 BREATHER; FRT AXLE CASE SHIFT ON THE FLY<NR4>	8-94226-943-0	02	1	0306-	●	●
37	06.008 BREATHER; FRT AXLE CASE EXC. SHIFT ON THE FLY<NR4>	8-94226-943-0	01	1	0306-	●	●
48	05.400 PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY<NR4> 04.103 M20X10.5	9-09662-005-0	01	1	0306-0604	●	●
48	05.400 PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY<NR4> M20X10.5	8-98009-333-0	01	1	0605-	●	●
221	06.008 PLUG; FILLER 04.103 M20X10.5	9-09662-005-0	01	1	0306-0604	●	●
221	06.008 PLUG; FILLER 05.400 M20X10.5	8-98009-333-0	01	1	0605-	●	●
222	04.515 GASKET; FILLER PLUG 05.400 ID=20 OD=30	8-94462-734-0	01	1	0306-	●	●

184 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.483 (E) ID=28	8-94362-106-0	01	1	0610-	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	01	1	0610-	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) 03.162 (D) L=170	5-09707-054-0	01	1	0306-0609	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	02	1	0610-	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	0306-	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<NR4> 02.559 (A) L=170.3	1-09987-182-0	01	1	0306-0508	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	0509-	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> 02.343 (C) ID=13 H=24 L=20	9-09527-012-0	01	1	0306-0607	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0608-0609	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0610-	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) SHIFT ON THE FLY<NR4>	8-98044-232-0	01	1	0610-	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4>	8-97358-814-1	01	1	0306-0609	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4>	8-98032-708-0	01	1	0610-	●	●
184	06.008 HOSE; BREATHER SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	0306-	●	●
184	06.008 HOSE; BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0306-0609	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0610-	●	●

185 183 155 166 186 186 166 184 166 166 44 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.483 (E) ID=28	8-94362-106-0	01	1	0610-	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	01	1	0610-	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) 03.162 (D) L=170	5-09707-054-0	01	1	0306-0609	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	02	1	0610-	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	0306-	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<NR4> 02.559 (A) L=170.3	1-09987-182-0	01	1	0306-0508	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	0509-	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> 02.343 (C) ID=13 H=24 L=20	9-09527-012-0	01	1	0306-0607	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0608-0609	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0610-	●	●
155	06.008 NUT; BRKT A/T 4 SPEED-JATCO(RMK) 01.062 M6 FLANGE	0-91180-106-0	01	1	0306-		●
166	06.008 BRACKET; CLIP 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (D)	8-98043-612-0	01	1	0610-		●
166	06.008 BRACKET; CLIP 4JA1-T ENG(LP0) A/T 4 SPEED-JATCO(RMK) (C)	8-98008-008-0	01	1	0610-		●
166	06.008 BRACKET; CLIP M/T MUA 5 SPEED 5G(RSP) (A)	8-97236-435-0	01	1	0306-0609	●	●
166	06.008 BRACKET; CLIP 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) (A)	8-98020-074-0	01	1	0610-	●	●
166	06.008 BRACKET; CLIP A/T 4 SPEED-JATCO(RMK) (C)	8-97259-780-0	01	1	0306-0609		●
166	06.008 BRACKET; CLIP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) (B)	8-98043-613-0	01	1	0610-	●	●
183	06.008 PIPE; BREATHER SHIFT ON THE FLY<NR4> (B)	8-97250-343-1	01	1	0306-0609	●	●
183	06.008 PIPE; BREATHER SHIFT ON THE FLY<NR4> (A)	8-98007-998-0	01	1	0610-	●	●
183	06.008 PIPE; BREATHER SHIFT ON THE FLY<NR4> (A)	8-97333-080-0	01	1	0306-0609	●	●
183	06.008 PIPE; BREATHER SHIFT ON THE FLY<NR4> (B)	8-98007-999-0	01	1	0610-	●	●
183	06.008 PIPE; BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> (C)	8-97236-855-0	01	1	0306-0609	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. SHIFT ON THE FLY<NR4> (C)	8-98008-000-0	01	1	0610-	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) SHIFT ON THE FLY<NR4>	8-98044-232-0	01	1	0610-	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4>	8-97358-814-1	01	1	0306-0609	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4>	8-98032-708-0	01	1	0610-	●	●
184	06.008 HOSE; BREATHER SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	0306-	●	●
184	06.008 HOSE; BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0306-0609	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0610-	●	●
185	06.008 BOLT; PIPE,BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0306-0609	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0610-	●	●
185	06.008 BOLT; PIPE,BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0306-0508	●	●
185	06.008 BOLT; PIPE,BREATHER SHIFT ON THE FLY<NR4> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0306-0508	●	●
185	06.008 BOLT; PIPE,BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0509-0609	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0610-	●	●
186	06.008 CLIP; HOSE,BREATHER SHIFT ON THE FLY<NR4> ID=4.76X2	8-97249-905-0	01	1	0306-	●	●
186	06.008 CLIP; HOSE,BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. SHIFT ON THE FLY<NR4> 02.559 ID=6.8	8-97134-154-0	01	1	0306-0609	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. SHIFT ON THE FLY<NR4> 02.559 ID=6.8	8-97134-154-0	01	1	0610-	●	●

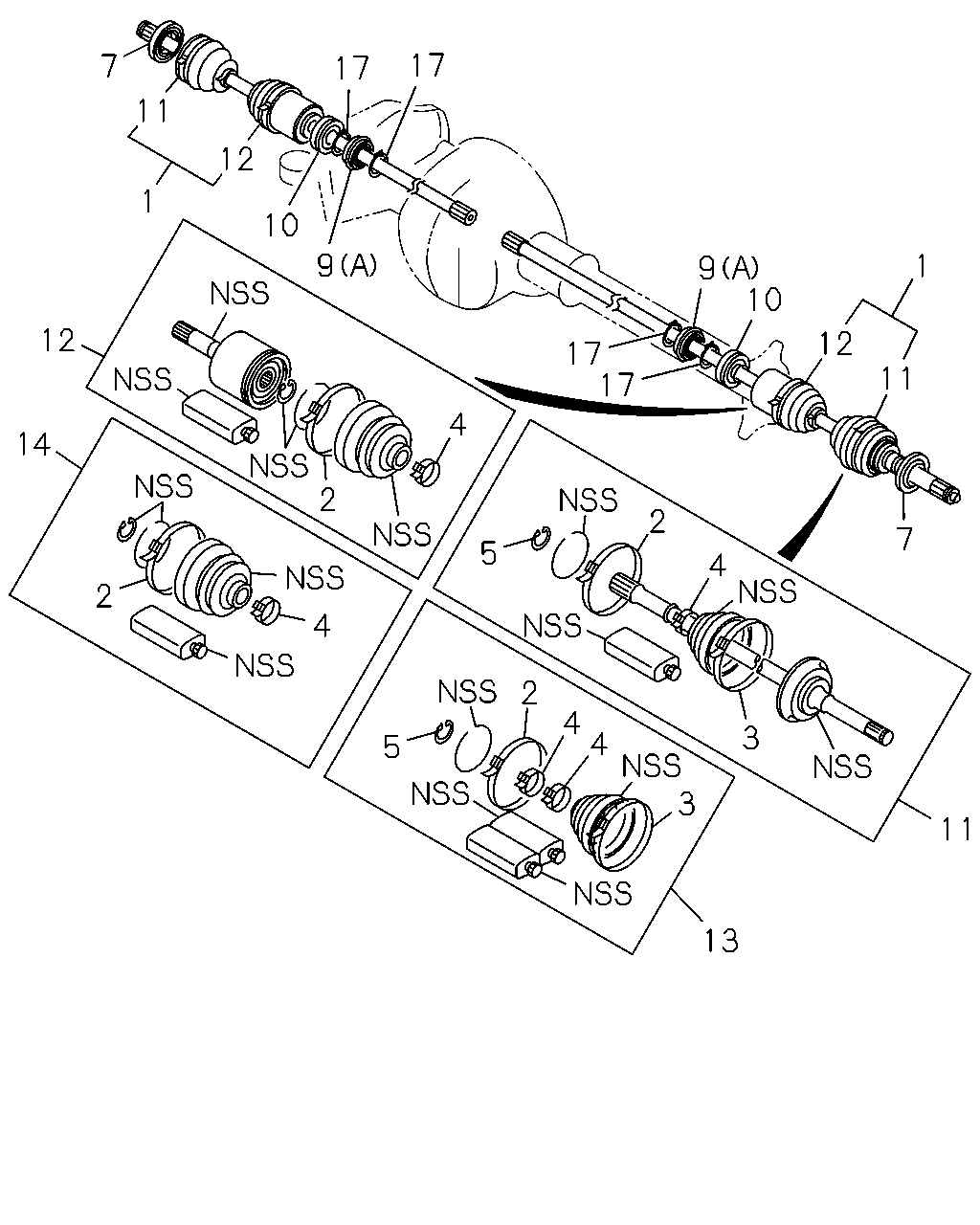

17 7 17 11 12 1 10 9 1 9 10 12 12 17 17 11 4 14 2 2 7 5 4 2 4 2 4 4 3 3 5 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.055 SHAFT ASM; FRT DRIVE SHIFT ON THE FLY<NR4> EXC.SHIFT ON THE FLY=RH	8-97360-046-0	01	1	0306-0508	●	●
1	06.055 SHAFT ASM; FRT DRIVE EXC.SHIFT ON THE FLY=RH	8-97360-046-0	01	1	0306-0508	●	●
1	06.055 SHAFT ASM; FRT DRIVE SHIFT ON THE FLY<NR4> EXC.SHIFT ON THE FLY=RH	8-97387-674-1	01	1	0509-	●	●
1	06.055 SHAFT ASM; FRT DRIVE EXC.SHIFT ON THE FLY=RH	8-97387-674-1	01	1	0509-	●	●
1	06.055 SHAFT ASM; FRT DRIVE EXC. SHIFT ON THE FLY<NR4>	8-97360-047-0	01	1	0306-0508	●	●
1	06.055 SHAFT ASM; FRT DRIVE EXC. SHIFT ON THE FLY<NR4>	8-97387-675-1	01	1	0509-	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT	8-97349-960-0	01	1	0306-	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT	8-97349-959-0	01	1	0306-	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT	8-97222-152-0	02	1	0306-	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT	8-97131-402-0	01	1	0306-	●	●
7	06.061 SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	0306-0605	●	●
7	06.061 SEAL; DUST,DRIVE SHAFT	8-98036-560-0	02	1	0606-	●	●
9	06.056 BEARING; AXLE SHAFT,INNER SHIFT ON THE FLY<NR4> (B)	8-97101-878-0	01	1	0306-	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	0306-	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER	8-94366-610-0	02	1	0306-0312	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER	8-97373-555-0	02	1	0401-	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA	8-97349-952-1	01	1	0306-0508	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA	8-97387-664-0	01	1	0509-	●	●
12	06.060 JOINT ASM SHIFT ON THE FLY<NR4> EXC.SHIFT ON THE FLY=RH	8-97349-953-0	01	1	0306-0508	●	●
12	06.060 JOINT ASM EXC.SHIFT ON THE FLY=RH	8-97349-953-0	01	1	0306-0508	●	●
12	06.060 JOINT ASM SHIFT ON THE FLY<NR4> EXC.SHIFT ON THE FLY=RH	8-97387-663-0	01	1	0509-	●	●
12	06.060 JOINT ASM EXC.SHIFT ON THE FLY=RH	8-97387-663-0	01	1	0509-	●	●
12	06.060 JOINT ASM EXC. SHIFT ON THE FLY<NR4>	8-97349-954-0	01	1	0306-0508	●	●
12	06.060 JOINT ASM EXC. SHIFT ON THE FLY<NR4>	8-97387-656-0	01	1	0509-	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF	8-97349-955-0	01	1	0306-0508	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF	8-97387-478-0	01	1	0509-	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF	8-97349-956-0	01	1	0306-0508	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF	8-97387-477-0	01	1	0509-	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 04.416 ID=27.9	9-09180-030-0	04	1	0306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
