Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#7756) — 208 parça

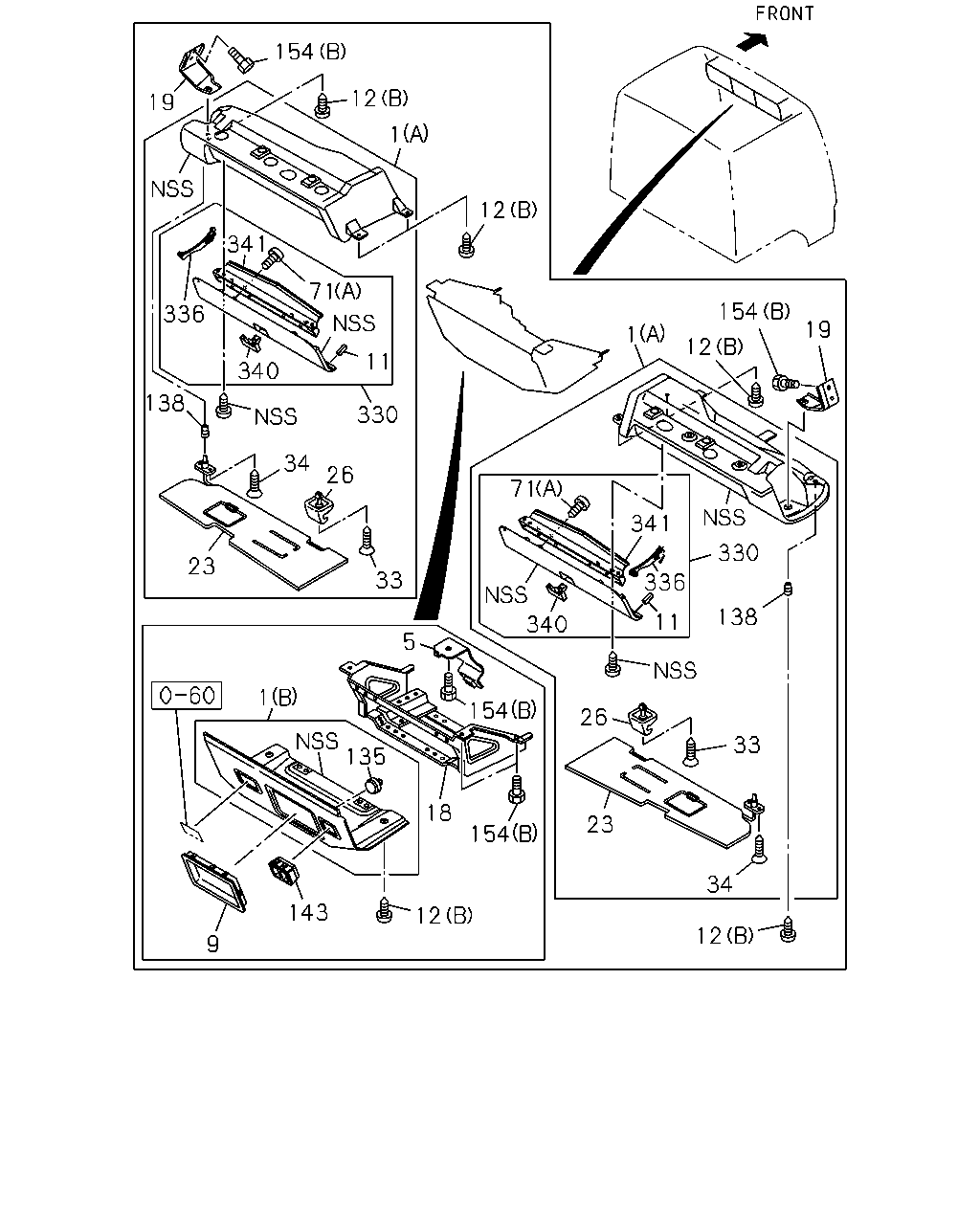

154 12 19 1 12 341 71 154 336 19 1 12 11 340 138 330 34 26 71 341 330 336 23 33 138 11 340 5 1 154 26 135 33 18 23 154 34 143 12 12 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-700-0	01	1	9902-	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9902-0003	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	0004-	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9902-0003	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	0004-	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0002-0003	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0004-	●	●
1	BOARD; HEADER SHELF (B)	1-72447-657-2	01	1	0004-		●
5	BRACKET; HEADER SHELF FRAME	1-72447-677-2	01	1	9902-0001	●
5	BRACKET; HEADER SHELF FRAME EXC. HIGH ROOF<S2F>	1-72447-677-2	01	1	0002-0003	●
5	BRACKET; HEADER SHELF FRAME EXC. HIGH ROOF<S2F>	1-72447-677-2	01	1	0004-	●	●
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-679-2	01	1	0002-0003	●
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-679-2	01	1	0004-	●	●
9	COVER; HOLE,HEADER SHELF CENTER	1-72447-663-2	01	1	9902-0003	●
9	COVER; HOLE,HEADER SHELF CENTER	1-72447-663-2	01	1	0004-	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9902-	●
11	CAP; HEADER SHELF	8-94270-538-0	02	1	0004-		●
11	CAP; HEADER SHELF	8-94270-538-0	02	1	0004-		●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9902-0003	●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0004-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0002-0003	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0004-	●	●
18	SUPPORT; HEADER SHELF CENTER	1-72447-739-0	01	1	9902-0003	●
18	SUPPORT; HEADER SHELF CENTER	1-72447-739-0	01	1	0004-	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9902-0003	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	0004-	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9902-0003	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	0004-	●	●
23	SUN VISOR	1-73138-150-1	01	1	9902-0003	●
23	SUN VISOR	1-73138-150-1	01	1	0004-	●	●
23	SUN VISOR	1-73138-148-1	01	1	9902-0003	●
23	SUN VISOR	1-73138-148-1	01	1	0004-	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9902-	●
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	0004-		●
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	0004-		●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9902-	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0004-		●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0004-		●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9902-0003	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0004-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9902-	●
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9902-0003	●
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0004-	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9902-	●
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9902-0003	●
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0004-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0004-		●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0004-		●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0004-		●
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	04	1	9902-0003	●
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	04	1	0004-	●	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9902-	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	0004-		●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	0004-		●
143	BEZEL	1-72448-411-0	01	1	9902-0003	●
143	BEZEL	1-72448-411-0	01	1	0004-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9902-0003	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0004-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9902-0003	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0004-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9902-0003	●
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9902-0003	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0004-	●	●
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0004-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9902-0003	●
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0004-	●	●
330	LID; HEADER SHELF	1-72448-360-3	02	1	9902-	●
330	LID; HEADER SHELF	1-72448-360-3	01	1	0004-		●
330	LID; HEADER SHELF	1-72448-360-3	01	1	0004-		●
336	STAY; LID	1-72448-379-3	04	1	9902-	●
336	STAY; LID	1-72448-379-3	02	1	0004-		●
336	STAY; LID	1-72448-379-3	02	1	0004-		●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9902-	●
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	0004-		●
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	0004-		●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9902-	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	01	1	0004-		●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	01	1	0004-		●

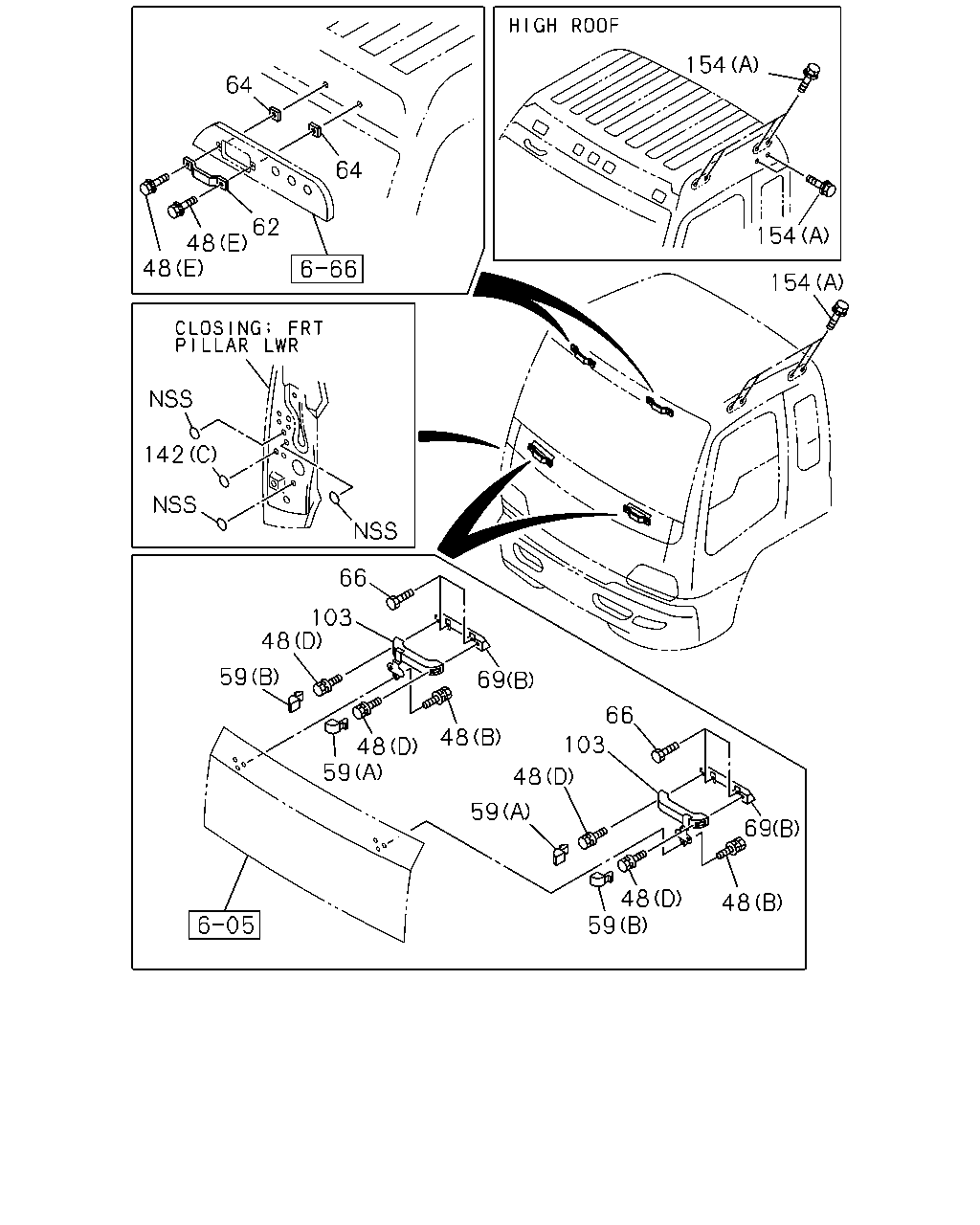

154 64 64 154 62 48 48 154 142 66 103 48 59 66 48 103 48 59 48 59 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9902-0003	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0004-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9902-0003	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0004-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9902-0003	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0004-	●	●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9902-	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9902-0003	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0004-	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0004-		●
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9902-	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0004-		●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	9902-0003	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0004-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	9902-0003	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0004-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9902-0003	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	0004-	●	●
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	02	1	9902-0003	●
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	02	1	0004-	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0004-		●
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	01	1	9902-	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9902-0003	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0004-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9902-0003	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0004-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	9902-0003	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0004-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	9902-0003	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0004-	●	●
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	9909-	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	01	1	9902-	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	07	1	9902-0002	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	06	1	0003-	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0004-		●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0004-		●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9902-0003	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0004-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9902-0003	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0004-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9902-0003	●
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9902-0003	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0004-	●	●
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0004-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9902-0003	●
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0004-	●	●

106 54 87 325 55 12 71 71 83 329 83 142 1 150 75 54 71 59 72 48 48 75 142 49 56 48 48 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-700-0	01	1	9902-	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9902-0003	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	0004-	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9902-0003	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	0004-	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0002-0003	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0004-	●	●
1	BOARD; HEADER SHELF (B)	1-72447-657-2	01	1	0004-		●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9902-0003	●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0004-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0002-0003	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0004-	●	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9902-0003	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0004-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9902-0003	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0004-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9902-0003	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0004-	●	●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9902-	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9902-0003	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0004-	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0004-		●
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9902-	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0004-		●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	9902-	●
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	9902-0003	●
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	0004-	●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	0004-		●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-067-0	01	1	9902-0003	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-067-0	01	1	0004-	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-066-0	01	1	9902-0003	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-066-0	01	1	0004-	●	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9902-0003	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	0004-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-0	02	1	9902-0003	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-0	02	1	0004-	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-4	02	1	9902-0003	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0004-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	9902-0003	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0004-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	9902-0003	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0004-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9902-0003	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	0004-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65580-203-0	02	1	9902-0003	●
69	BRACKET; ASSIST GRIP (B)	1-65580-203-0	02	1	0004-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9902-0003	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0004-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	9902-	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9902-	●
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9902-0003	●
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0004-	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9902-	●
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9902-0003	●
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0004-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0004-		●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0004-		●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0004-		●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-543-0	01	1	9902-	●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-545-0	01	1	9902-	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-540-0	01	1	0004-		●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0004-		●
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9902-	●
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0004-		●
83	PLUG HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	05	1	0002-0003	●
83	PLUG HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	05	1	0004-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	02	1	9902-0003	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	02	1	0004-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9902-0003	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0004-	●	●
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	9909-	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	01	1	9902-	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	07	1	9902-0002	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	06	1	0003-	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0004-		●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0004-		●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9902-0003	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	0004-	●	●
325	RAIL ASM HIGH ROOF<S2F>	1-72447-636-4	01	1	0002-0003	●
325	RAIL ASM HIGH ROOF<S2F>	1-72447-636-4	01	1	0004-	●	●
329	RIVET HIGH ROOF<S2F>	1-09987-128-0	09	1	0002-0003	●
329	RIVET HIGH ROOF<S2F>	1-09987-128-0	09	1	0004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
