Sayfa 4-11 - Isuzu EPC

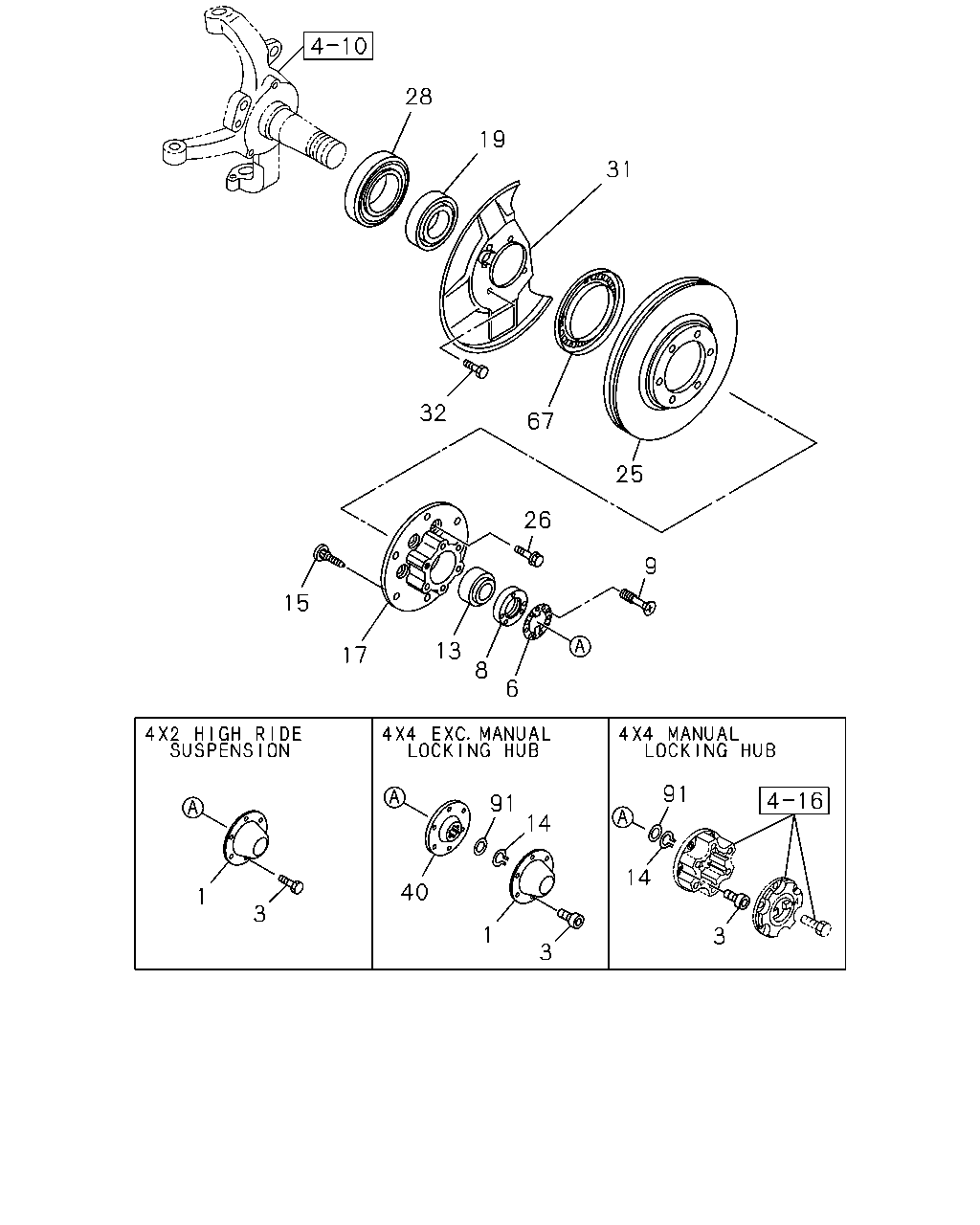

4-11 — FRONT HUB AND DRUM OR ROTOR (#77559) — 205 parça

28 19 31 32 67 25 26 9 15 13 17 8 6 91 91 14 14 40 1 3 1 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.330 CAP; HUB,FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-94173-314-2	02	1	0306-0609	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. MANUAL LOCKING HUB(ED2)	8-94173-314-2	02	1	0306-0609			●	●
1	06.330 CAP; HUB,FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-97944-565-0	02	1	0610-	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. MANUAL LOCKING HUB(ED2)	8-97944-565-0	02	1	0610-			●	●
1	06.330 CAP; HUB,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	9-42313-080-1	02	1	0306-0609	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-055-0	02	1	0610-	●	●
3	06.330 BOLT; HUB CAP,FRT WHEEL HIGH RIDE SUSPENSION(7YC) 00.002 M10X20	9-02061-020-0	12	1	0306-0601	●	●
3	06.330 BOLT; HUB CAP,FRT WHEEL HIGH RIDE SUSPENSION(7YC) 06.174 M10X20	0-20951-020-0	12	1	0602-	●	●
3	06.330 BOLT; HUB CAP,FRT WHEEL 06.308 M10X33	8-94176-987-1	12	1	0306-0802			●	●
3	06.330 BOLT; HUB CAP,FRT WHEEL M10X33	8-98117-920-0	12	1	0803-			●	●
6	05.812 WASHER; LK,FRT HUB HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65	8-94442-398-0	02	1	0306-	●	●
6	05.812 WASHER; LK,FRT HUB T=1.8 OD=65	8-94442-398-0	02	1	0306-			●	●
6	05.812 WASHER; LK,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35	8-94256-973-0	02	1	0306-0406	●	●
6	05.812 WASHER; LK,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35	8-97382-661-0	02	1	0407-	●	●
8	05.812 NUT; ADJ,FRT HUB HIGH RIDE SUSPENSION(7YC) ID=40 OD=65 T=8	8-94442-399-1	02	1	0306-	●	●
8	05.812 NUT; ADJ,FRT HUB ID=40 OD=65 T=8	8-94442-399-1	02	1	0306-			●	●
9	05.812 SCREW; ADJ,NUT HIGH RIDE SUSPENSION(7YC) 08.913 M4X8 CK-HEAD	9-93090-408-0	06	1	0306-0609	●	●
9	05.812 SCREW; ADJ,NUT 08.913 M4X8 CK-HEAD	9-93090-408-0	06	1	0306-0609			●	●
9	05.812 SCREW; ADJ,NUT HIGH RIDE SUSPENSION(7YC) M4X8 CK-HEAD	8-98008-301-0	06	1	0610-	●	●
9	05.812 SCREW; ADJ,NUT M4X8 CK-HEAD	8-98008-301-0	06	1	0610-			●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE HIGH RIDE SUSPENSION(7YC) 06.311 NSK	8-94227-041-0	02	1	0306-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE 06.311 NSK	8-94227-041-0	02	1	0306-			●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC) NSK	8-94242-913-0	02	1	0306-	●	●
14	05.813 RING; SPR,FRT WHEEL 08.934 ID=25.9	9-09180-028-0	02	1	0306-			●	●
15	05.812 PIN; WHEEL,FRT AXLE M12X37.5	8-97213-871-0	12	1	0306-0609	●	●	●	●
15	05.812 PIN; WHEEL,FRT AXLE M12X37.5	8-97944-564-0	12	1	0610-	●	●	●	●
17	06.307 HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-97238-419-0	02	1	0306-0609	●	●
17	06.307 HUB; FRT AXLE	8-97238-419-0	02	1	0306-0609			●	●
17	06.307 HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-98054-665-0	02	1	0610-0610	●	●
17	06.307 HUB; FRT AXLE	8-98054-665-0	02	1	0610-0610			●	●
17	06.307 HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-97238-419-0	02	1	0610-0701	●	●
17	06.307 HUB; FRT AXLE	8-97238-419-0	02	1	0610-0701			●	●
17	06.307 HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-98054-665-0	02	1	0702-	●	●
17	06.307 HUB; FRT AXLE	8-98054-665-0	02	1	0702-			●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-417-1	02	1	0306-0609	●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98054-664-0	02	1	0610-0610	●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-417-1	02	1	0610-0701	●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98054-664-0	02	1	0702-1309	●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-417-1	02	1	1310-	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE HIGH RIDE SUSPENSION(7YC) 06.314 NSK	8-94258-819-0	02	1	0306-	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE 06.314 NSK	8-94258-819-0	02	1	0306-			●	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC) NSK	8-94242-683-0	02	1	0306-	●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-97360-678-0	02	1	0306-0609	●	●
25	05.809 ROTOR; DISC BRK,FRT	8-97360-678-0	02	1	0306-0609			●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0610-0806	●	●
25	05.809 ROTOR; DISC BRK,FRT	8-98006-259-0	02	1	0610-0806			●	●
25	05.809 ROTOR; DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0807-0809	●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0807-0809	●	●
25	05.809 ROTOR; DISC BRK,FRT	8-98006-259-0	02	1	0807-0809			●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0810-	●	●
25	05.809 ROTOR; DISC BRK,FRT REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0810-	●	●
25	05.809 ROTOR; DISC BRK,FRT	8-98006-259-0	02	1	0810-			●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97308-868-0	02	1	0306-0609	●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0610-0806	●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0807-0809	●	●
25	05.809 ROTOR; DISC BRK,FRT FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0807-0809	●	●
25	05.809 ROTOR; DISC BRK,FRT REAR BODY FLAT BED(E39)	8-98006-258-0	02	1	0810-	●
26	05.812 BOLT; BRK,DISC TO HUB	8-97318-614-0	12	1	0306-0405	●	●	●	●
26	05.812 BOLT; BRK,DISC TO HUB M12X31.5 FLANGE	8-97943-952-0	12	1	0406-0609	●	●	●	●
26	05.812 BOLT; BRK,DISC TO HUB M12X31.5 FLANGE	8-98006-065-0	12	1	0610-	●	●	●	●
28	06.326 SEAL; OIL,FRT HUB HIGH RIDE SUSPENSION(7YC) 06.308	8-94407-711-0	02	1	0306-0604	●	●
28	06.326 SEAL; OIL,FRT HUB 06.308	8-94407-711-0	02	1	0306-0604			●	●
28	06.326 SEAL; OIL,FRT HUB HIGH RIDE SUSPENSION(7YC)	8-98036-594-0	02	1	0605-	●	●
28	06.326 SEAL; OIL,FRT HUB	8-98036-594-0	02	1	0605-			●	●
28	06.326 SEAL; OIL,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-94433-718-0	02	1	0306-0604	●	●
28	06.326 SEAL; OIL,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-98036-593-0	02	1	0605-	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-98008-150-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-150-0	01	1	0810-	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-98008-151-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-151-0	01	1	0810-	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	0810-	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	0810-	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-611-0	01	1	0306-	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-611-0	01	1	0306-			●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-612-0	01	1	0306-	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-612-0	01	1	0306-			●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0306-0806	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-97238-285-0	01	1	0810-	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0306-0806	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-97238-286-0	01	1	0810-	●
31	04.665 COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-613-0	01	1	0306-	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-613-0	01	1	0306-			●	●
31	04.665 COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-614-0	01	1	0306-	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-614-0	01	1	0306-			●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0306-0806	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97238-287-0	01	1	0810-	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0306-0806	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97238-288-0	01	1	0810-	●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER	8-97943-023-0	06	1	0306-0609	●	●	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER	8-98006-352-0	06	1	0610-	●	●	●	●
40	06.308 FLANGE; FRT WHEEL HUB EXC. MANUAL LOCKING HUB(ED2)	8-94173-313-0	02	1	0306-1207			●	●
40	06.308 FLANGE; FRT WHEEL HUB EXC. MANUAL LOCKING HUB(ED2)	8-98197-869-0	02	1	1208-			●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97238-280-0	02	1	0306-	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97238-280-0	02	1	0306-			●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-278-0	02	1	0306-	●	●
91	06.056 SPACER; HUB BRG 06.323 T=0.20	8-94178-929-0	AR	1	0306-			●	●
91	06.056 SPACER; HUB BRG 06.323 T=0.30	8-94178-930-0	AR	1	0306-			●	●
91	06.056 SPACER; HUB BRG 06.323 T=0.50	8-94178-931-0	AR	1	0306-			●	●
91	06.056 SPACER; HUB BRG 06.323 T=1.00	8-94178-932-0	AR	1	0306-			●	●

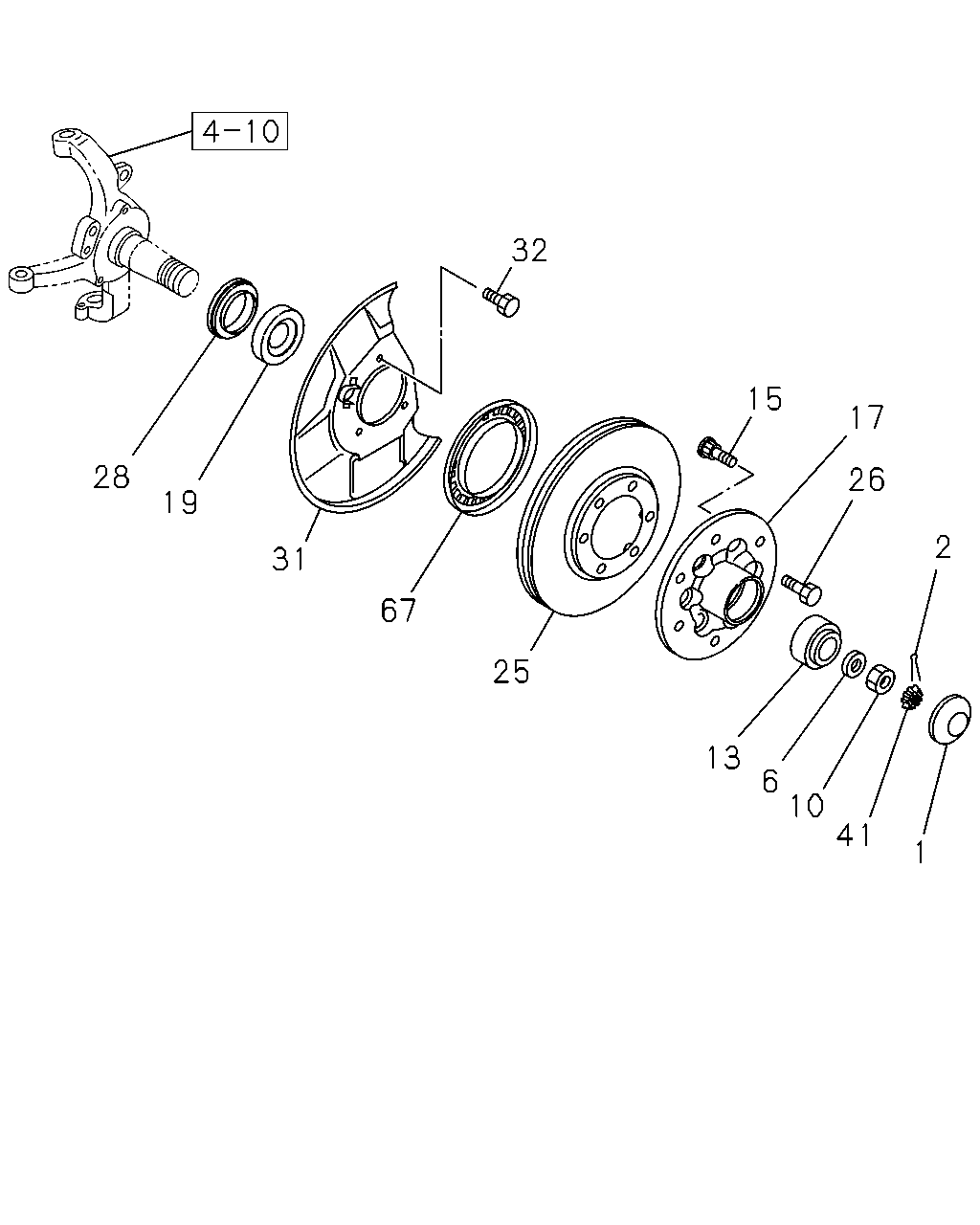

32 15 17 28 26 19 2 31 67 25 13 6 10 41 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.330 CAP; HUB,FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-94173-314-2	02	1	0306-0609	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. MANUAL LOCKING HUB(ED2)	8-94173-314-2	02	1	0306-0609			●	●
1	06.330 CAP; HUB,FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-97944-565-0	02	1	0610-	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. MANUAL LOCKING HUB(ED2)	8-97944-565-0	02	1	0610-			●	●
1	06.330 CAP; HUB,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	9-42313-080-1	02	1	0306-0609	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-055-0	02	1	0610-	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT EXC. HIGH RIDE SUSPENSION(7YC) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	0306-0607	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT EXC. HIGH RIDE SUSPENSION(7YC) OD=3.7 L=30	0-81124-030-0	02	1	0608-	●	●
6	05.812 WASHER; LK,FRT HUB HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65	8-94442-398-0	02	1	0306-	●	●
6	05.812 WASHER; LK,FRT HUB T=1.8 OD=65	8-94442-398-0	02	1	0306-			●	●
6	05.812 WASHER; LK,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35	8-94256-973-0	02	1	0306-0406	●	●
6	05.812 WASHER; LK,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35	8-97382-661-0	02	1	0407-	●	●
10	05.812 NUT; FRT HUB BRG EXC. HIGH RIDE SUSPENSION(7YC) M18	8-94243-927-1	02	1	0306-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE HIGH RIDE SUSPENSION(7YC) 06.311 NSK	8-94227-041-0	02	1	0306-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE 06.311 NSK	8-94227-041-0	02	1	0306-			●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC) NSK	8-94242-913-0	02	1	0306-	●	●
15	05.812 PIN; WHEEL,FRT AXLE M12X37.5	8-97213-871-0	12	1	0306-0609	●	●	●	●
15	05.812 PIN; WHEEL,FRT AXLE M12X37.5	8-97944-564-0	12	1	0610-	●	●	●	●
17	06.307 HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-97238-419-0	02	1	0306-0609	●	●
17	06.307 HUB; FRT AXLE	8-97238-419-0	02	1	0306-0609			●	●
17	06.307 HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-98054-665-0	02	1	0610-0610	●	●
17	06.307 HUB; FRT AXLE	8-98054-665-0	02	1	0610-0610			●	●
17	06.307 HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-97238-419-0	02	1	0610-0701	●	●
17	06.307 HUB; FRT AXLE	8-97238-419-0	02	1	0610-0701			●	●
17	06.307 HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-98054-665-0	02	1	0702-	●	●
17	06.307 HUB; FRT AXLE	8-98054-665-0	02	1	0702-			●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-417-1	02	1	0306-0609	●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98054-664-0	02	1	0610-0610	●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-417-1	02	1	0610-0701	●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98054-664-0	02	1	0702-1309	●	●
17	06.307 HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-417-1	02	1	1310-	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE HIGH RIDE SUSPENSION(7YC) 06.314 NSK	8-94258-819-0	02	1	0306-	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE 06.314 NSK	8-94258-819-0	02	1	0306-			●	●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC) NSK	8-94242-683-0	02	1	0306-	●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-97360-678-0	02	1	0306-0609	●	●
25	05.809 ROTOR; DISC BRK,FRT	8-97360-678-0	02	1	0306-0609			●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0610-0806	●	●
25	05.809 ROTOR; DISC BRK,FRT	8-98006-259-0	02	1	0610-0806			●	●
25	05.809 ROTOR; DISC BRK,FRT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0807-0809	●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0807-0809	●	●
25	05.809 ROTOR; DISC BRK,FRT	8-98006-259-0	02	1	0807-0809			●	●
25	05.809 ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0810-	●	●
25	05.809 ROTOR; DISC BRK,FRT REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-259-0	02	1	0810-	●	●
25	05.809 ROTOR; DISC BRK,FRT	8-98006-259-0	02	1	0810-			●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97308-868-0	02	1	0306-0609	●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0610-0806	●	●
25	05.809 ROTOR; DISC BRK,FRT EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0807-0809	●	●
25	05.809 ROTOR; DISC BRK,FRT FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-258-0	02	1	0807-0809	●	●
25	05.809 ROTOR; DISC BRK,FRT REAR BODY FLAT BED(E39)	8-98006-258-0	02	1	0810-	●
26	05.812 BOLT; BRK,DISC TO HUB	8-97318-614-0	12	1	0306-0405	●	●	●	●
26	05.812 BOLT; BRK,DISC TO HUB M12X31.5 FLANGE	8-97943-952-0	12	1	0406-0609	●	●	●	●
26	05.812 BOLT; BRK,DISC TO HUB M12X31.5 FLANGE	8-98006-065-0	12	1	0610-	●	●	●	●
28	06.326 SEAL; OIL,FRT HUB HIGH RIDE SUSPENSION(7YC) 06.308	8-94407-711-0	02	1	0306-0604	●	●
28	06.326 SEAL; OIL,FRT HUB 06.308	8-94407-711-0	02	1	0306-0604			●	●
28	06.326 SEAL; OIL,FRT HUB HIGH RIDE SUSPENSION(7YC)	8-98036-594-0	02	1	0605-	●	●
28	06.326 SEAL; OIL,FRT HUB	8-98036-594-0	02	1	0605-			●	●
28	06.326 SEAL; OIL,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-94433-718-0	02	1	0306-0604	●	●
28	06.326 SEAL; OIL,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-98036-593-0	02	1	0605-	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-98008-150-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-150-0	01	1	0810-	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-98008-151-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-151-0	01	1	0810-	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	0810-	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	0810-	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-611-0	01	1	0306-	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-611-0	01	1	0306-			●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97327-612-0	01	1	0306-	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-612-0	01	1	0306-			●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0306-0806	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-285-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-97238-285-0	01	1	0810-	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0306-0806	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-286-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-97238-286-0	01	1	0810-	●
31	04.665 COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-613-0	01	1	0306-	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-613-0	01	1	0306-			●	●
31	04.665 COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-614-0	01	1	0306-	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-614-0	01	1	0306-			●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0306-0806	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-97238-287-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97238-287-0	01	1	0810-	●
31	04.665 COVER; DUST,FRT BRAKE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0306-0806	●	●
31	04.665 COVER; DUST,FRT BRAKE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC)	8-97238-288-0	01	1	0807-0809	●	●
31	04.665 COVER; DUST,FRT BRAKE REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97238-288-0	01	1	0810-	●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER	8-97943-023-0	06	1	0306-0609	●	●	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER	8-98006-352-0	06	1	0610-	●	●	●	●
41	05.812 RETAINER; NUT,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-94243-928-1	02	1	0306-	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97238-280-0	02	1	0306-	●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97238-280-0	02	1	0306-			●	●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-278-0	02	1	0306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
