◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#77556) — 77 parça
çizim 160505
162 174 66 22 191 174 22 66 162
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1) 03.483 (C) ID=6 & 10 		8-94154-844-0 01 1 0306- ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 03.162 (B) 		8-97089-536-0 01 1 0306-0609 ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162 (B) 		8-97089-536-0 01 1 0610- ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0306-0401 ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0402- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB) (B) ID=16 		8-98036-539-0 01 1 0610- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5 		8-98035-872-0 02 1 0610- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 06 1 0610- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0306-0508 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=15.5 		8-94367-944-0 02 1 0306-0508 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0306-0508 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0509-0604 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0509-0604 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0509-0604 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB) (A) ID=15.5 		8-98035-872-0 01 1 0610- ● ● ● ●
162 04.931 HOSE; VAC
4JJ1-TCS ENG(LFB) (A) 		8-98037-609-0 01 1 0610- ● ● ● ●
162 04.931 HOSE; VAC
C24SE ENG(LG1) (C) 		8-97315-632-1 01 1 0306- ● ● ● ●
162 04.931 HOSE; VAC
C24SE ENG(LG1) (B) 		8-97350-327-1 01 1 0306-0609 ● ● ● ●
162 04.931 HOSE; VAC
C24SE ENG(LG1) (B) 		8-98059-962-0 01 1 0610- ● ● ● ●
174 04.930 CLIP; VAC HOSE
C24SE ENG(LG1) 04.681 ID=15.5 		8-94367-944-0 02 1 0306-0609 ● ● ● ●
174 04.930 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1) ID=15.5 		8-98008-097-0 02 1 0610- ● ● ● ●
191 04.685 PIPE; VAC
C24SE ENG(LG1) 		8-97315-613-1 01 1 0306- ● ● ● ●

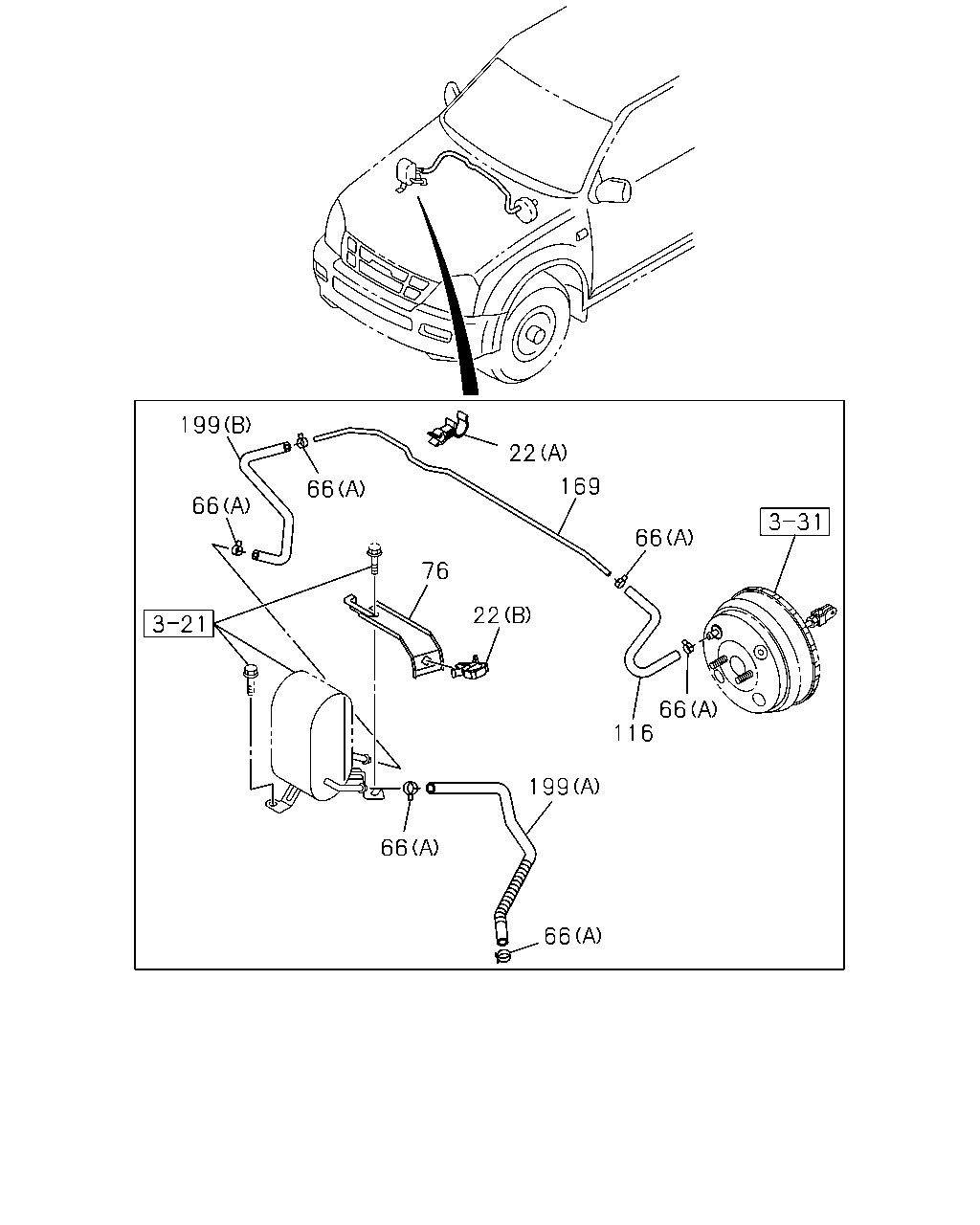

çizim 160534
199 22 169 66 66 66 76 22 66 116 199 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1) 03.483 (C) ID=6 & 10 		8-94154-844-0 01 1 0306- ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 03.162 (B) 		8-97089-536-0 01 1 0306-0609 ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162 (B) 		8-97089-536-0 01 1 0610- ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0306-0401 ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0402- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB) (B) ID=16 		8-98036-539-0 01 1 0610- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5 		8-98035-872-0 02 1 0610- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 06 1 0610- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0306-0508 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=15.5 		8-94367-944-0 02 1 0306-0508 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0306-0508 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0509-0604 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0509-0604 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0509-0604 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB) (A) ID=15.5 		8-98035-872-0 01 1 0610- ● ● ● ●
76 04.930 BRACKET; VAC HOSE CLIP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97301-841-2 01 1 0306-0609 ● ● ● ●
76 04.930 BRACKET; VAC HOSE CLIP
4JA1-T ENG(LP0) 		8-98050-712-0 01 1 0610- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) 		8-97944-842-1 01 1 0610- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97315-630-2 01 1 0306-0609 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) 		8-97944-835-0 01 1 0610- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97315-612-2 01 1 0306-0609 ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JA1-T ENG(LP0) 		8-97944-846-0 01 1 0610- ● ● ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0) (A) 		8-97385-746-0 01 1 0410- ● ● ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.931 (B) 		8-97315-631-1 01 1 0306-0609 ● ● ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0) 04.931 (B) 		8-97315-631-1 01 1 0610- ● ● ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) 		8-97365-118-0 01 1 0306-0409 ● ● ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JH1-TC ENG(RDM) (A) 		8-97365-118-0 01 1 0410-0609 ● ● ● ●
çizim 160543
66 162 174 116 174 66
BalonParca AdiParca NoAdetTipApplied Date A B C D
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB) (B) ID=16 		8-98036-539-0 01 1 0610- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5 		8-98035-872-0 02 1 0610- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 06 1 0610- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0306-0508 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=15.5 		8-94367-944-0 02 1 0306-0508 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0306-0508 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0509-0604 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0509-0604 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.681 (A) ID=15.5 		8-94367-944-0 02 1 0509-0604 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) ID=15.5 		8-98035-872-0 02 1 0605-0609 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB) (A) ID=15.5 		8-98035-872-0 01 1 0610- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) 		8-97944-842-1 01 1 0610- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97315-630-2 01 1 0306-0609 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) 		8-97944-835-0 01 1 0610- ● ● ● ●
162 04.931 HOSE; VAC
4JJ1-TCS ENG(LFB) (A) 		8-98037-609-0 01 1 0610- ● ● ● ●
162 04.931 HOSE; VAC
C24SE ENG(LG1) (C) 		8-97315-632-1 01 1 0306- ● ● ● ●
162 04.931 HOSE; VAC
C24SE ENG(LG1) (B) 		8-97350-327-1 01 1 0306-0609 ● ● ● ●
162 04.931 HOSE; VAC
C24SE ENG(LG1) (B) 		8-98059-962-0 01 1 0610- ● ● ● ●
174 04.930 CLIP; VAC HOSE
C24SE ENG(LG1) 04.681 ID=15.5 		8-94367-944-0 02 1 0306-0609 ● ● ● ●
174 04.930 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1) ID=15.5 		8-98008-097-0 02 1 0610- ● ● ● ●
