◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#77554) — 70 parça

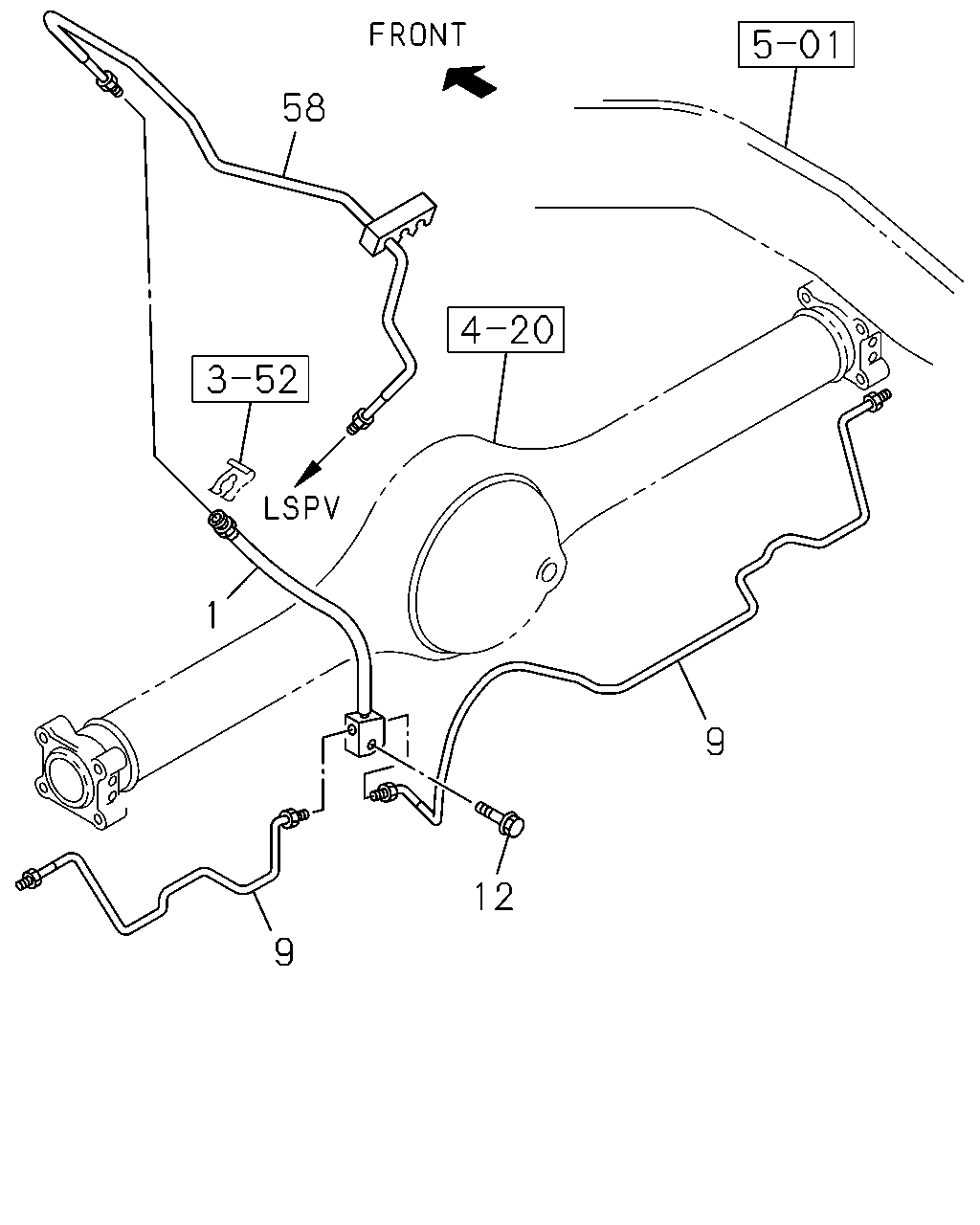

çizim 160436
58 1 9 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,RR BRK 8-97235-558-1 01 1 0306-0609 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98006-785-0 01 1 0610-0808 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98122-044-0 01 1 0809- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97217-850-3 01 1 0306-0609 ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97217-850-3 01 1 0306-0609 ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-704-0 01 1 0610- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-704-0 01 1 0610- ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97236-447-4 01 1 0306-0609 ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97236-447-4 01 1 0306-0609 ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-706-0 01 1 0610- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-706-0 01 1 0610- ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97215-340-2 01 1 0306-0609 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 0610- ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-853-4 01 1 0306-0609 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 0610- ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0306- ● ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-97261-908-0 01 1 0306-0508 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> 		8-97261-908-0 01 1 0306-0508 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-97261-908-0 01 1 0509-0609 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> 		8-97261-908-0 01 1 0509-0609 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-97944-749-0 01 1 0610- ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> 		8-97944-749-0 01 1 0610- ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97215-370-0 01 1 0306-0609 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-748-0 01 1 0610- ● ●

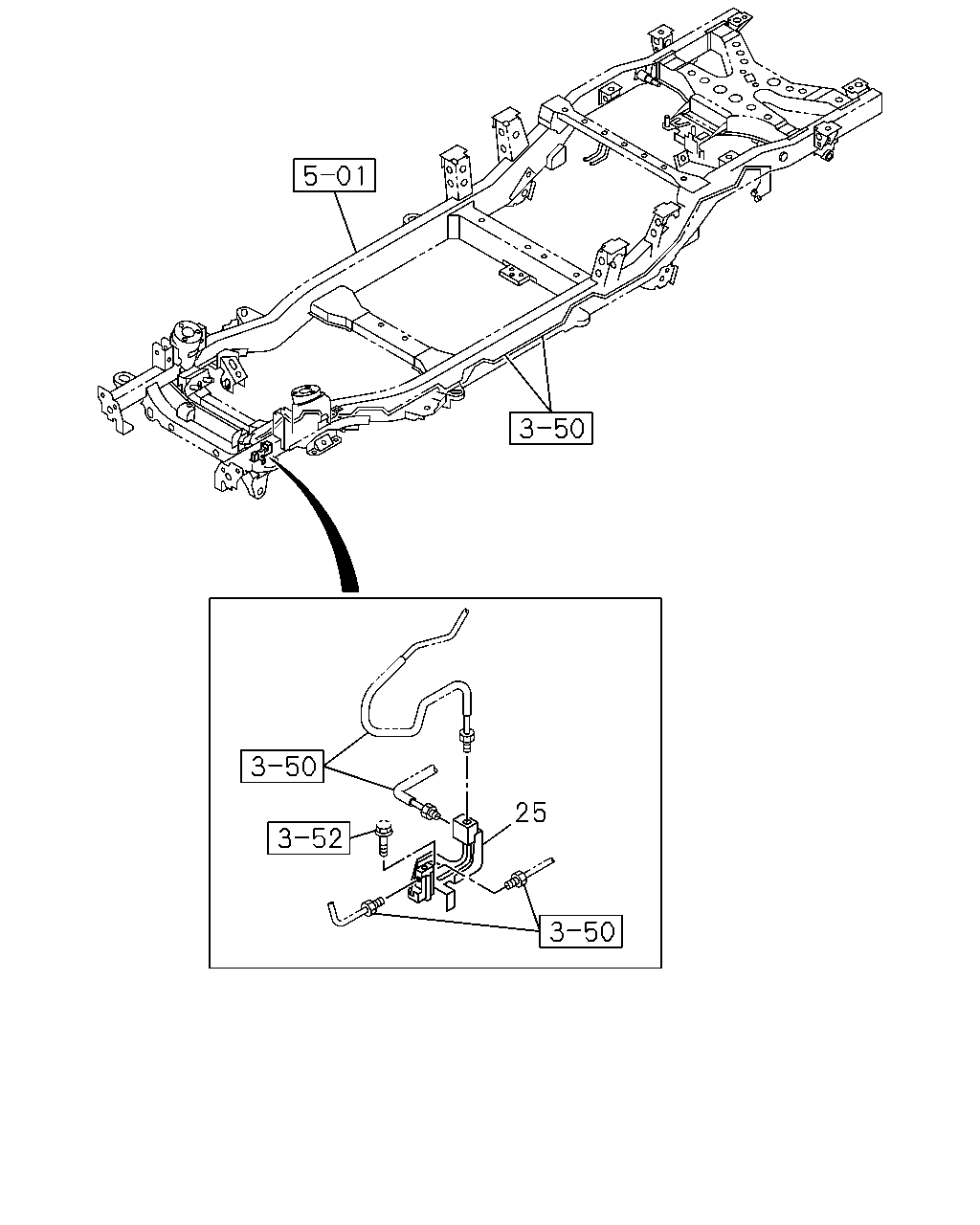

çizim 160445
25
BalonParca AdiParca NoAdetTipApplied Date A B C D
25 04.686 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9> 		8-97258-536-1 01 1 0306-0609 ● ● ● ●
25 04.686 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0610- ● ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-97258-537-0 01 1 0306-0609 ● ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-98046-621-0 01 1 0610- ● ● ● ●

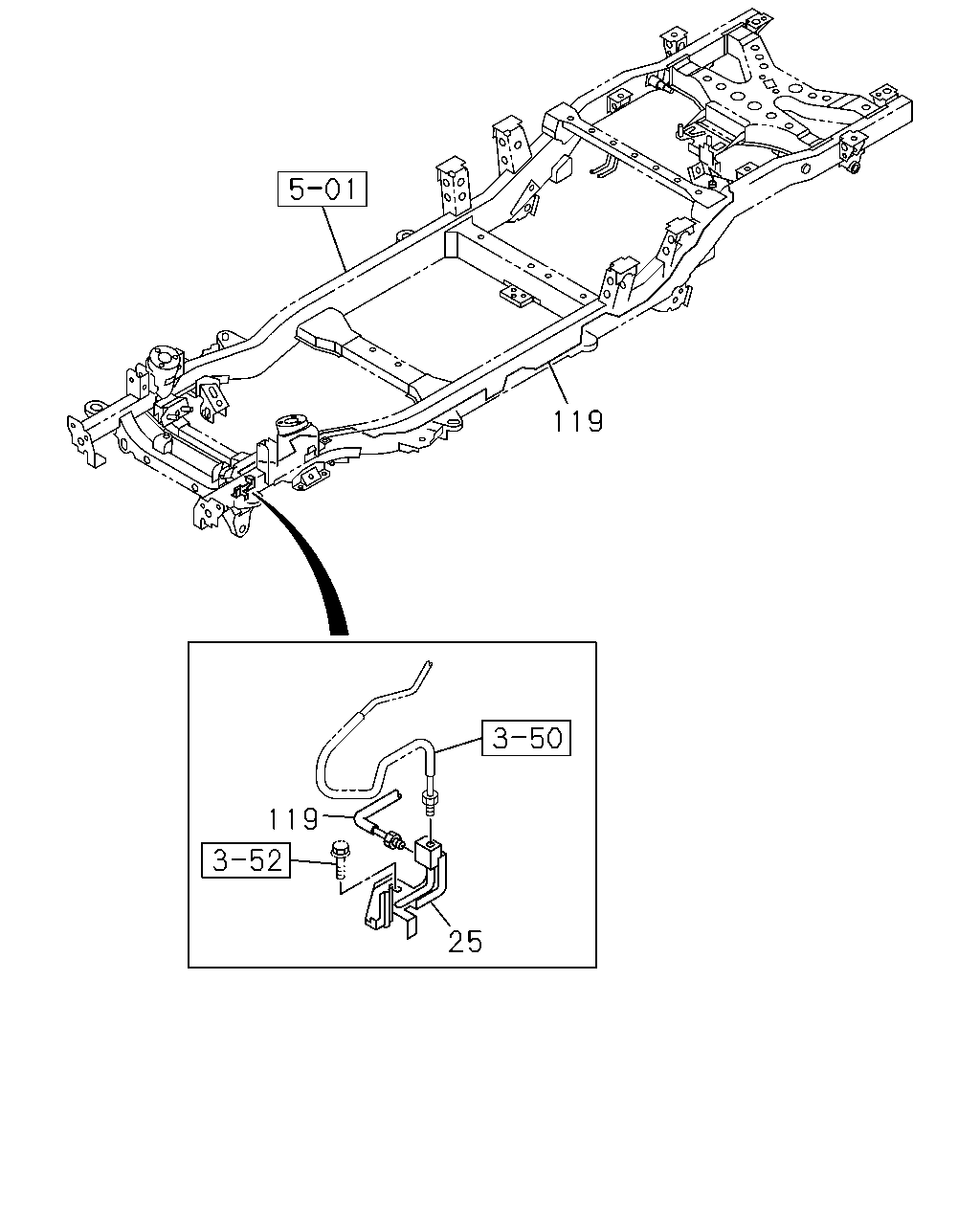

çizim 160454
119 119 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
25 04.686 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9> 		8-97258-536-1 01 1 0306-0609 ● ● ● ●
25 04.686 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0610- ● ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-97258-537-0 01 1 0306-0609 ● ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-98046-621-0 01 1 0610- ● ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-97944-637-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0306-0508 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0306-0508 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0509-0609 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0509-0609 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-97250-049-3 01 1 0306-0609 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 0610- ● ●

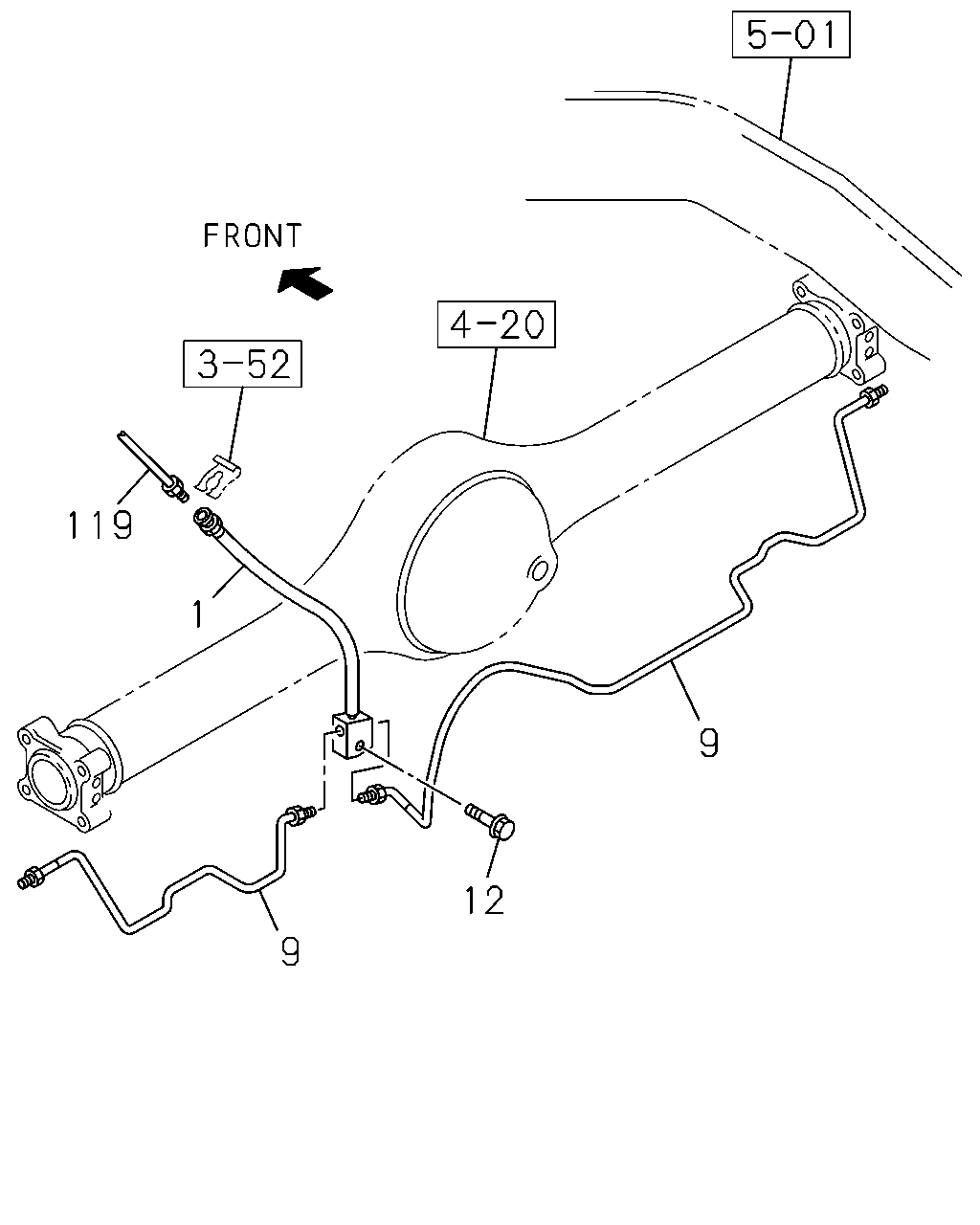

çizim 160483
119 1 9 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,RR BRK 8-97235-558-1 01 1 0306-0609 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98006-785-0 01 1 0610-0808 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98122-044-0 01 1 0809- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97217-850-3 01 1 0306-0609 ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97217-850-3 01 1 0306-0609 ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-704-0 01 1 0610- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-704-0 01 1 0610- ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97236-447-4 01 1 0306-0609 ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97236-447-4 01 1 0306-0609 ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-706-0 01 1 0610- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-706-0 01 1 0610- ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97215-340-2 01 1 0306-0609 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 0610- ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-853-4 01 1 0306-0609 ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 0610- ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0306- ● ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-97944-637-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0306-0508 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0306-0508 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0509-0609 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97250-051-5 01 1 0509-0609 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0610- ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-97250-049-3 01 1 0306-0609 ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
