3-52 — BRAKE PIPING; OIL,FRONT (#77553) — 47 parça

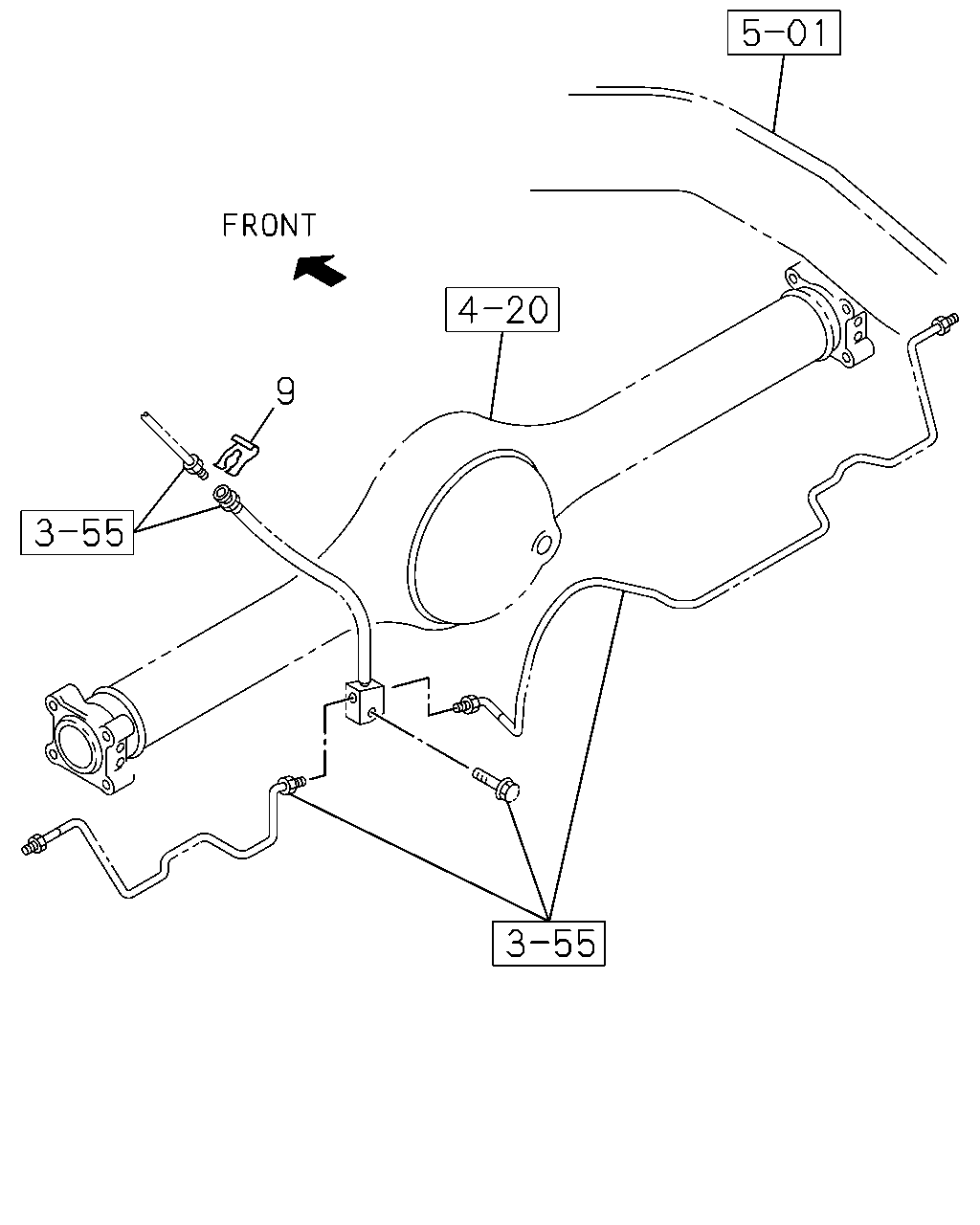

çizim 160464
9
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 03 1 0306-0609 ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 03 1 0610- ● ● ● ●

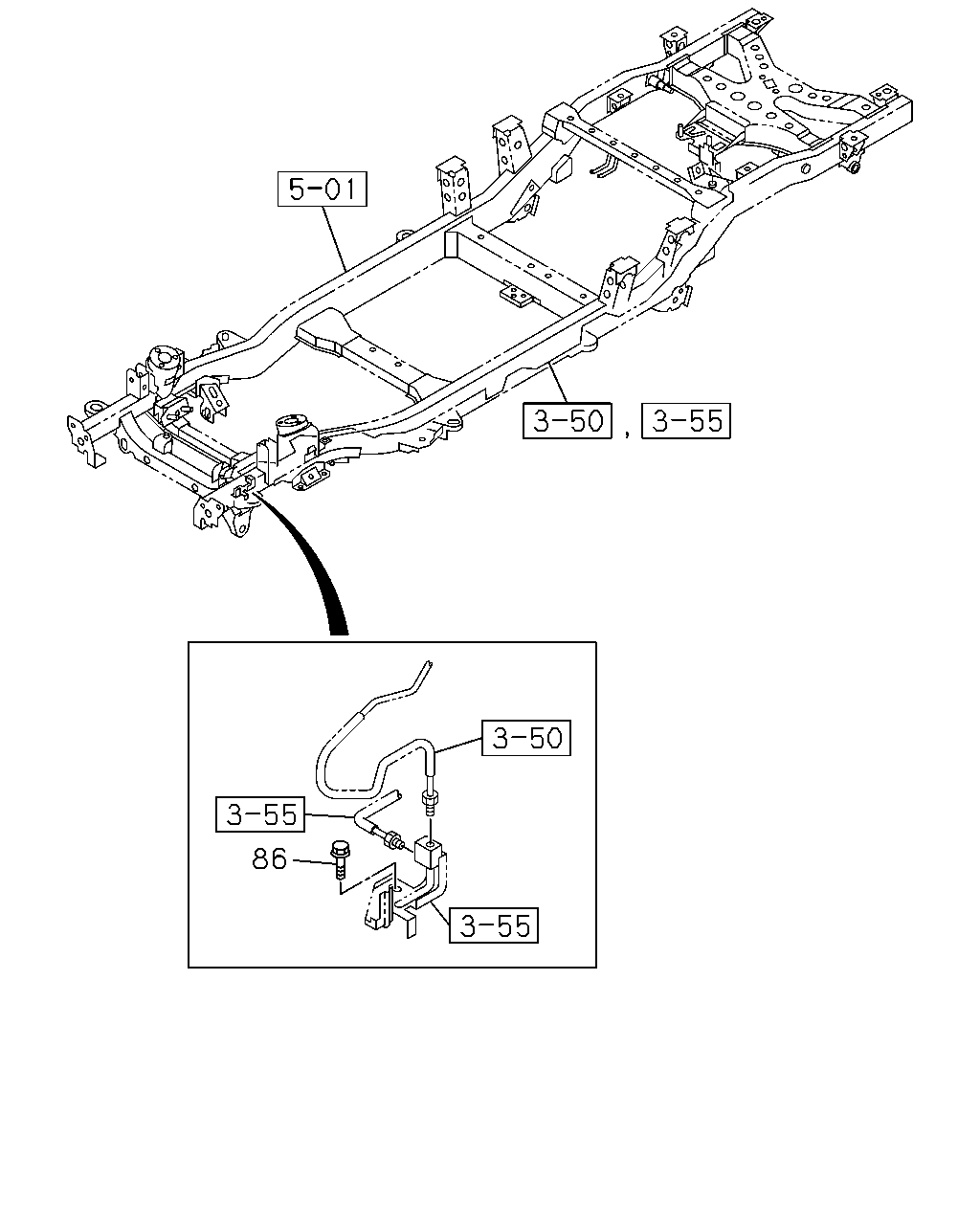

çizim 160470
86
BalonParca AdiParca NoAdetTipApplied Date A B C D
86 04.686 BOLT; BRK PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0306-0508 ● ● ● ●
86 04.686 BOLT; BRK PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0509- ● ● ● ●
çizim 160542
9 9 6 6 1 1 5 5 8 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-256-0 01 1 0807-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-040-0 01 1 0809-0809 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-040-0 01 1 0810-1101 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/75R15C(BZC),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 245/70R16 ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-040-0 01 1 1102- ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-257-0 01 1 0807-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-041-0 01 1 0809-0809 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-041-0 01 1 0810-1101 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/75R15C(BZC),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 245/70R16 ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-041-0 01 1 1102- ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-97330-454-0 01 1 0306-0609 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97330-454-0 01 1 0306-0609 ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98006-706-0 01 1 0610-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98006-706-0 01 1 0610-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98122-042-0 01 1 0809- ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-042-0 01 1 0809- ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97289-209-2 01 1 0306-0609 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98006-704-0 01 1 0610-0806 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC) 		8-98006-704-0 01 1 0807-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 		8-98006-704-0 01 1 0807-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC) 		8-98122-038-0 01 1 0809-0809 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 		8-98122-038-0 01 1 0809-0809 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-038-0 01 1 0810- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97289-210-2 01 1 0306-0307 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97363-804-0 01 1 0308-0609 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98006-705-0 01 1 0610-0806 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC) 		8-98006-705-0 01 1 0807-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 		8-98006-705-0 01 1 0807-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC) 		8-98122-039-0 01 1 0809-0809 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 		8-98122-039-0 01 1 0809-0809 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-039-0 01 1 0810- ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-97330-455-0 01 1 0306-0307 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97330-455-0 01 1 0306-0307 ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-97363-805-0 01 1 0308-0609 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97363-805-0 01 1 0308-0609 ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98006-707-0 01 1 0610-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98006-707-0 01 1 0610-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98122-043-0 01 1 0809- ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-043-0 01 1 0809- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 0306-0609 ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97359-818-0 02 1 0610- ● ● ● ●
6 04.686 NUT; FLEX HOSE,FRT BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 0306- ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0306- ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 03 1 0306-0609 ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 03 1 0610- ● ● ● ●
