Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#77552) — 430 parça

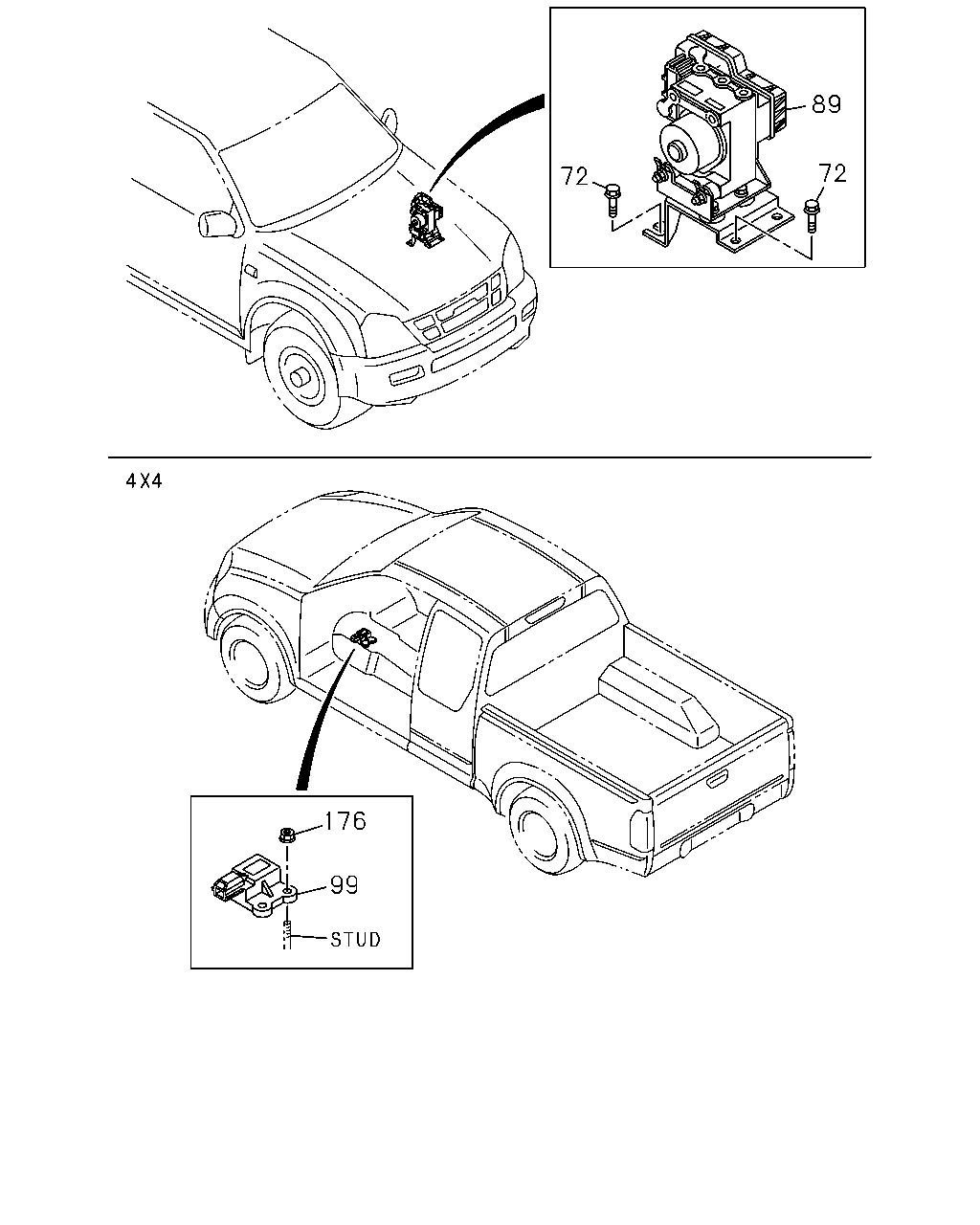

89 72 72 176 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0306-	●	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98089-804-0	01	1	0807-0809	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT),FRT&RR 195R15C(QZO) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98089-804-0	01	1	0810-1007	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC)	8-98089-804-0	01	1	1008-1101	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 245/70R16 ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC)	8-98089-804-0	01	1	1102-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-969-0	01	1	0306-0502			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97379-144-0	01	1	0503-0508			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98004-195-0	01	1	0509-0609			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-784-0	01	1	0610-1007			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-784-0	01	1	1008-			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97329-787-0	01	1	0306-0505	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98004-194-0	01	1	0506-0609	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-783-0	01	1	0610-0806	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0807-0809	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0807-0809	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0807-0809	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0810-1007	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0810-1007	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	1008-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	1008-	●
99	04.710 SENSOR; DECELERATION 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97262-548-0	01	1	0306-0609			●	●
99	04.710 SENSOR; DECELERATION 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98013-796-0	01	1	0610-			●	●
176	04.730 NUT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.540 M6 FLANGE	0-91180-206-0	02	1	0306-			●	●

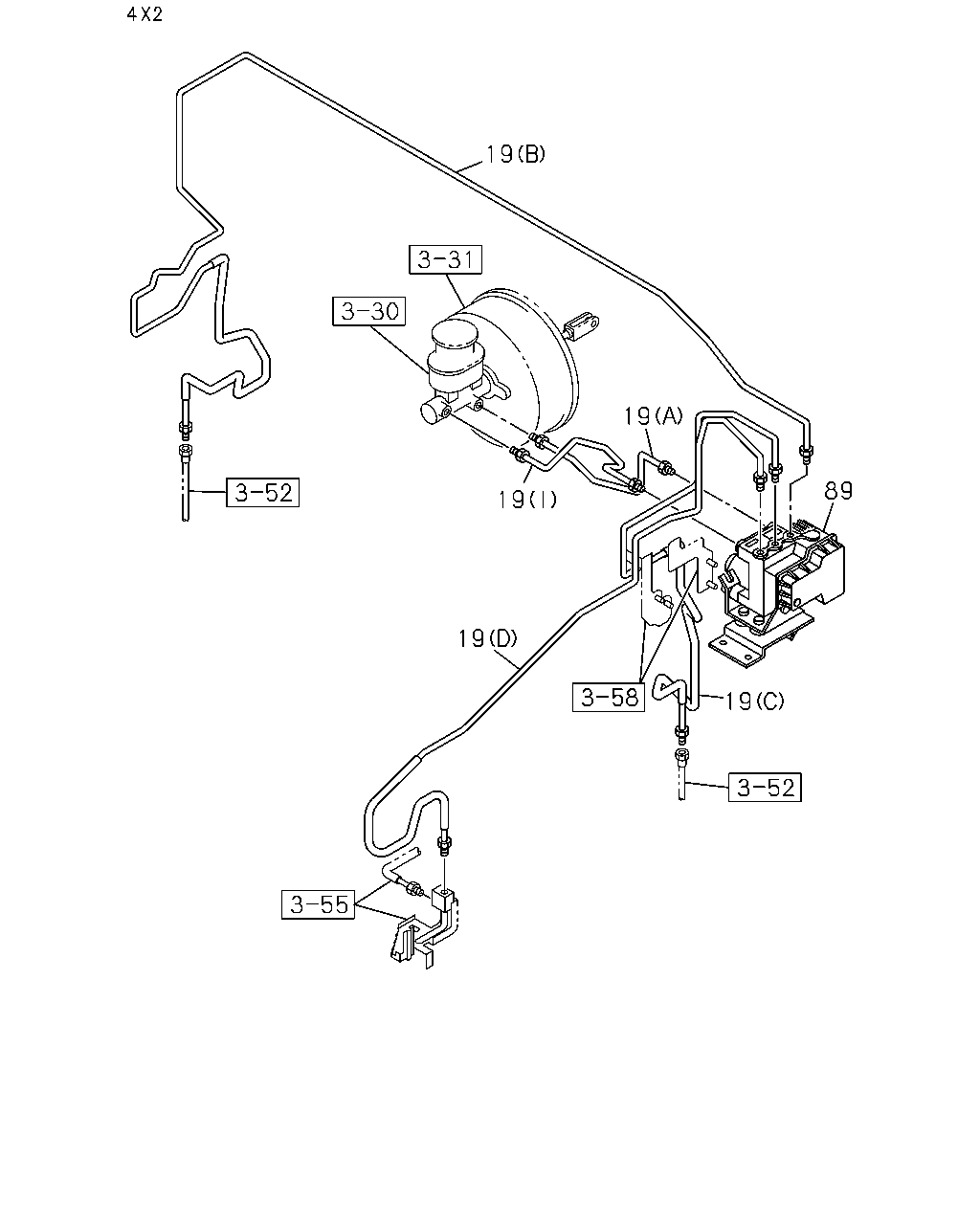

19 19 89 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-698-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-698-1	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-98059-602-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97944-720-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97315-587-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97944-771-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-97315-588-3	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-97944-785-2	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97332-910-0	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97944-757-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97321-284-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97321-284-3	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-98043-606-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> (J)	8-98043-606-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97324-509-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97324-509-0	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97944-758-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97944-758-1	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97355-531-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-765-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97355-584-4	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-767-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (F)	8-97315-585-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (F)	8-97944-776-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (G)	8-97363-995-0	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (G)	8-97944-777-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H)	8-97215-335-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (H)	8-97215-335-0	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H)	8-97944-677-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (H)	8-97944-677-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97215-327-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97944-672-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97315-591-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97315-591-3	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97944-769-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-769-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97315-593-1	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97315-593-1	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97944-631-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97944-631-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97315-600-1	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97315-600-1	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97944-680-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97944-680-0	01	1	0610-1010			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97315-584-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97944-665-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K)	8-97315-596-2	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K)	8-97944-782-0	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.686 (D)	8-97315-599-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (D)	8-97944-742-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (D)	8-98177-862-0	01	1	1011-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-97359-777-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-97944-687-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-98177-863-0	01	1	1011-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-97355-582-4	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-97944-696-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-97250-065-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (J)	8-97250-065-2	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-97944-732-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (J)	8-97944-732-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97250-063-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-98043-604-0	01	1	0610-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98089-804-0	01	1	0807-0809	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT),FRT&RR 195R15C(QZO) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98089-804-0	01	1	0810-1007	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC)	8-98089-804-0	01	1	1008-1101	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 245/70R16 ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC)	8-98089-804-0	01	1	1102-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-969-0	01	1	0306-0502			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97379-144-0	01	1	0503-0508			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98004-195-0	01	1	0509-0609			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-784-0	01	1	0610-1007			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-784-0	01	1	1008-			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97329-787-0	01	1	0306-0505	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98004-194-0	01	1	0506-0609	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-783-0	01	1	0610-0806	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0807-0809	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0807-0809	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0807-0809	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0810-1007	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0810-1007	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	1008-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	1008-	●

129 129 184 96 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
96	04.710 SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97362-460-0	01	1	0306-0609	●	●
96	04.710 SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97362-460-0	01	1	0306-0609			●	●
96	04.710 SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97387-992-1	01	1	0610-	●	●
96	04.710 SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-992-1	01	1	0610-			●	●
96	04.710 SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97362-459-0	01	1	0306-0609	●	●
96	04.710 SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97387-991-1	01	1	0610-	●	●
129	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0306-	●	●	●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0306-	●	●	●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0306-	●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0306-			●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0306-	●	●	●	●

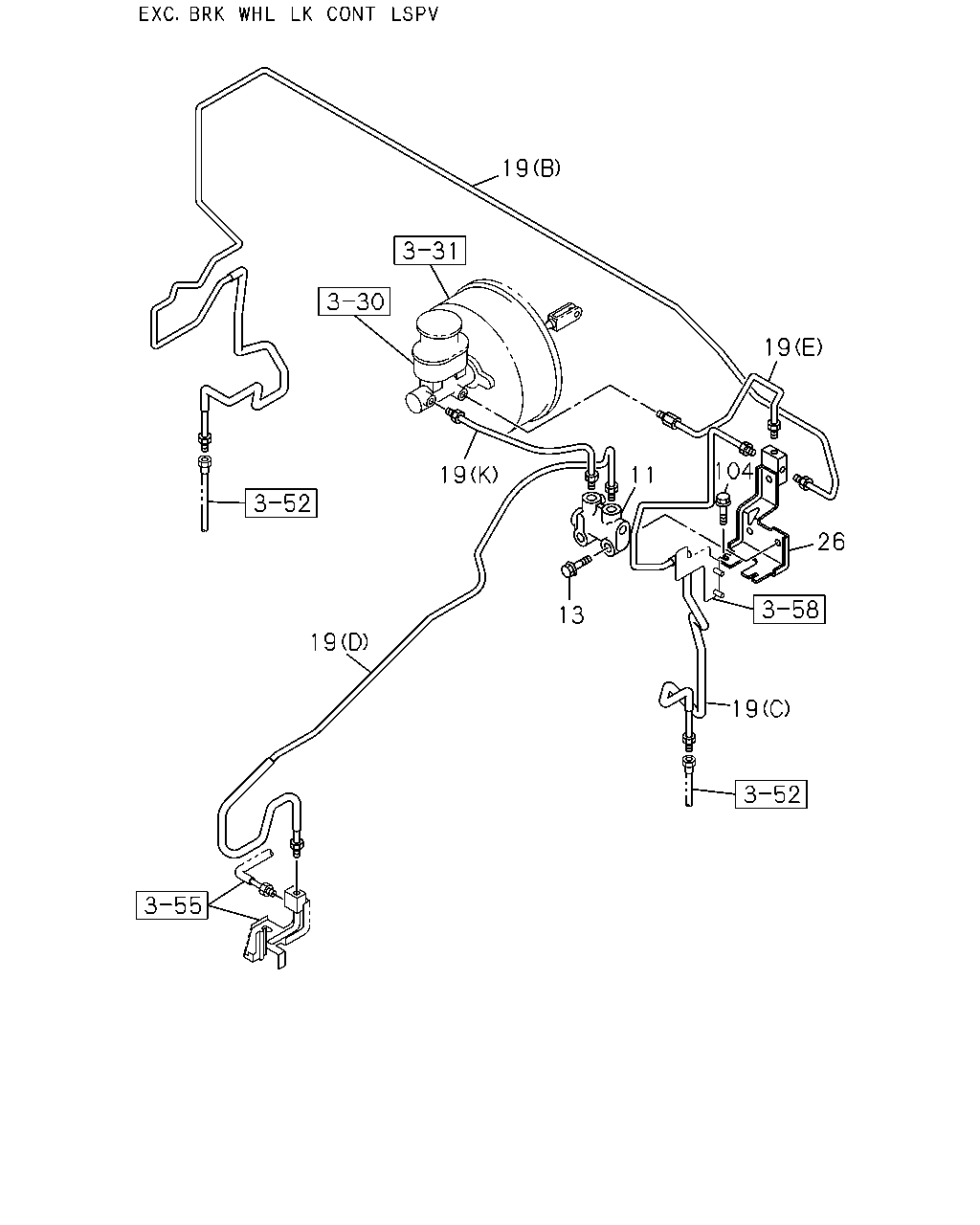

19 19 104 19 11 26 13 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	04.686 VALVE; BRK CONT HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-97333-079-0	01	1	0306-0806	●	●
11	04.686 VALVE; BRK CONT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-97333-079-0	01	1	0306-0806			●	●
11	04.686 VALVE; BRK CONT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC)	8-97333-079-0	01	1	0807-0809	●	●
11	04.686 VALVE; BRK CONT HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-97333-079-0	01	1	0807-0809	●	●
11	04.686 VALVE; BRK CONT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-97333-079-0	01	1	0807-0809			●	●
11	04.686 VALVE; BRK CONT FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT),FRT&RR 195R15C(QZO) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC)	8-97333-079-0	01	1	0810-1101	●	●
11	04.686 VALVE; BRK CONT HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-97333-079-0	01	1	0810-1101	●	●
11	04.686 VALVE; BRK CONT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-97333-079-0	01	1	0810-1101			●	●
11	04.686 VALVE; BRK CONT FRT&RR 225/75R15C(BZC),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 245/70R16 ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC)	8-97333-079-0	01	1	1102-	●	●
11	04.686 VALVE; BRK CONT HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-97333-079-0	01	1	1102-	●	●
11	04.686 VALVE; BRK CONT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-97333-079-0	01	1	1102-			●	●
11	04.686 VALVE; BRK CONT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)	8-97235-339-2	01	1	0306-0806	●	●
11	04.686 VALVE; BRK CONT EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC)	8-97235-339-2	01	1	0807-0809	●	●
11	04.686 VALVE; BRK CONT FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC)	8-97235-339-2	01	1	0807-0809	●	●
11	04.686 VALVE; BRK CONT FRT&RR 195R14C(CNU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC)	8-97235-339-2	01	1	0810-	●
13	04.686 BOLT; VLV TO BRKT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> M8X45 FLANGE	0-29260-845-0	02	1	0306-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-698-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-698-1	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-98059-602-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97944-720-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97315-587-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97944-771-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-97315-588-3	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-97944-785-2	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97332-910-0	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97944-757-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97321-284-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97321-284-3	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-98043-606-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> (J)	8-98043-606-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97324-509-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97324-509-0	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97944-758-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97944-758-1	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97355-531-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-765-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97355-584-4	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-767-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (F)	8-97315-585-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (F)	8-97944-776-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (G)	8-97363-995-0	01	1	0306-0609	●	●	●	●

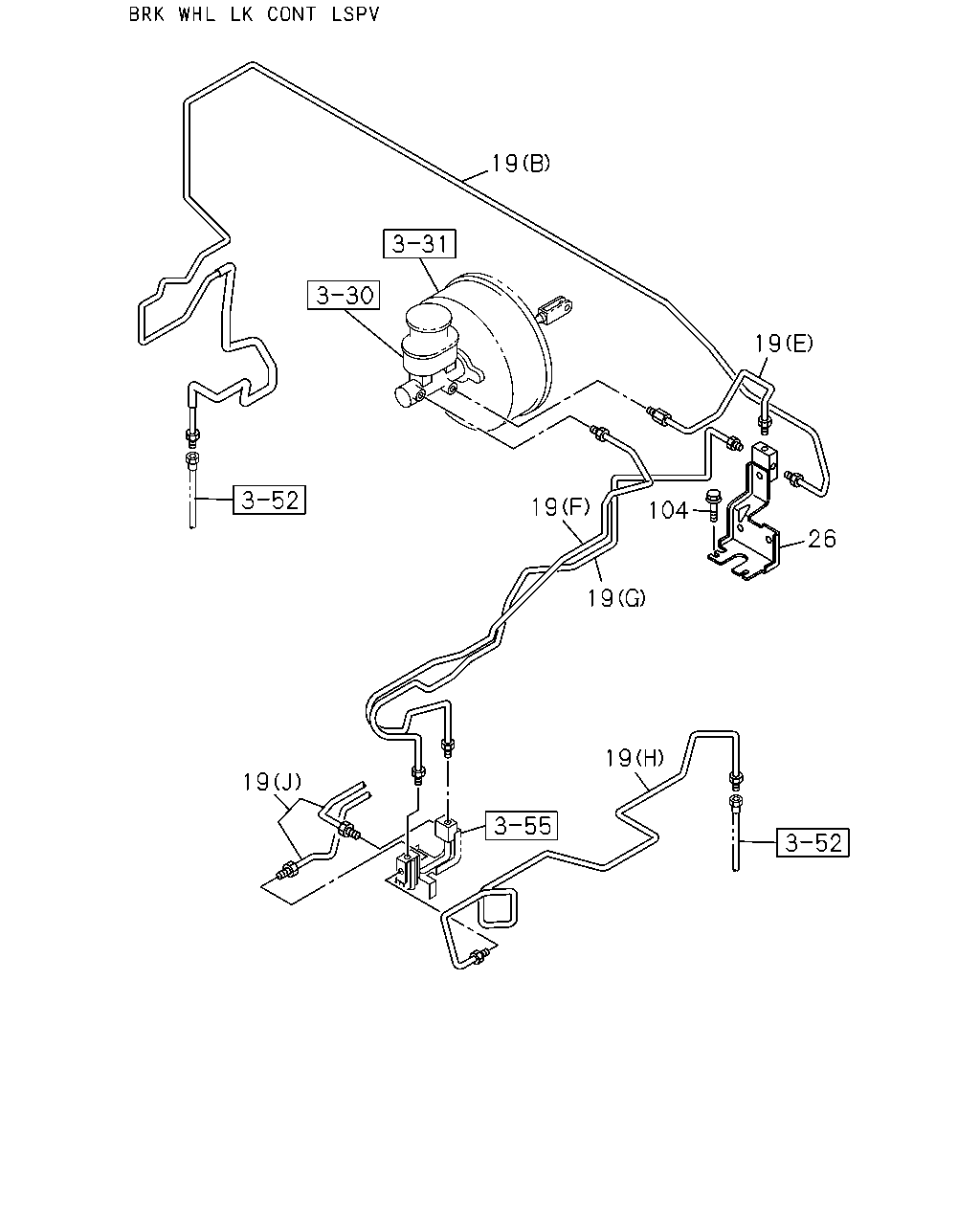

19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (G)	8-97944-777-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H)	8-97215-335-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (H)	8-97215-335-0	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H)	8-97944-677-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (H)	8-97944-677-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97215-327-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97944-672-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97315-591-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97315-591-3	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97944-769-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-769-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97315-593-1	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97315-593-1	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97944-631-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97944-631-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97315-600-1	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97315-600-1	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97944-680-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97944-680-0	01	1	0610-1010			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97315-584-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97944-665-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K)	8-97315-596-2	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K)	8-97944-782-0	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.686 (D)	8-97315-599-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (D)	8-97944-742-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (D)	8-98177-862-0	01	1	1011-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-97359-777-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-97944-687-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-98177-863-0	01	1	1011-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-97355-582-4	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-97944-696-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-97250-065-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (J)	8-97250-065-2	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-97944-732-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (J)	8-97944-732-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97250-063-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-98043-604-0	01	1	0610-	●	●
26	04.730 BRACKET; PROPORTIONING VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97324-957-0	01	1	0306-0609	●	●	●	●
26	04.730 BRACKET; PROPORTIONING VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-123-0	01	1	0610-	●	●	●	●
104	04.730 BOLT; BRKT TO BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0306-	●	●	●	●

19 19 89 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-698-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-698-1	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-98059-602-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97944-720-0	01	1	0610-	●	●

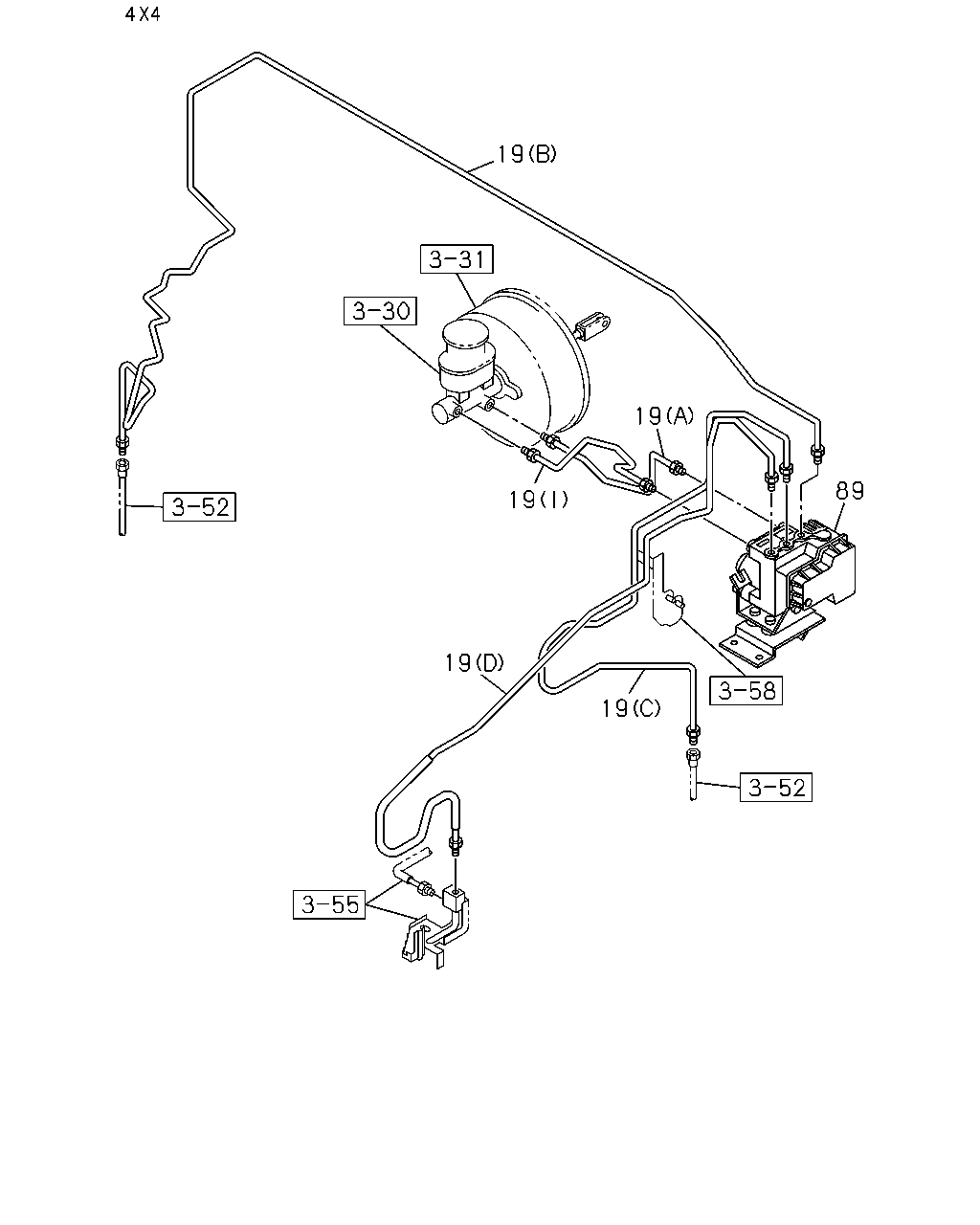

19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97315-587-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97944-771-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-97315-588-3	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-97944-785-2	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97332-910-0	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97944-757-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97321-284-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97321-284-3	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-98043-606-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> (J)	8-98043-606-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97324-509-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97324-509-0	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97944-758-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97944-758-1	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97355-531-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-765-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97355-584-4	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-767-0	01	1	0610-	●	●

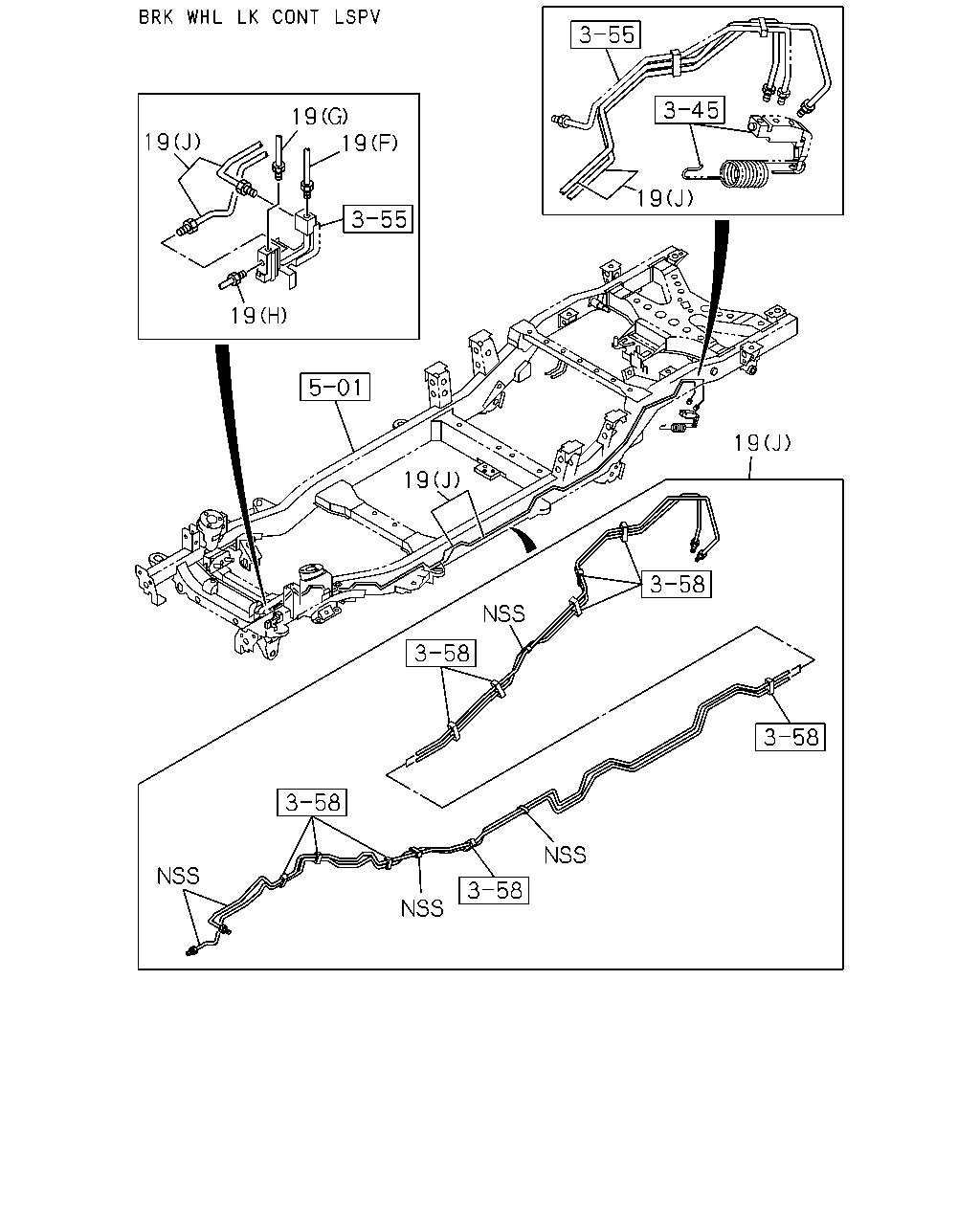

19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (F)	8-97315-585-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (F)	8-97944-776-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (G)	8-97363-995-0	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (G)	8-97944-777-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H)	8-97215-335-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (H)	8-97215-335-0	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H)	8-97944-677-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (H)	8-97944-677-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97215-327-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97944-672-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97315-591-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97315-591-3	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97944-769-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-769-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97315-593-1	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97315-593-1	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97944-631-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97944-631-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97315-600-1	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97315-600-1	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97944-680-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97944-680-0	01	1	0610-1010			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97315-584-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97944-665-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K)	8-97315-596-2	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K)	8-97944-782-0	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.686 (D)	8-97315-599-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (D)	8-97944-742-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (D)	8-98177-862-0	01	1	1011-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-97359-777-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-97944-687-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-98177-863-0	01	1	1011-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-97355-582-4	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-97944-696-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-97250-065-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (J)	8-97250-065-2	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-97944-732-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (J)	8-97944-732-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97250-063-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-98043-604-0	01	1	0610-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98089-804-0	01	1	0807-0809	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT),FRT&RR 195R15C(QZO) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98089-804-0	01	1	0810-1007	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TI RE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC)	8-98089-804-0	01	1	1008-1101	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C(BZC),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 245/70R16 ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC)	8-98089-804-0	01	1	1102-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97349-969-0	01	1	0306-0502			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97379-144-0	01	1	0503-0508			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98004-195-0	01	1	0509-0609			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-784-0	01	1	0610-1007			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-784-0	01	1	1008-			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97329-787-0	01	1	0306-0505	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98004-194-0	01	1	0506-0609	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-783-0	01	1	0610-0806	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0807-0809	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL),HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0807-0809	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0807-0809	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0810-1007	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	0810-1007	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	1008-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-783-0	01	1	1008-	●

250 95 116 184 107 250 95 184 184 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
95	04.710 SENSOR; SPD,FRT WHEEL C24SE ENG(LG1) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98052-404-0	01	1	0610-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL C24SE ENG(LG1) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98052-404-0	01	1	0610-			●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97236-104-2	01	1	0306-0609	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97236-104-2	01	1	0306-0609			●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97387-989-1	01	1	0610-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-989-1	01	1	0610-			●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97236-106-2	01	1	0306-0609	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97236-106-2	01	1	0306-0609			●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97387-990-1	01	1	0610-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-990-1	01	1	0610-			●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97236-103-2	01	1	0306-0609	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97387-988-1	01	1	0610-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97239-255-2	01	1	0306-0609	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97387-987-1	01	1	0610-	●	●
107	04.710 BOLT; WHEEL SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 M6X10 FLANGE	0-28050-610-0	02	1	0306-	●	●	●	●
116	04.686 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 01.540 M8 FLANGE	0-91180-208-0	02	1	0306-	●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0306-	●	●	●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0306-	●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0306-			●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0306-	●	●	●	●
250	04.685 FINISHER; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 02.559 L=80	5-71997-133-0	02	1	0306-0609	●	●
250	04.685 FINISHER; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80	5-71997-133-0	02	1	0306-0609			●	●
250	04.685 FINISHER; HARNESS C24SE ENG(LG1) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 02.559 L=80	5-71997-133-0	01	1	0610-	●	●
250	04.685 FINISHER; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 02.559 L=80	5-71997-133-0	01	1	0610-	●	●
250	04.685 FINISHER; HARNESS C24SE ENG(LG1) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80	5-71997-133-0	01	1	0610-			●	●
250	04.685 FINISHER; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80	5-71997-133-0	01	1	0610-			●	●

19 19 19 104 26 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-698-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-698-1	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-98059-602-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97944-720-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97315-587-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97944-771-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-97315-588-3	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-97944-785-2	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97332-910-0	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97944-757-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97321-284-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97321-284-3	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-98043-606-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> (J)	8-98043-606-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97324-509-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97324-509-0	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97944-758-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97944-758-1	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97355-531-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-765-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97355-584-4	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-767-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (F)	8-97315-585-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (F)	8-97944-776-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (G)	8-97363-995-0	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (G)	8-97944-777-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H)	8-97215-335-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (H)	8-97215-335-0	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H)	8-97944-677-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (H)	8-97944-677-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97215-327-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97944-672-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97315-591-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97315-591-3	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97944-769-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-769-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97315-593-1	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97315-593-1	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97944-631-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97944-631-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97315-600-1	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97315-600-1	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97944-680-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97944-680-0	01	1	0610-1010			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97315-584-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97944-665-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K)	8-97315-596-2	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K)	8-97944-782-0	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.686 (D)	8-97315-599-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (D)	8-97944-742-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (D)	8-98177-862-0	01	1	1011-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-97359-777-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-97944-687-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-98177-863-0	01	1	1011-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-97355-582-4	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-97944-696-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-97250-065-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (J)	8-97250-065-2	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-97944-732-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (J)	8-97944-732-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97250-063-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-98043-604-0	01	1	0610-	●	●
26	04.730 BRACKET; PROPORTIONING VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97324-957-0	01	1	0306-0609	●	●	●	●
26	04.730 BRACKET; PROPORTIONING VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-123-0	01	1	0610-	●	●	●	●
104	04.730 BOLT; BRKT TO BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0306-	●	●	●	●

19 19 19 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-698-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-698-1	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-98059-602-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97944-720-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97315-587-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97944-771-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-97315-588-3	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-97944-785-2	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97332-910-0	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97944-757-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97321-284-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97321-284-3	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-98043-606-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> (J)	8-98043-606-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97324-509-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97324-509-0	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97944-758-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97944-758-1	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97355-531-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-765-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97355-584-4	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-767-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (F)	8-97315-585-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (F)	8-97944-776-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (G)	8-97363-995-0	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (G)	8-97944-777-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H)	8-97215-335-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (H)	8-97215-335-0	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H)	8-97944-677-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (H)	8-97944-677-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97215-327-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97944-672-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97315-591-3	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97315-591-3	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97944-769-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97944-769-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97315-593-1	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97315-593-1	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97944-631-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97944-631-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97315-600-1	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (D)	8-97315-600-1	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97944-680-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C)	8-97944-680-0	01	1	0610-1010			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97315-584-1	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-97944-665-1	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K)	8-97315-596-2	01	1	0306-0609	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K)	8-97944-782-0	01	1	0610-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.686 (D)	8-97315-599-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (D)	8-97944-742-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (D)	8-98177-862-0	01	1	1011-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-97359-777-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-97944-687-0	01	1	0610-1010	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C)	8-98177-863-0	01	1	1011-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-97355-582-4	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B)	8-97944-696-1	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-97250-065-2	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (J)	8-97250-065-2	01	1	0306-0609			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J)	8-97944-732-0	01	1	0610-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (J)	8-97944-732-0	01	1	0610-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97250-063-0	01	1	0306-0609	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-98043-604-0	01	1	0610-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
