◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 3 - Brakes, Brake System ▶ 3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER ▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#77550) — 14 parça

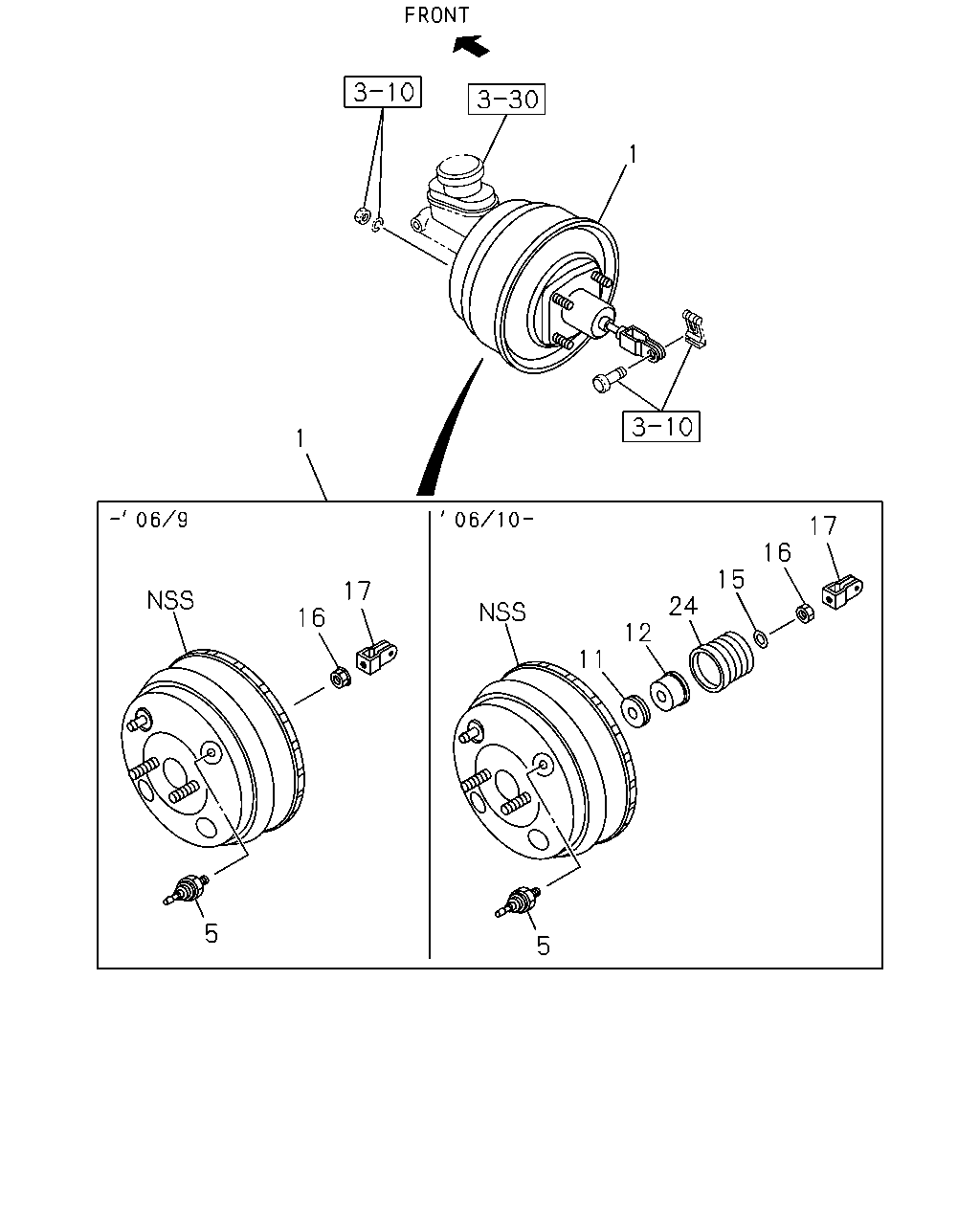

çizim 160449
1 1 17 16 15 17 24 16 12 11 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.901 MASTER VAC ASM; BRK
C24SE ENG(LG1) 		8-97365-519-0 01 1 0306-0609 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1) 		8-98006-791-0 01 1 0610- ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97365-518-0 01 1 0306-0609 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4JA1-T ENG(LP0) 		8-98006-789-0 01 1 0610- ● ● ● ●
5 04.906 SWITCH; VAC,M/VAC
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97301-656-0 01 1 0306-0609 ● ● ● ●
5 04.906 SWITCH; VAC,M/VAC
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 		8-98081-668-0 01 1 0610- ● ● ● ●
11 04.906 FILTER; M/VAC
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 		8-98048-044-0 01 1 0610- ● ● ● ●
12 04.906 SILENCER; M/VAC
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 		8-97205-577-0 01 1 0610- ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 		8-98048-040-0 01 1 0610- ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97301-598-0 01 1 0306-0609 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 		8-98048-038-0 01 1 0610- ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97365-745-0 01 1 0306-0609 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 		8-98048-039-0 01 1 0610- ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 		8-98048-043-0 01 1 0610- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
