Isuzu WW
▶
PICKUP
▶
TFR
▶
51277 - TFR/TFS MIDDLE EAST
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#77549) — 25 parça
Tümü
A - TFB6SF
B - TFB6WF
C - TFS6SF
D - TFS6WF
◀

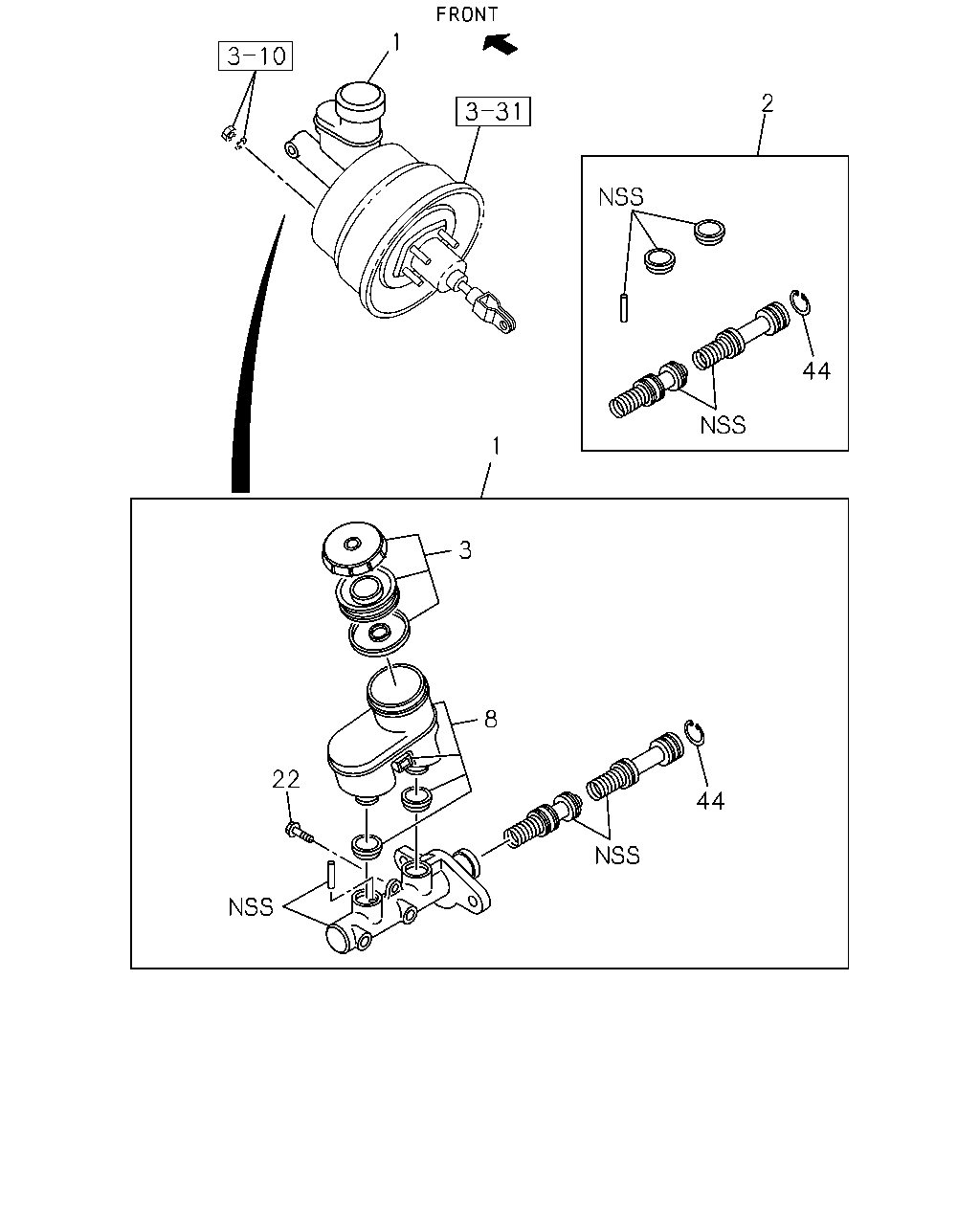

[330A] -'06/9 (11 parça)

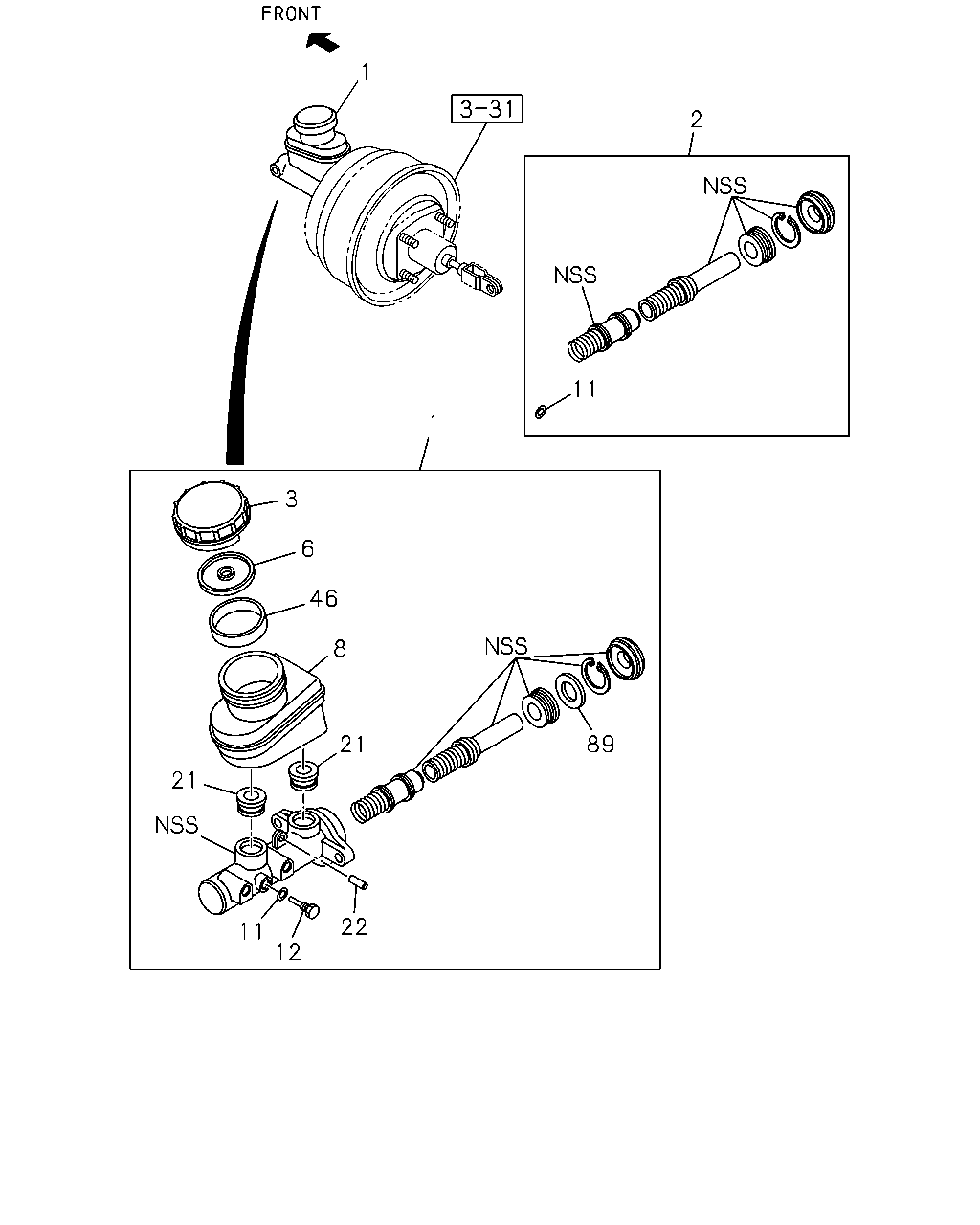

[330A] '06/10- (14 parça)
▶
1
2
44
1
3
8
22
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.650 CYLINDER ASM; BRK MASTER
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
8-97354-050-1
01
1
0306-0609
●
●
●
●
1
04.650 CYLINDER ASM; BRK MASTER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98006-942-0
01
1
0610-
●
●
●
●
2
04.649 REPAIR KIT; BRK,M/CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
8-97357-713-0
01
1
0306-0609
●
●
●
●
2
04.649 REPAIR KIT; BRK,M/CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98047-691-0
01
1
0610-
●
●
●
●
3
04.651 CAP; OIL TANK
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
8-97349-827-0
01
1
0306-0609
●
●
●
●
3
04.651 CAP; OIL TANK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98047-705-0
01
1
0610-
●
●
●
●
8
04.651 TANK; OIL,M/CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
8-97361-812-0
01
1
0306-0609
●
●
●
●
8
04.651 TANK; OIL,M/CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98047-701-0
01
1
0610-
●
●
●
●
22
04.651 SCREW; OIL TANK
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
8-97301-579-0
01
1
0306-0609
●
●
●
●
22
04.651 SCREW; OIL TANK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98047-707-0
01
1
0610-
●
●
●
●
44
04.656 RING; SNAP,M/CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
8-97301-563-0
01
1
0306-0609
●
●
●
●
1
2
11
1
3
6
46
8
21
89
21
2
11
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.650 CYLINDER ASM; BRK MASTER
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
8-97354-050-1
01
1
0306-0609
●
●
●
●
1
04.650 CYLINDER ASM; BRK MASTER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98006-942-0
01
1
0610-
●
●
●
●
2
04.649 REPAIR KIT; BRK,M/CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
8-97357-713-0
01
1
0306-0609
●
●
●
●
2
04.649 REPAIR KIT; BRK,M/CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98047-691-0
01
1
0610-
●
●
●
●
3
04.651 CAP; OIL TANK
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
8-97349-827-0
01
1
0306-0609
●
●
●
●
3
04.651 CAP; OIL TANK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98047-705-0
01
1
0610-
●
●
●
●
6
04.651 DIAPHRAGM; BRK M/CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98047-706-0
01
1
0610-
●
●
●
●
8
04.651 TANK; OIL,M/CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
8-97361-812-0
01
1
0306-0609
●
●
●
●
8
04.651 TANK; OIL,M/CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98047-701-0
01
1
0610-
●
●
●
●
11
04.653 GASKET; STOPPER BOLT TO BRK M/CY
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98047-696-0
01
1
0610-
●
●
●
●
12
04.653 BOLT; STOPPER,BRK M/CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98047-695-0
01
1
0610-
●
●
●
●
21
04.651 GROMMET; BRK M/CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-97940-643-0
02
1
0610-
●
●
●
●
46
04.651 FILTER; OIL TANK,M/CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98047-702-0
01
1
0610-
●
●
●
●
89
04.648 PLATE; BRK M/CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)
8-98047-698-0
01
1
0610-
●
●
●
●
