2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#77542) — 26 parça

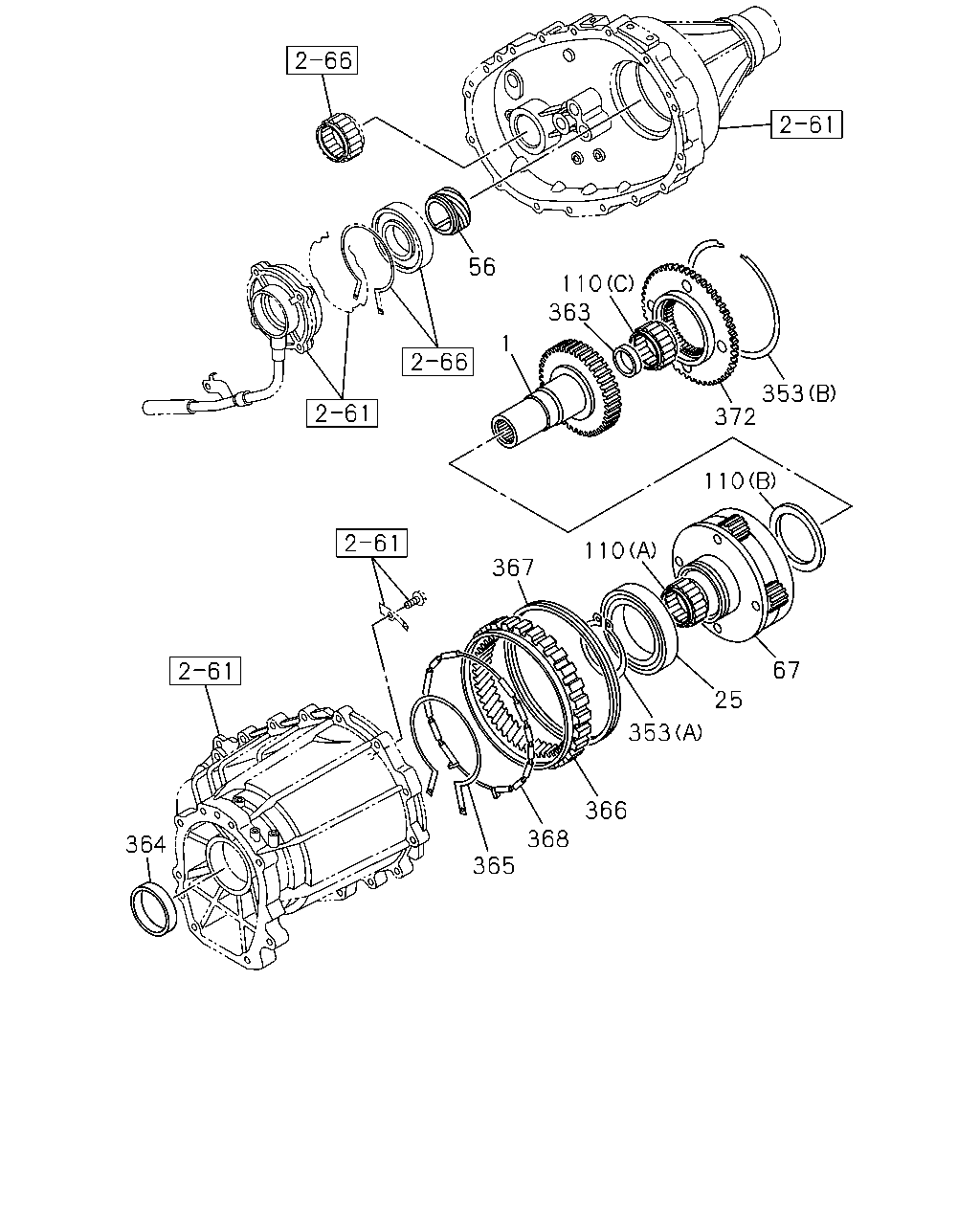

çizim 160446
353 372 110 67 25 353 366 368 365 367 110 1 363 110 56 364
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.162 SHAFT; GEAR,INPUT 8-97231-827-1 01 1 0306-0310 ● ●
1 04.162 SHAFT; GEAR,INPUT 8-97373-467-0 01 1 0311- ● ●
25 04.164 BEARING; BALL,INPUT SHAFT
NSK 		8-97234-735-0 01 1 0306- ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/9(GT3) Z=5 		8-97238-580-0 01 1 0306-0609 ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
4JA1-T ENG(LP0) FINAL GEAR RATIO 41/9(GT3) Z=5 		8-97238-580-0 01 1 0610-0710 ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16 ALS(QCQ) Z=5 		8-97238-580-0 01 1 0610-0710 ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
C24SE ENG(LG1) FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) Z=5 		8-97238-580-0 01 1 0610-0710 ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16 ALS(QCQ) Z=5 		8-97238-580-0 01 1 0711- ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
C24SE ENG(LG1) FINAL GEAR RATIO 43/9(GT2) Z=5 		8-97238-580-0 01 1 0711- ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
C24SE ENG(LG1),4JA1-T ENG(LP0) FINAL GEAR RATIO 41/9(GT3) Z=5 		8-97238-580-0 01 1 0711- ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-97238-581-0 01 1 0306-0609 ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-97238-581-0 01 1 0610- ● ●
67 04.532 CARRIER; TRANSFER 8-97252-987-1 01 1 0306-1001 ● ●
67 04.532 CARRIER; TRANSFER 8-98158-116-0 01 1 1002- ● ●
110 04.532 BEARING; NEEDLE
(A) 		8-97234-739-0 01 1 0306- ● ●
110 04.532 BEARING; NEEDLE
(B) 		8-97234-741-0 01 1 0306- ● ●
110 04.532 BEARING; NEEDLE
(C) 		8-97234-743-0 01 1 0306- ● ●
353 04.545 RING; SNAP,CARRIER
(A) ID=65.5 		8-97305-403-0 01 1 0306- ● ●
353 04.545 RING; SNAP,CARRIER
(B) ID=137 		8-97305-406-0 01 1 0306- ● ●
363 04.545 CAP; SEAL,INPUT SHAFT 8-97238-725-0 01 1 0306- ● ●
364 04.545 SEAL; OIL,COVER,INPUT
04.510 NOK 		8-97238-999-0 01 1 0306- ● ●
365 04.545 RING; RETAINING,OUTER INPUT
ID=97 		8-97305-010-1 01 1 0306- ● ●
366 04.532 GEAR; INTERNAL,HIGH-LOW
Z=27 		8-97231-831-2 01 1 0306- ● ●
367 04.545 RING; RETAINING,SPIRAL TYPE
ID=162 OD=176 		8-97247-459-0 01 1 0306- ● ●
368 04.545 RING; DAMPER,TRANSFER
ID=168.4 OD=178 		8-97320-914-0 01 1 0306- ● ●
372 04.162 TEETH; DOG,PLANETARY
01.462 Z=56 		8-97358-244-0 01 1 0306- ● ●
