2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#77541) — 39 parça

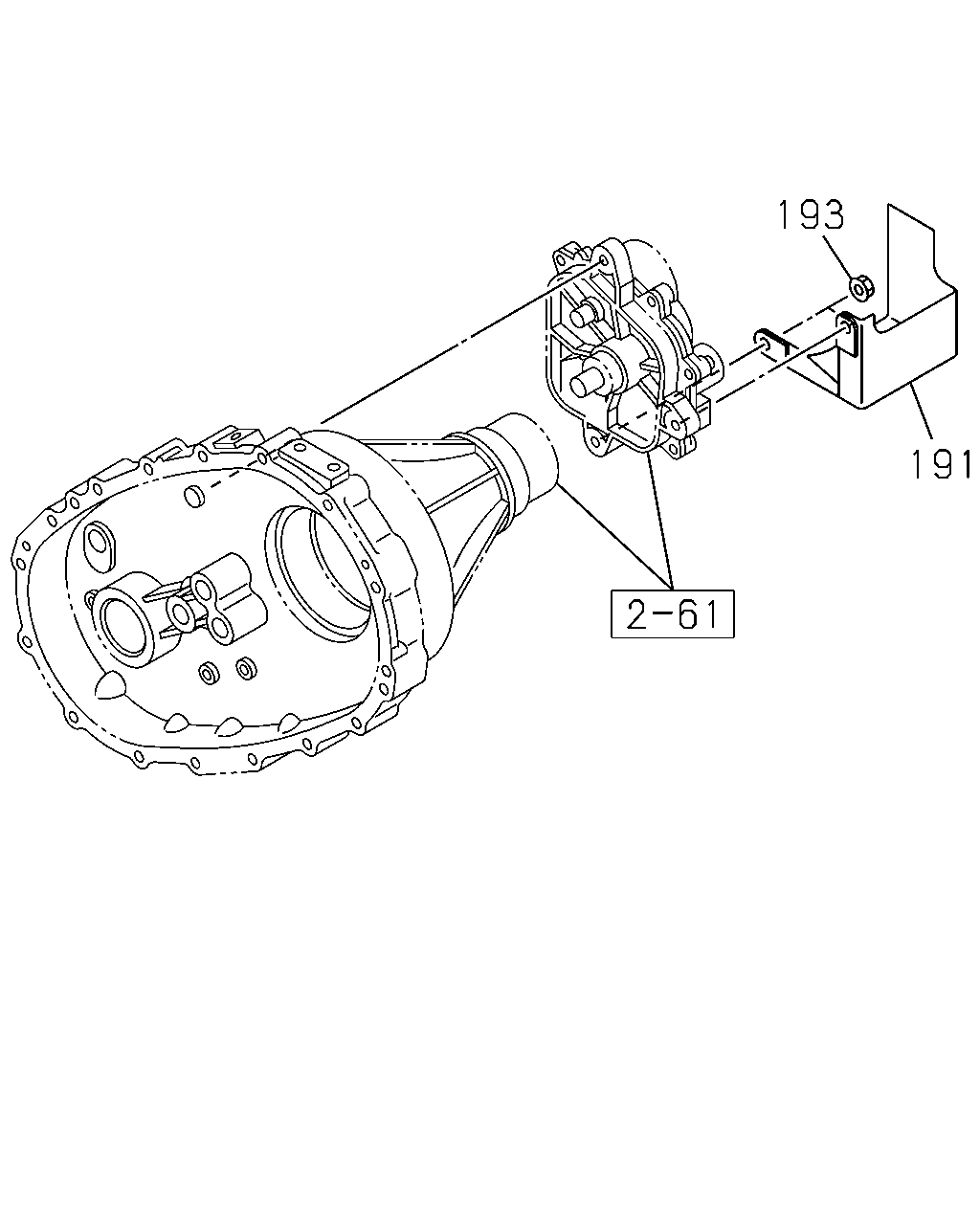

çizim 160419
193 191
BalonParca AdiParca NoAdetTipApplied Date A B
191 04.510 PROTECTOR; HEAT
C24SE ENG(LG1) 		8-97324-296-1 01 1 0306-0508 ● ●
191 04.510 PROTECTOR; HEAT
C24SE ENG(LG1) 		8-98019-886-0 01 1 0509- ● ●
193 04.510 NUT; PROTECTOR
C24SE ENG(LG1) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0306- ● ●

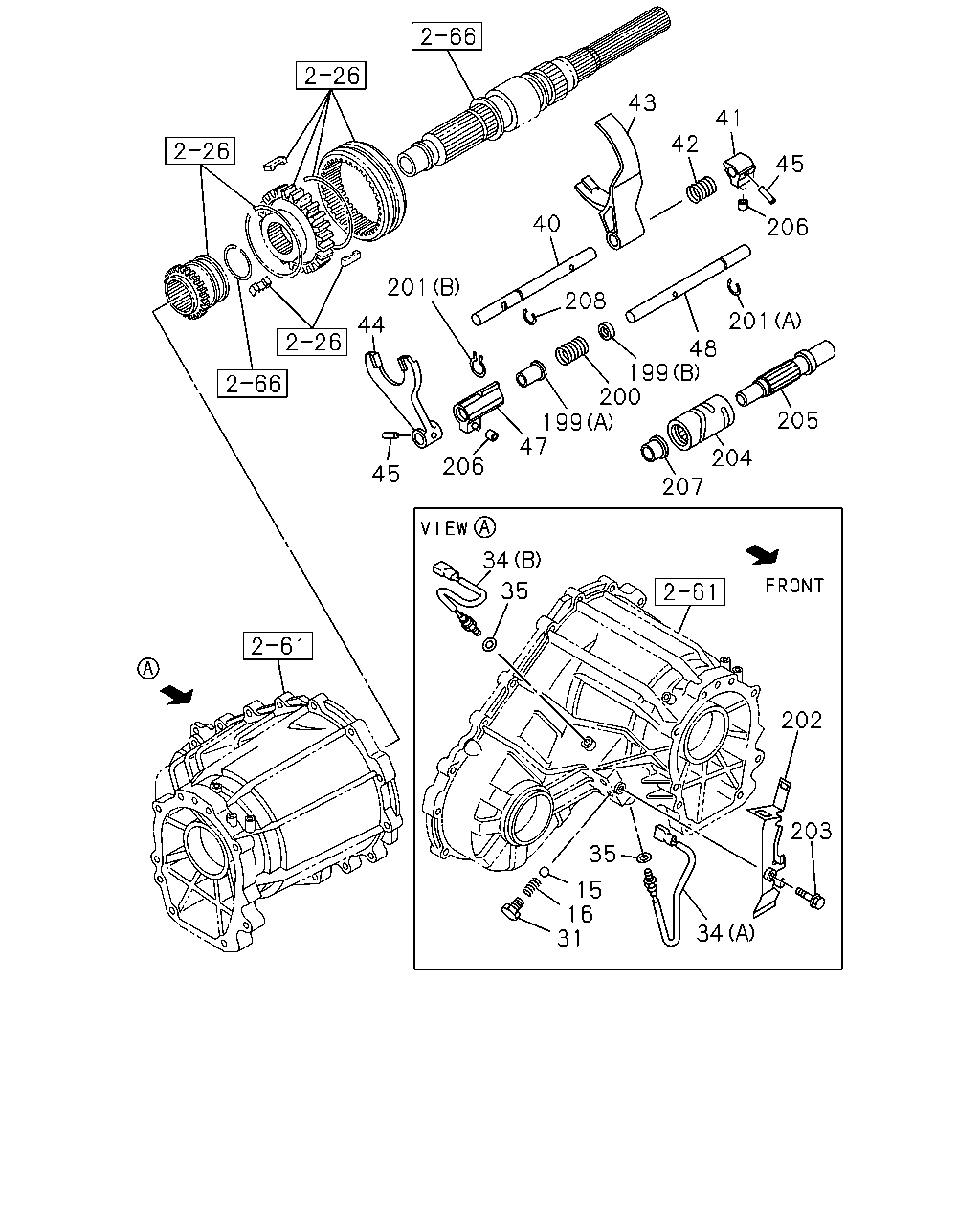

çizim 160459
43 41 42 45 40 206 201 208 201 44 48 199 200 199 47 205 204 206 45 207 34 35 202 203 35 15 16 31 34
BalonParca AdiParca NoAdetTipApplied Date A B
15 04.311 BALL; DETENT,SHIFT ROD,TRANSFER 8-94435-335-0 02 1 0306- ● ●
16 04.515 SPRING; DETENT,SHIFT ROD,TRANSFE
L=23.4 		8-97145-374-0 02 1 0306- ● ●
31 04.520 PLUG; DETENT BALL,TRANSFER
M12X9 		9-99202-312-0 02 1 0306-0603 ● ●
31 04.520 PLUG; DETENT BALL,TRANSFER
M12X9 		0-92002-412-0 02 1 0604- ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(A) 		8-97314-204-0 01 1 0306-0603 ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(A) 		8-97358-605-0 01 1 0604-1405 ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(A) 		8-98181-804-0 01 1 1406- ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(B) 		8-97314-205-0 01 1 0306-0603 ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(B) 		8-97358-606-0 01 1 0604-1405 ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
04.054 (B) 		8-98180-974-0 01 1 1406- ● ●
35 04.075 GASKET; INDICATOR SWITCH,TRANSFE
08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0306- ● ●
40 04.309 ROD; SHIFT,4X2-4X4,TRANSFER 8-97234-229-0 01 1 0306- ● ●
41 04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97234-233-1 01 1 0306- ● ●
42 04.515 SPRING; GEAR LOCK RELEASE,TRANSF 8-97239-010-1 01 1 0306- ● ●
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER 8-97234-231-0 01 1 0306- ● ●
44 04.555 ARM; SHIFT,HIGH-LOW,TRANSFER 8-97300-106-1 01 1 0306- ● ●
45 04.303 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 02 1 0306- ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-97234-234-1 01 1 0306-1001 ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-98161-034-0 01 1 1002- ● ●
48 04.309 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97234-230-0 01 1 0306- ● ●
199 04.419 COLLAR; TRANSFER CONTROL
(A) 		8-97234-662-1 01 1 0306- ● ●
199 04.419 COLLAR; TRANSFER CONTROL
(B) 		8-97234-663-1 01 1 0306- ● ●
200 04.198 SPRING; SHIFT HIGH-LOW 8-97239-011-0 01 1 0306- ● ●
201 04.525 RING; SNAP,SHIFT
04.307 (A) ID=12 		8-94460-357-0 01 1 0306- ● ●
201 04.525 RING; SNAP,SHIFT
(B) ID=23 		8-97305-011-1 01 1 0306- ● ●
202 04.525 BRACKET; SWITCH 8-97305-519-2 01 1 0306-0603 ● ●
202 04.525 BRACKET; SWITCH 8-97358-324-0 01 1 0604- ● ●
203 04.570 BOLT; BRACKET,SWITCH
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0306-0601 ● ●
203 04.570 BOLT; BRACKET,SWITCH
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0602- ● ●
204 05.555 DRUM; SHIFT 8-97358-246-0 01 1 0306-1001 ● ●
204 05.555 DRUM; SHIFT 8-98158-123-0 01 1 1002- ● ●
205 05.555 SHAFT; SHIFT DRUM 8-97231-855-0 01 1 0306- ● ●
206 05.555 ROLLER; GUIDE,SHIFT 8-97234-499-0 02 1 0306- ● ●
207 04.570 BUSH; CONTROL SHAFT 8-97239-687-0 01 1 0306-1001 ● ●
207 04.570 BUSH; CONTROL SHAFT 8-98158-124-0 01 1 1002- ● ●
208 04.525 RING; SNAP,SHIFT
04.307 ID=12 		8-94460-357-0 01 1 0306- ● ●
