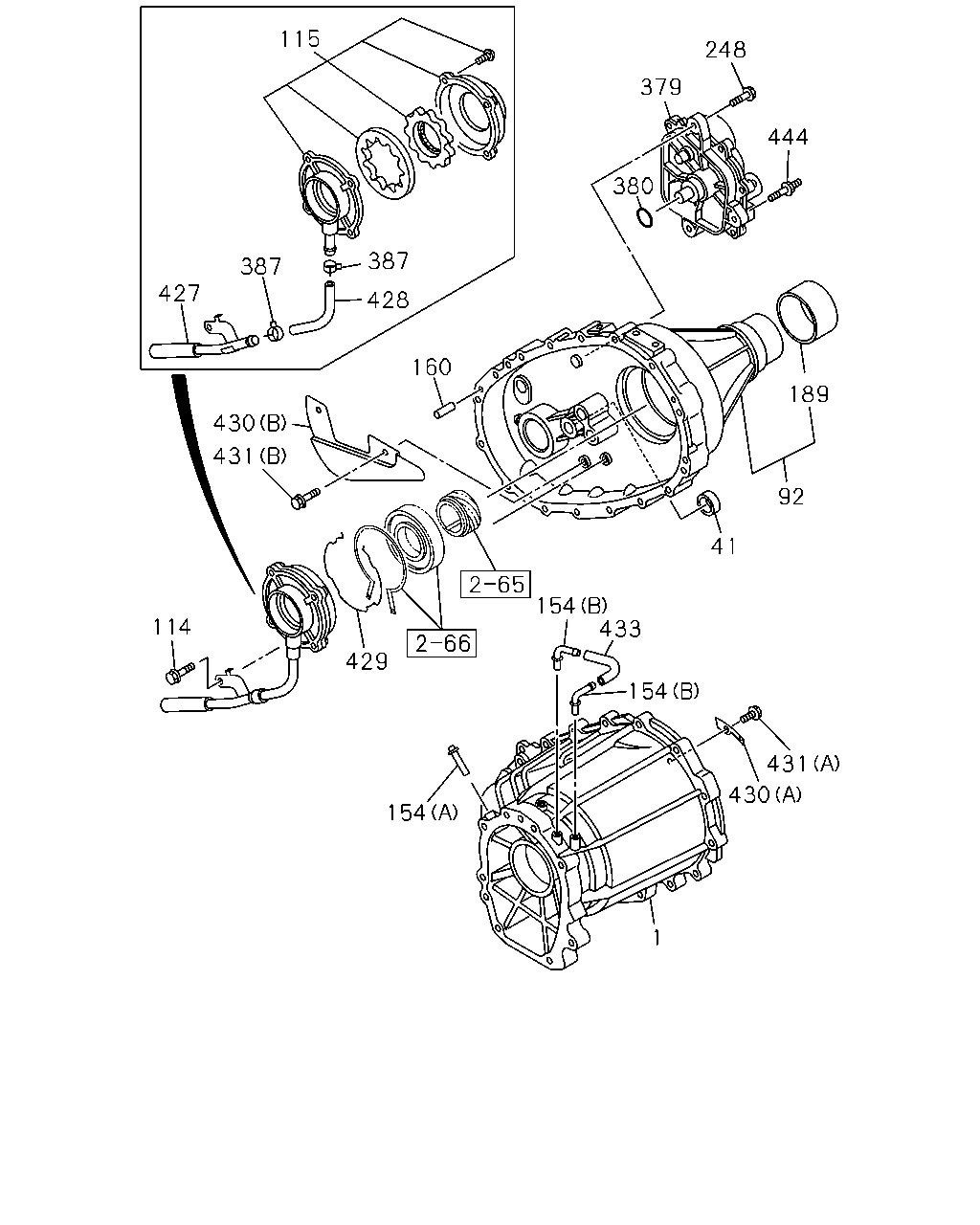

1 |
04.510 CASE; TRANSFER
|
8-97306-571-5 |
01 |
1 |
0306- |
● |
● |
| |
41 |
04.515 SEAL; OIL,SHIFT ROD
|
8-97238-998-0 |
01 |
1 |
0306- |
● |
● |
| |
92 |
04.552 COVER; RR,TRANSFER
|
8-97306-579-3 |
01 |
1 |
0306-0402 |
● |
● |
| |
92 |
04.552 COVER; RR,TRANSFER
|
8-97376-868-1 |
01 |
1 |
0403-0506 |
● |
● |
| |
92 |
04.552 COVER; RR,TRANSFER
|
8-98013-523-0 |
01 |
1 |
0507- |
● |
● |
| |
114 |
04.200 BOLT; OIL PUMP,TRANSFER
02.664
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0306-0601 |
● |
● |
| |
114 |
04.200 BOLT; OIL PUMP,TRANSFER
01.531
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0602- |
● |
● |
| |
115 |
04.200 PUMP ASM; OIL,TRANSFER
|
8-97233-741-0 |
01 |
1 |
0306-0603 |
● |
● |
| |
115 |
04.200 PUMP ASM; OIL,TRANSFER
|
8-98029-157-0 |
01 |
1 |
0604- |
● |
● |
| |
154 |
04.510 PIPE; BREATHER
(A)
|
8-97173-545-0 |
01 |
1 |
0306-0603 |
● |
● |
| |
154 |
04.510 PIPE; BREATHER
(A)
|
8-97358-319-0 |
01 |
1 |
0604- |
● |
● |
| |
154 |
04.510 PIPE; BREATHER
04.302
(B)
|
8-97305-517-0 |
02 |
1 |
0306-0603 |
● |
● |
| |
154 |
04.510 PIPE; BREATHER
(B)
|
8-97358-318-0 |
02 |
1 |
0604- |
● |
● |
| |
160 |
04.107 PIN; KNOCK,SHIFT CASE
04.510
OD=10 L=20
|
8-97135-423-0 |
02 |
1 |
0306- |
● |
● |
| |
189 |
04.510 COVER; DUST,OIL SEAL
04.317
|
8-94310-493-0 |
01 |
1 |
0306-0603 |
● |
● |
| |
189 |
04.510 COVER; DUST,OIL SEAL
04.317
|
8-98027-802-0 |
01 |
1 |
0604-1109 |
● |
● |
| |
189 |
04.510 COVER; DUST,OIL SEAL
|
8-98173-748-0 |
01 |
1 |
1110- |
● |
● |
| |
248 |
04.105 BOLT
C24SE ENG(LG1)
FINAL GEAR RATIO 41/9(GT3)
04.686
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0306-0601 |
● |
● |
| |
248 |
04.105 BOLT
C24SE ENG(LG1)
FINAL GEAR RATIO 41/9(GT3)
03.403
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0602-0609 |
● |
● |
| |
248 |
04.105 BOLT
C24SE ENG(LG1)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3)
03.403
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0610- |
● |
● |
| |
248 |
04.105 BOLT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
04.686
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
0306-0601 |
● |
● |
| |
248 |
04.105 BOLT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
03.403
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0602-0609 |
● |
● |
| |
248 |
04.105 BOLT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)
03.403
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0610- |
● |
● |
| |
379 |
04.505 ACTUATOR; TRANSFER,2-4 SHIFT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
|
8-97366-626-0 |
01 |
1 |
0306-0508 |
● |
● |
| |
379 |
04.505 ACTUATOR; TRANSFER,2-4 SHIFT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR
RATIO 41/10(GT5),FINAL GEAR RATIO
43/10(GY2)
|
8-97366-626-0 |
01 |
1 |
0509-0609 |
● |
● |
| |
379 |
04.505 ACTUATOR; TRANSFER,2-4 SHIFT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)
|
8-97366-626-0 |
01 |
1 |
0610-1110 |
● |
● |
| |
379 |
04.505 ACTUATOR; TRANSFER,2-4 SHIFT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)
|
8-98196-415-0 |
01 |
1 |
1111- |
● |
● |
| |
379 |
04.505 ACTUATOR; TRANSFER,2-4 SHIFT
C24SE ENG(LG1)
FINAL GEAR RATIO 41/9(GT3)
|
8-97366-627-0 |
01 |
1 |
0306-0309 |
● |
● |
| |
379 |
04.505 ACTUATOR; TRANSFER,2-4 SHIFT
C24SE ENG(LG1)
FINAL GEAR RATIO 41/9(GT3)
|
8-97317-686-1 |
01 |
1 |
0310-0609 |
● |
● |
| |
379 |
04.505 ACTUATOR; TRANSFER,2-4 SHIFT
C24SE ENG(LG1)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3)
|
8-97317-686-1 |
01 |
1 |
0610-1001 |
● |
● |
| |
379 |
04.505 ACTUATOR; TRANSFER,2-4 SHIFT
C24SE ENG(LG1)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3)
|
8-98158-125-0 |
01 |
1 |
1002- |
● |
● |
| |
380 |
04.505 GASKET; ACTUATOR
ID=29.7 OD=36.7
|
8-97318-475-0 |
01 |
1 |
0306- |
● |
● |
| |
387 |
04.319 CLAMP; HOSE
03.162
ID=14.2
|
8-97087-056-1 |
02 |
1 |
0306-0502 |
● |
● |
| |
387 |
04.319 CLAMP; HOSE
01.240
ID=16
|
8-94392-924-0 |
02 |
1 |
0503-0603 |
● |
● |
| |
387 |
04.319 CLAMP; HOSE
01.097
ID=16
|
8-97329-628-0 |
02 |
1 |
0604- |
● |
● |
| |
427 |
04.510 SCREEN; OIL PUMP
|
8-97234-488-3 |
01 |
1 |
0306- |
● |
● |
| |
428 |
04.510 HOSE; OIL PUMP
04.128
L=80
SERVICED BY L=3000
|
0-02259-300-0 |
01 |
1 |
0306-0502 |
● |
● |
| |
428 |
04.510 HOSE; OIL PUMP
ID=9.5 OD=16.5 L=80
|
8-98009-116-0 |
01 |
1 |
0503- |
● |
● |
| |
429 |
04.525 RING; SNAP,OIL PUMP
|
8-97240-666-0 |
01 |
1 |
0306- |
● |
● |
| |
430 |
04.500 PLATE; BAFFLE
(A)
|
8-97239-130-0 |
01 |
1 |
0306- |
● |
● |
| |
430 |
04.500 PLATE; BAFFLE
(B)
|
8-97249-300-1 |
01 |
1 |
0306- |
● |
● |
| |
431 |
04.200 BOLT; BAFFLE PLATE
04.439
(A)
M6X16 FLANGE
|
0-28680-616-0 |
01 |
1 |
0306-0601 |
● |
● |
| |
431 |
04.200 BOLT; BAFFLE PLATE
02.343
(A)
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
0602- |
● |
● |
| |
431 |
04.200 BOLT; BAFFLE PLATE
02.664
(B)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0306-0601 |
● |
● |
| |
431 |
04.200 BOLT; BAFFLE PLATE
01.531
(B)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0602- |
● |
● |
| |
433 |
04.510 HOSE; AIR,TRANSFER
|
8-97236-080-0 |
01 |
1 |
0306- |
● |
● |
| |
444 |
04.510 STUD; ACTUATOR
C24SE ENG(LG1)
FINAL GEAR RATIO 41/9(GT3)
06.008
M8X12,M8X30 L=50
|
8-97032-290-0 |
02 |
1 |
0306-0603 |
● |
● |
| |
444 |
04.510 STUD; ACTUATOR
C24SE ENG(LG1)
FINAL GEAR RATIO 41/9(GT3)
M8X12,M8X30 L=50
|
8-98028-225-0 |
02 |
1 |
0604-0609 |
● |
● |
| |
444 |
04.510 STUD; ACTUATOR
C24SE ENG(LG1)
FINAL GEAR RATIO 43/9(GT2),FINAL GEAR
RATIO 41/9(GT3)
M8X12,M8X30 L=50
|
8-98028-225-0 |
02 |
1 |
0610- |
● |
● |
