7-40 — INSTRUMENT PANEL AND BOX (#7754) — 349 parça
çizim 6127
18 296 554
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9902- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9902-0003 ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0004- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0004- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0004- ●
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 0004- ●
554 BRACKET; CENTER BEZEL 1-65671-733-0 01 1 9902- ●
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0004- ●

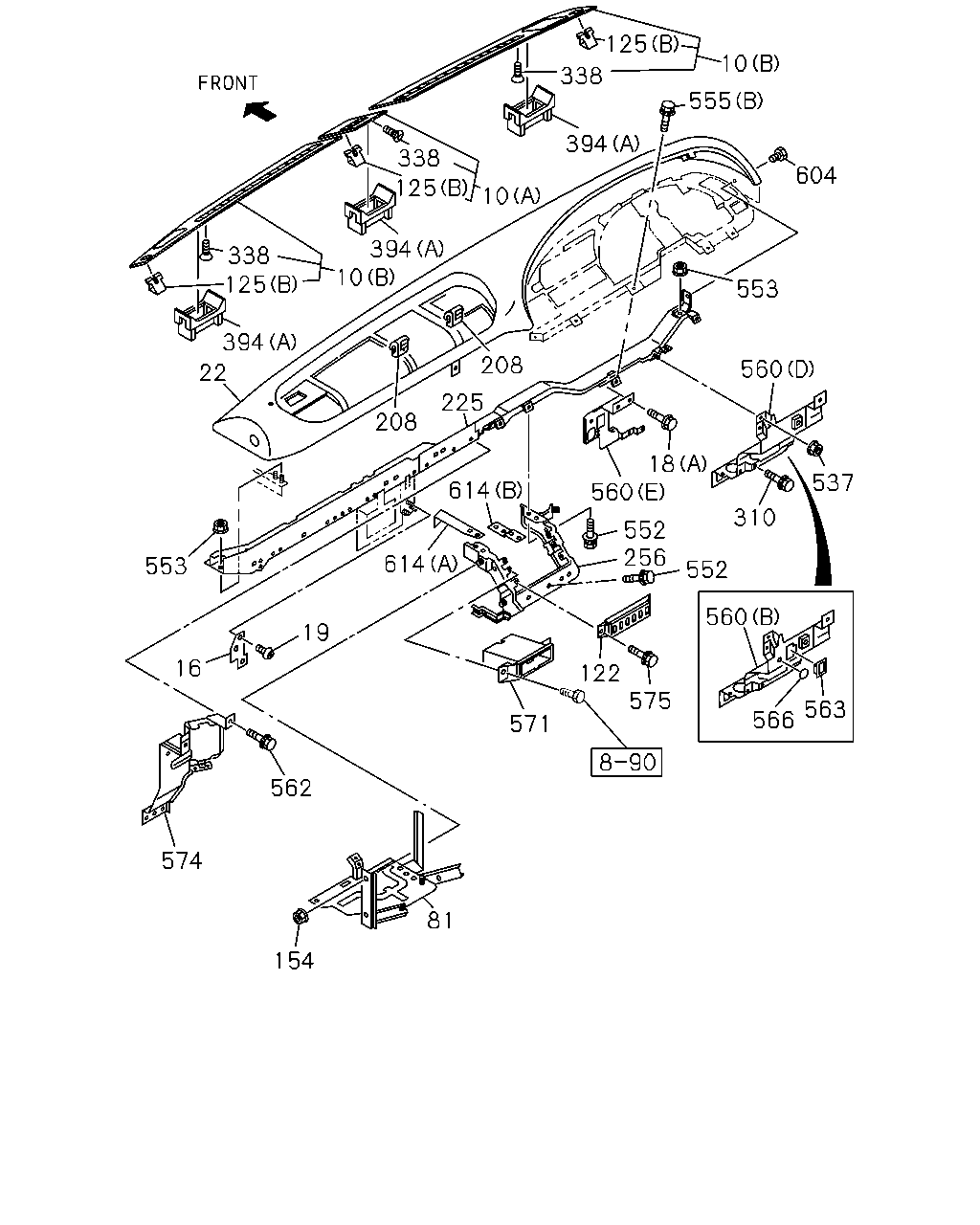

çizim 6128
125 10 338 555 338 394 604 125 10 338 125 394 10 553 394 208 560 22 225 208 18 560 537 614 310 552 256 614 553 552 560 19 16 122 575 563 566 571 562 574 81 154
BalonParca AdiParca NoAdetTipApplied Date A B
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 9902- ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 9902- ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 9902- ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-4 01 1 9902-0003 ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-6 01 1 0004- ●
10 PANEL ASM; GARNISH
(A) 		1-72437-540-6 01 1 0004- ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-2 01 1 9902-0003 ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-5 01 1 0004- ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-5 01 1 0004- ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-2 01 1 9902-0003 ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-5 01 1 0004- ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-5 01 1 0004- ●
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 9902-0003 ●
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 0004- ●
16 BRACKET; INST PNL 1-73908-023-2 01 1 0004- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9902- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9902-0003 ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0004- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0004- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0004- ●
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 9902-0003 ●
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 0004- ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0004- ●
22 PAD; INST 1-72317-337-2 01 1 9902- ●
22 PAD; INST 1-72317-344-1 01 1 0004- ●
81 BRACKET; ELEC CONT UNIT 1-73907-582-7 01 1 9902- ●
81 BRACKET; ELEC CONT UNIT 1-73907-655-5 01 1 0004- ●
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 9902-0003 ●
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 0004- ● ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9902-0003 ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 0004- ● ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 9902-0003 ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 0004- ● ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 9902-0003 ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0004- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9902-0003 ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0004- ● ●
225 FRAME; FACIA 1-65671-727-3 01 1 9902- ●
225 FRAME; FACIA 1-65671-725-6 01 1 0004- ●
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 9902- ●
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0004- ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9902-0003 ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0004- ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 9902-0003 ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0004- ●
338 SCREW; COVER
M5X14 		8-94279-325-0 12 1 0004- ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9902-0003 ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0004- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9902-0003 ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0004- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9902-0003 ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0004- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9902-0003 ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0004- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9902-0003 ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0004- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9902-0003 ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0004- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9902-0003 ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0004- ● ●
560 BRACKET
(A) 		1-65681-045-6 01 1 9902- ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65681-160-0 01 1 9902- ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65681-043-2 01 1 9902- ●
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-749-0 01 1 9902- ●
560 BRACKET
(E) 		1-65680-976-2 01 1 0004- ●
560 BRACKET
(D) 		1-65671-760-0 01 1 0004- ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9902-0003 ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0004- ● ●
563 BEZEL; BRKT 1-72448-410-3 01 1 0004- ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9902- ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0004- ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-1 01 1 9902-0003 ●
571 BEZEL; POCKET 1-72438-151-1 01 1 9902-0003 ●
571 BEZEL; POCKET 1-72438-151-1 01 1 0004- ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-1 01 1 0004- ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-1 01 1 0004- ●
574 PANEL; RELAY BOX 1-73907-407-3 01 1 9902- ●
574 PANEL; RELAY BOX 1-73907-365-6 01 1 0004- ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9902-0003 ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0004- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9902-0003 ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0004- ● ●
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0004- ●
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0004- ●

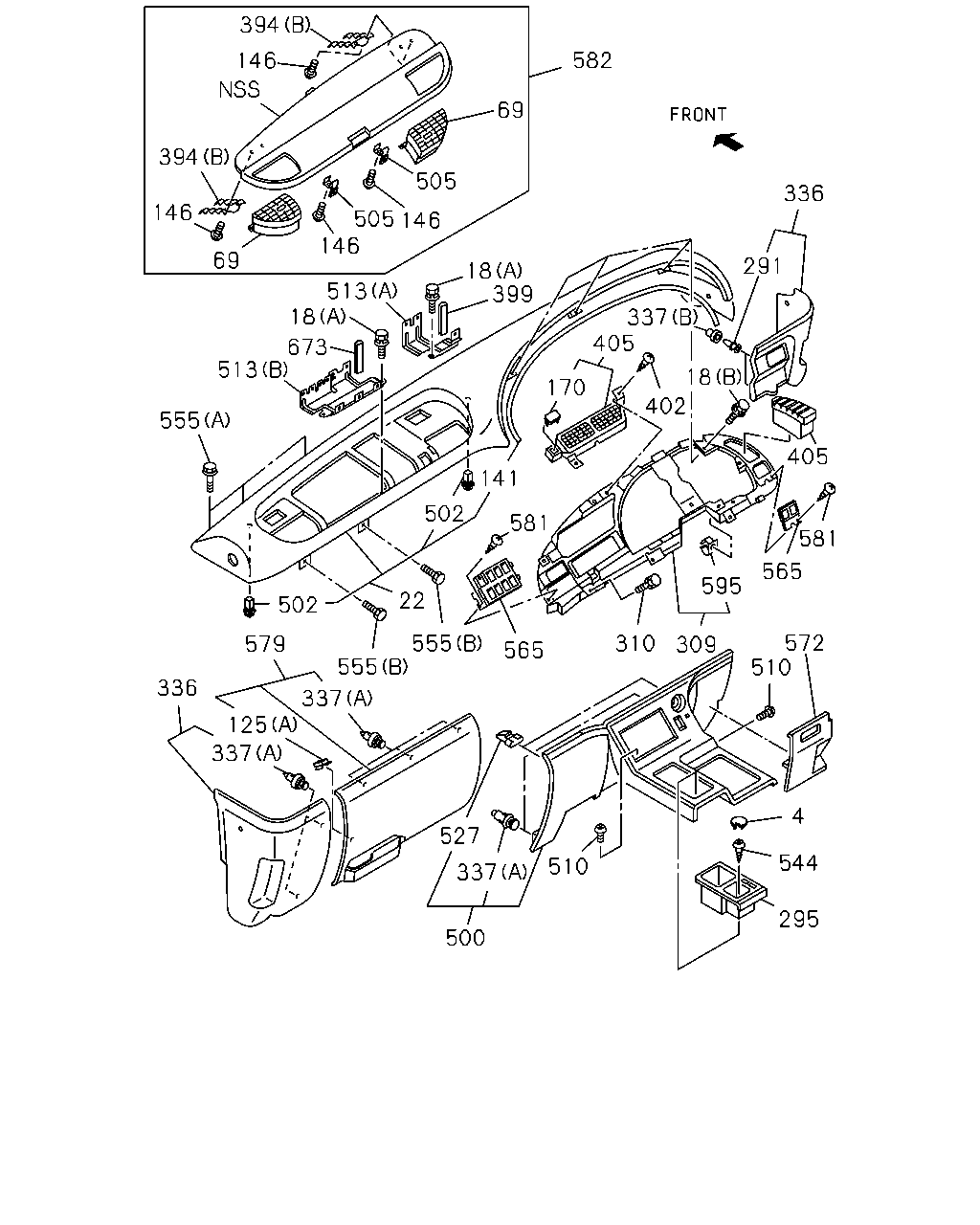

çizim 6129
394 582 146 69 394 505 336 146 146 69 291 18 399 513 18 337 405 673 513 18 170 402 555 405 141 581 502 581 565 595 22 502 572 510 555 555 310 579 309 565 336 337 125 337 4 527 544 510 337 295 500 505 146
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL 1-72537-106-0 01 1 9902-0003 ●
4 COVER; INST PNL 1-72537-106-0 01 1 0004- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9902- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9902-0003 ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0004- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0004- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0004- ●
22 PAD; INST 1-72317-337-2 01 1 9902- ●
22 PAD; INST 1-72317-344-1 01 1 0004- ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9902-0003 ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0004- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9902-0003 ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0004- ● ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9902-0003 ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 0004- ● ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 9902-0003 ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 0004- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9902-0003 ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0004- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9902-0003 ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0004- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 0004- ●
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0004- ●
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 9902- ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0004- ●
309 PANEL; SW,INST 1-72418-018-3 01 1 9902- ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0004- ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9902-0003 ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0004- ● ●
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9902- ●
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9902- ●
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 0004- ●
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 0004- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 9902- ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9902-0003 ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0004- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 9902- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0004- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0004- ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9902-0003 ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0004- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9902-0003 ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0004- ● ●
399 FINISHER; HARNESS
L=30 		8-94273-221-0 01 1 0006- ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0004- ●
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 9902- ●
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 9902- ●
405 GRILLE ASM; METER VENT 1-76367-062-1 01 1 0004- ●
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 0004- ●
500 CLUSTER; INST CENTER 1-72437-573-1 01 1 9902- ●
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-545-8 01 1 0004- ●
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-590-1 01 1 0004- ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9902-0003 ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0004- ● ●
505 LOCK; LID 1-72558-024-2 02 1 9902-0003 ●
505 LOCK; LID 1-72558-024-2 02 1 0004- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 9902-0003 ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0004- ● ●
513 BRACKET; RELAY 8-97865-168-2 01 1 9902- ●
513 BRACKET; RELAY
(A) 		1-73907-327-3 01 1 0004- ●
513 BRACKET; RELAY
(B) 		1-73908-009-9 01 1 0004- ●
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 9902- ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0004- ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 9902-0003 ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0004- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9902-0003 ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0004- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9902-0003 ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0004- ● ●
565 BEZEL; SW PANEL 1-72418-021-0 01 1 9902- ●
565 BEZEL; SW PANEL 1-72418-020-0 01 1 9902- ●
565 BEZEL; SW PANEL 1-72418-010-1 01 1 0004- ●
565 BEZEL; SW PANEL 1-72418-011-2 01 1 0004- ●
572 COVER; INSPECTION 1-72437-633-0 01 1 0004- ●
579 COVER; INST PNL 1-72438-128-1 01 1 9902- ●
579 COVER; INST PNL 1-72437-542-3 01 1 0004- ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9902-0003 ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0004- ● ●
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9902- ●
582 LID; FUSE & RELAY 1-72547-115-8 01 1 0004- ●
595 NUT; HOOK 1-72418-013-0 10 1 9902- ●
595 NUT; HOOK 1-72418-013-0 11 1 0004- ●
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006- ● ●

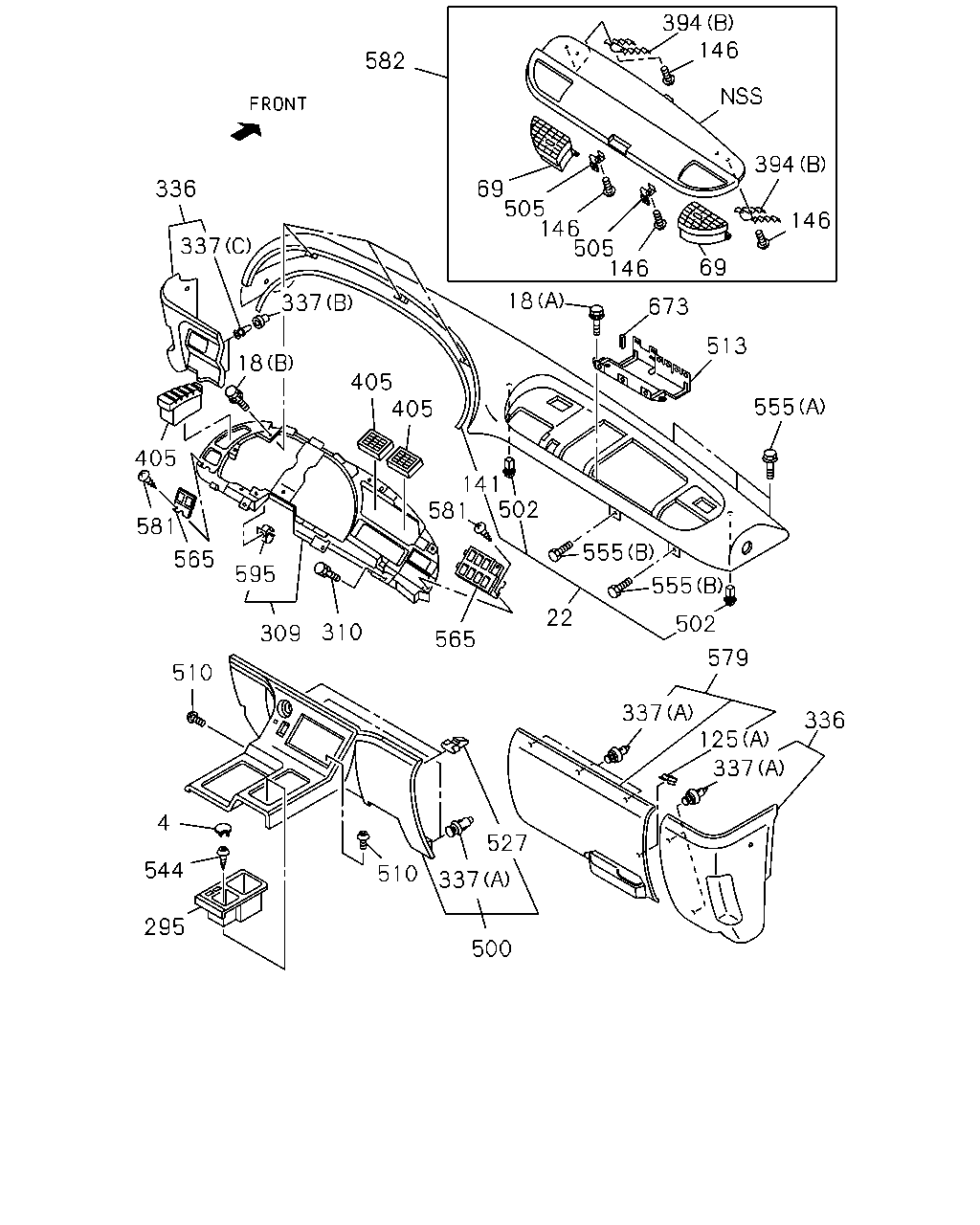

çizim 6773
394 146 582 394 336 69 505 146 505 146 146 337 69 337 18 673 513 18 405 405 555 405 141 581 502 581 555 565 595 555 22 502 310 309 565 579 510 337 125 336 337 4 527 544 510 337 295 500
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL 1-72537-106-0 01 1 9902-0003 ●
4 COVER; INST PNL 1-72537-106-0 01 1 0004- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9902- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9902-0003 ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0004- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0004- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0004- ●
22 PAD; INST 1-72317-337-2 01 1 9902- ●
22 PAD; INST 1-72317-344-1 01 1 0004- ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9902-0003 ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0004- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9902-0003 ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0004- ● ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9902-0003 ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 0004- ● ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 9902-0003 ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 0004- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9902-0003 ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0004- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9902-0003 ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0004- ● ●
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 9902- ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0004- ●
309 PANEL; SW,INST 1-72418-018-3 01 1 9902- ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0004- ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9902-0003 ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0004- ● ●
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9902- ●
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9902- ●
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 0004- ●
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 0004- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 9902- ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9902-0003 ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0004- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 9902- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0004- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0004- ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9902-0003 ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0004- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9902-0003 ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0004- ● ●
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 9902- ●
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 9902- ●
405 GRILLE ASM; METER VENT 1-76367-062-1 01 1 0004- ●
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 0004- ●
500 CLUSTER; INST CENTER 1-72437-573-1 01 1 9902- ●
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-545-8 01 1 0004- ●
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-590-1 01 1 0004- ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9902-0003 ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0004- ● ●
505 LOCK; LID 1-72558-024-2 02 1 9902-0003 ●
505 LOCK; LID 1-72558-024-2 02 1 0004- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 9902-0003 ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0004- ● ●
513 BRACKET; RELAY 8-97865-168-2 01 1 9902- ●
513 BRACKET; RELAY
(A) 		1-73907-327-3 01 1 0004- ●
513 BRACKET; RELAY
(B) 		1-73908-009-9 01 1 0004- ●
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 9902- ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0004- ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 9902-0003 ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0004- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9902-0003 ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0004- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9902-0003 ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0004- ● ●
565 BEZEL; SW PANEL 1-72418-021-0 01 1 9902- ●
565 BEZEL; SW PANEL 1-72418-020-0 01 1 9902- ●
565 BEZEL; SW PANEL 1-72418-010-1 01 1 0004- ●
565 BEZEL; SW PANEL 1-72418-011-2 01 1 0004- ●
579 COVER; INST PNL 1-72438-128-1 01 1 9902- ●
579 COVER; INST PNL 1-72437-542-3 01 1 0004- ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9902-0003 ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0004- ● ●
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9902- ●
582 LID; FUSE & RELAY 1-72547-115-8 01 1 0004- ●
595 NUT; HOOK 1-72418-013-0 10 1 9902- ●
595 NUT; HOOK 1-72418-013-0 11 1 0004- ●
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006- ● ●

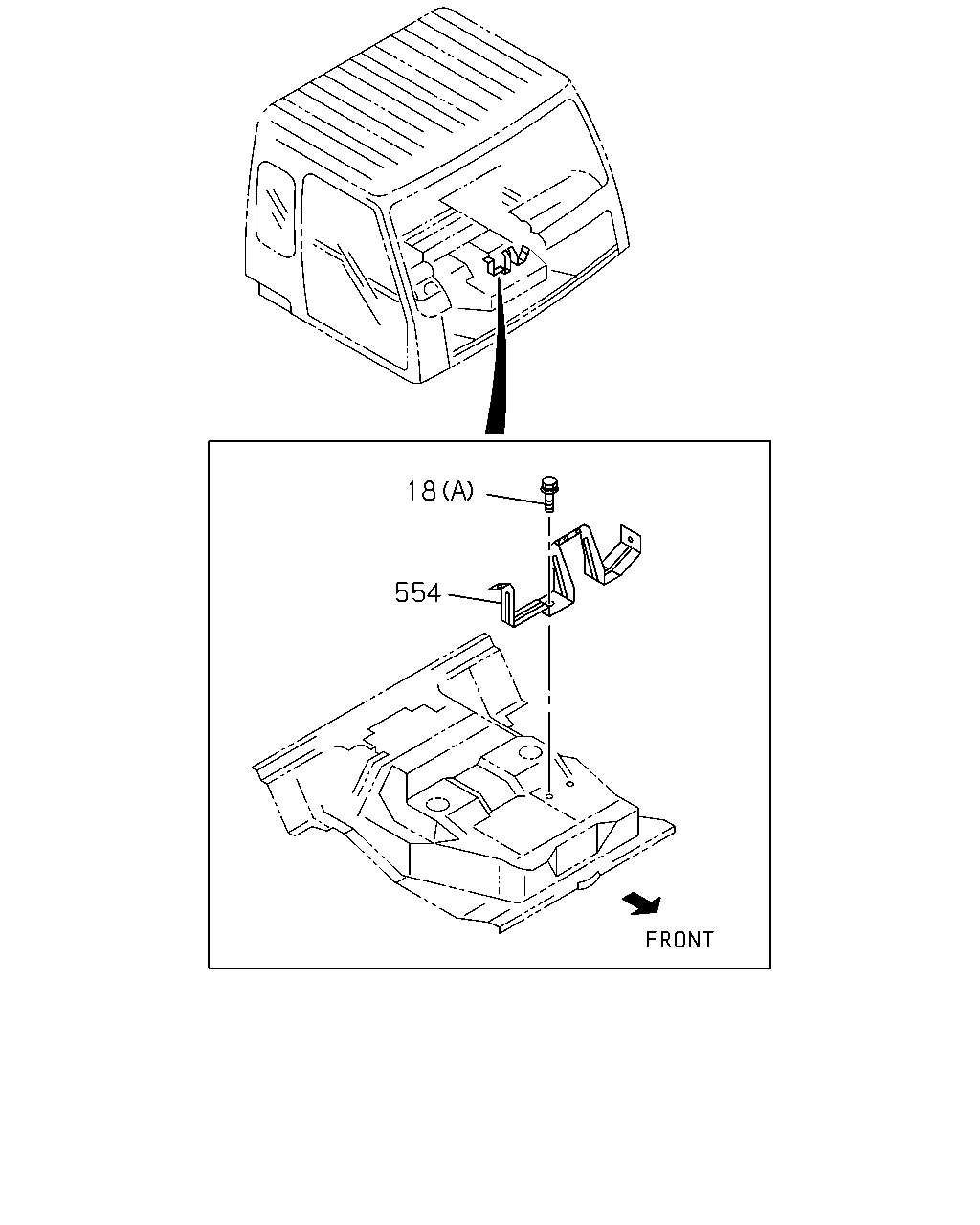

çizim 6775
18 554
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9902- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9902-0003 ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0004- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0004- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0004- ●
554 BRACKET; CENTER BEZEL 1-65671-733-0 01 1 9902- ●
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0004- ●

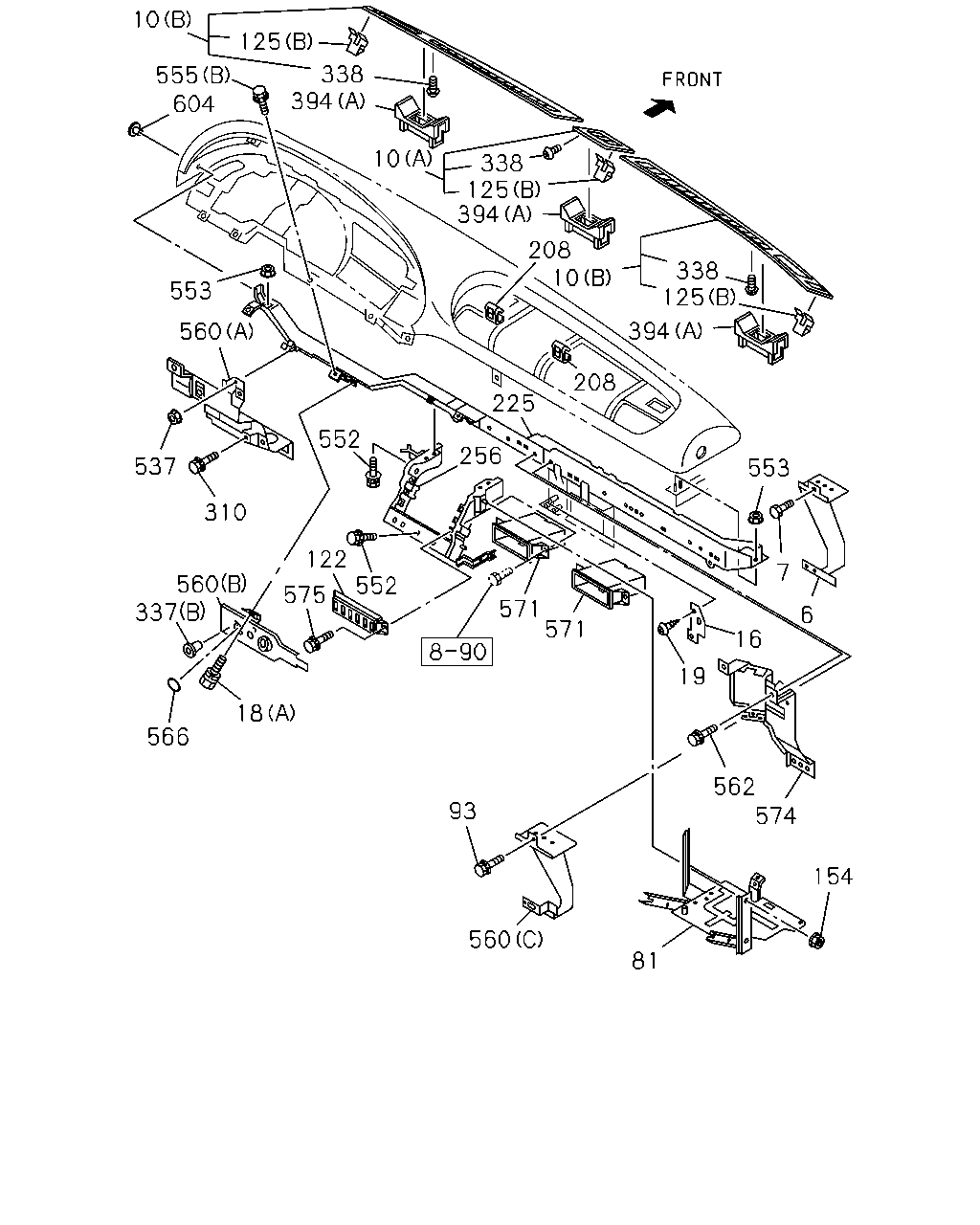

çizim 6899
10 125 338 394 555 604 10 338 125 394 208 10 338 125 553 394 560 208 225 552 256 537 553 310 122 552 575 7 560 337 571 571 6 16 19 18 566 562 93 574 154 560 81
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-062-2 01 1 9902- ●
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-061-2 01 1 9902- ●
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9902- ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 9902- ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 9902- ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 9902- ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-4 01 1 9902-0003 ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-6 01 1 0004- ●
10 PANEL ASM; GARNISH
(A) 		1-72437-540-6 01 1 0004- ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-2 01 1 9902-0003 ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-5 01 1 0004- ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-5 01 1 0004- ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-2 01 1 9902-0003 ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-5 01 1 0004- ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-5 01 1 0004- ●
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 9902-0003 ●
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 0004- ●
16 BRACKET; INST PNL 1-73908-023-2 01 1 0004- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9902- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9902-0003 ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0004- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0004- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0004- ●
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 9902-0003 ●
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 0004- ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0004- ●
81 BRACKET; ELEC CONT UNIT 1-73907-582-7 01 1 9902- ●
81 BRACKET; ELEC CONT UNIT 1-73907-655-5 01 1 0004- ●
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9902- ●
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 9902-0003 ●
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 0004- ● ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9902-0003 ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 0004- ● ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 9902-0003 ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 0004- ● ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 9902-0003 ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0004- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9902-0003 ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0004- ● ●
225 FRAME; FACIA 1-65671-727-3 01 1 9902- ●
225 FRAME; FACIA 1-65671-725-6 01 1 0004- ●
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 9902- ●
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0004- ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9902-0003 ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0004- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 9902- ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9902-0003 ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0004- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 9902- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0004- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0004- ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 9902-0003 ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0004- ●
338 SCREW; COVER
M5X14 		8-94279-325-0 12 1 0004- ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9902-0003 ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0004- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9902-0003 ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0004- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9902-0003 ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0004- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9902-0003 ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0004- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9902-0003 ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0004- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9902-0003 ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0004- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9902-0003 ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0004- ● ●
560 BRACKET
(A) 		1-65681-045-6 01 1 9902- ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65681-160-0 01 1 9902- ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65681-043-2 01 1 9902- ●
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-749-0 01 1 9902- ●
560 BRACKET
(E) 		1-65680-976-2 01 1 0004- ●
560 BRACKET
(D) 		1-65671-760-0 01 1 0004- ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9902-0003 ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0004- ● ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9902- ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0004- ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-1 01 1 9902-0003 ●
571 BEZEL; POCKET 1-72438-151-1 01 1 9902-0003 ●
571 BEZEL; POCKET 1-72438-151-1 01 1 0004- ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-1 01 1 0004- ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-1 01 1 0004- ●
574 PANEL; RELAY BOX 1-73907-407-3 01 1 9902- ●
574 PANEL; RELAY BOX 1-73907-365-6 01 1 0004- ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9902-0003 ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0004- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9902-0003 ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
