◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#77539) — 12 parça

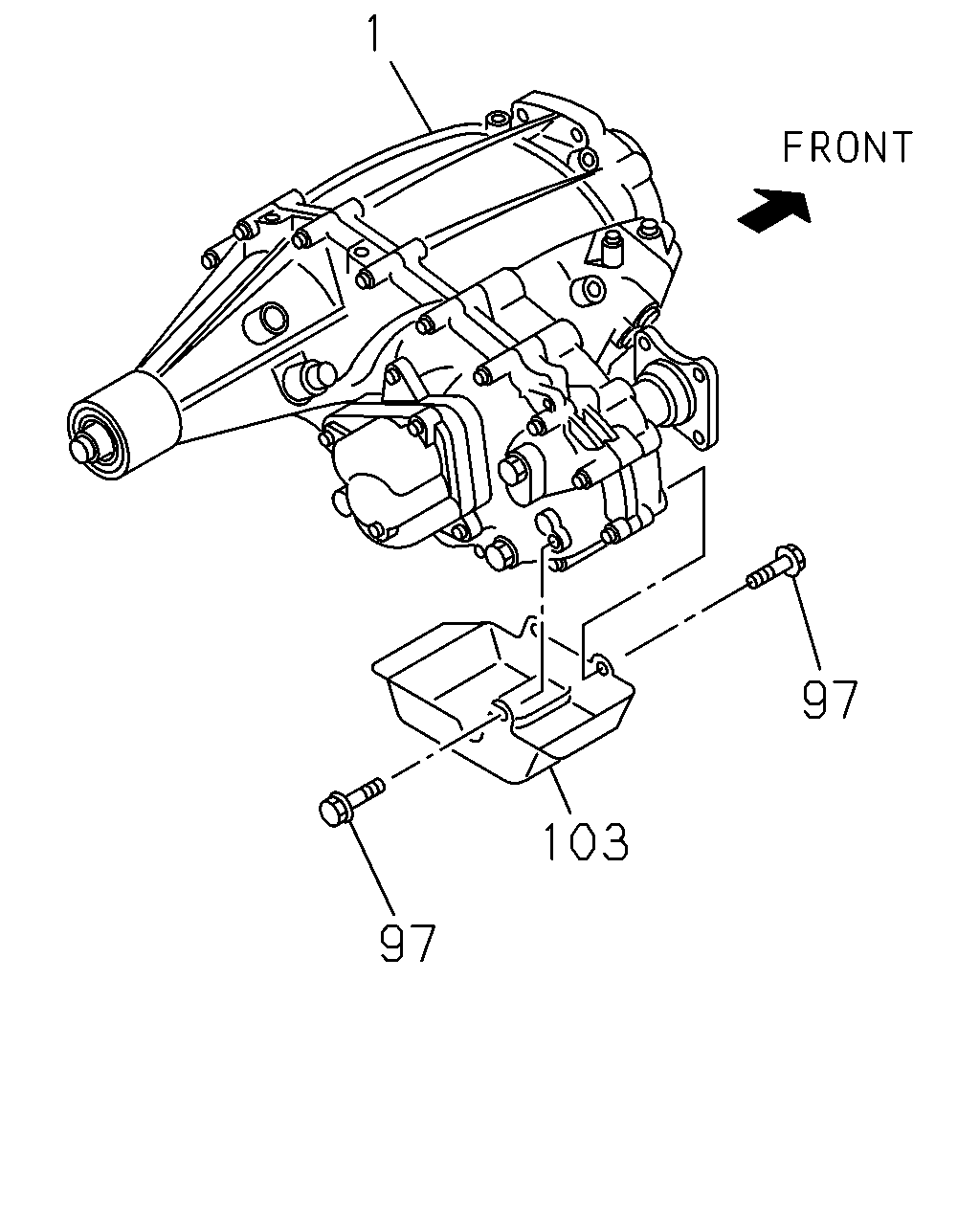

çizim 160458
1 103 97 97
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.505 TRANSFER ASM
C24SE ENG(LG1) FINAL GEAR RATIO 41/9(GT3) 		8-97315-973-0 01 1 0306-0402 ● ●
1 04.505 TRANSFER ASM
C24SE ENG(LG1) FINAL GEAR RATIO 41/9(GT3) 		8-97376-878-0 01 1 0403-0609 ● ●
1 04.505 TRANSFER ASM
C24SE ENG(LG1) FINAL GEAR RATIO 43/9(GT2),FINAL GEAR RATIO 41/9(GT3) 		8-98028-763-0 01 1 0610- ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/9(GT3) 		8-97368-282-0 01 1 0306-0402 ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/9(GT3) 		8-97376-876-0 01 1 0403-0609 ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0) FINAL GEAR RATIO 41/9(GT3) 		8-98028-761-0 01 1 0610- ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16 ALS(QCQ) 		8-98028-761-0 01 1 0610- ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-97368-283-0 01 1 0306-0402 ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-97376-877-0 01 1 0403-0609 ● ●
1 04.505 TRANSFER ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-98028-762-0 01 1 0610- ● ●
97 04.512 BOLT
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0306- ● ●
103 04.510 GUARD; TRANSFER 8-97234-751-0 01 1 0306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
