2-55 — AUTO TRANS SHIFT CONTROL LEVER (#77537) — 73 parça

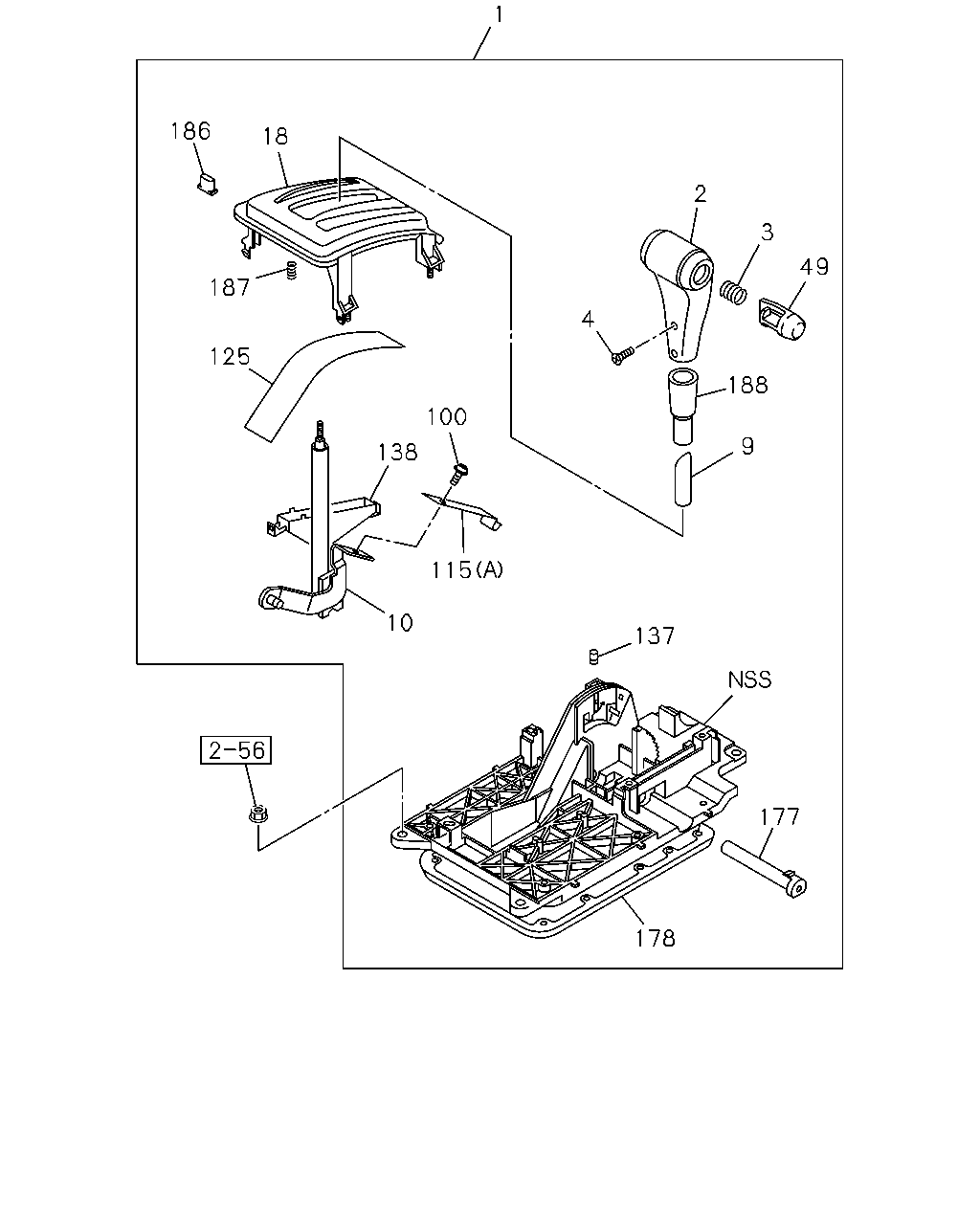

çizim 160399
1 2 3 49 188 9 4 18 186 187 125 138 100 115 10 137 177 178
BalonParca AdiParca NoAdetTipApplied Date
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97391-005-1 01 1 0306-0511
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97404-467-0 01 1 0512-0609
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97403-672-1 01 1 0610-1003
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97418-507-0 01 1 1004-
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97391-002-1 01 1 0306-0511
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97404-466-0 01 1 0512-0609
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97403-643-0 01 1 0610-1003
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97418-607-0 01 1 1004-
2 04.006 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97394-407-0 01 1 0306-0609
2 04.006 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97408-716-0 01 1 0610-
2 04.006 KNOB ASM; AUTO CONT LEVER
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97394-406-0 01 1 0306-0609
2 04.006 KNOB ASM; AUTO CONT LEVER
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97422-099-0 01 1 0610-
3 04.008 SPRING; RETURN,KNOB 8-97332-979-0 01 1 0306-
4 04.006 SCREW; KNOB TO LEVER 8-97332-950-0 02 1 0306-
9 04.006 SLEEVE; KNOB,SHIFT LEVER 8-97332-980-0 01 1 0306-
10 04.006 LEVER; A/T CONT 8-97332-987-0 01 1 0306-0609
10 04.006 LEVER; A/T CONT 8-98032-565-0 01 1 0610-
18 04.020 COVER; INDICATOR,UPR
DARK GRAY 		8-97394-404-0 01 1 0306-0609
18 04.020 COVER; INDICATOR,UPR
LIGHT GRAY 		8-97407-871-0 01 1 0610-
49 04.006 BUTTON; PUSH,KNOB
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97418-669-0 01 1 0610-
49 04.006 BUTTON; PUSH,KNOB
DARK GRAY 		8-97394-405-0 01 1 0306-0609
49 04.006 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> 		8-98032-542-0 01 1 0610-
100 04.012 SCREW 8-97332-953-0 01 1 0306-
115 04.008 PLATE; SPR,LEVER
(A) 		8-97332-936-0 01 1 0306-
115 04.008 PLATE; SPR,LEVER
(B) 		8-97332-939-0 01 1 0306-0609
125 04.020 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> 		8-98052-035-0 01 1 0610-
125 04.020 COVER; SHIFT LEVER 8-97332-934-0 01 1 0306-0609
125 04.020 COVER; SHIFT LEVER
EXC. SHIFT KNOB LEATHER<VY7> 		8-97332-934-0 01 1 0610-
137 04.010 CUSHION 8-97332-938-0 03 1 0306-
138 04.030 BOX; LAMP 8-97332-976-0 01 1 0306-0609
138 04.030 BOX; LAMP 8-98032-537-0 01 1 0610-
177 04.040 SHAFT; SHIFT LEVER,A/T 8-97332-952-0 01 1 0306-
178 04.008 SHEET; SHIFT LEVER 8-97332-935-0 01 1 0306-
186 04.006 BUTTON; SHIFT LOCK
DARK GRAY 		8-97407-872-0 01 1 0610-
187 04.008 SPRING; RETURN,SHIFT 8-98032-566-0 01 1 0610-
188 04.008 COVER; KNOB
SHIFT KNOB LEATHER<VY7> 		8-98032-557-0 01 1 0610-

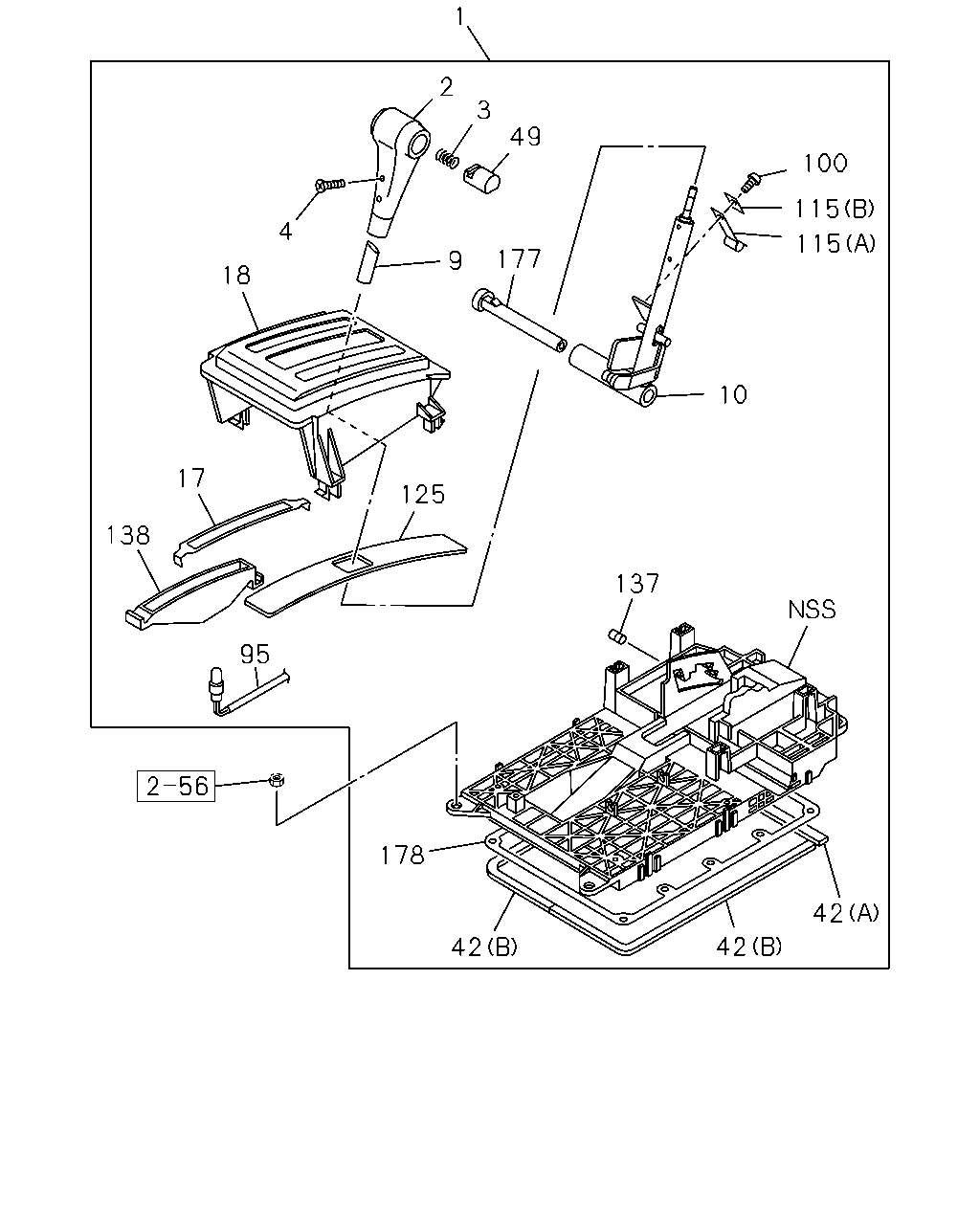

çizim 160408
1 2 3 49 177 9 4 18 17 138 95 125 137 10 178 42 42 42 115 115 100
BalonParca AdiParca NoAdetTipApplied Date
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97391-005-1 01 1 0306-0511
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97404-467-0 01 1 0512-0609
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97403-672-1 01 1 0610-1003
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97418-507-0 01 1 1004-
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97391-002-1 01 1 0306-0511
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97404-466-0 01 1 0512-0609
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97403-643-0 01 1 0610-1003
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97418-607-0 01 1 1004-
2 04.006 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97394-407-0 01 1 0306-0609
2 04.006 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97408-716-0 01 1 0610-
2 04.006 KNOB ASM; AUTO CONT LEVER
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97394-406-0 01 1 0306-0609
2 04.006 KNOB ASM; AUTO CONT LEVER
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97422-099-0 01 1 0610-
3 04.008 SPRING; RETURN,KNOB 8-97332-979-0 01 1 0306-
4 04.006 SCREW; KNOB TO LEVER 8-97332-950-0 02 1 0306-
9 04.006 SLEEVE; KNOB,SHIFT LEVER 8-97332-980-0 01 1 0306-
10 04.006 LEVER; A/T CONT 8-97332-987-0 01 1 0306-0609
10 04.006 LEVER; A/T CONT 8-98032-565-0 01 1 0610-
17 04.020 PLATE; INDICATOR 8-97332-933-0 01 1 0306-0609
18 04.020 COVER; INDICATOR,UPR
DARK GRAY 		8-97394-404-0 01 1 0306-0609
18 04.020 COVER; INDICATOR,UPR
LIGHT GRAY 		8-97407-871-0 01 1 0610-
42 04.057 SEAL; RUBBER
(A) 		8-97332-954-0 01 1 0306-0511
42 04.057 SEAL; RUBBER
(B) 		8-97332-955-0 02 1 0306-0511
49 04.006 BUTTON; PUSH,KNOB
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97418-669-0 01 1 0610-
49 04.006 BUTTON; PUSH,KNOB
DARK GRAY 		8-97394-405-0 01 1 0306-0609
49 04.006 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> 		8-98032-542-0 01 1 0610-
95 04.006 LAMP; INDICATOR 8-97332-981-0 01 1 0306-0609
100 04.012 SCREW 8-97332-953-0 01 1 0306-
115 04.008 PLATE; SPR,LEVER
(A) 		8-97332-936-0 01 1 0306-
115 04.008 PLATE; SPR,LEVER
(B) 		8-97332-939-0 01 1 0306-0609
125 04.020 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> 		8-98052-035-0 01 1 0610-
125 04.020 COVER; SHIFT LEVER 8-97332-934-0 01 1 0306-0609
125 04.020 COVER; SHIFT LEVER
EXC. SHIFT KNOB LEATHER<VY7> 		8-97332-934-0 01 1 0610-
137 04.010 CUSHION 8-97332-938-0 03 1 0306-
138 04.030 BOX; LAMP 8-97332-976-0 01 1 0306-0609
138 04.030 BOX; LAMP 8-98032-537-0 01 1 0610-
177 04.040 SHAFT; SHIFT LEVER,A/T 8-97332-952-0 01 1 0306-
178 04.008 SHEET; SHIFT LEVER 8-97332-935-0 01 1 0306-
