2-53 — TRANSMISSION OIL COOLER SYSTEM (#77536) — 43 parça

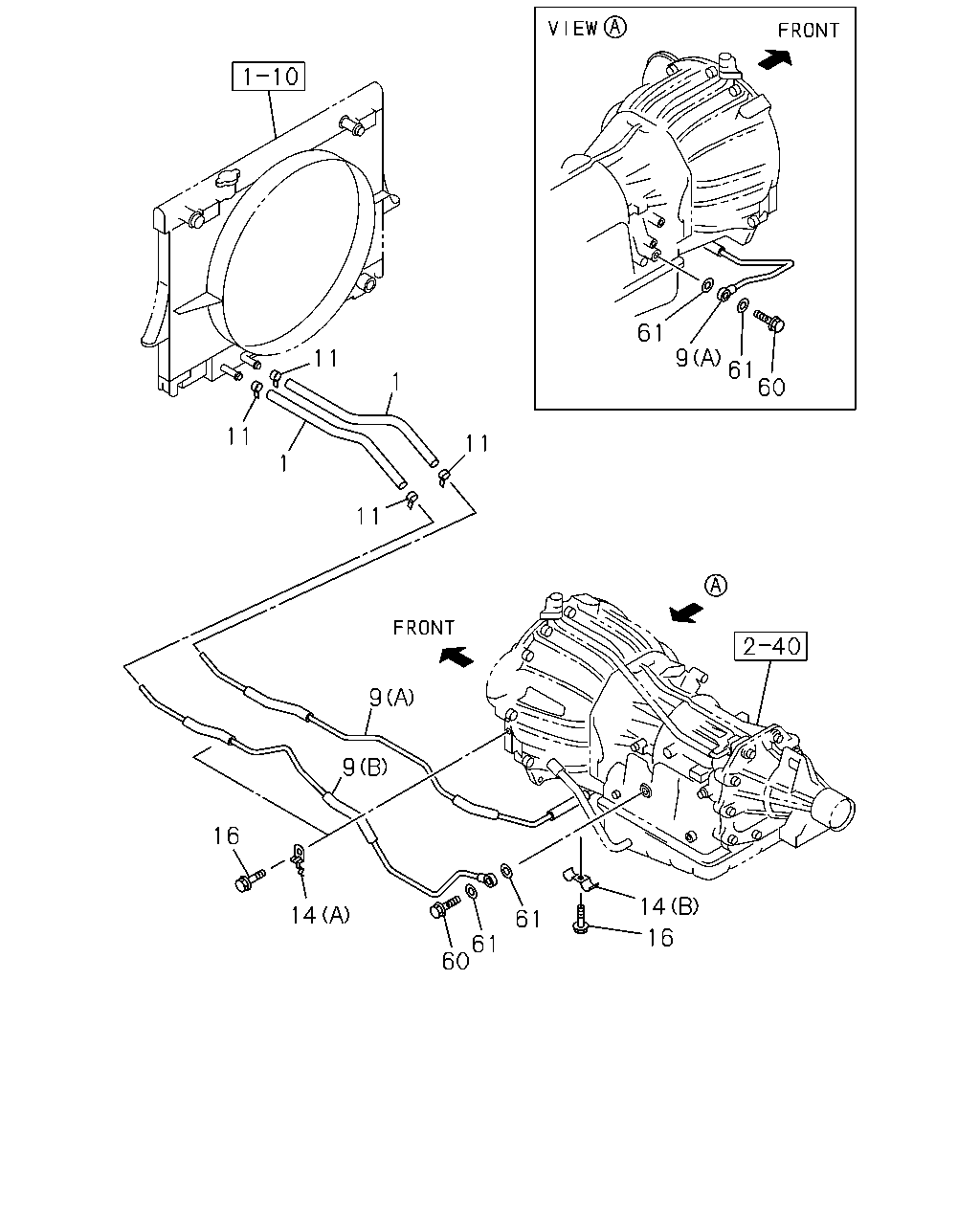

61 9 61 60 14 11 16 11 11 1 1 11 14 16 9 9 14 16 15 61 9 61 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF 4JH1-TC ENG(RDM) L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0306-0609
1	04.128 HOSE; ATF 4JJ1-TCS ENG(LFB) L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0610-
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (A)	8-97941-850-0	01	1	0306-0306
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (A)	8-97368-297-0	01	1	0307-0609
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (C)	8-97363-584-1	01	1	0610-0712
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (C)	8-97946-403-0	01	1	0801-
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (B)	8-97941-851-2	01	1	0306-0306
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (B)	8-97368-298-0	01	1	0307-0609
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (D)	8-97363-585-2	01	1	0610-0712
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (D)	8-97946-404-0	01	1	0801-
11	04.128 CLIP; PIPE 4JH1-TC ENG(RDM) 00.034 ID=13.5	8-97015-754-1	04	1	0306-0609
11	04.128 CLIP; PIPE 4JJ1-TCS ENG(LFB)	8-98008-165-0	04	1	0610-
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-TC ENG(RDM) (B)	8-94334-345-1	01	1	0306-0609
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG(LFB) (C)	8-98008-163-0	03	1	0610-
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-TC ENG(RDM) (A)	8-97062-040-0	02	1	0306-0609
15	04.128 BRACKET; ATF PIPE 4JJ1-TCS ENG(LFB)	8-98050-694-0	01	1	0610-
16	04.128 BOLT; CLIP,ENG SIDE 4JH1-TC ENG(RDM) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0306-0609
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0610-
60	04.128 BOLT; EYE,ATF PIPE 4JH1-TC ENG(RDM)	1-09675-033-0	02	1	0306-0609
60	04.128 BOLT; EYE,ATF PIPE 4JJ1-TCS ENG(LFB)	1-09675-033-0	02	1	0610-
61	04.128 GASKET; EYE BOLT,ATF PIPE 4JH1-TC ENG(RDM) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0306-0609
61	04.128 GASKET; EYE BOLT,ATF PIPE 4JJ1-TCS ENG(LFB) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0610-

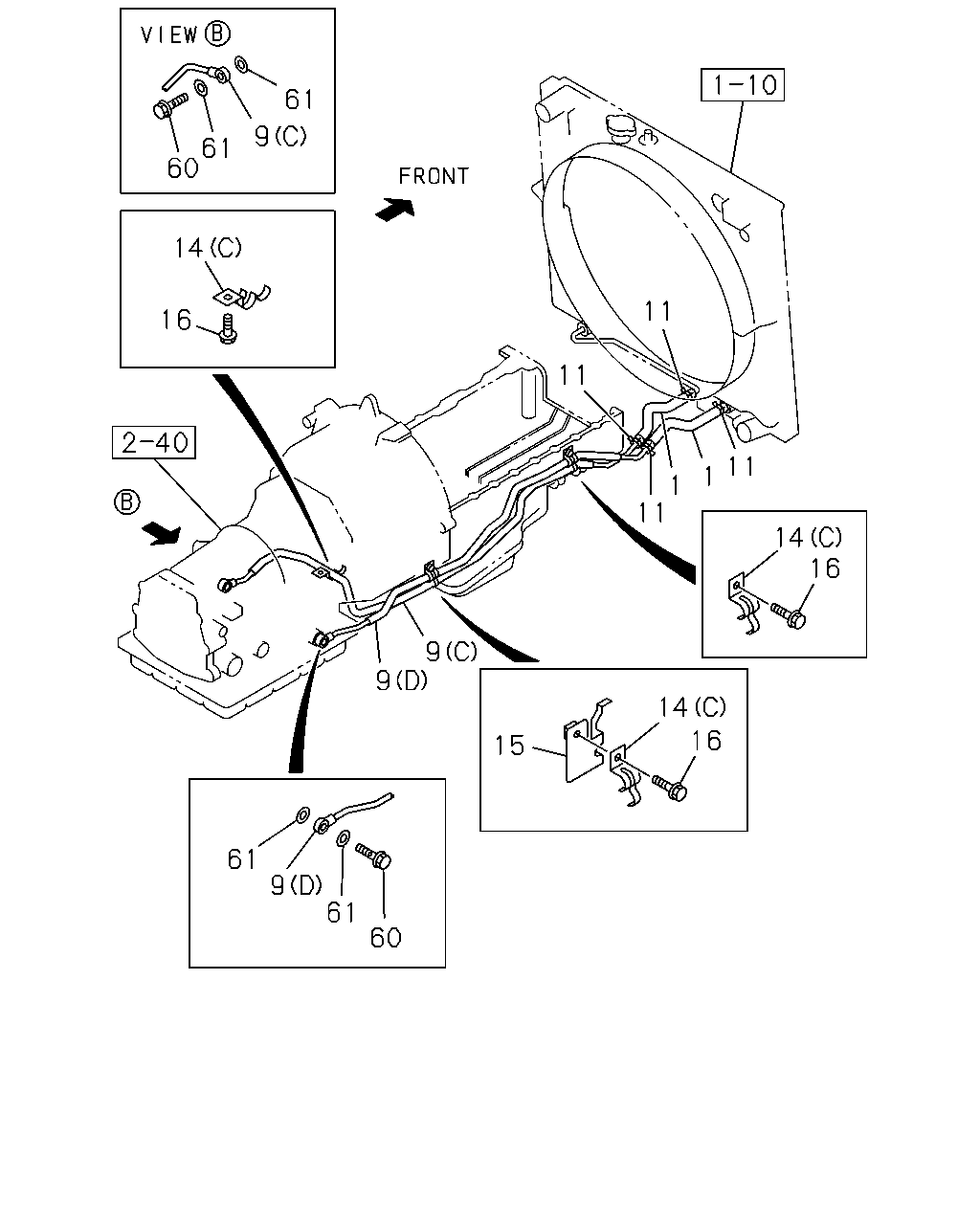

61 9 11 61 60 1 11 11 1 11 9 9 16 14 14 61 16 61 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF 4JH1-TC ENG(RDM) L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0306-0609
1	04.128 HOSE; ATF 4JJ1-TCS ENG(LFB) L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0610-
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (A)	8-97941-850-0	01	1	0306-0306
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (A)	8-97368-297-0	01	1	0307-0609
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (C)	8-97363-584-1	01	1	0610-0712
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (C)	8-97946-403-0	01	1	0801-
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (B)	8-97941-851-2	01	1	0306-0306
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (B)	8-97368-298-0	01	1	0307-0609
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (D)	8-97363-585-2	01	1	0610-0712
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (D)	8-97946-404-0	01	1	0801-
11	04.128 CLIP; PIPE 4JH1-TC ENG(RDM) 00.034 ID=13.5	8-97015-754-1	04	1	0306-0609
11	04.128 CLIP; PIPE 4JJ1-TCS ENG(LFB)	8-98008-165-0	04	1	0610-
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-TC ENG(RDM) (B)	8-94334-345-1	01	1	0306-0609
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG(LFB) (C)	8-98008-163-0	03	1	0610-
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-TC ENG(RDM) (A)	8-97062-040-0	02	1	0306-0609
16	04.128 BOLT; CLIP,ENG SIDE 4JH1-TC ENG(RDM) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0306-0609
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0610-
60	04.128 BOLT; EYE,ATF PIPE 4JH1-TC ENG(RDM)	1-09675-033-0	02	1	0306-0609
60	04.128 BOLT; EYE,ATF PIPE 4JJ1-TCS ENG(LFB)	1-09675-033-0	02	1	0610-
61	04.128 GASKET; EYE BOLT,ATF PIPE 4JH1-TC ENG(RDM) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0306-0609
61	04.128 GASKET; EYE BOLT,ATF PIPE 4JJ1-TCS ENG(LFB) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0610-
