Isuzu WW
▶
PICKUP
▶
TFR
▶
51277 - TFR/TFS MIDDLE EAST
▶
2 - Clutch, Transmission, Trans Axle
▶
2-49 - AUTO TRANS INHIBITOR SWITCH
▶

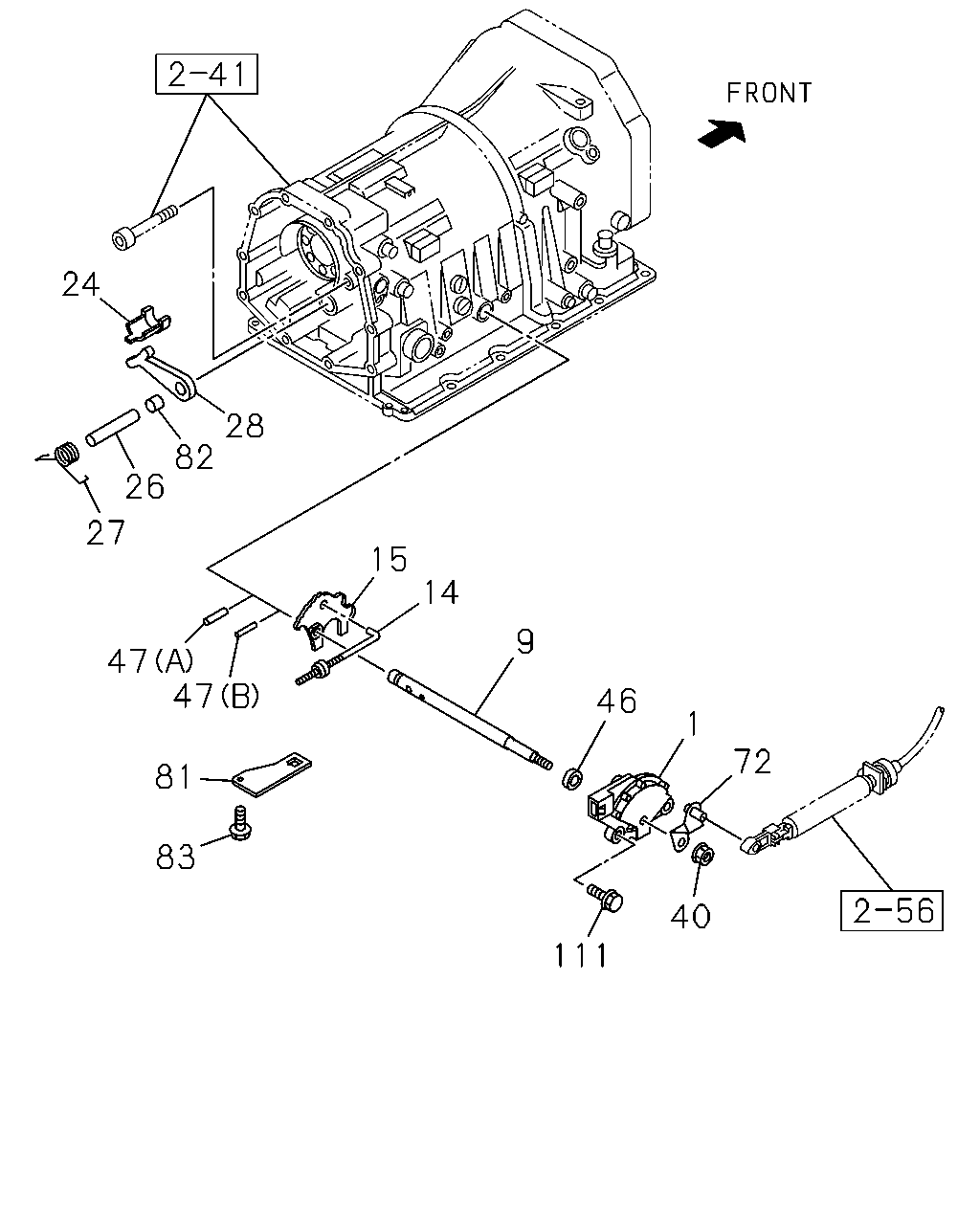

2-49 — AUTO TRANS INHIBITOR SWITCH
(#77534) — 21 parça
24
28
82
26
27
15
14
9
47
47
46
1
72
81
83
40
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.054 SWITCH; INHIBITOR,A/T
8-97331-105-0
01
1
0306-
9
04.275 SHAFT; MANUAL,A/T
8-97331-106-0
01
1
0306-
14
04.290 ROD ASM; PARKING,A/T
8-97331-114-0
01
1
0306-
15
04.275 PLATE; MANUAL SHAFT,A/T
8-97331-107-0
01
1
0306-
24
04.290 SUPPORT; ACTUATOR,A/T
8-97331-116-0
01
1
0306-0711
24
04.290 SUPPORT; ACTUATOR,A/T
8-98126-857-0
01
1
0712-
26
04.294 SHAFT; PARKING PAWL,A/T
8-97331-117-0
01
1
0306-
27
04.295 SPRING; PAWL RETURN,A/T
8-97331-118-0
01
1
0306-
28
04.294 PAWL; PARKING,A/T
8-97331-119-0
01
1
0306-0711
28
04.294 PAWL; PARKING,A/T
8-98126-855-0
01
1
0712-
40
04.037 NUT; LEVER TO SHAFT
4JH1-TC ENG(RDM) 03.162 M10 FLANGE
0-91180-110-0
01
1
0306-0609
40
04.037 NUT; LEVER TO SHAFT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE
0-91180-110-0
01
1
0610-
46
04.282 SEAL; OIL
8-97330-908-0
01
1
0306-
47
04.275 PIN; ROLL SHAFT
(A)
8-97331-125-0
01
1
0306-
47
04.275 PIN; ROLL SHAFT
(B)
8-97331-126-0
01
1
0306-
72
04.035 LEVER; SELECT CONT
4JH1-TC ENG(RDM)
8-97231-904-1
01
1
0306-0609
72
04.035 LEVER; SELECT CONT
4JJ1-TCS ENG(LFB)
8-97231-904-1
01
1
0610-
81
04.293 SPRING; DETENT,MANUAL CONT PLATE
8-97331-113-0
01
1
0306-
82
02.559 SPACER; DETENT SPRING
8-97330-950-0
01
1
0306-
83
04.169 SCREW; DETENT SPRING,MANUAL CONT
8-97331-124-0
01
1
0306-0711
111
02.559 BOLT; INHIBITOR SW
8-97331-127-0
02
1
0306-
