◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#77533) — 66 parça

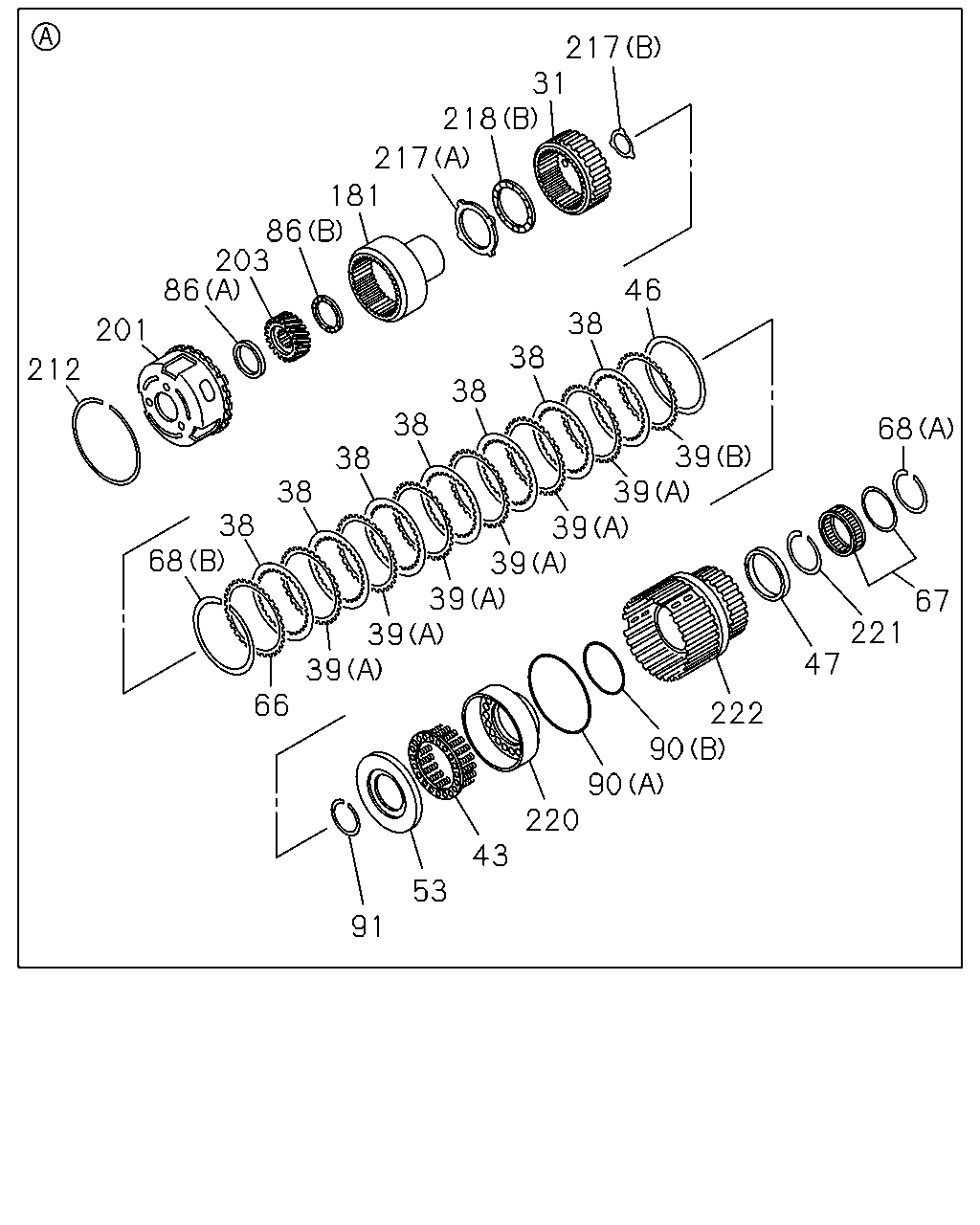

çizim 160410
217 31 218 217 181 86 203 86 46 38 201 38 212 38 38 68 39 39 39 39 39 39 39 38 38 38 68 67 221 47 66 222 90 90 220 43 53 91
BalonParca AdiParca NoAdetTipApplied Date
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-97330-953-0 01 1 0306-
38 04.163 PLATE; DRIVE,LOW & REV,A/T 8-97330-998-0 07 1 0306-0711
38 04.163 PLATE; DRIVE,LOW & REV,A/T 8-98126-848-0 07 1 0712-
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
(B) 		8-97331-008-0 01 1 0306-0711
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
(A) 		8-97331-005-0 06 1 0306-0711
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
(A) 		8-97331-005-0 07 1 0712-
43 04.164 SPRING; PISTON RETURN,A/T 8-97330-981-0 01 1 0306-
46 04.164 PLATE; DISHED,LOW & REV,A/T 8-97331-004-0 01 1 0306-
47 04.176 BEARING; NEEDLE,LOW & REV 8-97330-954-0 01 1 0306-
53 04.180 RETAINER; LOW & REV,CLU SPR 8-97331-041-0 01 1 0306-
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=3.8 		8-97331-010-0 01 1 0306-
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.0 		8-97331-011-0 01 1 0306-
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.2 		8-97331-012-0 01 1 0306-
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.4 		8-97331-013-0 01 1 0306-
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.6 		8-97331-014-0 01 1 0306-
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.8 		8-97331-024-0 01 1 0306-
67 04.164 CLUTCH ASM; ONEWAY,LOW & REV,A/T 8-97330-959-0 01 1 0306-
68 04.164 RING; SNAP,CLU,LOW & REV,A/T
(A) 		8-97330-965-0 01 1 0306-
68 04.164 RING; SNAP,CLU,LOW & REV,A/T
(B) 		8-97330-966-0 01 1 0306-
86 04.166 BEARING; THRUST,SUN GEAR
(A) 		8-97330-919-0 01 1 0306-
86 04.166 BEARING; THRUST,SUN GEAR
(B) 		8-97330-920-0 01 1 0306-
86 04.166 BEARING; THRUST,SUN GEAR
(C) 		8-97330-926-0 01 1 0306-0711
86 04.166 BEARING; THRUST,SUN GEAR
(C) 		8-97374-016-0 01 1 0712-
90 04.166 SEAL; PISTON,LOW & REV
(A) 		8-97330-990-0 01 1 0306-
90 04.166 SEAL; PISTON,LOW & REV
(B) 		8-97330-991-0 01 1 0306-
91 04.166 RING; SNAP,SPRING RET 8-97330-969-0 01 1 0306-
181 04.176 CARRIER ASM; RR PLANETARY,A/T 8-97330-952-0 01 1 0306-
201 04.176 CARRIER; PLANETARY 8-97357-797-0 01 1 0306-
203 04.166 GEAR; SUN 8-97330-956-0 01 1 0306-
212 04.166 RING; SNAP,PLANETARY CARRIER 8-97330-967-0 01 1 0306-
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
(A) 		8-97330-939-0 01 1 0306-
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
(B) 		8-97330-947-0 01 1 0306-
218 04.164 BEARING; THRUST,INTERNAL GEAR
(A) 		8-97330-928-0 01 1 0306-
218 04.164 BEARING; THRUST,INTERNAL GEAR
(B) 		8-97330-938-0 01 1 0306-
220 04.264 PISTON; LOW CLUTCH 8-97331-040-0 01 1 0306-0711
220 04.264 PISTON; LOW CLUTCH 8-97374-932-0 01 1 0712-
221 04.166 RING; SNAP,BRG,LOW CLUTCH
04.180 		8-94483-379-0 01 1 0306-
222 04.164 DRUM; LOW CLUTCH 8-97331-039-0 01 1 0306-

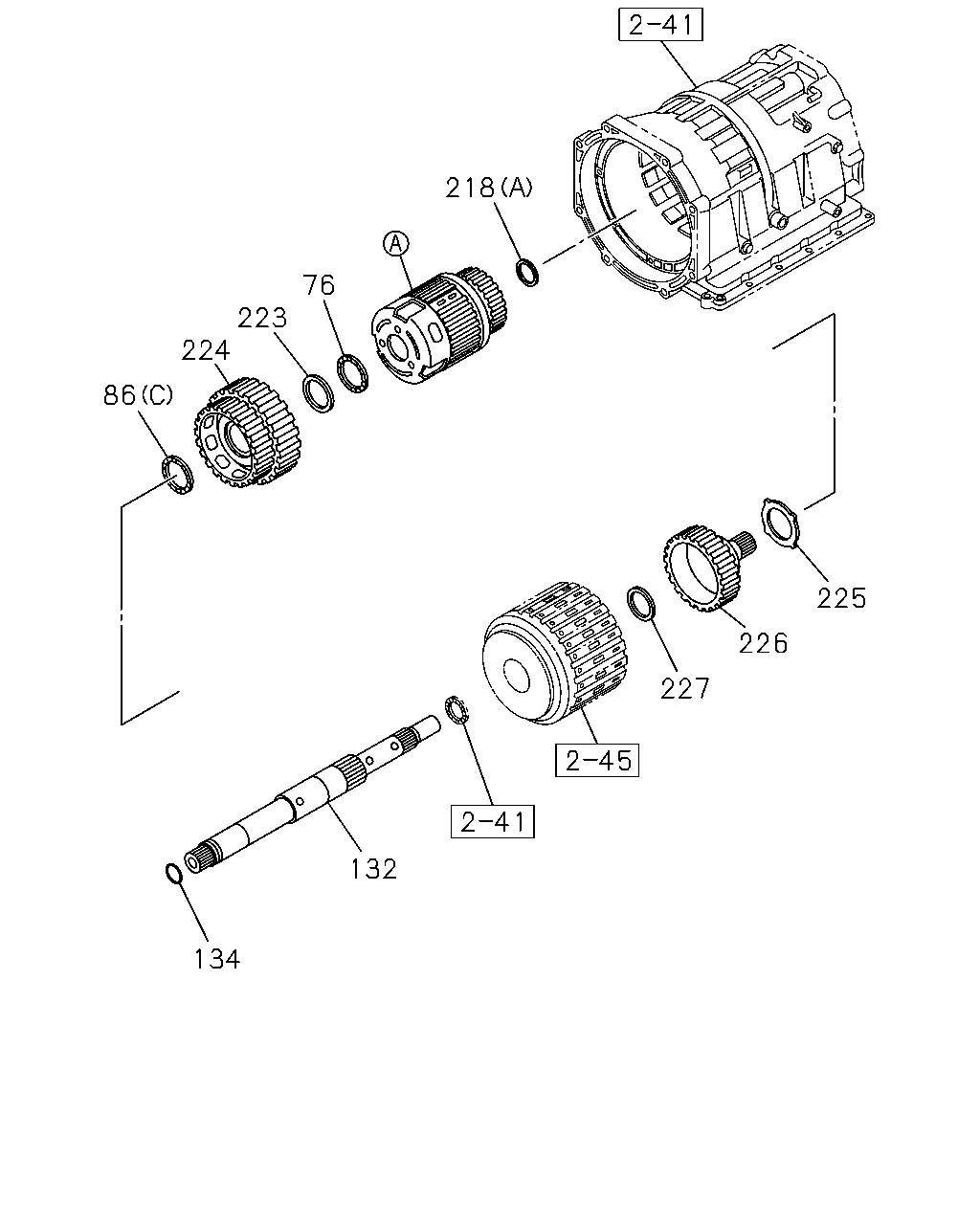

çizim 160418
218 76 223 224 86 225 226 227 132 134
BalonParca AdiParca NoAdetTipApplied Date
76 04.164 BEARING; THRUST,CARRIER 8-97330-927-0 01 1 0306-
86 04.166 BEARING; THRUST,SUN GEAR
(A) 		8-97330-919-0 01 1 0306-
86 04.166 BEARING; THRUST,SUN GEAR
(B) 		8-97330-920-0 01 1 0306-
86 04.166 BEARING; THRUST,SUN GEAR
(C) 		8-97330-926-0 01 1 0306-0711
86 04.166 BEARING; THRUST,SUN GEAR
(C) 		8-97374-016-0 01 1 0712-
132 04.123 SHAFT; INPUT,A/T 8-97330-931-0 01 1 0306-
134 04.166 SEAL; INPUT SHAFT,FRT 8-97331-697-0 01 1 0306-
218 04.164 BEARING; THRUST,INTERNAL GEAR
(A) 		8-97330-928-0 01 1 0306-
218 04.164 BEARING; THRUST,INTERNAL GEAR
(B) 		8-97330-938-0 01 1 0306-
223 04.164 RACE; BRG,CARRIER 8-97330-946-0 01 1 0306-
224 04.164 GEAR ASM; SUN,FRT 8-97357-796-0 01 1 0306-0711
224 04.164 GEAR ASM; SUN,FRT 8-97374-015-0 01 1 0712-
225 04.164 RACE; BRG,SUN GEAR 8-97330-949-0 01 1 0306-
226 04.164 HUB; HIGH CLUTCH 8-97331-038-0 01 1 0306-
227 04.164 BEARING; HUB,HIGH CLUTCH 8-97330-925-0 01 1 0306-

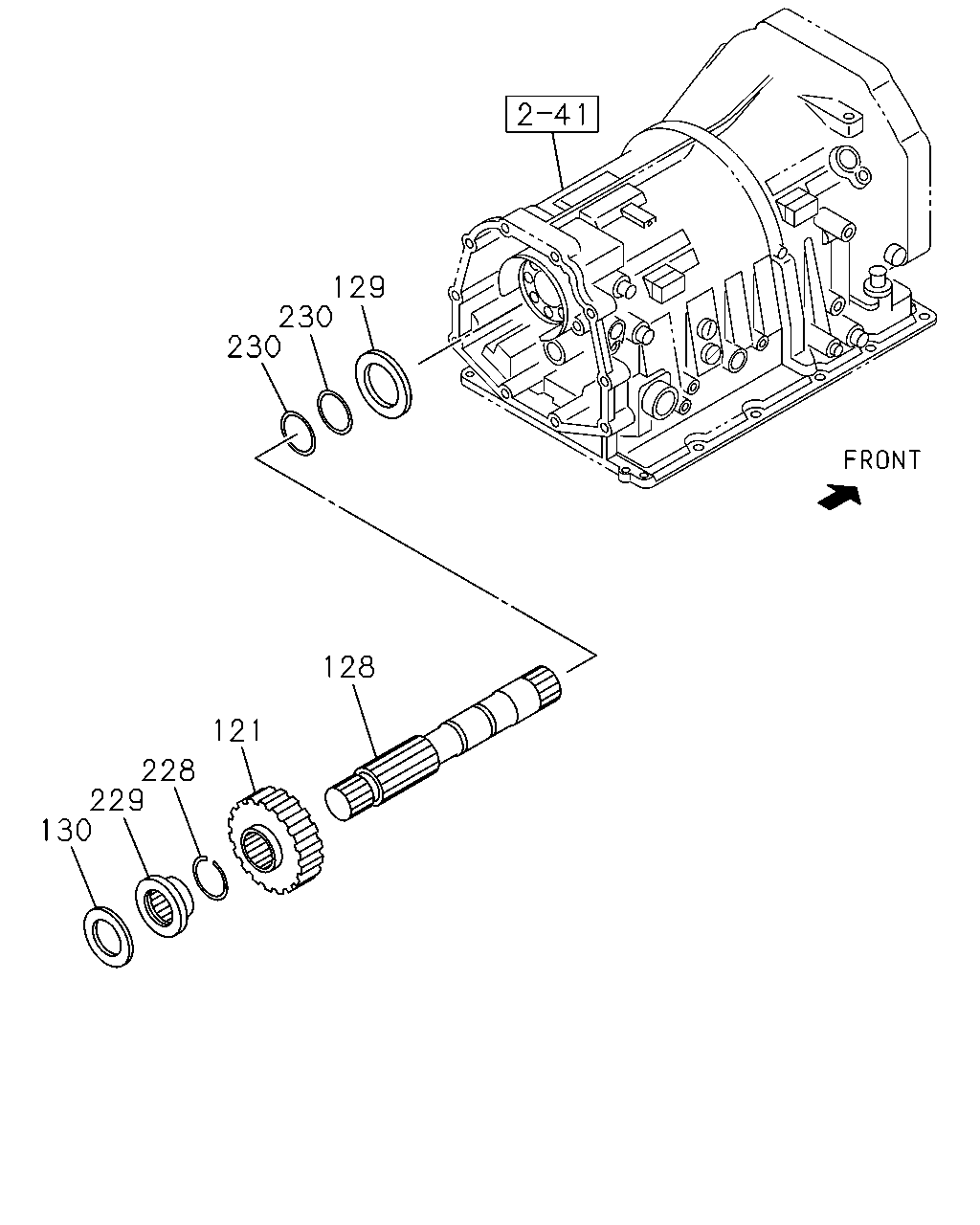

çizim 160456
129 230 230 128 121 228 229 130
BalonParca AdiParca NoAdetTipApplied Date
121 04.162 GEAR; PARKING LK,A/T 8-97330-962-0 01 1 0306-
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 4JH1-TC ENG(RDM) 		8-97330-960-0 01 1 0306-0609
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB) 		8-97330-960-0 01 1 0610-
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 4JH1-TC ENG(RDM) 		8-97330-961-0 01 1 0306-0609
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB) 		8-97330-961-0 01 1 0610-
129 04.176 BEARING; OUTPUT SHAFT,FRT,A/T 8-97330-918-0 01 1 0306-
130 04.176 BEARING; OUTPUT SHAFT,RR,A/T 8-97330-918-0 01 1 0306-
228 04.166 RING; SNAP,OUTPUT SHAFT
4X2(TFB***) 4JH1-TC ENG(RDM) 		8-97330-963-0 02 1 0306-0609
228 04.166 RING; SNAP,OUTPUT SHAFT
4X2(TFB***) 4JJ1-TCS ENG(LFB) 		8-97330-963-0 02 1 0610-
228 04.166 RING; SNAP,OUTPUT SHAFT
4X4(TFS***) 4JH1-TC ENG(RDM) 		8-97330-963-0 01 1 0306-0609
228 04.166 RING; SNAP,OUTPUT SHAFT
4X4(TFS***) 4JJ1-TCS ENG(LFB) 		8-97330-963-0 01 1 0610-
229 04.176 SPACER; OUTPUT SHAFT 8-97330-951-0 01 1 0306-
230 04.166 RING; SEAL,OUTPUT SHAFT 8-97330-983-0 02 1 0306-
