2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#77530) — 34 parça

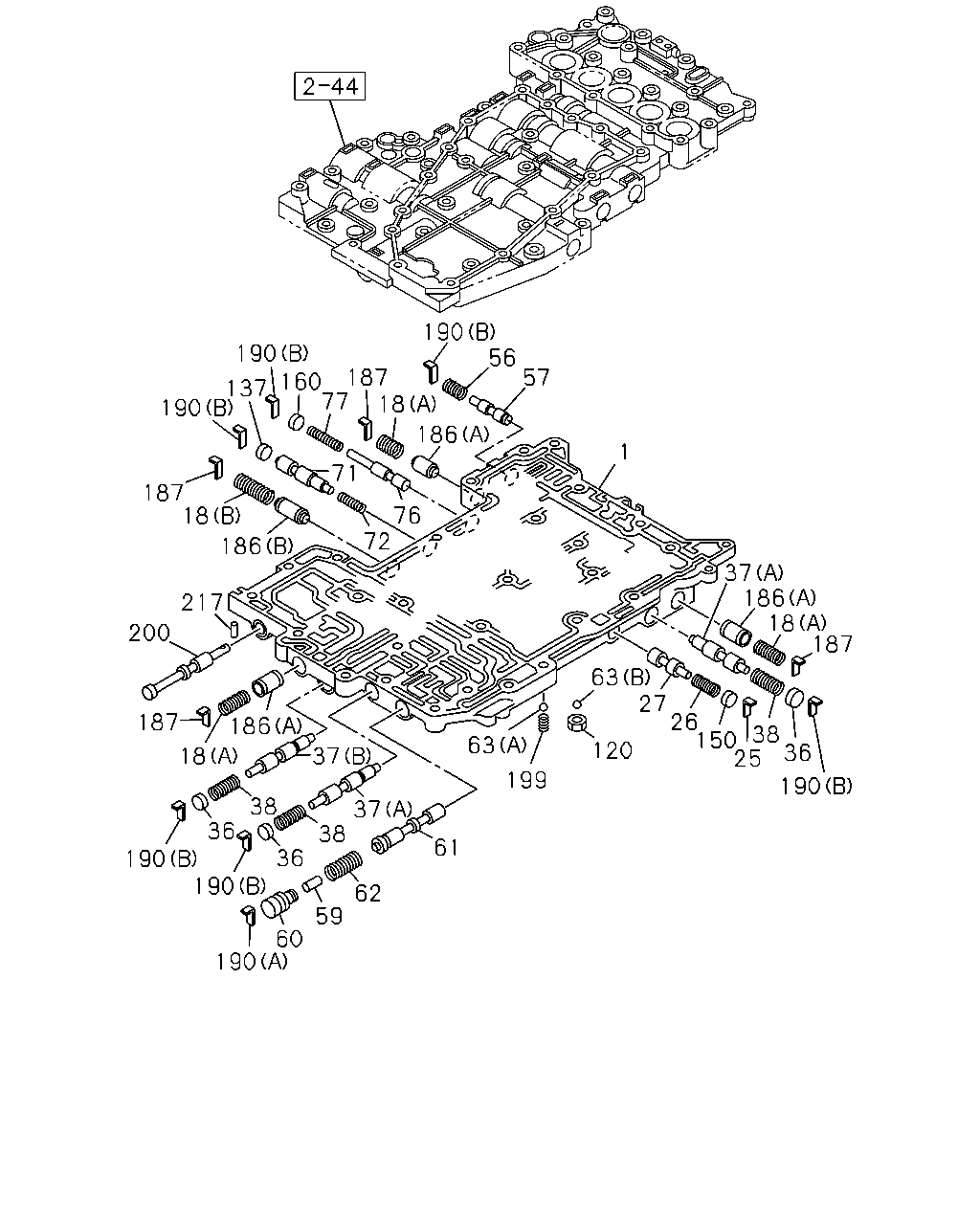

çizim 160435
190 56 57 190 187 160 77 18 137 190 186 1 71 187 18 76 72 186 37 186 18 187 217 200 63 27 26 38 150 36 25 186 187 37 63 120 18 199 190 38 37 38 62 36 61 36 190 190 59 60 190
BalonParca AdiParca NoAdetTipApplied Date
1 04.265 BODY ASM; UPR,VALVE,A/T 8-97331-058-0 01 1 0306-
18 04.265 SPRING; ACCUMLATOR CONT VLV
04.246 (A) 		8-97092-821-0 03 1 0306-
18 04.265 SPRING; ACCUMLATOR CONT VLV
(B) 		8-97331-077-0 01 1 0306-
25 04.265 PLATE; RET,SHIFT CONT VLV 8-97331-080-0 01 1 0306-
26 04.265 SPRING; SHIFT CONT VLV 8-97331-076-0 01 1 0306-
27 04.265 VALVE; SHIFT CONT,UPR BODY 8-97331-084-0 01 1 0306-
36 04.265 PLUG; SPOOL CONT VLV,UPR BODY 8-97331-098-0 03 1 0306-
37 04.265 VALVE; SPOOL CONT,UPR BODY
(A) 		8-97331-086-0 02 1 0306-
37 04.265 VALVE; SPOOL CONT,UPR BODY
(B) 		8-97331-090-0 01 1 0306-
38 04.265 SPRING; SPOOL CONT VLV 8-97331-068-0 03 1 0306-
56 04.265 SPRING; PILOT VALVE,SPOOL CONT 8-97331-066-0 01 1 0306-
57 04.265 VALVE; PILOT,SPOOL CONT 8-97331-088-0 01 1 0306-
59 04.265 SLEEVE; LOCKUP CONT VALVE 8-97331-095-0 01 1 0306-
60 04.265 PLUG; LOCKUP CONT VALVE 8-97331-094-0 01 1 0306-
61 04.265 VALVE; LOCKUP CONT,UPR BODY 8-97331-093-0 01 1 0306-
62 04.265 SPRING; LOCKUP CONT VALVE 8-97331-067-0 01 1 0306-
63 04.265 BALL; STEEL,VLV UPR,A/T
(A) 		8-97135-609-0 10 1 0306-
63 04.265 BALL; STEEL,VLV UPR,A/T
(B) 		8-97331-092-0 01 1 0306-
71 04.265 VALVE; LOW,VLV UPR RR,A/T 8-97331-082-0 01 1 0306-
72 04.265 SPRING; VLV LOW,VLV UPR RR,A/T 8-97331-070-0 01 1 0306-
76 04.265 VALVE; REV CLU,A/T 8-97331-085-0 01 1 0306-
77 04.265 SPRING; VLV,REV,A/T 8-97331-074-0 01 1 0306-
120 04.265 NUT; UPR BODY,VLV,A/T 8-97112-969-0 02 1 0306-
137 04.265 PLUG; LOW MODULATOR VALVE 8-97331-099-0 01 1 0306-
150 04.265 PLUG; SHIFT VLV 8-97331-099-0 01 1 0306-
160 04.265 PLUG; VLV BODY 8-97331-097-0 01 1 0306-
186 04.241 PISTON; ACCUMLATOR VLV,A/T
(A) 		8-94342-922-0 03 1 0306-
186 04.241 PISTON; ACCUMLATOR VLV,A/T
(B) 		8-97331-056-0 01 1 0306-
187 04.265 PLATE; ACCUM CONT VLV,A/T 8-94385-905-0 04 1 0306-
190 04.265 PLATE; VLV RET,A/T
(A) 		8-94385-905-0 01 1 0306-
190 04.265 PLATE; VLV RET,A/T
(B) 		8-97331-080-0 06 1 0306-
199 04.265 SPRING; VALVE,A/T 8-97331-079-0 01 1 0306-
200 04.265 VALVE; MANUAL,UPR BODY 8-97331-065-0 01 1 0306-
217 04.105 PIN; DOWEL 8-97331-120-0 01 1 0306-
