2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#77529) — 14 parça

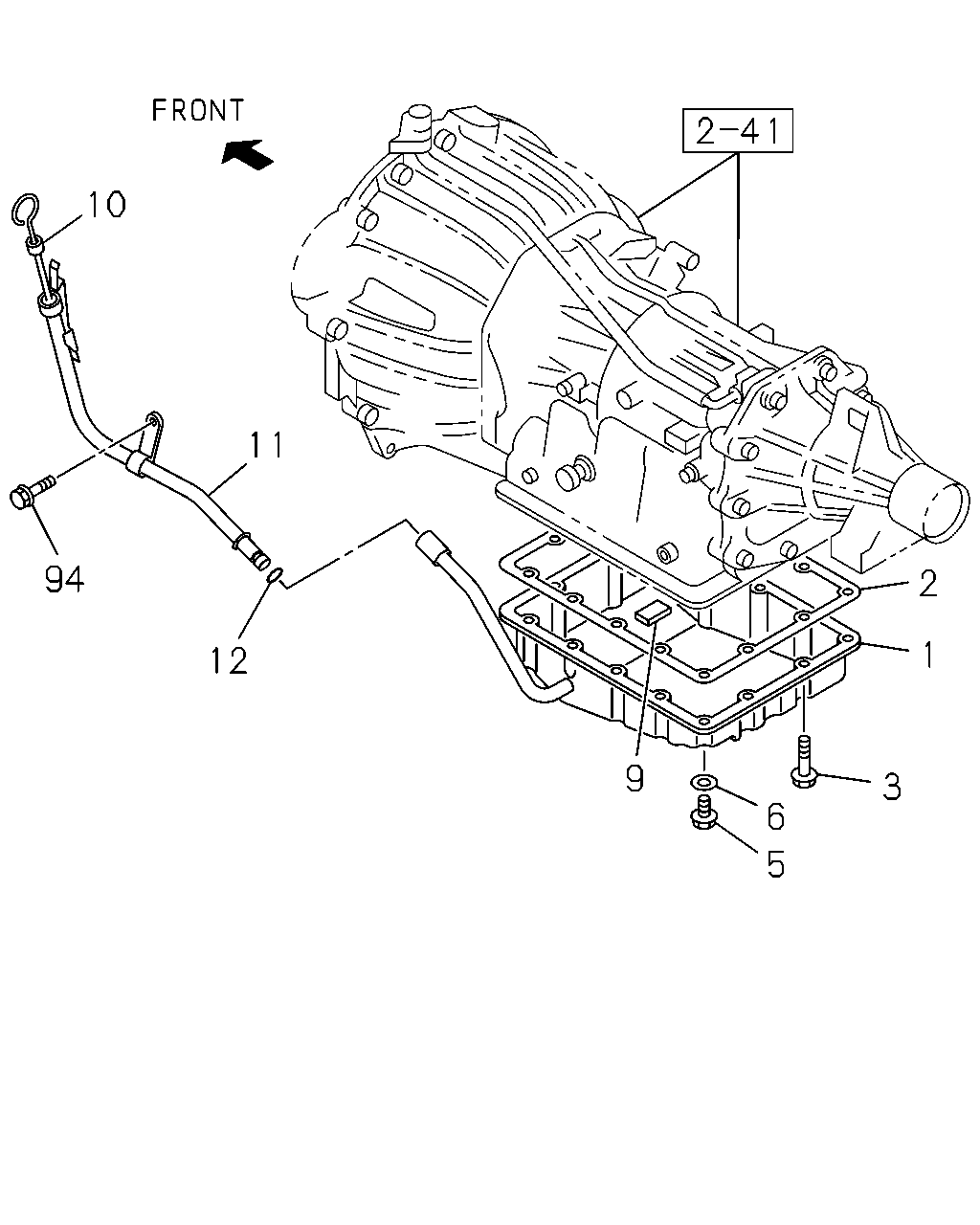

çizim 160450
10 11 2 94 1 12 9 3 6 5
BalonParca AdiParca NoAdetTipApplied Date
1 04.195 PAN ASM; OIL,A/T 8-97330-915-0 01 1 0306-
2 04.196 GASKET; OIL PAN,A/T 8-97330-916-0 01 1 0306-
3 04.196 BOLT; OIL PAN TO CASE 8-97330-911-0 19 1 0306-
5 04.195 PLUG; OIL PAN 8-97131-023-0 01 1 0306-
6 04.195 GASKET; OIL PAN TO PLUG 8-97044-671-0 01 1 0306-
9 04.195 MAGNET; OIL PAN 8-94140-738-0 01 1 0306-
10 04.197 GAUGE; OIL LEVEL
4JH1-TC ENG(RDM) 		8-97261-073-2 01 1 0306-0609
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCS ENG(LFB) 		8-97371-037-0 01 1 0610-
11 04.197 TUBE; OIL FILLER
4JH1-TC ENG(RDM) 		8-97231-903-1 01 1 0306-0609
11 04.197 TUBE; OIL FILLER
4JJ1-TCS ENG(LFB) 		8-97380-513-0 01 1 0610-
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 0306-0709
12 04.197 GASKET; OIL FILLER TUBE TO A/T
4JJ1-TCS ENG(LFB) 04.133 ID=9.8 		9-09561-110-0 01 1 0710-
94 04.197 BOLT; OIL FILLER TUBE
4JH1-TC ENG(RDM) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0306-0609
94 04.197 BOLT; OIL FILLER TUBE
4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610-
