Isuzu WW
▶
PICKUP
▶
TFR
▶
51277 - TFR/TFS MIDDLE EAST
▶
2 - Clutch, Transmission, Trans Axle
▶
2-40 - AUTO TRANS ASM AND REPAIR KIT
▶
2-40 — AUTO TRANS ASM AND REPAIR KIT
(#77527) — 20 parça
◀

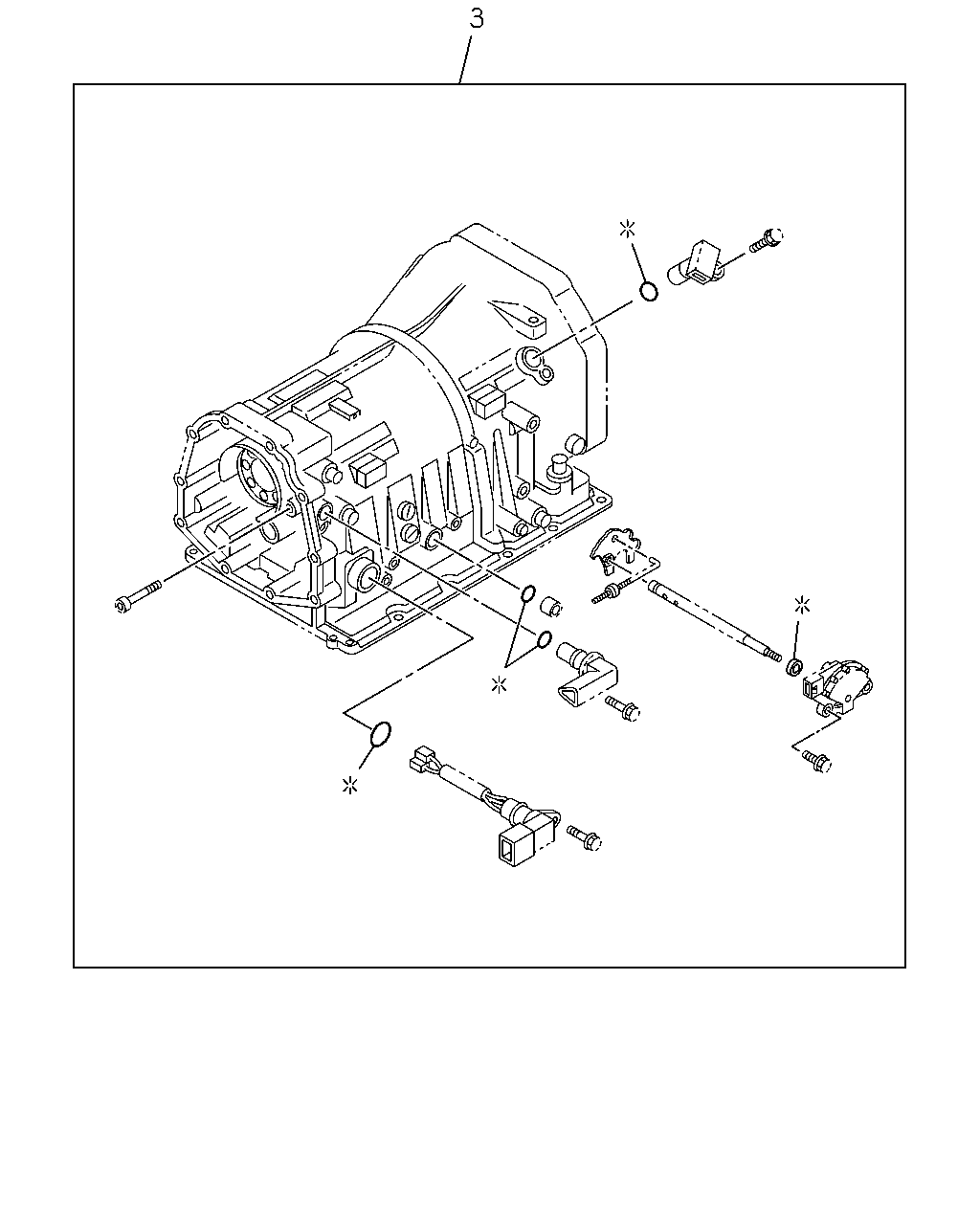

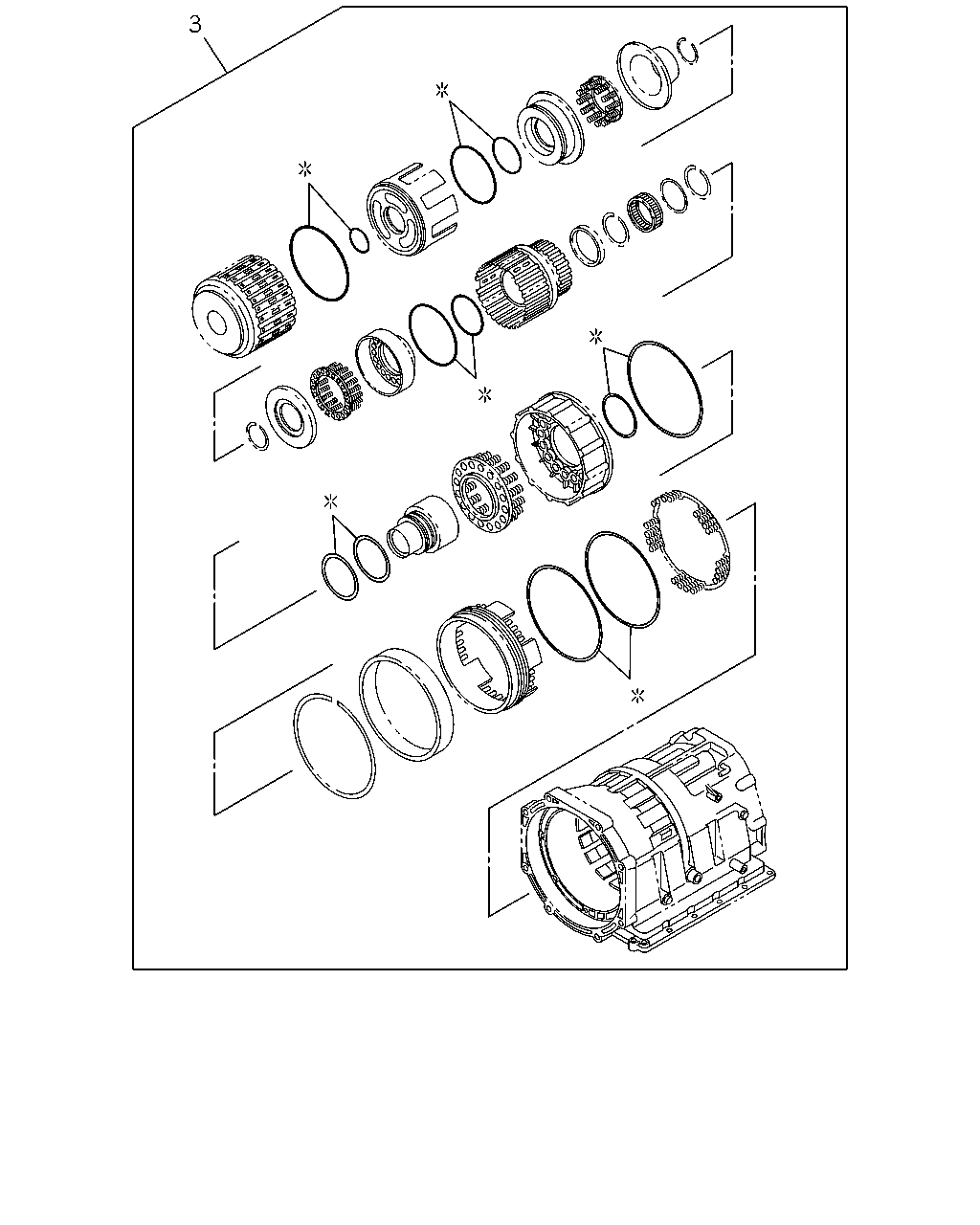

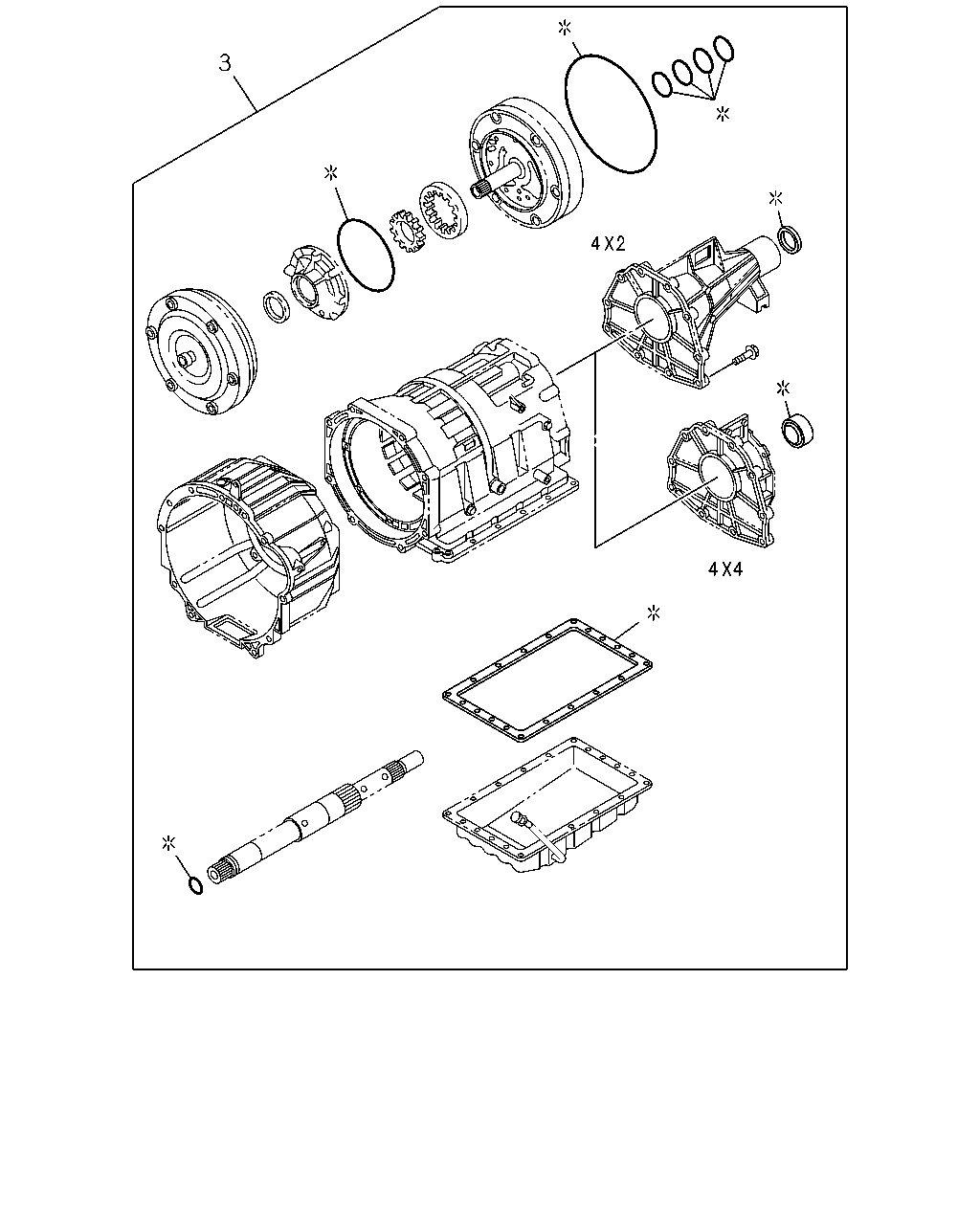

[240A] REPAIR KIT(NO.2) (4 parça)
[240A] REPAIR KIT(NO.1) (4 parça)
[240A] REPAIR KIT(NO.3) (4 parça)

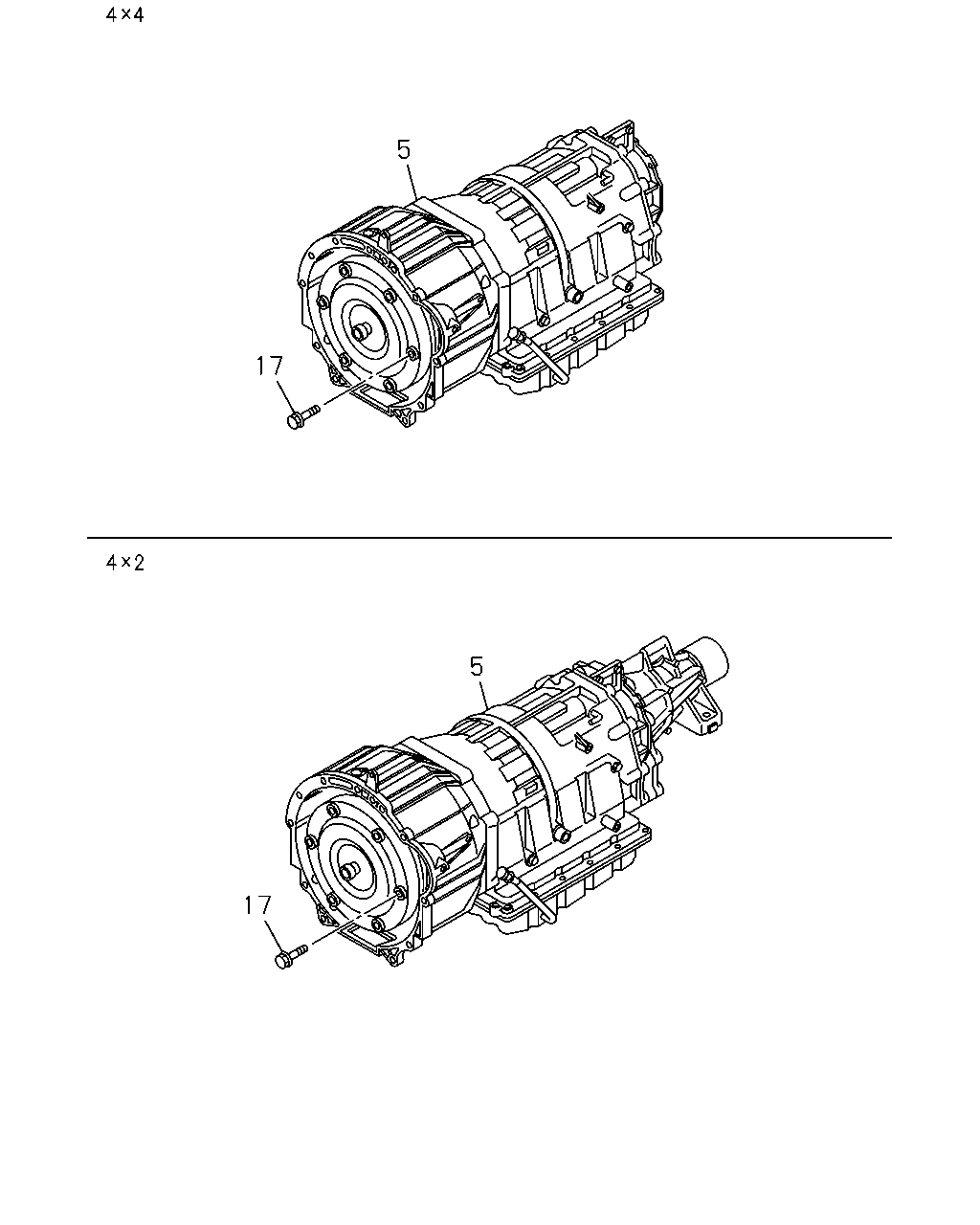

[240A] TRANSMISSION ASM (8 parça)
▶
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 4JH1-TC ENG(RDM)
8-97330-894-0
01
1
0306-0609
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB)
8-97330-894-0
01
1
0610-
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 4JH1-TC ENG(RDM)
8-97358-240-0
01
1
0306-0609
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB)
8-97358-240-0
01
1
0610-
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 4JH1-TC ENG(RDM)
8-97330-894-0
01
1
0306-0609
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB)
8-97330-894-0
01
1
0610-
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 4JH1-TC ENG(RDM)
8-97358-240-0
01
1
0306-0609
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB)
8-97358-240-0
01
1
0610-
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 4JH1-TC ENG(RDM)
8-97330-894-0
01
1
0306-0609
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB)
8-97330-894-0
01
1
0610-
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 4JH1-TC ENG(RDM)
8-97358-240-0
01
1
0306-0609
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB)
8-97358-240-0
01
1
0610-
5
17
5
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JH1-TC ENG(RDM)
8-97355-190-0
01
1
0306-0609
5
04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JJ1-TCS ENG(LFB)
8-97355-190-0
01
1
0610-0711
5
04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 4JJ1-TCS ENG(LFB)
8-98098-610-0
01
1
0712-
5
04.003 TRANSMISSION ASM; AUTO
4X4(TFS***) 4JH1-TC ENG(RDM)
8-97355-191-0
01
1
0306-0609
5
04.003 TRANSMISSION ASM; AUTO
4X4(TFS***) 4JJ1-TCS ENG(LFB)
8-97355-191-0
01
1
0610-0711
5
04.003 TRANSMISSION ASM; AUTO
4X4(TFS***) 4JJ1-TCS ENG(LFB)
8-98098-611-0
01
1
0712-
17
04.008 BOLT; PLATE TO CONV
4JH1-TC ENG(RDM) M8X10
8-94460-742-0
06
1
0306-0609
17
04.008 BOLT; PLATE TO CONV
4JJ1-TCS ENG(LFB) M8X10
8-94460-742-0
06
1
0610-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
