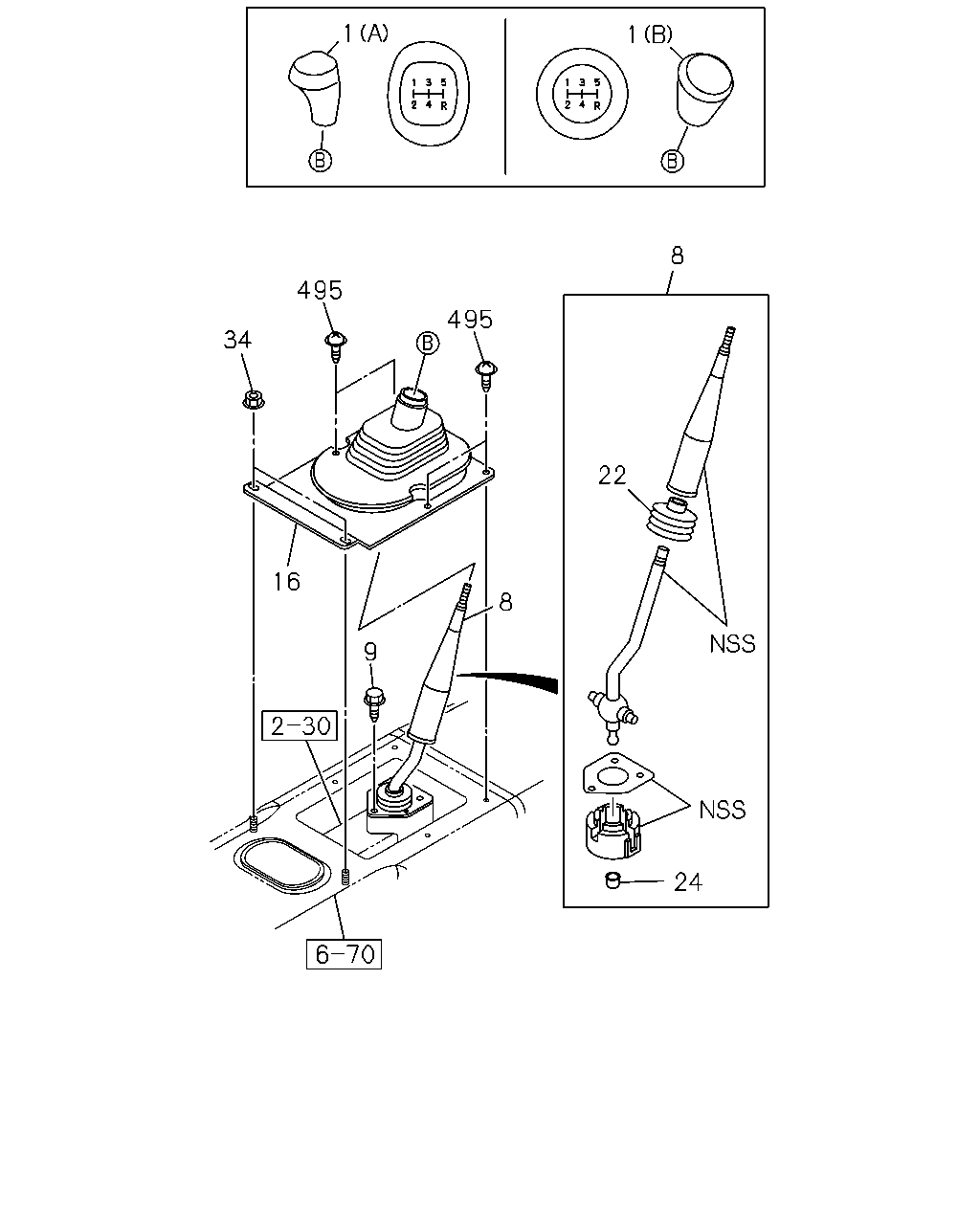

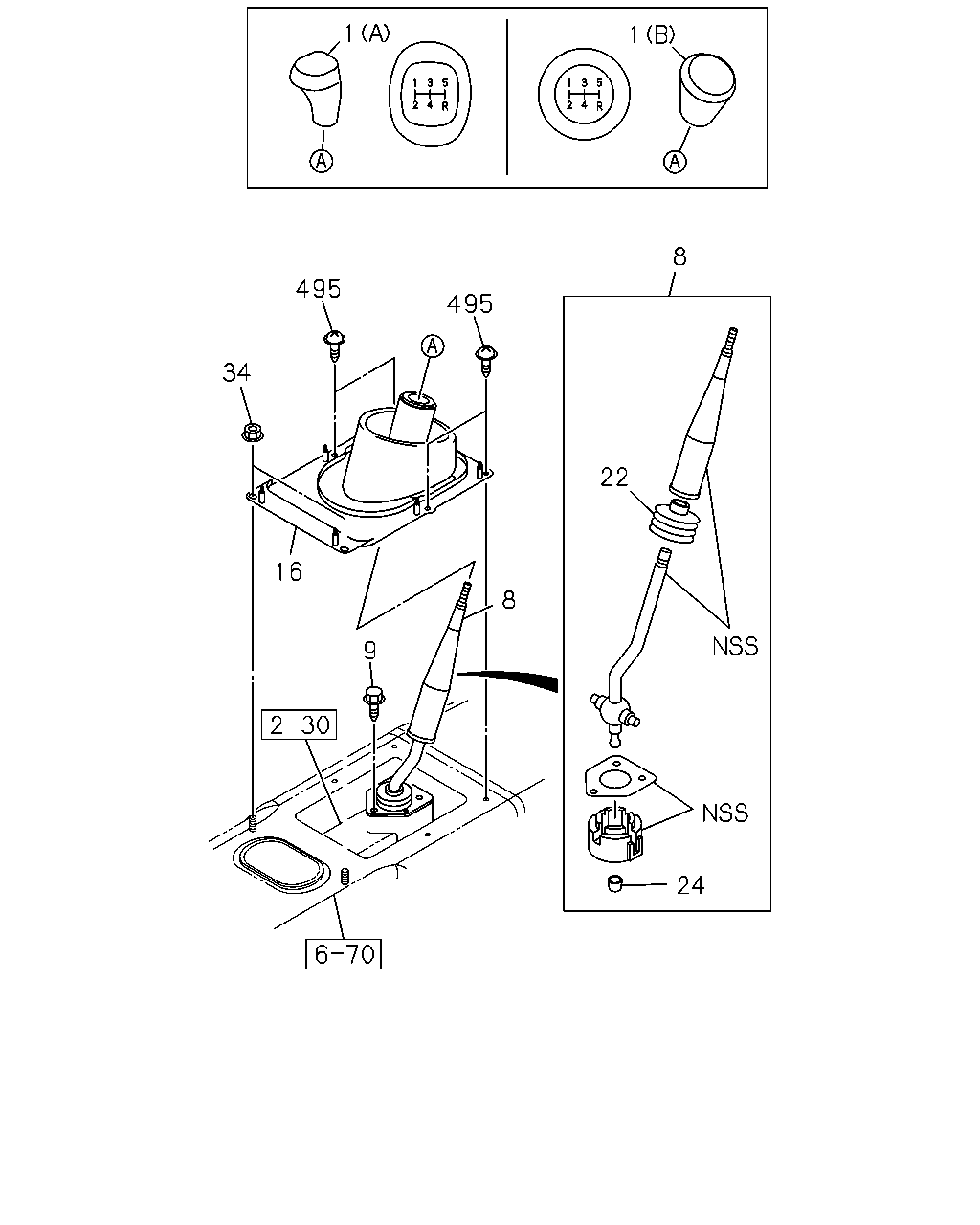

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#77526) — 84 parça

1 1 8 495 495 34 22 16 8 9 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB SPORTS<KAE> (A) DARK GRAY	8-97298-803-0	01	1	0306-0508	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB SPORTS<KAE> (A) DARK GRAY	8-97398-545-0	01	1	0509-0512	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB SPORTS<KAE> (A) DARK GRAY	8-97406-183-0	01	1	0601-0609	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB SPORTS<KAE> (A) DARK GRAY	8-97406-184-0	01	1	0610-	●	●	●
1	04.006 KNOB; CHANGE LEVER EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B)	8-94473-778-0	01	1	0306-0311	●	●
1	04.006 KNOB; CHANGE LEVER EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B)	8-97371-734-0	01	1	0312-0609	●	●
1	04.006 KNOB; CHANGE LEVER EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B)	8-97371-734-0	01	1	0610-	●	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97298-804-0	01	1	0306-0404	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97944-165-0	01	1	0405-0508	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97398-543-0	01	1	0509-0512	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97406-181-0	01	1	0601-0609	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97406-182-0	01	1	0610-	●	●	●
8	04.006 LEVER; CHANGE 4JJ1-TCS ENG(LFB)	8-97945-707-0	01	1	0610-0610		●	●
8	04.006 LEVER; CHANGE 4JJ1-TCS ENG(LFB)	8-97945-847-0	01	1	0611-		●	●
8	04.006 LEVER; CHANGE C24SE ENG(LG1)	8-97235-802-3	01	1	0306-0306		●
8	04.006 LEVER; CHANGE C24SE ENG(LG1)	8-97943-607-0	01	1	0306-0609		●
8	04.006 LEVER; CHANGE C24SE ENG(LG1)	8-97945-818-0	01	1	0610-0610		●	●
8	04.006 LEVER; CHANGE C24SE ENG(LG1)	8-97945-849-0	01	1	0611-		●	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0)	8-97235-808-3	01	1	0306-0306	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0)	8-97943-609-0	01	1	0306-0609	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0)	8-97945-820-0	01	1	0610-0610	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0)	8-97945-853-0	01	1	0611-	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97235-806-3	01	1	0306-0306		●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97943-608-0	01	1	0306-0609		●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0)	8-97945-819-0	01	1	0610-0610		●	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0)	8-97945-851-0	01	1	0611-		●	●
9	04.012 BOLT; CHANGE LEVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0306-0609	●	●
9	04.012 BOLT; CHANGE LEVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0610-	●	●	●
16	04.015 BOOT; CHANGE LEVER FRONT CONSOLE<D55>	8-97235-879-2	01	1	0306-0609	●	●
16	04.015 BOOT; CHANGE LEVER FRONT CONSOLE<D55>	8-97235-879-2	01	1	0610-	●	●	●
16	04.015 BOOT; CHANGE LEVER EXC. FRONT CONSOLE<D55>	8-97356-322-0	01	1	0306-0412	●	●
16	04.015 BOOT; CHANGE LEVER EXC. FRONT CONSOLE<D55>	8-98003-438-0	01	1	0501-0609	●	●
16	04.015 BOOT; CHANGE LEVER EXC. FRONT CONSOLE<D55>	8-98003-438-0	01	1	0610-	●	●	●
22	04.015 COVER; DUST,CHANGE LEVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97945-801-0	01	1	0611-	●	●	●
24	04.008 BUSHING; CHANGE LEVER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97161-606-0	01	1	0306-0306	●	●
24	04.008 BUSHING; CHANGE LEVER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97943-618-0	01	1	0306-0609	●	●
24	04.008 BUSHING; CHANGE LEVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97943-618-0	01	1	0610-	●	●	●
34	08.915 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0609	●	●
34	08.915 NUT M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●
495	04.012 SCREW; GROMMET 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	04	1	0306-0605	●	●
495	04.012 SCREW; GROMMET M5X16 TAPPING W/PL WASHER	0-74365-516-0	04	1	0606-0609	●	●
495	04.012 SCREW; GROMMET M5X16 TAPPING W/PL WASHER	0-74365-516-0	04	1	0610-	●	●	●

1 1 8 495 495 34 22 16 8 9 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB SPORTS<KAE> (A) DARK GRAY	8-97298-803-0	01	1	0306-0508	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB SPORTS<KAE> (A) DARK GRAY	8-97398-545-0	01	1	0509-0512	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB SPORTS<KAE> (A) DARK GRAY	8-97406-183-0	01	1	0601-0609	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB SPORTS<KAE> (A) DARK GRAY	8-97406-184-0	01	1	0610-	●	●	●
1	04.006 KNOB; CHANGE LEVER EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B)	8-94473-778-0	01	1	0306-0311	●	●
1	04.006 KNOB; CHANGE LEVER EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B)	8-97371-734-0	01	1	0312-0609	●	●
1	04.006 KNOB; CHANGE LEVER EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B)	8-97371-734-0	01	1	0610-	●	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97298-804-0	01	1	0306-0404	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97944-165-0	01	1	0405-0508	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97398-543-0	01	1	0509-0512	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97406-181-0	01	1	0601-0609	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97406-182-0	01	1	0610-	●	●	●
8	04.006 LEVER; CHANGE 4JJ1-TCS ENG(LFB)	8-97945-707-0	01	1	0610-0610		●	●
8	04.006 LEVER; CHANGE 4JJ1-TCS ENG(LFB)	8-97945-847-0	01	1	0611-		●	●
8	04.006 LEVER; CHANGE C24SE ENG(LG1)	8-97235-802-3	01	1	0306-0306		●
8	04.006 LEVER; CHANGE C24SE ENG(LG1)	8-97943-607-0	01	1	0306-0609		●
8	04.006 LEVER; CHANGE C24SE ENG(LG1)	8-97945-818-0	01	1	0610-0610		●	●
8	04.006 LEVER; CHANGE C24SE ENG(LG1)	8-97945-849-0	01	1	0611-		●	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0)	8-97235-808-3	01	1	0306-0306	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0)	8-97943-609-0	01	1	0306-0609	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0)	8-97945-820-0	01	1	0610-0610	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0)	8-97945-853-0	01	1	0611-	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97235-806-3	01	1	0306-0306		●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97943-608-0	01	1	0306-0609		●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0)	8-97945-819-0	01	1	0610-0610		●	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0)	8-97945-851-0	01	1	0611-		●	●
9	04.012 BOLT; CHANGE LEVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0306-0609	●	●
9	04.012 BOLT; CHANGE LEVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0610-	●	●	●
16	04.015 BOOT; CHANGE LEVER FRONT CONSOLE<D55>	8-97235-879-2	01	1	0306-0609	●	●
16	04.015 BOOT; CHANGE LEVER FRONT CONSOLE<D55>	8-97235-879-2	01	1	0610-	●	●	●
16	04.015 BOOT; CHANGE LEVER EXC. FRONT CONSOLE<D55>	8-97356-322-0	01	1	0306-0412	●	●
16	04.015 BOOT; CHANGE LEVER EXC. FRONT CONSOLE<D55>	8-98003-438-0	01	1	0501-0609	●	●
16	04.015 BOOT; CHANGE LEVER EXC. FRONT CONSOLE<D55>	8-98003-438-0	01	1	0610-	●	●	●
22	04.015 COVER; DUST,CHANGE LEVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97945-801-0	01	1	0611-	●	●	●
24	04.008 BUSHING; CHANGE LEVER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97161-606-0	01	1	0306-0306	●	●
24	04.008 BUSHING; CHANGE LEVER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97943-618-0	01	1	0306-0609	●	●
24	04.008 BUSHING; CHANGE LEVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97943-618-0	01	1	0610-	●	●	●
34	08.915 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0609	●	●
34	08.915 NUT M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●
495	04.012 SCREW; GROMMET 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	04	1	0306-0605	●	●
495	04.012 SCREW; GROMMET M5X16 TAPPING W/PL WASHER	0-74365-516-0	04	1	0606-0609	●	●
495	04.012 SCREW; GROMMET M5X16 TAPPING W/PL WASHER	0-74365-516-0	04	1	0610-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
