Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#77525) — 285 parça

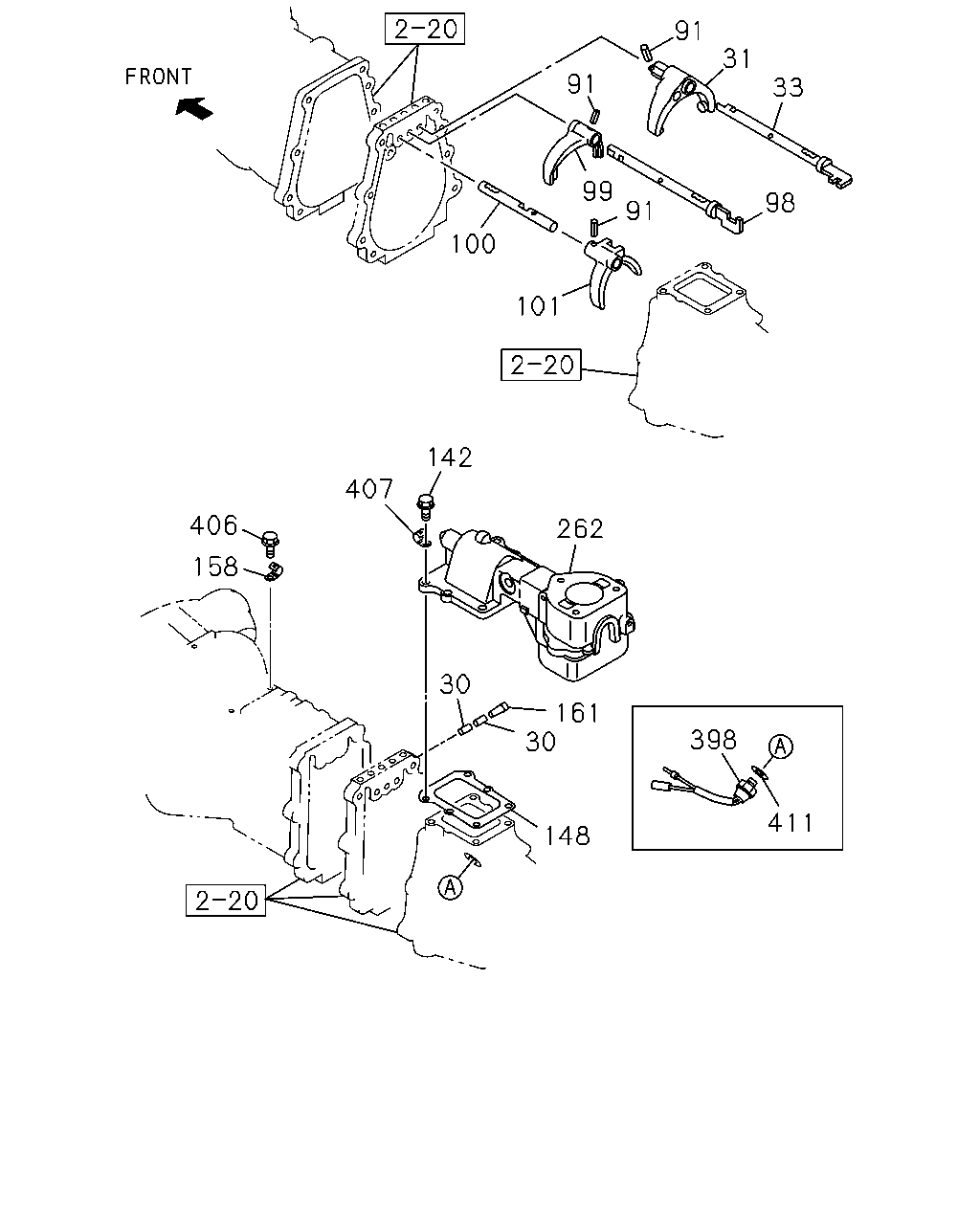

91 31 91 33 99 98 91 100 101 142 407 406 262 158 30 161 30 398 411 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0306-0609	●	●
30	04.307 PIN; INTER LK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) OD=5.5 L=10	5-33534-002-1	02	1	0610-	●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	0306-0609		●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	0610-		●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	0306-0902	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	0903-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0306-0609		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0610-		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	0306-	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0306-0609	●	●
91	04.302 PIN; SPR,SHIFT ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.303 D=4.2 L=25	8-94171-541-0	03	1	0610-	●	●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0306-0609		●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0610-		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	0306-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0306-0609		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0610-		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	0306-	●
100	04.309 ROD; SHIFT,REV & 5TH	8-97115-185-0	01	1	0306-0902	●
100	04.309 ROD; SHIFT,REV & 5TH	8-97232-885-0	01	1	0903-	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0306-0609		●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0610-		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	0306-	●
142	04.012 BOLT; QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0306-0604	●	●
142	04.012 BOLT; QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0609	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0610-	●	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0306-0609		●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0610-		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	0306-	●
158	04.105 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0306-0604	●
158	04.105 CLIP; HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0605-	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0306-0609	●	●
161	04.307 PLUG; INTER LK HOLE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-94239-543-1	01	1	0610-	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97180-891-2	01	1	0306-0306		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97357-040-0	01	1	0306-0603		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-98017-729-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98017-729-0	01	1	0610-1204		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98203-264-0	01	1	1205-		●	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0306-0603	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-735-0	01	1	0604-1204	●
262	04.105 BOX ASM; SHIFT CONT	8-98203-266-0	01	1	1205-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-97257-824-0	01	1	0306-0603		●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0604-1204		●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98203-265-0	01	1	1205-		●
398	02.698 SWITCH; REV LAMP 04.439	8-94411-366-1	01	1	0306-0602	●
398	02.698 SWITCH; REV LAMP	8-98042-851-0	01	1	0603-0609	●
398	02.698 SWITCH; REV LAMP	8-98035-679-0	01	1	0610-0709	●
398	02.698 SWITCH; REV LAMP	8-98042-851-0	01	1	0710-	●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	0306-0604		●
398	02.698 SWITCH; REV LAMP	8-98035-681-0	01	1	0605-0609		●
398	02.698 SWITCH; REV LAMP	8-98035-681-0	01	1	0610-1405		●	●
398	02.698 SWITCH; REV LAMP	8-98181-802-0	01	1	1406-		●	●
406	02.559 BOLT; HARNESS CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0306-0512	●
406	02.559 BOLT; HARNESS CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
407	02.698 CLIP; SWITCH HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0306-0609	●
407	02.698 CLIP; SWITCH HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0610-	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0306-	●

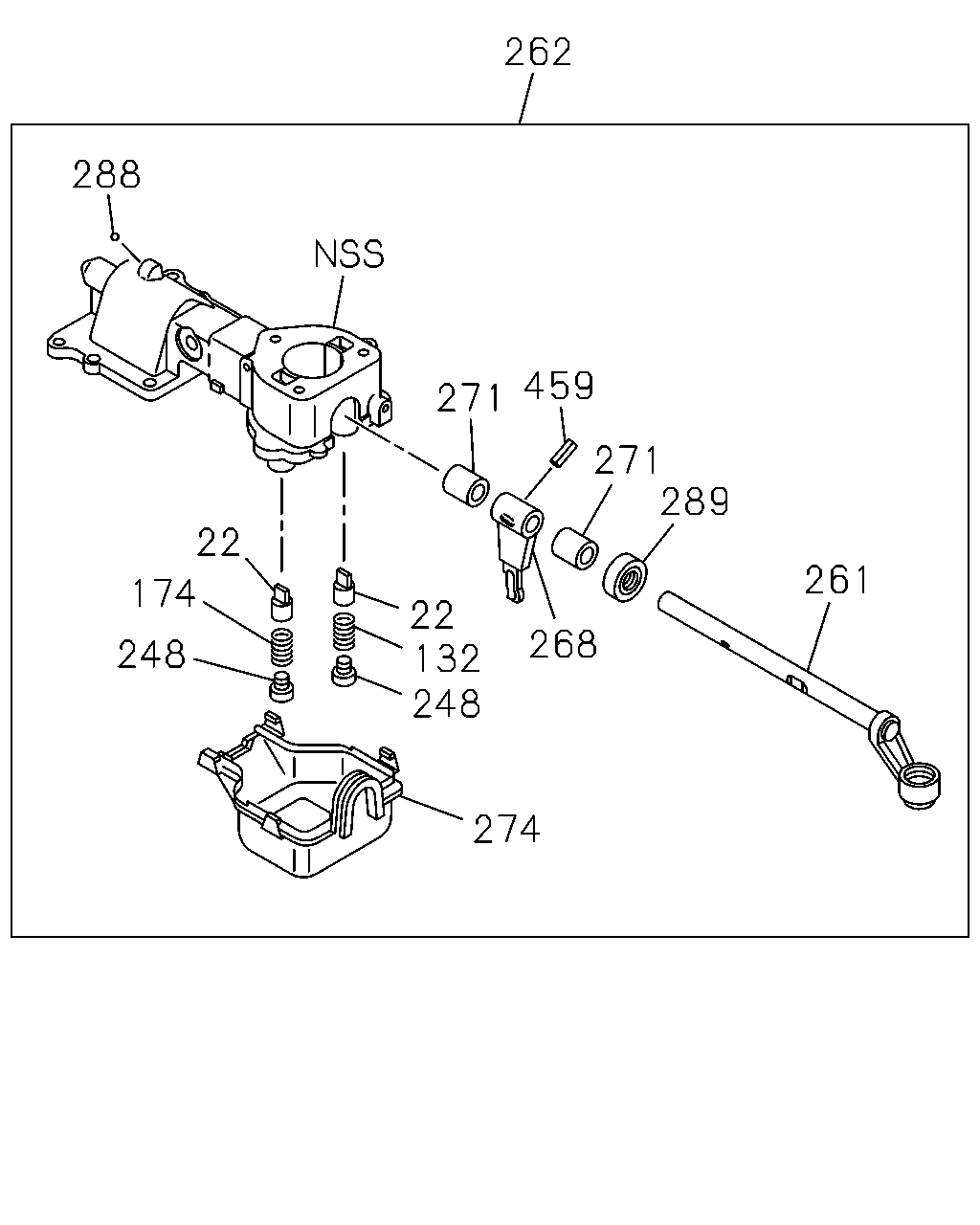

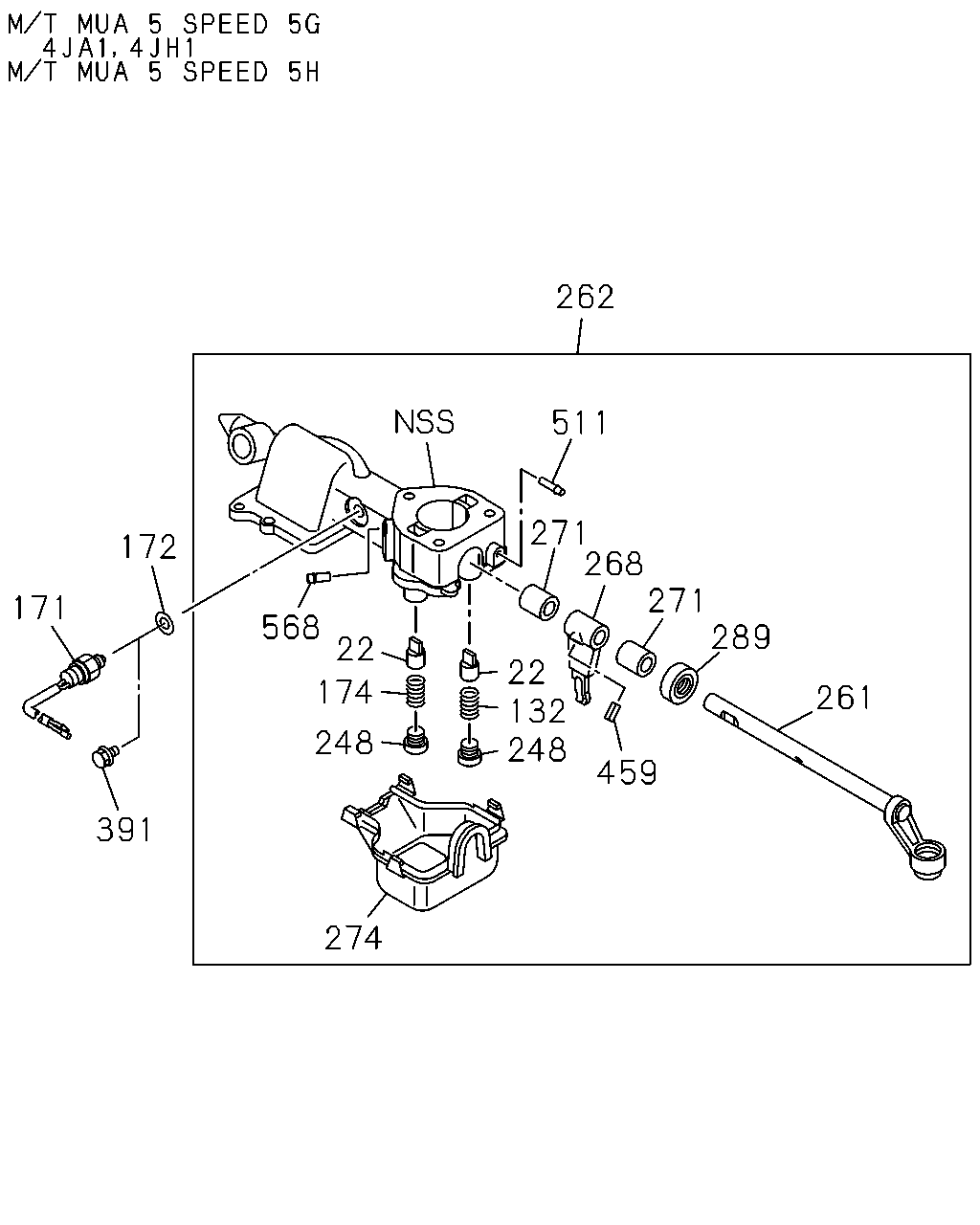

262 288 459 271 172 391 271 289 22 261 171 174 22 132 248 268 248 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.307 CAP; RETURN SPR,SHIFT BLOCK C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-326-0	02	1	0306-0609	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97181-326-0	02	1	0610-	●	●	●
132	04.027 SPRING; SELECT STOP C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-395-0	01	1	0306-0609	●	●
132	04.027 SPRING; SELECT STOP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97181-395-0	01	1	0610-	●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97138-631-0	01	1	0306-0609		●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-97138-631-0	01	1	0306-0609		●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB)	8-97138-631-0	01	1	0610-0612		●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-97138-631-0	01	1	0610-0612		●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB)	8-98035-680-0	01	1	0701-		●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	0701-		●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0306-0609		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0610-		●	●
174	04.307 SPRING; REV C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-394-0	01	1	0306-0609	●	●
174	04.307 SPRING; REV 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97181-394-0	01	1	0610-	●	●	●
248	04.105 RETAINER; CONT BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.307	8-97181-325-0	02	1	0306-0609	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.307	8-97181-325-0	02	1	0610-1211	●	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-98210-983-0	02	1	1212-	●	●	●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0306-		●
261	04.309 ROD; GEAR CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97257-911-0	01	1	0306-0609		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97257-911-0	01	1	0610-		●	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0306-	●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97180-891-2	01	1	0306-0306		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97357-040-0	01	1	0306-0603		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-98017-729-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98017-729-0	01	1	0610-1204		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98203-264-0	01	1	1205-		●	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0306-0603	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-735-0	01	1	0604-1204	●
262	04.105 BOX ASM; SHIFT CONT	8-98203-266-0	01	1	1205-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-97257-824-0	01	1	0306-0603		●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0604-1204		●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98203-265-0	01	1	1205-		●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0306-0609		●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0610-		●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	0306-	●
271	04.105 BUSHING; QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) ID=14 L=12	8-97203-909-0	02	1	0306-0603	●	●
271	04.105 BUSHING; QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) ID=14 L=12	8-98017-908-0	02	1	0604-0609	●	●
271	04.105 BUSHING; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) ID=14 L=12	8-98017-908-0	02	1	0610-	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-324-1	01	1	0306-0609	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97181-324-1	01	1	0610-	●	●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	0306-	●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1)	9-00097-517-0	01	1	0306-		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-327-0	01	1	0306-0603	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	0604-0609	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	0610-	●	●	●
391	04.104 PLUG; SW HOLE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M14X11	8-98035-674-0	01	1	0605-0609		●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0610-0709		●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0710-1008		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0710-1008		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1009-		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M14X11	8-94252-142-0	01	1	0306-0604		●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M14X11	8-94252-142-0	01	1	0306-0604		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-94252-142-0	01	1	0605-0609		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-94252-142-0	01	1	0610-0709		●	●
459	04.302 PIN; SPR,ROD TO ARM C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) OD=5	8-97184-905-0	01	1	0306-0609	●	●
459	04.302 PIN; SPR,ROD TO ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) OD=5	8-97184-905-0	01	1	0610-	●	●	●

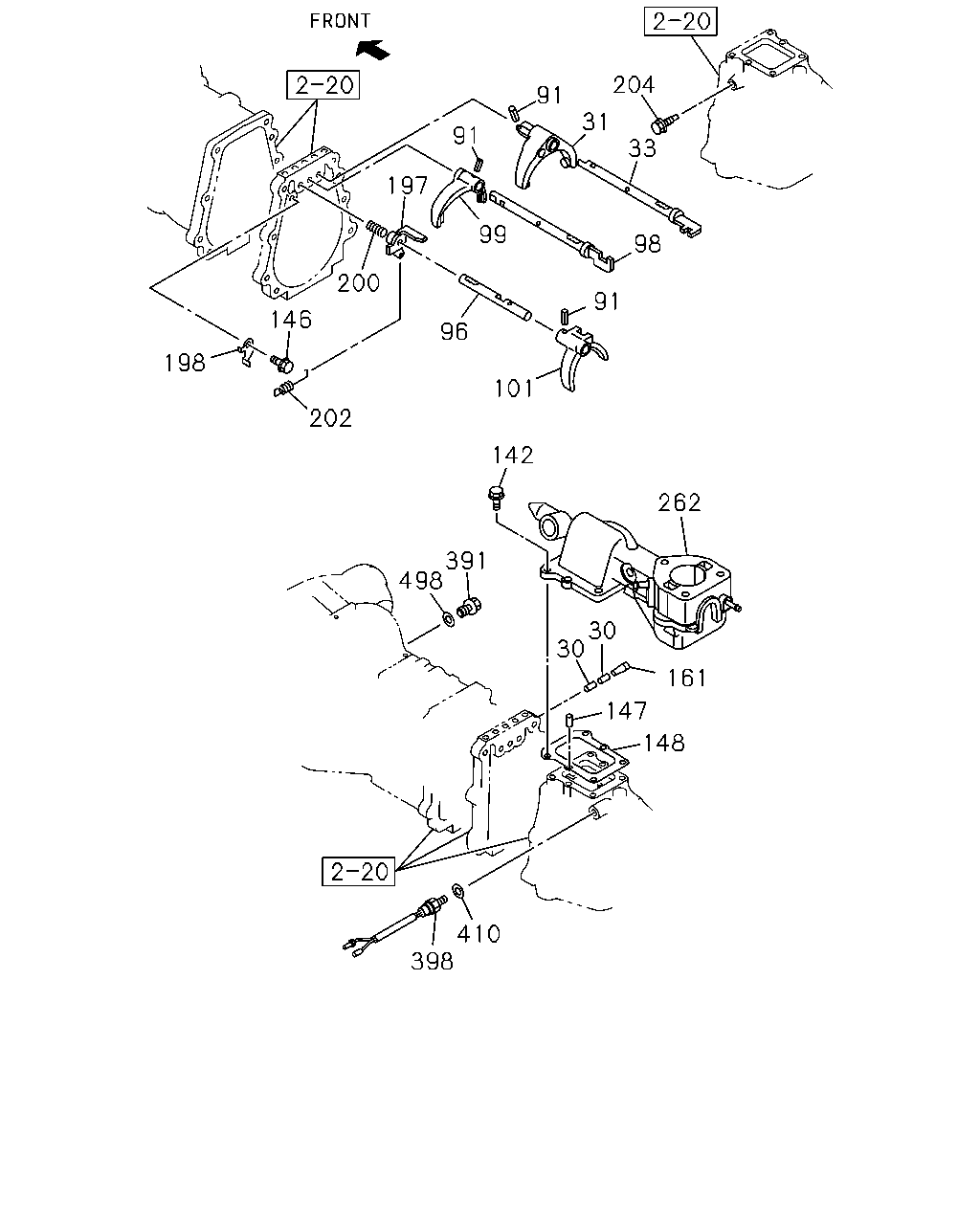

204 91 31 91 33 197 99 98 200 91 146 96 198 101 202 142 262 391 498 30 30 161 147 148 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0306-0609	●	●
30	04.307 PIN; INTER LK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) OD=5.5 L=10	5-33534-002-1	02	1	0610-	●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	0306-0609		●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	0610-		●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	0306-0902	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	0903-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0306-0609		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0610-		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	0306-	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0306-0609	●	●
91	04.302 PIN; SPR,SHIFT ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.303 D=4.2 L=25	8-94171-541-0	03	1	0610-	●	●	●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	0306-0609		●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	0610-		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0306-0609		●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0610-		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	0306-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0306-0609		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0610-		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	0306-	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0306-0609		●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0610-		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	0306-	●
142	04.012 BOLT; QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0306-0604	●	●
142	04.012 BOLT; QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0609	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0610-	●	●	●
146	04.032 BOLT; REV INHIBITOR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	0306-0512		●
146	04.032 BOLT; REV INHIBITOR 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0601-0609		●
146	04.032 BOLT; REV INHIBITOR 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0610-		●	●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	0306-0609		●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	0610-		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0306-0609		●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0610-		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	0306-	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0306-0609	●	●
161	04.307 PLUG; INTER LK HOLE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-94239-543-1	01	1	0610-	●	●	●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	0306-0609		●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	0610-		●	●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	0306-0609		●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	0610-		●	●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	0306-0609		●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	0610-		●	●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	0306-0609		●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	0610-		●	●
204	04.309 STOPPER; REV INHIBITOR	8-94479-434-2	01	1	0306-0604		●
204	04.309 STOPPER; REV INHIBITOR	8-98035-673-0	01	1	0605-0609		●
204	04.309 STOPPER; REV INHIBITOR	8-98035-673-0	01	1	0610-		●	●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97180-891-2	01	1	0306-0306		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97357-040-0	01	1	0306-0603		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-98017-729-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98017-729-0	01	1	0610-1204		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98203-264-0	01	1	1205-		●	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0306-0603	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-735-0	01	1	0604-1204	●
262	04.105 BOX ASM; SHIFT CONT	8-98203-266-0	01	1	1205-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-97257-824-0	01	1	0306-0603		●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0604-1204		●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98203-265-0	01	1	1205-		●
391	04.104 PLUG; SW HOLE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M14X11	8-98035-674-0	01	1	0605-0609		●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0610-0709		●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0710-1008		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0710-1008		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1009-		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M14X11	8-94252-142-0	01	1	0306-0604		●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M14X11	8-94252-142-0	01	1	0306-0604		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-94252-142-0	01	1	0605-0609		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-94252-142-0	01	1	0610-0709		●	●
398	02.698 SWITCH; REV LAMP 04.439	8-94411-366-1	01	1	0306-0602	●
398	02.698 SWITCH; REV LAMP	8-98042-851-0	01	1	0603-0609	●
398	02.698 SWITCH; REV LAMP	8-98035-679-0	01	1	0610-0709	●
398	02.698 SWITCH; REV LAMP	8-98042-851-0	01	1	0710-	●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	0306-0604		●
398	02.698 SWITCH; REV LAMP	8-98035-681-0	01	1	0605-0609		●
398	02.698 SWITCH; REV LAMP	8-98035-681-0	01	1	0610-1405		●	●
398	02.698 SWITCH; REV LAMP	8-98181-802-0	01	1	1406-		●	●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0306-0609		●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0610-		●	●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0306-0609		●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0610-1008		●	●

262 288 459 271 271 289 22 261 174 22 132 248 268 248 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.307 CAP; RETURN SPR,SHIFT BLOCK C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-326-0	02	1	0306-0609	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97181-326-0	02	1	0610-	●	●	●
132	04.027 SPRING; SELECT STOP C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-395-0	01	1	0306-0609	●	●
132	04.027 SPRING; SELECT STOP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97181-395-0	01	1	0610-	●	●	●
174	04.307 SPRING; REV C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-394-0	01	1	0306-0609	●	●
174	04.307 SPRING; REV 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97181-394-0	01	1	0610-	●	●	●
248	04.105 RETAINER; CONT BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.307	8-97181-325-0	02	1	0306-0609	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.307	8-97181-325-0	02	1	0610-1211	●	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-98210-983-0	02	1	1212-	●	●	●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0306-		●
261	04.309 ROD; GEAR CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97257-911-0	01	1	0306-0609		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97257-911-0	01	1	0610-		●	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0306-	●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97180-891-2	01	1	0306-0306		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97357-040-0	01	1	0306-0603		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-98017-729-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98017-729-0	01	1	0610-1204		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98203-264-0	01	1	1205-		●	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0306-0603	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-735-0	01	1	0604-1204	●
262	04.105 BOX ASM; SHIFT CONT	8-98203-266-0	01	1	1205-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-97257-824-0	01	1	0306-0603		●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0604-1204		●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98203-265-0	01	1	1205-		●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0306-0609		●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0610-		●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	0306-	●
271	04.105 BUSHING; QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) ID=14 L=12	8-97203-909-0	02	1	0306-0603	●	●
271	04.105 BUSHING; QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) ID=14 L=12	8-98017-908-0	02	1	0604-0609	●	●
271	04.105 BUSHING; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) ID=14 L=12	8-98017-908-0	02	1	0610-	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-324-1	01	1	0306-0609	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97181-324-1	01	1	0610-	●	●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	0306-	●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1)	9-00097-517-0	01	1	0306-		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-327-0	01	1	0306-0603	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	0604-0609	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	0610-	●	●	●
459	04.302 PIN; SPR,ROD TO ARM C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) OD=5	8-97184-905-0	01	1	0306-0609	●	●
459	04.302 PIN; SPR,ROD TO ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) OD=5	8-97184-905-0	01	1	0610-	●	●	●

262 511 271 268 271 289 172 171 568 22 22 132 248 174 261 248 459 391 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.307 CAP; RETURN SPR,SHIFT BLOCK C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-326-0	02	1	0306-0609	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97181-326-0	02	1	0610-	●	●	●
132	04.027 SPRING; SELECT STOP C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-395-0	01	1	0306-0609	●	●
132	04.027 SPRING; SELECT STOP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97181-395-0	01	1	0610-	●	●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97138-631-0	01	1	0306-0609		●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-97138-631-0	01	1	0306-0609		●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB)	8-97138-631-0	01	1	0610-0612		●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-97138-631-0	01	1	0610-0612		●	●
171	04.054 SWITCH; NEUTRAL 4X2(TFB***) 4JJ1-TCS ENG(LFB)	8-98035-680-0	01	1	0701-		●	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***)	8-98035-680-0	01	1	0701-		●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0306-0609		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0610-		●	●
174	04.307 SPRING; REV C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-394-0	01	1	0306-0609	●	●
174	04.307 SPRING; REV 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97181-394-0	01	1	0610-	●	●	●
248	04.105 RETAINER; CONT BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.307	8-97181-325-0	02	1	0306-0609	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.307	8-97181-325-0	02	1	0610-1211	●	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-98210-983-0	02	1	1212-	●	●	●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0306-		●
261	04.309 ROD; GEAR CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97257-911-0	01	1	0306-0609		●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97257-911-0	01	1	0610-		●	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0306-	●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97180-891-2	01	1	0306-0306		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97357-040-0	01	1	0306-0603		●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-98017-729-0	01	1	0604-0609		●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98017-729-0	01	1	0610-1204		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98203-264-0	01	1	1205-		●	●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0306-0603	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-735-0	01	1	0604-1204	●
262	04.105 BOX ASM; SHIFT CONT	8-98203-266-0	01	1	1205-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-97257-824-0	01	1	0306-0603		●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0604-1204		●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98203-265-0	01	1	1205-		●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0306-0609		●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0610-		●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	0306-	●
271	04.105 BUSHING; QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) ID=14 L=12	8-97203-909-0	02	1	0306-0603	●	●
271	04.105 BUSHING; QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) ID=14 L=12	8-98017-908-0	02	1	0604-0609	●	●
271	04.105 BUSHING; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) ID=14 L=12	8-98017-908-0	02	1	0610-	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-324-1	01	1	0306-0609	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97181-324-1	01	1	0610-	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97181-327-0	01	1	0306-0603	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	0604-0609	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	0610-	●	●	●
391	04.104 PLUG; SW HOLE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M14X11	8-98035-674-0	01	1	0605-0609		●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0610-0709		●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0710-1008		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	0710-1008		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1009-		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M14X11	8-94252-142-0	01	1	0306-0604		●
391	04.104 PLUG; SW HOLE 4X4(TFS***) 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M14X11	8-94252-142-0	01	1	0306-0604		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-94252-142-0	01	1	0605-0609		●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-94252-142-0	01	1	0610-0709		●	●
459	04.302 PIN; SPR,ROD TO ARM C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) OD=5	8-97184-905-0	01	1	0306-0609	●	●
459	04.302 PIN; SPR,ROD TO ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) OD=5	8-97184-905-0	01	1	0610-	●	●	●
511	04.302 PIPE; AIR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.510	8-97173-545-0	01	1	0306-0306		●
568	04.302 PIPE; BREATHER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.510	8-97173-544-0	01	1	0306-0306		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
