Sayfa 2-26 - Isuzu EPC

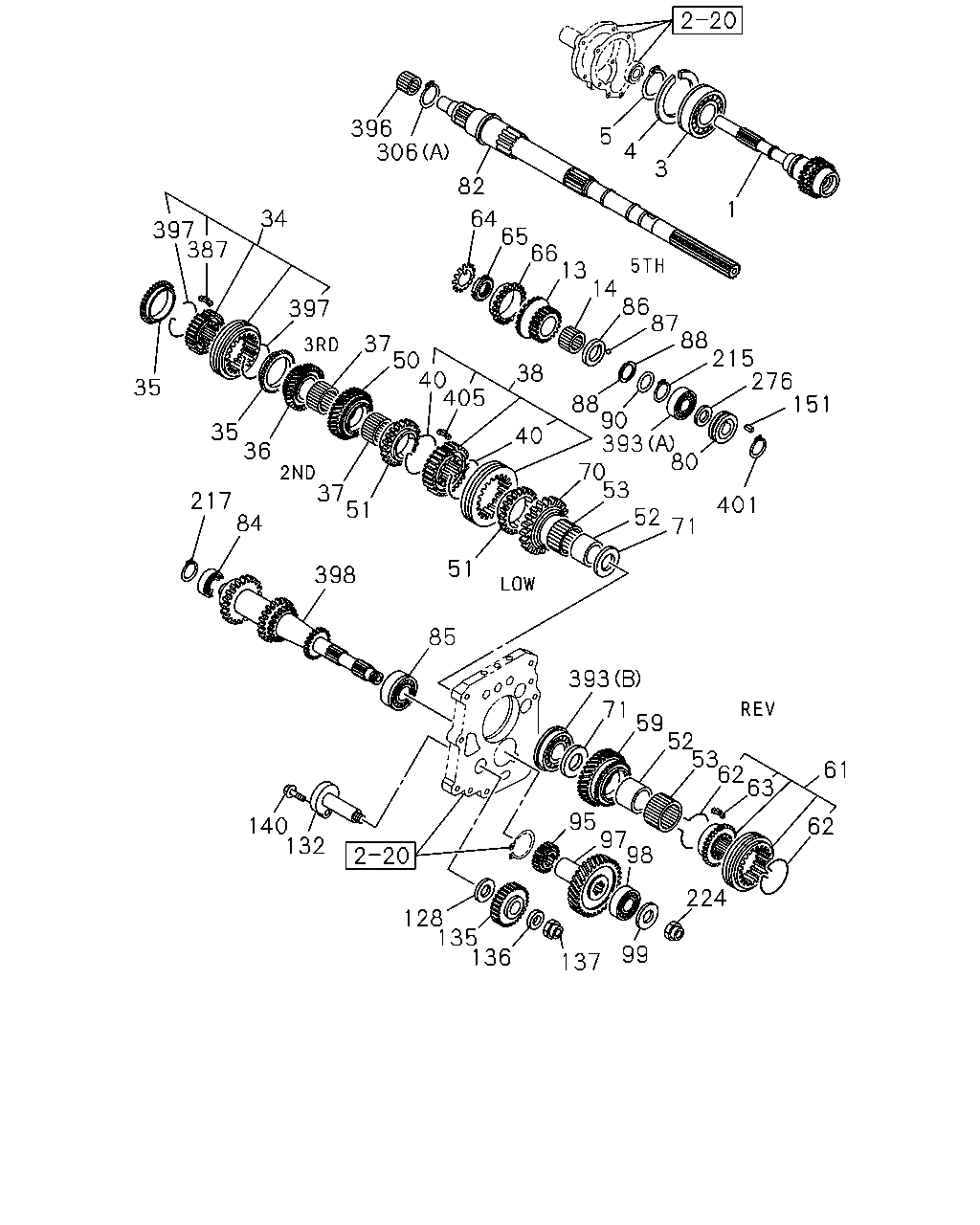

2-26 — MANUAL TRANSMISSION GEAR (#77524) — 685 parça

396 306 5 4 3 82 1 34 64 65 66 13 14 86 87 88 215 276 151 397 387 397 37 50 40 405 38 35 88 90 393 70 53 52 35 36 37 51 40 80 217 84 401 71 51 398 85 393 71 59 52 53 62 63 61 95 97 98 140 132 62 224 128 135 136 99 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS C24SE ENG(LG1) Z=26	8-97300-950-1	01	1	0306-1204	●
1	04.351 SHAFT; TOP GEAR,TRANS C24SE ENG(LG1) Z=26	8-98210-246-0	01	1	1205-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) Z=26	8-97300-948-1	01	1	0306-0609	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) Z=26	8-97300-948-1	01	1	0610-1204	●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) Z=26	8-98210-225-0	01	1	1205-	●	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	0306-0902			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	0903-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0306-0609	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0610-	●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.355 NSK	8-94167-637-0	01	1	0306-0902			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	0903-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0306-0609	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0610-	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	0306-			●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0306-0609	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0610-	●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	0306-			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-3	01	1	0610-1204		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1205-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-1	01	1	0306-1204	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-98210-254-0	01	1	1205-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	0306-			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25 Z=25	8-94161-912-3	01	1	1102-			●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0306-0609	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0610-1102	●	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-	●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	0306-			●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0306-0609	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0610-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0306-0902			●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0903-			●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0306-0609	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0610-	●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	0306-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0306-0609	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0610-1204	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-98210-226-0	01	1	1205-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	0306-0902			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	0903-			●
37	04.352 BEARING; NEEDLE,2ND & 3RD NSK	8-94161-989-0	02	1	0306-			●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0306-0609	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0610-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0306-0902			●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0903-			●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0306-0609	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0610-	●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	0306-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0306-0609	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0610-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	0306-0902			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	0903-			●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0306-0609	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0610-1106	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1107-	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	0306-			●
52	04.419 COLLAR; NEEDLE BRG,LOW	8-94248-620-1	02	1	0306-0902			●
52	04.419 COLLAR; NEEDLE BRG,LOW	8-97238-834-0	02	1	0903-			●
53	04.419 BEARING; NEEDLE,LOW & REV NSK	8-94161-991-0	02	1	0306-			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0306-0609	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0610-1205	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1206-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0306-0902			●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0903-			●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0306-0609	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0610-	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0306-0902			●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0903-			●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0306-0609	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0610-	●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	0306-			●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0306-0609	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0610-	●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	0306-			●
64	04.419 WASHER; LK,LOW 04.412	8-94238-095-0	01	1	0306-			●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0306-0609	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0610-	●	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	0306-			●
66	04.383 RING; BLOCK,SYN Z=30	8-94463-830-1	01	1	0306-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0306-0609	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0610-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	0306-0902			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	0903-			●
71	04.406 WASHER; THRUST,LOW ID=32.0	5-33239-043-3	02	1	0306-			●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6	8-97227-220-0	01	1	0610-0809		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=6	8-97227-220-0	01	1	0810-1101		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=6	8-97227-220-0	01	1	1102-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) C24SE ENG(LG1) Z=5	8-94472-606-1	01	1	0306-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JH1-TC ENG(RDM) Z=6	8-94472-608-1	01	1	0306-0609	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	0610-0809		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=6	8-94472-608-1	01	1	0610-0809		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=6	8-94472-608-1	01	1	0610-0809		●
80	04.343 GEAR; SPD DRIVE 4X2 REGULAR CAB(TFBS) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	0810-1110		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=6	8-94472-608-1	01	1	0810-1110		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=6	8-94472-608-1	01	1	0810-1110		●
80	04.343 GEAR; SPD DRIVE 4X2 REGULAR CAB(TFBS) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	1111-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=6	8-94472-608-1	01	1	1111-	●
80	04.343 GEAR; SPD DRIVE 4X2 REGULAR CAB(TFBS) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	1111-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=6	8-94472-608-1	01	1	1111-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=6	8-94472-608-1	01	1	1111-		●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	0306-			●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0306-0609	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) Z=28-34-26-27	8-97300-981-0	01	1	0610-	●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0306-0609	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) Z=28-34-26-27	8-97300-980-0	01	1	0610-	●	●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	0306-			●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	0306-0902			●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	0903-			●
85	04.422 BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-94124-766-0	01	1	0306-0306			●
85	04.422 BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-97365-931-0	01	1	0306-0902			●
85	04.422 BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-97365-931-0	01	1	0903-			●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0610-	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0610-	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0610-	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0610-	●	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	0306-			●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0306-0609	●		●
87	04.416 BALL; THRUST WASHER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-94201-356-0	01	1	0610-	●	●	●
88	04.416 RING; THRUST,THRUST WASHER	8-94473-936-2	02	1	0306-			●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	0306-0609	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) 04.422 ID=29.6	9-09180-032-0	01	1	0610-	●	●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	0306-			●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0306-0609	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0610-	●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	0306-0902			●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	0903-			●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0610-		●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0306-	●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0306-0902			●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0903-			●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0306-0609	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0610-	●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97359-571-0	01	1	0306-0601			●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	0602-			●
99	04.429 WASHER; PL,COUNTER 5TH GEAR 04.027 ID=17	9-09160-516-0	01	1	0306-0605			●
99	04.429 WASHER; PL,COUNTER 5TH GEAR ID=17 OD=30	0-91610-516-0	01	1	0606-			●
128	04.437 WASHER; THRUST,REV SHAFT ID=22.0	5-33363-004-0	01	1	0306-			●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0306-0609	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0610-1308	●	●
132	04.433 SHAFT; REV	8-98249-849-0	01	1	1309-	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	0306-			●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	0306-0705			●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0706-0708			●
135	04.430 GEAR; REV IDLER Z=23	8-98082-807-0	01	1	0709-0809			●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0810-0902			●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0903-1003			●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1004-			●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0306-0609	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0610-0705	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-1	01	1	1004-	●	●
136	04.437 WASHER; THRUST,REV IDLE,RR ID=16.2	5-33363-003-3	01	1	0306-			●
137	04.429 NUT; REV GEAR M16	9-09844-195-0	01	1	0306-0604			●
137	04.429 NUT; REV GEAR M16	8-98035-678-0	01	1	0605-			●
140	04.435 BOLT; LK PIECE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0306-0512			●
140	04.435 BOLT; LK PIECE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
151	04.345 KEY; FEATHER,SPD DRIVE GEAR 08.960	9-08020-510-0	01	1	0306-			●
215	04.416 RING; SNAP,BALL BRG ID=27.9	9-09180-030-0	01	1	0306-			●
217	04.376 RING; SNAP,COUNTER FRT BRG 04.422 ID=18.5	9-09180-020-0	01	1	0306-			●
224	04.429 NUT; SELF LK,COUNTER M16	9-09844-195-0	01	1	0306-0604			●
224	04.429 NUT; SELF LK,COUNTER M16	8-98035-678-0	01	1	0605-			●
276	04.419 SPACER; BRG TO DRIVE GEAR 04.423	8-94161-087-0	01	1	0306-			●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) (B) ID=27.9	9-09180-030-0	02	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (B) ID=27.9	9-09180-030-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	0306-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	0306-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	0306-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	0306-			●
387	04.384 INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	0306-			●
393	04.352 BEARING; MAINSHAFT END 04.422 (A) NSK	8-94173-863-0	01	1	0306-0902			●
393	04.352 BEARING; MAINSHAFT END 04.422 (A) NSK	8-94173-863-0	01	1	0903-			●
393	04.352 BEARING; MAINSHAFT END 04.408 (B) NSK	8-94173-866-0	01	1	0306-0902			●
393	04.352 BEARING; MAINSHAFT END 04.408 (B) NSK	8-94173-866-0	01	1	0903-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0306-0609	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0610-1102	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1103-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	0306-			●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0306-0609	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0610-	●	●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	0306-			●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0306-0609	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0610-	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	0306-0902			●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	0903-			●
401	04.345 RING; SNAP,SPD DRIVE GEAR 04.416 ID=27.9	9-09180-030-0	01	1	0306-			●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0306-0609	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0610-	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	0306-			●

72 60 61 63 421 91 314 59 13 87 86 89 404 399 90 421 62 62 65 306 14 404 38 80 149 51 405 306 390 51 391 70 313 211 49 50 391 392 5 4 3 40 40 392 1 34 396 35 238 35 36 33 93 292 246 397 306 82 397 219 97 98 398 110 189 95 386 132 226 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS C24SE ENG(LG1) Z=26	8-97300-950-1	01	1	0306-1204	●
1	04.351 SHAFT; TOP GEAR,TRANS C24SE ENG(LG1) Z=26	8-98210-246-0	01	1	1205-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) Z=26	8-97300-948-1	01	1	0306-0609	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) Z=26	8-97300-948-1	01	1	0610-1204	●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) Z=26	8-98210-225-0	01	1	1205-	●	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	0306-0902			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	0903-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0306-0609	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0610-	●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.355 NSK	8-94167-637-0	01	1	0306-0902			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	0903-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0306-0609	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0610-	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	0306-			●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0306-0609	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0610-	●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	0306-			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-3	01	1	0610-1204		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1205-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-1	01	1	0306-1204	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-98210-254-0	01	1	1205-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	0306-			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25 Z=25	8-94161-912-3	01	1	1102-			●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0306-0609	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0610-1102	●	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-	●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	0306-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0306-0609	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0610-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0306-0609	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0610-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0306-0902			●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0903-			●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0306-0609	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0610-	●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	0306-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0306-0609	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0610-1204	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-98210-226-0	01	1	1205-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	0306-0902			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	0903-			●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0306-0609	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0610-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0306-0902			●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0903-			●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0306-0609	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0610-	●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	0306-			●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0306-0609	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0610-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0306-0609	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0610-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	0306-0902			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	0903-			●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0306-0609	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0610-1106	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1107-	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	0306-			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0306-0609	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0610-1205	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1206-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0306-0902			●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0903-			●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0306-0609	●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0610-	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0306-0609	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0610-	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0306-0902			●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0903-			●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0306-0609	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0610-	●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	0306-			●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0306-0609	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0610-	●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	0306-			●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0306-0609	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0610-	●	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	0306-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0306-0609	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0610-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	0306-0902			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	0903-			●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0306-0609	●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0610-	●	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6	8-97227-220-0	01	1	0610-0809		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=6	8-97227-220-0	01	1	0810-1101		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=6	8-97227-220-0	01	1	1102-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) C24SE ENG(LG1) Z=5	8-94472-606-1	01	1	0306-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JH1-TC ENG(RDM) Z=6	8-94472-608-1	01	1	0306-0609	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	0610-0809		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=6	8-94472-608-1	01	1	0610-0809		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=6	8-94472-608-1	01	1	0610-0809		●
80	04.343 GEAR; SPD DRIVE 4X2 REGULAR CAB(TFBS) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	0810-1110		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=6	8-94472-608-1	01	1	0810-1110		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=6	8-94472-608-1	01	1	0810-1110		●
80	04.343 GEAR; SPD DRIVE 4X2 REGULAR CAB(TFBS) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	1111-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=6	8-94472-608-1	01	1	1111-	●
80	04.343 GEAR; SPD DRIVE 4X2 REGULAR CAB(TFBS) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6	8-94472-608-1	01	1	1111-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=6	8-94472-608-1	01	1	1111-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=6	8-94472-608-1	01	1	1111-		●
80	04.343 GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	0306-			●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0306-0609	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) Z=28-34-26-27	8-97300-981-0	01	1	0610-	●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0306-0609	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) Z=28-34-26-27	8-97300-980-0	01	1	0610-	●	●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0610-	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0610-	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0610-	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0610-	●	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	0306-			●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0306-0609	●		●
87	04.416 BALL; THRUST WASHER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-94201-356-0	01	1	0610-	●	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0306-0609	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0610-	●	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	0306-0609	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) 04.422 ID=29.6	9-09180-032-0	01	1	0610-	●	●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	0306-			●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0306-0609	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0610-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0306-0609	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0610-	●	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0306-0609	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0610-	●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	0306-0902			●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	0903-			●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0610-		●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0306-	●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0306-0902			●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0903-			●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0306-0609	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0610-	●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97359-571-0	01	1	0306-0601			●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	0602-			●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0610-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0610-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0610-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0610-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0610-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0610-	●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0306-0609	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0610-1308	●	●
132	04.433 SHAFT; REV	8-98249-849-0	01	1	1309-	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	0306-			●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	0306-0705			●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0706-0708			●
135	04.430 GEAR; REV IDLER Z=23	8-98082-807-0	01	1	0709-0809			●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0810-0902			●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0903-1003			●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1004-			●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0306-0609	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0610-0705	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-1	01	1	1004-	●	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) 04.422 NSK	8-94173-863-0	01	1	0306-0609	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) 04.422 NSK	8-94173-863-0	01	1	0610-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0306-0609	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0610-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0306-0609	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0610-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0306-0609	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0610-	●	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0306-0609	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0610-	●	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0306-0609	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0610-	●	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0306-0609	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0610-	●	●
238	04.384 INSERT	8-94448-202-2	03	1	0306-0609	●
238	04.384 INSERT	8-94448-202-2	03	1	0610-	●	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0306-0609	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0610-	●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0306-0609	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) (B) ID=27.9	9-09180-030-0	02	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (B) ID=27.9	9-09180-030-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	0306-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	0306-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	0306-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	0306-			●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0306-0609	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0610-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0306-0609	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0610-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0306-0609	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0610-	●	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0306-0609	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0610-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0306-0609	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0610-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0306-0609	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0610-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0306-0609	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0610-	●	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0306-0609	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0610-	●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0306-0609	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0610-1106	●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1107-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0306-0609	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0610-1102	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1103-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	0306-			●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0306-0609	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0610-	●	●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	0306-			●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0306-0609	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0610-	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	0306-0902			●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	0903-			●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	0306-0609	●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1)	8-94310-229-0	01	1	0610-	●	●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0306-0609	●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0610-	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0306-0609	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0610-	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	0306-			●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0306-0609	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0610-	●	●

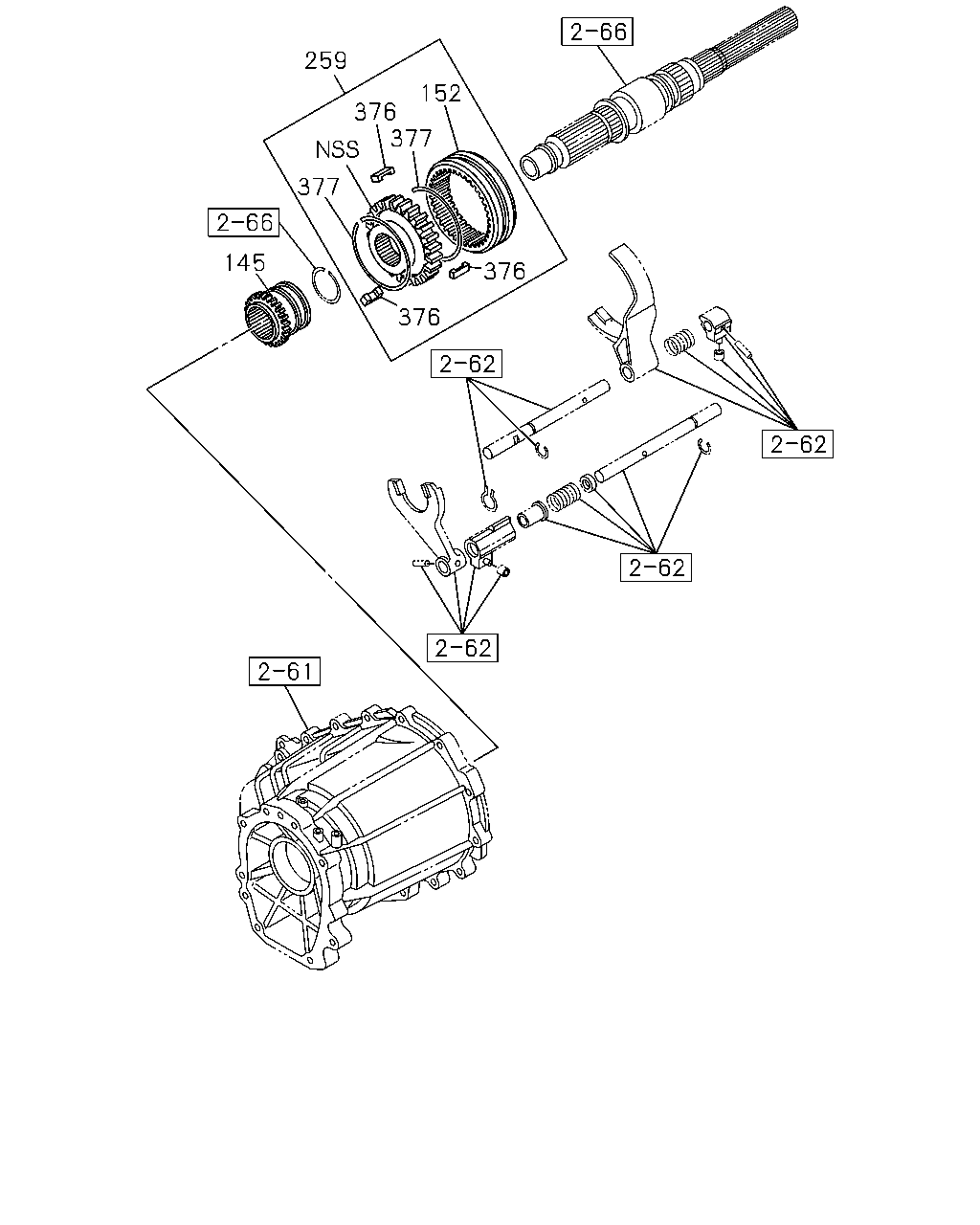

259 152 376 377 377 145 376 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-97358-245-0	01	1	0306-0609	●		●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-97358-245-0	01	1	0610-1109	●	●	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1110-	●	●	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	0306-0609	●		●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	0610-	●	●	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	0306-0609	●		●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	0610-	●	●	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	0306-0609	●		●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	0610-	●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	0306-0609	●		●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	0610-	●	●	●

91 72 59 421 61 63 65 13 14 86 87 89 394 499 60 314 62 62 34 421 404 404 238 35 36 33 306 397 397 82 38 51 4 3 405 49 50 391 392 51 5 392 391 40 1 93 292 246 40 390 396 35 306 70 313 211 219 95 97 98 398 110 386 132 135 189 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS C24SE ENG(LG1) Z=26	8-97300-950-1	01	1	0306-1204	●
1	04.351 SHAFT; TOP GEAR,TRANS C24SE ENG(LG1) Z=26	8-98210-246-0	01	1	1205-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) Z=26	8-97300-948-1	01	1	0306-0609	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) Z=26	8-97300-948-1	01	1	0610-1204	●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) Z=26	8-98210-225-0	01	1	1205-	●	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	0306-0902			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	0903-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0306-0609	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0610-	●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.355 NSK	8-94167-637-0	01	1	0306-0902			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	0903-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0306-0609	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0610-	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	0306-			●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0306-0609	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0610-	●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	0306-			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-3	01	1	0610-1204		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1205-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-1	01	1	0306-1204	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-98210-254-0	01	1	1205-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	0306-			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25 Z=25	8-94161-912-3	01	1	1102-			●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0306-0609	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0610-1102	●	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-	●	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	0306-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0306-0609	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0610-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0306-0609	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0610-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0306-0902			●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	0903-			●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0306-0609	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0610-	●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	0306-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0306-0609	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0610-1204	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-98210-226-0	01	1	1205-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	0306-0902			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	0903-			●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0306-0609	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0610-	●	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0306-0902			●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	0903-			●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0306-0609	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0610-	●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	0306-			●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0306-0609	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0610-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0306-0609	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0610-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	0306-0902			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	0903-			●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0306-0609	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0610-1106	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1107-	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	0306-			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0306-0609	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0610-1205	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1206-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0306-0902			●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	0903-			●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0306-0609	●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0610-	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0306-0609	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0610-	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0306-0902			●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	0903-			●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0306-0609	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0610-	●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	0306-			●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0306-0609	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0610-	●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	0306-			●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0306-0609	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0610-	●	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	0306-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0306-0609	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0610-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	0306-0902			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	0903-			●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0306-0609	●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0610-	●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0306-0609	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) Z=28-34-26-27	8-97300-981-0	01	1	0610-	●	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0306-0609	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) Z=28-34-26-27	8-97300-980-0	01	1	0610-	●	●
82	04.403 SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0610-	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0610-	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0610-	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0610-	●	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	0306-			●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	0306-			●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0306-0609	●		●
87	04.416 BALL; THRUST WASHER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-94201-356-0	01	1	0610-	●	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0306-0609	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0610-	●	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0306-0609	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0610-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0306-0609	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0610-	●	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0306-0609	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0610-	●	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	0306-0902			●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	0903-			●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0610-		●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0306-	●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0306-0902			●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	0903-			●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0306-0609	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0610-	●	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97359-571-0	01	1	0306-0601			●
98	04.422 BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	0602-			●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0610-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0610-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0610-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0610-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0610-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0610-	●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0306-0609	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0610-1308	●	●
132	04.433 SHAFT; REV	8-98249-849-0	01	1	1309-	●	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	0306-			●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	0306-0705			●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0706-0708			●
135	04.430 GEAR; REV IDLER Z=23	8-98082-807-0	01	1	0709-0809			●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0810-0902			●
135	04.430 GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0903-1003			●
135	04.430 GEAR; REV IDLER Z=33	8-98146-724-0	01	1	1004-			●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0306-0609	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0610-0705	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003	●	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-1	01	1	1004-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0306-0609	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0610-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0306-0609	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0610-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0306-0609	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0610-	●	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0306-0609	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0610-	●	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0306-0609	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0610-	●	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0306-0609	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0610-	●	●
238	04.384 INSERT	8-94448-202-2	03	1	0306-0609	●
238	04.384 INSERT	8-94448-202-2	03	1	0610-	●	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0306-0609	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0610-	●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0306-0609	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) (B) ID=27.9	9-09180-030-0	02	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (B) ID=27.9	9-09180-030-0	01	1	0610-	●	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.50	5-09588-020-1	01	1	0306-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.55	5-09588-021-1	01	1	0306-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.60	5-09588-022-1	01	1	0306-			●
306	04.416 RING; SNAP,MAINSHAFT 04.399 (A) T=1.65	5-09588-023-1	01	1	0306-			●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0306-0609	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0610-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0306-0609	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0610-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0306-0609	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0610-	●	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0306-0609	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0610-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0306-0609	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0610-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0306-0609	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0610-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0306-0609	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0610-	●	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0306-0609	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0610-	●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0306-0609	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0610-1106	●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1107-	●	●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 04.352 NSK	8-97018-921-1	01	1	0306-0609	●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.352 NSK	8-97018-921-1	01	1	0610-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0306-0609	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0610-1102	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1103-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	0306-			●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0306-0609	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0610-	●	●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	0306-			●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0306-0609	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0610-	●	●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	0306-0902			●
398	04.421 GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	0903-			●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0306-0609	●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0610-	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0306-0609	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0610-	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	0306-			●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0306-0609	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0610-	●	●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***)	8-97300-954-0	01	1	0306-0609	●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97300-954-0	01	1	0610-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
