Sayfa 2-25 - Isuzu EPC

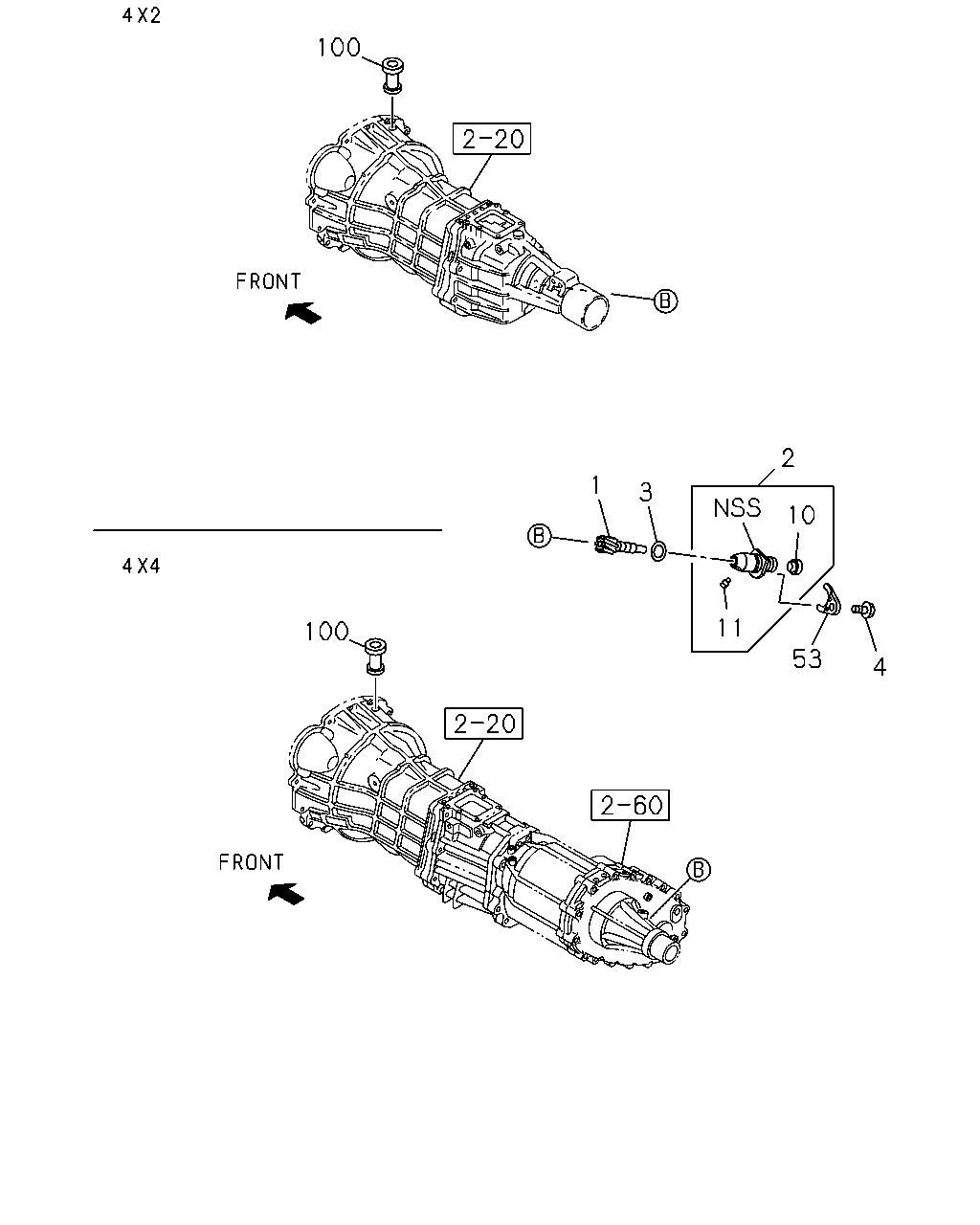

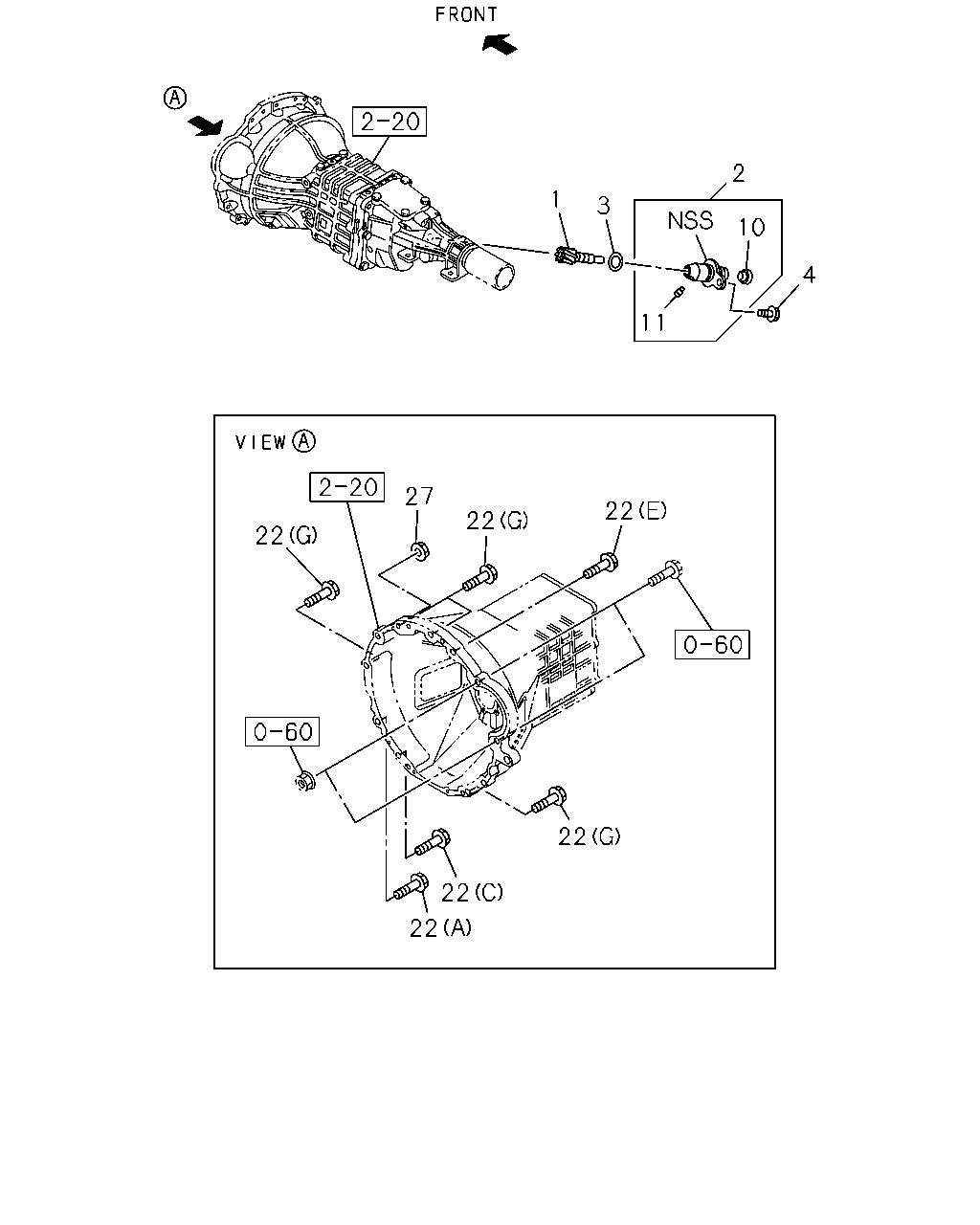

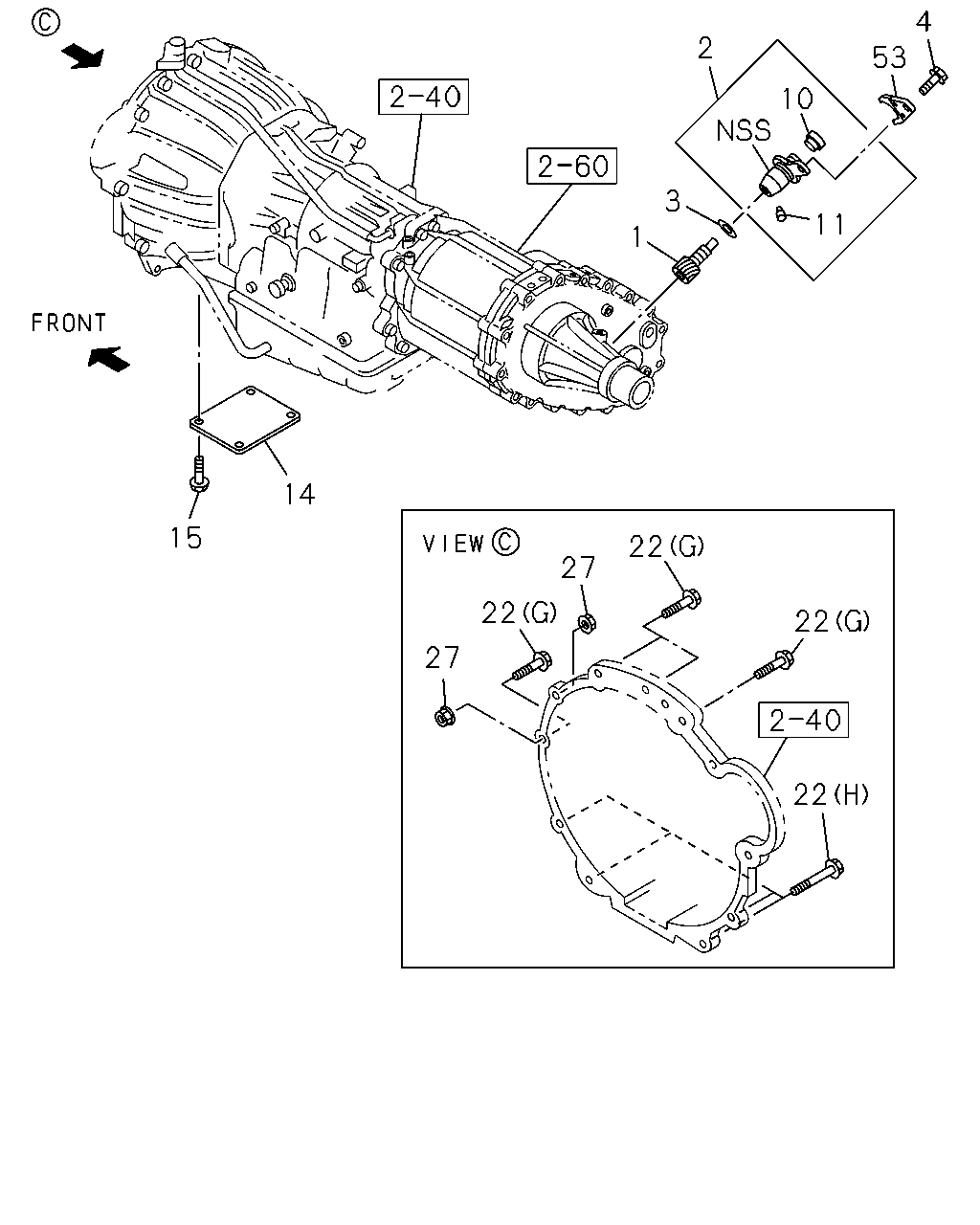

2-25 — SPEEDOMETER DRIVEN GEAR (#77523) — 382 parça

4 53 2 10 3 11 1 14 15 22 27 22 22 27 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=19	8-94473-303-2	01	1	1111-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-306-2	01	1	1001-1101	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-306-2	01	1	1102-	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0610-	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97169-434-1	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-0809			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC),FRT&RR 195R15C(QZO) Z=16	8-97169-434-1	01	1	0810-1101	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0810-1101			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC),FRT&RR 195R15C(QZO) Z=16	8-97169-434-1	01	1	1102-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	1102-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C(BSU),FRT&RR 195R14C(CNU) Z=17	8-94473-307-2	01	1	0306-0508	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=17	8-94473-307-2	01	1	0509-0609	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=17	8-94473-307-2	01	1	0610-0809	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	0810-0912	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	0810-0912	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1001-1101	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1001-1101	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1001-1101	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 215/70R15C GOODY EAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1102-	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1102-	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1102-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0306-0609	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0610-0809	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0810-	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) Z=18	8-97012-086-2	01	1	0306-0402	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 245/70R16(BSW) Z=18	8-97012-086-2	01	1	0403-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) Z=18	8-97012-086-2	01	1	0403-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=18	8-97012-086-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-97012-086-2	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=18	8-97012-086-2	01	1	0810-1101	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-97012-086-2	01	1	1102-1208	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-97012-086-2	01	1	1209-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) Z=18	8-97012-086-2	01	1	1209-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97012-085-2	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW) Z=17	8-97012-085-2	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 215/70R15C(BSU),FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97012-085-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=17	8-97012-085-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=17	8-97012-085-2	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0810-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0810-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=17	8-97012-085-2	01	1	0810-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) Z=16	8-97238-588-0	01	1	0306-0609	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97238-588-0	01	1	0610-	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) Z=16	8-97238-588-0	01	1	0610-	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0306-0508	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW) Z=17	8-97238-583-0	01	1	0306-0508	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0509-0709	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0509-0709	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0710-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0710-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB(TFSW) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0710-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0306-0402	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 245/70R16(BSW) Z=18	8-97238-584-2	01	1	0403-0508	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0403-0508	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0509-0609	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0610-	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU),FRT&RR 195R14C(CNU) Z=18	8-94473-304-2	01	1	0306-0506		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 225/75R15C(BZC) Z=18	8-94473-304-2	01	1	0507-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU),FRT&RR 195R14C(CNU) Z=18	8-94473-304-2	01	1	0507-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=18	8-94473-304-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=18	8-94473-304-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=18	8-94473-304-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=18	8-94473-304-2	01	1	0610-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-304-2	01	1	0610-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-304-2	01	1	0610-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=18	8-94473-304-2	01	1	0810-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-94473-304-2	01	1	0810-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=18	8-94473-304-2	01	1	0810-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=18	8-94473-304-2	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 215/70R15C GOODY EAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-94473-304-2	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-94473-304-2	01	1	1102-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	0306-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0306-0609	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0610-	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0306-0609	●			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0610-	●		●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0306-0609	●	●
3	04.338 GASKET; BUSHING 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0306-0609				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-	●	●	●
3	04.338 GASKET; BUSHING 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-				●
4	04.338 BOLT; RET,DRIVEN GEAR 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0306-		●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0306-0609	●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0306-0609				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0610-	●		●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0610-				●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0306-0609	●	●
10	04.338 SEAL; OIL,DRIVE GEAR 4X4(TFS***) NOK	8-97131-328-1	01	1	0306-0609				●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0610-	●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR 4X4(TFS***) NOK	8-97131-328-1	01	1	0610-				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0306-0609	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0306-0609				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0610-	●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0610-				●
14	00.679 COVER; UNDER,TRANS 4JH1-TC ENG(RDM)	8-94375-252-0	01	1	0306-0609				●
14	00.679 COVER; UNDER,TRANS 4JJ1-TCS ENG(LFB)	8-98049-857-0	01	1	0610-				●
15	00.685 BOLT; UNDER COVER TO TRANS 4JH1-TC ENG(RDM) 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0306-0609				●
15	00.685 BOLT; UNDER COVER TO TRANS 4JJ1-TCS ENG(LFB) 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (A) M12X35 FLANGE	0-28051-235-0	01	1	0501-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0501-0609	●			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) (G) M10X40 FLANGE	0-28051-040-0	04	1	0610-	●		●	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0610-	●		●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (B) M12X60 FLANGE	0-28151-260-0	01	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (B) M12X60 FLANGE	0-28151-260-0	01	1	0610-	●		●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0610-	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (C) M10X45 FLANGE	0-28051-045-0	01	1	0306-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (D) M10X60 FLANGE	0-28051-060-0	02	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) (D) M10X60 FLANGE	0-28051-060-0	02	1	0610-	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JH1-TC ENG(RDM) (H) M12X45 FLANGE	0-28051-245-0	04	1	0306-0609				●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB) (H) M12X45 FLANGE	0-28051-245-0	04	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) 04.510 (E) M10X35 FLANGE	0-28051-035-0	01	1	0306-0412		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) 04.510 (E) M10X35 FLANGE	0-28051-035-0	02	1	0501-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0306-0412	●	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (G) M10X40 FLANGE	0-28051-040-0	03	1	0501-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) M12X40 FLANGE	0-28051-240-0	01	1	0306-0412	●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) M12X40 FLANGE	0-28051-240-0	01	1	0501-0609	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) (A) M12X40 FLANGE	0-28051-240-0	01	1	0610-	●		●
27	00.685 NUT; CLU HSG TO TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.042 M12 FLANGE	0-91180-112-0	02	1	0306-0404	●
27	00.685 NUT; CLU HSG TO TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-0609	●	●		●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0306-0609	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0306-0609				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0610-0703	●		●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0610-0703				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	0704-	●		●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-98035-572-0	01	1	0704-				●

100 2 1 3 10 11 100 53 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=19	8-94473-303-2	01	1	1111-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-306-2	01	1	1001-1101	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-306-2	01	1	1102-	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0610-	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97169-434-1	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-0809			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC),FRT&RR 195R15C(QZO) Z=16	8-97169-434-1	01	1	0810-1101	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0810-1101			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC),FRT&RR 195R15C(QZO) Z=16	8-97169-434-1	01	1	1102-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	1102-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C(BSU),FRT&RR 195R14C(CNU) Z=17	8-94473-307-2	01	1	0306-0508	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=17	8-94473-307-2	01	1	0509-0609	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=17	8-94473-307-2	01	1	0610-0809	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	0810-0912	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	0810-0912	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1001-1101	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1001-1101	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1001-1101	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 215/70R15C GOODY EAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1102-	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1102-	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1102-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0306-0609	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0610-0809	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0810-	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) Z=18	8-97012-086-2	01	1	0306-0402	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 245/70R16(BSW) Z=18	8-97012-086-2	01	1	0403-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) Z=18	8-97012-086-2	01	1	0403-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=18	8-97012-086-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-97012-086-2	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=18	8-97012-086-2	01	1	0810-1101	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-97012-086-2	01	1	1102-1208	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-97012-086-2	01	1	1209-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) Z=18	8-97012-086-2	01	1	1209-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97012-085-2	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW) Z=17	8-97012-085-2	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 215/70R15C(BSU),FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97012-085-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=17	8-97012-085-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=17	8-97012-085-2	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0810-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0810-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=17	8-97012-085-2	01	1	0810-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) Z=16	8-97238-588-0	01	1	0306-0609	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97238-588-0	01	1	0610-	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) Z=16	8-97238-588-0	01	1	0610-	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0306-0508	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW) Z=17	8-97238-583-0	01	1	0306-0508	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0509-0709	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0509-0709	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0710-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0710-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB(TFSW) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0710-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0306-0402	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 245/70R16(BSW) Z=18	8-97238-584-2	01	1	0403-0508	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0403-0508	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0509-0609	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0610-	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU),FRT&RR 195R14C(CNU) Z=18	8-94473-304-2	01	1	0306-0506		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 225/75R15C(BZC) Z=18	8-94473-304-2	01	1	0507-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU),FRT&RR 195R14C(CNU) Z=18	8-94473-304-2	01	1	0507-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=18	8-94473-304-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=18	8-94473-304-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=18	8-94473-304-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=18	8-94473-304-2	01	1	0610-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-304-2	01	1	0610-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-304-2	01	1	0610-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=18	8-94473-304-2	01	1	0810-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-94473-304-2	01	1	0810-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=18	8-94473-304-2	01	1	0810-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=18	8-94473-304-2	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 215/70R15C GOODY EAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-94473-304-2	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-94473-304-2	01	1	1102-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	0306-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0306-0609	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0610-	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0306-0609	●			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0610-	●		●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0306-0609	●	●
3	04.338 GASKET; BUSHING 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0306-0609				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-	●	●	●
3	04.338 GASKET; BUSHING 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-				●
4	04.338 BOLT; RET,DRIVEN GEAR 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0306-		●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0306-0609	●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0306-0609				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0610-	●		●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0610-				●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0306-0609	●	●
10	04.338 SEAL; OIL,DRIVE GEAR 4X4(TFS***) NOK	8-97131-328-1	01	1	0306-0609				●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0610-	●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR 4X4(TFS***) NOK	8-97131-328-1	01	1	0610-				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0306-0609	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0306-0609				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0610-	●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0610-				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0306-0609	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0306-0609				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0610-0703	●		●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0610-0703				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	0704-	●		●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-98035-572-0	01	1	0704-				●
100	02.510 PLUG; HOLE 4JA1-T ENG(LP0)	8-97318-961-0	01	1	0306-0609	●
100	02.510 PLUG; HOLE 4JJ1-TCS ENG(LFB)	8-97318-961-0	01	1	0610-0610			●	●
100	02.510 PLUG; HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97318-961-0	01	1	0611-	●		●	●

22 22 22 27 22 22 22 22 22 22 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (A) M12X35 FLANGE	0-28051-235-0	01	1	0501-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0501-0609	●			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) (G) M10X40 FLANGE	0-28051-040-0	04	1	0610-	●		●	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0610-	●		●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (B) M12X60 FLANGE	0-28151-260-0	01	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (B) M12X60 FLANGE	0-28151-260-0	01	1	0610-	●		●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0610-	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (C) M10X45 FLANGE	0-28051-045-0	01	1	0306-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (D) M10X60 FLANGE	0-28051-060-0	02	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) (D) M10X60 FLANGE	0-28051-060-0	02	1	0610-	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JH1-TC ENG(RDM) (H) M12X45 FLANGE	0-28051-245-0	04	1	0306-0609				●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB) (H) M12X45 FLANGE	0-28051-245-0	04	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) 04.510 (E) M10X35 FLANGE	0-28051-035-0	01	1	0306-0412		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) 04.510 (E) M10X35 FLANGE	0-28051-035-0	02	1	0501-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0306-0412	●	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (G) M10X40 FLANGE	0-28051-040-0	03	1	0501-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) M12X40 FLANGE	0-28051-240-0	01	1	0306-0412	●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) M12X40 FLANGE	0-28051-240-0	01	1	0501-0609	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) (A) M12X40 FLANGE	0-28051-240-0	01	1	0610-	●		●
27	00.685 NUT; CLU HSG TO TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.042 M12 FLANGE	0-91180-112-0	02	1	0306-0404	●
27	00.685 NUT; CLU HSG TO TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-0609	●	●		●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-	●	●	●	●

2 1 3 10 4 11 27 22 22 22 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=19	8-94473-303-2	01	1	1111-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-306-2	01	1	1001-1101	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-306-2	01	1	1102-	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 225/75R15C(BZC) Z=17	8-97238-587-2	01	1	0610-	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC) Z=16	8-97169-434-1	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-0809			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC),FRT&RR 195R15C(QZO) Z=16	8-97169-434-1	01	1	0810-1101	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0810-1101			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 225/75R15C(BZC),FRT&RR 195R15C(QZO) Z=16	8-97169-434-1	01	1	1102-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	1102-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C(BSU),FRT&RR 195R14C(CNU) Z=17	8-94473-307-2	01	1	0306-0508	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=17	8-94473-307-2	01	1	0509-0609	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=17	8-94473-307-2	01	1	0610-0809	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	0810-0912	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	0810-0912	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1001-1101	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1001-1101	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1001-1101	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/9(GT3) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 215/70R15C GOODY EAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1102-	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/9(GT3) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1102-	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 195R15C(QZO) Z=17	8-94473-307-2	01	1	1102-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0306-0609	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0610-0809	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 43/10(GY2) FRT&RR 195R14C(CNU) Z=16	8-94473-308-2	01	1	0810-	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) Z=18	8-97012-086-2	01	1	0306-0402	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 245/70R16(BSW) Z=18	8-97012-086-2	01	1	0403-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU) Z=18	8-97012-086-2	01	1	0403-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=18	8-97012-086-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-97012-086-2	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=18	8-97012-086-2	01	1	0810-1101	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-97012-086-2	01	1	1102-1208	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-97012-086-2	01	1	1209-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) Z=18	8-97012-086-2	01	1	1209-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97012-085-2	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW) Z=17	8-97012-085-2	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 215/70R15C(BSU),FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97012-085-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=17	8-97012-085-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=17	8-97012-085-2	01	1	0610-0809	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=17	8-97012-085-2	01	1	0810-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0810-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=17	8-97012-085-2	01	1	0810-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) Z=16	8-97238-588-0	01	1	0306-0609	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97238-588-0	01	1	0610-	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) Z=16	8-97238-588-0	01	1	0610-	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0306-0508	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW) Z=17	8-97238-583-0	01	1	0306-0508	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0509-0709	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0509-0709	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0710-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0710-	●		●
1	04.337 GEAR; DRIVEN,SPD 4X4 CREW CAB(TFSW) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0710-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0306-0402	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/9(GT3) FRT&RR 245/70R16(BSW) Z=18	8-97238-584-2	01	1	0403-0508	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0403-0508	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0509-0609	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0610-	●		●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU),FRT&RR 195R14C(CNU) Z=18	8-94473-304-2	01	1	0306-0506		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW),FRT&RR 225/75R15C(BZC) Z=18	8-94473-304-2	01	1	0507-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C(BSU),FRT&RR 195R14C(CNU) Z=18	8-94473-304-2	01	1	0507-0508		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=18	8-94473-304-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=18	8-94473-304-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=18	8-94473-304-2	01	1	0509-0609		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=18	8-94473-304-2	01	1	0610-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-304-2	01	1	0610-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-94473-304-2	01	1	0610-0809		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=18	8-94473-304-2	01	1	0810-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-94473-304-2	01	1	0810-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=18	8-94473-304-2	01	1	0810-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16ALS(QCQ) Z=18	8-94473-304-2	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X2 REGULAR CAB(TFBS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 215/70R15C GOODY EAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-94473-304-2	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X2 CREW CAB(TFBW) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO) Z=18	8-94473-304-2	01	1	1102-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	0306-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0306-0609	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0610-	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0306-0609	●			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0610-	●		●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0306-0609	●	●
3	04.338 GASKET; BUSHING 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0306-0609				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-	●	●	●
3	04.338 GASKET; BUSHING 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-				●
4	04.338 BOLT; RET,DRIVEN GEAR 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0306-		●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0306-0609	●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0306-0609				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0610-	●		●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0610-				●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0306-0609	●	●
10	04.338 SEAL; OIL,DRIVE GEAR 4X4(TFS***) NOK	8-97131-328-1	01	1	0306-0609				●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0610-	●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR 4X4(TFS***) NOK	8-97131-328-1	01	1	0610-				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0306-0609	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0306-0609				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0610-	●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (A) M12X35 FLANGE	0-28051-235-0	01	1	0501-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0501-0609	●			●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) (G) M10X40 FLANGE	0-28051-040-0	04	1	0610-	●		●	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (F) M12X45 FLANGE	0-28151-245-0	05	1	0610-	●		●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (B) M12X60 FLANGE	0-28151-260-0	01	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (B) M12X60 FLANGE	0-28151-260-0	01	1	0610-	●		●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG C24SE ENG(LG1) (I) M8X40 FLANGE	0-28650-840-0	02	1	0610-	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (C) M10X45 FLANGE	0-28051-045-0	01	1	0306-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (D) M10X60 FLANGE	0-28051-060-0	02	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) (D) M10X60 FLANGE	0-28051-060-0	02	1	0610-	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JH1-TC ENG(RDM) (H) M12X45 FLANGE	0-28051-245-0	04	1	0306-0609				●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB) (H) M12X45 FLANGE	0-28051-245-0	04	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) 04.510 (E) M10X35 FLANGE	0-28051-035-0	01	1	0306-0412		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) 04.510 (E) M10X35 FLANGE	0-28051-035-0	02	1	0501-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0306-0412	●	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (G) M10X40 FLANGE	0-28051-040-0	03	1	0501-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) M12X40 FLANGE	0-28051-240-0	01	1	0306-0412	●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A) M12X40 FLANGE	0-28051-240-0	01	1	0501-0609	●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) (A) M12X40 FLANGE	0-28051-240-0	01	1	0610-	●		●
27	00.685 NUT; CLU HSG TO TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 02.042 M12 FLANGE	0-91180-112-0	02	1	0306-0404	●
27	00.685 NUT; CLU HSG TO TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-0609	●	●		●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
