Sayfa 2-20 - Isuzu EPC

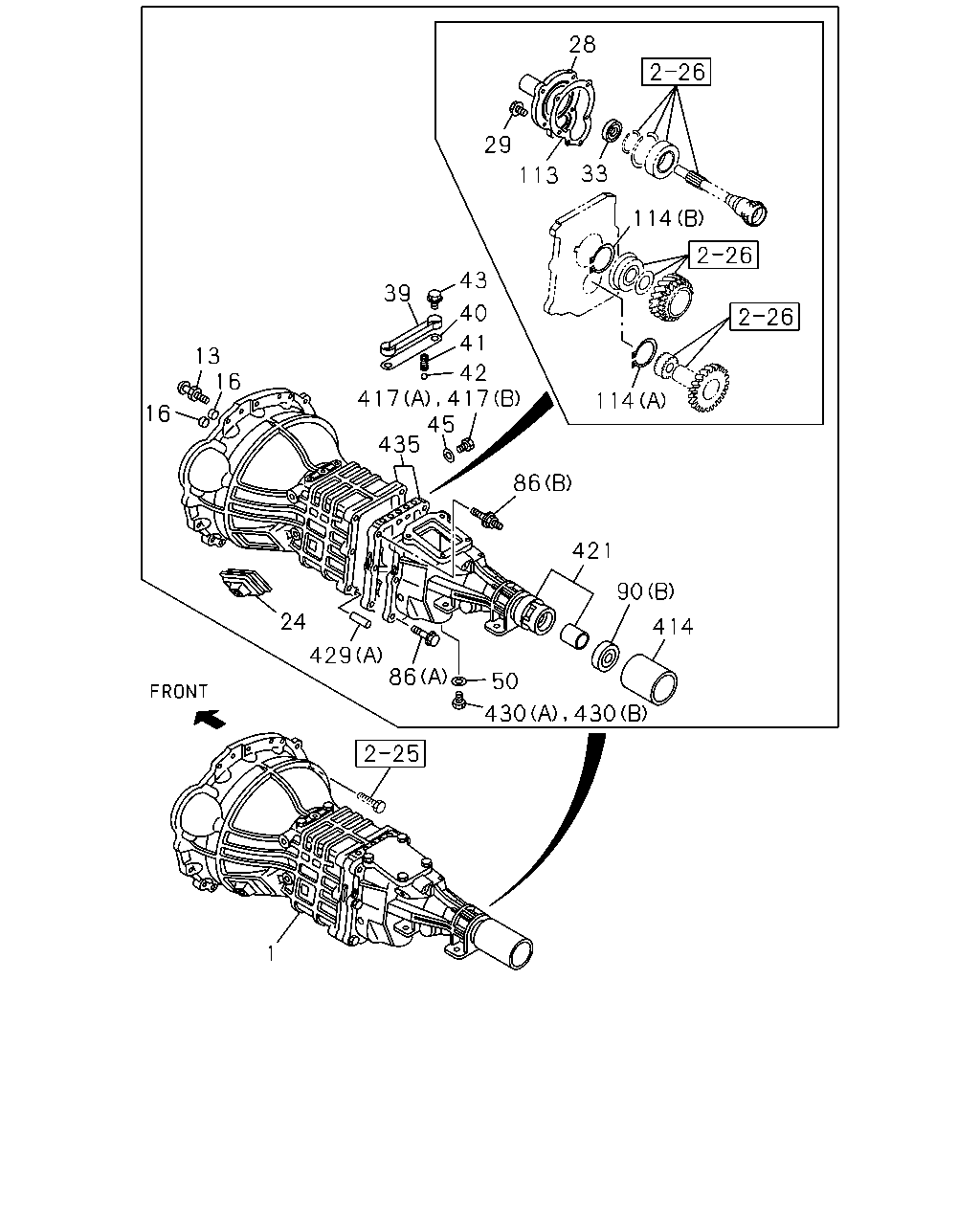

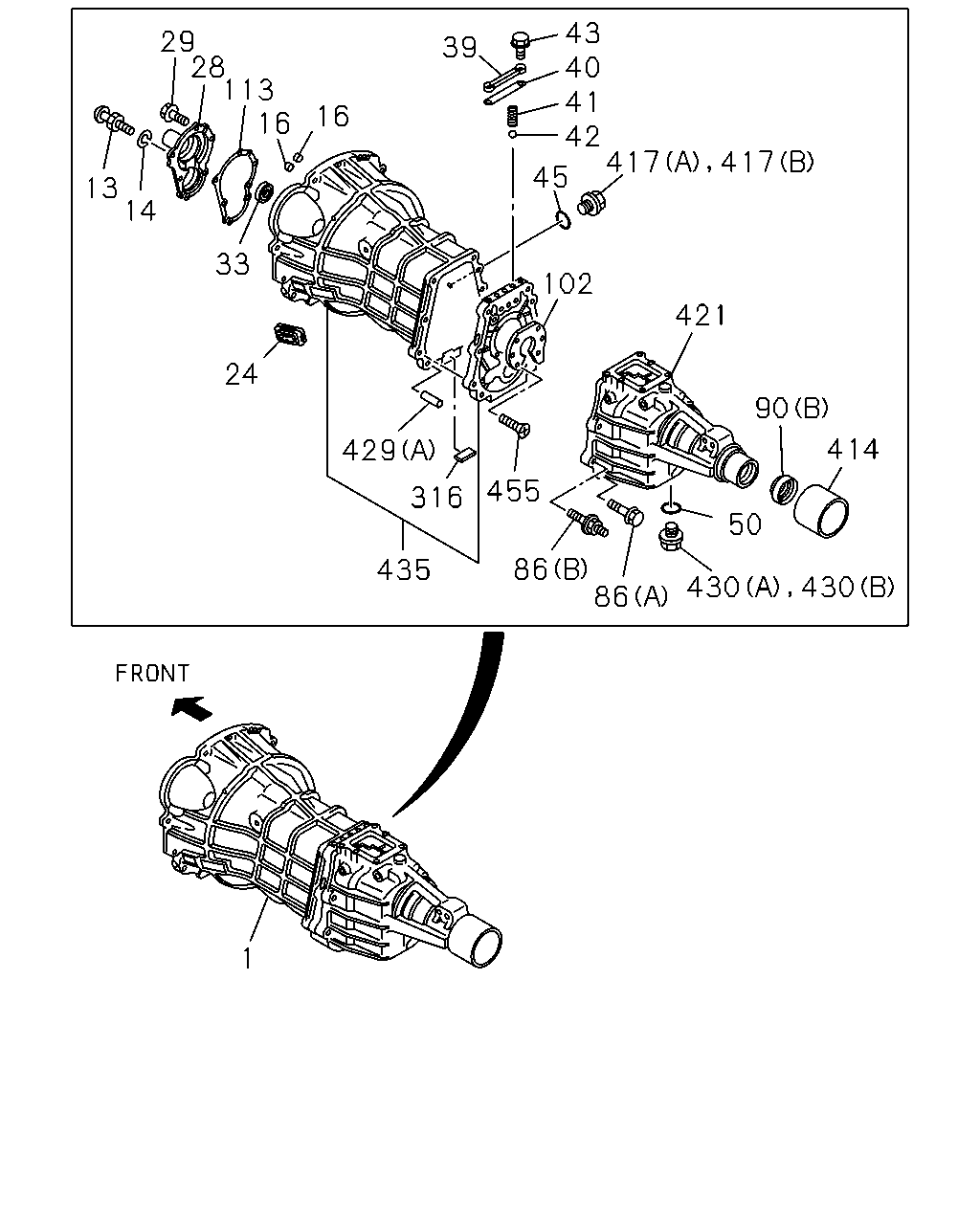

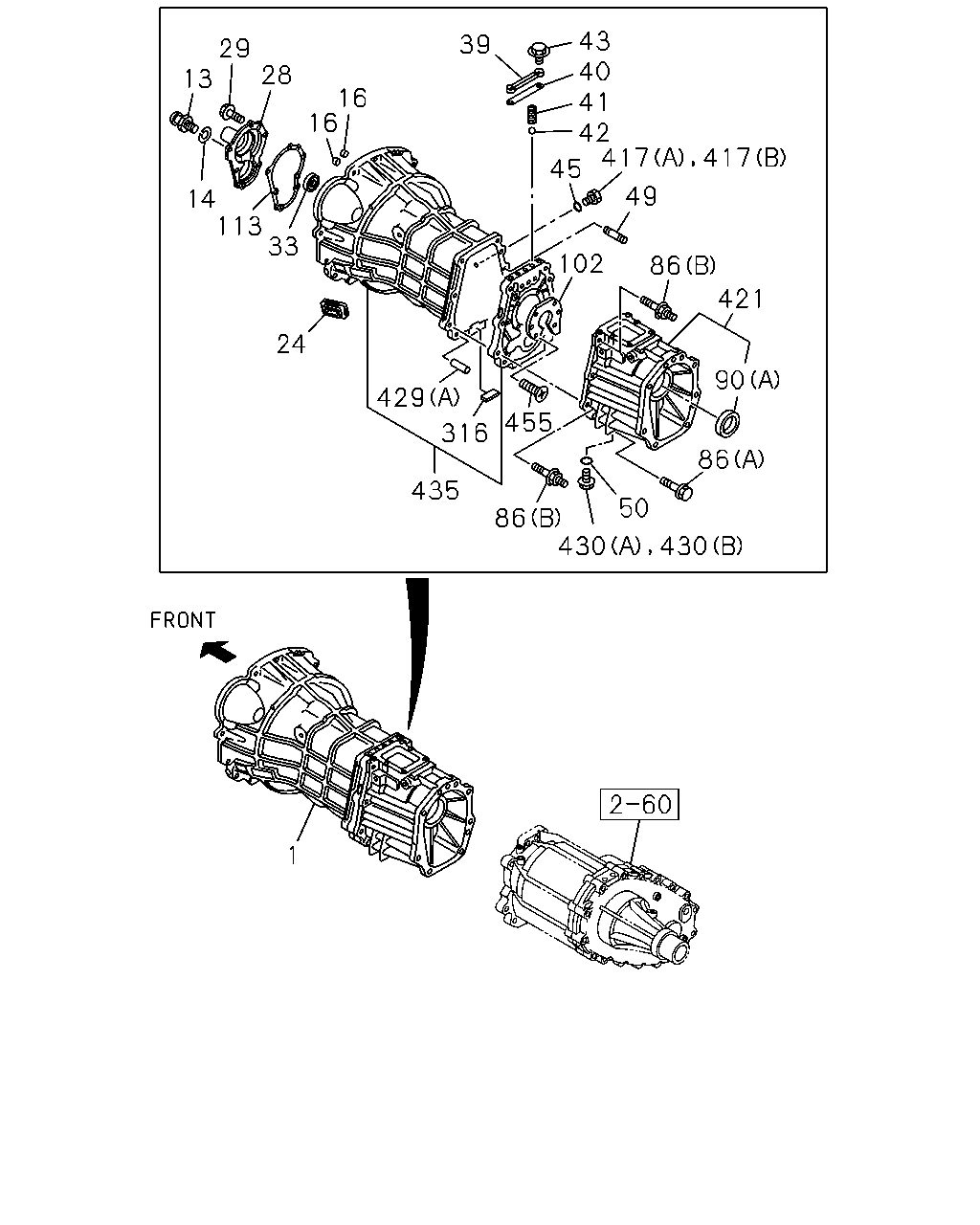

2-20 — MANUAL TRANSMISSION ASM AND CASE (#77522) — 603 parça

28 29 33 113 114 43 39 40 41 13 16 42 45 435 417 114 16 86 421 90 24 414 429 86 50 430 1 430 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB(TFBS) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU)	8-98150-141-0	01	1	1111-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO)	8-98150-141-0	01	1	1111-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98036-613-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98087-269-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98132-782-0	01	1	0810-0810		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98132-782-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98150-146-0	01	1	1005-1101		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO)	8-98150-146-0	01	1	1102-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-97315-310-0	01	1	0306-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98036-622-0	01	1	0610-0709	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98087-280-0	01	1	0710-0809	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98132-795-0	01	1	0810-1004	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98150-159-0	01	1	1005-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-97315-298-0	01	1	0306-0311	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-97373-803-0	01	1	0312-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98036-609-0	01	1	0610-0709	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98087-266-0	01	1	0710-0809	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98132-779-0	01	1	0810-1004	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98150-143-0	01	1	1005-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97315-296-0	01	1	0306-0311	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97373-800-0	01	1	0312-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97376-950-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98036-612-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98036-612-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98036-612-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98087-268-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98087-268-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98087-268-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98132-781-0	01	1	0810-0810		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98132-781-0	01	1	0810-0810		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-0810		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB(TFBS) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98132-781-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98132-781-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB(TFBS) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98150-145-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98150-145-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-97315-307-0	01	1	0306-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-97376-954-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98036-619-0	01	1	0610-0709	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98087-277-0	01	1	0710-0809	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-792-0	01	1	0810-1004	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98150-156-0	01	1	1005-1007	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98150-156-0	01	1	1008-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JH1-TC ENG(RDM)	8-97315-305-0	01	1	0306-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JH1-TC ENG(RDM)	8-97376-953-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-98036-624-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-98087-282-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-98132-797-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-98150-161-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97315-292-0	01	1	0306-0609			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98036-606-0	01	1	0610-0709			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98087-263-0	01	1	0710-0809			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98132-751-0	01	1	0810-0902			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98132-752-0	01	1	0903-1004			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98150-117-0	01	1	1005-			●
13	04.302 SUPPORT; SHIFT FORK C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) L=47.5	8-97072-827-0	01	1	0306-0609	●		●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) L=47.5	8-97072-827-0	01	1	0610-	●	●	●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	0306-0604	●		●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	0605-0609	●		●
16	04.105 PLUG; SHIFT ROD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) OD=14	8-97358-601-0	02	1	0610-	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0903-			●
24	00.797 COVER; CHECK HOLE,DUST C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 06.868	8-94156-700-0	01	1	0306-0609	●		●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 06.868	8-94156-700-0	01	1	0610-0902	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0903-	●	●
28	04.356 COVER; FRT,TRANS CASE C24SE ENG(LG1)	8-97108-066-1	01	1	0306-	●
28	04.356 COVER; FRT,TRANS CASE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97104-676-0	01	1	0306-0609	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97104-676-0	01	1	0610-	●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	0306-			●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0306-0604	●		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0605-0609	●		●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) M8X22 FLANGE	8-97365-376-0	06	1	0610-	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0306-0609	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0610-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0306-0609	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0610-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	0306-1208			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1209-			●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	0306-0604	●		●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	0605-0609	●		●
39	04.311 PLATE; DETENT SPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-98035-571-0	01	1	0610-	●	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0306-0609	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0610-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	0306-			●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0306-0609	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0610-	●	●
41	04.311 SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	0306-			●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0306-0609	●		●
42	04.311 BALL; DETENT,GEAR SHIFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-94435-335-0	03	1	0610-	●	●	●
43	04.311 BOLT; PLATE TO PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0306-0512			●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	0306-0604	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0605-0609	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0610-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0306-0609	●		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) ID=17	8-97115-712-0	01	1	0610-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0306-0609	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	0306-0609	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0610-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	0610-	●	●		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0306-0601	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0602-0609	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0610-	●	●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0306-0604	●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0605-0609	●		●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (A) M10X55 FLANGE	8-98035-672-0	03	1	0610-	●	●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0306-0609	●		●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0610-	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97947-840-0	01	1	1209-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-94422-387-0	01	1	0306-0403			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.510 (A) TKK	8-97046-700-0	01	1	0610-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.510 (A) NOK	8-97046-701-2	01	1	0610-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-2	01	1	0306-0402	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-2	01	1	0306-0402				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/9(GT3) (B) NOK	8-97046-705-2	01	1	0403-0403	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) C24SE ENG(LG1),4JH1-TC ENG(RDM) (B) NOK	8-97046-705-2	01	1	0403-0403	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0404-0609	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	0404-0609				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0610-1208	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	0610-1208				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1209-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1209-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) (B) NOK	8-97046-705-2	02	1	0403-0403	●			●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0306-0609	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0610-	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	0306-			●
114	04.105 RING; SNAP,BALL BRG 04.422 (A) ID=49.6	5-09589-004-0	01	1	0306-			●
114	04.105 RING; SNAP,BALL BRG 04.412 (B) ID=71.7	5-09589-005-0	01	1	0306-			●
414	04.317 COVER; DUST,RR COVER	8-94310-493-0	01	1	0306-0604			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-94310-493-0	01	1	0306-0604	●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	0605-0609			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	0605-0609	●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	0610-			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	0610-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	0604-0604	●			●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	0605-0609	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	0605-0609	●			●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	0610-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	0610-	●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	0306-0603	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971 (A)	8-94310-917-0	01	1	0306-0603	●			●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	0604-0604	●		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97301-224-2	01	1	0306-0609	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97301-224-2	01	1	0610-	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	0306-0309	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97373-749-0	01	1	0310-0504	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-98014-386-0	01	1	0505-0609	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1)	8-98014-386-0	01	1	0610-1202	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1)	8-98191-921-0	01	1	1203-	●	●
421	04.317 COVER; RR,TRANS	8-97112-207-3	01	1	0306-0504			●
421	04.317 COVER; RR,TRANS	8-98014-389-0	01	1	0505-1105			●
421	04.317 COVER; RR,TRANS	8-98193-595-0	01	1	1106-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0306-0609	●			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0610-	●	●		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	0306-0609	●		●
429	04.105 PIN; STRAIGHT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (A) OD=10 L=40	5-09740-018-1	02	1	0610-	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	0604-0604	●			●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	0605-0609	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	0605-0609	●			●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	0610-	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	0610-	●	●		●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	0306-0603	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	9-09662-004-0	01	1	0306-0603	●			●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	0604-0604	●		●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97301-098-0	01	1	0306-0312	●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97376-846-0	01	1	0401-0604	●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-98047-232-0	01	1	0605-0609	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98047-232-0	01	1	0610-1004	●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98162-753-0	01	1	1005-	●	●
435	04.103 CASE; TRANS	8-97330-878-0	01	1	0306-			●
435	04.103 CASE; TRANS C24SE ENG(LG1)	8-97146-668-0	01	1	0306-0604	●
435	04.103 CASE; TRANS C24SE ENG(LG1)	8-98047-238-0	01	1	0605-	●

43 40 41 42 417 39 29 13 28 16 16 45 49 14 113 33 102 86 421 24 90 429 455 316 86 435 50 86 430 1 430 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB(TFBS) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU)	8-98150-141-0	01	1	1111-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO)	8-98150-141-0	01	1	1111-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98036-613-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98087-269-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98132-782-0	01	1	0810-0810		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98132-782-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98150-146-0	01	1	1005-1101		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO)	8-98150-146-0	01	1	1102-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-97315-310-0	01	1	0306-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98036-622-0	01	1	0610-0709	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98087-280-0	01	1	0710-0809	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98132-795-0	01	1	0810-1004	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98150-159-0	01	1	1005-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-97315-298-0	01	1	0306-0311	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-97373-803-0	01	1	0312-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98036-609-0	01	1	0610-0709	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98087-266-0	01	1	0710-0809	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98132-779-0	01	1	0810-1004	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98150-143-0	01	1	1005-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97315-296-0	01	1	0306-0311	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97373-800-0	01	1	0312-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97376-950-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98036-612-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98036-612-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98036-612-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98087-268-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98087-268-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98087-268-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98132-781-0	01	1	0810-0810		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98132-781-0	01	1	0810-0810		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-0810		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB(TFBS) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98132-781-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98132-781-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB(TFBS) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98150-145-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98150-145-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-97315-307-0	01	1	0306-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-97376-954-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98036-619-0	01	1	0610-0709	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98087-277-0	01	1	0710-0809	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-792-0	01	1	0810-1004	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98150-156-0	01	1	1005-1007	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98150-156-0	01	1	1008-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JH1-TC ENG(RDM)	8-97315-305-0	01	1	0306-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JH1-TC ENG(RDM)	8-97376-953-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-98036-624-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-98087-282-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-98132-797-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-98150-161-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97315-292-0	01	1	0306-0609			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98036-606-0	01	1	0610-0709			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98087-263-0	01	1	0710-0809			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98132-751-0	01	1	0810-0902			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98132-752-0	01	1	0903-1004			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98150-117-0	01	1	1005-			●
13	04.302 SUPPORT; SHIFT FORK C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) L=47.5	8-97072-827-0	01	1	0306-0609	●		●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) L=47.5	8-97072-827-0	01	1	0610-	●	●	●
14	04.302 WASHER; LK,SUPPORT 04.634 ID=12.2	9-09150-512-0	01	1	0306-0603	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	0604-0609	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	0610-	●	●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	0306-0604	●		●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	0605-0609	●		●
16	04.105 PLUG; SHIFT ROD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) OD=14	8-97358-601-0	02	1	0610-	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0903-			●
24	00.797 COVER; CHECK HOLE,DUST C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 06.868	8-94156-700-0	01	1	0306-0609	●		●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 06.868	8-94156-700-0	01	1	0610-0902	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0903-	●	●
28	04.356 COVER; FRT,TRANS CASE C24SE ENG(LG1)	8-97108-066-1	01	1	0306-	●
28	04.356 COVER; FRT,TRANS CASE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97104-676-0	01	1	0306-0609	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97104-676-0	01	1	0610-	●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	0306-			●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0306-0604	●		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0605-0609	●		●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) M8X22 FLANGE	8-97365-376-0	06	1	0610-	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0306-0609	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0610-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0306-0609	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0610-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	0306-1208			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1209-			●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	0306-0604	●		●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	0605-0609	●		●
39	04.311 PLATE; DETENT SPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-98035-571-0	01	1	0610-	●	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0306-0609	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0610-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	0306-			●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0306-0609	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0610-	●	●
41	04.311 SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	0306-			●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0306-0609	●		●
42	04.311 BALL; DETENT,GEAR SHIFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-94435-335-0	03	1	0610-	●	●	●
43	04.311 BOLT; PLATE TO PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0306-0512			●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	0306-0604	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0605-0609	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0610-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0306-0609	●		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) ID=17	8-97115-712-0	01	1	0610-	●	●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***)	8-97304-116-1	01	1	0306-0604	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X27 L=43.5	8-98035-677-0	01	1	0605-0609	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) M10X27 L=43.5	8-98035-677-0	01	1	0610-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0306-0609	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	0306-0609	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0610-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	0610-	●	●		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0306-0601	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0602-0609	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0610-	●	●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0306-0604	●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0605-0609	●		●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (A) M10X55 FLANGE	8-98035-672-0	03	1	0610-	●	●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0306-0609	●		●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0610-	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97947-840-0	01	1	1209-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-94422-387-0	01	1	0306-0403			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.510 (A) TKK	8-97046-700-0	01	1	0610-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.510 (A) NOK	8-97046-701-2	01	1	0610-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-2	01	1	0306-0402	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-2	01	1	0306-0402				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/9(GT3) (B) NOK	8-97046-705-2	01	1	0403-0403	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) C24SE ENG(LG1),4JH1-TC ENG(RDM) (B) NOK	8-97046-705-2	01	1	0403-0403	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0404-0609	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	0404-0609				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0610-1208	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	0610-1208				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1209-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1209-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) (B) NOK	8-97046-705-2	02	1	0403-0403	●			●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0306-0609	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0610-	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0306-0609	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0610-	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	0306-			●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0306-0609	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0610-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	0604-0604	●			●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	0605-0609	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	0605-0609	●			●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	0610-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	0610-	●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	0306-0603	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971 (A)	8-94310-917-0	01	1	0306-0603	●			●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	0604-0604	●		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97301-224-2	01	1	0306-0609	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97301-224-2	01	1	0610-	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	0306-0309	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97373-749-0	01	1	0310-0504	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-98014-386-0	01	1	0505-0609	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1)	8-98014-386-0	01	1	0610-1202	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1)	8-98191-921-0	01	1	1203-	●	●
421	04.317 COVER; RR,TRANS	8-97112-207-3	01	1	0306-0504			●
421	04.317 COVER; RR,TRANS	8-98014-389-0	01	1	0505-1105			●
421	04.317 COVER; RR,TRANS	8-98193-595-0	01	1	1106-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0306-0609	●			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0610-	●	●		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	0306-0609	●		●
429	04.105 PIN; STRAIGHT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (A) OD=10 L=40	5-09740-018-1	02	1	0610-	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	0604-0604	●			●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	0605-0609	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	0605-0609	●			●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	0610-	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	0610-	●	●		●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	0306-0603	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	9-09662-004-0	01	1	0306-0603	●			●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	0604-0604	●		●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97301-098-0	01	1	0306-0312	●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97376-846-0	01	1	0401-0604	●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-98047-232-0	01	1	0605-0609	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98047-232-0	01	1	0610-1004	●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98162-753-0	01	1	1005-	●	●
435	04.103 CASE; TRANS	8-97330-878-0	01	1	0306-			●
435	04.103 CASE; TRANS C24SE ENG(LG1)	8-97146-668-0	01	1	0306-0604	●
435	04.103 CASE; TRANS C24SE ENG(LG1)	8-98047-238-0	01	1	0605-	●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	0306-0604	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	0605-0609	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	0610-	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	17	04.105 STUD; STARTER SETTING C24SE ENG(LG1) 01.428 M6X12 L=21	9-04110-612-0	02	1	0306-0604	●
	17	04.105 STUD; STARTER SETTING C24SE ENG(LG1) 01.453 M6X12 L=21	0-41010-612-0	02	1	0605-	●

43 40 41 42 417 29 28 113 16 39 16 45 13 14 33 102 421 24 90 414 429 455 316 50 86 86 435 430 1 430 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB(TFBS) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU)	8-98150-141-0	01	1	1111-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO)	8-98150-141-0	01	1	1111-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98036-613-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98087-269-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98132-782-0	01	1	0810-0810		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98132-782-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98150-146-0	01	1	1005-1101		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT&RR 195R15C(QZO)	8-98150-146-0	01	1	1102-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-97315-310-0	01	1	0306-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98036-622-0	01	1	0610-0709	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98087-280-0	01	1	0710-0809	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98132-795-0	01	1	0810-1004	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98150-159-0	01	1	1005-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-97315-298-0	01	1	0306-0311	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-97373-803-0	01	1	0312-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98036-609-0	01	1	0610-0709	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98087-266-0	01	1	0710-0809	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98132-779-0	01	1	0810-1004	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98150-143-0	01	1	1005-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97315-296-0	01	1	0306-0311	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97373-800-0	01	1	0312-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97376-950-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98036-612-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98036-612-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98036-612-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98087-268-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98087-268-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98087-268-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98132-781-0	01	1	0810-0810		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98132-781-0	01	1	0810-0810		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-0810		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB(TFBS) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98132-781-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98132-781-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB(TFBS) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98150-145-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98150-145-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-97315-307-0	01	1	0306-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-97376-954-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98036-619-0	01	1	0610-0709	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98087-277-0	01	1	0710-0809	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-792-0	01	1	0810-1004	●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98150-156-0	01	1	1005-1007	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98150-156-0	01	1	1008-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JH1-TC ENG(RDM)	8-97315-305-0	01	1	0306-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JH1-TC ENG(RDM)	8-97376-953-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-98036-624-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-98087-282-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-98132-797-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-98150-161-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97315-292-0	01	1	0306-0609			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98036-606-0	01	1	0610-0709			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98087-263-0	01	1	0710-0809			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98132-751-0	01	1	0810-0902			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98132-752-0	01	1	0903-1004			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98150-117-0	01	1	1005-			●
13	04.302 SUPPORT; SHIFT FORK C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) L=47.5	8-97072-827-0	01	1	0306-0609	●		●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) L=47.5	8-97072-827-0	01	1	0610-	●	●	●
14	04.302 WASHER; LK,SUPPORT 04.634 ID=12.2	9-09150-512-0	01	1	0306-0603	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	0604-0609	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	0610-	●	●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	0306-0604	●		●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	0605-0609	●		●
16	04.105 PLUG; SHIFT ROD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) OD=14	8-97358-601-0	02	1	0610-	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0903-			●
24	00.797 COVER; CHECK HOLE,DUST C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 06.868	8-94156-700-0	01	1	0306-0609	●		●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 06.868	8-94156-700-0	01	1	0610-0902	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0903-	●	●
28	04.356 COVER; FRT,TRANS CASE C24SE ENG(LG1)	8-97108-066-1	01	1	0306-	●
28	04.356 COVER; FRT,TRANS CASE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97104-676-0	01	1	0306-0609	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97104-676-0	01	1	0610-	●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	0306-			●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0306-0604	●		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0605-0609	●		●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) M8X22 FLANGE	8-97365-376-0	06	1	0610-	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0306-0609	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0610-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0306-0609	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0610-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	0306-1208			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1209-			●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	0306-0604	●		●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	0605-0609	●		●
39	04.311 PLATE; DETENT SPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-98035-571-0	01	1	0610-	●	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0306-0609	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0610-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	0306-			●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0306-0609	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0610-	●	●
41	04.311 SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	0306-			●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0306-0609	●		●
42	04.311 BALL; DETENT,GEAR SHIFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-94435-335-0	03	1	0610-	●	●	●
43	04.311 BOLT; PLATE TO PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0306-0512			●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	0306-0604	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0605-0609	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0610-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0306-0609	●		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) ID=17	8-97115-712-0	01	1	0610-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0306-0609	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	0306-0609	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0610-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	0610-	●	●		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0306-0601	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0602-0609	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0610-	●	●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0306-0604	●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0605-0609	●		●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (A) M10X55 FLANGE	8-98035-672-0	03	1	0610-	●	●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0306-0609	●		●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0610-	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97947-840-0	01	1	1209-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-94422-387-0	01	1	0306-0403			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.510 (A) TKK	8-97046-700-0	01	1	0610-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.510 (A) NOK	8-97046-701-2	01	1	0610-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-2	01	1	0306-0402	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-2	01	1	0306-0402				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/9(GT3) (B) NOK	8-97046-705-2	01	1	0403-0403	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) C24SE ENG(LG1),4JH1-TC ENG(RDM) (B) NOK	8-97046-705-2	01	1	0403-0403	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0404-0609	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	0404-0609				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0610-1208	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	0610-1208				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1209-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1209-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) (B) NOK	8-97046-705-2	02	1	0403-0403	●			●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0306-0609	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0610-	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0306-0609	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0610-	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	0306-			●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0306-0609	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0610-	●	●
414	04.317 COVER; DUST,RR COVER	8-94310-493-0	01	1	0306-0604			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-94310-493-0	01	1	0306-0604	●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	0605-0609			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	0605-0609	●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	0610-			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	0610-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	0604-0604	●			●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	0605-0609	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	0605-0609	●			●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	0610-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	0610-	●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	0306-0603	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971 (A)	8-94310-917-0	01	1	0306-0603	●			●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	0604-0604	●		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97301-224-2	01	1	0306-0609	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0)	8-97301-224-2	01	1	0610-	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	0306-0309	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97373-749-0	01	1	0310-0504	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-98014-386-0	01	1	0505-0609	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1)	8-98014-386-0	01	1	0610-1202	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1)	8-98191-921-0	01	1	1203-	●	●
421	04.317 COVER; RR,TRANS	8-97112-207-3	01	1	0306-0504			●
421	04.317 COVER; RR,TRANS	8-98014-389-0	01	1	0505-1105			●
421	04.317 COVER; RR,TRANS	8-98193-595-0	01	1	1106-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0306-0609	●			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0610-	●	●		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	0306-0609	●		●
429	04.105 PIN; STRAIGHT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (A) OD=10 L=40	5-09740-018-1	02	1	0610-	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	0604-0604	●			●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	0605-0609	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	0605-0609	●			●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	0610-	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	0610-	●	●		●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	0306-0603	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	9-09662-004-0	01	1	0306-0603	●			●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	0604-0604	●		●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97301-098-0	01	1	0306-0312	●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-97376-846-0	01	1	0401-0604	●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0),4JH1-TC ENG(RDM)	8-98047-232-0	01	1	0605-0609	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98047-232-0	01	1	0610-1004	●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-98162-753-0	01	1	1005-	●	●
435	04.103 CASE; TRANS	8-97330-878-0	01	1	0306-			●
435	04.103 CASE; TRANS C24SE ENG(LG1)	8-97146-668-0	01	1	0306-0604	●
435	04.103 CASE; TRANS C24SE ENG(LG1)	8-98047-238-0	01	1	0605-	●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	0306-0604	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	0605-0609	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	0610-	●	●

49 429 76 36 80 90 79 86 47 417 417 50 299 430 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
36	00.683 BEARING; NEEDLE,CLU HSG 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	0306-0402	●
36	00.683 BEARING; NEEDLE,CLU HSG 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	0403-0609	●
36	00.683 BEARING; NEEDLE,CLU HSG 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	0610-1007	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	0306-0609	●			●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	0610-	●	●		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***)	8-97304-116-1	01	1	0306-0604	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X27 L=43.5	8-98035-677-0	01	1	0605-0609	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) M10X27 L=43.5	8-98035-677-0	01	1	0610-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0306-0609	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	0306-0609	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0610-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	0610-	●	●		●
76	04.510 SEAL; OIL,TRANSFER CASE 4X4(TFS***) NOK	8-97238-999-0	01	1	0306-0609	●			●
76	04.510 SEAL; OIL,TRANSFER CASE 4X4(TFS***) NOK	8-97238-999-0	01	1	0610-	●	●		●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	0306-0609	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	0610-	●	●
79	04.510 BOLT; TRANSFER CASE 4X4 CREW CAB(TFSW) M10X35 FLANGE	0-28051-035-0	07	1	0306-				●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1008-	●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0306-0601	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0602-0609	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0610-	●	●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0306-0604	●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0605-0609	●		●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (A) M10X55 FLANGE	8-98035-672-0	03	1	0610-	●	●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0306-0609	●		●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0610-	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97947-840-0	01	1	1209-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-94422-387-0	01	1	0306-0403			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.510 (A) TKK	8-97046-700-0	01	1	0610-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 04.510 (A) NOK	8-97046-701-2	01	1	0610-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-2	01	1	0306-0402	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-2	01	1	0306-0402				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/9(GT3) (B) NOK	8-97046-705-2	01	1	0403-0403	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) C24SE ENG(LG1),4JH1-TC ENG(RDM) (B) NOK	8-97046-705-2	01	1	0403-0403	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0404-0609	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	0404-0609				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0610-1208	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	0610-1208				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1209-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1209-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) (B) NOK	8-97046-705-2	02	1	0403-0403	●			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 04.309 OD=14	5-09609-004-0	02	1	0306-0603	●			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 04.105 OD=14	8-97358-601-0	02	1	0604-0609	●			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 04.105 OD=14	8-97358-601-0	02	1	0610-	●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	0604-0604	●			●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	0605-0609	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	0605-0609	●			●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97365-373-0	01	1	0610-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-97365-373-0	01	1	0610-	●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	0306-0603	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971 (A)	8-94310-917-0	01	1	0306-0603	●			●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	0604-0604	●		●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0306-0609	●			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0610-	●	●		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	0306-0609	●		●
429	04.105 PIN; STRAIGHT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (A) OD=10 L=40	5-09740-018-1	02	1	0610-	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	0604-0604	●			●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	0605-0609	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	0605-0609	●			●
430	04.105 PLUG; OIL DRAIN (B)	8-97365-374-0	01	1	0610-	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (B)	8-97365-374-0	01	1	0610-	●	●		●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	0306-0603	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	9-09662-004-0	01	1	0306-0603	●			●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	0604-0604	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
