2-06 — CLUTCH SLAVE CYLINDER (#77519) — 44 parça

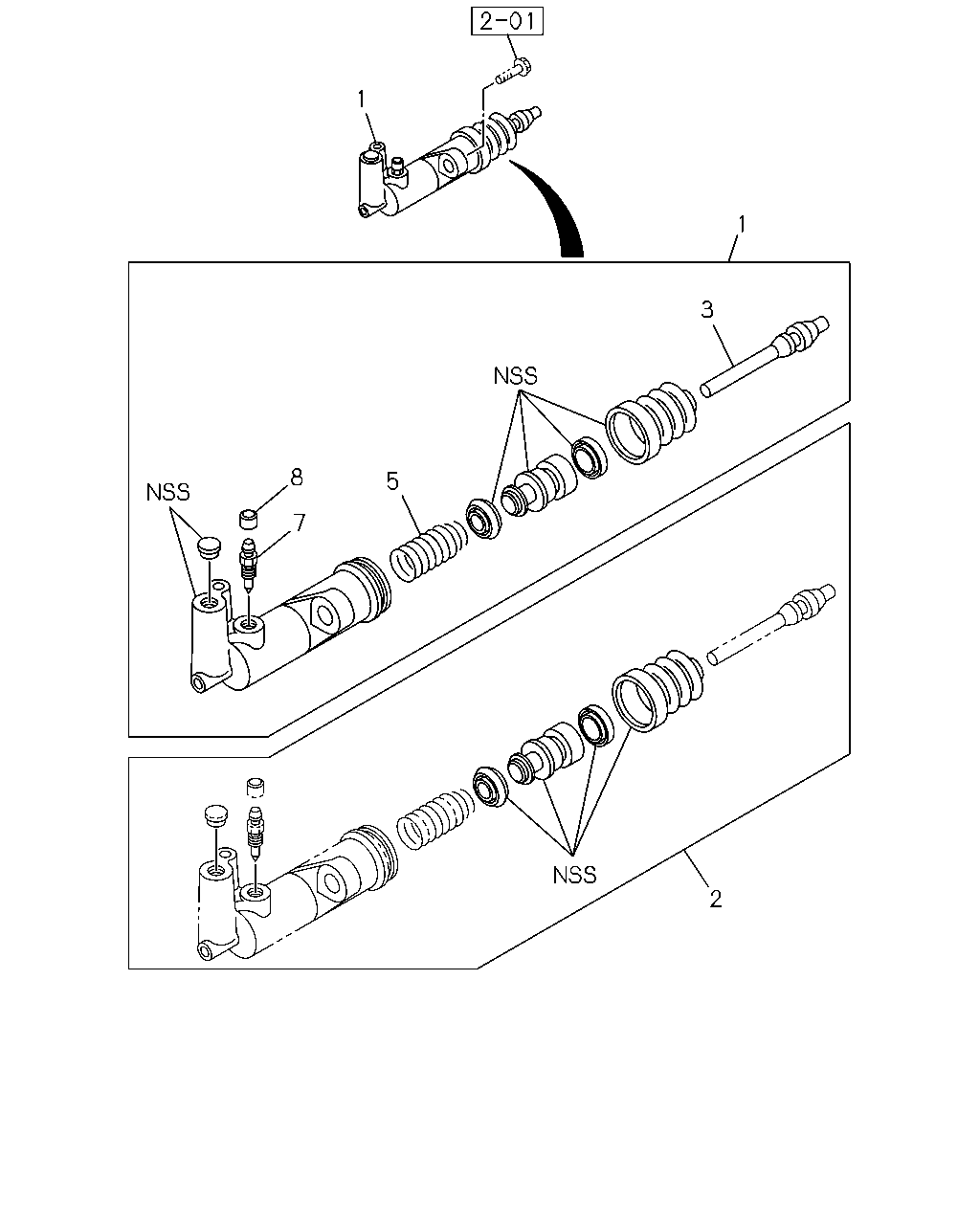

1 1 3 8 5 7 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.780 CYLINDER; SLAVE,CLU C24SE ENG(LG1)	8-97942-322-0	01	1	0306-0609	●
1	00.780 CYLINDER; SLAVE,CLU C24SE ENG(LG1)	8-97942-322-0	01	1	0610-	●	●
1	00.780 CYLINDER; SLAVE,CLU 4JA1-T ENG(LP0)	8-97942-296-0	01	1	0306-0609	●		●
1	00.780 CYLINDER; SLAVE,CLU 4JA1-T ENG(LP0)	8-97942-296-0	01	1	0610-	●	●	●
1	00.780 CYLINDER; SLAVE,CLU 4JH1-TC ENG(RDM)	8-97941-515-0	01	1	0306-0609	●
1	00.780 CYLINDER; SLAVE,CLU 4JJ1-TCS ENG(LFB)	8-97945-177-0	01	1	0610-	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL C24SE ENG(LG1),4JA1-T ENG(LP0)	5-87832-049-0	01	1	0306-0609	●		●
2	00.780 REPAIR KIT; CLU SLAVE CYL C24SE ENG(LG1),4JA1-T ENG(LP0)	5-87832-049-0	01	1	0610-	●	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JH1-TC ENG(RDM)	5-87832-048-0	01	1	0306-0609	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JJ1-TCS ENG(LFB)	5-87832-048-0	01	1	0610-	●	●
3	00.780 ROD; PUSH,SLAVE CYL 4JJ1-TCS ENG(LFB)	8-97945-722-0	01	1	0610-	●	●
3	00.780 ROD; PUSH,SLAVE CYL	8-97942-803-0	01	1	0306-0609	●		●
3	00.780 ROD; PUSH,SLAVE CYL C24SE ENG(LG1),4JA1-T ENG(LP0)	8-97942-803-0	01	1	0610-	●	●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL C24SE ENG(LG1),4JA1-T ENG(LP0)	8-97942-802-0	01	1	0306-0609	●		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL C24SE ENG(LG1),4JA1-T ENG(LP0)	8-97942-802-0	01	1	0610-	●	●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JH1-TC ENG(RDM)	8-97942-801-0	01	1	0306-0609	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JJ1-TCS ENG(LFB)	8-97942-801-0	01	1	0610-	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JJ1-TCS ENG(LFB) M8X10	8-98020-477-0	01	1	0610-	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X16.5	8-94115-113-0	01	1	0306-0609	●		●
7	00.780 SCREW; BLEEDER,SLAVE CYL C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5	8-94115-113-0	01	1	0610-	●	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=10	8-97940-638-0	01	1	0306-0609	●		●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) OD=10	8-97940-638-0	01	1	0610-	●	●	●

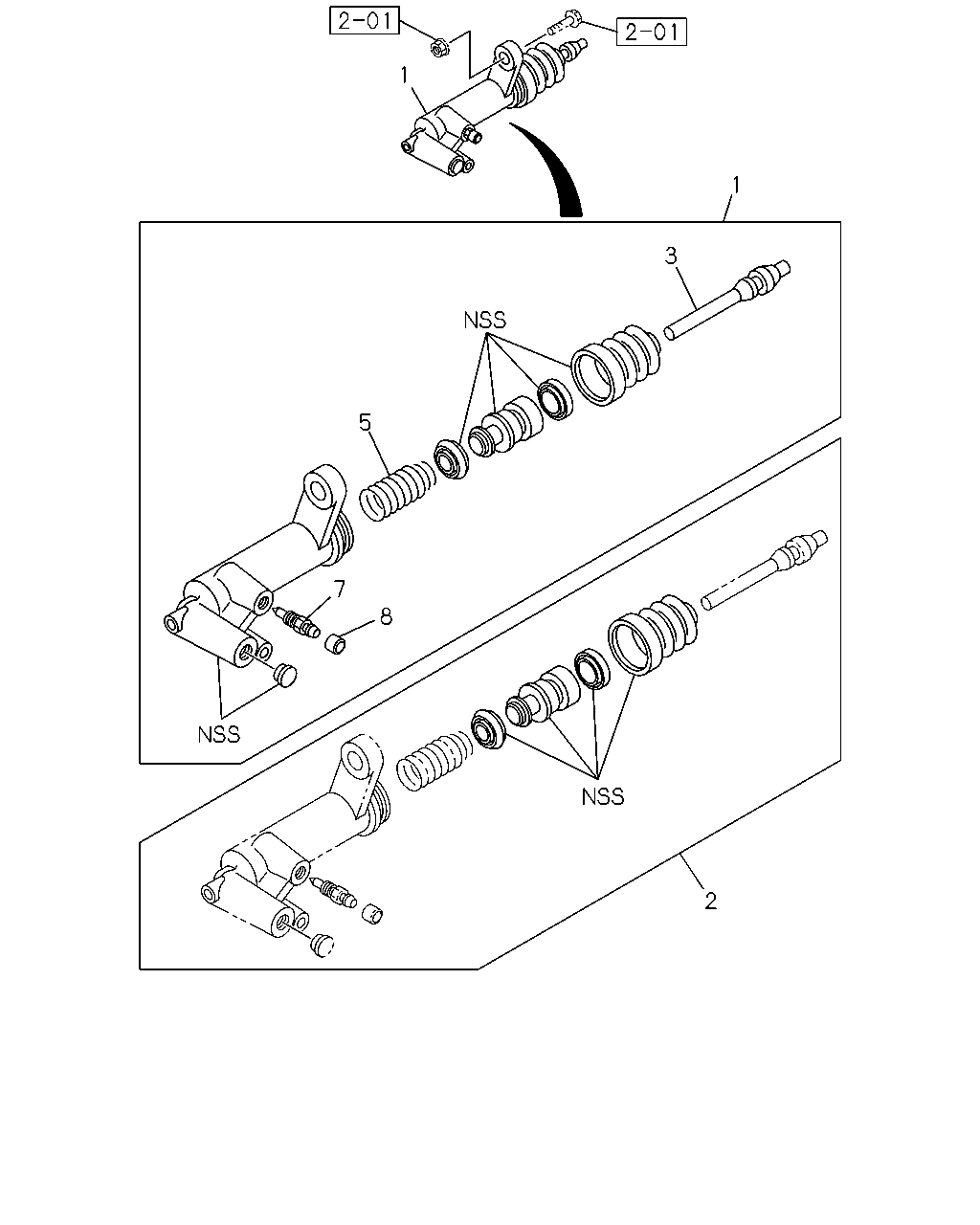

1 1 3 5 7 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.780 CYLINDER; SLAVE,CLU C24SE ENG(LG1)	8-97942-322-0	01	1	0306-0609	●
1	00.780 CYLINDER; SLAVE,CLU C24SE ENG(LG1)	8-97942-322-0	01	1	0610-	●	●
1	00.780 CYLINDER; SLAVE,CLU 4JA1-T ENG(LP0)	8-97942-296-0	01	1	0306-0609	●		●
1	00.780 CYLINDER; SLAVE,CLU 4JA1-T ENG(LP0)	8-97942-296-0	01	1	0610-	●	●	●
1	00.780 CYLINDER; SLAVE,CLU 4JH1-TC ENG(RDM)	8-97941-515-0	01	1	0306-0609	●
1	00.780 CYLINDER; SLAVE,CLU 4JJ1-TCS ENG(LFB)	8-97945-177-0	01	1	0610-	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL C24SE ENG(LG1),4JA1-T ENG(LP0)	5-87832-049-0	01	1	0306-0609	●		●
2	00.780 REPAIR KIT; CLU SLAVE CYL C24SE ENG(LG1),4JA1-T ENG(LP0)	5-87832-049-0	01	1	0610-	●	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JH1-TC ENG(RDM)	5-87832-048-0	01	1	0306-0609	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JJ1-TCS ENG(LFB)	5-87832-048-0	01	1	0610-	●	●
3	00.780 ROD; PUSH,SLAVE CYL 4JJ1-TCS ENG(LFB)	8-97945-722-0	01	1	0610-	●	●
3	00.780 ROD; PUSH,SLAVE CYL	8-97942-803-0	01	1	0306-0609	●		●
3	00.780 ROD; PUSH,SLAVE CYL C24SE ENG(LG1),4JA1-T ENG(LP0)	8-97942-803-0	01	1	0610-	●	●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL C24SE ENG(LG1),4JA1-T ENG(LP0)	8-97942-802-0	01	1	0306-0609	●		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL C24SE ENG(LG1),4JA1-T ENG(LP0)	8-97942-802-0	01	1	0610-	●	●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JH1-TC ENG(RDM)	8-97942-801-0	01	1	0306-0609	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JJ1-TCS ENG(LFB)	8-97942-801-0	01	1	0610-	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JJ1-TCS ENG(LFB) M8X10	8-98020-477-0	01	1	0610-	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X16.5	8-94115-113-0	01	1	0306-0609	●		●
7	00.780 SCREW; BLEEDER,SLAVE CYL C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5	8-94115-113-0	01	1	0610-	●	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=10	8-97940-638-0	01	1	0306-0609	●		●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) OD=10	8-97940-638-0	01	1	0610-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
