◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#77518) — 62 parça

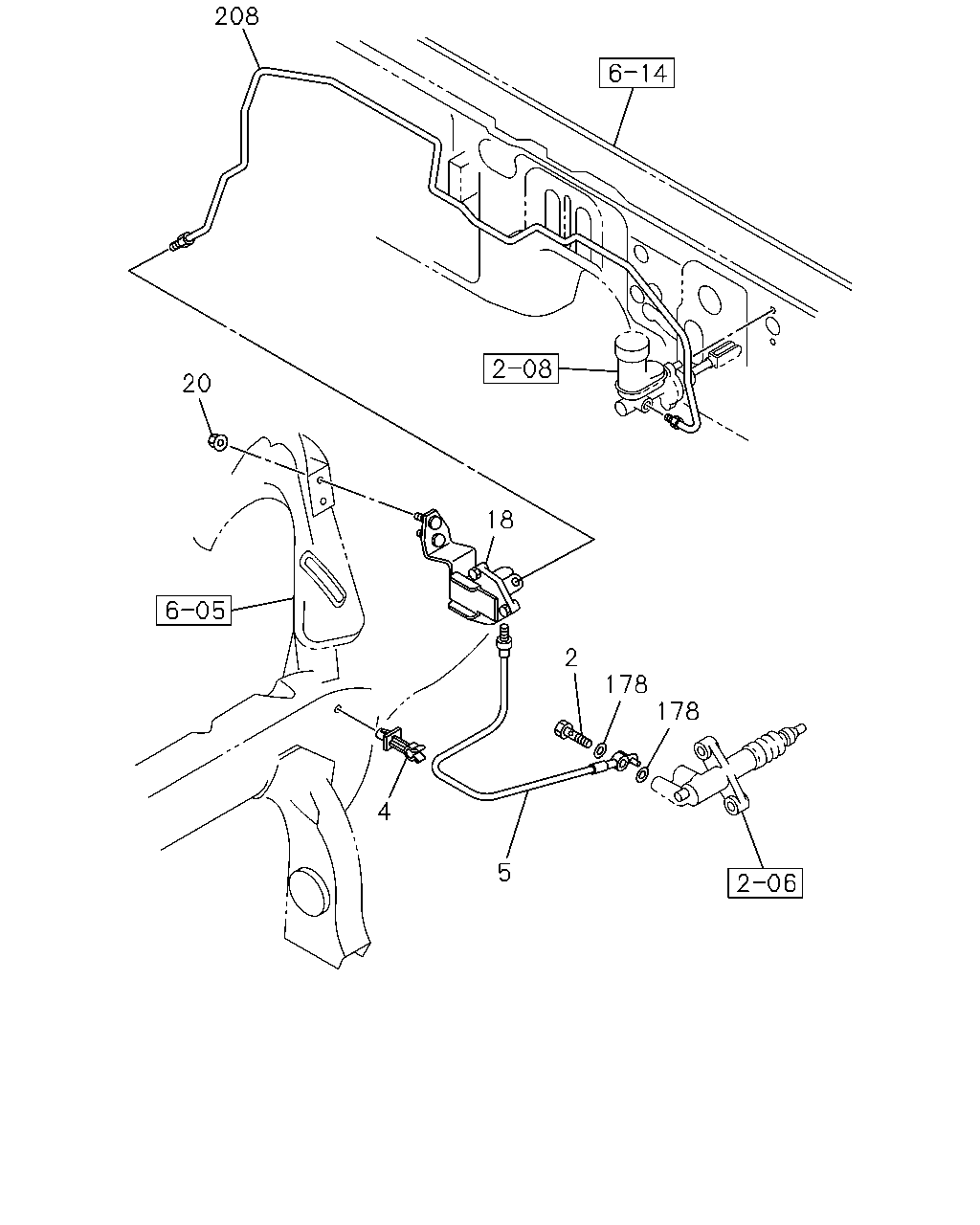

çizim 160358
208 20 18 2 178 178 4 5
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0306-0609 ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0610- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0306-0609 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0610- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0306-0609 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 		8-94436-216-0 01 1 0610-0703 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 		8-97946-552-0 01 1 0704- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB) 		8-97945-178-0 01 1 0610- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 0306-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 0610- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 0306-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0) 		8-97942-498-0 01 1 0610- ● ● ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97353-667-0 01 1 0306-0609 ● ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 0610- ● ●
18 00.830 DAMPER ASM; CLU OIL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97943-172-0 01 1 0306-0609 ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 		8-97945-175-0 01 1 0610- ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0306-0508 ● ●
20 00.837 NUT; CLU OIL DAMPER
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0509-0609 ● ●
20 00.837 NUT; CLU OIL DAMPER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0306-0609 ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610- ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB) 		8-97944-800-1 01 1 0610- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97361-549-0 01 1 0306-0508 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97361-549-0 01 1 0509-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-797-0 01 1 0610- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97362-454-0 01 1 0306-0609 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0) 		8-97944-798-0 01 1 0610- ● ●

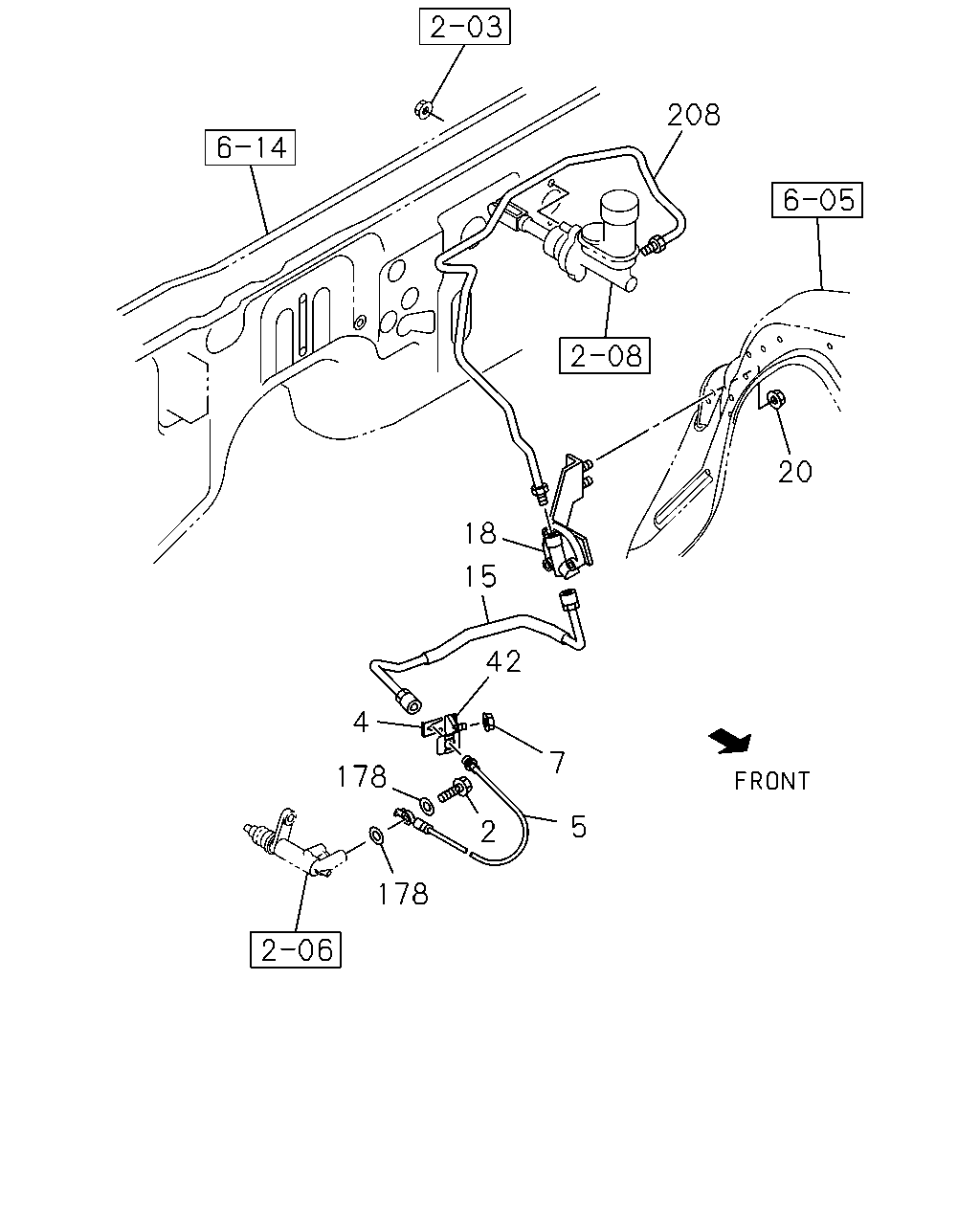

çizim 160389
208 20 18 15 42 4 7 178 5 2 178
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0306-0609 ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0610- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0306-0609 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0610- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0306-0609 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 		8-94436-216-0 01 1 0610-0703 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 		8-97946-552-0 01 1 0704- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB) 		8-97945-178-0 01 1 0610- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 0306-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 0610- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 0306-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0) 		8-97942-498-0 01 1 0610- ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0306-0609 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB) 		8-97944-808-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97333-992-1 01 1 0306-0609 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0) 		8-97944-804-0 01 1 0610- ● ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97353-667-0 01 1 0306-0609 ● ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 0610- ● ●
18 00.830 DAMPER ASM; CLU OIL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97943-172-0 01 1 0306-0609 ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 		8-97945-175-0 01 1 0610- ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0306-0508 ● ●
20 00.837 NUT; CLU OIL DAMPER
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0509-0609 ● ●
20 00.837 NUT; CLU OIL DAMPER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97943-412-0 01 1 0306-0306 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97943-835-0 01 1 0306-0609 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) 		8-97943-835-0 01 1 0610- ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0306-0609 ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610- ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB) 		8-97944-800-1 01 1 0610- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97361-549-0 01 1 0306-0508 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97361-549-0 01 1 0509-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-797-0 01 1 0610- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97362-454-0 01 1 0306-0609 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0) 		8-97944-798-0 01 1 0610- ● ●
