Sayfa 1-50 - Isuzu EPC

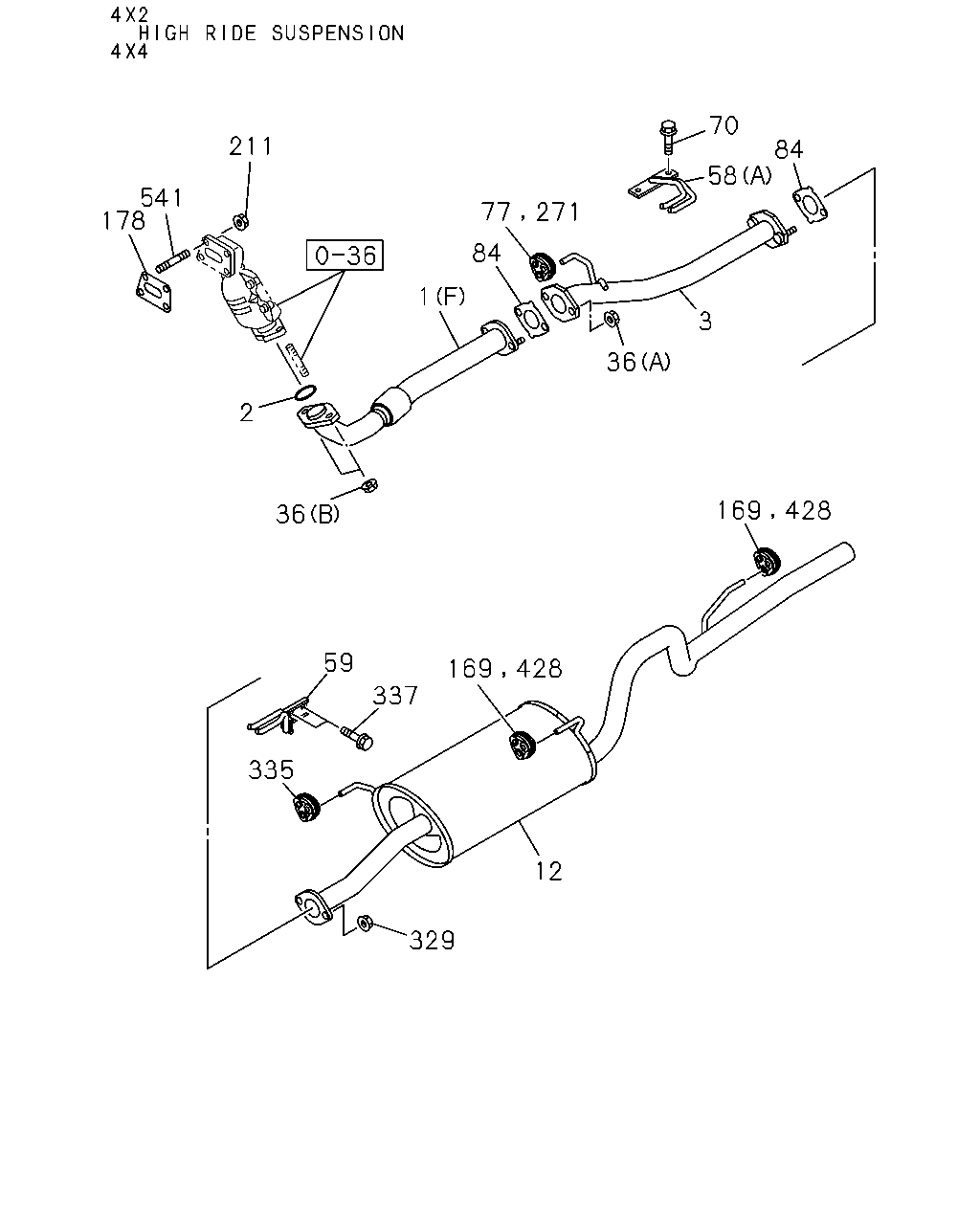

1-50 — EXHAUST PIPE AND SILENCER (#77515) — 375 parça

59 337 335 12 329 84 3 84 70 2 36 1 58 36 1 169 428 169 428 77 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH 4X2(TFB***) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97235-500-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) EURO1 SPECIFICATION<NT1> HIGH RIDE SUSPENSION(7YC) (C)	8-97235-499-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X4(TFS***) EURO1 SPECIFICATION<NT1> (C)	8-97235-499-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) EURO1 SPECIFICATION<NT1> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97235-498-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97363-079-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97363-079-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97363-078-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97329-645-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97329-645-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (F)	8-98036-427-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X4(TFS***) (F)	8-98036-427-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97329-644-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98036-426-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X4(TFS***) EMISSION SYSTEM R15-04<K75> (D)	8-97235-501-0	01	1	0306-	●
2	03.611 GASKET; PIPE TO MANIF	8-97166-290-1	01	1	0306-	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0306-0509		●	●
2	03.611 GASKET; PIPE TO MANIF	8-98017-270-0	01	1	0510-0609		●	●
2	03.611 GASKET; PIPE TO MANIF	8-98017-270-0	01	1	0610-		●		●
3	03.609 PIPE; EXH,CENTER EMISSION SYSTEM R15-04<K75>	8-97352-926-0	01	1	0306-	●
3	03.609 PIPE; EXH,CENTER EURO1 SPECIFICATION<NT1>	8-97352-924-0	01	1	0306-	●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-97363-080-0	01	1	0306-		●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***)	8-97363-080-0	01	1	0306-		●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-97308-920-3	01	1	0306-0609			●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***)	8-97308-920-3	01	1	0306-0609			●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-98008-409-0	01	1	0610-				●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***)	8-98008-409-0	01	1	0610-				●
12	03.701 SILENCER ASM; EXH EMISSION SYSTEM R15-04<K75>	8-97235-529-0	01	1	0306-	●
12	03.701 SILENCER ASM; EXH EURO1 SPECIFICATION<NT1>	8-97235-528-0	01	1	0306-	●
12	03.701 SILENCER ASM; EXH	8-97363-081-0	01	1	0306-		●
12	03.701 SILENCER ASM; EXH	8-97308-922-2	01	1	0306-0609			●
12	03.701 SILENCER ASM; EXH	8-98008-410-0	01	1	0610-0709				●
12	03.701 SILENCER ASM; EXH	8-98082-821-0	01	1	0710-				●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508		●	●	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508		●	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609		●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609		●	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-		●		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-		●		●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0306-	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0306-0609		●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0610-		●		●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0306-	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0306-0609		●	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0610-		●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0306-	●	●	●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0306-0508	●	●	●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0509-0608	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0609-0609	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0610-	●	●		●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0306-1007	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0306-0402		●	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0403-0609		●	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0610-1007		●		●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0306-0508	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0306-0508	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0306-0508		●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0306-0508		●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0509-0609	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0509-0609	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0509-0609		●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0509-0609		●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0610-	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0610-	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0610-		●		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0610-		●		●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	01	1	1008-	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0306-1007	●	●	●	●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1008-		●		●
271	03.704 RUBBER; HANGER,RR PIPE 03.613	8-97330-412-0	01	1	1008-	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-	●	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0306-	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0306-0608	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0609-	●	●	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE 03.706	8-97289-169-0	01	1	1008-	●	●	●	●

70 84 58 3 1 36 84 2 36 59 337 335 12 329 77 271 169 428 169 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH 4X2(TFB***) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97235-500-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) EURO1 SPECIFICATION<NT1> HIGH RIDE SUSPENSION(7YC) (C)	8-97235-499-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X4(TFS***) EURO1 SPECIFICATION<NT1> (C)	8-97235-499-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) EURO1 SPECIFICATION<NT1> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97235-498-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97363-079-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97363-079-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97363-078-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97329-645-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97329-645-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (F)	8-98036-427-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X4(TFS***) (F)	8-98036-427-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97329-644-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98036-426-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X4(TFS***) EMISSION SYSTEM R15-04<K75> (D)	8-97235-501-0	01	1	0306-	●
2	03.611 GASKET; PIPE TO MANIF	8-97166-290-1	01	1	0306-	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0306-0509		●	●
2	03.611 GASKET; PIPE TO MANIF	8-98017-270-0	01	1	0510-0609		●	●
2	03.611 GASKET; PIPE TO MANIF	8-98017-270-0	01	1	0610-		●		●
3	03.609 PIPE; EXH,CENTER EMISSION SYSTEM R15-04<K75>	8-97352-926-0	01	1	0306-	●
3	03.609 PIPE; EXH,CENTER EURO1 SPECIFICATION<NT1>	8-97352-924-0	01	1	0306-	●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-97363-080-0	01	1	0306-		●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***)	8-97363-080-0	01	1	0306-		●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-97308-920-3	01	1	0306-0609			●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***)	8-97308-920-3	01	1	0306-0609			●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-98008-409-0	01	1	0610-				●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***)	8-98008-409-0	01	1	0610-				●
12	03.701 SILENCER ASM; EXH EMISSION SYSTEM R15-04<K75>	8-97235-529-0	01	1	0306-	●
12	03.701 SILENCER ASM; EXH EURO1 SPECIFICATION<NT1>	8-97235-528-0	01	1	0306-	●
12	03.701 SILENCER ASM; EXH	8-97363-081-0	01	1	0306-		●
12	03.701 SILENCER ASM; EXH	8-97308-922-2	01	1	0306-0609			●
12	03.701 SILENCER ASM; EXH	8-98008-410-0	01	1	0610-0709				●
12	03.701 SILENCER ASM; EXH	8-98082-821-0	01	1	0710-				●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508		●	●	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508		●	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609		●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609		●	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-		●		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-		●		●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0306-	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0306-0609		●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0610-		●		●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0306-	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0306-0609		●	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0610-		●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0306-	●	●	●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0306-0508	●	●	●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0509-0608	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0609-0609	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0610-	●	●		●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0306-1007	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0306-0402		●	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0403-0609		●	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0610-1007		●		●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0306-0508	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0306-0508	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0306-0508		●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0306-0508		●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0509-0609	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0509-0609	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0509-0609		●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0509-0609		●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0610-	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0610-	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0610-		●		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0610-		●		●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	01	1	1008-	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0306-1007	●	●	●	●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1008-		●		●
271	03.704 RUBBER; HANGER,RR PIPE 03.613	8-97330-412-0	01	1	1008-	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-	●	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0306-	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0306-0608	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0609-	●	●	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE 03.706	8-97289-169-0	01	1	1008-	●	●	●	●

70 84 58 1 2 36 59 337 335 12 329 169 428 169 428 77 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH 4X2(TFB***) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97235-500-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) EURO1 SPECIFICATION<NT1> HIGH RIDE SUSPENSION(7YC) (C)	8-97235-499-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X4(TFS***) EURO1 SPECIFICATION<NT1> (C)	8-97235-499-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) EURO1 SPECIFICATION<NT1> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97235-498-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97363-079-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97363-079-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97363-078-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97329-645-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97329-645-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (F)	8-98036-427-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X4(TFS***) (F)	8-98036-427-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97329-644-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98036-426-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X4(TFS***) EMISSION SYSTEM R15-04<K75> (D)	8-97235-501-0	01	1	0306-	●
2	03.611 GASKET; PIPE TO MANIF	8-97166-290-1	01	1	0306-	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0306-0509		●	●
2	03.611 GASKET; PIPE TO MANIF	8-98017-270-0	01	1	0510-0609		●	●
2	03.611 GASKET; PIPE TO MANIF	8-98017-270-0	01	1	0610-		●		●
12	03.701 SILENCER ASM; EXH EMISSION SYSTEM R15-04<K75>	8-97235-529-0	01	1	0306-	●
12	03.701 SILENCER ASM; EXH EURO1 SPECIFICATION<NT1>	8-97235-528-0	01	1	0306-	●
12	03.701 SILENCER ASM; EXH	8-97363-081-0	01	1	0306-		●
12	03.701 SILENCER ASM; EXH	8-97308-922-2	01	1	0306-0609			●
12	03.701 SILENCER ASM; EXH	8-98008-410-0	01	1	0610-0709				●
12	03.701 SILENCER ASM; EXH	8-98082-821-0	01	1	0710-				●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508		●	●	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508		●	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609		●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609		●	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-		●		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-		●		●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0306-	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0306-0609		●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0610-		●		●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0306-	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0306-0609		●	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0610-		●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0306-	●	●	●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0306-0508	●	●	●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0509-0608	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0609-0609	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0610-	●	●		●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0306-1007	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0306-0402		●	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0403-0609		●	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0610-1007		●		●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0306-0508	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0306-0508	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0306-0508		●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0306-0508		●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0509-0609	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0509-0609	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0509-0609		●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0509-0609		●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0610-	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0610-	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0610-		●		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0610-		●		●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	01	1	1008-	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0306-1007	●	●	●	●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1008-		●		●
271	03.704 RUBBER; HANGER,RR PIPE 03.613	8-97330-412-0	01	1	1008-	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-	●	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0306-	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0306-0608	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0609-	●	●	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE 03.706	8-97289-169-0	01	1	1008-	●	●	●	●

70 211 58 84 541 178 1 2 36 59 337 335 12 329 169 428 169 428 77 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH 4X2(TFB***) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97235-500-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) EURO1 SPECIFICATION<NT1> HIGH RIDE SUSPENSION(7YC) (C)	8-97235-499-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X4(TFS***) EURO1 SPECIFICATION<NT1> (C)	8-97235-499-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) EURO1 SPECIFICATION<NT1> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97235-498-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97363-079-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97363-079-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97363-078-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97329-645-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97329-645-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (F)	8-98036-427-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X4(TFS***) (F)	8-98036-427-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97329-644-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98036-426-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X4(TFS***) EMISSION SYSTEM R15-04<K75> (D)	8-97235-501-0	01	1	0306-	●
2	03.611 GASKET; PIPE TO MANIF	8-97166-290-1	01	1	0306-	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0306-0509		●	●
2	03.611 GASKET; PIPE TO MANIF	8-98017-270-0	01	1	0510-0609		●	●
2	03.611 GASKET; PIPE TO MANIF	8-98017-270-0	01	1	0610-		●		●
12	03.701 SILENCER ASM; EXH EMISSION SYSTEM R15-04<K75>	8-97235-529-0	01	1	0306-	●
12	03.701 SILENCER ASM; EXH EURO1 SPECIFICATION<NT1>	8-97235-528-0	01	1	0306-	●
12	03.701 SILENCER ASM; EXH	8-97363-081-0	01	1	0306-		●
12	03.701 SILENCER ASM; EXH	8-97308-922-2	01	1	0306-0609			●
12	03.701 SILENCER ASM; EXH	8-98008-410-0	01	1	0610-0709				●
12	03.701 SILENCER ASM; EXH	8-98082-821-0	01	1	0710-				●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508		●	●	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508		●	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609		●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609		●	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-		●		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-		●		●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0306-	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0306-0609		●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0610-		●		●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0306-	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0306-0609		●	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0610-		●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0306-	●	●	●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0306-0508	●	●	●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0509-0608	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0609-0609	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0610-	●	●		●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0306-1007	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0306-0402		●	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0403-0609		●	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0610-1007		●		●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0306-0508	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0306-0508	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0306-0508		●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0306-0508		●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0509-0609	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0509-0609	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0509-0609		●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0509-0609		●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0610-	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0610-	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0610-		●		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0610-		●		●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	01	1	1008-	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0306-1007	●	●	●	●
178	03.611 GASKET; CONV TO MANIF	8-97312-284-1	01	1	0610-				●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	04	1	0610-				●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1008-		●		●
271	03.704 RUBBER; HANGER,RR PIPE 03.613	8-97330-412-0	01	1	1008-	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-	●	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0306-	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0306-0608	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0609-	●	●	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE 03.706	8-97289-169-0	01	1	1008-	●	●	●	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	04	1	0610-				●

70 211 84 58 541 178 84 1 3 36 2 36 59 337 335 12 329 77 271 169 428 169 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH 4X2(TFB***) EMISSION SYSTEM R15-04<K75> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97235-500-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) EURO1 SPECIFICATION<NT1> HIGH RIDE SUSPENSION(7YC) (C)	8-97235-499-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X4(TFS***) EURO1 SPECIFICATION<NT1> (C)	8-97235-499-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) EURO1 SPECIFICATION<NT1> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97235-498-0	01	1	0306-	●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97363-079-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97363-079-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97363-078-0	01	1	0306-		●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97329-645-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97329-645-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (F)	8-98036-427-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X4(TFS***) (F)	8-98036-427-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97329-644-0	01	1	0306-0609			●
1	03.609 PIPE; EXH 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98036-426-0	01	1	0610-				●
1	03.609 PIPE; EXH 4X4(TFS***) EMISSION SYSTEM R15-04<K75> (D)	8-97235-501-0	01	1	0306-	●
2	03.611 GASKET; PIPE TO MANIF	8-97166-290-1	01	1	0306-	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0306-0509		●	●
2	03.611 GASKET; PIPE TO MANIF	8-98017-270-0	01	1	0510-0609		●	●
2	03.611 GASKET; PIPE TO MANIF	8-98017-270-0	01	1	0610-		●		●
3	03.609 PIPE; EXH,CENTER EMISSION SYSTEM R15-04<K75>	8-97352-926-0	01	1	0306-	●
3	03.609 PIPE; EXH,CENTER EURO1 SPECIFICATION<NT1>	8-97352-924-0	01	1	0306-	●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-97363-080-0	01	1	0306-		●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***)	8-97363-080-0	01	1	0306-		●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-97308-920-3	01	1	0306-0609			●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***)	8-97308-920-3	01	1	0306-0609			●
3	03.609 PIPE; EXH,CENTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-98008-409-0	01	1	0610-				●
3	03.609 PIPE; EXH,CENTER 4X4(TFS***)	8-98008-409-0	01	1	0610-				●
12	03.701 SILENCER ASM; EXH EMISSION SYSTEM R15-04<K75>	8-97235-529-0	01	1	0306-	●
12	03.701 SILENCER ASM; EXH EURO1 SPECIFICATION<NT1>	8-97235-528-0	01	1	0306-	●
12	03.701 SILENCER ASM; EXH	8-97363-081-0	01	1	0306-		●
12	03.701 SILENCER ASM; EXH	8-97308-922-2	01	1	0306-0609			●
12	03.701 SILENCER ASM; EXH	8-98008-410-0	01	1	0610-0709				●
12	03.701 SILENCER ASM; EXH	8-98082-821-0	01	1	0710-				●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508		●	●	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0306-0508		●	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609		●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0509-0609		●	●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-	●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-		●		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0610-		●		●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0306-	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0306-0609		●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0610-		●		●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0306-	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0306-0609		●	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0610-		●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0306-	●	●	●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0306-0508	●	●	●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0509-0608	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0609-0609	●	●	●
70	03.706 BOLT; BRKT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0610-	●	●		●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0306-1007	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0306-0402		●	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0403-0609		●	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0610-1007		●		●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0306-0508	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0306-0508	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0306-0508		●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0306-0508		●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0509-0609	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0509-0609	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0509-0609		●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0509-0609		●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0610-	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0610-	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0610-		●		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0610-		●		●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	01	1	1008-	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0306-1007	●	●	●	●
178	03.611 GASKET; CONV TO MANIF	8-97312-284-1	01	1	0610-				●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	04	1	0610-				●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1008-		●		●
271	03.704 RUBBER; HANGER,RR PIPE 03.613	8-97330-412-0	01	1	1008-	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-	●	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0306-	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0306-0608	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER	8-98050-928-0	02	1	0609-	●	●	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE 03.706	8-97289-169-0	01	1	1008-	●	●	●	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	04	1	0610-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
