Sayfa 1-41 - Isuzu EPC

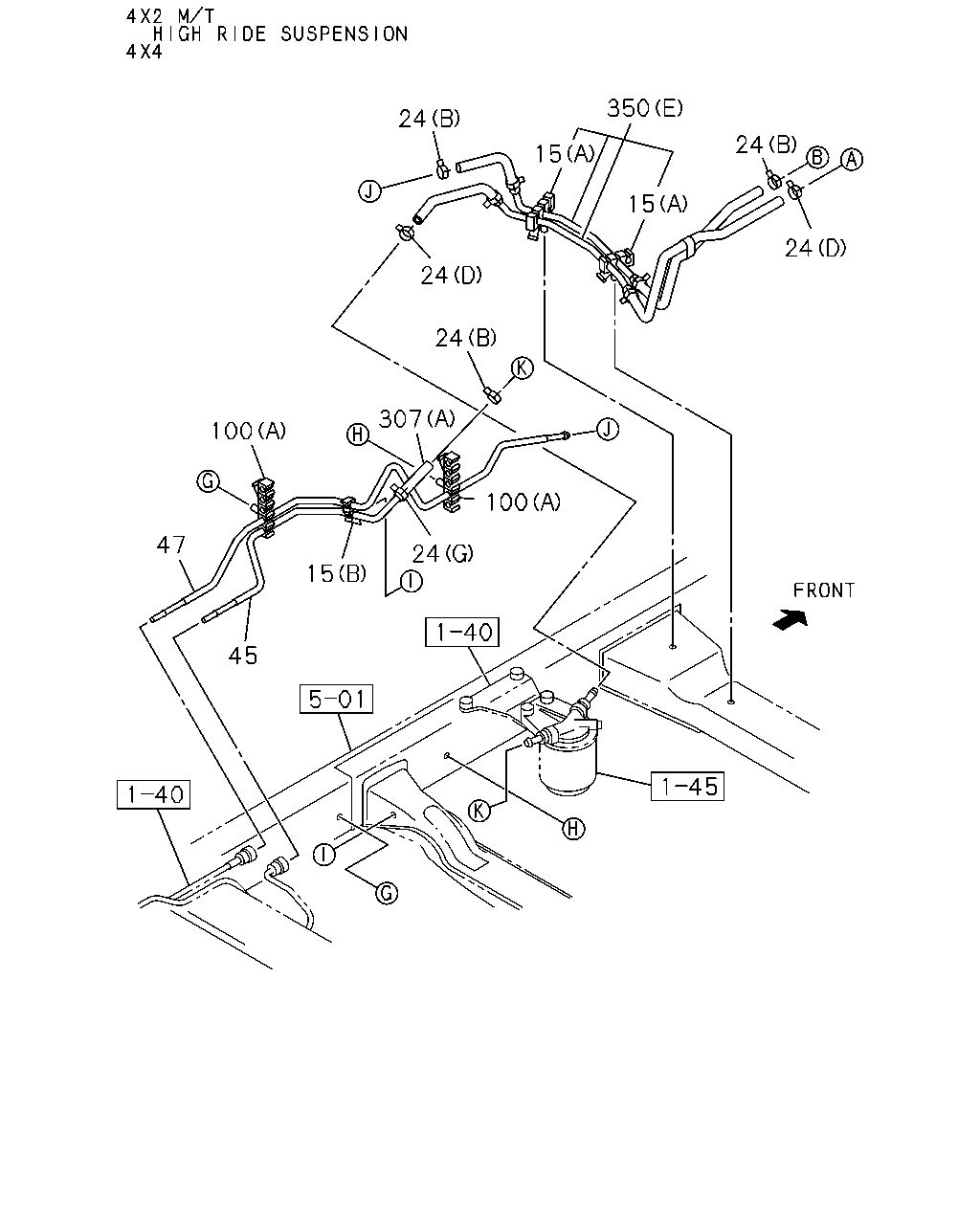

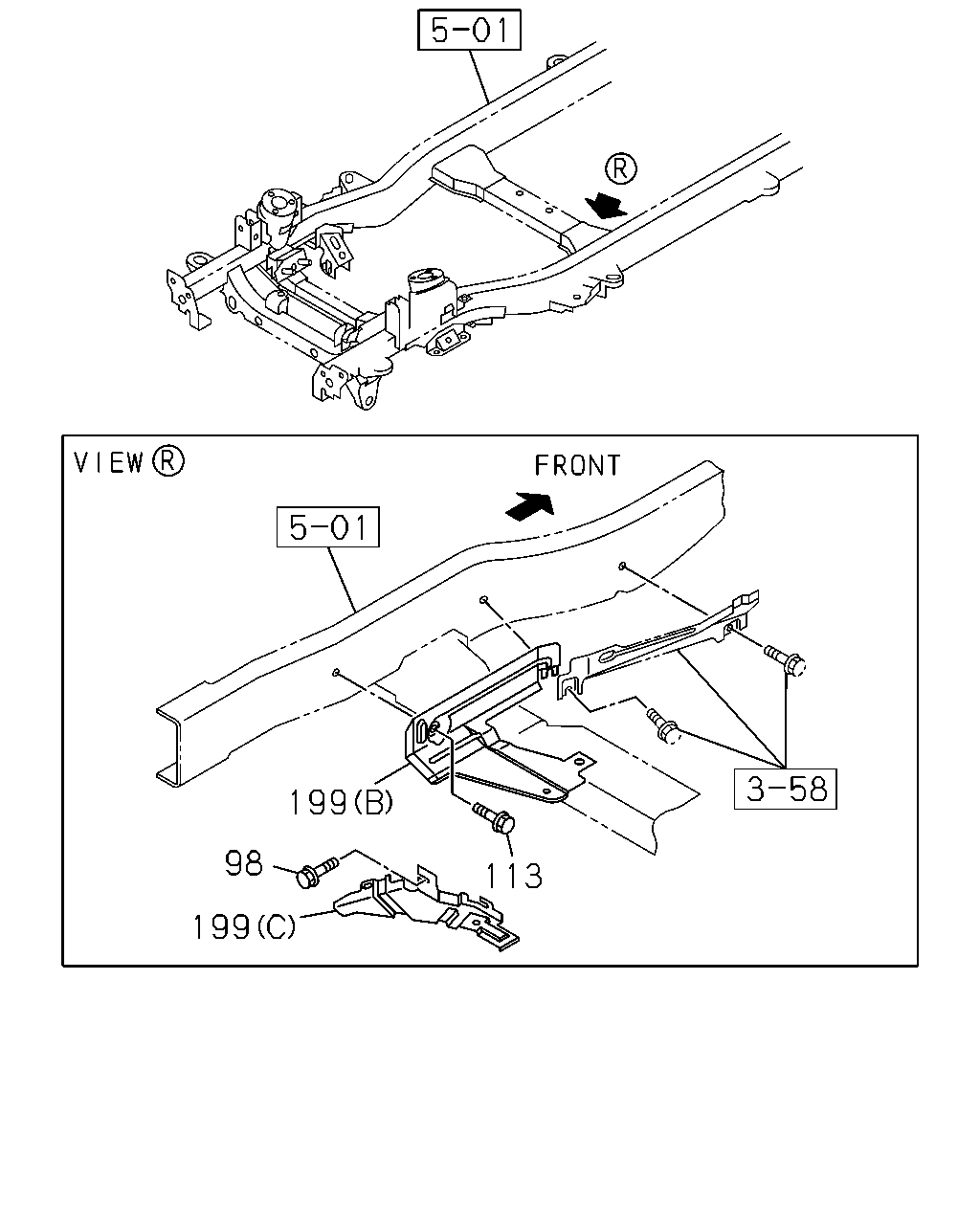

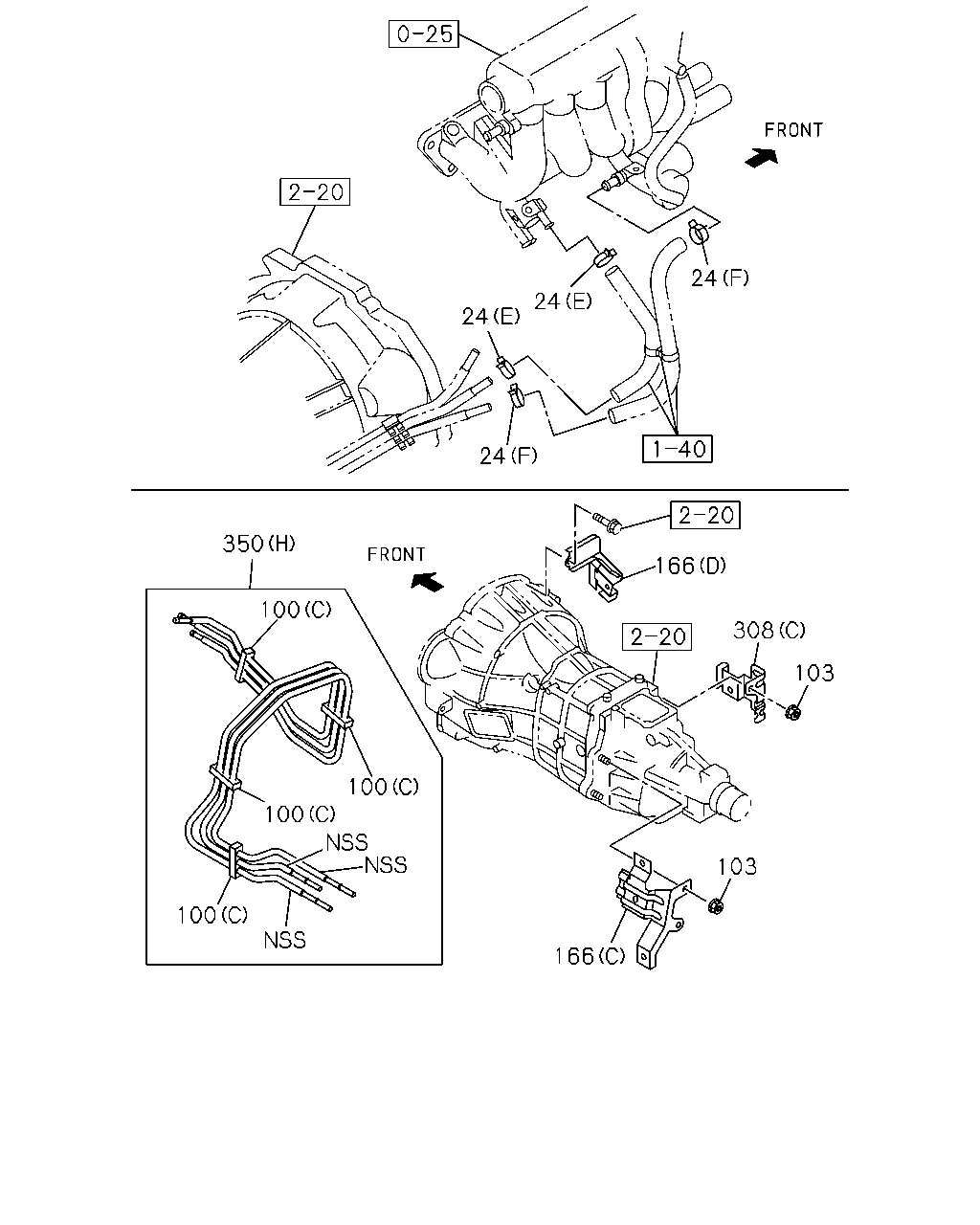

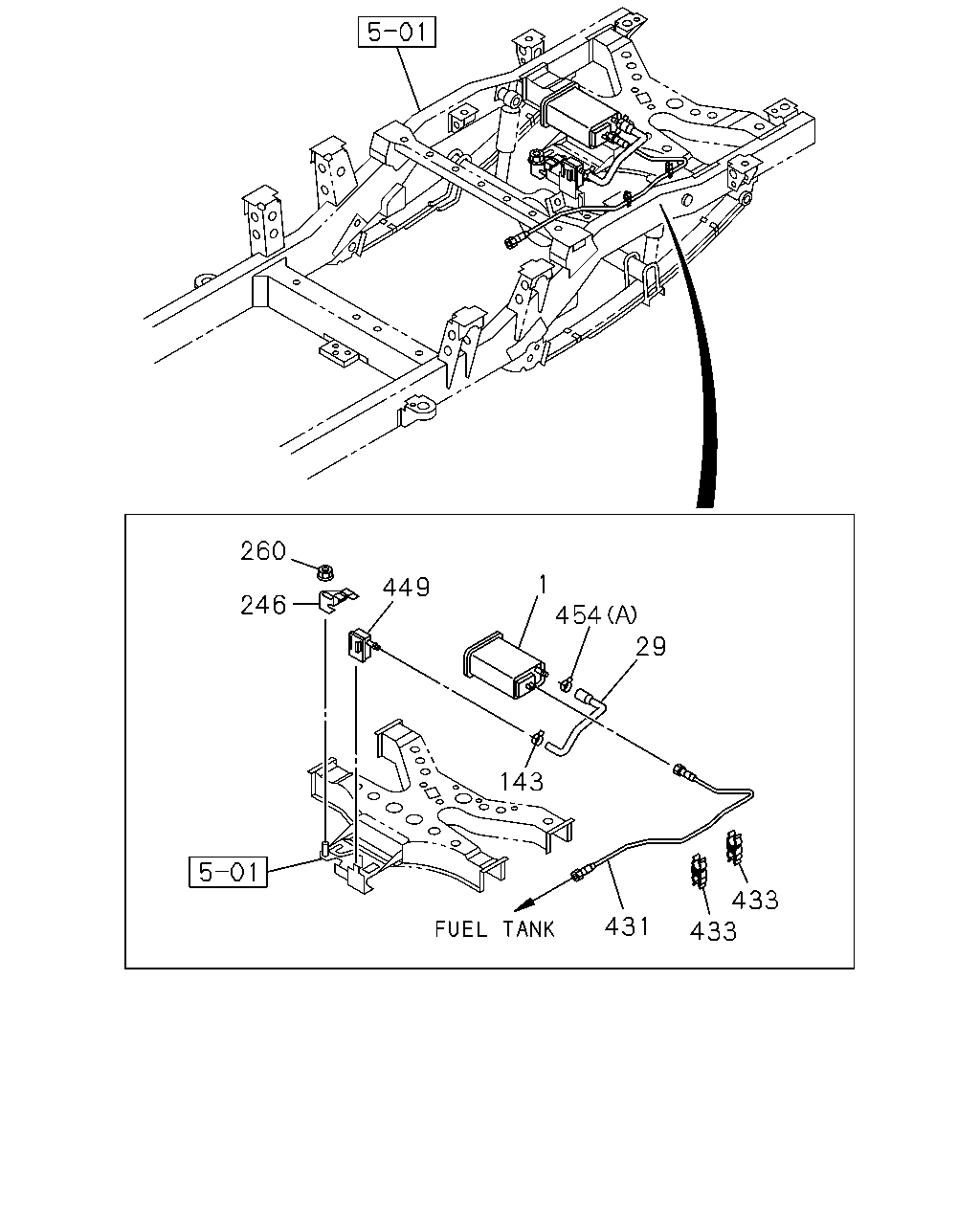

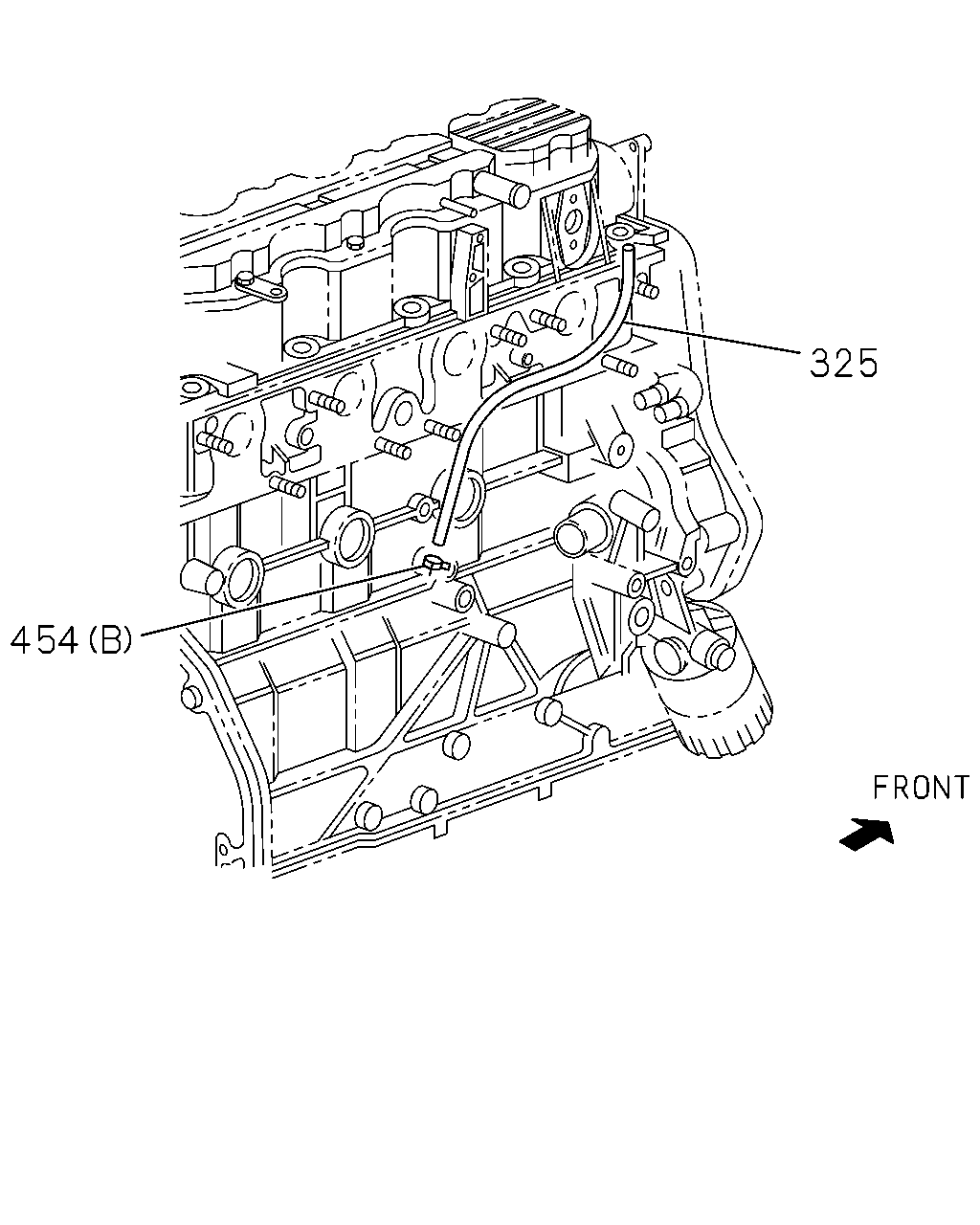

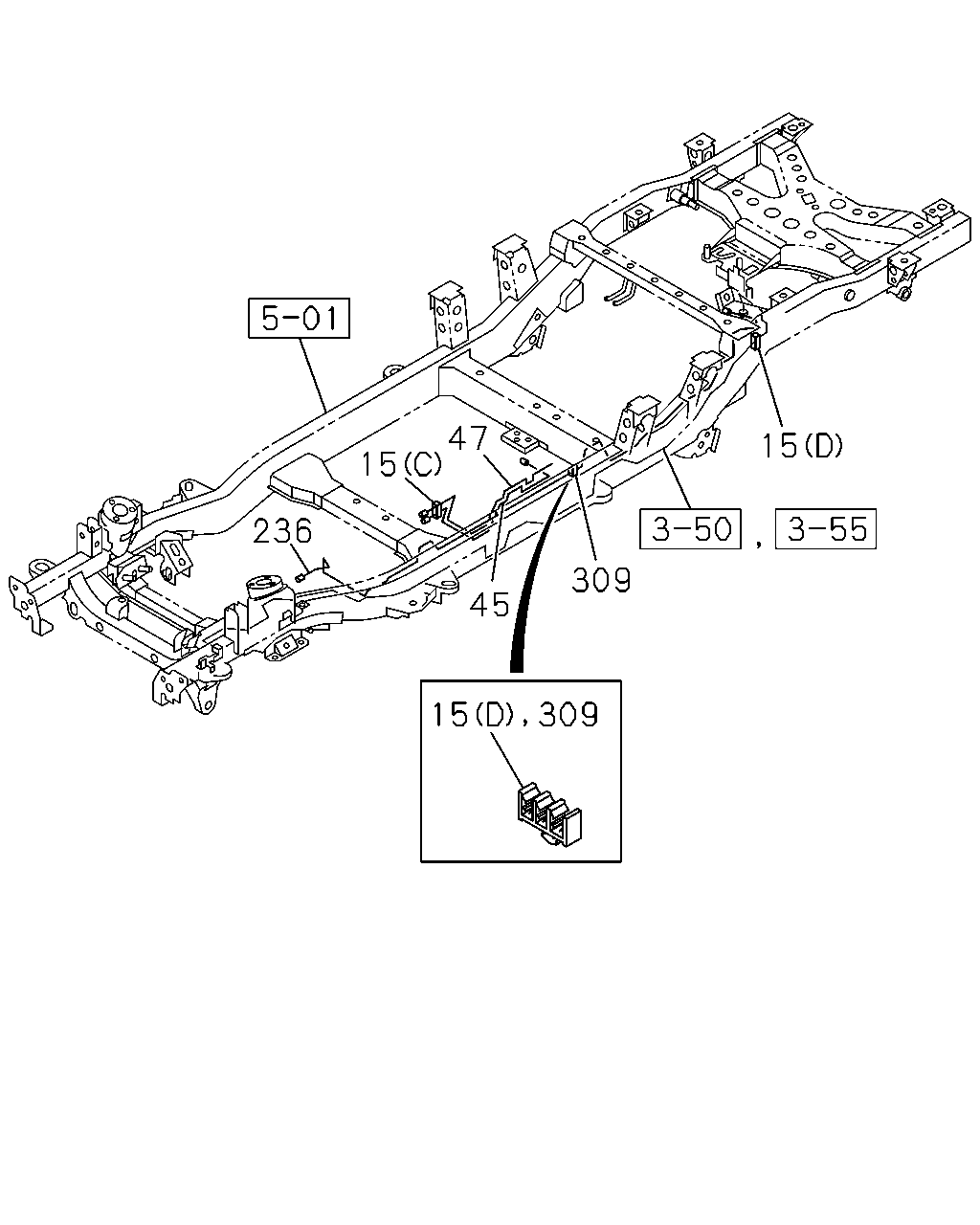

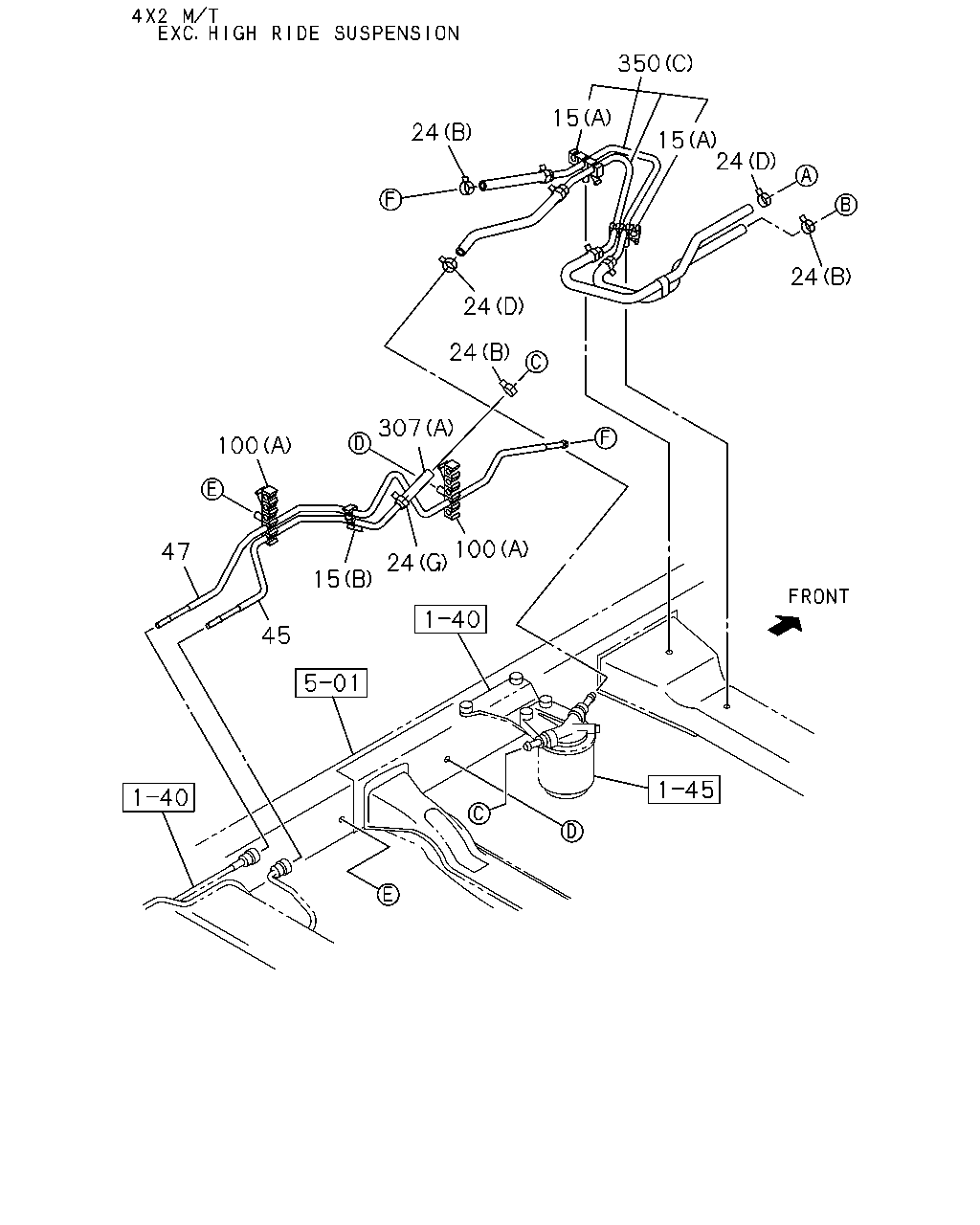

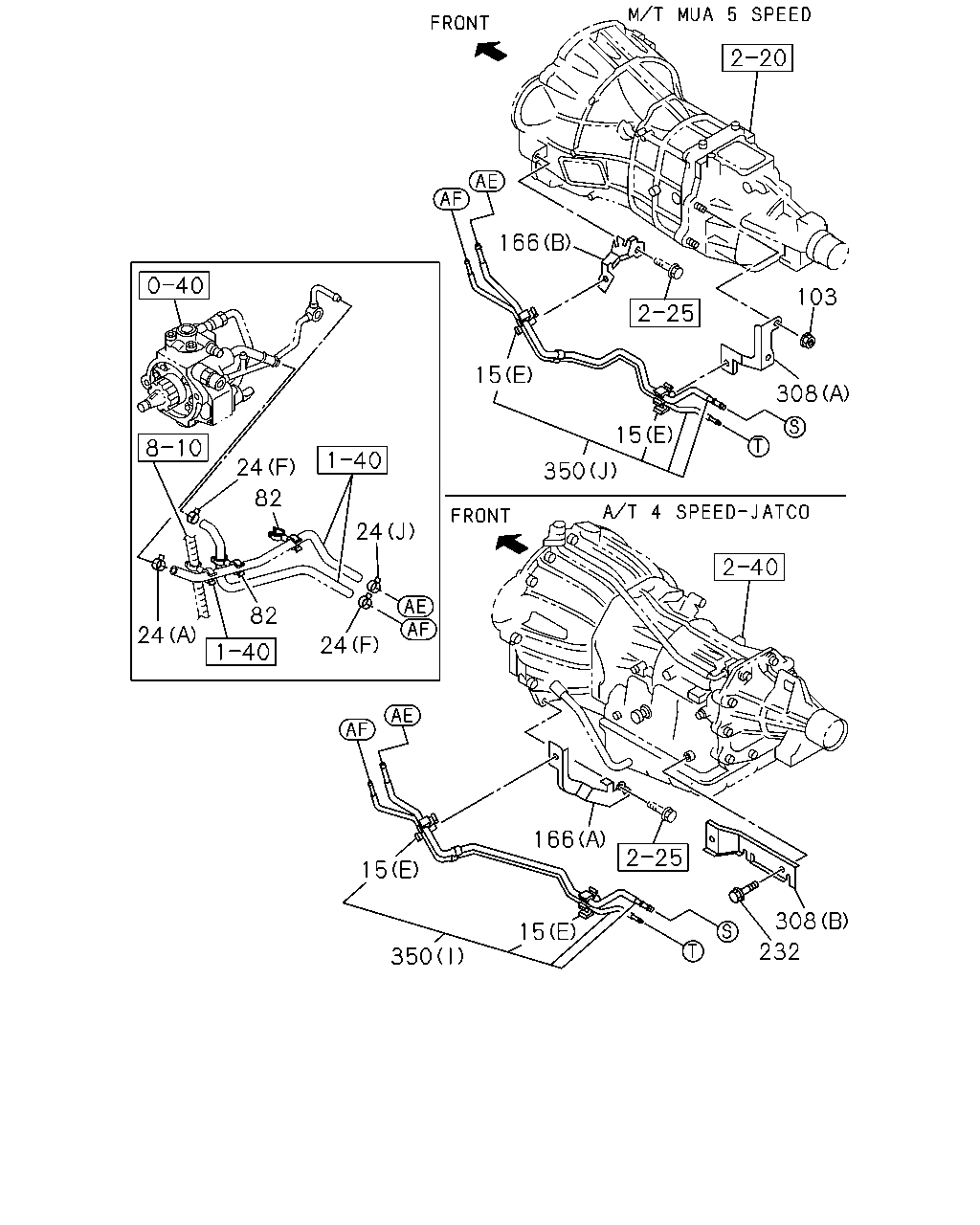

1-41 — FUEL PIPING; CHASSIS (#77513) — 1116 parça

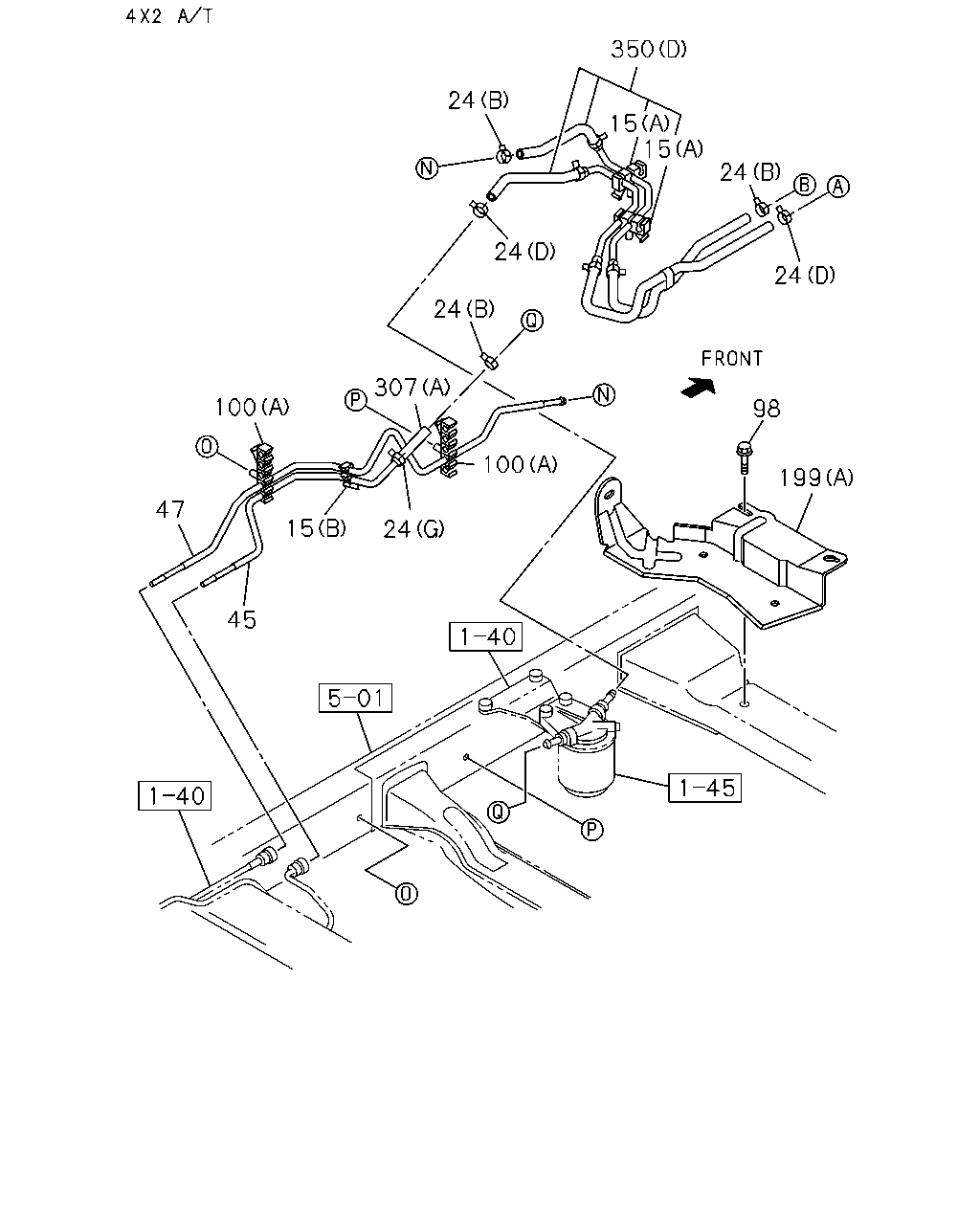

47 15 15 236 45 309 15 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (G)	8-98179-603-0	01	1	1012-	●
15	03.162 CLIP; FUEL PIPE (C)	8-97251-125-0	01	1	0610-	●
15	03.162 CLIP; FUEL PIPE (E)	8-97944-137-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3	8-98051-899-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-		●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-613-0	01	1	0610-			●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-983-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97250-551-2	01	1	0306-0609			●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0610-	●
47	03.163 PIPE; FUEL,RETURN	8-97944-628-0	01	1	0610-			●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-986-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN	8-97250-548-3	01	1	0306-0609			●	●
47	03.163 PIPE; FUEL,RETURN	8-98051-783-1	01	1	0610-	●
236	03.163 PIPE; FUEL,CANISTER 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-97250-531-3	01	1	0306-		●
236	03.163 PIPE; FUEL,CANISTER 4X4(TFS***)	8-97250-531-3	01	1	0306-		●
236	03.163 PIPE; FUEL,CANISTER 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC)	8-97250-529-2	01	1	0306-		●
309	03.162 CLIP; PIPE ID=8.4 & 6.8X2	8-97251-127-0	01	1	0306-		●

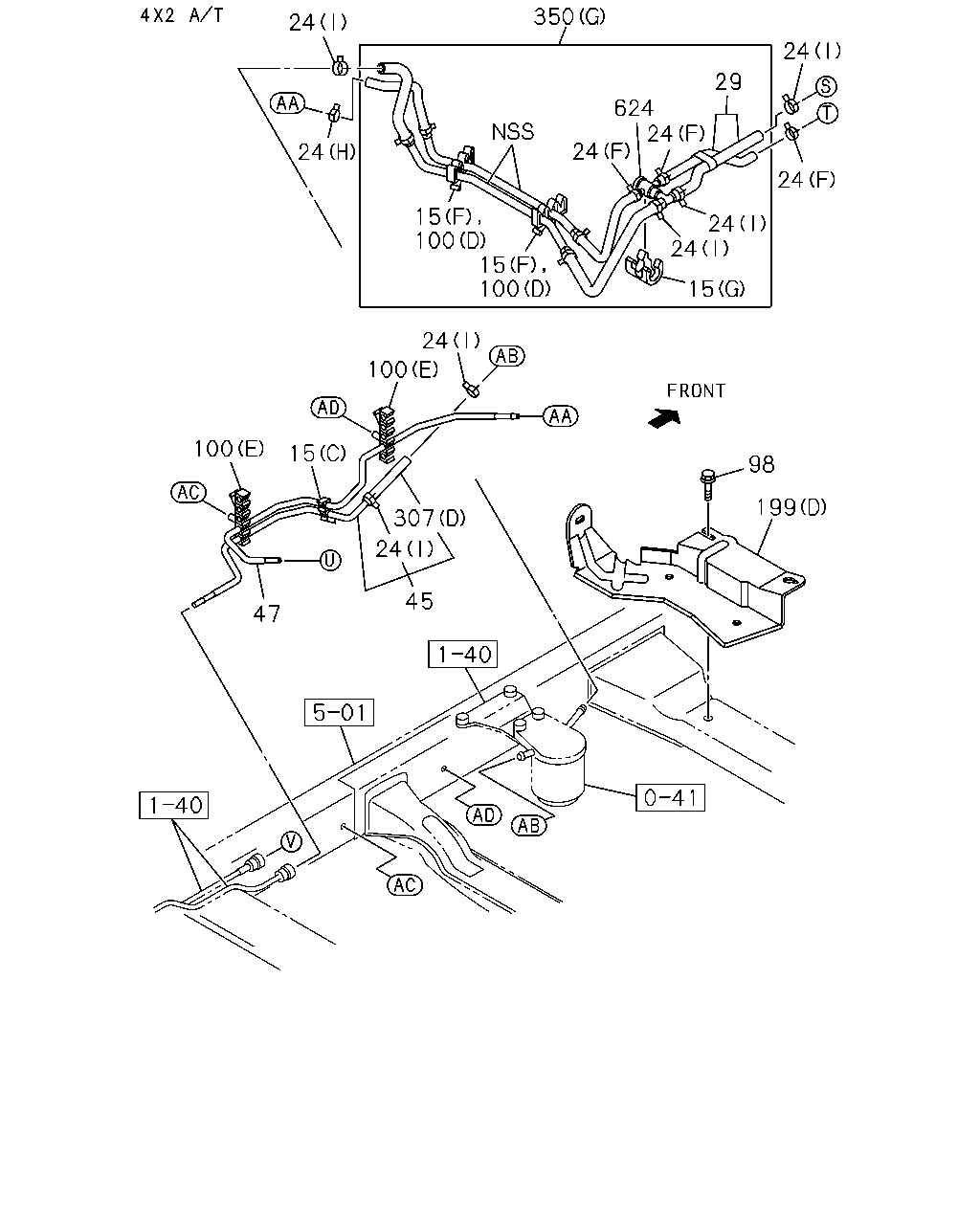

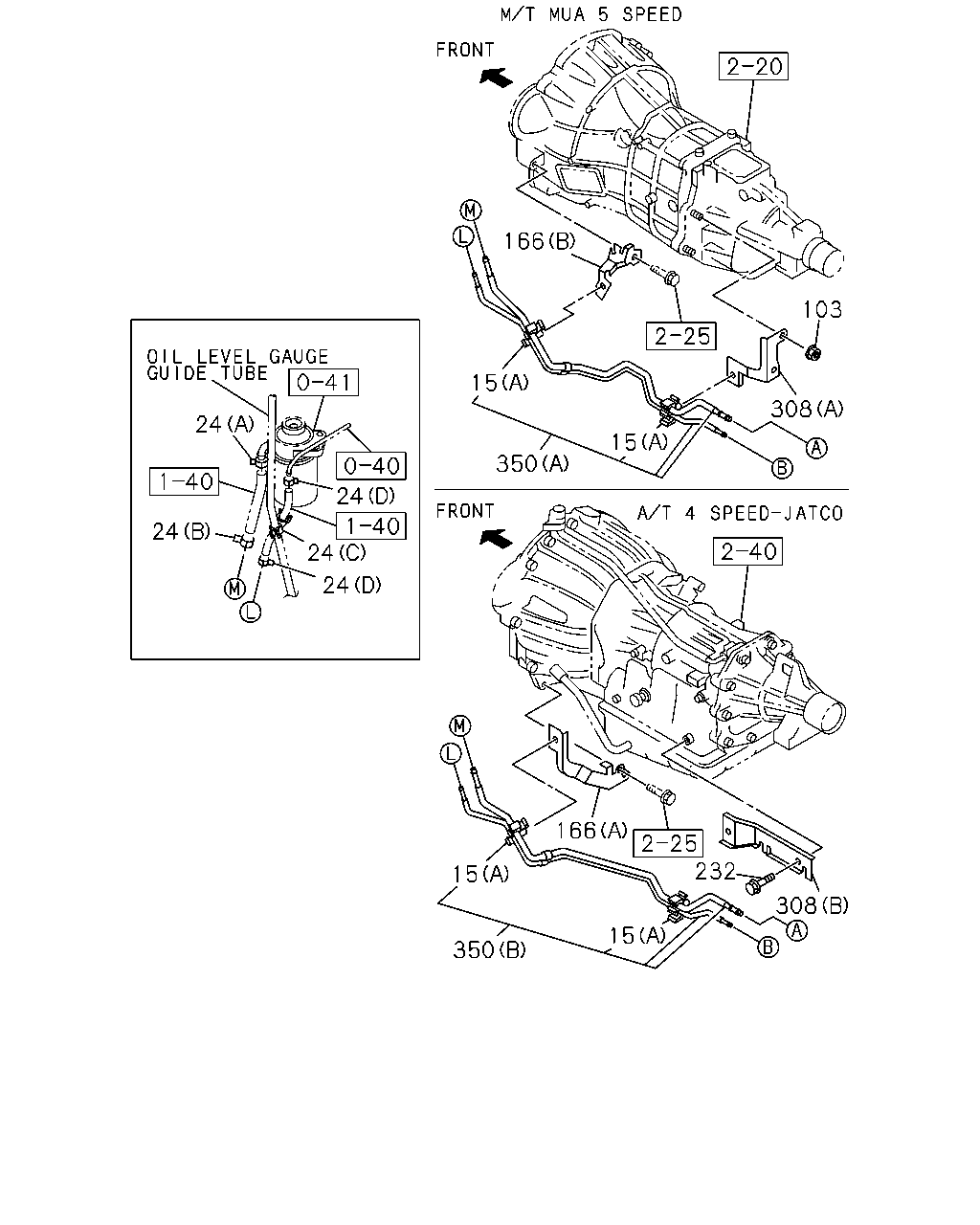

24 24 24 24 350 166 100 308 103 100 100 103 100 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE 03.330 (H) ID=11.5	8-98051-892-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE (E) ID=12	8-97148-892-1	02	1	0306-		●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0306-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0610-			●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0306-0609				●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0306-0604		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0605-0609		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97944-611-0	01	1	0610-	●		●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0610-0805			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	0806-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0911-			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0610-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0911-			●
100	03.162 CLIP; FUEL PIPE (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (B)	8-97219-442-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (B)	8-97219-442-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (F)	8-97251-123-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (G)	8-97251-125-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0509-0609		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0610-		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0306-0609			●	●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0610-			●
103	03.130 NUT; BRKT 06.168 M10 FLANGE	8-94242-425-0	03	1	0306-0609		●
103	03.130 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	03	1	0610-		●
103	03.130 NUT; BRKT M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 06.168 M10 FLANGE	8-94242-425-0	02	1	0306-0609			●	●
103	03.130 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-	●		●
166	03.162 PROTECTOR; FUEL HOSE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (D)	8-97215-406-1	01	1	0306-0508		●
166	03.162 PROTECTOR; FUEL HOSE (D)	8-97215-406-1	01	1	0509-		●
166	03.162 PROTECTOR; FUEL HOSE (C)	8-97215-308-0	01	1	0306-0609		●
166	03.162 PROTECTOR; FUEL HOSE (C)	8-98050-706-0	01	1	0610-		●
166	03.162 PROTECTOR; FUEL HOSE M/T MSG 5 SPEED(M75) (B)	8-97249-392-2	01	1	0306-0609			●
166	03.162 PROTECTOR; FUEL HOSE M/T MSG 5 SPEED(M75) (B)	8-98050-707-0	01	1	0610-			●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP) (B)	8-97215-311-3	01	1	0306-0609			●	●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) (B)	8-97944-738-0	01	1	0610-	●		●
166	03.162 PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK) (A)	8-97215-314-2	01	1	0306-0609				●
166	03.162 PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK) (A)	8-97944-739-0	01	1	0610-	●
308	03.162 BRACKET; FUEL PIPE (C)	8-97215-293-0	01	1	0306-		●
308	03.162 BRACKET; FUEL PIPE M/T MSG 5 SPEED(M75) (A)	8-97328-216-0	01	1	0306-0609			●
308	03.162 BRACKET; FUEL PIPE M/T MSG 5 SPEED(M75) (A)	8-98050-709-0	01	1	0610-			●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0306-0508			●	●
308	03.162 BRACKET; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0509-0510			●	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0511-0609			●	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) (A)	8-97944-746-0	01	1	0610-	●		●
308	03.162 BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK) (B)	8-97328-217-0	01	1	0306-0609				●
308	03.162 BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK) (B)	8-98050-708-0	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98179-684-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (J)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98051-792-1	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98060-317-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98097-062-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98177-461-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98060-307-0	01	1	0703-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-97946-518-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-97250-528-6	01	1	0306-0504			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-98006-844-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-98006-844-0	01	1	0505-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98006-844-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98006-841-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-646-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-98006-843-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98051-788-0	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98060-310-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-97946-522-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98177-462-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (H)	8-97215-167-0	01	1	0306-0508		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0509-0711		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97946-961-0	01	1	0712-		●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97215-362-4	01	1	0306-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97944-707-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0306-0609				●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (I)	8-97944-713-1	01	1	0610-	●

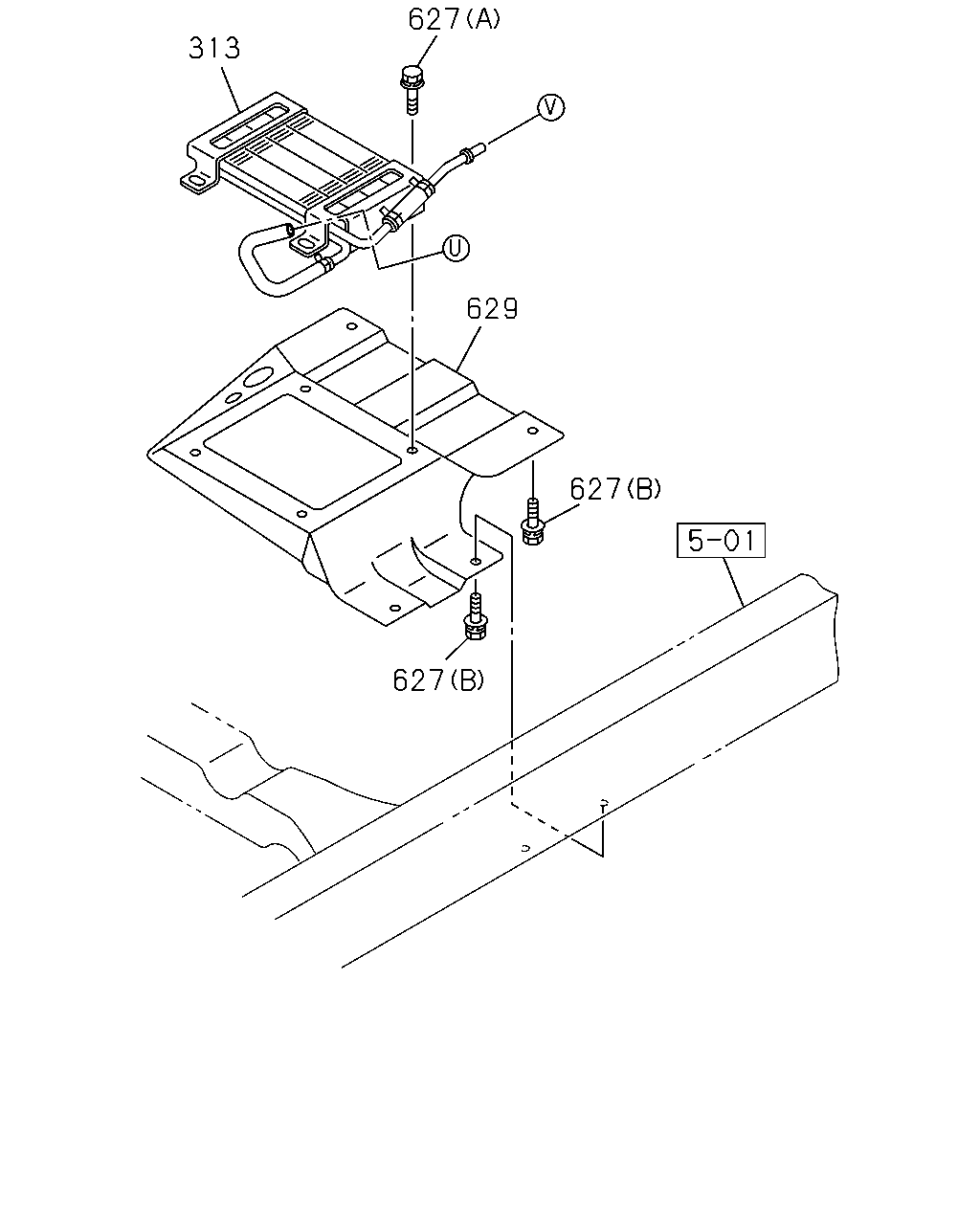

627 313 629 627 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
313	03.163 COOLER ASM; FUEL	8-97945-750-0	01	1	0610-0804	●
313	03.163 COOLER ASM; FUEL	8-97946-973-0	01	1	0805-	●
627	03.162 BOLT; FUEL CLR (A) M6X20 FLANGE	0-28650-620-0	04	1	0610-	●
627	03.162 BOLT; FUEL CLR 01.267 (B) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0610-	●
629	03.162 BRACKET; FUEL CLR 4X2(TFB***)	8-97945-577-0	01	1	0610-	●
629	03.162 BRACKET; FUEL CLR 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ)	8-97945-577-0	01	1	0610-	●
629	03.162 BRACKET; FUEL CLR 4X4 CREW CAB(TFSW) A/T 4 SPEED-JATCO(RMK)	8-97945-578-0	01	1	0610-	●

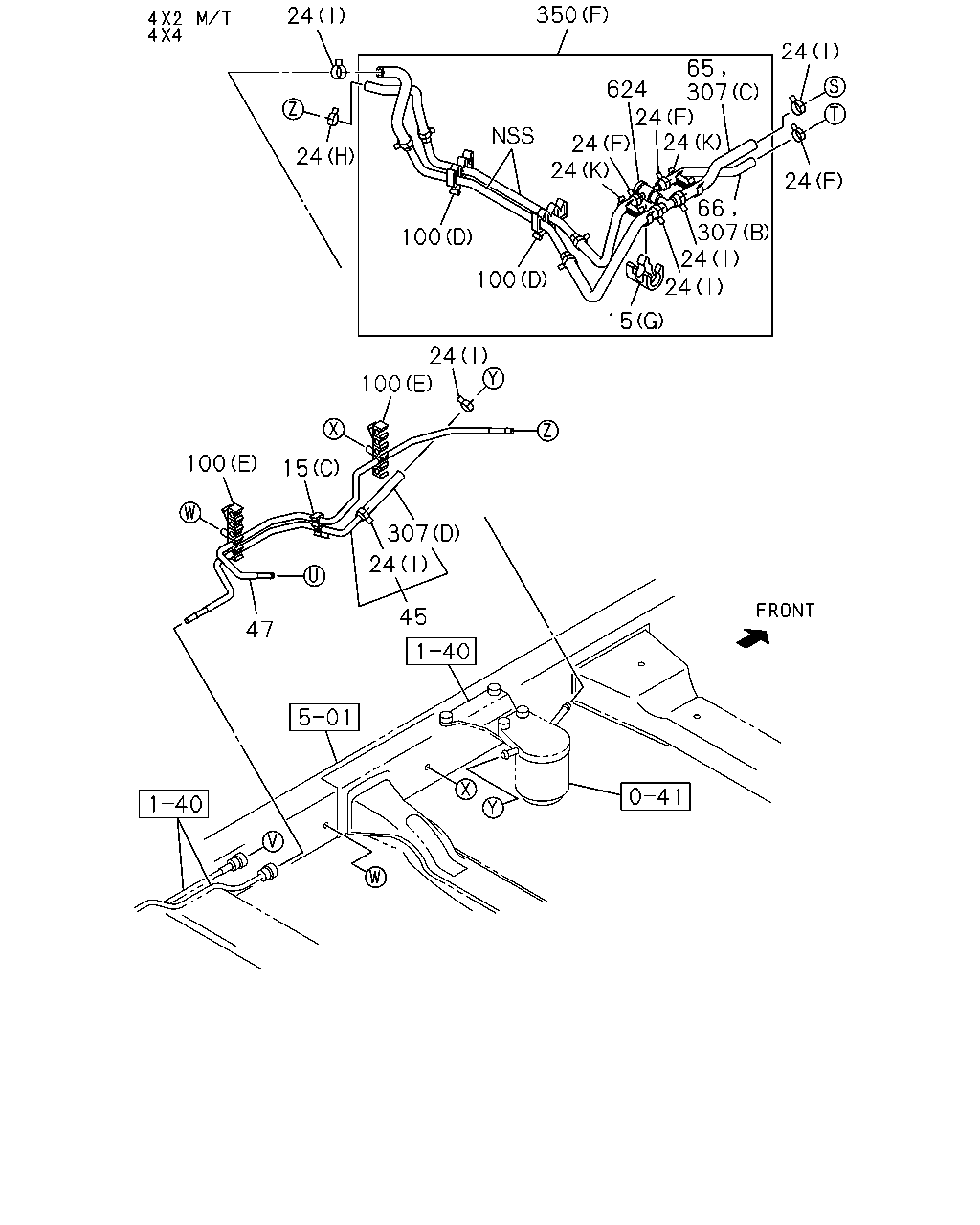

350 24 15 15 24 24 24 24 307 100 98 100 199 47 15 24 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (G)	8-98179-603-0	01	1	1012-	●
15	03.162 CLIP; FUEL PIPE (C)	8-97251-125-0	01	1	0610-	●
15	03.162 CLIP; FUEL PIPE (E)	8-97944-137-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3	8-98051-899-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-		●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE 03.330 (H) ID=11.5	8-98051-892-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE (E) ID=12	8-97148-892-1	02	1	0306-		●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0306-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0610-			●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0306-0609				●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0306-0604		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0605-0609		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97944-611-0	01	1	0610-	●		●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0610-0805			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	0806-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0911-			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0610-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0911-			●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-613-0	01	1	0610-			●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-983-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97250-551-2	01	1	0306-0609			●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0610-	●
47	03.163 PIPE; FUEL,RETURN	8-97944-628-0	01	1	0610-			●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-986-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN	8-97250-548-3	01	1	0306-0609			●	●
47	03.163 PIPE; FUEL,RETURN	8-98051-783-1	01	1	0610-	●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) M6X20 FLANGE	0-28650-620-0	03	1	0306-0609		●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) M6X20 FLANGE	0-28650-620-0	03	1	0306-0609				●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) M6X20 FLANGE	0-28650-620-0	03	1	0610-		●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) M6X20 FLANGE	0-28650-620-0	03	1	0610-	●
100	03.162 CLIP; FUEL PIPE (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (B)	8-97219-442-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (B)	8-97219-442-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (F)	8-97251-123-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (G)	8-97251-125-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0509-0609		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0610-		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0306-0609			●	●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0610-			●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97215-320-3	01	1	0306-		●
199	03.162 PROTECTOR; FUEL PIPE 4X4(TFS***) (B)	8-97215-320-3	01	1	0306-		●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97249-758-0	01	1	0306-		●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97250-143-0	01	1	0306-		●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (A)	8-97365-105-0	01	1	0306-0609				●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97944-851-0	01	1	0610-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (D) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0610-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-134-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (B)	8-97944-134-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-135-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-136-0	01	1	0610-0702	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98060-821-0	01	1	0703-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0306-0609			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98179-684-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (J)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98051-792-1	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98060-317-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98097-062-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98177-461-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98060-307-0	01	1	0703-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-97946-518-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-97250-528-6	01	1	0306-0504			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-98006-844-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-98006-844-0	01	1	0505-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98006-844-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98006-841-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-646-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-98006-843-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98051-788-0	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98060-310-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-97946-522-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98177-462-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (H)	8-97215-167-0	01	1	0306-0508		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0509-0711		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97946-961-0	01	1	0712-		●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97215-362-4	01	1	0306-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97944-707-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0306-0609				●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (I)	8-97944-713-1	01	1	0610-	●

199 98 113 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) M6X20 FLANGE	0-28650-620-0	03	1	0306-0609		●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) M6X20 FLANGE	0-28650-620-0	03	1	0306-0609			●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) M6X20 FLANGE	0-28650-620-0	03	1	0610-		●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) M6X20 FLANGE	0-28650-620-0	03	1	0610-	●
113	03.162 BOLT; PROTECTOR 07.874 M6X22 W/PL WASHER	8-97012-072-0	02	1	0306-0906		●
113	03.162 BOLT; PROTECTOR M6X22 W/PL WASHER	8-98136-167-0	02	1	0907-		●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97215-320-3	01	1	0306-		●
199	03.162 PROTECTOR; FUEL PIPE 4X4(TFS***) (B)	8-97215-320-3	01	1	0306-		●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97249-758-0	01	1	0306-		●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97250-143-0	01	1	0306-		●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (A)	8-97365-105-0	01	1	0306-0609			●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97944-851-0	01	1	0610-	●

100 100 45 100 47 100 100 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
45	03.163 PIPE; FUEL,DELIVERY	8-97944-613-0	01	1	0610-			●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-983-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97250-551-2	01	1	0306-0609			●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0610-	●
47	03.163 PIPE; FUEL,RETURN	8-97944-628-0	01	1	0610-			●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-986-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN	8-97250-548-3	01	1	0306-0609			●	●
47	03.163 PIPE; FUEL,RETURN	8-98051-783-1	01	1	0610-	●
100	03.162 CLIP; FUEL PIPE (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (B)	8-97219-442-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (B)	8-97219-442-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (F)	8-97251-123-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (G)	8-97251-125-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0509-0609		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0610-		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0306-0609			●	●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0610-			●

325 454

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
325	03.163 HOSE; EVAPO	8-97254-309-2	01	1	0306-	●
454	03.890 CLAMP; HOSE,CANISTER 04.930 (A) ID=16	8-94238-568-0	01	1	0306-	●
454	03.890 CLAMP; HOSE,CANISTER 03.163 (B) ID=11	8-94238-570-0	01	1	0306-	●

350 24 24 65 624 307 24 24 24 24 24 24 66 307 24 24 100 100 15 24 100 100 15 307 24 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (G)	8-98179-603-0	01	1	1012-	●
15	03.162 CLIP; FUEL PIPE (C)	8-97251-125-0	01	1	0610-	●
15	03.162 CLIP; FUEL PIPE (E)	8-97944-137-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3	8-98051-899-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-		●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE 03.330 (H) ID=11.5	8-98051-892-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE (E) ID=12	8-97148-892-1	02	1	0306-		●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0306-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0610-			●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0306-0609				●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0306-0604		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0605-0609		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97944-611-0	01	1	0610-	●		●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0610-0805			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	0806-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0911-			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0610-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0911-			●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-613-0	01	1	0610-			●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-983-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97250-551-2	01	1	0306-0609			●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0610-	●
47	03.163 PIPE; FUEL,RETURN	8-97944-628-0	01	1	0610-			●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-986-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN	8-97250-548-3	01	1	0306-0609			●	●
47	03.163 PIPE; FUEL,RETURN	8-98051-783-1	01	1	0610-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-97944-133-0	01	1	1008-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4X4(TFS***)	8-97944-133-0	01	1	1008-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-135-0	01	1	1008-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-97944-134-0	01	1	1008-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X4(TFS***)	8-97944-134-0	01	1	1008-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-98060-821-0	01	1	1008-	●
100	03.162 CLIP; FUEL PIPE (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (B)	8-97219-442-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (B)	8-97219-442-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (F)	8-97251-123-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (G)	8-97251-125-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0509-0609		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0610-		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0306-0609			●	●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0610-			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (D) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0610-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-134-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (B)	8-97944-134-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-135-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-136-0	01	1	0610-0702	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98060-821-0	01	1	0703-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0306-0609			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98179-684-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (J)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98051-792-1	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98060-317-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98097-062-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98177-461-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98060-307-0	01	1	0703-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-97946-518-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-97250-528-6	01	1	0306-0504			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-98006-844-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-98006-844-0	01	1	0505-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98006-844-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98006-841-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-646-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-98006-843-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98051-788-0	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98060-310-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-97946-522-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98177-462-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (H)	8-97215-167-0	01	1	0306-0508		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0509-0711		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97946-961-0	01	1	0712-		●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97215-362-4	01	1	0306-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97944-707-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0306-0609				●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (I)	8-97944-713-1	01	1	0610-	●
624	03.164 VALVE; 1 WAY,FUEL	8-97375-919-0	01	1	0610-	●

350 24 24 15 15 24 24 24 307 100 100 47 24 15 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (G)	8-98179-603-0	01	1	1012-	●
15	03.162 CLIP; FUEL PIPE (C)	8-97251-125-0	01	1	0610-	●
15	03.162 CLIP; FUEL PIPE (E)	8-97944-137-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3	8-98051-899-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-		●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE 03.330 (H) ID=11.5	8-98051-892-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE (E) ID=12	8-97148-892-1	02	1	0306-		●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0306-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0610-			●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0306-0609				●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0306-0604		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0605-0609		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97944-611-0	01	1	0610-	●		●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0610-0805			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	0806-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0911-			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0610-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0911-			●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-613-0	01	1	0610-			●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-983-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97250-551-2	01	1	0306-0609			●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0610-	●
47	03.163 PIPE; FUEL,RETURN	8-97944-628-0	01	1	0610-			●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-986-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN	8-97250-548-3	01	1	0306-0609			●	●
47	03.163 PIPE; FUEL,RETURN	8-98051-783-1	01	1	0610-	●
100	03.162 CLIP; FUEL PIPE (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (B)	8-97219-442-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (B)	8-97219-442-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (F)	8-97251-123-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (G)	8-97251-125-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0509-0609		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0610-		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0306-0609			●	●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0610-			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (D) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0610-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-134-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (B)	8-97944-134-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-135-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-136-0	01	1	0610-0702	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98060-821-0	01	1	0703-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0306-0609			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98179-684-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (J)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98051-792-1	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98060-317-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98097-062-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98177-461-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98060-307-0	01	1	0703-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-97946-518-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-97250-528-6	01	1	0306-0504			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-98006-844-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-98006-844-0	01	1	0505-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98006-844-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98006-841-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-646-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-98006-843-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98051-788-0	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98060-310-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-97946-522-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98177-462-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (H)	8-97215-167-0	01	1	0306-0508		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0509-0711		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97946-961-0	01	1	0712-		●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97215-362-4	01	1	0306-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97944-707-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0306-0609				●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (I)	8-97944-713-1	01	1	0610-	●

260 1 454 449 246 29 143 433 433 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.130 CANISTER; FUEL	8-17097-118-0	01	1	0306-		●
29	03.163 HOSE; FUEL 4X2(TFB***) A/T 4 SPEED-JATCO(RMK)	8-97944-132-0	01	1	0610-0612	●
29	03.163 HOSE; FUEL 4X2(TFB***) A/T 4 SPEED-JATCO(RMK)	8-98060-820-0	01	1	0701-	●
29	03.163 HOSE; FUEL	8-97234-517-0	01	1	0306-		●
143	03.162 CLAMP; FUEL FILTER 01.166 ID=14	8-94238-572-0	01	1	0306-		●
246	03.130 BRACKET; CANISTER	8-97234-462-1	01	1	0306-		●
260	03.130 NUT; CANISTER BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	0306-		●
431	03.163 PIPE; PURGE,ENG ROOM 03.145	8-97215-197-0	01	1	0306-		●
433	03.162 CLIP; PURGE PIPE 03.680 ID=7.5 & 7.5	8-97019-084-0	02	1	0306-		●
449	03.890 FILTER; AIR 03.162	8-17096-210-0	01	1	0306-		●
454	03.890 CLAMP; HOSE,CANISTER 04.930 (A) ID=16	8-94238-568-0	01	1	0306-		●
454	03.890 CLAMP; HOSE,CANISTER 03.163 (B) ID=11	8-94238-570-0	01	1	0306-		●

166 103 15 308 24 15 350 24 24 24 24 166 232 15 308 15 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (G)	8-98179-603-0	01	1	1012-	●
15	03.162 CLIP; FUEL PIPE (C)	8-97251-125-0	01	1	0610-	●
15	03.162 CLIP; FUEL PIPE (E)	8-97944-137-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3	8-98051-899-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-		●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE 03.330 (H) ID=11.5	8-98051-892-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE (E) ID=12	8-97148-892-1	02	1	0306-		●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0306-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0610-			●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0306-0609				●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0306-0604		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0605-0609		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97944-611-0	01	1	0610-	●		●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0610-0805			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	0806-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0911-			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0610-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0911-			●
103	03.130 NUT; BRKT 06.168 M10 FLANGE	8-94242-425-0	03	1	0306-0609		●
103	03.130 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	03	1	0610-		●
103	03.130 NUT; BRKT M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 06.168 M10 FLANGE	8-94242-425-0	02	1	0306-0609			●	●
103	03.130 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-	●		●
166	03.162 PROTECTOR; FUEL HOSE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (D)	8-97215-406-1	01	1	0306-0508		●
166	03.162 PROTECTOR; FUEL HOSE (D)	8-97215-406-1	01	1	0509-		●
166	03.162 PROTECTOR; FUEL HOSE (C)	8-97215-308-0	01	1	0306-0609		●
166	03.162 PROTECTOR; FUEL HOSE (C)	8-98050-706-0	01	1	0610-		●
166	03.162 PROTECTOR; FUEL HOSE M/T MSG 5 SPEED(M75) (B)	8-97249-392-2	01	1	0306-0609			●
166	03.162 PROTECTOR; FUEL HOSE M/T MSG 5 SPEED(M75) (B)	8-98050-707-0	01	1	0610-			●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP) (B)	8-97215-311-3	01	1	0306-0609			●	●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) (B)	8-97944-738-0	01	1	0610-	●		●
166	03.162 PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK) (A)	8-97215-314-2	01	1	0306-0609				●
166	03.162 PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK) (A)	8-97944-739-0	01	1	0610-	●
232	03.162 BOLT; CLIP,PIPE A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE	0-28050-612-0	01	1	0306-0609				●
232	03.162 BOLT; CLIP,PIPE A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE	0-28050-612-0	01	1	0610-	●
308	03.162 BRACKET; FUEL PIPE (C)	8-97215-293-0	01	1	0306-		●
308	03.162 BRACKET; FUEL PIPE M/T MSG 5 SPEED(M75) (A)	8-97328-216-0	01	1	0306-0609			●
308	03.162 BRACKET; FUEL PIPE M/T MSG 5 SPEED(M75) (A)	8-98050-709-0	01	1	0610-			●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0306-0508			●	●
308	03.162 BRACKET; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0509-0510			●	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0511-0609			●	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) (A)	8-97944-746-0	01	1	0610-	●		●
308	03.162 BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK) (B)	8-97328-217-0	01	1	0306-0609				●
308	03.162 BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK) (B)	8-98050-708-0	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98179-684-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (J)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98051-792-1	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98060-317-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98097-062-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98177-461-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98060-307-0	01	1	0703-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-97946-518-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-97250-528-6	01	1	0306-0504			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-98006-844-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-98006-844-0	01	1	0505-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98006-844-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98006-841-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-646-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-98006-843-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98051-788-0	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98060-310-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-97946-522-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98177-462-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (H)	8-97215-167-0	01	1	0306-0508		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0509-0711		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97946-961-0	01	1	0712-		●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97215-362-4	01	1	0306-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97944-707-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0306-0609				●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (I)	8-97944-713-1	01	1	0610-	●

350 15 24 15 24 24 24 24 307 100 100 47 24 15 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (G)	8-98179-603-0	01	1	1012-	●
15	03.162 CLIP; FUEL PIPE (C)	8-97251-125-0	01	1	0610-	●
15	03.162 CLIP; FUEL PIPE (E)	8-97944-137-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3	8-98051-899-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-		●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE 03.330 (H) ID=11.5	8-98051-892-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE (E) ID=12	8-97148-892-1	02	1	0306-		●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0306-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0610-			●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0306-0609				●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0306-0604		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0605-0609		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97944-611-0	01	1	0610-	●		●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0610-0805			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	0806-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0911-			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0610-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0911-			●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-613-0	01	1	0610-			●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-983-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97250-551-2	01	1	0306-0609			●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0610-	●
47	03.163 PIPE; FUEL,RETURN	8-97944-628-0	01	1	0610-			●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-986-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN	8-97250-548-3	01	1	0306-0609			●	●
47	03.163 PIPE; FUEL,RETURN	8-98051-783-1	01	1	0610-	●
100	03.162 CLIP; FUEL PIPE (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (B)	8-97219-442-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (B)	8-97219-442-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (F)	8-97251-123-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (G)	8-97251-125-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0509-0609		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0610-		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0306-0609			●	●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0610-			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (D) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0610-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-134-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (B)	8-97944-134-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-135-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-136-0	01	1	0610-0702	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98060-821-0	01	1	0703-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0306-0609			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98179-684-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (J)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98051-792-1	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98060-317-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98097-062-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98177-461-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98060-307-0	01	1	0703-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-97946-518-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-97250-528-6	01	1	0306-0504			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-98006-844-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-98006-844-0	01	1	0505-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98006-844-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98006-841-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-646-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-98006-843-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98051-788-0	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98060-310-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-97946-522-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98177-462-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (H)	8-97215-167-0	01	1	0306-0508		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0509-0711		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97946-961-0	01	1	0712-		●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97215-362-4	01	1	0306-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97944-707-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0306-0609				●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (I)	8-97944-713-1	01	1	0610-	●

350 24 24 29 624 24 24 24 24 15 100 15 100 24 24 15 24 100 100 15 98 199 307 24 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (G)	8-98179-603-0	01	1	1012-	●
15	03.162 CLIP; FUEL PIPE (C)	8-97251-125-0	01	1	0610-	●
15	03.162 CLIP; FUEL PIPE (E)	8-97944-137-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3	8-98051-899-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-		●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE 03.330 (H) ID=11.5	8-98051-892-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE (E) ID=12	8-97148-892-1	02	1	0306-		●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0306-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0610-			●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0306-0609				●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0306-0604		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0605-0609		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97944-611-0	01	1	0610-	●		●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0610-0805			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	0806-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0911-			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0610-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0911-			●
29	03.163 HOSE; FUEL 4X2(TFB***) A/T 4 SPEED-JATCO(RMK)	8-97944-132-0	01	1	0610-0612	●
29	03.163 HOSE; FUEL 4X2(TFB***) A/T 4 SPEED-JATCO(RMK)	8-98060-820-0	01	1	0701-	●
29	03.163 HOSE; FUEL	8-97234-517-0	01	1	0306-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-613-0	01	1	0610-			●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-099-2	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-991-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0306-0508		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-092-1	01	1	0509-0711		●
45	03.163 PIPE; FUEL,DELIVERY 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-983-0	01	1	0712-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97250-551-2	01	1	0306-0609			●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0610-	●
47	03.163 PIPE; FUEL,RETURN	8-97944-628-0	01	1	0610-			●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97235-100-1	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP)	8-97946-994-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0306-0508		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97235-094-0	01	1	0509-0711		●
47	03.163 PIPE; FUEL,RETURN 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-986-0	01	1	0712-		●
47	03.163 PIPE; FUEL,RETURN	8-97250-548-3	01	1	0306-0609			●	●
47	03.163 PIPE; FUEL,RETURN	8-98051-783-1	01	1	0610-	●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) M6X20 FLANGE	0-28650-620-0	03	1	0306-0609		●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) M6X20 FLANGE	0-28650-620-0	03	1	0306-0609				●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) M6X20 FLANGE	0-28650-620-0	03	1	0610-		●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) M6X20 FLANGE	0-28650-620-0	03	1	0610-	●
100	03.162 CLIP; FUEL PIPE (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (B)	8-97219-442-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (B)	8-97219-442-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (F)	8-97251-123-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (G)	8-97251-125-0	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0509-0609		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (E)	8-97251-128-0	02	1	0610-		●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0509-		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-0508		●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0509-		●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0306-0609			●	●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0610-			●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B)	8-97215-320-3	01	1	0306-		●
199	03.162 PROTECTOR; FUEL PIPE 4X4(TFS***) (B)	8-97215-320-3	01	1	0306-		●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97249-758-0	01	1	0306-		●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97250-143-0	01	1	0306-		●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (A)	8-97365-105-0	01	1	0306-0609				●
199	03.162 PROTECTOR; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97944-851-0	01	1	0610-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (D) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0610-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-134-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (B)	8-97944-134-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-135-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-136-0	01	1	0610-0702	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98060-821-0	01	1	0703-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0306-0609			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98179-684-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (J)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98051-792-1	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98060-317-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98097-062-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98177-461-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98060-307-0	01	1	0703-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-97946-518-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-97250-528-6	01	1	0306-0504			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-98006-844-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-98006-844-0	01	1	0505-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98006-844-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98006-841-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-646-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-98006-843-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98051-788-0	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98060-310-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-97946-522-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98177-462-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (H)	8-97215-167-0	01	1	0306-0508		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0509-0711		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97946-961-0	01	1	0712-		●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97215-362-4	01	1	0306-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97944-707-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0306-0609				●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (I)	8-97944-713-1	01	1	0610-	●
624	03.164 VALVE; 1 WAY,FUEL	8-97375-919-0	01	1	0610-	●

166 103 15 308 15 24 350 82 24 82 24 24 166 15 308 15 232 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (G)	8-98179-603-0	01	1	1012-	●
15	03.162 CLIP; FUEL PIPE (C)	8-97251-125-0	01	1	0610-	●
15	03.162 CLIP; FUEL PIPE (E)	8-97944-137-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (F) ID=10.3X3	8-98051-899-0	02	1	0610-	●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<JR9> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0306-		●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0306-0609			●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0610-			●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE 03.330 (H) ID=11.5	8-98051-892-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (I) ID=14.2	8-98035-873-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE (E) ID=12	8-97148-892-1	02	1	0306-		●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0306-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0610-			●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0306-0609				●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0306-0604		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	02	1	0605-0609		●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-98008-096-0	03	1	0610-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97944-611-0	01	1	0610-	●		●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=17.8	8-97356-077-0	01	1	0610-0805			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	0806-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0911-			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0306-0609			●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0610-0809			●
24	03.162 CLIP; FUEL HOSE 03.145 (G) ID=17.2	8-98052-395-0	01	1	0810-0910			●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	04	1	0911-			●
82	03.163 CLIP; FUEL HOSE 04.104 ID=11.8 & ID=18.6	8-97333-094-0	02	1	0610-	●
103	03.130 NUT; BRKT 06.168 M10 FLANGE	8-94242-425-0	03	1	0306-0609		●
103	03.130 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	03	1	0610-		●
103	03.130 NUT; BRKT M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 06.168 M10 FLANGE	8-94242-425-0	02	1	0306-0609			●	●
103	03.130 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-	●		●
166	03.162 PROTECTOR; FUEL HOSE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (D)	8-97215-406-1	01	1	0306-0508		●
166	03.162 PROTECTOR; FUEL HOSE (D)	8-97215-406-1	01	1	0509-		●
166	03.162 PROTECTOR; FUEL HOSE (C)	8-97215-308-0	01	1	0306-0609		●
166	03.162 PROTECTOR; FUEL HOSE (C)	8-98050-706-0	01	1	0610-		●
166	03.162 PROTECTOR; FUEL HOSE M/T MSG 5 SPEED(M75) (B)	8-97249-392-2	01	1	0306-0609			●
166	03.162 PROTECTOR; FUEL HOSE M/T MSG 5 SPEED(M75) (B)	8-98050-707-0	01	1	0610-			●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP) (B)	8-97215-311-3	01	1	0306-0609			●	●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) (B)	8-97944-738-0	01	1	0610-	●		●
166	03.162 PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK) (A)	8-97215-314-2	01	1	0306-0609				●
166	03.162 PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK) (A)	8-97944-739-0	01	1	0610-	●
232	03.162 BOLT; CLIP,PIPE A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE	0-28050-612-0	01	1	0306-0609				●
232	03.162 BOLT; CLIP,PIPE A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE	0-28050-612-0	01	1	0610-	●
308	03.162 BRACKET; FUEL PIPE (C)	8-97215-293-0	01	1	0306-		●
308	03.162 BRACKET; FUEL PIPE M/T MSG 5 SPEED(M75) (A)	8-97328-216-0	01	1	0306-0609			●
308	03.162 BRACKET; FUEL PIPE M/T MSG 5 SPEED(M75) (A)	8-98050-709-0	01	1	0610-			●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0306-0508			●	●
308	03.162 BRACKET; FUEL PIPE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0509-0510			●	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0511-0609			●	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) (A)	8-97944-746-0	01	1	0610-	●		●
308	03.162 BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK) (B)	8-97328-217-0	01	1	0306-0609				●
308	03.162 BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK) (B)	8-98050-708-0	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98179-684-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (J)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98051-792-1	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98060-317-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98097-062-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98177-461-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98060-307-0	01	1	0703-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-97946-518-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-98051-790-0	01	1	0610-0804	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (F)	8-97946-526-0	01	1	0805-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (F)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-97250-528-6	01	1	0306-0504			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (E)	8-98006-844-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (E)	8-98006-844-0	01	1	0505-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98006-844-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-652-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0306-0504			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98006-841-0	01	1	0505-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-646-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0306-0504				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-98006-843-0	01	1	0505-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98051-788-0	01	1	0610-0612	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98060-310-0	01	1	0701-0805	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-97946-522-0	01	1	0806-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (G)	8-98177-462-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (H)	8-97215-167-0	01	1	0306-0508		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0509-0711		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97946-961-0	01	1	0712-		●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97215-362-4	01	1	0306-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET (A)	8-97944-707-0	01	1	0610-			●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0306-0609				●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (I)	8-97944-713-1	01	1	0610-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
