Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#77512) — 400 parça

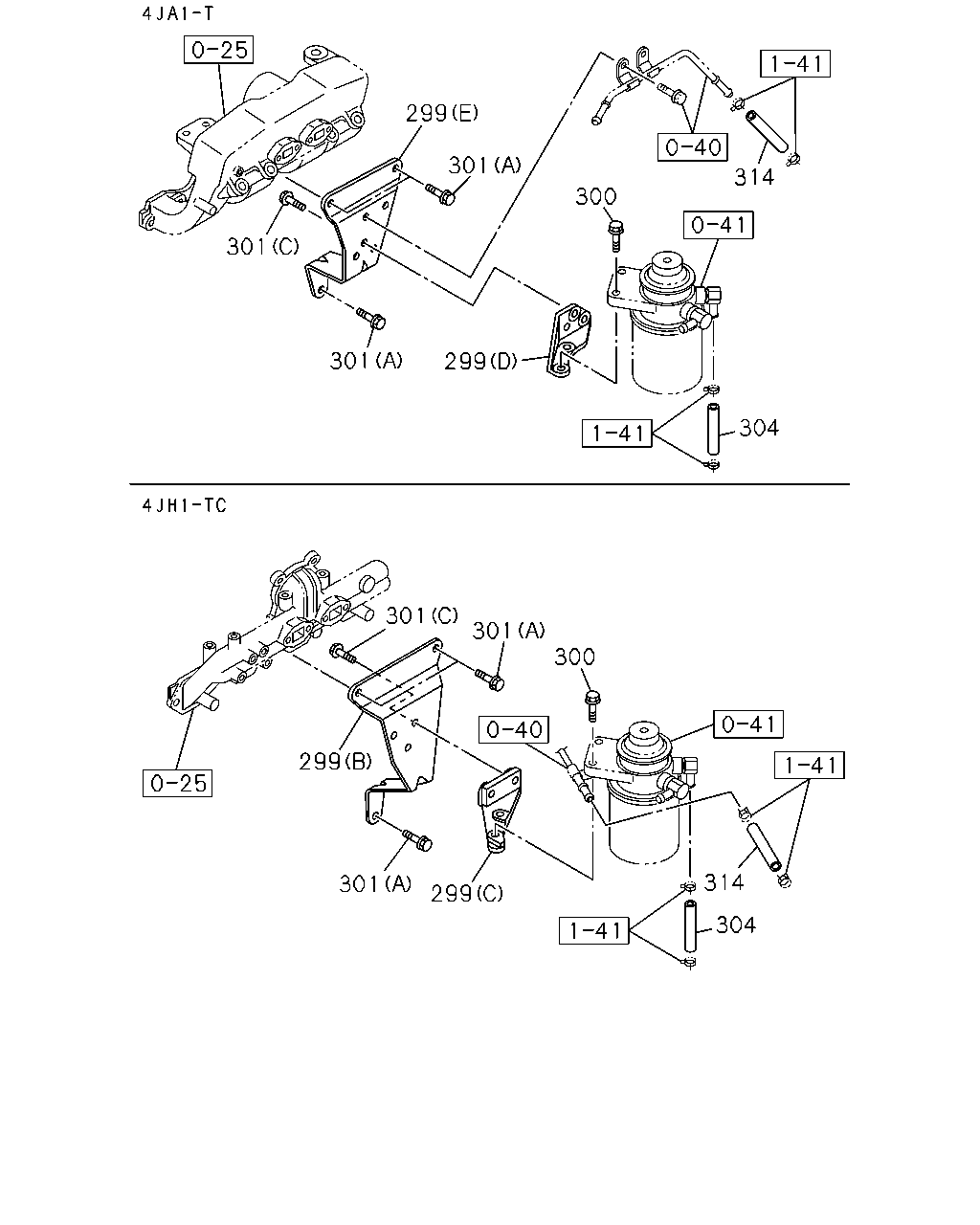

299 301 314 300 301 301 299 304 301 301 300 299 314 301 299 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
299	03.162 BRACKET; FUEL FILTER (D)	8-97313-696-1	01	1	0306-	●
299	03.162 BRACKET; FUEL FILTER (E)	8-97328-533-0	01	1	0306-	●
299	03.162 BRACKET; FUEL FILTER (B)	8-97324-374-1	01	1	0306-0609		●
299	03.162 BRACKET; FUEL FILTER (F)	8-97945-336-0	01	1	0610-			●
299	03.162 BRACKET; FUEL FILTER (C)	8-97324-375-2	01	1	0306-0609		●
299	03.162 BRACKET; FUEL FILTER (A)	8-97263-630-1	01	1	0306-0509	●	●
299	03.162 BRACKET; FUEL FILTER (A)	8-97945-165-0	01	1	0510-0609	●	●
299	03.162 BRACKET; FUEL FILTER (A)	8-97945-165-0	01	1	0610-	●
300	03.162 BOLT; BRKT TO BODY 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0306-0512	●	●
300	03.162 BOLT; BRKT TO BODY 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0601-0609	●	●
300	03.162 BOLT; BRKT TO BODY 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0610-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (C) M8X25 FLANGE	0-28080-825-0	03	1	0306-0512	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.275 (C) M8X25 FLANGE	0-28050-825-0	03	1	0601-0609	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.275 (C) M8X25 FLANGE	0-28050-825-0	03	1	0610-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	0306-0512	●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0306-0512		●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0609		●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	0306-0512		●
301	03.162 BOLT; BRKT TO SEDIMENTER 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-0609		●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0306-0601	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0602-0609	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0610-	●		●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97357-920-0	01	1	0306-	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97351-313-0	01	1	0306-0609		●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97944-783-0	01	1	0610-			●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97351-312-0	01	1	0306-	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97330-408-0	01	1	0306-0609		●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97944-784-2	01	1	0610-			●

301 299 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
299	03.162 BRACKET; FUEL FILTER (D)	8-97313-696-1	01	1	0306-	●
299	03.162 BRACKET; FUEL FILTER (E)	8-97328-533-0	01	1	0306-	●
299	03.162 BRACKET; FUEL FILTER (B)	8-97324-374-1	01	1	0306-0609		●
299	03.162 BRACKET; FUEL FILTER (F)	8-97945-336-0	01	1	0610-			●
299	03.162 BRACKET; FUEL FILTER (C)	8-97324-375-2	01	1	0306-0609		●
299	03.162 BRACKET; FUEL FILTER (A)	8-97263-630-1	01	1	0306-0509	●	●
299	03.162 BRACKET; FUEL FILTER (A)	8-97945-165-0	01	1	0510-0609	●	●
299	03.162 BRACKET; FUEL FILTER (A)	8-97945-165-0	01	1	0610-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (C) M8X25 FLANGE	0-28080-825-0	03	1	0306-0512	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.275 (C) M8X25 FLANGE	0-28050-825-0	03	1	0601-0609	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.275 (C) M8X25 FLANGE	0-28050-825-0	03	1	0610-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	0306-0512	●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0306-0512		●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0609		●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	0306-0512		●
301	03.162 BOLT; BRKT TO SEDIMENTER 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-0609		●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0306-0601	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0602-0609	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0610-	●		●
303	03.162 NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	0306-0609	●	●
303	03.162 NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	0610-	●

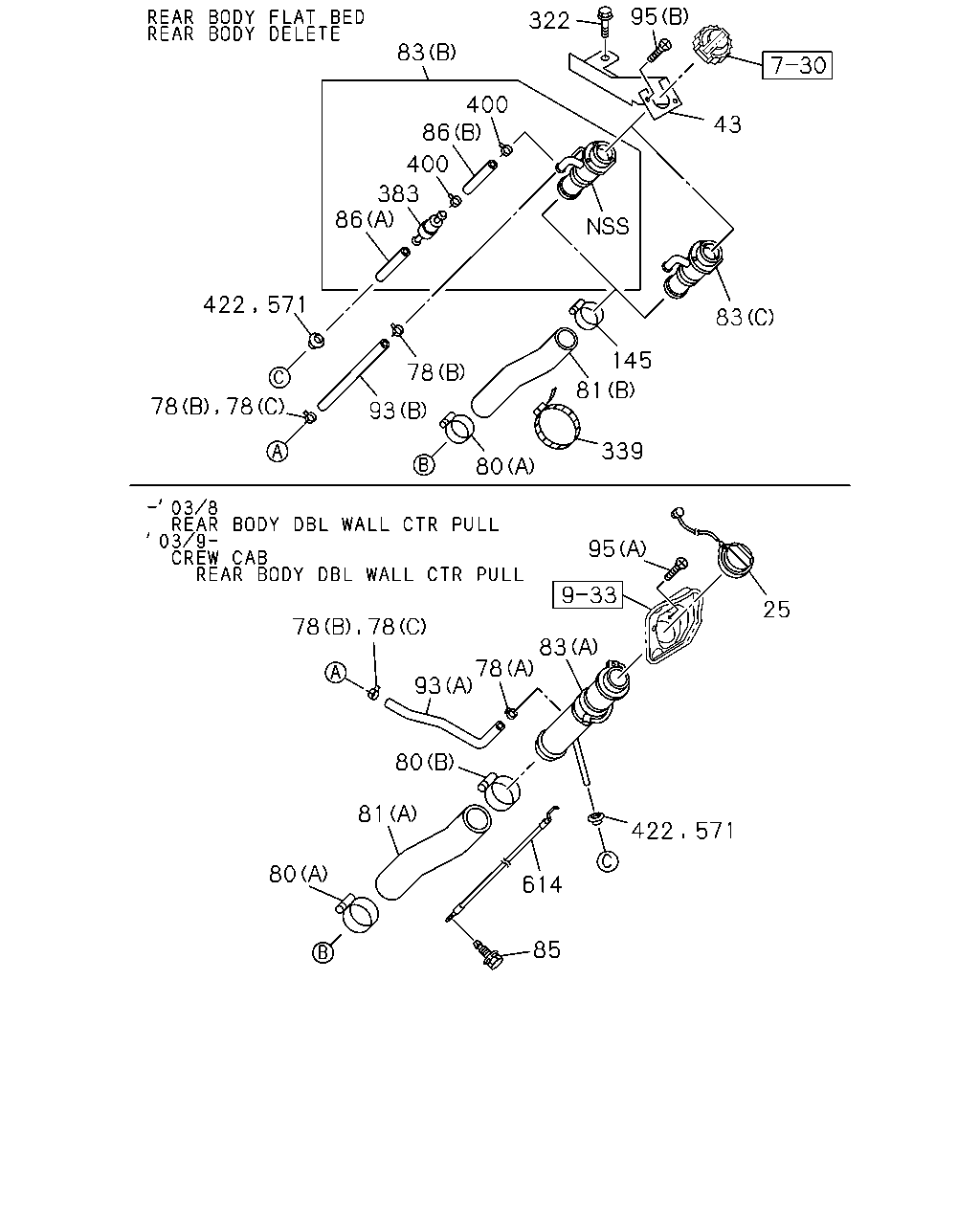

95 25 78 93 623 578 624 83 422 571 80 81 80 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-22660-003-0	01	1	0306-0308	●	●		●
25	03.028 CAP; FILLER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63)	8-22660-003-0	01	1	0309-0311	●	●		●
25	03.028 CAP; FILLER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0312-0509	●	●		●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0510-0510	●	●
25	03.028 CAP; FILLER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0511-0609	●	●		●
25	03.028 CAP; FILLER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0610-	●		●	●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	0309-0609	●	●		●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	0610-	●		●	●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	0605-	●	●	●	●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-305-1	01	1	0306-0308	●	●		●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0306-0308	●	●		●
78	03.003 CLIP; BREATHER HOSE REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0309-0402	●	●		●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0403-0509	●	●		●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0510-0510	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0511-0609	●	●		●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-725-0	01	1	0610-0710	●		●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	0711-	●		●	●
78	03.003 CLIP; BREATHER HOSE REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0306-0604	●	●		●
78	03.003 CLIP; BREATHER HOSE 01.166 (B) ID=28	9-09915-421-1	01	1	0306-0604	●	●		●
78	03.003 CLIP; BREATHER HOSE REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0605-	●	●		●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A) ID=26	8-97944-114-0	01	1	0403-0609	●	●		●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) 08.846 (A) ID=20.8	8-97944-127-0	01	1	0610-	●		●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0306-	●	●	●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-97942-304-1	01	1	0306-0609	●	●		●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-97945-726-0	01	1	0610-0710	●		●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	0711-	●		●	●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0306-0308	●	●		●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0309-0609	●	●		●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0610-	●		●	●
81	03.003 HOSE; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97941-897-3	01	1	0306-0412	●	●		●
81	03.003 HOSE; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97944-449-0	01	1	0501-	●	●		●
81	03.003 HOSE; FUEL FILLER 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH) (B)	8-97943-445-0	01	1	0306-0412	●	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH) (B)	8-97944-450-0	01	1	0501-	●	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0306-0509	●	●		●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0510-0510	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0511-0609	●	●		●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0610-	●		●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-306-0	01	1	0511-0603				●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-477-0	01	1	0604-				●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-306-0	01	1	0306-0509				●
83	03.003 NECK; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97942-952-0	01	1	0306-0609				●
83	03.003 NECK; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-98024-001-0	01	1	0610-				●
83	03.003 NECK; FUEL FILLER 4X2 REGULAR CAB(TFBS) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97305-635-1	01	1	0306-0609	●	●
83	03.003 NECK; FUEL FILLER 4X2 REGULAR CAB(TFBS) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-98024-000-0	01	1	0610-	●		●
83	03.003 NECK; FUEL FILLER 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH) (B)	8-97365-618-0	01	1	0306-0609	●	●
83	03.003 NECK; FUEL FILLER 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH) (B)	8-98024-002-0	01	1	0610-	●		●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877),BODY COLOR STERLI NG SILVER MET(936) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> (A)	8-97943-303-0	01	1	0306-0308	●	●	●	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877),BODY COLOR STERLI NG SILVER MET(936) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> (D)	8-97943-780-1	01	1	0309-0609	●	●	●	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877),BODY COLOR STERLI NG SILVER MET(936) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> (D)	8-97945-351-0	01	1	0610-	●	●	●	●
83	03.003 NECK; FUEL FILLER REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-301-0	01	1	0306-0308	●	●
83	03.003 NECK; FUEL FILLER REAR BODY DBL WALL CTR PULL(E63) (D)	8-97943-778-1	01	1	0309-0609	●	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97945-349-0	01	1	0610-	●		●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-304-0	01	1	0306-0510	●	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	0511-0609	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	0610-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97305-696-1	01	1	0306-	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH) (B)	8-97943-446-0	01	1	0306-	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0306-0308	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	0309-0609	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	0610-	●		●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0306-0509	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0510-0510	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97942-303-0	01	1	0511-0609	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0610-	●		●	●
95	03.028 SCREW; FILLER NECK REAR BODY DBL WALL CTR PULL(E63) (A)	8-97301-166-0	01	1	0306-0308	●	●		●
95	03.028 SCREW; FILLER NECK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97301-166-0	01	1	0309-0609	●	●		●
95	03.028 SCREW; FILLER NECK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER	8-98039-091-0	01	1	0610-	●	●		●
95	03.028 SCREW; FILLER NECK REAR BODY FLAT BED(E39) 12.182 (B) M6X16	8-94381-646-0	03	1	0306-0609	●	●		●
95	03.028 SCREW; FILLER NECK REAR BODY FLAT BED(E39) (B) M6X16	8-98022-271-0	03	1	0610-	●	●		●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH) 12.182 (B) M6X16	8-94381-646-0	02	1	0306-0609	●	●		●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	0610-	●	●		●
95	03.028 SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97373-560-0	01	1	0309-0609	●	●		●
95	03.028 SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98022-272-0	01	1	0610-	●	●		●
422	03.023 PLUG; FUEL TANK REAR BODY DBL WALL CTR PULL(E63) 07.068	8-97313-474-0	01	1	0710-	●		●
571	03.001 GROMMET 07.068	8-97313-474-0	01	1	0306-0609	●	●
571	03.001 GROMMET 07.068	8-97313-474-0	01	1	0610-0709	●		●
571	03.001 GROMMET REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 07.068	8-97313-474-0	01	1	0710-	●		●
578	03.001 TUBE; FUEL,EVAPO (A)	8-97943-142-0	01	1	0306-				●
578	03.001 TUBE; FUEL,EVAPO REAR BODY DBL WALL CTR PULL(E63) (B)	8-97943-889-0	01	1	0309-0510	●	●
578	03.001 TUBE; FUEL,EVAPO REAR BODY DBL WALL CTR PULL(E63) (B)	8-97945-389-0	01	1	0511-0609	●	●
578	03.001 TUBE; FUEL,EVAPO REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97945-389-0	01	1	0610-0709	●		●
578	03.001 TUBE; FUEL,EVAPO REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97946-642-0	01	1	0710-	●		●
623	03.003 CLAMP; EVAPO TUBE REAR BODY DBL WALL CTR PULL(E63)	8-97943-891-0	01	1	0309-0609	●	●
623	03.003 CLAMP; EVAPO TUBE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97945-723-0	01	1	0610-	●		●
624	03.162 CLIP; BAND REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97942-789-0	01	1	0309-0609	●	●		●
624	03.162 CLIP; BAND REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97942-789-0	01	1	0610-	●		●	●

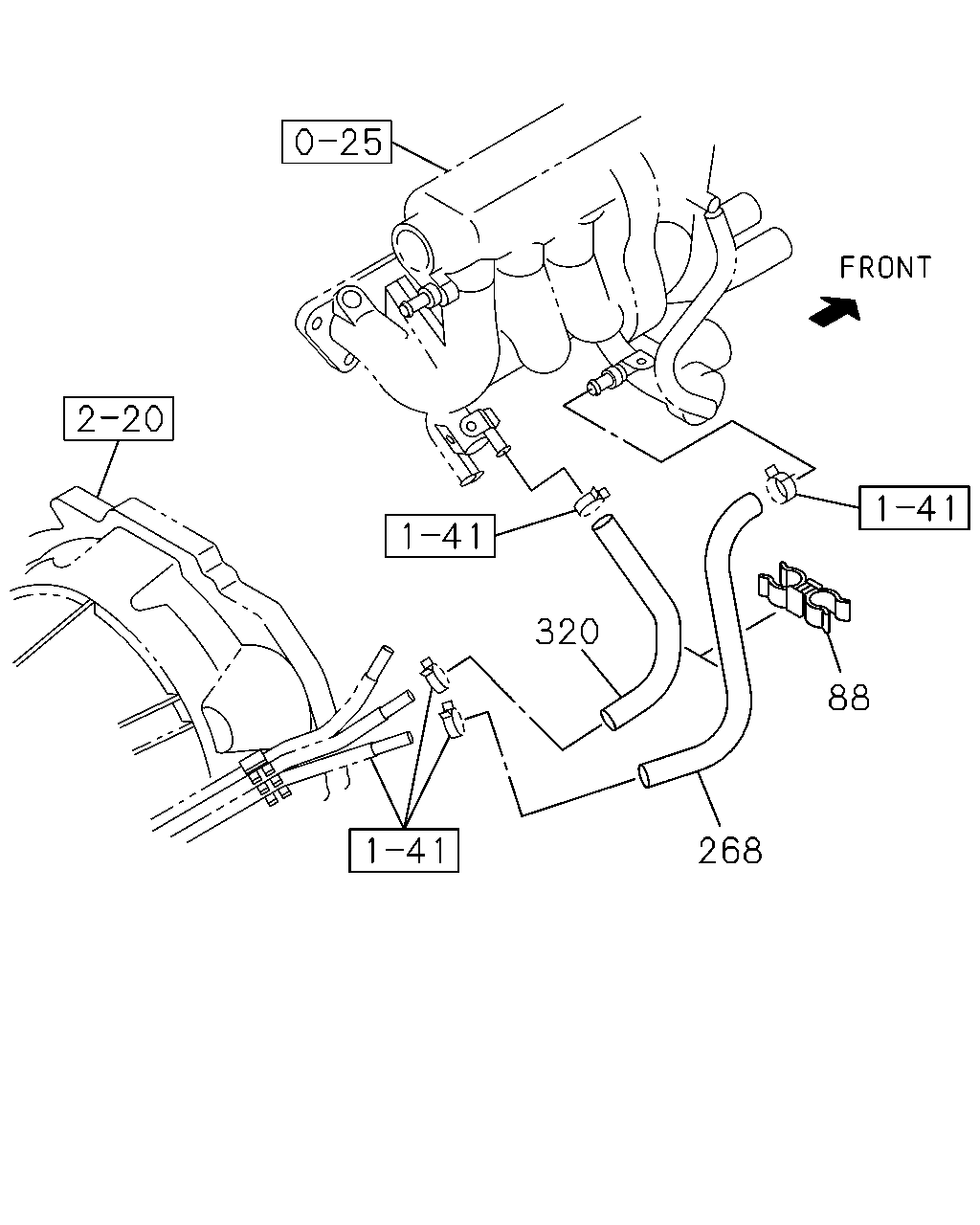

320 88 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
88	03.162 CLIP; FUEL HOSE ID=13.2 & 11.5	8-97230-081-0	01	1	0306-	●
268	03.163 HOSE; FUEL,DELIVERY	8-97351-788-0	01	1	0306-	●
320	03.163 HOSE ASM; FUEL,RETURN	8-97351-789-0	01	1	0306-	●

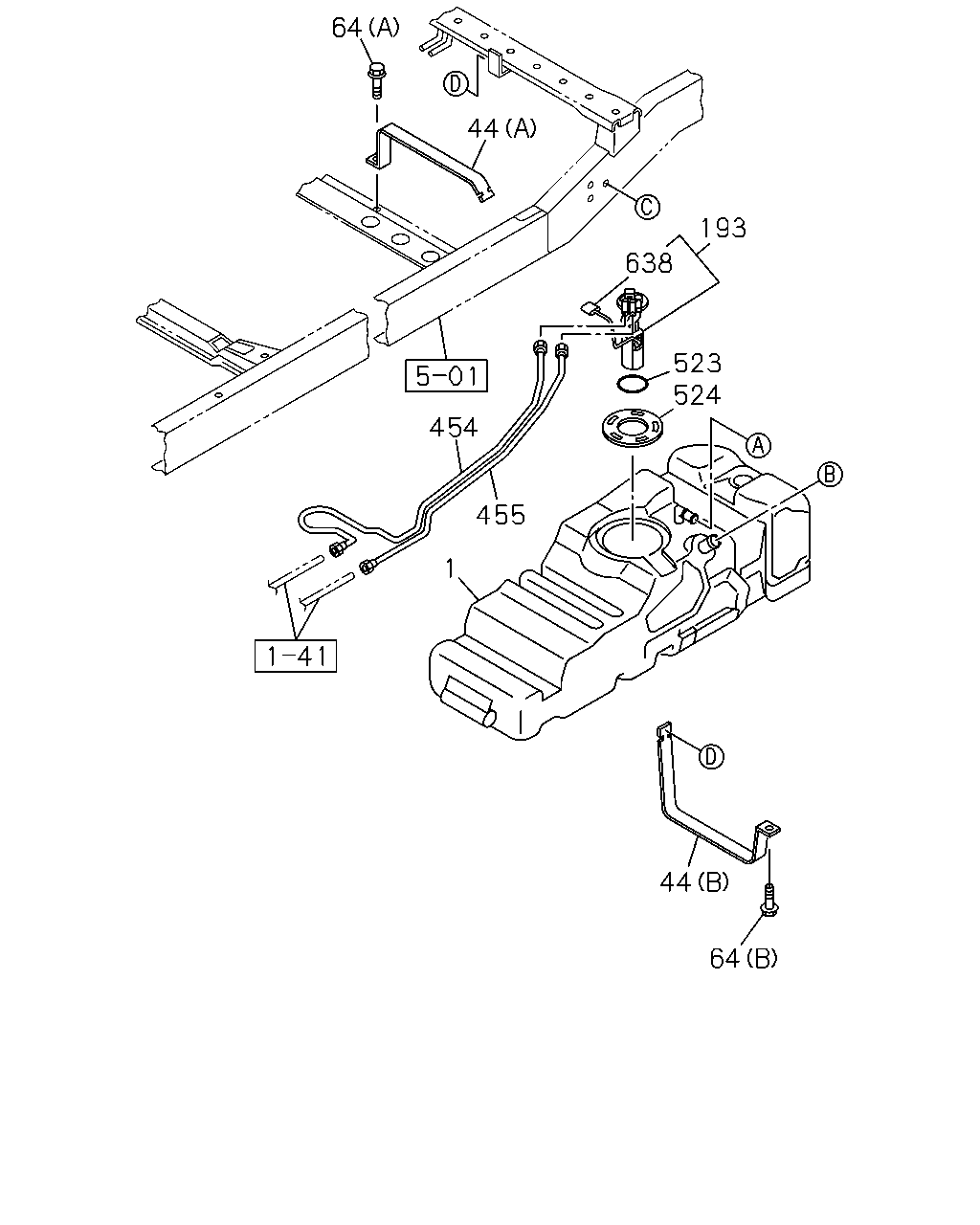

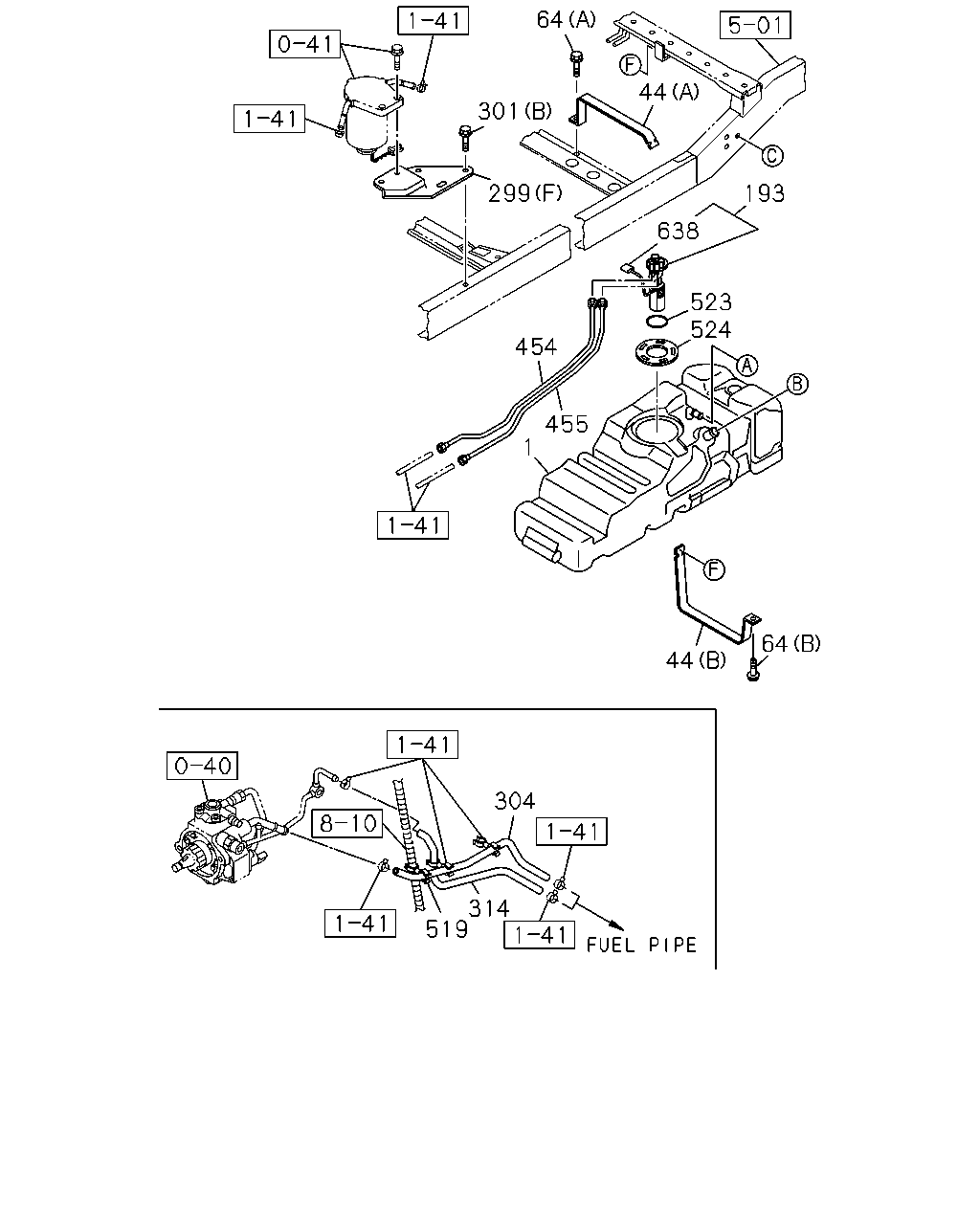

64 44 301 299 193 638 523 524 454 455 1 64 44 304 314 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL	8-97945-481-0	01	1	0610-			●
1	03.001 TANK; FUEL	8-97943-133-0	01	1	0306-0307				●
1	03.001 TANK; FUEL	8-97943-900-0	01	1	0308-				●
1	03.001 TANK; FUEL	8-97943-741-0	01	1	0306-0307	●	●
1	03.001 TANK; FUEL	8-97943-902-0	01	1	0308-0609	●	●
1	03.001 TANK; FUEL	8-97943-902-0	01	1	0610-	●
44	03.023 BAND; FUEL TANK 4X4 CREW CAB(TFSW) A/T 4 SPEED-JATCO(RMK) (B)	8-97944-283-0	01	1	0610-			●
44	03.023 BAND; FUEL TANK (A)	8-97942-717-0	01	1	0306-0501	●	●	●	●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0502-	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97942-718-0	01	1	0306-0501	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0502-0609	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0610-	●			●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	0610-		●	●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) (B)	8-97944-282-0	01	1	0610-			●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0306-	●	●	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0306-	●	●	●	●
193	03.107 PUMP; FUEL	8-97945-524-0	01	1	0610-1002			●
193	03.107 PUMP; FUEL	8-97945-713-0	01	1	1003-			●
193	03.107 PUMP; FUEL	8-97943-087-0	01	1	0306-0310		●
193	03.107 PUMP; FUEL	8-97943-184-0	01	1	0306-0310	●
193	03.107 PUMP; FUEL	8-97943-184-0	01	1	0311-0609	●	●
193	03.107 PUMP; FUEL	8-97943-184-0	01	1	0610-1002	●
193	03.107 PUMP; FUEL	8-97945-260-0	01	1	1003-	●
193	03.107 PUMP; FUEL	8-97943-075-0	01	1	0306-0608				●
193	03.107 PUMP; FUEL	8-97945-605-0	01	1	0609-1002				●
193	03.107 PUMP; FUEL	8-97945-604-0	01	1	1003-				●
299	03.162 BRACKET; FUEL FILTER (D)	8-97313-696-1	01	1	0306-	●
299	03.162 BRACKET; FUEL FILTER (E)	8-97328-533-0	01	1	0306-	●
299	03.162 BRACKET; FUEL FILTER (B)	8-97324-374-1	01	1	0306-0609		●
299	03.162 BRACKET; FUEL FILTER (F)	8-97945-336-0	01	1	0610-			●
299	03.162 BRACKET; FUEL FILTER (C)	8-97324-375-2	01	1	0306-0609		●
299	03.162 BRACKET; FUEL FILTER (A)	8-97263-630-1	01	1	0306-0509	●	●
299	03.162 BRACKET; FUEL FILTER (A)	8-97945-165-0	01	1	0510-0609	●	●
299	03.162 BRACKET; FUEL FILTER (A)	8-97945-165-0	01	1	0610-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (C) M8X25 FLANGE	0-28080-825-0	03	1	0306-0512	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.275 (C) M8X25 FLANGE	0-28050-825-0	03	1	0601-0609	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.275 (C) M8X25 FLANGE	0-28050-825-0	03	1	0610-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	0306-0512	●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0306-0512		●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0609		●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	0306-0512		●
301	03.162 BOLT; BRKT TO SEDIMENTER 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-0609		●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0306-0601	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0602-0609	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0610-	●		●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97357-920-0	01	1	0306-	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97351-313-0	01	1	0306-0609		●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97944-783-0	01	1	0610-			●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97351-312-0	01	1	0306-	●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97330-408-0	01	1	0306-0609		●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97944-784-2	01	1	0610-			●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	0610-			●
454	03.163 PIPE; FUEL,DELIVERY	8-97329-239-0	01	1	0306-				●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0306-0609	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0610-	●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	0610-			●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0306-0609	●	●		●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0610-	●			●
519	03.107 RETAINER; FUEL PUMP 03.890 ID=20 & 16.5	8-94486-835-0	01	1	0610-			●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	0306-				●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0306-0609	●	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0610-	●		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0306-0609	●	●		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0610-	●		●	●
638	08.131 SENSOR; FUEL LEVEL	8-97943-180-0	01	1	0306-0310		●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0306-0310	●			●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0311-0609	●	●		●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0610-1002	●		●	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1003-	●		●	●

64 44 193 638 523 524 454 455 1 44 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL	8-97945-481-0	01	1	0610-			●
1	03.001 TANK; FUEL	8-97943-133-0	01	1	0306-0307				●
1	03.001 TANK; FUEL	8-97943-900-0	01	1	0308-				●
1	03.001 TANK; FUEL	8-97943-741-0	01	1	0306-0307	●	●
1	03.001 TANK; FUEL	8-97943-902-0	01	1	0308-0609	●	●
1	03.001 TANK; FUEL	8-97943-902-0	01	1	0610-	●
44	03.023 BAND; FUEL TANK 4X4 CREW CAB(TFSW) A/T 4 SPEED-JATCO(RMK) (B)	8-97944-283-0	01	1	0610-			●
44	03.023 BAND; FUEL TANK (A)	8-97942-717-0	01	1	0306-0501	●	●	●	●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0502-	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97942-718-0	01	1	0306-0501	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0502-0609	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0610-	●			●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	0610-		●	●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) (B)	8-97944-282-0	01	1	0610-			●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0306-	●	●	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0306-	●	●	●	●
193	03.107 PUMP; FUEL	8-97945-524-0	01	1	0610-1002			●
193	03.107 PUMP; FUEL	8-97945-713-0	01	1	1003-			●
193	03.107 PUMP; FUEL	8-97943-087-0	01	1	0306-0310		●
193	03.107 PUMP; FUEL	8-97943-184-0	01	1	0306-0310	●
193	03.107 PUMP; FUEL	8-97943-184-0	01	1	0311-0609	●	●
193	03.107 PUMP; FUEL	8-97943-184-0	01	1	0610-1002	●
193	03.107 PUMP; FUEL	8-97945-260-0	01	1	1003-	●
193	03.107 PUMP; FUEL	8-97943-075-0	01	1	0306-0608				●
193	03.107 PUMP; FUEL	8-97945-605-0	01	1	0609-1002				●
193	03.107 PUMP; FUEL	8-97945-604-0	01	1	1003-				●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	0610-			●
454	03.163 PIPE; FUEL,DELIVERY	8-97329-239-0	01	1	0306-				●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0306-0609	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0610-	●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	0610-			●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0306-0609	●	●		●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0610-	●			●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	0306-				●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0306-0609	●	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0610-	●		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0306-0609	●	●		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0610-	●		●	●
638	08.131 SENSOR; FUEL LEVEL	8-97943-180-0	01	1	0306-0310		●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0306-0310	●			●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0311-0609	●	●		●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0610-1002	●		●	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1003-	●		●	●

95 322 83 400 86 43 400 383 86 422 571 83 145 78 81 93 339 80 95 25 83 78 93 80 81 422 571 80 614 85 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-22660-003-0	01	1	0306-0308	●	●		●
25	03.028 CAP; FILLER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63)	8-22660-003-0	01	1	0309-0311	●	●		●
25	03.028 CAP; FILLER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0312-0509	●	●		●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0510-0510	●	●
25	03.028 CAP; FILLER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0511-0609	●	●		●
25	03.028 CAP; FILLER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	0610-	●		●	●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	0309-0609	●	●		●
25	03.028 CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	0610-	●		●	●
43	03.015 BRACKET; FUEL TANK 4X2 REGULAR CAB(TFBS) REAR BODY DELETE(8HH)	8-97941-908-1	01	1	0306-	●	●	●	●
43	03.015 BRACKET; FUEL TANK 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH)	8-97943-444-0	01	1	0306-	●	●	●	●
78	03.003 CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	0605-	●	●	●	●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-305-1	01	1	0306-0308	●	●		●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0306-0308	●	●		●
78	03.003 CLIP; BREATHER HOSE REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0309-0402	●	●		●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0403-0509	●	●		●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0510-0510	●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-839-0	01	1	0511-0609	●	●		●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-725-0	01	1	0610-0710	●		●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98097-946-0	01	1	0711-	●		●	●
78	03.003 CLIP; BREATHER HOSE REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0306-0604	●	●		●
78	03.003 CLIP; BREATHER HOSE 01.166 (B) ID=28	9-09915-421-1	01	1	0306-0604	●	●		●
78	03.003 CLIP; BREATHER HOSE REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 01.166 (B) ID=28	9-09915-421-1	01	1	0605-	●	●		●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A) ID=26	8-97944-114-0	01	1	0403-0609	●	●		●
78	03.003 CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) 08.846 (A) ID=20.8	8-97944-127-0	01	1	0610-	●		●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0306-	●	●	●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-97942-304-1	01	1	0306-0609	●	●		●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-97945-726-0	01	1	0610-0710	●		●	●
80	03.008 CLIP; FILLER HOSE REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	0711-	●		●	●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	0306-0308	●	●		●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0309-0609	●	●		●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	0610-	●		●	●
81	03.003 HOSE; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97941-897-3	01	1	0306-0412	●	●		●
81	03.003 HOSE; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97944-449-0	01	1	0501-	●	●		●
81	03.003 HOSE; FUEL FILLER 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH) (B)	8-97943-445-0	01	1	0306-0412	●	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH) (B)	8-97944-450-0	01	1	0501-	●	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0306-0509	●	●		●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0510-0510	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0511-0609	●	●		●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-301-0	01	1	0610-	●		●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-306-0	01	1	0511-0603				●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-477-0	01	1	0604-				●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-306-0	01	1	0306-0509				●
83	03.003 NECK; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97942-952-0	01	1	0306-0609				●
83	03.003 NECK; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-98024-001-0	01	1	0610-				●
83	03.003 NECK; FUEL FILLER 4X2 REGULAR CAB(TFBS) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97305-635-1	01	1	0306-0609	●	●
83	03.003 NECK; FUEL FILLER 4X2 REGULAR CAB(TFBS) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-98024-000-0	01	1	0610-	●		●
83	03.003 NECK; FUEL FILLER 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH) (B)	8-97365-618-0	01	1	0306-0609	●	●
83	03.003 NECK; FUEL FILLER 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH) (B)	8-98024-002-0	01	1	0610-	●		●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877),BODY COLOR STERLI NG SILVER MET(936) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> (A)	8-97943-303-0	01	1	0306-0308	●	●	●	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877),BODY COLOR STERLI NG SILVER MET(936) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> (D)	8-97943-780-1	01	1	0309-0609	●	●	●	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877),BODY COLOR STERLI NG SILVER MET(936) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> (D)	8-97945-351-0	01	1	0610-	●	●	●	●
83	03.003 NECK; FUEL FILLER REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-301-0	01	1	0306-0308	●	●
83	03.003 NECK; FUEL FILLER REAR BODY DBL WALL CTR PULL(E63) (D)	8-97943-778-1	01	1	0309-0609	●	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97945-349-0	01	1	0610-	●		●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-304-0	01	1	0306-0510	●	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	0511-0609	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97945-404-0	01	1	0610-	●		●
85	03.162 BOLT; FILLER NECK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) 02.343 M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0510-0603				●
86	03.163 HOSE; EVAP 4X2 REGULAR CAB(TFBS) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0306-0609	●	●
86	03.163 HOSE; EVAP 4X2 REGULAR CAB(TFBS) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0610-	●		●
86	03.163 HOSE; EVAP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B) L=80 SERVICED BY L=3000	8-94128-826-0	01	1	0306-0609	●	●
86	03.163 HOSE; EVAP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B) L=80 SERVICED BY L=3000	8-94128-826-0	01	1	0610-	●		●
86	03.163 HOSE; EVAP 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH) (A) L=360 SERVICED BY L=3000	8-94128-826-0	01	1	0306-0609	●	●
86	03.163 HOSE; EVAP 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH) (A) L=360 SERVICED BY L=3000	8-94128-826-0	01	1	0610-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97305-696-1	01	1	0306-	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 CREW CAB(TFBW) REAR BODY DELETE(8HH) (B)	8-97943-446-0	01	1	0306-	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	0306-0308	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	0309-0609	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	0610-	●		●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0306-0509	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0510-0510	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97942-303-0	01	1	0511-0609	●	●		●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-303-0	01	1	0610-	●		●	●
95	03.028 SCREW; FILLER NECK REAR BODY DBL WALL CTR PULL(E63) (A)	8-97301-166-0	01	1	0306-0308	●	●		●
95	03.028 SCREW; FILLER NECK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97301-166-0	01	1	0309-0609	●	●		●
95	03.028 SCREW; FILLER NECK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER	8-98039-091-0	01	1	0610-	●	●		●
95	03.028 SCREW; FILLER NECK REAR BODY FLAT BED(E39) 12.182 (B) M6X16	8-94381-646-0	03	1	0306-0609	●	●		●
95	03.028 SCREW; FILLER NECK REAR BODY FLAT BED(E39) (B) M6X16	8-98022-271-0	03	1	0610-	●	●		●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH) 12.182 (B) M6X16	8-94381-646-0	02	1	0306-0609	●	●		●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	0610-	●	●		●
95	03.028 SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97373-560-0	01	1	0309-0609	●	●		●
95	03.028 SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-98022-272-0	01	1	0610-	●	●		●
145	03.162 CLIP; HOSE,FILLER NECK REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 03.609 ID=57	9-09915-036-1	01	1	0306-	●	●		●
322	03.895 BOLT; BRKT FIX REAR BODY DELETE(8HH) M12X25 FLANGE	0-28651-225-0	01	1	0306-	●	●		●
339	03.162 CLIP; BAND,FUEL HOSE REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 03.008 L=330	5-09709-118-0	02	1	0306-	●	●		●
383	03.162 VALVE; 2 WAY REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH)	8-97178-373-0	01	1	0306-0609	●	●
383	03.162 VALVE; 2 WAY REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH)	8-97178-373-0	01	1	0610-	●		●
400	03.162 CLIP; HOSE,EVAP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) ID=8.5	8-94166-071-0	02	1	0306-0609	●	●
400	03.162 CLIP; HOSE,EVAP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) ID=8.5	8-94166-071-0	02	1	0610-	●		●
422	03.023 PLUG; FUEL TANK REAR BODY DBL WALL CTR PULL(E63) 07.068	8-97313-474-0	01	1	0710-	●		●
571	03.001 GROMMET 07.068	8-97313-474-0	01	1	0306-0609	●	●
571	03.001 GROMMET 07.068	8-97313-474-0	01	1	0610-0709	●		●
571	03.001 GROMMET REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 07.068	8-97313-474-0	01	1	0710-	●		●
614	03.028 HARNESS; FUEL CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63)	8-98028-683-0	01	1	0511-0603				●

64 44 578 193 638 523 524 454 455 618 108 1 64 44 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL	8-97945-481-0	01	1	0610-			●
1	03.001 TANK; FUEL	8-97943-133-0	01	1	0306-0307				●
1	03.001 TANK; FUEL	8-97943-900-0	01	1	0308-				●
1	03.001 TANK; FUEL	8-97943-741-0	01	1	0306-0307	●	●
1	03.001 TANK; FUEL	8-97943-902-0	01	1	0308-0609	●	●
1	03.001 TANK; FUEL	8-97943-902-0	01	1	0610-	●
44	03.023 BAND; FUEL TANK 4X4 CREW CAB(TFSW) A/T 4 SPEED-JATCO(RMK) (B)	8-97944-283-0	01	1	0610-			●
44	03.023 BAND; FUEL TANK (A)	8-97942-717-0	01	1	0306-0501	●	●	●	●
44	03.023 BAND; FUEL TANK (A)	8-97944-281-0	01	1	0502-	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97942-718-0	01	1	0306-0501	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0502-0609	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97944-282-0	01	1	0610-	●			●
44	03.023 BAND; FUEL TANK 4X2(TFB***) (B)	8-97944-282-0	01	1	0610-		●	●
44	03.023 BAND; FUEL TANK 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) (B)	8-97944-282-0	01	1	0610-			●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0306-	●	●	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0306-	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK (B)	8-97329-243-2	01	1	0306-				●
108	03.015 PROTECTOR; FUEL TANK (A)	8-97943-299-0	01	1	0306-				●
193	03.107 PUMP; FUEL	8-97945-524-0	01	1	0610-1002			●
193	03.107 PUMP; FUEL	8-97945-713-0	01	1	1003-			●
193	03.107 PUMP; FUEL	8-97943-087-0	01	1	0306-0310		●
193	03.107 PUMP; FUEL	8-97943-184-0	01	1	0306-0310	●
193	03.107 PUMP; FUEL	8-97943-184-0	01	1	0311-0609	●	●
193	03.107 PUMP; FUEL	8-97943-184-0	01	1	0610-1002	●
193	03.107 PUMP; FUEL	8-97945-260-0	01	1	1003-	●
193	03.107 PUMP; FUEL	8-97943-075-0	01	1	0306-0608				●
193	03.107 PUMP; FUEL	8-97945-605-0	01	1	0609-1002				●
193	03.107 PUMP; FUEL	8-97945-604-0	01	1	1003-				●
454	03.163 PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	0610-			●
454	03.163 PIPE; FUEL,DELIVERY	8-97329-239-0	01	1	0306-				●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0306-0609	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0610-	●
455	03.163 PIPE; FUEL,RETURN	8-97945-528-0	01	1	0610-			●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0306-0609	●	●		●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0610-	●			●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	0306-				●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0306-0609	●	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0610-	●		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0306-0609	●	●		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0610-	●		●	●
578	03.001 TUBE; FUEL,EVAPO (A)	8-97943-142-0	01	1	0306-				●
578	03.001 TUBE; FUEL,EVAPO REAR BODY DBL WALL CTR PULL(E63) (B)	8-97943-889-0	01	1	0309-0510	●	●
578	03.001 TUBE; FUEL,EVAPO REAR BODY DBL WALL CTR PULL(E63) (B)	8-97945-389-0	01	1	0511-0609	●	●
578	03.001 TUBE; FUEL,EVAPO REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97945-389-0	01	1	0610-0709	●		●
578	03.001 TUBE; FUEL,EVAPO REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97946-642-0	01	1	0710-	●		●
618	03.107 RETAINER; FUEL TANK	8-97329-244-1	04	1	0306-				●
638	08.131 SENSOR; FUEL LEVEL	8-97943-180-0	01	1	0306-0310		●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0306-0310	●			●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0311-0609	●	●		●
638	08.131 SENSOR; FUEL LEVEL	8-97943-178-0	01	1	0610-1002	●		●	●
638	08.131 SENSOR; FUEL LEVEL 03.118	8-97945-259-0	01	1	1003-	●		●	●

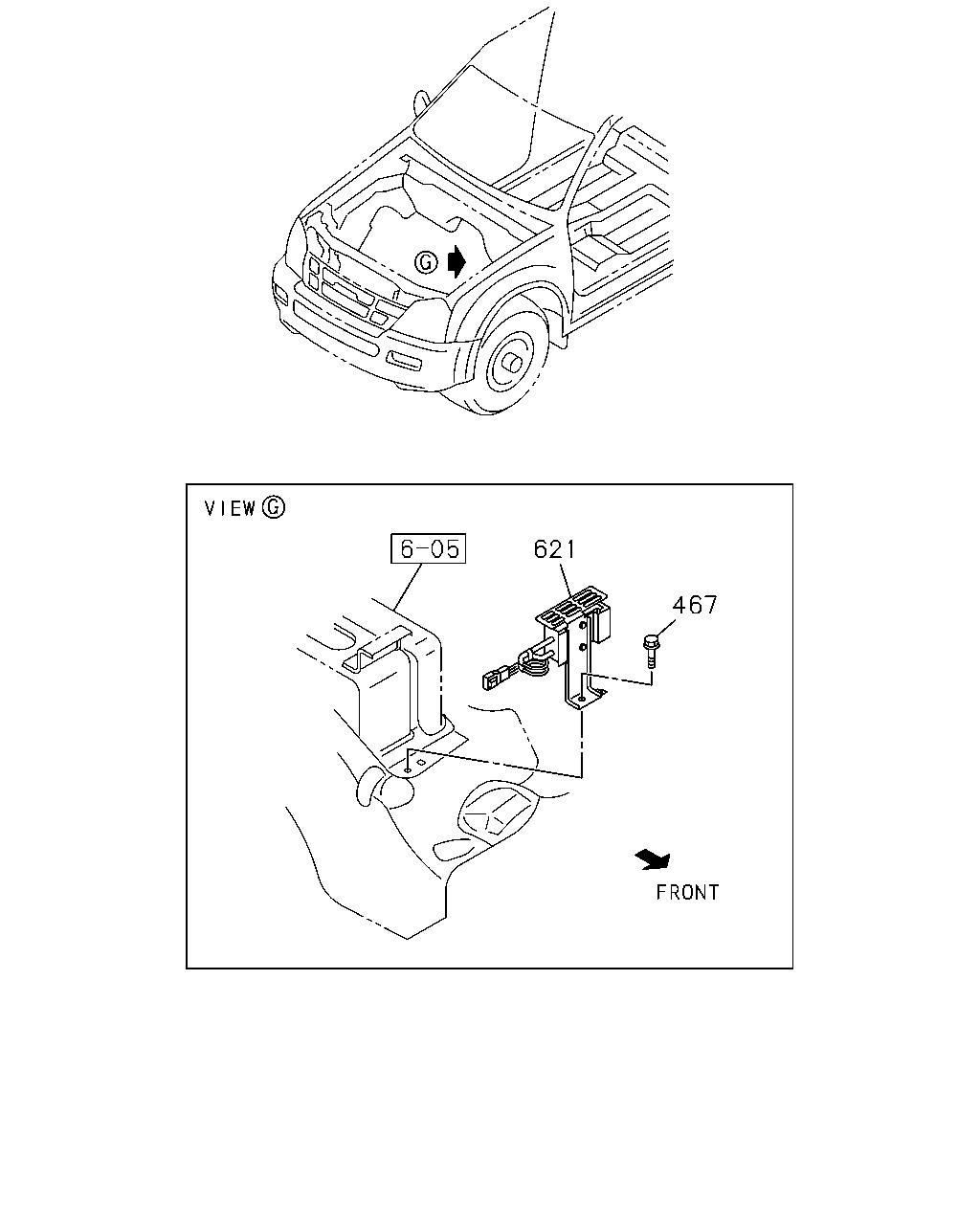

621 467

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	467	03.163 BOLT 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0610-			●
	621	03.118 RESISTOR ASM; FUEL PUMP	8-98041-186-0	01	1	0610-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
