1-35 — CHARGE AIR COOLER (#77511) — 82 parça

1 40 35 40 40 35 35 40 40 40 35 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.374 COOLER; CHARGE AIR FACE LIFT MODEL<TX7>	8-98000-270-0	01	1	0509-0609	●
1	03.374 COOLER; CHARGE AIR	8-97234-910-4	01	1	0306-0310	●
1	03.374 COOLER; CHARGE AIR	8-97375-015-0	01	1	0311-0412	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0501-0508	●
1	03.374 COOLER; CHARGE AIR EXC. FACE LIFT MODEL<TX7>	8-98000-192-0	01	1	0509-0609	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0610-0712		●
1	03.374 COOLER; CHARGE AIR	8-98088-684-0	01	1	0801-		●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0306-0609	●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0610-		●
35	01.540 HOSE; CONNECTING (D)	8-97320-883-3	01	1	0306-0609	●
35	01.540 HOSE; CONNECTING (H)	8-97370-563-1	01	1	0610-		●
35	01.540 HOSE; CONNECTING (E)	8-97363-522-0	01	1	0306-0609	●
35	01.540 HOSE; CONNECTING (F)	8-98002-516-0	01	1	0610-		●
35	01.540 HOSE; CONNECTING (A)	8-97365-438-0	01	1	0306-0609	●
35	01.540 HOSE; CONNECTING (I)	8-97385-978-0	01	1	0610-		●
35	01.540 HOSE; CONNECTING (B)	8-97365-478-0	01	1	0306-0310	●
35	01.540 HOSE; CONNECTING (B)	8-97374-359-0	01	1	0311-0609	●
35	01.540 HOSE; CONNECTING (G)	8-97370-538-1	01	1	0610-0707		●
35	01.540 HOSE; CONNECTING (G)	8-98092-322-0	01	1	0708-		●
40	03.162 CLIP; RUBBER HOSE (A) ID=55-75	8-98141-459-0	01	1	0903-0911		●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	04	1	0912-1007		●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	02	1	1008-		●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=50-69	1-09707-135-0	05	1	0306-0501	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	05	1	0502-0609	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	02	1	0610-0902		●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	05	1	0903-0911		●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	02	1	0912-1007		●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	04	1	1008-		●
40	03.162 CLIP; RUBBER HOSE 01.166 (B) ID=44-60	8-94175-940-0	02	1	0306-0501	●
40	03.162 CLIP; RUBBER HOSE (B) ID=44-56	8-98000-116-0	02	1	0502-0609	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	05	1	0610-0902		●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	01	1	0903-		●

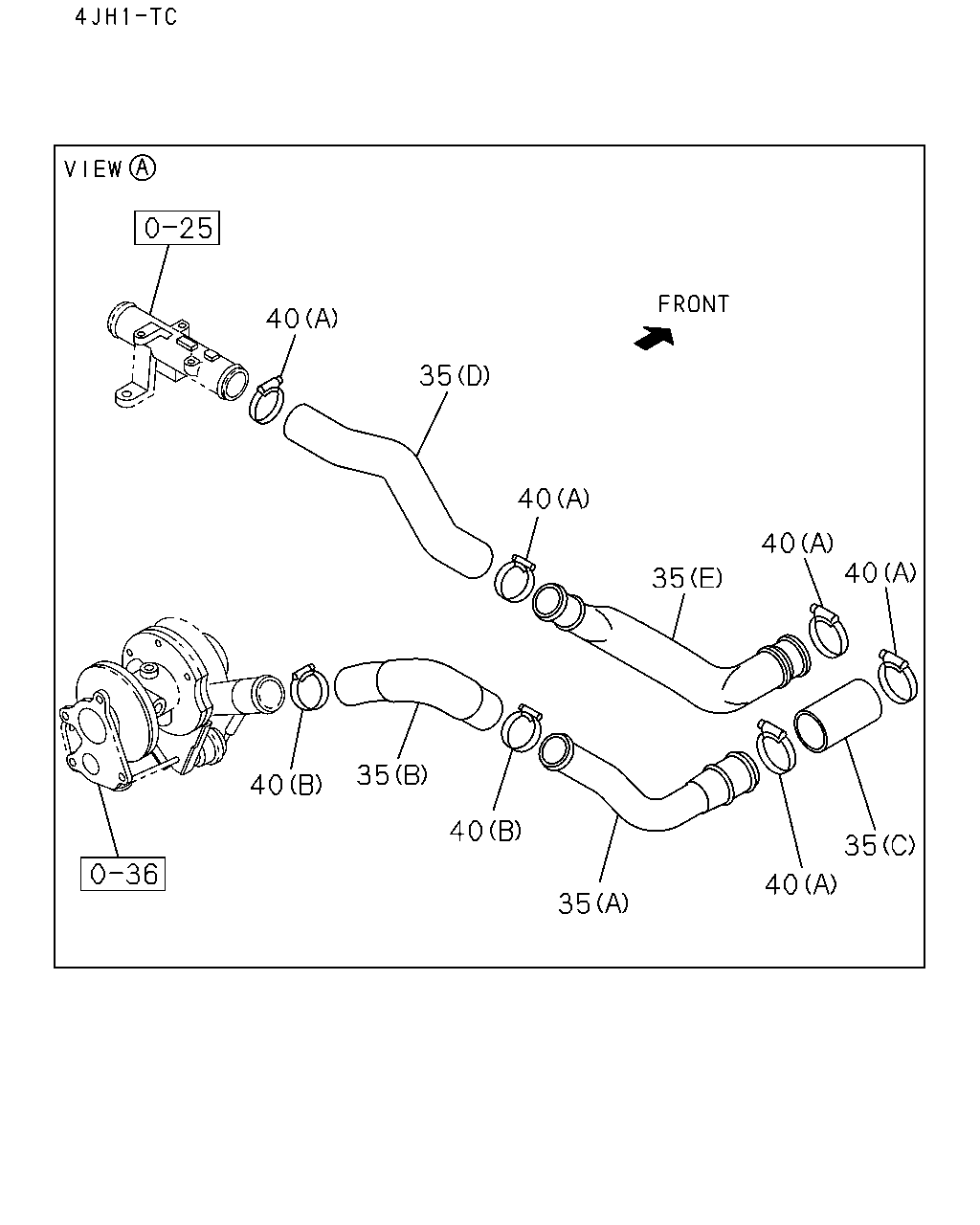

40 35 40 40 40 35 35 40 40 35 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0306-0609	●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0610-		●
35	01.540 HOSE; CONNECTING (D)	8-97320-883-3	01	1	0306-0609	●
35	01.540 HOSE; CONNECTING (H)	8-97370-563-1	01	1	0610-		●
35	01.540 HOSE; CONNECTING (E)	8-97363-522-0	01	1	0306-0609	●
35	01.540 HOSE; CONNECTING (F)	8-98002-516-0	01	1	0610-		●
35	01.540 HOSE; CONNECTING (A)	8-97365-438-0	01	1	0306-0609	●
35	01.540 HOSE; CONNECTING (I)	8-97385-978-0	01	1	0610-		●
35	01.540 HOSE; CONNECTING (B)	8-97365-478-0	01	1	0306-0310	●
35	01.540 HOSE; CONNECTING (B)	8-97374-359-0	01	1	0311-0609	●
35	01.540 HOSE; CONNECTING (G)	8-97370-538-1	01	1	0610-0707		●
35	01.540 HOSE; CONNECTING (G)	8-98092-322-0	01	1	0708-		●
40	03.162 CLIP; RUBBER HOSE (A) ID=55-75	8-98141-459-0	01	1	0903-0911		●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	04	1	0912-1007		●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	02	1	1008-		●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=50-69	1-09707-135-0	05	1	0306-0501	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	05	1	0502-0609	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	02	1	0610-0902		●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	05	1	0903-0911		●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	02	1	0912-1007		●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	04	1	1008-		●
40	03.162 CLIP; RUBBER HOSE 01.166 (B) ID=44-60	8-94175-940-0	02	1	0306-0501	●
40	03.162 CLIP; RUBBER HOSE (B) ID=44-56	8-98000-116-0	02	1	0502-0609	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	05	1	0610-0902		●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	01	1	0903-		●

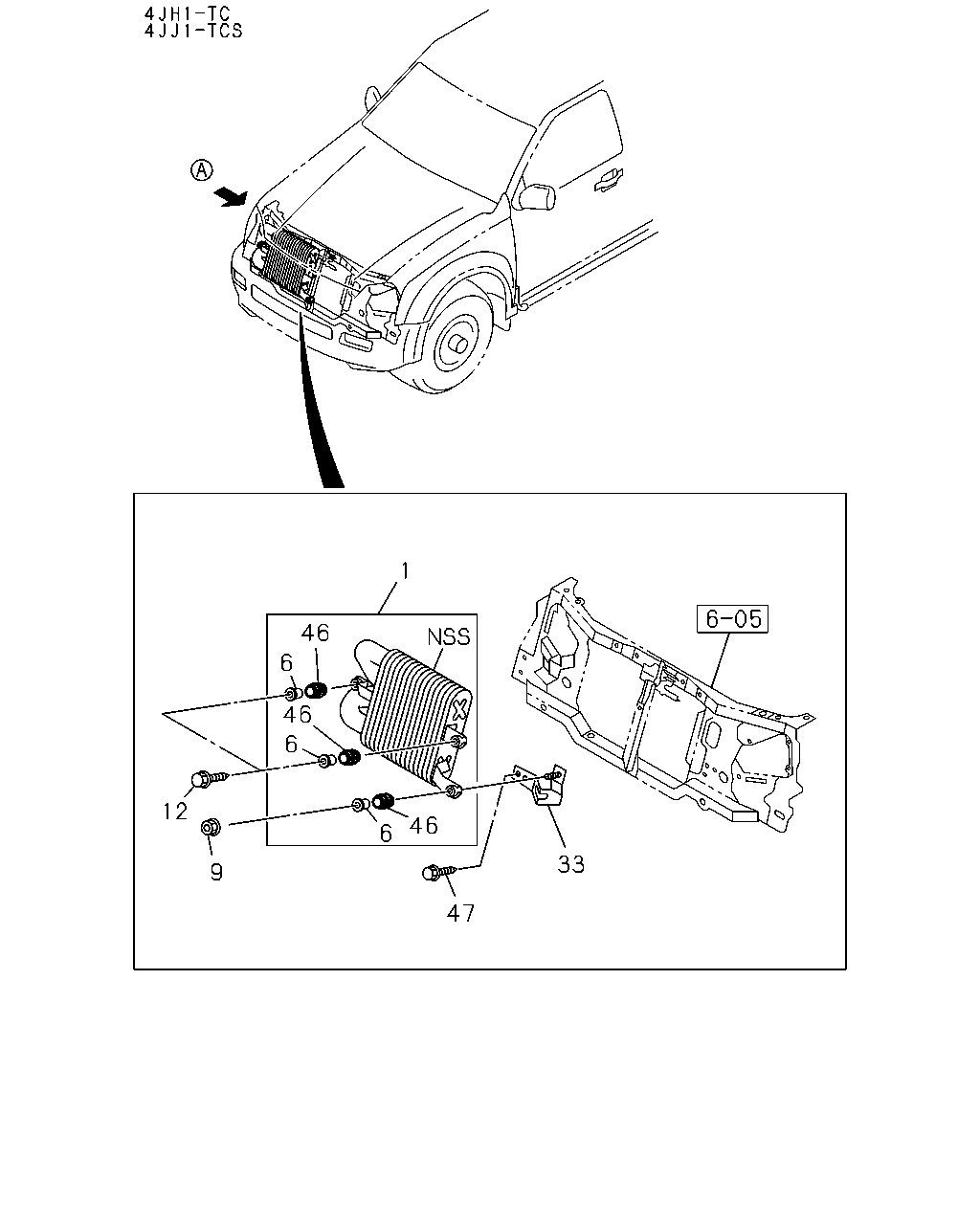

1 46 6 46 6 12 46 6 33 9 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.374 COOLER; CHARGE AIR FACE LIFT MODEL<TX7>	8-98000-270-0	01	1	0509-0609	●
1	03.374 COOLER; CHARGE AIR	8-97234-910-4	01	1	0306-0310	●
1	03.374 COOLER; CHARGE AIR	8-97375-015-0	01	1	0311-0412	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0501-0508	●
1	03.374 COOLER; CHARGE AIR EXC. FACE LIFT MODEL<TX7>	8-98000-192-0	01	1	0509-0609	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0610-0712		●
1	03.374 COOLER; CHARGE AIR	8-98088-684-0	01	1	0801-		●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER FACE LIFT MODEL<TX7>	8-97386-100-0	03	1	0509-0609	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405	8-97942-932-0	03	1	0306-0508	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER EXC. FACE LIFT MODEL<TX7> 03.405	8-97942-932-0	03	1	0509-0609	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405	8-97942-932-0	03	1	0610-		●
9	01.540 NUT; CHARGE AIR COOLER FACE LIFT MODEL<TX7> 07.633 M8 FLANGE	0-91150-108-0	01	1	0509-0603	●
9	01.540 NUT; CHARGE AIR COOLER FACE LIFT MODEL<TX7> 01.062 M8 FLANGE	0-91180-108-0	01	1	0604-0609	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-		●
9	01.540 NUT; CHARGE AIR COOLER M8 FLANGE	0-91180-208-0	01	1	0306-0508	●
9	01.540 NUT; CHARGE AIR COOLER EXC. FACE LIFT MODEL<TX7> M8 FLANGE	0-91180-208-0	01	1	0509-0609	●
12	01.540 BOLT; CHARGE AIR COOLER	8-97943-079-0	02	1	0306-0609	●
12	01.540 BOLT; CHARGE AIR COOLER	8-97943-079-0	02	1	0610-0812		●
12	01.540 BOLT; CHARGE AIR COOLER M8X32.5 W/PL WASHER	8-98136-077-0	02	1	0901-		●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97326-994-0	01	1	0306-0609	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97326-994-0	01	1	0610-		●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406	8-97942-930-0	03	1	0306-0609	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406	8-97942-930-0	03	1	0610-		●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0306-0609	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0610-		●
