Sayfa 1-30 - Isuzu EPC

1-30 — AIR CLEANER (#77509) — 228 parça

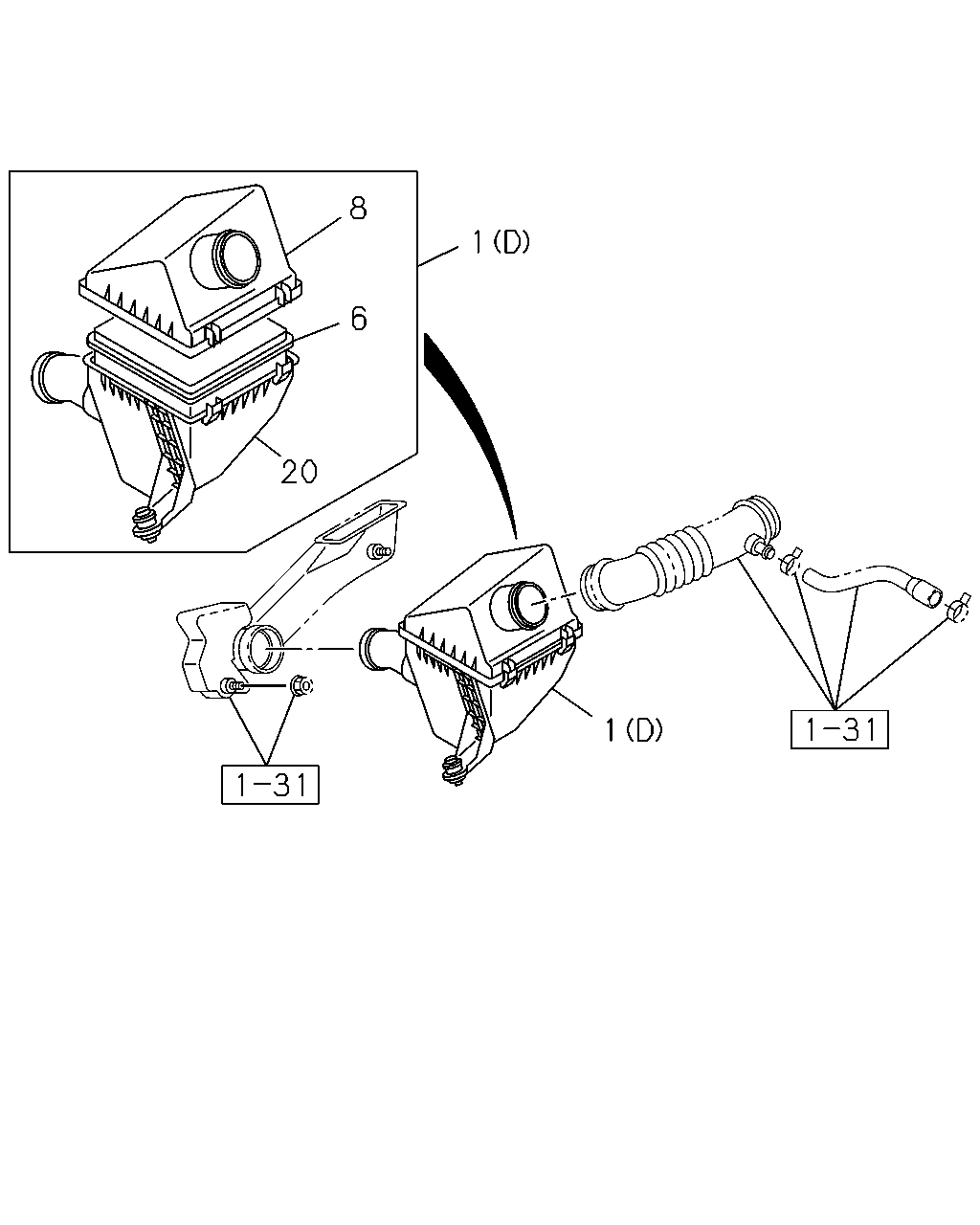

8 1 6 20 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (D)	8-97234-241-2	01	1	0306-	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97353-103-0	01	1	0306-		●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97942-410-3	01	1	0306-		●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97352-364-0	01	1	0306-0609			●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (E)	8-97368-828-4	01	1	0610-				●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97307-747-1	01	1	0306-0407			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97377-914-0	01	1	0408-0609			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98027-483-0	01	1	0610-				●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (D)	8-97234-199-2	01	1	0306-0502	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (D)	8-98004-959-0	01	1	0503-	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97941-655-0	01	1	0306-0407			●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97251-943-0	01	1	0306-	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0306-0407		●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	0306-0407			●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0408-0609		●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0610-		●		●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97251-944-0	01	1	0306-0502	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97369-293-0	01	1	0503-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97329-271-0	01	1	0306-	●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97324-500-1	01	1	0306-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-927-0	01	1	0306-		●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-103-0	01	1	0306-0609			●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97377-902-1	01	1	0610-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97367-737-0	01	1	0306-0609			●
20	03.406 CASE ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97324-499-2	01	1	0306-	●

78 8 91 106 91 1 6 23 37 229 94 11 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (D)	8-97234-241-2	01	1	0306-	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97353-103-0	01	1	0306-		●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97942-410-3	01	1	0306-		●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97352-364-0	01	1	0306-0609			●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (E)	8-97368-828-4	01	1	0610-				●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97307-747-1	01	1	0306-0407			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97377-914-0	01	1	0408-0609			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98027-483-0	01	1	0610-				●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (D)	8-97234-199-2	01	1	0306-0502	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (D)	8-98004-959-0	01	1	0503-	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97941-655-0	01	1	0306-0407			●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97251-943-0	01	1	0306-	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0306-0407		●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	0306-0407			●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0408-0609		●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0610-		●		●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97251-944-0	01	1	0306-0502	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97369-293-0	01	1	0503-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97329-271-0	01	1	0306-	●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97324-500-1	01	1	0306-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-927-0	01	1	0306-		●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-103-0	01	1	0306-0609			●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97377-902-1	01	1	0610-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97367-737-0	01	1	0306-0609			●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0306-0609		●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0610-		●		●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97376-920-0	03	1	0610-				●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-932-0	03	1	0306-0609		●	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-932-0	03	1	0610-		●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97376-919-0	03	1	0610-				●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-930-0	03	1	0306-0609		●	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-930-0	03	1	0610-		●
78	03.403 GROMMET; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97213-787-0	01	1	0306-		●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R> (A)	8-97357-105-0	01	1	0306-0609			●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R> (A)	8-97357-105-0	02	1	0610-				●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R> (B)	8-97357-106-0	01	1	0306-0609			●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0306-0609		●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0610-		●		●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0306-0609		●	●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0610-		●		●
106	03.417 HOSE; CONN,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97357-104-0	01	1	0306-0609			●
106	03.417 HOSE; CONN,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97377-905-0	01	1	0610-				●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97377-903-0	01	1	0610-				●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97944-401-0	01	1	0408-0609			●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	0610-				●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97942-929-0	01	1	0306-0609		●	●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97942-929-0	01	1	0610-		●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-102-0	01	1	0306-0407		●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-102-0	01	1	0408-		●

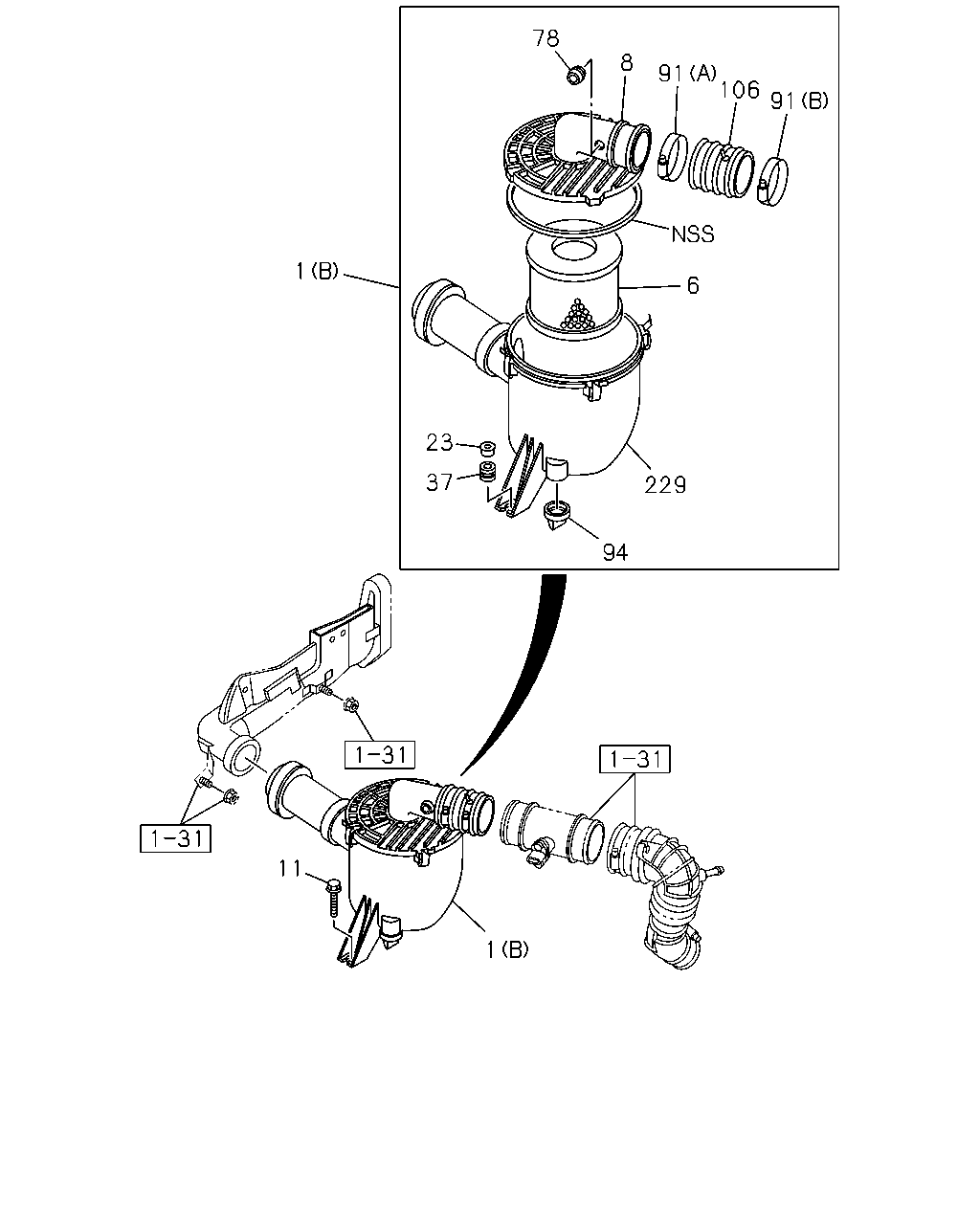

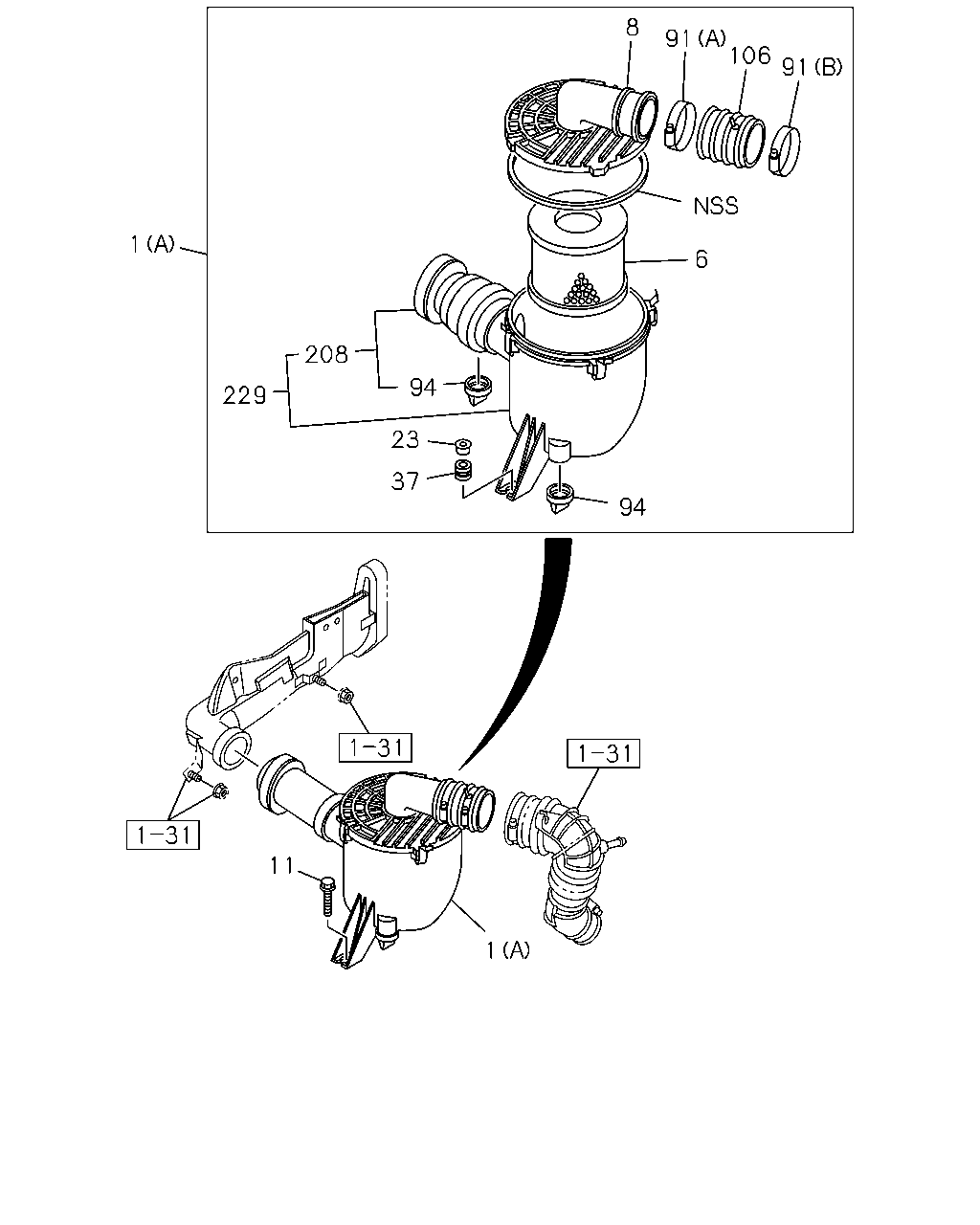

8 91 106 91 1 6 208 94 229 23 37 94 11 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (D)	8-97234-241-2	01	1	0306-	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97353-103-0	01	1	0306-		●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97942-410-3	01	1	0306-		●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97352-364-0	01	1	0306-0609			●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (E)	8-97368-828-4	01	1	0610-				●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97307-747-1	01	1	0306-0407			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97377-914-0	01	1	0408-0609			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98027-483-0	01	1	0610-				●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (D)	8-97234-199-2	01	1	0306-0502	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (D)	8-98004-959-0	01	1	0503-	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97941-655-0	01	1	0306-0407			●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97251-943-0	01	1	0306-	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0306-0407		●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	0306-0407			●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0408-0609		●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0610-		●		●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97251-944-0	01	1	0306-0502	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97369-293-0	01	1	0503-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97329-271-0	01	1	0306-	●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97324-500-1	01	1	0306-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-927-0	01	1	0306-		●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-103-0	01	1	0306-0609			●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97377-902-1	01	1	0610-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97367-737-0	01	1	0306-0609			●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0306-0609		●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0610-		●		●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97376-920-0	03	1	0610-				●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-932-0	03	1	0306-0609		●	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-932-0	03	1	0610-		●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97376-919-0	03	1	0610-				●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-930-0	03	1	0306-0609		●	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-930-0	03	1	0610-		●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R> (A)	8-97357-105-0	01	1	0306-0609			●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R> (A)	8-97357-105-0	02	1	0610-				●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R> (B)	8-97357-106-0	01	1	0306-0609			●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0306-0609		●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0610-		●		●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0306-0609		●	●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0610-		●		●
106	03.417 HOSE; CONN,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97357-104-0	01	1	0306-0609			●
106	03.417 HOSE; CONN,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97377-905-0	01	1	0610-				●
208	03.407 DUCT; ACL HEAVY DUTY AIR CLEANER<K46>	8-98048-570-0	01	1	0408-0609			●
208	03.407 DUCT; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97377-904-0	01	1	0610-				●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97377-903-0	01	1	0610-				●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97944-401-0	01	1	0408-0609			●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	0610-				●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97942-929-0	01	1	0306-0609		●	●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97942-929-0	01	1	0610-		●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-102-0	01	1	0306-0407		●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-102-0	01	1	0408-		●

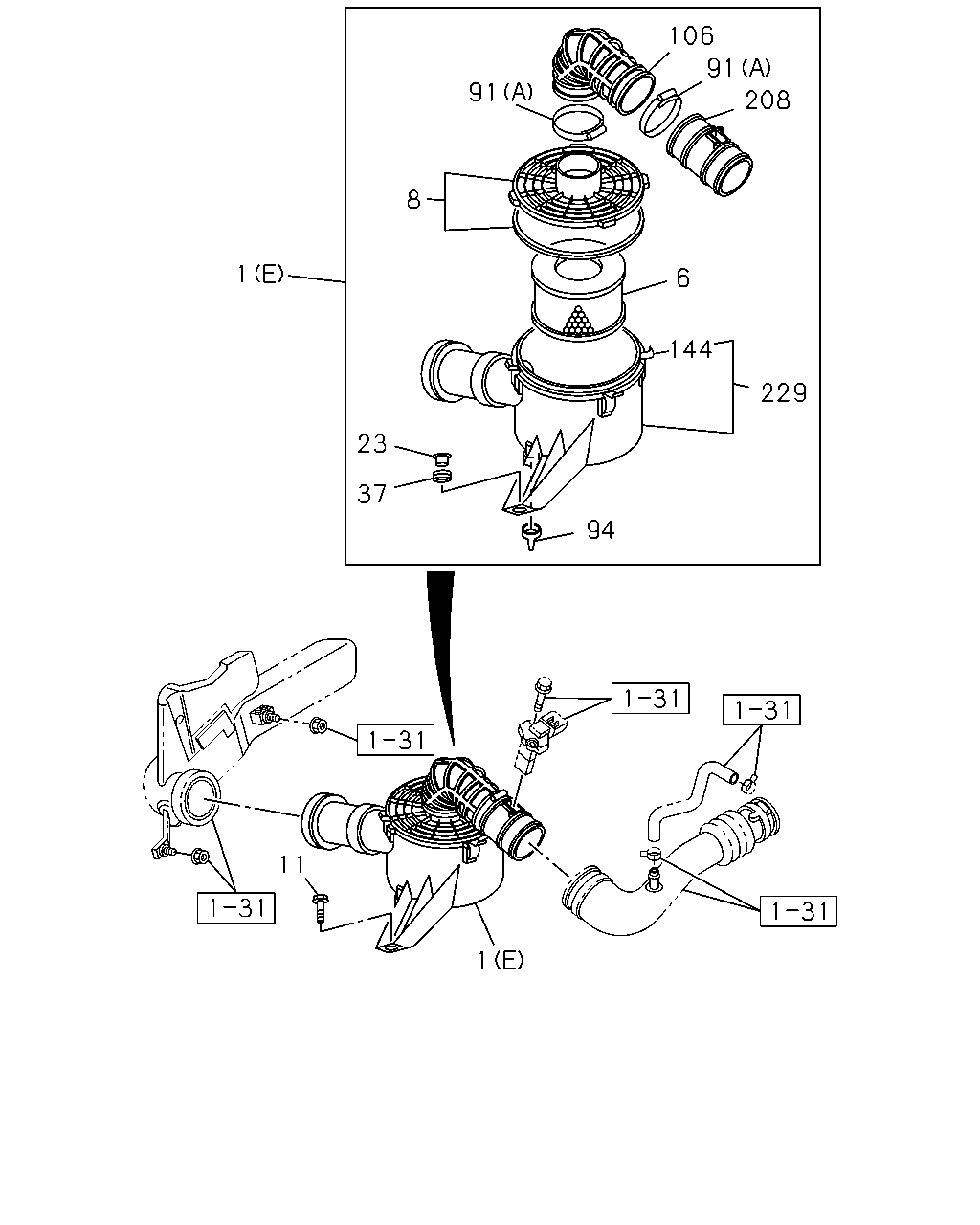

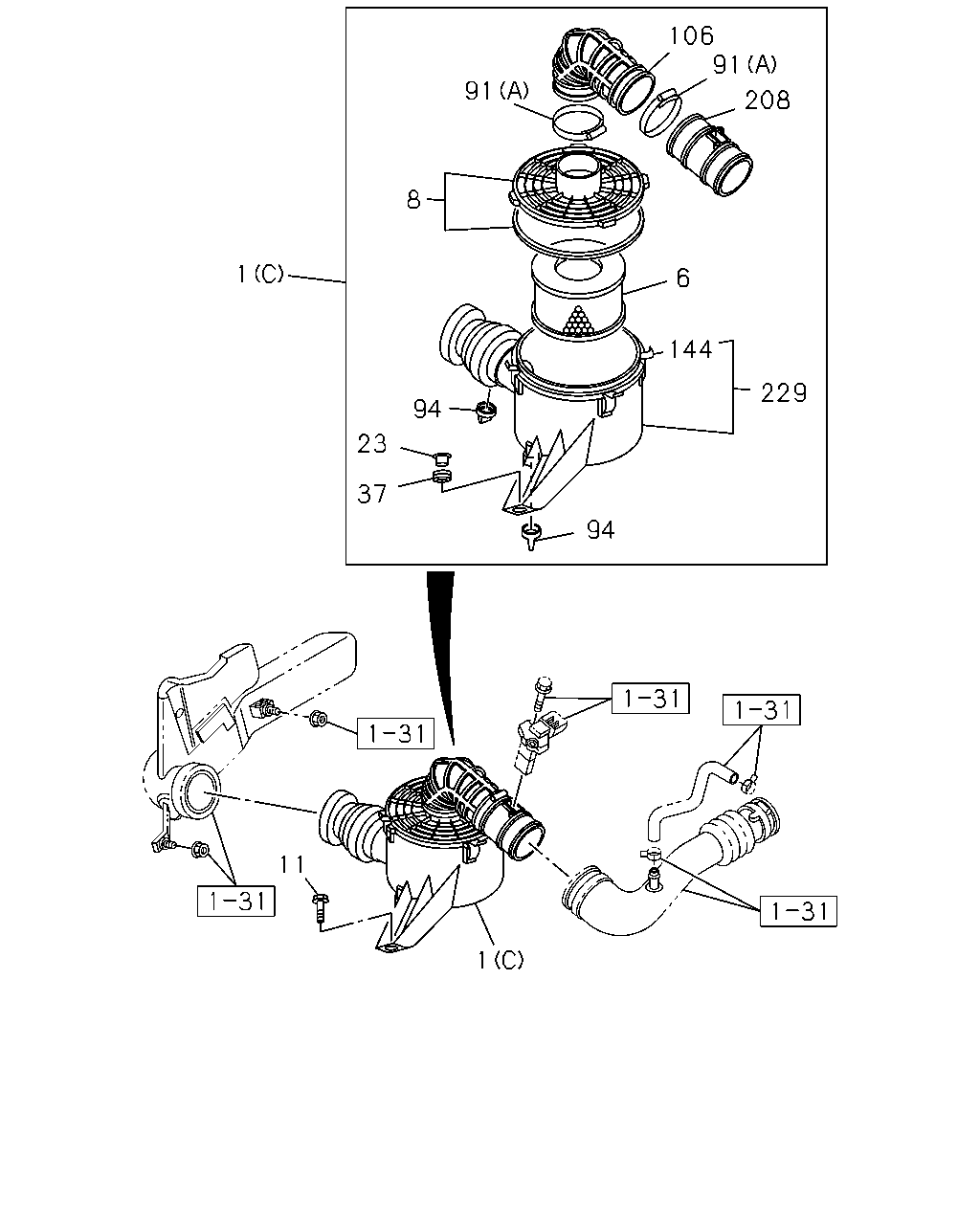

106 91 91 208 8 1 6 144 229 23 37 94 11 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (D)	8-97234-241-2	01	1	0306-	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97353-103-0	01	1	0306-		●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97942-410-3	01	1	0306-		●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97352-364-0	01	1	0306-0609			●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (E)	8-97368-828-4	01	1	0610-				●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97307-747-1	01	1	0306-0407			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97377-914-0	01	1	0408-0609			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98027-483-0	01	1	0610-				●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (D)	8-97234-199-2	01	1	0306-0502	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (D)	8-98004-959-0	01	1	0503-	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97941-655-0	01	1	0306-0407			●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97251-943-0	01	1	0306-	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0306-0407		●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	0306-0407			●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0408-0609		●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0610-		●		●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97251-944-0	01	1	0306-0502	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97369-293-0	01	1	0503-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97329-271-0	01	1	0306-	●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97324-500-1	01	1	0306-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-927-0	01	1	0306-		●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-103-0	01	1	0306-0609			●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97377-902-1	01	1	0610-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97367-737-0	01	1	0306-0609			●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0306-0609		●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0610-		●		●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97376-920-0	03	1	0610-				●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-932-0	03	1	0306-0609		●	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-932-0	03	1	0610-		●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97376-919-0	03	1	0610-				●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-930-0	03	1	0306-0609		●	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-930-0	03	1	0610-		●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R> (A)	8-97357-105-0	01	1	0306-0609			●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R> (A)	8-97357-105-0	02	1	0610-				●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R> (B)	8-97357-106-0	01	1	0306-0609			●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0306-0609		●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0610-		●		●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0306-0609		●	●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0610-		●		●
106	03.417 HOSE; CONN,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97357-104-0	01	1	0306-0609			●
106	03.417 HOSE; CONN,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97377-905-0	01	1	0610-				●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97324-624-0	04	1	1008-				●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97354-199-0	04	1	0610-1007				●
208	03.407 DUCT; ACL HEAVY DUTY AIR CLEANER<K46>	8-98048-570-0	01	1	0408-0609			●
208	03.407 DUCT; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97377-904-0	01	1	0610-				●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97377-903-0	01	1	0610-				●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97944-401-0	01	1	0408-0609			●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	0610-				●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97942-929-0	01	1	0306-0609		●	●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97942-929-0	01	1	0610-		●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-102-0	01	1	0306-0407		●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-102-0	01	1	0408-		●

106 91 91 208 8 1 6 144 229 94 23 37 94 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (D)	8-97234-241-2	01	1	0306-	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97353-103-0	01	1	0306-		●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97942-410-3	01	1	0306-		●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (B)	8-97352-364-0	01	1	0306-0609			●
1	03.402 CLEANER ASM; AIR AIR CLEANER DRY ELEMENT<S9R> (E)	8-97368-828-4	01	1	0610-				●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97307-747-1	01	1	0306-0407			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (A)	8-97377-914-0	01	1	0408-0609			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (C)	8-98027-483-0	01	1	0610-				●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (D)	8-97234-199-2	01	1	0306-0502	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (D)	8-98004-959-0	01	1	0503-	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97941-655-0	01	1	0306-0407			●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97251-943-0	01	1	0306-	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0306-0407		●
6	03.410 FILTER; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97944-570-0	01	1	0306-0407			●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0408-0609		●	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97944-570-0	01	1	0610-		●		●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97251-944-0	01	1	0306-0502	●
6	03.410 FILTER; ACL HEAVY DUTY AIR CLEANER<K46>	8-97369-293-0	01	1	0503-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97329-271-0	01	1	0306-	●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97324-500-1	01	1	0306-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-927-0	01	1	0306-		●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-103-0	01	1	0306-0609			●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97377-902-1	01	1	0610-				●
8	03.410 COVER ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97367-737-0	01	1	0306-0609			●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0306-0609		●	●
11	03.403 BOLT; ACL M8X30 FLANGE	0-28650-830-0	03	1	0610-		●		●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97376-920-0	03	1	0610-				●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-932-0	03	1	0306-0609		●	●
23	03.405 COLLAR; ACL STAY HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-932-0	03	1	0610-		●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97376-919-0	03	1	0610-				●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-930-0	03	1	0306-0609		●	●
37	03.406 RUBBER; MTG,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97942-930-0	03	1	0610-		●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R> (A)	8-97357-105-0	01	1	0306-0609			●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R> (A)	8-97357-105-0	02	1	0610-				●
91	03.403 CLAMP HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R> (B)	8-97357-106-0	01	1	0306-0609			●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0306-0609		●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	0610-		●		●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0306-0609		●	●
94	03.415 VALVE; VACUATOR AIR CLEANER DRY ELEMENT<S9R>	8-94447-157-0	01	1	0610-		●		●
106	03.417 HOSE; CONN,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97357-104-0	01	1	0306-0609			●
106	03.417 HOSE; CONN,ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97377-905-0	01	1	0610-				●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97324-624-0	04	1	1008-				●
144	03.403 CLIP; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97354-199-0	04	1	0610-1007				●
208	03.407 DUCT; ACL HEAVY DUTY AIR CLEANER<K46>	8-98048-570-0	01	1	0408-0609			●
208	03.407 DUCT; ACL HEAVY DUTY AIR CLEANER<K46>,AIR CLEANERDRY ELEMENT<S9R>	8-97377-904-0	01	1	0610-				●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97377-903-0	01	1	0610-				●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97944-401-0	01	1	0408-0609			●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98038-104-0	01	1	0610-				●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97942-929-0	01	1	0306-0609		●	●
229	03.406 BODY ASM; ACL AIR CLEANER DRY ELEMENT<S9R>	8-97942-929-0	01	1	0610-		●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-102-0	01	1	0306-0407		●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-97357-102-0	01	1	0408-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
