◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-85 - AUTO TIMER; INJECTION PUMP ▶
0-85 — AUTO TIMER; INJECTION PUMP (#77505) — 22 parça

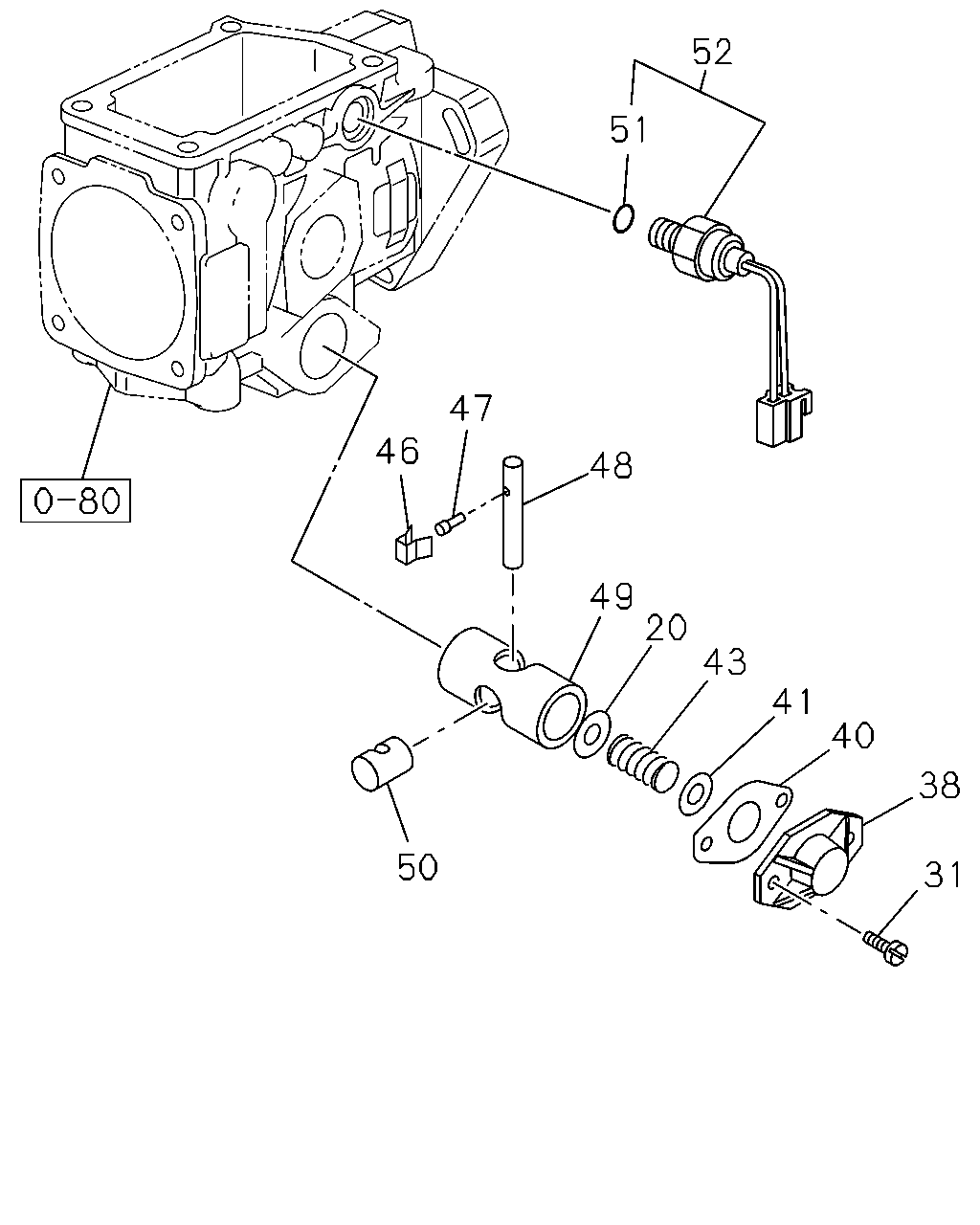

çizim 160393
52 51 47 46 48 49 20 43 41 40 38 50 31
BalonParca AdiParca NoAdetTipApplied Date
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.60 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-94227-495-0 01 1 -
31 03.330 SCREW; TIMER COVER,INJ PUMP
ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-97231-933-0 02 1 -
38 03.318 COVER; TIMER,INJ PUMP
ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-94227-500-0 01 1 -
40 03.330 GASKET; TIMER COVER,INJ PUMP
03.306 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398 		8-97224-532-0 01 1 -0406
40 03.330 GASKET; TIMER COVER,INJ PUMP
03.306 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398 		8-97383-765-0 01 1 0407-
40 03.330 GASKET; TIMER COVER,INJ PUMP
03.306 ASM PART: E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-97383-765-0 01 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
03.320, T=2.40 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-94121-620-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.60 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-94227-495-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.70 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-94227-496-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.90 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-94227-497-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.00 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-94227-498-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.20 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-94227-499-0 AR 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=43 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-94313-671-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=44.5 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-97328-701-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=47 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-97328-702-0 01 1 -
46 03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-94227-488-0 01 1 -
47 03.340 PIN; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-94227-487-0 01 1 -
48 03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM
ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-97214-493-0 01 1 -
49 03.330 PISTON; TIMER,INJ PUMP
ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-97231-928-0 01 1 -
50 03.340 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564, G = 8-98180-719-0, 98180719, H = 8-98180-720-0, 98180720 		8-97218-961-0 01 1 -
51 03.340 GASKET; TIMING SENSOR,INJ PUMP
03.306 ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564 		8-94227-671-0 01 1 -
52 03.340 SENSOR; TIMING,TACHOMETER,INJ PU
ASM PART: A = 8-97350-393-3, 97350393, B = 8-97350-394-3, 97350394, C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398, E = 8-98110-563-1, 98110563, F = 8-98110-564-0, 98110564 		8-94403-289-1 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
