0-84 — FEED PUMP; INJECTION PUMP (#77504) — 15 parça

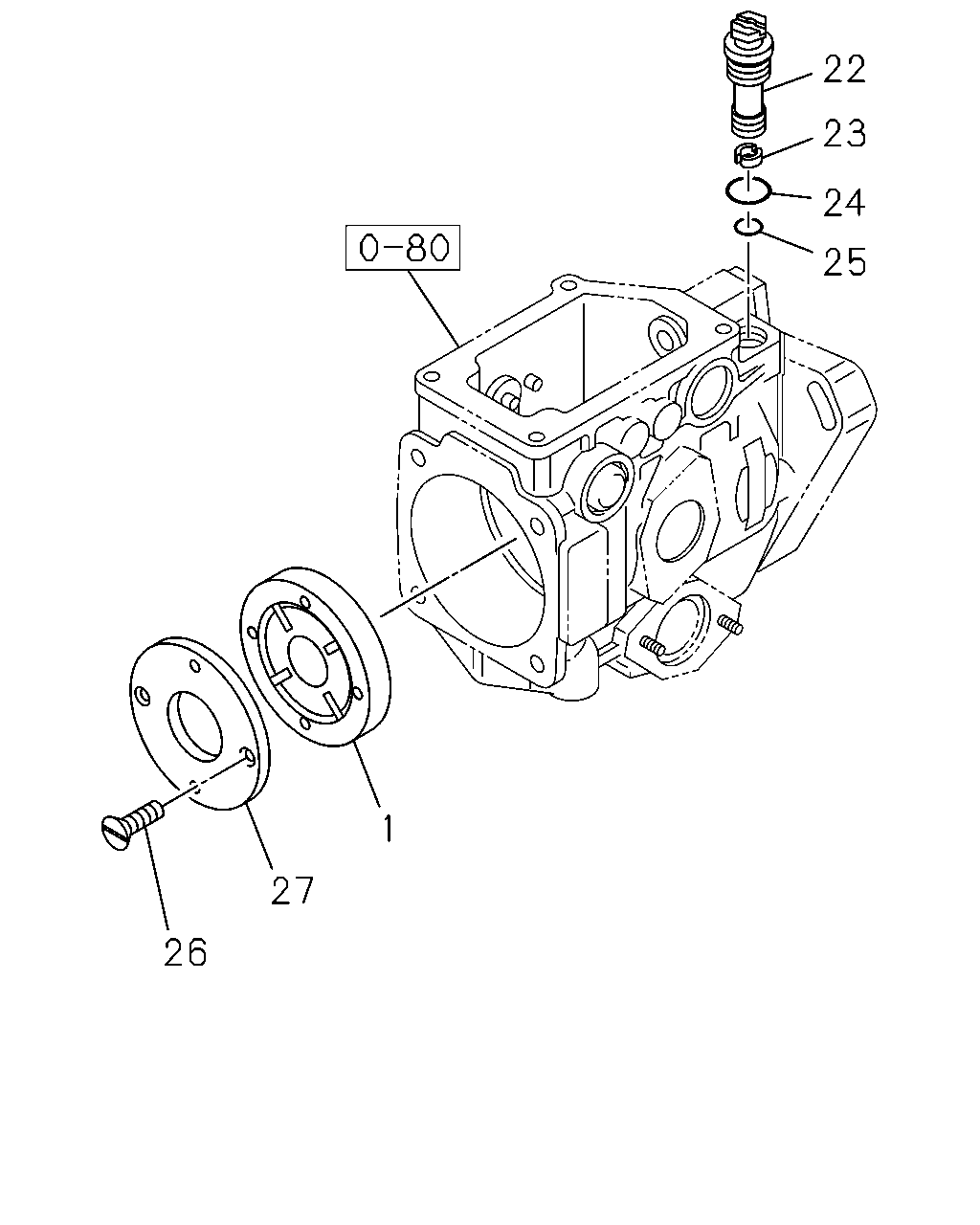

22 23 24 25 1 27 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP 03.340 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720	8-94227-477-0	01	1	-
22	03.901 VALVE; REGULATING,INJ PUMP STAMP 06 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720	8-94174-819-0	01	1	-
23	03.901 RING; SPRING,REGULATING VLV,INJ 03.320 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720	8-94227-643-0	01	1	-
24	03.904 GASKET; REGULATING VLV,INJ PUMP 03.330 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720	8-94227-641-0	01	1	-
24	03.904 GASKET; REGULATING VLV,INJ PUMP ASM PART: A = 8-97326-739-3, 97326739	8-97372-191-0	01	1	-
25	03.904 GASKET; REGULATING VLV,INJ PUMP 03.330 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720	8-94227-640-0	01	1	-
25	03.904 GASKET; REGULATING VLV,INJ PUMP ASM PART: A = 8-97326-739-3, 97326739	8-97372-190-0	01	1	-
26	03.901 SCREW; COVER FIX,FUEL FEED PUMP 03.330 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720	8-94227-479-0	02	1	-
27	03.910 COVER; FUEL FEED PUMP ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398	8-97218-959-0	01	1	-0406
27	03.910 COVER; FUEL FEED PUMP ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398	8-97386-241-0	01	1	0407-
27	03.910 COVER; FUEL FEED PUMP ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720	8-97386-241-0	01	1	-

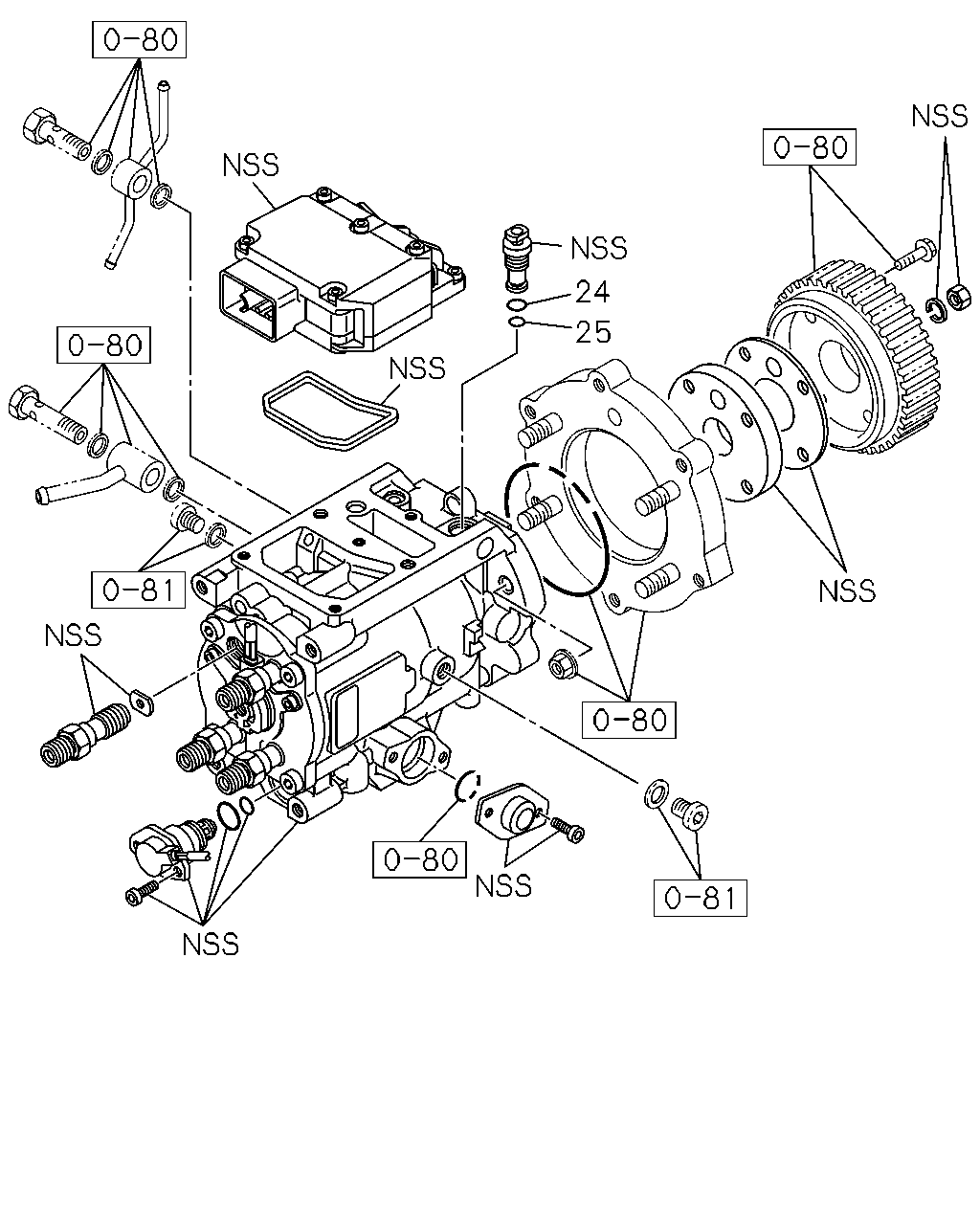

24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.904 GASKET; REGULATING VLV,INJ PUMP 03.330 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720	8-94227-641-0	01	1	-
24	03.904 GASKET; REGULATING VLV,INJ PUMP ASM PART: A = 8-97326-739-3, 97326739	8-97372-191-0	01	1	-
25	03.904 GASKET; REGULATING VLV,INJ PUMP 03.330 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720	8-94227-640-0	01	1	-
25	03.904 GASKET; REGULATING VLV,INJ PUMP ASM PART: A = 8-97326-739-3, 97326739	8-97372-190-0	01	1	-
