0-81 — GOVERNOR; INJECTION PUMP (#77502) — 181 parça

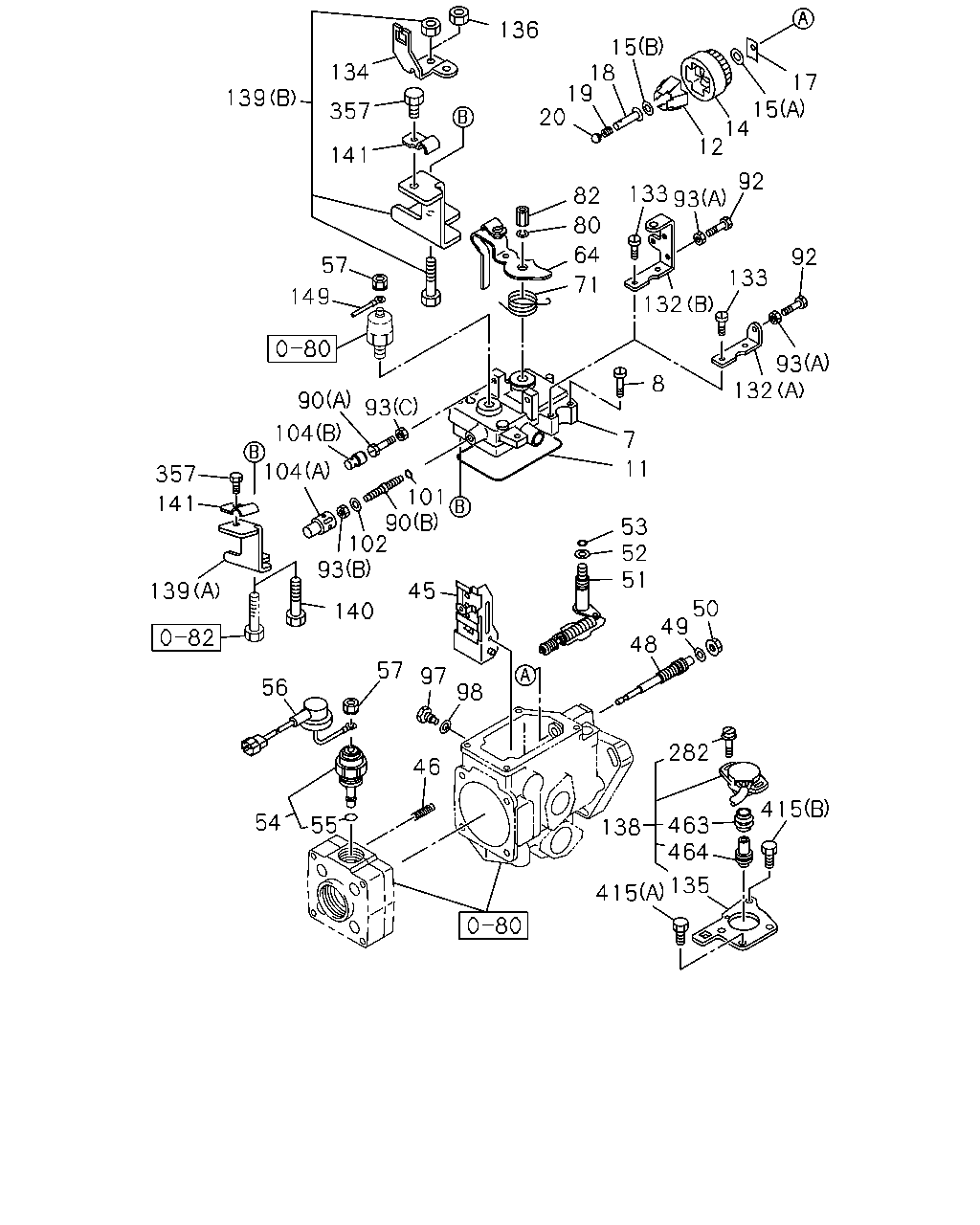

çizim 160322
136 15 18 19 20 134 17 139 15 14 12 357 141 92 133 93 82 80 64 92 57 133 71 132 149 93 132 8 90 93 104 7 104 11 357 101 90 102 93 141 53 52 51 45 139 50 49 48 140 57 97 56 98 282 46 415 54 55 463 464 138 135 415
BalonParca AdiParca NoAdetTipApplied Date
7 03.308 COVER; GOV HSG,INJ PUMP
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97228-602-0 01 1 -
7 03.308 COVER; GOV HSG,INJ PUMP
ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97368-267-0 01 1 -
8 01.531 BOLT; GOV COVER,INJ PUMP
03.330 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-636-0 04 1 -
11 03.308 GASKET; COVER TO HSG,GOV
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97136-413-0 01 1 -
12 03.308 FLYWEIGHT ASM; GOV
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97328-711-0 01 1 -
14 03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP
03.318 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-613-0 01 1 -
15 03.308 WASHER; LK,FLYWEIGHT FIX,GOV
03.318, (A) ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-612-0 01 1 -
15 03.308 WASHER; LK,FLYWEIGHT FIX,GOV
(B) ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94408-517-0 01 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.05 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-607-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.25 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-608-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.45 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-609-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.65 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-610-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.85 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-611-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.15 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94231-123-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.35 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94231-124-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.55 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94231-125-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.75 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94231-126-0 AR 1 -
18 03.308 SLEEVE; GOV
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97214-475-0 01 1 -
18 03.308 SLEEVE; GOV
ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-98114-844-0 01 1 -
19 03.308 CAP; GOV SLEEVE,INJ PUMP
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-519-0 01 1 -
19 03.308 CAP; GOV SLEEVE,INJ PUMP
ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-356-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.20 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94372-499-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.30 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94372-500-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.40 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94372-501-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.50 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94372-502-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.10 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-520-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.30 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-521-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.50 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-522-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.70 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-523-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.90 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-524-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.10 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-525-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.30 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-526-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.50 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-527-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.70 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-528-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.90 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-529-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.10 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-530-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.30 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-531-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.50 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-532-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.70 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-533-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.90 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-534-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.10 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94408-535-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.20 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-868-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.40 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-869-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.60 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-870-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=2.80 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-871-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.00 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-872-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.20 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-873-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.40 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-874-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.60 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-875-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=3.80 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-876-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.00 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-877-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.20 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-878-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.40 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-879-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.60 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-880-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=4.80 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-881-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.00 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94428-882-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.00 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-357-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.10 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-358-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.20 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-359-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.30 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-360-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.40 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-361-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.50 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-362-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.60 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-363-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.70 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-364-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.80 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-365-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.90 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-366-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.00 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-367-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.10 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-368-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.20 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-369-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.30 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-370-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.40 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-371-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.50 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-372-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.60 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-373-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.70 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-374-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.80 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-375-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.90 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-376-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.00 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-377-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.10 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-378-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.20 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-379-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.30 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-380-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.40 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-381-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.50 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-382-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.60 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-383-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.70 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-384-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.80 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-385-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.90 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-386-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=8.00 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-387-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=8.10 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-388-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=8.20 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-389-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=8.30 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-390-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=8.40 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97144-391-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.60 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97163-167-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.70 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97163-168-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.80 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97163-169-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.90 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97163-170-0 01 1 -
45 03.308 LEVER ASM; GOV,INJ PUMP
ASM PART: D = 8-97350-396-4, 97350396 		8-97096-689-0 01 1 -0805
45 03.308 LEVER ASM; GOV,INJ PUMP
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, E = 8-97350-398-3, 97350398 		8-97096-689-0 01 1 -
45 03.308 LEVER ASM; GOV,INJ PUMP
ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97332-036-0 01 1 -
45 03.308 LEVER ASM; GOV,INJ PUMP
ASM PART: D = 8-97350-396-4, 97350396 		8-97332-036-0 01 1 0806-
46 03.308 SPRING; GOV,INJ PUMP
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94473-128-0 02 1 -
48 03.308 SHAFT; GOV,INJ PUMP
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94248-002-0 01 1 -
49 03.308 GASKET; GOV SHAFT,INJ PUMP
03.318 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-606-0 01 1 -
50 03.308 NUT; GOV SHAFT,INJ PUMP
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94473-129-0 01 1 -
51 03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394 		8-97322-856-0 01 1 -
51 03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: D = 8-97350-396-4, 97350396 		8-97328-706-0 01 1 -0805
51 03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: E = 8-97350-398-3, 97350398 		8-97328-706-0 01 1 -
51 03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: D = 8-97350-396-4, 97350396 		8-98050-923-0 01 1 0806-
51 03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-98114-845-0 01 1 -
52 03.308 WASHER; CONT SHAFT,GOV
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-590-0 01 1 -
53 03.308 GASKET; CONT SHAFT,GOV
03.306 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-585-0 01 1 -
54 03.308 VALVE; MAG,ENG STOP,INJ PUMP
03.314 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94242-275-0 01 1 -
55 03.308 GASKET; MAG VLV,INJ PUMP
03.318 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94239-373-0 01 1 -
56 03.308 WIRE; LEAD,MAG VLV,INJ PUMP
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94470-582-0 01 1 -
57 03.318 NUT; VLV
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97138-042-1 02 1 -
64 03.308 LEVER; LOAD CONT,GOV
STAMP 118 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97119-200-0 01 1 -
64 03.308 LEVER; LOAD CONT,GOV
STAMP 119 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97119-201-0 01 1 -
64 03.308 LEVER; LOAD CONT,GOV
STAMP 280 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97328-707-0 01 1 -
64 03.308 LEVER; LOAD CONT,GOV
STAMP 279 ASM PART: F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-98050-935-0 01 1 -
64 03.308 LEVER; LOAD CONT,GOV
STAMP 279 ASM PART: D = 8-97350-396-4, 97350396 		8-98050-935-0 01 1 0806-
71 03.306 SPRING; CONT LEVER,GOV
03.308 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94313-218-0 01 1 -
80 03.308 WASHER; LK,CONT LEVER,GOV
00.206, ID=6.1 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		9-09150-506-0 01 1 -
82 03.308 NUT; CONT LEVER FIX,GOV
03.318 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		1-15729-006-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=53.0 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94316-274-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=55.0 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94316-275-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=57.0 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94316-276-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
01.531, (A) ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94426-049-0 01 1 -
92 03.308 BOLT; FULL LOAD STOPPER,GOV
01.531 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94426-049-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
03.318, (A) ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		1-15729-006-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
03.308, (B) ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94316-277-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94426-047-1 01 1 -
97 03.308 BOLT; PIVOT,GOV LEVER
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-601-0 02 1 -
97 03.308 BOLT; PIVOT,GOV LEVER
ASM PART: A = 8-97326-739-3, 97326739 		8-97331-770-0 02 1 -
98 03.308 GASKET; PIVOT BOLT,GOV LEVER
03.306 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-602-0 02 1 -
98 03.308 GASKET; PIVOT BOLT,GOV LEVER
ASM PART: A = 8-97326-739-3, 97326739 		8-97372-107-0 02 1 -
101 03.308 GASKET; ADJ SPRING CAPSULE,GOV
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-598-0 01 1 -
102 03.308 WASHER; FULL LOAD ADJ SCREW,GOV
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-593-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(A), L=16.5 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94316-262-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=18.0 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94316-263-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=21.0 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94316-264-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=24.0 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94316-265-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=27.0 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94316-266-0 01 1 -
132 03.308 BRACKET; ADJ SCREW,GOV
(A) ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94457-165-1 01 1 -
132 03.308 BRACKET; ADJ SCREW,GOV
(B) ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97328-705-0 01 1 -
133 03.308 BOLT; BRKT FIX,GOV
M6X12 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94313-267-0 02 1 -
134 03.308 BRACKET; CONT CABLE,GOV
ASM PART: C = 8-97350-394-3, 97350394, E = 8-97350-398-3, 97350398, G = 8-98110-564-0, 98110564, I = 8-98180-720-0, 98180720 		8-97322-854-0 01 1 -
135 03.330 BRACKET; POTENTIO METER
ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97368-270-0 01 1 -
136 03.308 NUT; BRKT BOLT
03.318 ASM PART: G = 8-98110-564-0, 98110564, I = 8-98180-720-0, 98180720 		1-15729-006-0 01 1 -
138 03.330 POTENTIO METER
ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97368-269-0 01 1 -
139 03.485 BRACKET; INJ PUMP
(A) ASM PART: B = 8-97350-393-3, 97350393, D = 8-97350-396-4, 97350396, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97263-483-0 01 1 -
139 03.485 BRACKET; INJ PUMP
(B) ASM PART: C = 8-97350-394-3, 97350394, E = 8-97350-398-3, 97350398 		8-97368-179-0 01 1 -
140 03.330 BOLT; BRKT,INJ PUMP
03.308 ASM PART: G = 8-98110-564-0, 98110564, I = 8-98180-720-0, 98180720 		8-94313-264-0 01 1 -
141 03.308 PLATE ASM; PIPE BRKT
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-97182-233-0 01 1 -
149 03.330 WIRE; VLV
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94316-278-0 01 1 -
282 03.308 SCREW; POTENTIO METER
ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97148-143-0 02 1 -
357 03.308 BOLT; PLATE,GOV
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94174-987-0 01 1 -
415 03.306 BOLT; BRKT TO HOUSING
(A) ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-94313-203-0 02 1 -
415 03.306 BOLT; BRKT TO HOUSING
(B) ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97020-720-0 01 1 -
463 03.308 BOOT; POTENTIO METER
ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97148-144-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=15 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97168-229-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=30 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97168-230-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=45 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97168-231-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=60 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97168-232-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=75 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97168-233-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=52.5 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97168-234-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=48.5 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97168-235-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=37.5 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97168-236-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=90 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97214-514-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=105 DEGREES ASM PART: D = 8-97350-396-4, 97350396 		8-97214-515-0 01 1 -0805
464 03.308 JOINT; POTENTIO METER
ANGLE=105 DEGREES ASM PART: E = 8-97350-398-3, 97350398 		8-97214-515-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=120 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97214-516-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=135 DEGREES ASM PART: E = 8-97350-398-3, 97350398 		8-97214-517-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=135 DEGREES ASM PART: D = 8-97350-396-4, 97350396 		8-97214-517-0 01 1 -0805
464 03.308 JOINT; POTENTIO METER
ANGLE=150 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97214-518-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=165 DEGREES ASM PART: E = 8-97350-398-3, 97350398 		8-97214-519-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=165 DEGREES ASM PART: D = 8-97350-396-4, 97350396 		8-97214-519-0 01 1 -0805
464 03.308 JOINT; POTENTIO METER
ANGLE=0 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97214-520-0 01 1 -
464 03.308 JOINT; POTENTIO METER
ANGLE=7.5 DEGREES ASM PART: D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398 		8-97368-271-0 01 1 -

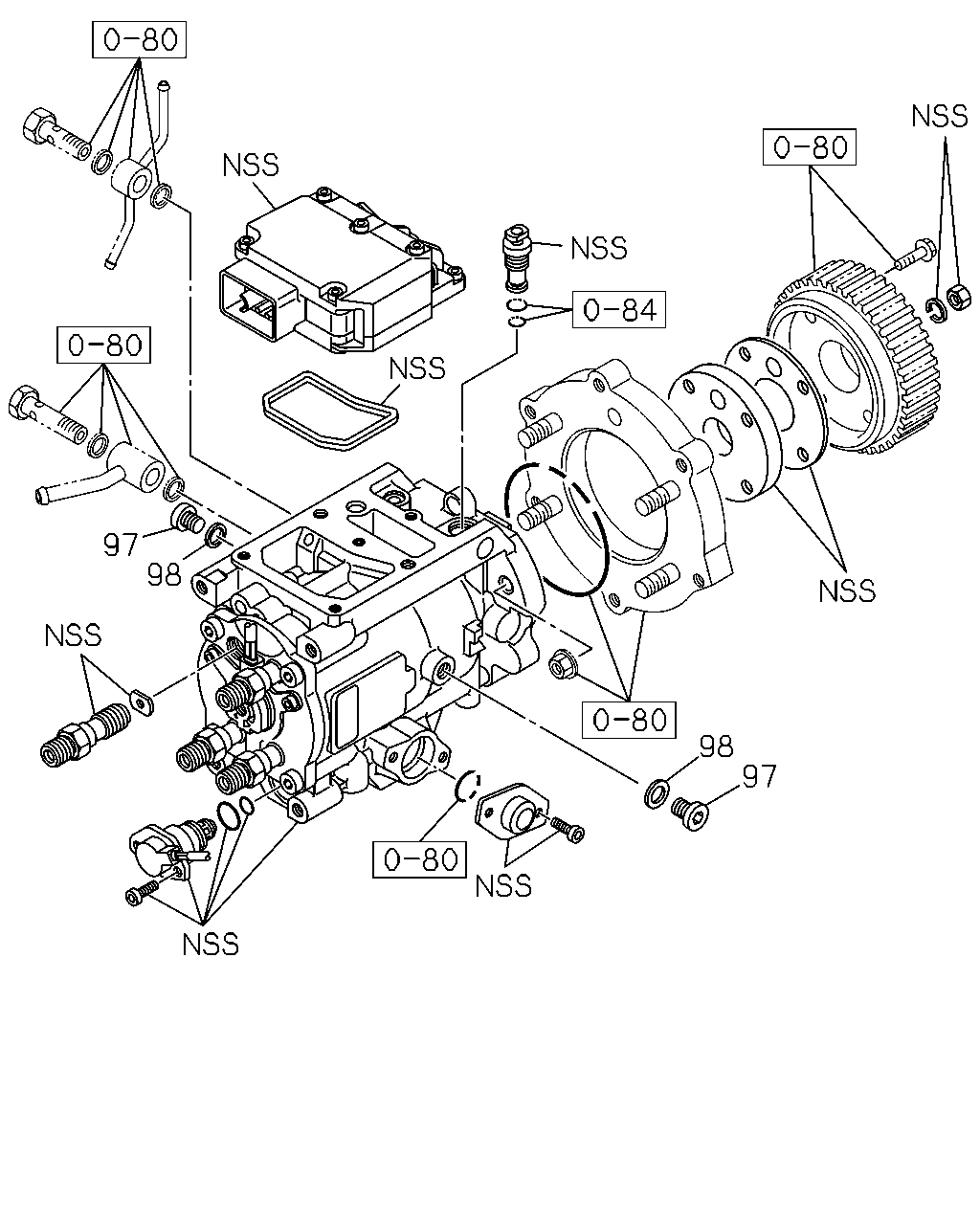

çizim 160340
97 98 98 97
BalonParca AdiParca NoAdetTipApplied Date
97 03.308 BOLT; PIVOT,GOV LEVER
ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-601-0 02 1 -
97 03.308 BOLT; PIVOT,GOV LEVER
ASM PART: A = 8-97326-739-3, 97326739 		8-97331-770-0 02 1 -
98 03.308 GASKET; PIVOT BOLT,GOV LEVER
03.306 ASM PART: B = 8-97350-393-3, 97350393, C = 8-97350-394-3, 97350394, D = 8-97350-396-4, 97350396, E = 8-97350-398-3, 97350398, F = 8-98110-563-1, 98110563, G = 8-98110-564-0, 98110564, H = 8-98180-719-0, 98180719, I = 8-98180-720-0, 98180720 		8-94227-602-0 02 1 -
98 03.308 GASKET; PIVOT BOLT,GOV LEVER
ASM PART: A = 8-97326-739-3, 97326739 		8-97372-107-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
