4-80 — ROAD WHEEL (#775) — 117 parça

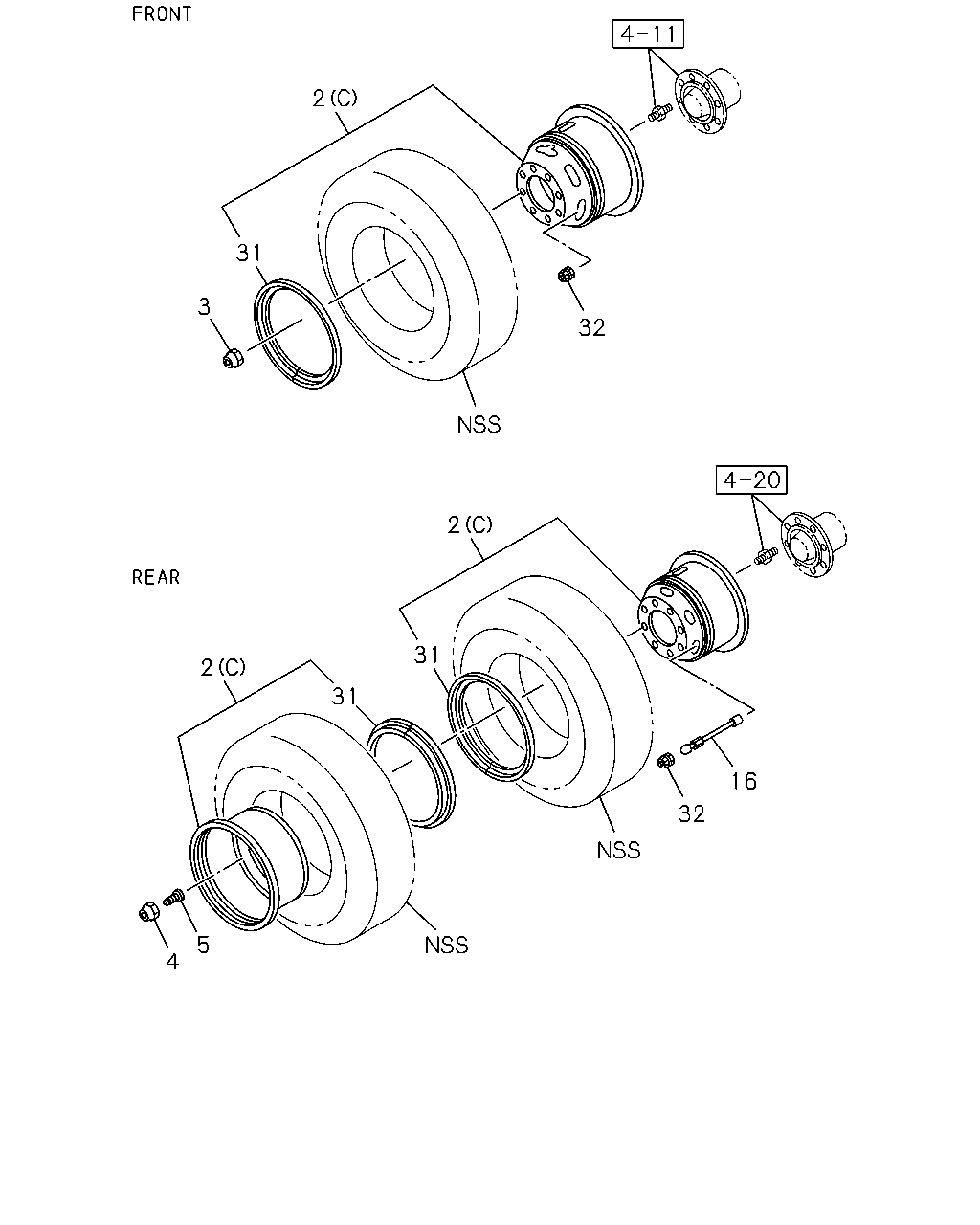

2 31 3 32 2 31 2 31 16 32 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (A)	1-42350-167-1	10	1	9204-9301
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (A)	1-42350-447-0	10	1	9302-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPARE<N79> (A)	1-42350-167-1	01	1	9204-9301
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A)	1-42350-167-1	01	1	9204-9301
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPARE<N79> (A)	1-42350-447-0	01	1	9302-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A)	1-42350-447-0	01	1	9302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A)	1-42350-161-2	10	1	9204-9301
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A)	1-42350-448-0	10	1	9302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) DISC WHEEL SPARE<N79> (A)	1-42350-161-2	01	1	9204-9301
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A)	1-42350-161-2	01	1	9204-9301
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) DISC WHEEL SPARE<N79> (A)	1-42350-448-0	01	1	9302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A)	1-42350-448-0	01	1	9302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B)	1-42350-338-2	10	1	9204-9312
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B)	1-42350-464-0	10	1	9401-9406
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B)	1-42350-278-2	10	1	9407-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPARE<N79> (B)	1-42350-338-2	01	1	9204-9312
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42350-338-2	01	1	9204-9312
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPARE<N79> (B)	1-42350-464-0	01	1	9401-9406
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42350-464-0	01	1	9401-9406
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPARE<N79> (B)	1-42350-278-2	01	1	9407-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42350-278-2	01	1	9407-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42350-331-0	10	1	9204-9312
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42350-467-0	10	1	9401-9406
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42350-254-2	10	1	9407-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79> (B)	1-42350-331-0	01	1	9204-9312
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42350-331-0	01	1	9204-9312
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79> (B)	1-42350-467-0	01	1	9401-9406
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42350-467-0	01	1	9401-9406
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79> (B)	1-42350-254-2	01	1	9407-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42350-254-2	01	1	9407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) (C)	1-42350-420-0	10	1	9505-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46> (C)	1-42350-420-0	01	1	9505-
3	NUT; WHEEL,FRT AXLE M22 RH THREAD	1-42333-042-0	20	1	9204-9504
3	NUT; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24	1-42333-022-0	08	1	9505-
3	NUT; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24 LH THREAD	1-42334-022-0	08	1	9505-
3	NUT; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22 RH THREAD	1-42333-042-0	20	1	9505-
4	NUT; WHEEL,RR AXLE M22 RH THREAD	1-42333-042-0	40	1	9204-9504
4	NUT; WHEEL,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M30	1-42333-023-0	16	1	9505-
4	NUT; WHEEL,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M30 LH THREAD	1-42334-023-0	16	1	9505-
4	NUT; WHEEL,RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22 RH THREAD	1-42333-042-0	40	1	9505-
5	NUT; WHEEL,INNER,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OUTER M30,INNER M20 RH THREAD	1-42335-005-0	16	1	9505-
5	NUT; WHEEL,INNER,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OUTER M30,INNER M20 LH THREAD	1-42336-005-0	16	1	9505-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) L=170	1-42370-024-0	04	1	9204-9504
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	04	1	9505-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58)	1-42355-012-1	10	1	9204-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPARE<N79>	1-42355-012-1	01	1	9204-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42355-012-1	01	1	9204-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	10	1	9204-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) DISC WHEEL SPARE<N79>	1-42355-014-0	01	1	9204-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42355-014-0	01	1	9204-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-004-1	10	1	9505-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46>	1-42355-004-1	01	1	9505-
32	CAP; VALVE DISC WHEEL SPARE<N79>	1-42374-001-0	11	1	9304-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	11	1	9304-
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	10	1	9304-

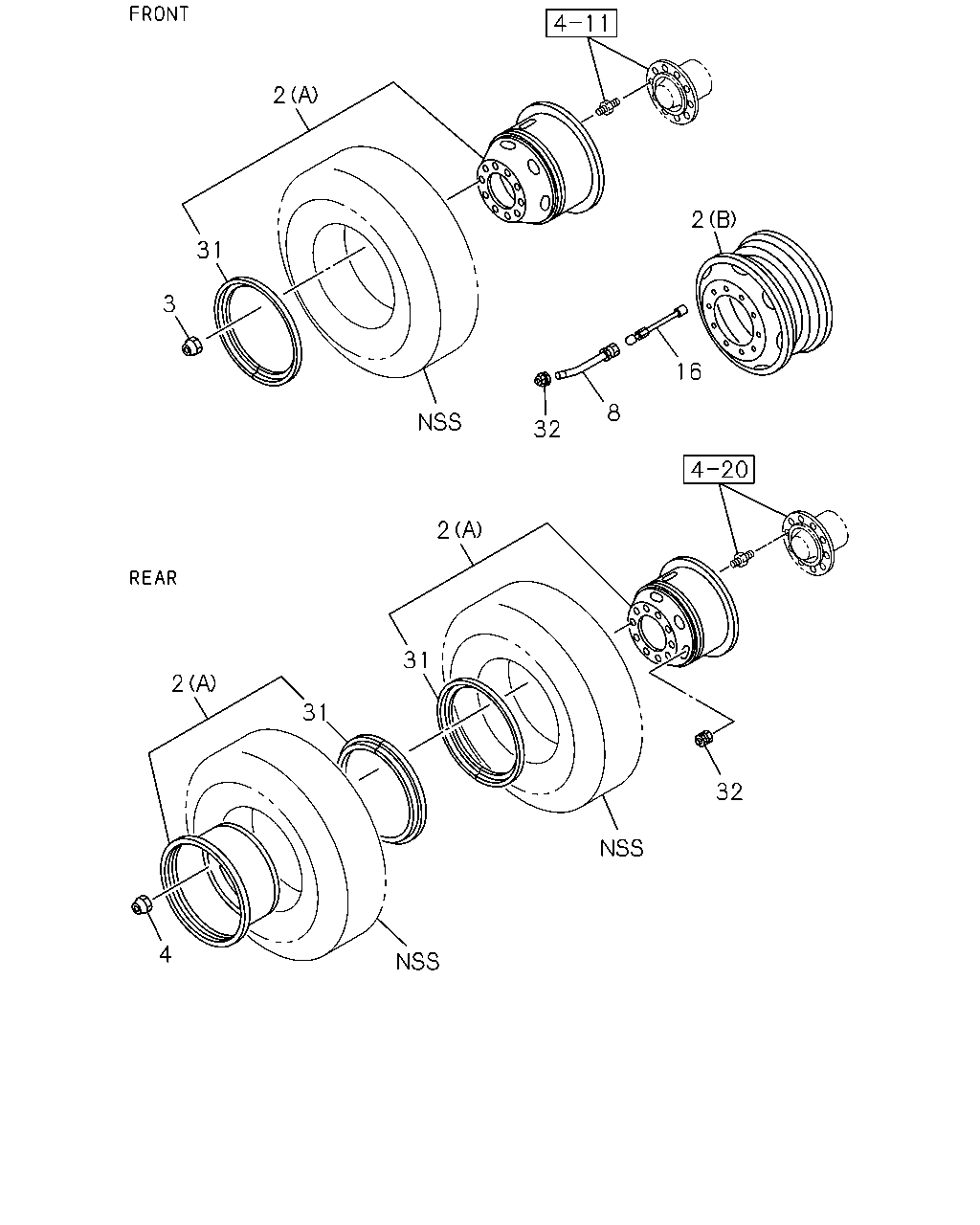

2 2 31 3 16 8 32 2 31 2 31 32 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (A)	1-42350-167-1	10	1	9204-9301
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (A)	1-42350-447-0	10	1	9302-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPARE<N79> (A)	1-42350-167-1	01	1	9204-9301
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A)	1-42350-167-1	01	1	9204-9301
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPARE<N79> (A)	1-42350-447-0	01	1	9302-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A)	1-42350-447-0	01	1	9302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A)	1-42350-161-2	10	1	9204-9301
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A)	1-42350-448-0	10	1	9302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) DISC WHEEL SPARE<N79> (A)	1-42350-161-2	01	1	9204-9301
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A)	1-42350-161-2	01	1	9204-9301
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) DISC WHEEL SPARE<N79> (A)	1-42350-448-0	01	1	9302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A)	1-42350-448-0	01	1	9302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B)	1-42350-338-2	10	1	9204-9312
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B)	1-42350-464-0	10	1	9401-9406
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B)	1-42350-278-2	10	1	9407-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPARE<N79> (B)	1-42350-338-2	01	1	9204-9312
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42350-338-2	01	1	9204-9312
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPARE<N79> (B)	1-42350-464-0	01	1	9401-9406
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42350-464-0	01	1	9401-9406
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPARE<N79> (B)	1-42350-278-2	01	1	9407-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42350-278-2	01	1	9407-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42350-331-0	10	1	9204-9312
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42350-467-0	10	1	9401-9406
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42350-254-2	10	1	9407-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79> (B)	1-42350-331-0	01	1	9204-9312
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42350-331-0	01	1	9204-9312
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79> (B)	1-42350-467-0	01	1	9401-9406
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42350-467-0	01	1	9401-9406
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79> (B)	1-42350-254-2	01	1	9407-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42350-254-2	01	1	9407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) (C)	1-42350-420-0	10	1	9505-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46> (C)	1-42350-420-0	01	1	9505-
3	NUT; WHEEL,FRT AXLE M22 RH THREAD	1-42333-042-0	20	1	9204-9504
3	NUT; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24	1-42333-022-0	08	1	9505-
3	NUT; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24 LH THREAD	1-42334-022-0	08	1	9505-
3	NUT; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22 RH THREAD	1-42333-042-0	20	1	9505-
4	NUT; WHEEL,RR AXLE M22 RH THREAD	1-42333-042-0	40	1	9204-9504
4	NUT; WHEEL,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M30	1-42333-023-0	16	1	9505-
4	NUT; WHEEL,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M30 LH THREAD	1-42334-023-0	16	1	9505-
4	NUT; WHEEL,RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22 RH THREAD	1-42333-042-0	40	1	9505-
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-12(Q87)	1-42370-022-3	10	1	9204-9306
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPARE<N79>	1-42370-022-3	01	1	9204-9306
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42370-022-3	01	1	9204-9306
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-020-3	10	1	9204-9306
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87)	1-42370-020-3	10	1	9307-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79>	1-42370-020-3	01	1	9204-9306
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42370-020-3	01	1	9204-9306
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPARE<N79>	1-42370-020-3	01	1	9307-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42370-020-3	01	1	9307-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) L=170	1-42370-024-0	04	1	9204-9504
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	04	1	9505-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58)	1-42355-012-1	10	1	9204-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPARE<N79>	1-42355-012-1	01	1	9204-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42355-012-1	01	1	9204-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	10	1	9204-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) DISC WHEEL SPARE<N79>	1-42355-014-0	01	1	9204-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42355-014-0	01	1	9204-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-004-1	10	1	9505-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46>	1-42355-004-1	01	1	9505-
32	CAP; VALVE DISC WHEEL SPARE<N79>	1-42374-001-0	11	1	9304-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	11	1	9304-
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	10	1	9304-
